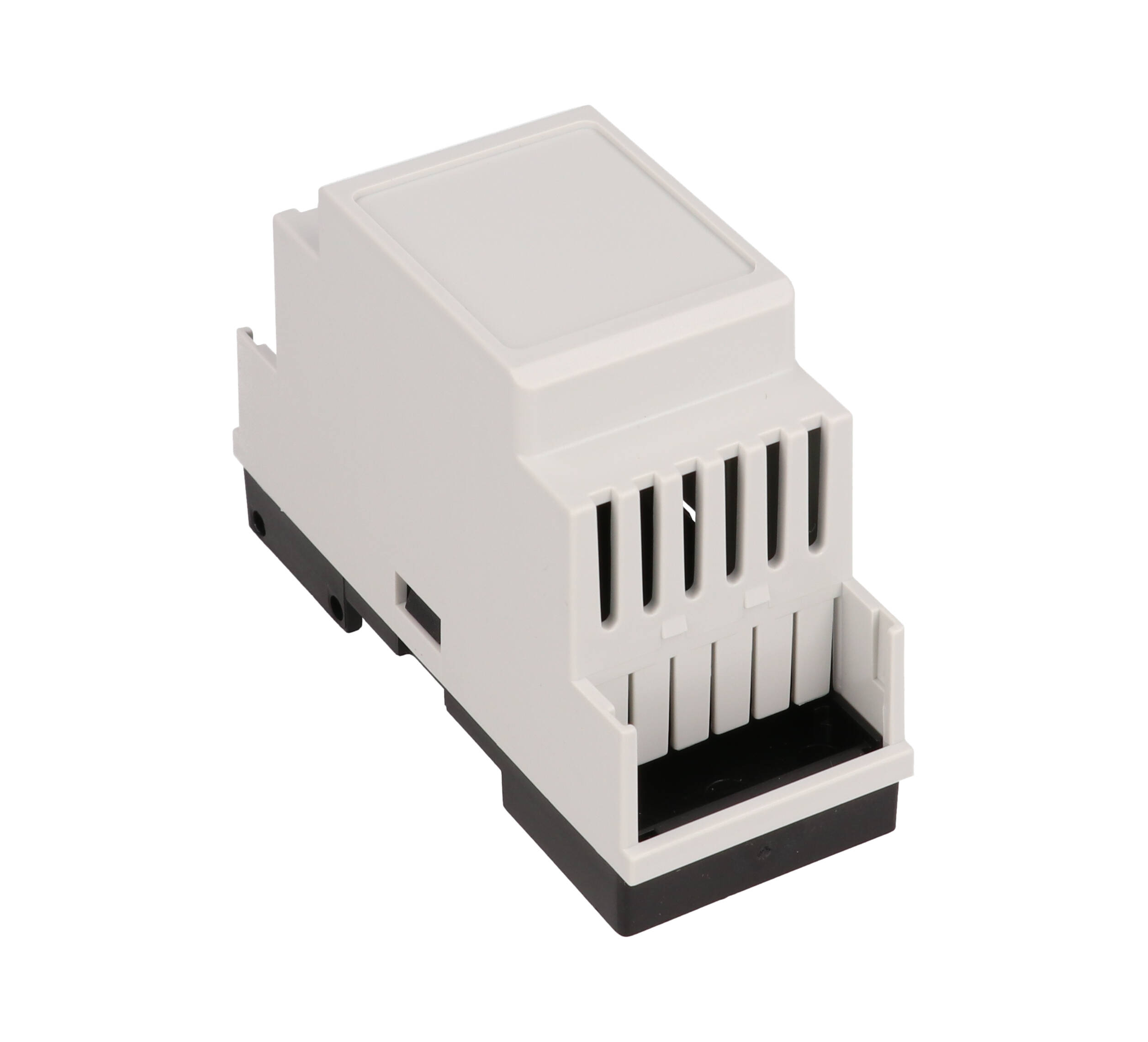

2 Module Enclosure
- Type 2 Module
- Cover Spaces 2
$3.77In stock
Buy now
DIN Rail Mounted Enclosures · 1597DIN Series
Brand: Hammond Manufacturing · 14 part numbers
- ■Ideally suited for housing electronics for DIN rail-mounted devices. Applications include: Industrial drives and controls Automation HVAC IoT
- ■Industrial drives and controls
- ■Automation
- ■HVAC

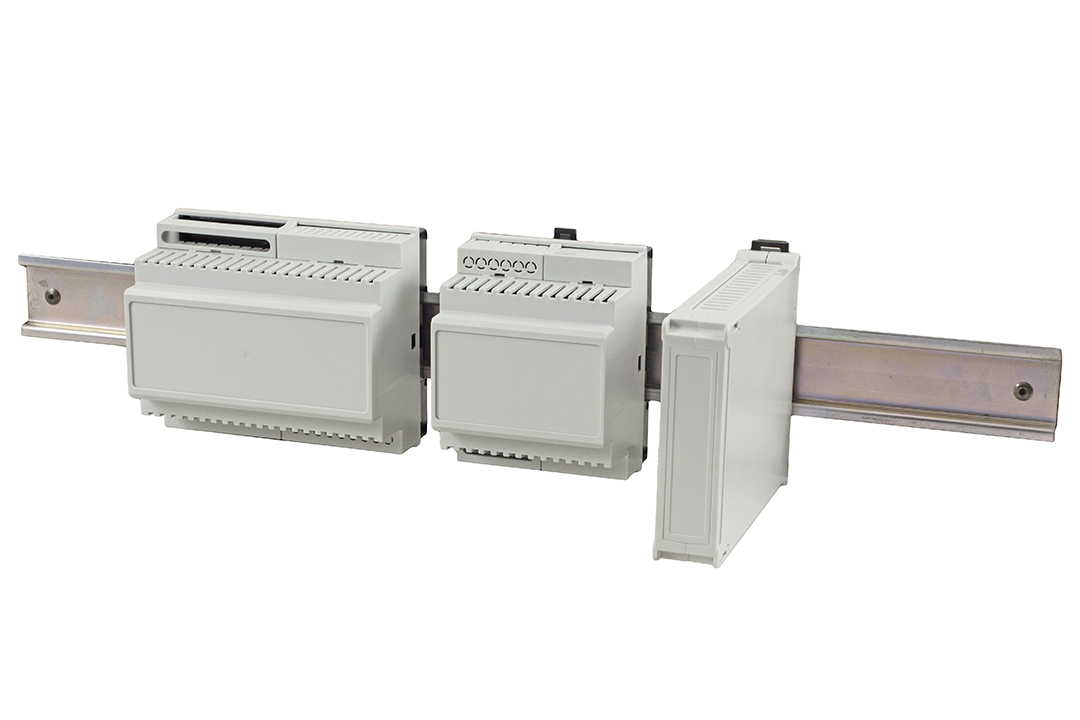

- ■Mounts to standard symmetrical 35 mm DIN rail
- ■Dark gray mounting base molded from PPE & PS
from $0.55
14 of 14 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1597DIN Series part number
Filter 14 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
14 of 14 part numbers · 14 priced online

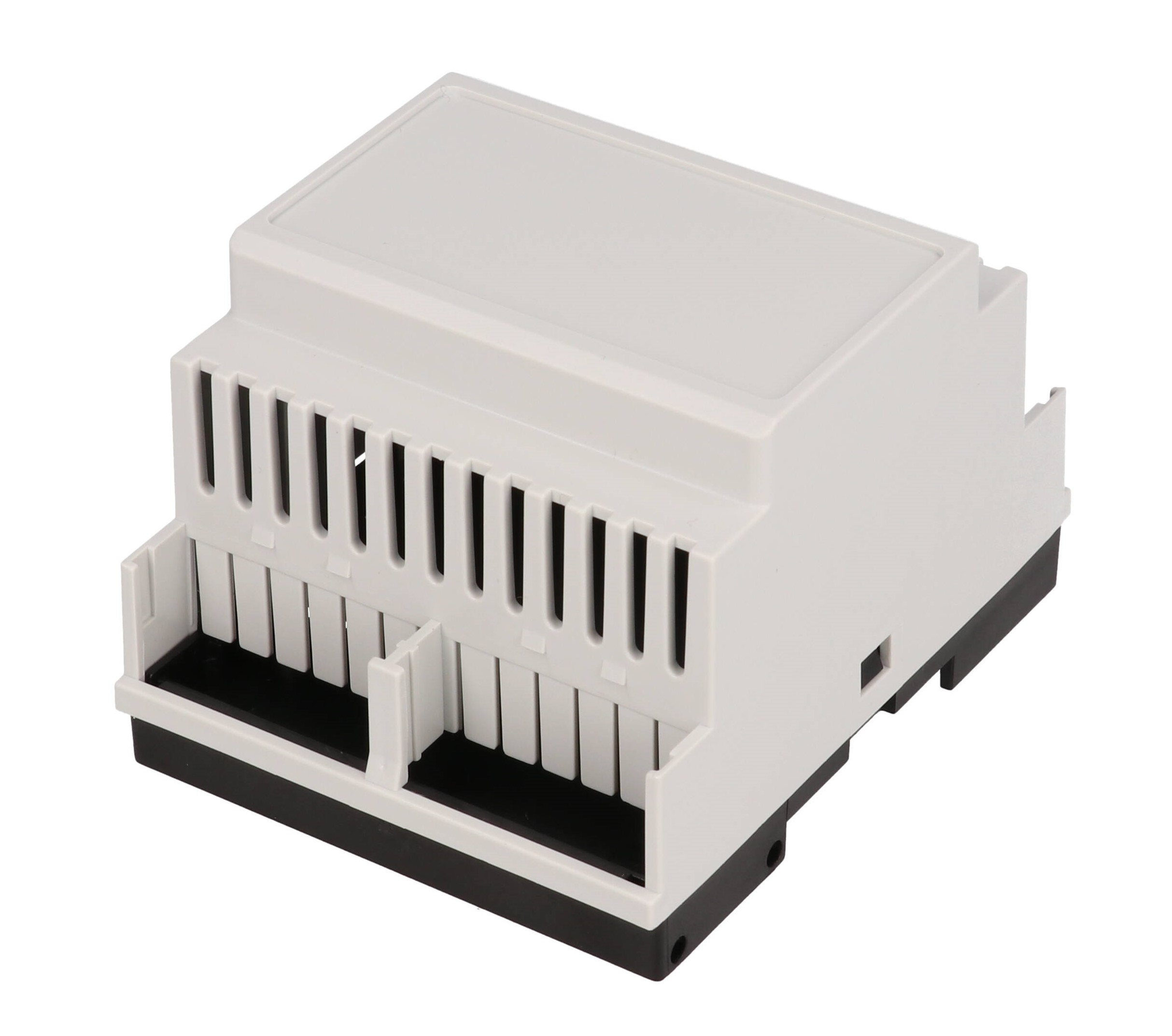

4 Module Enclosure
- Type 4 Module
- Cover Spaces 4
$4.37In stock
Buy now

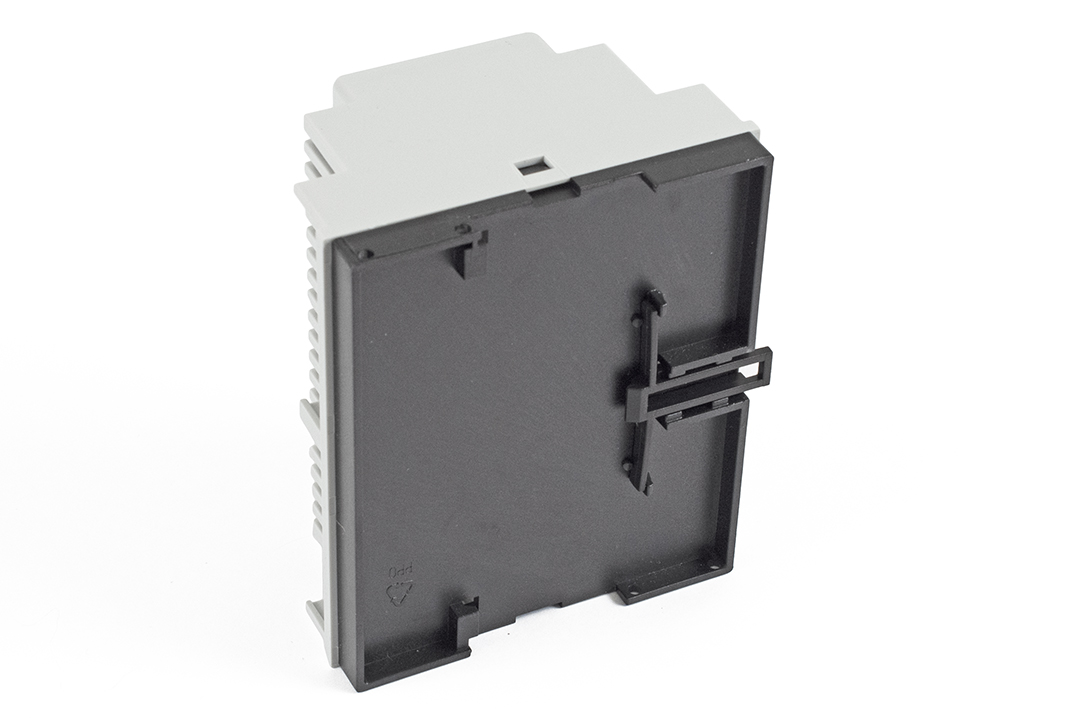

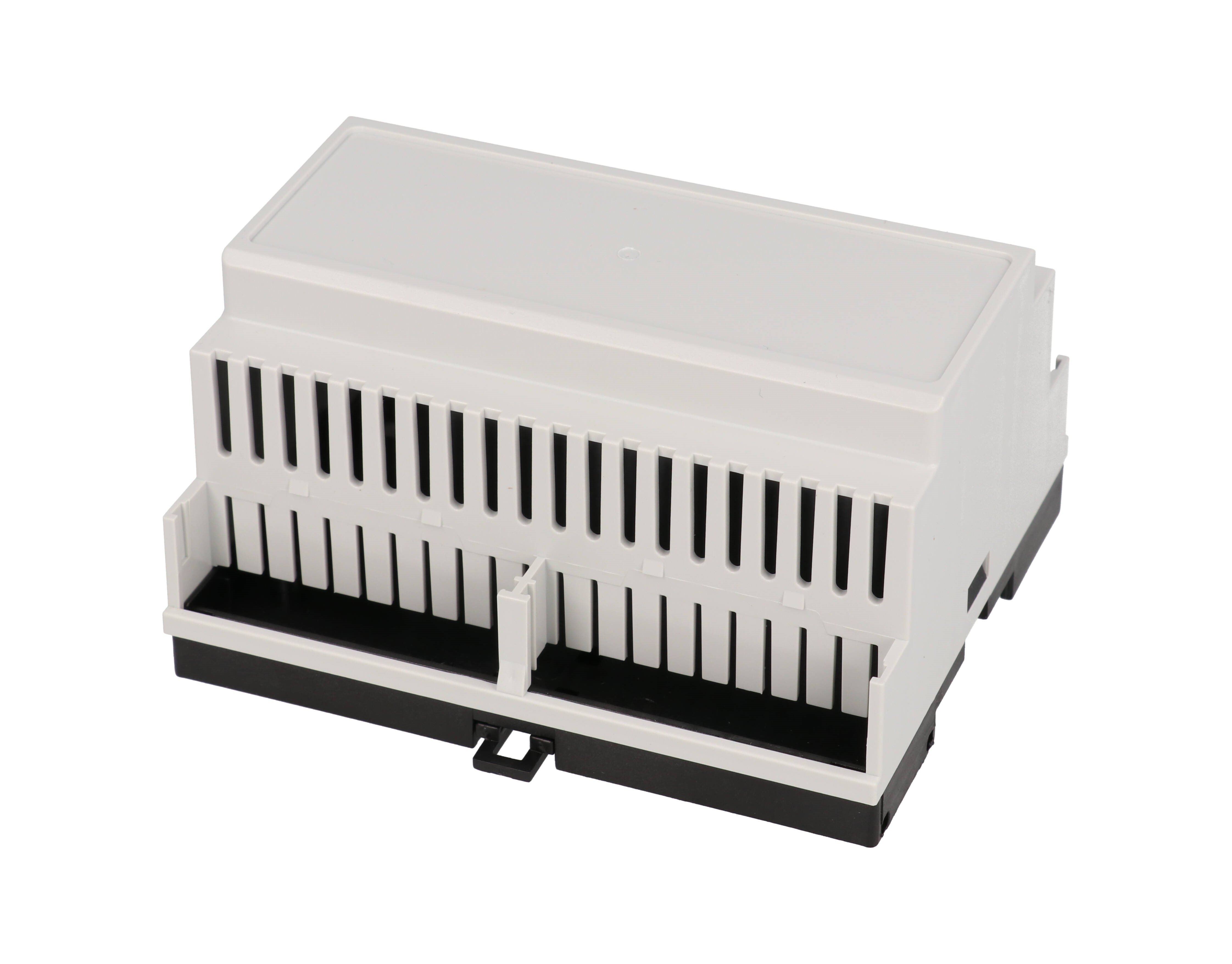

6 Module Enclosure
- Type 6 Module
- Cover Spaces 4
$5.84In stock
Buy now

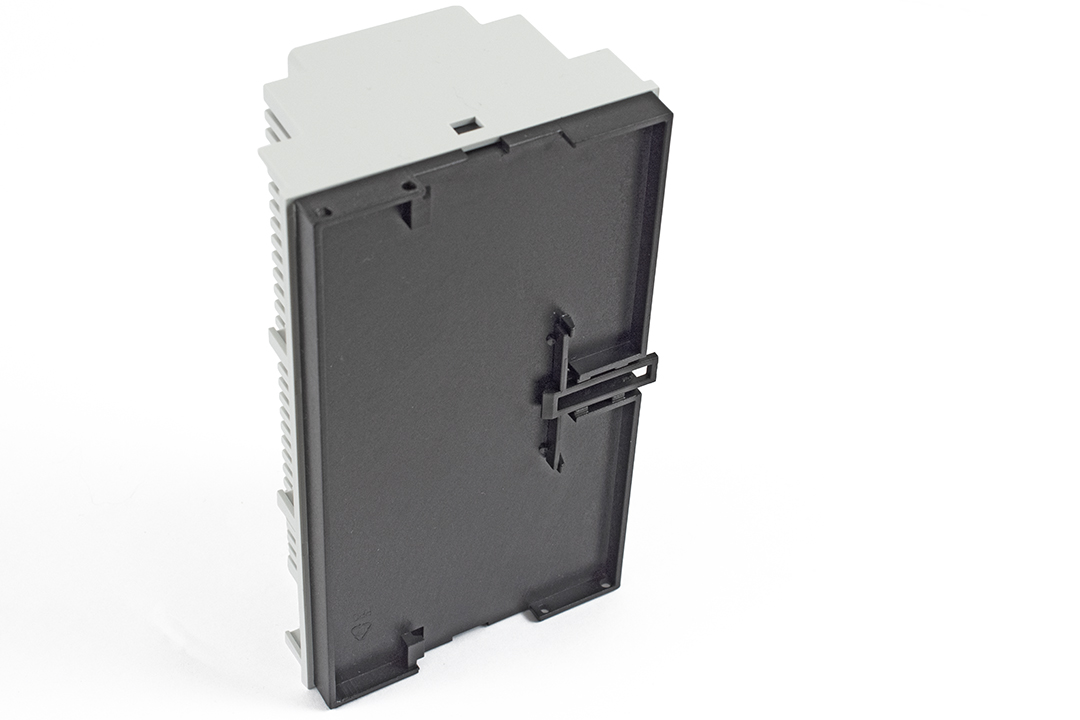

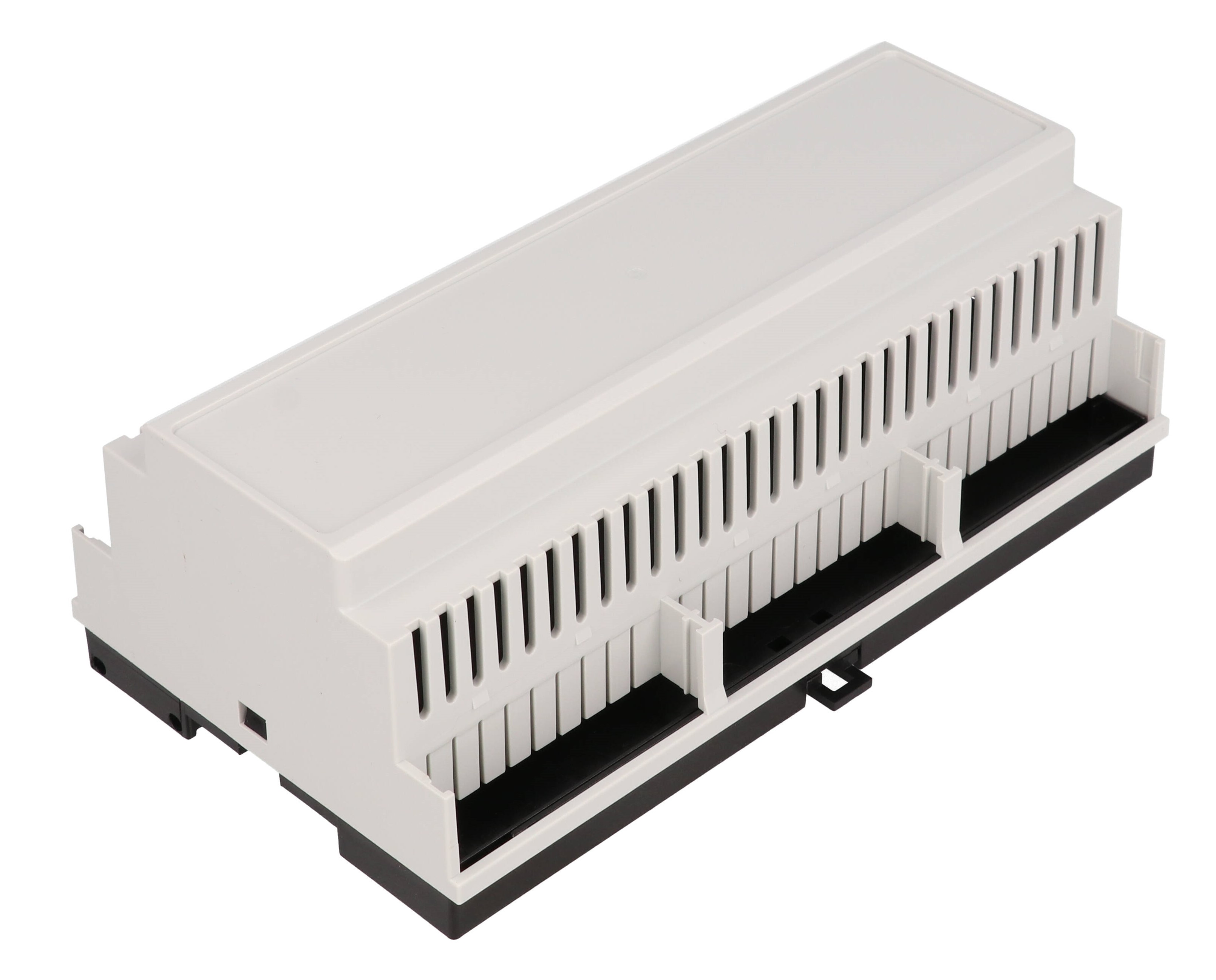

9 Module Enclosure
- Type 9 Module
- Cover Spaces 6
$6.61In stock
Buy now

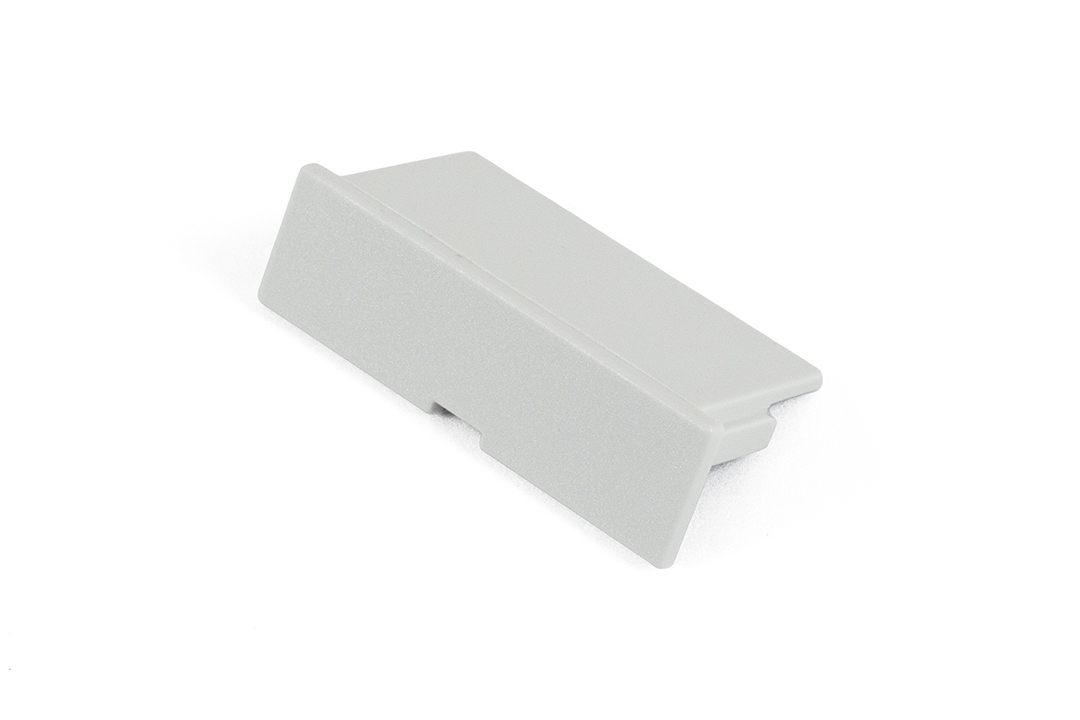

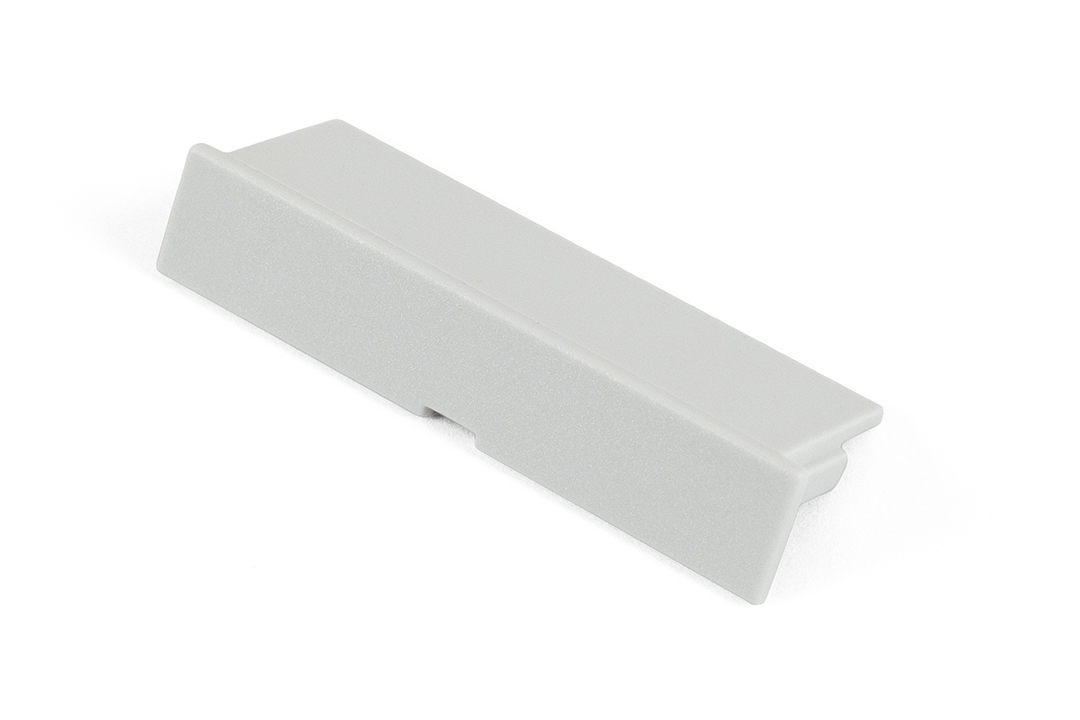

Cover, Low, Closed
- Type 9 Module
- Cover Spaces 6
$0.55In stock
Buy now

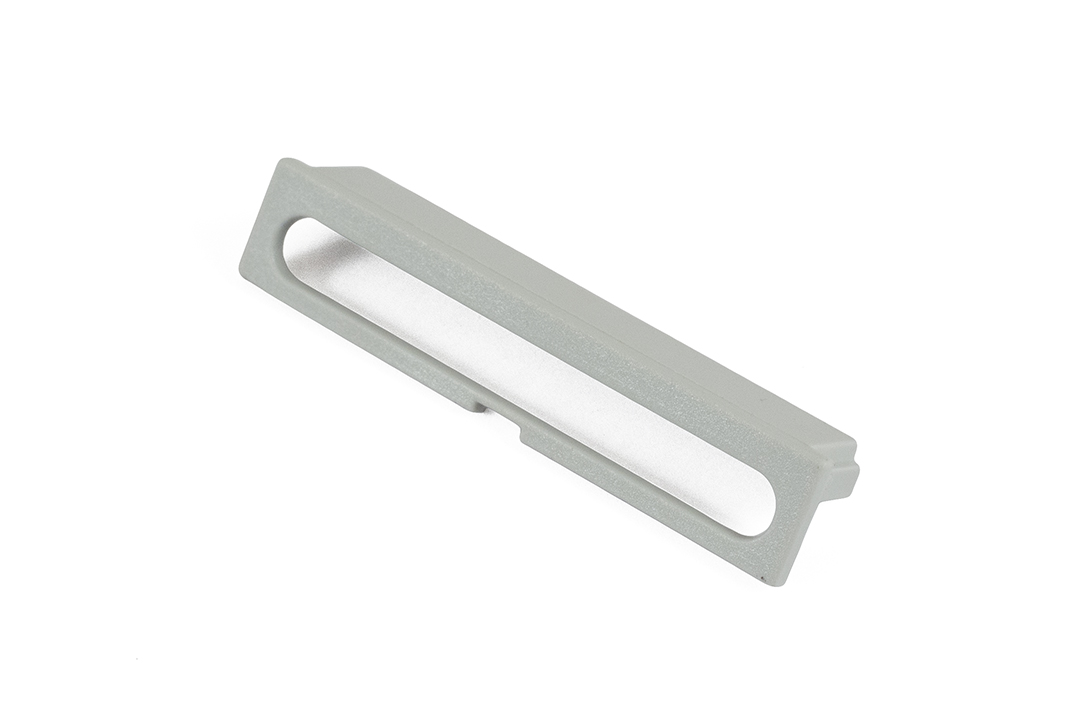

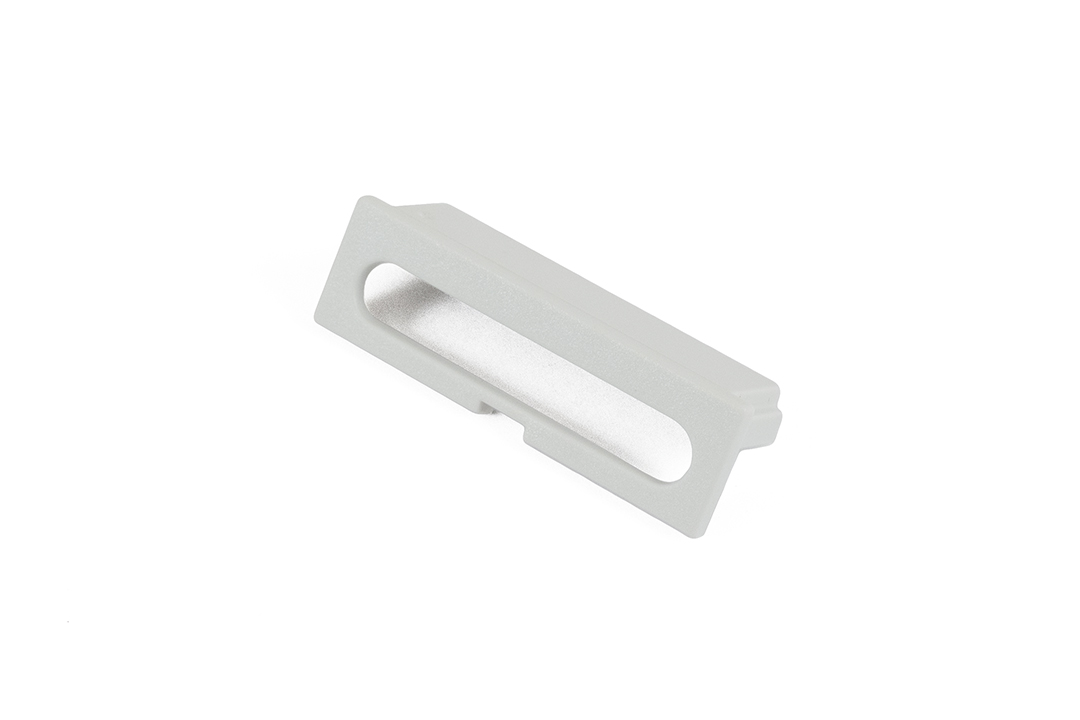

Cover Low, Oval
- Type 9 Module
- Cover Spaces 6
$0.55In stock
Buy now

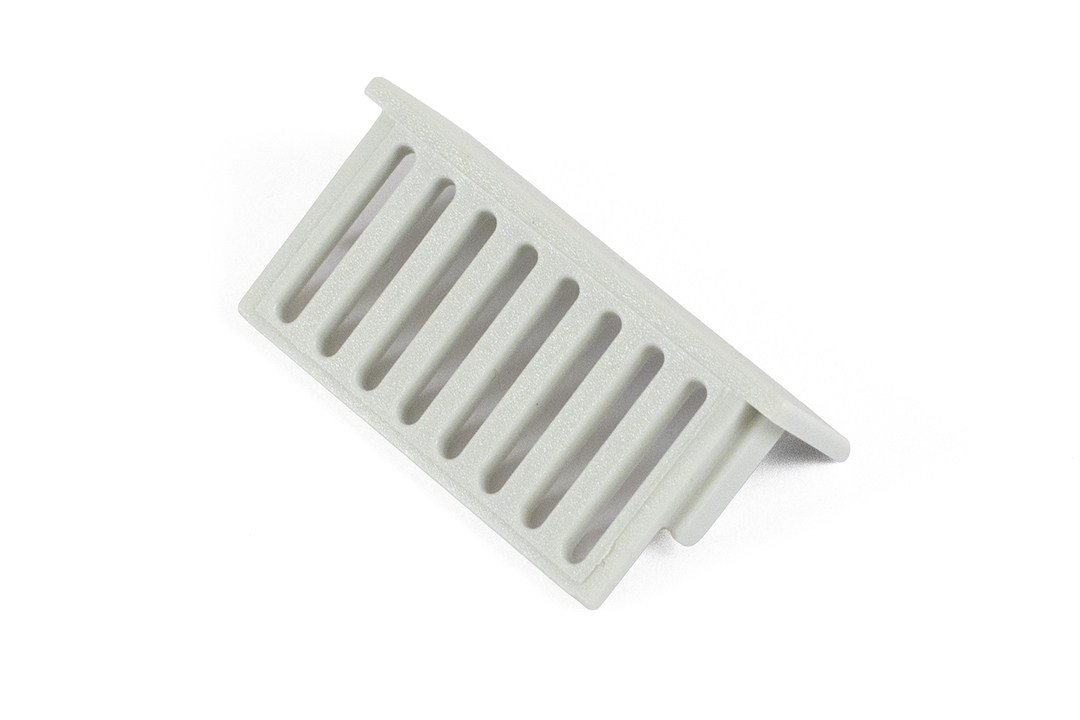

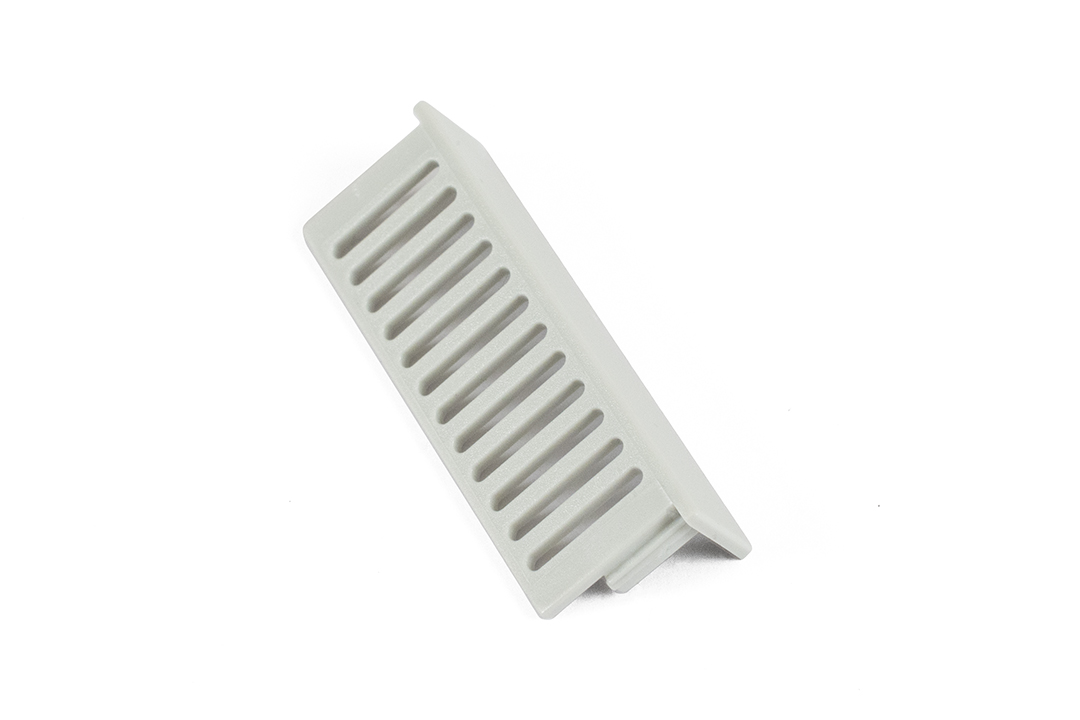

Cover, Low, Vented
- Type 9 Module
- Cover Spaces 6
$0.55In stock
Buy now

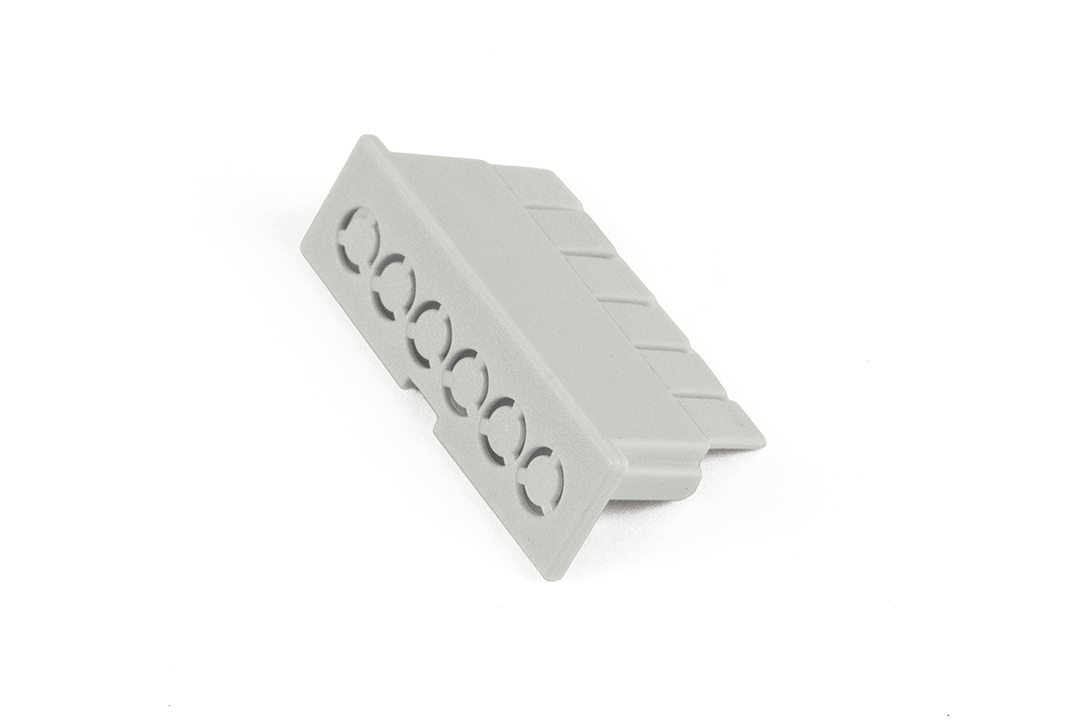

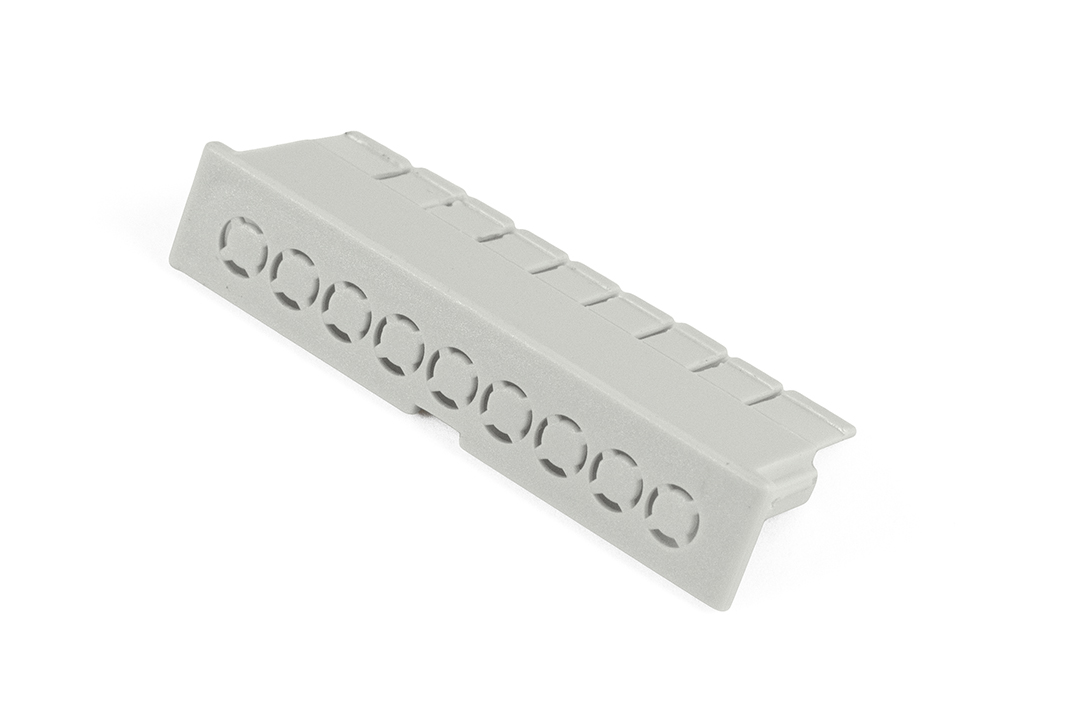

Cover, Low, Knockout
- Type 9 Module
- Cover Spaces 6
$0.55In stock
Buy now
Cover 35+70 Low, Closed
- Type 4 Module
- Cover Spaces 4
$0.55In stock
Buy now
Cover 35+70 Low, Oval
- Type 4 Module
- Cover Spaces 4
$0.55In stock
Buy now
Cover 35+70 Low, Vented
- Type 4 Module
- Cover Spaces 4
$0.55In stock
Buy now
Cover 35+70 Low, Knockout
- Type 4 Module
- Cover Spaces 4
$0.55In stock
Buy now

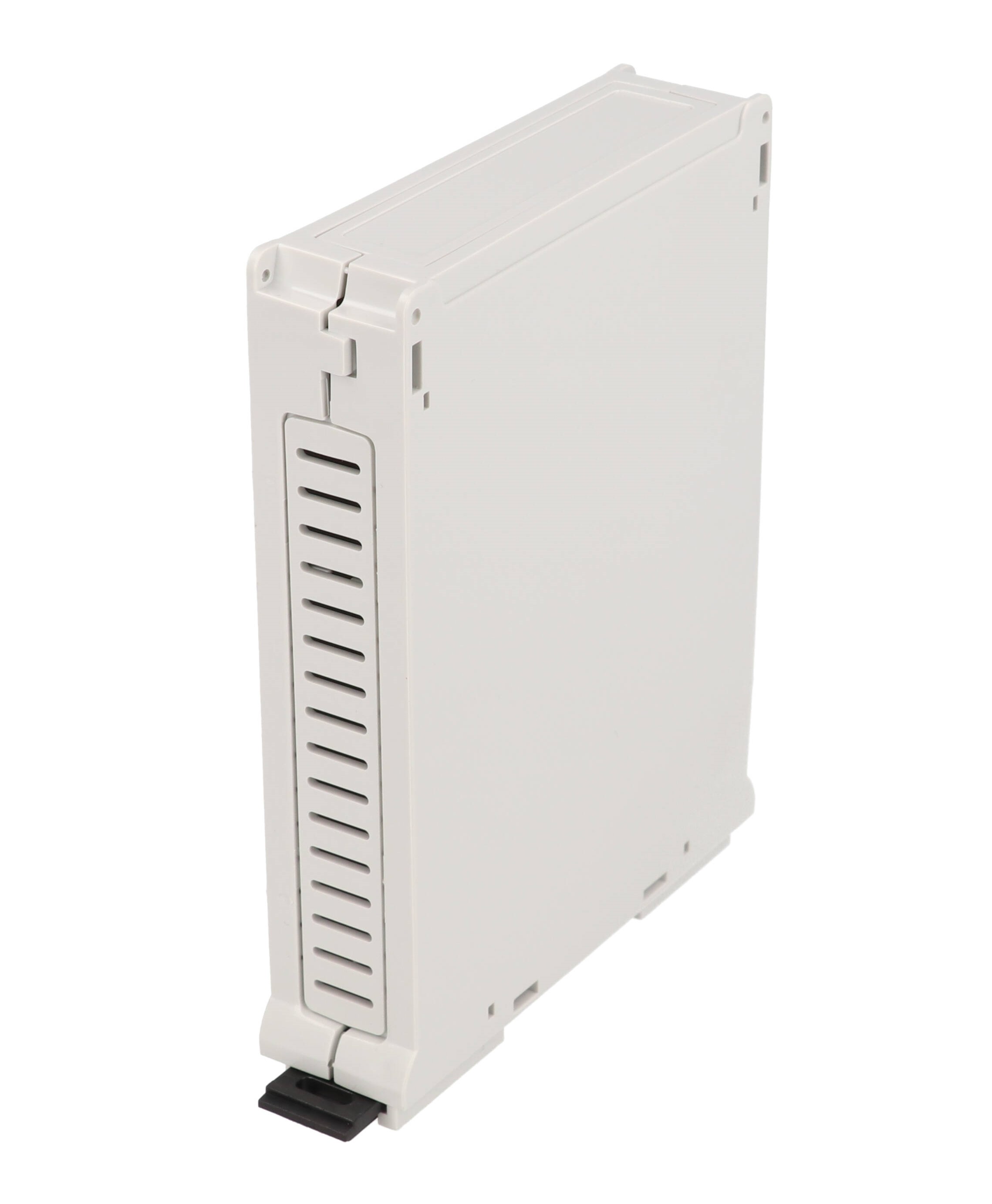

Control Box 2250
- Type Control Box
- Cover Spaces -
$5.24In stock
Buy now

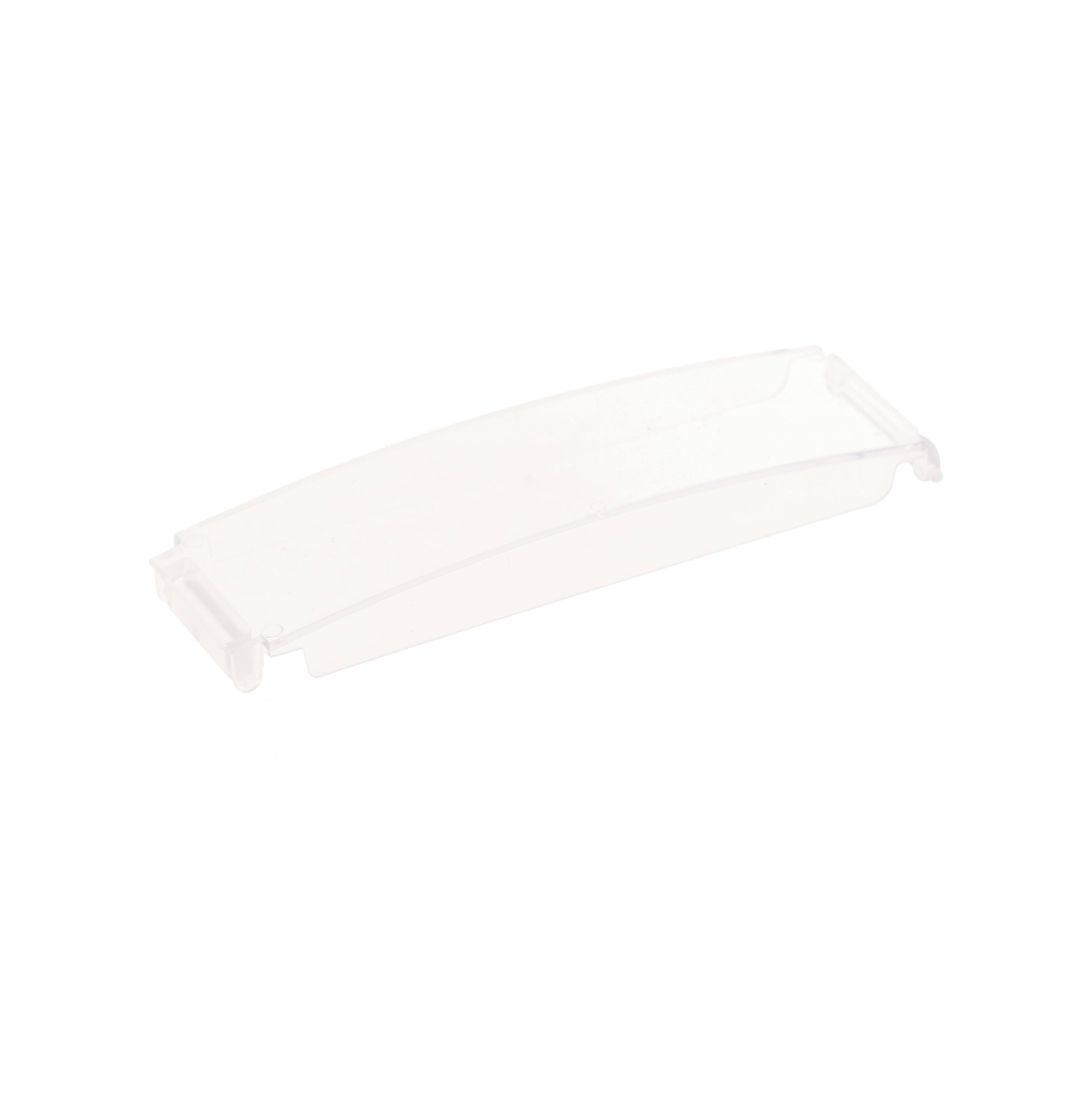

Clear Cover For 1597DINM22
- Type Control Box
- Cover Spaces -
$0.92In stock
Buy nowDimension tables (inches / mm)
| Part Number | Type | Height | Width | Depth | Cover Spaces | Closed Cover (Part No.) | Oval Cover (Part No.) | Vented Cover (Part No.) | Knockout Cover (Part No.) | Clear Cover (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1597DINM22GY | Control Box | 90 | 22.5 | 118 | - | - | - | - | - | DINM22COVER | $5.24In stock1597DINM22GY | Buy now |
| 1597DIN2GY | 2 Module | 90 | 35 | 58 | 2 | 1597DINCOV1GY | 1597DINCOV2GY | 1597DINCOV3GY | 1597DINCOV4GY | - | $3.77In stock1597DIN2GY | Buy now |
| 1597DIN4GY | 4 Module | 90 | 70 | 58 | 4 | 1597DINCOV1GY | 1597DINCOV2GY | 1597DINCOV3GY | 1597DINCOV4GY | - | $4.37In stock1597DIN4GY | Buy now |
| 1597DIN6GY | 6 Module | 90 | 105 | 58 | 4 | 1597DINCOV11GY | 1597DINCOV12GY | 1597DINCOV13GY | 1597DINCOV14GY | - | $5.84In stock1597DIN6GY | Buy now |
| 1597DIN9GY | 9 Module | 90 | 158 | 58 | 6 | 1597DINCOV11GY | 1597DINCOV12GY | 1597DINCOV13GY | 1597DINCOV14GY | - | $6.61In stock1597DIN9GY | Buy now |
Key Features:
- ■Ideally suited for housing electronics for DIN rail-mounted devices. Applications include: Industrial drives and controls Automation HVAC IoT
- ■Industrial drives and controls
- ■Automation
- ■HVAC
- ■Mounts to standard symmetrical 35 mm DIN rail
- ■Dark gray mounting base molded from PPE & PS
- ■Light gray main enclosure body molded from polycarbonate
- ■Material carries a flammability rating of UL94-V0
- ■Designed to meet IP20
- ■Snap closures for easy assembly, no hardware required
- ■5 models available
- ■4 types of covers sold individually for use in a wide variety of applications
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

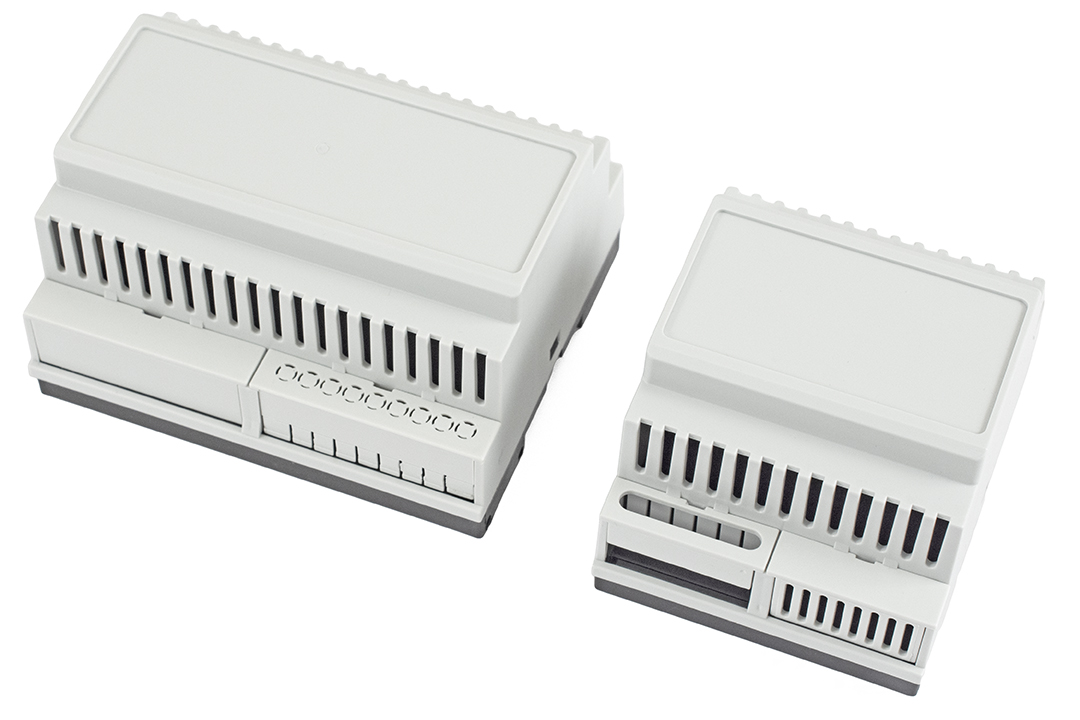

Photo Features:
