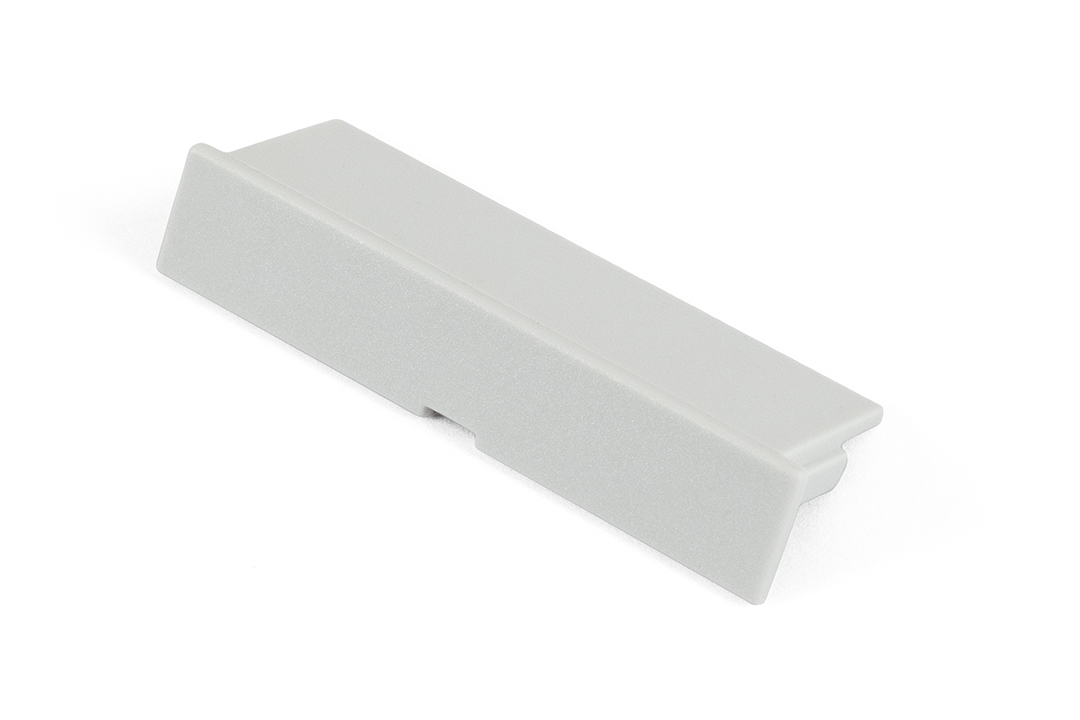

Hammond 1597DINCOV11GY 52 mm Closed Cover for 6 and 9 Module DIN Enclosures

The 1597DINCOV11GY is a closed, low-profile gray cover sized for the wider enclosures in its DIN rail family. The series ordering table lists it as the closed cover for the 1597DIN6GY 6 module and 1597DIN9GY 9 module enclosures. Panel builders use it to cap any cover space that does not need a display window, ventilation or cable entry.

At 2.06 in x 0.64 in x 0.4 in (52 mm x 16 mm x 10 mm), it is longer than the 35 mm covers used on the 2 and 4 module sizes; the accessory drawing shows a 52.20 mm (2.06 in) length. The part page lists polycarbonate, PPE and PS as the material, in gray, with a UL94 V-0 flame rating and an IP20 rating. Shipping weight is 0.01 lbs (0.00 kg).

Covers are sold individually. The 1597DIN6GY has 4 cover spaces and the 1597DIN9GY has 6, and each space can take the 1597DINCOV11GY closed cover or one of its companions: 1597DINCOV12GY oval, 1597DINCOV13GY vented or 1597DINCOV14GY knockout. The enclosures assemble with snap closures and no hardware.

The 1597DINCOV11GY is packaged in shrink wrap, REACH and RoHS compliant, UPC 623980318844. The manufacturer warns that acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers and strong solvents can damage its plastic parts.
