Subminiature Plastic Enclosures · 1551MINI Series

Key Features:

• ■Ideally suited for dongles and mounting small printed circuit boards with USB connectors.
• ■Molded in ABS plastic with a UL94-HB flammability rating.

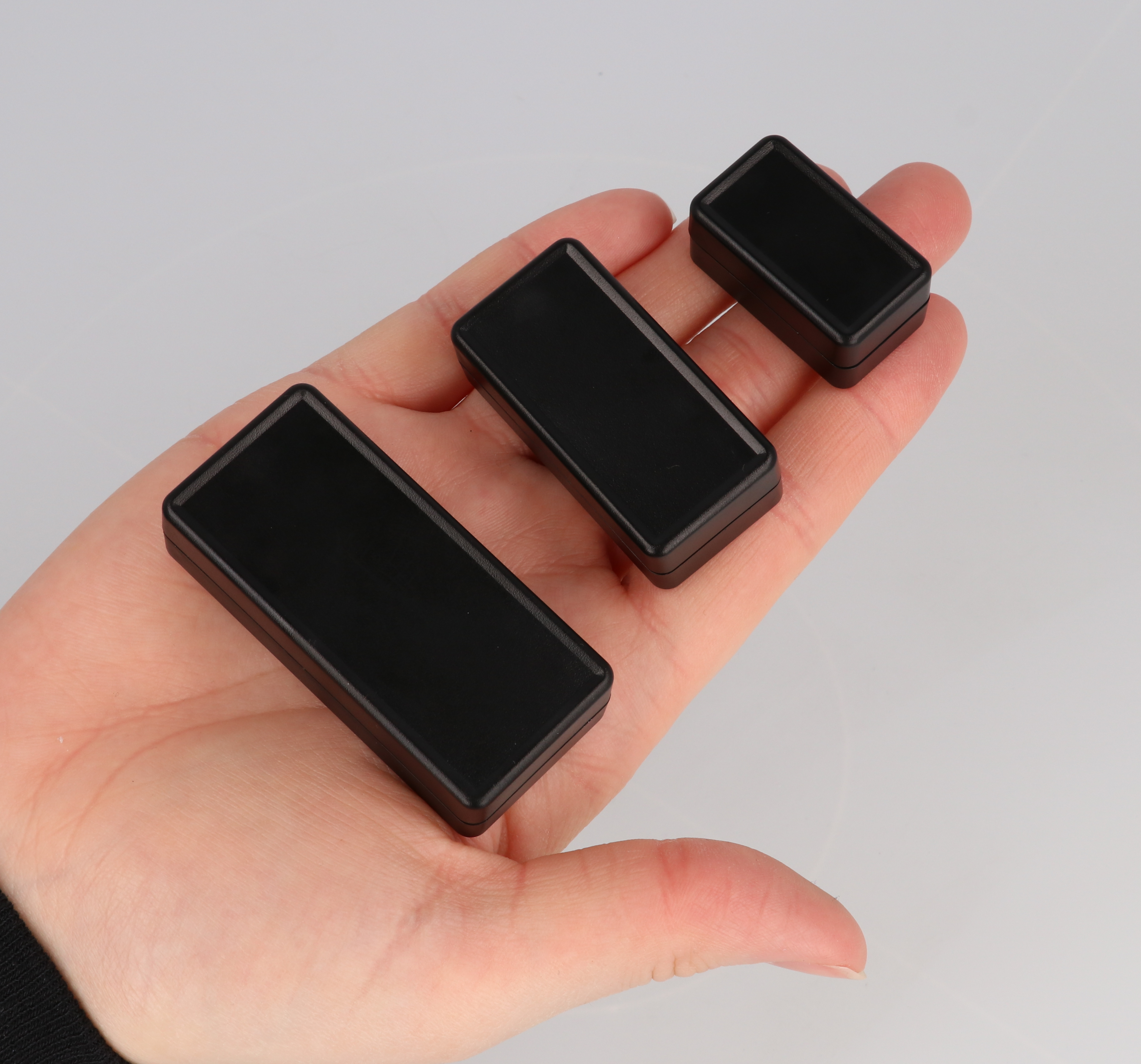

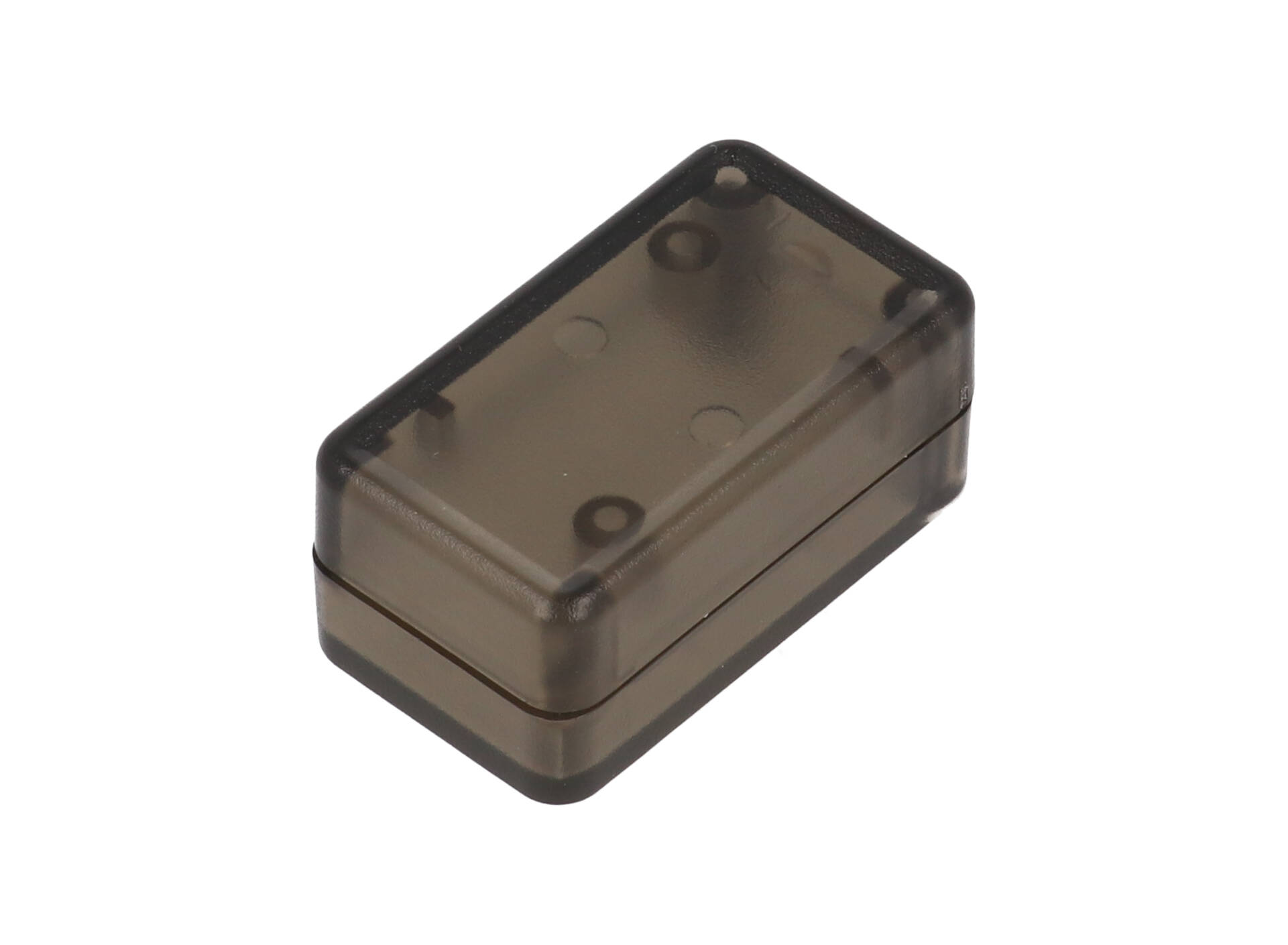

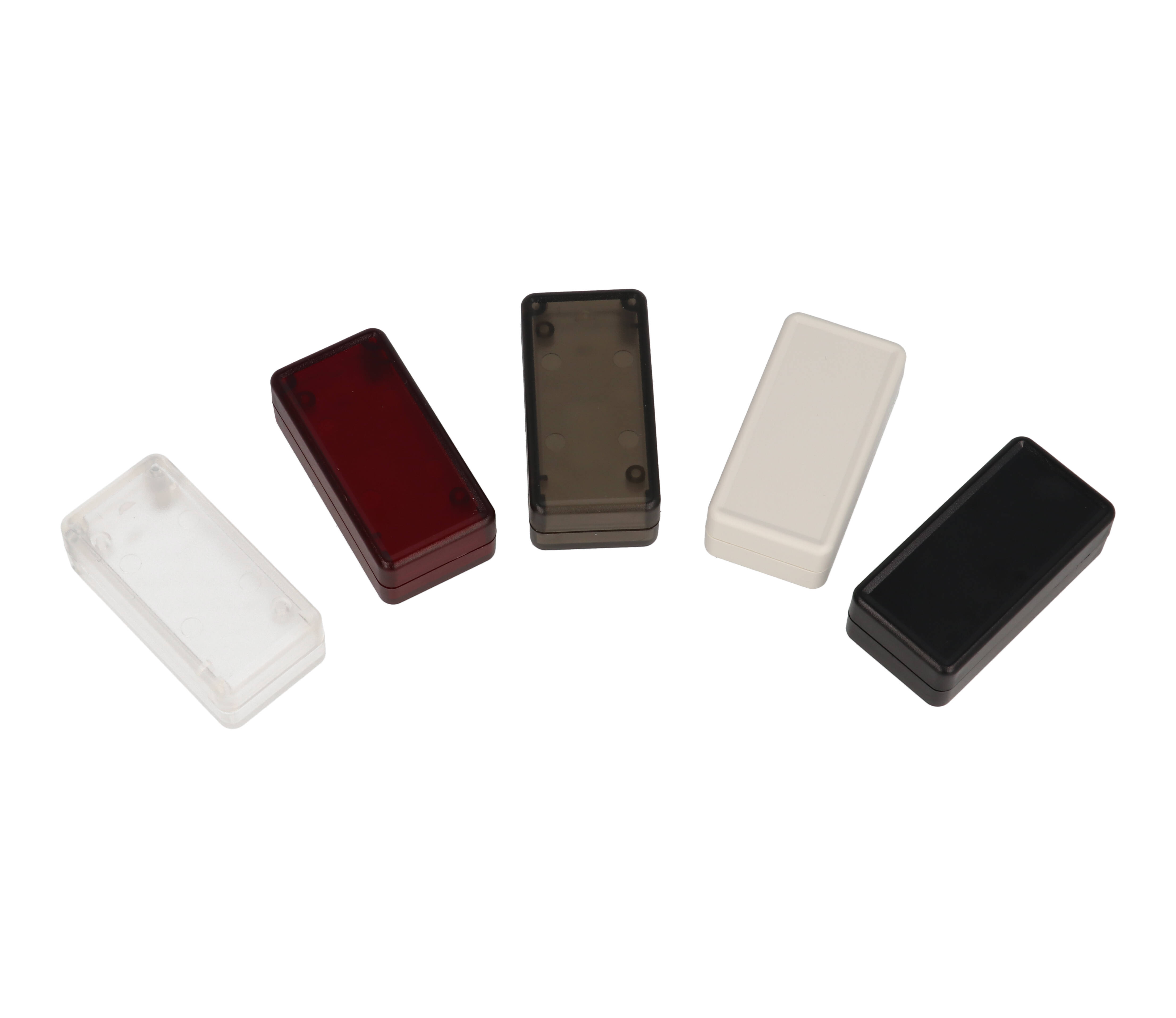

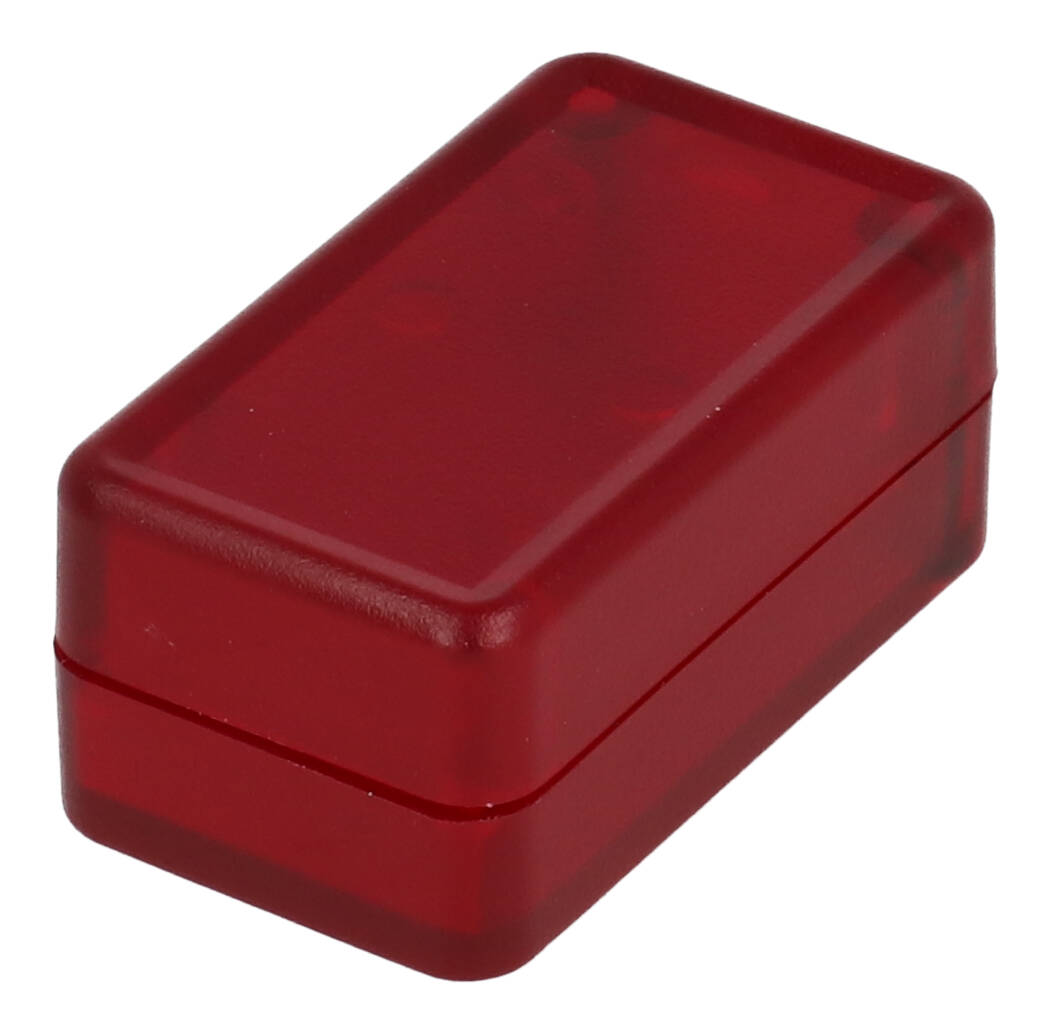

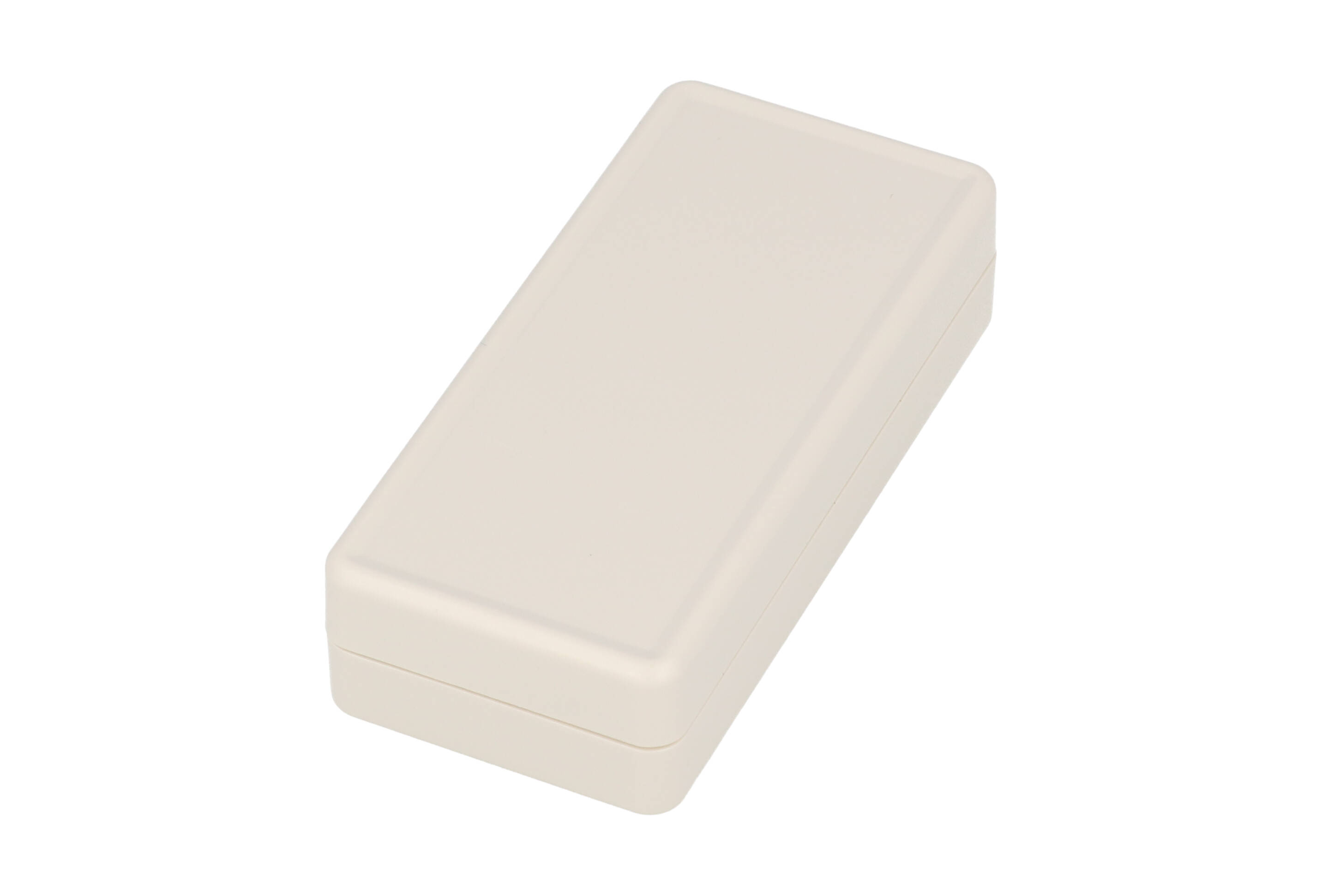

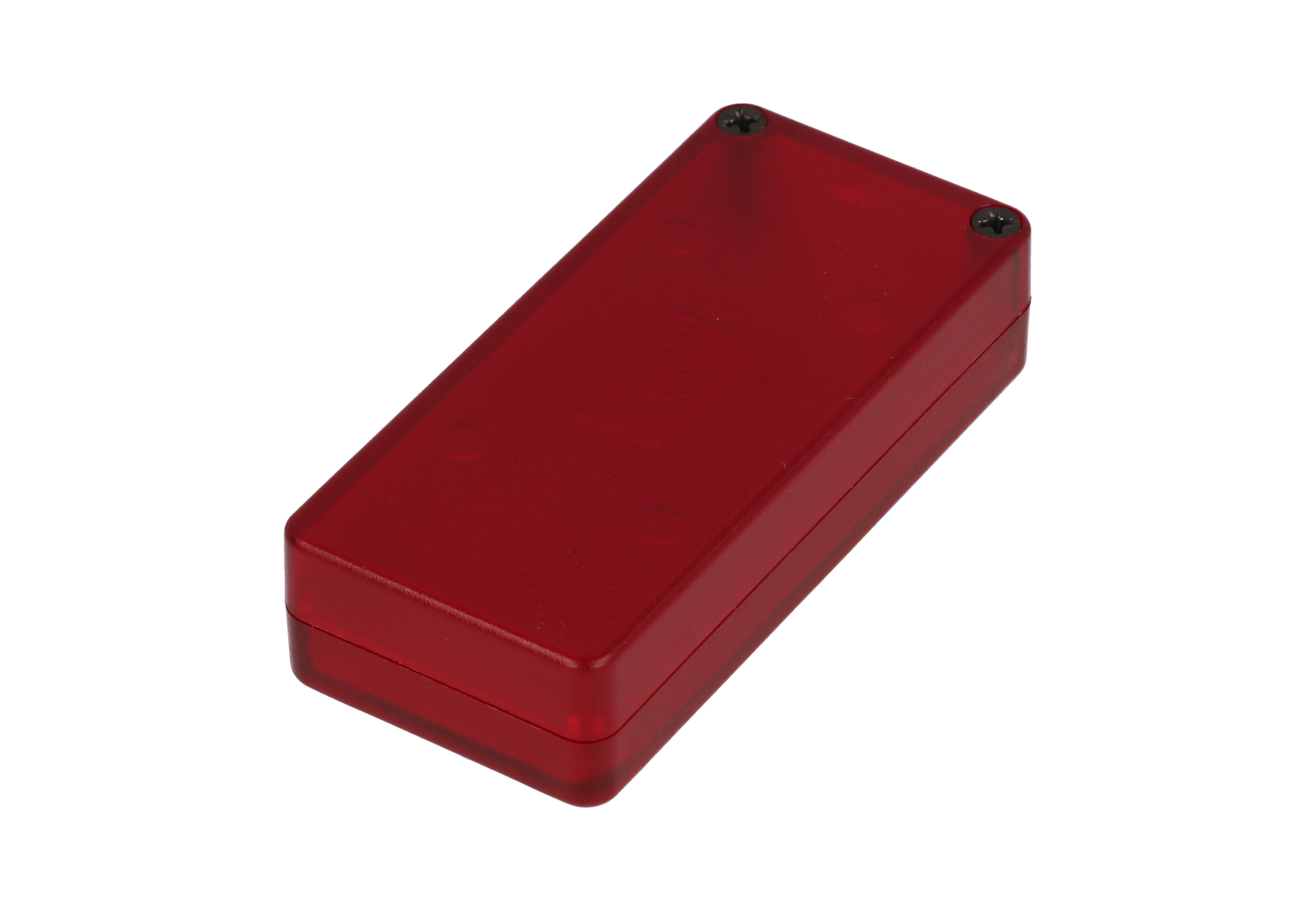

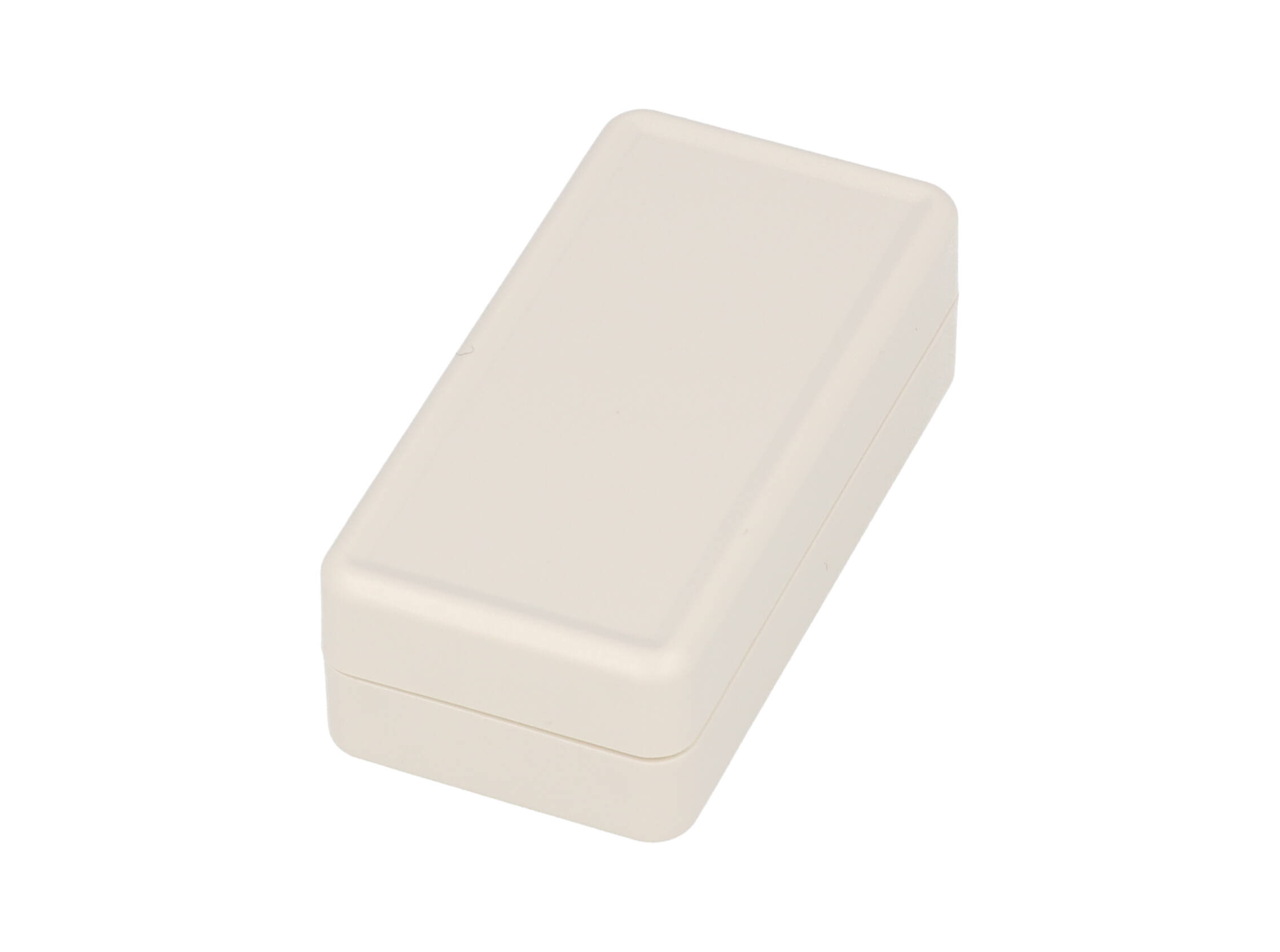

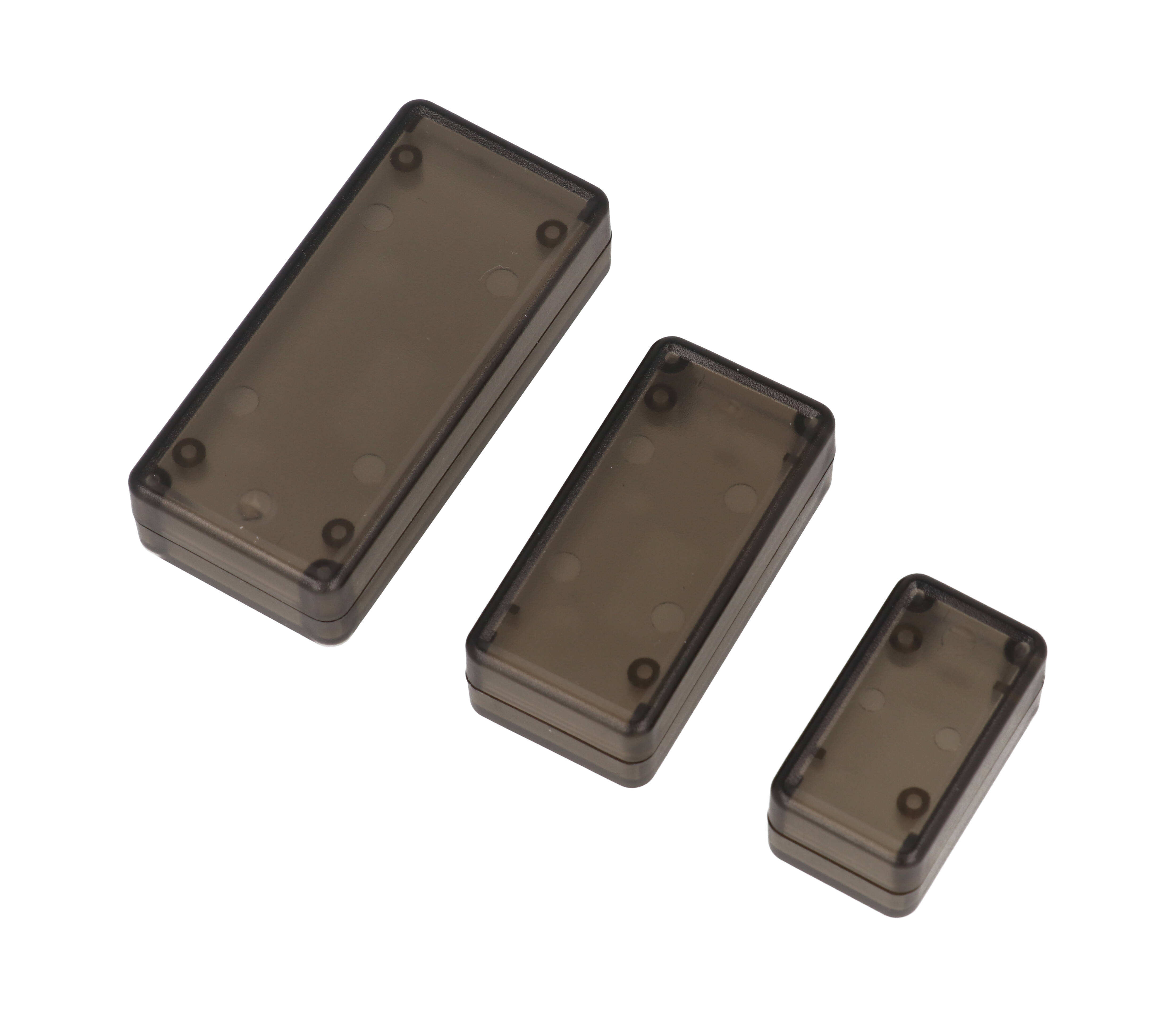

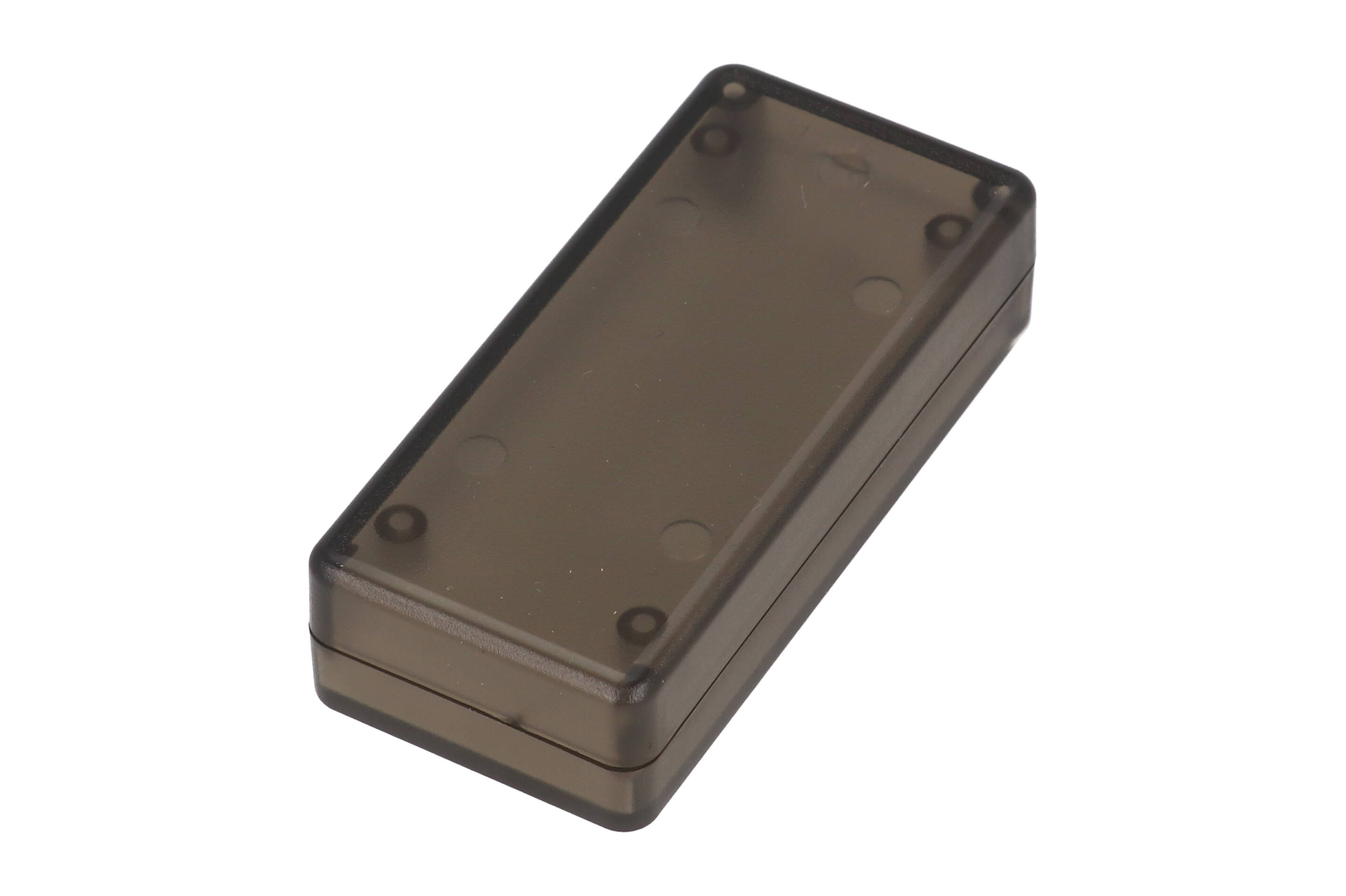

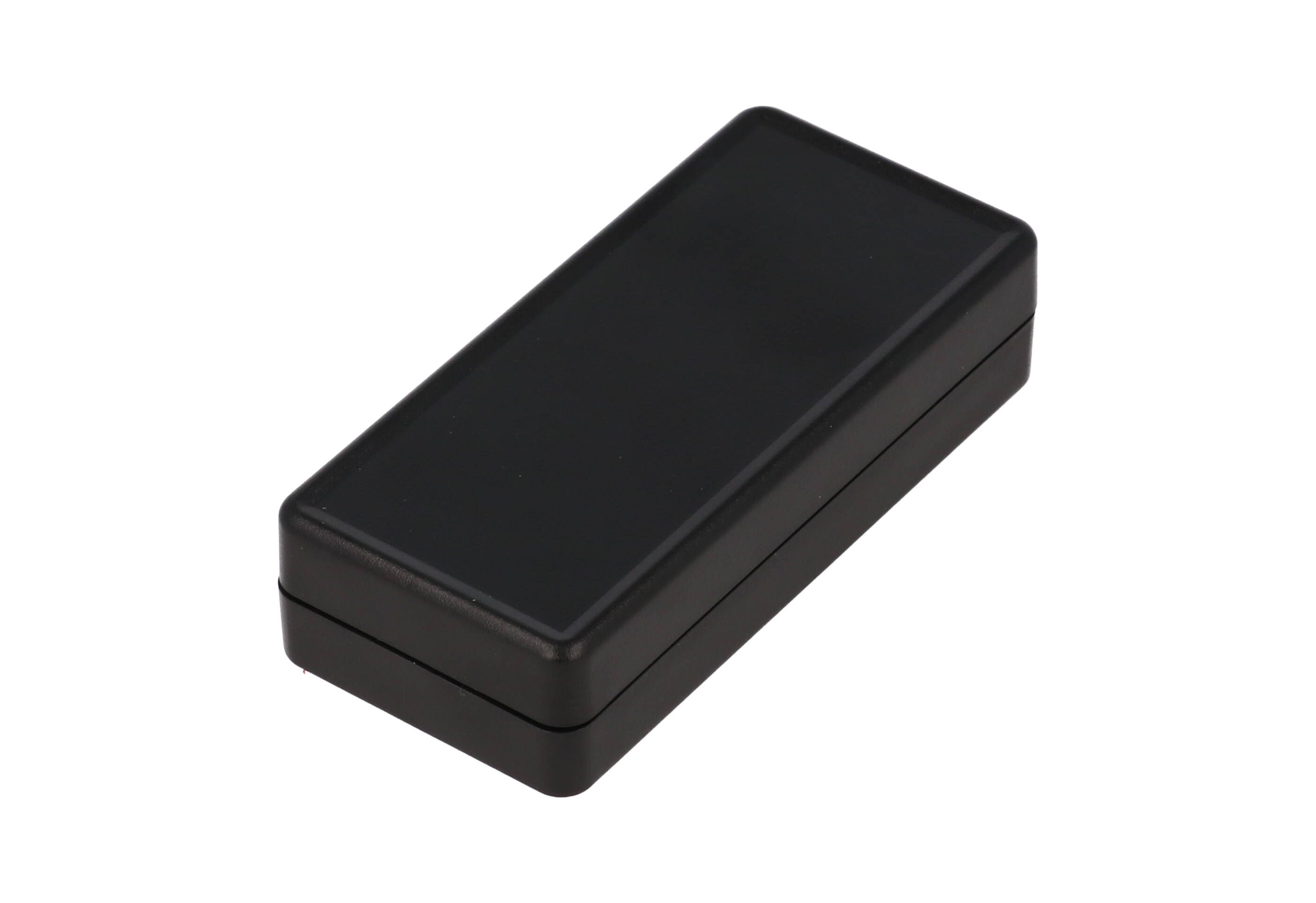

• ■Choice of three sizes in five colors: black, light grey, translucent clear, translucent smoke, and translucent red.
• ■Satin texture finish.
• ■Cover is recessed for easy label installation.

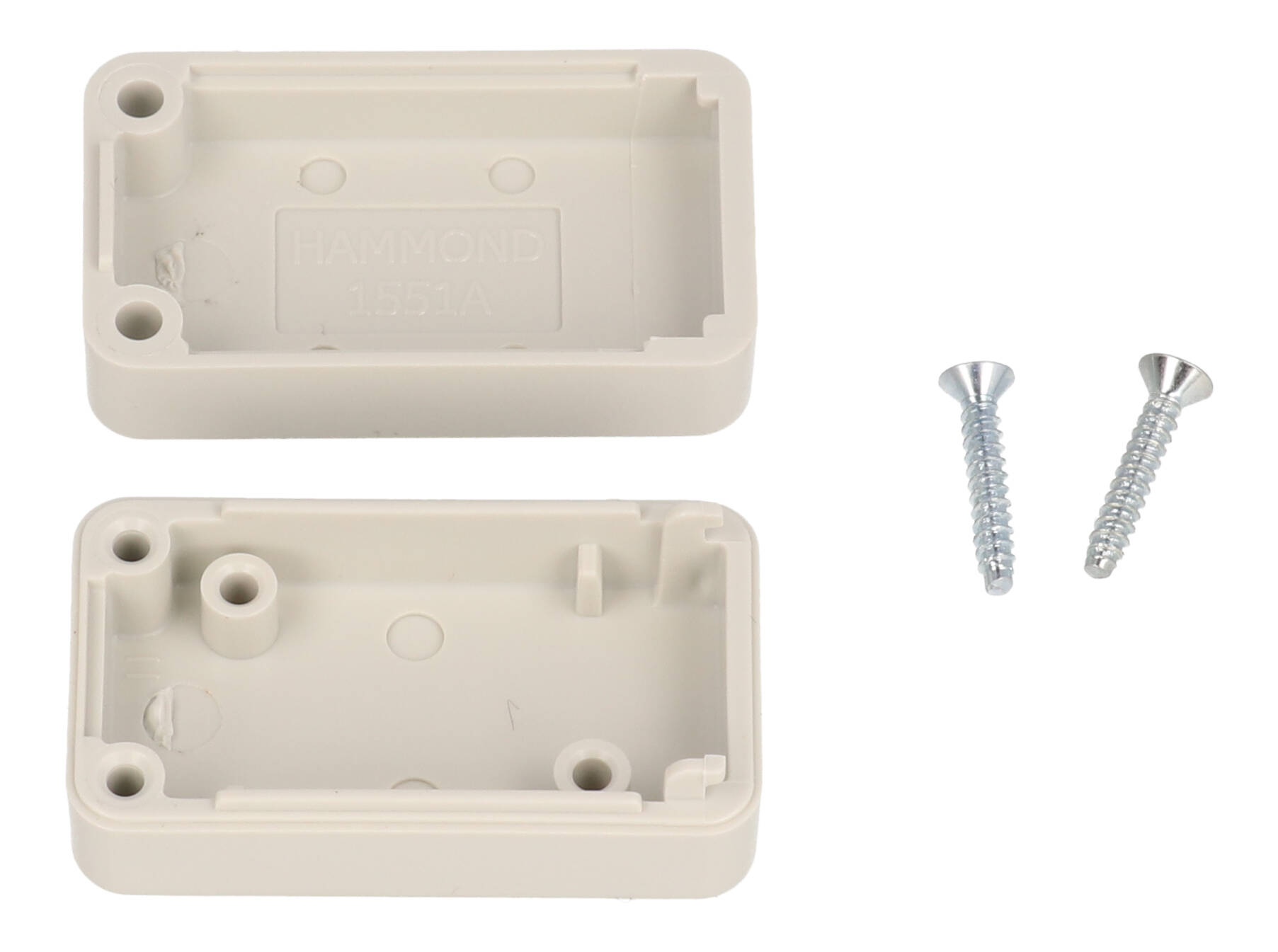

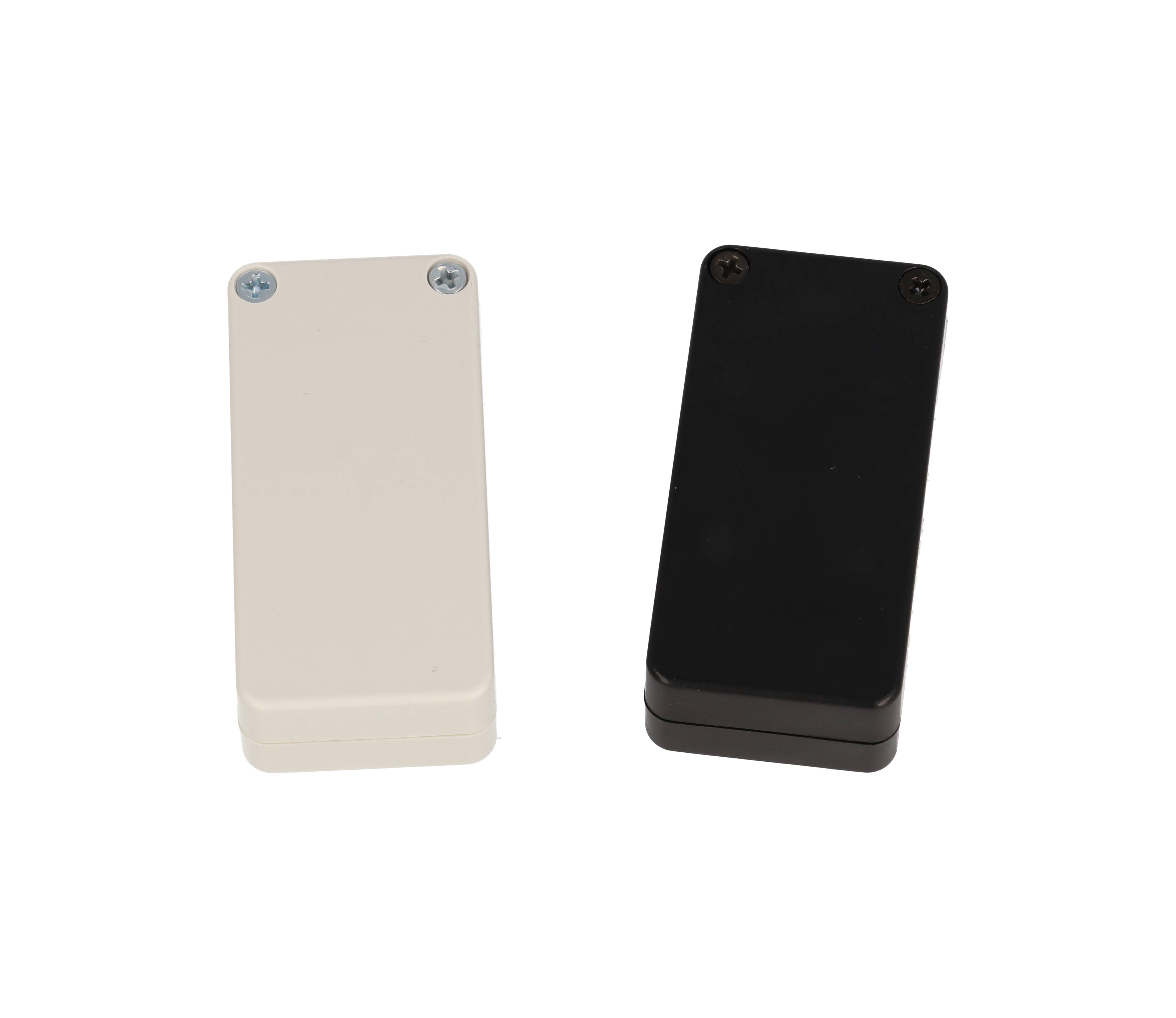

• ■Complete with lid and two self-tapping screws. Silver screws are provided with grey and clear boxes, and black screws are provided for black, smoke, and red boxes.
• ■Two or four standoffs, depending on size, are molded into interior for board mounting.
• ■Designed to meet IP54.

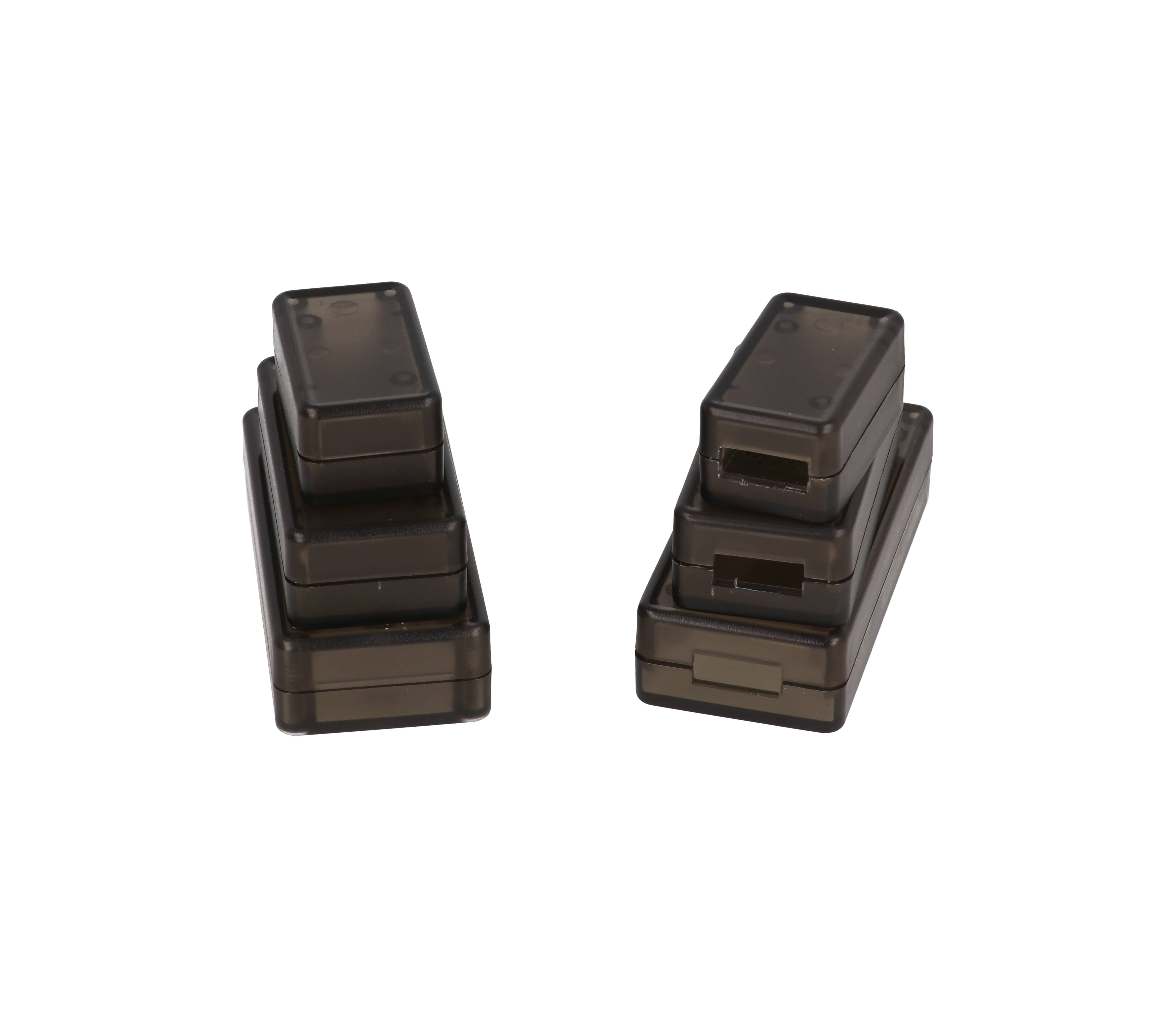

• ■For these same sizes with an integrated USB A male connector cutout, see our 1551USB series.
• ■For slightly larger enclosures secured with four screws, see our 1551 series.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Notes:

• ■Self-tapping lid screws are #2 x 1/2". For extra screws, order 1551USB50 (silver, pack of 50) or 1551USB50BK (black, pack of 50).
• ■Standoffs for PCB mounting are sized for #2 x 3/16" screws, not included with enclosure. Order part number 1553WTS100 (pack of 100).

Photo Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: mm . Switch units to: inch
