Hammond 1551ACLR 35 x 20mm Translucent Clear ABS Mini Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Translucent clear ABS, satin texture finish
- 35 x 20 x 15 mm (1.38 x 0.79 x 0.61 in) subminiature size
- PC board up to 15.5 x 29 mm on molded standoffs
- Designed to meet IP54; UL94 HB rated
- Recessed lid for labels (0.50 mm inlay depth)
- Two silver #2 x 1/2" self-tapping lid screws included
- RoHS and REACH compliant

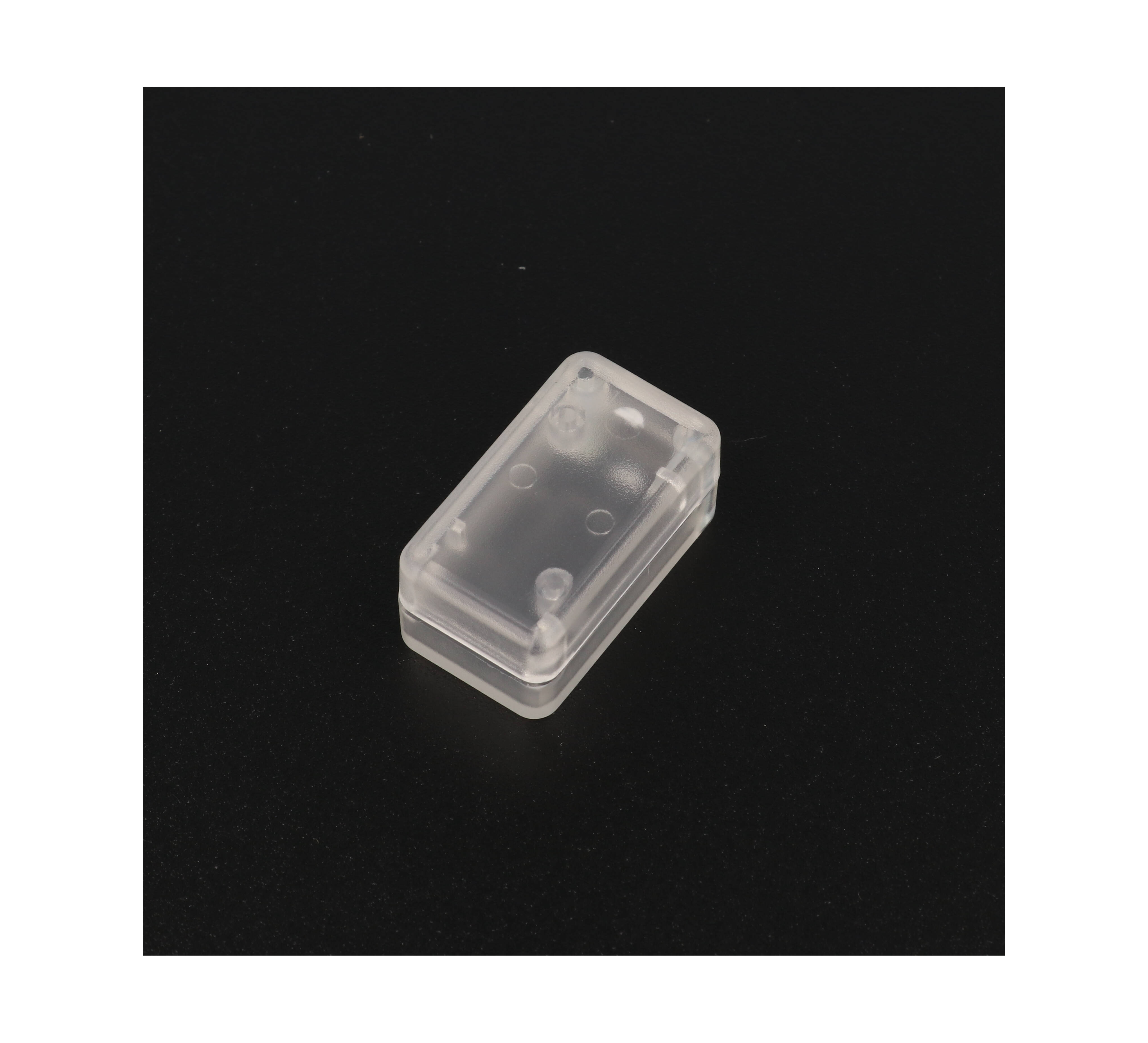

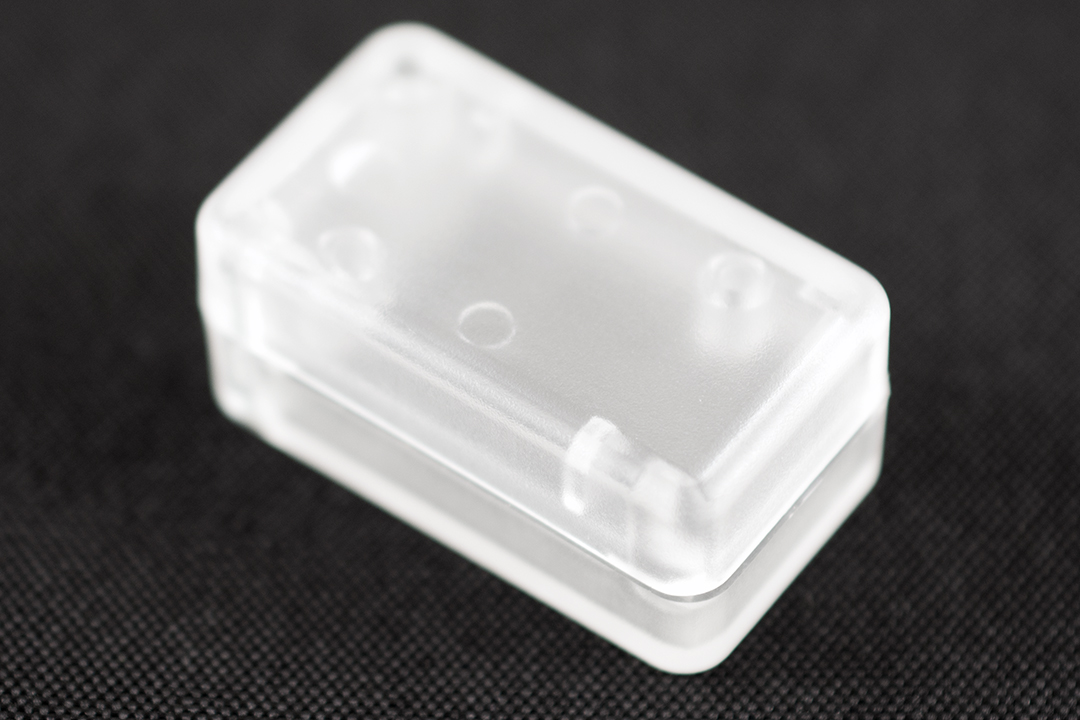

The 1551ACLR is a translucent clear ABS subminiature enclosure in the 1551MINI series, sized at 35 mm x 20 mm x 15 mm (1.38 in x 0.79 in x 0.61 in). The series is intended for dongles and small printed circuit boards with USB connectors, and the clear version lets the board inside remain visible.
It is molded in general purpose ABS with a satin texture finish and a UL94 HB flammability rating, and it is designed to meet IP54. The cover has a 0.50 mm [0.02 in] recess for label installation.
Board mounting posts molded into the base accept #2 x 3/16" self-tapping screws (not included; see 1553WTS100, pack of 100), and the maximum PC board size is 15.5 mm x 29 mm. Two #2 x 1/2" self-tapping lid screws are included; clear boxes come with silver screws. Recommended torque is 35-43 ozf.in (25-30 cN.m).
The 1551ACLR is RoHS and REACH compliant and ships in a bag at a listed 0.01 lbs. Spare silver lid screws are 1551USB50 (pack of 50). For this size with a USB-A male connector cutout, see the 1551USB1 series. Factory modification (milling, drilling, printing) is available, and solid models can be had in .stp or .x_t format. As with any ABS enclosure, avoid acetone, ketones, thread-locking compounds, cutting fluids and strong solvents, which can damage the plastic.
Ideal For
- Clear housing for USB dongles
- Visible small PC board assemblies
- Miniature electronic modules
- Potting box
Hardware
| Included | Box, lid, 2 cover screws |
| Cover Screws | #2 x 1/2" self-tapping, silver |
| Recommended Screw Torque | (35-43) Ozf.in / (25-30) cN.m |
| Replacement Cover Screws | 1551USB50 (silver/plated, pack of 50) or 1551USB50BK (black, pack of 50) |
| PC Board Screws (Not Included) | #2 x 3/16" self-tapping (4.8mm), part number 1553WTS100 (pack of 100) |
Overview
| Type | Miniature, general purpose |
| Series | 1551MINI Series Subminiature Plastic Enclosures |
| Part Number | 1551ACLR |
| Short Description | 35 X 20 X 15.5MM ABS CLEAR |
Dimensions
| Width | 0.79 in (20 mm) |
| Length | 1.38 in (35 mm) |
| Height (Drawing) | 15.50 mm [0.61 in] |
| Size (L X W X H) | 1.38 in x 0.79 in x 0.61 in (35 mm x 20 mm x 15 mm) |
| Max. P.C. Board Width | 29 mm |
| Depth (Ordering Table) | 0.63 in (16 mm) |
| Max. P.C. Board Length | 15.5 mm |
| Lid Label Recess (Inlay) Depth | 0.50 mm [0.02 in] |
Identifiers
| UPC | 623980572901 |
| UNSPSC | 39121301 |
Customization
| 3D Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Other Materials / Colours | Available, consult factory |
Related Parts
| Same Size With USB-A Cutout | 1551USB1 series |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Color | Trans. Clear |
| Cover | Recessed for label installation |
| Finish | Satin texture |
| Material | ABS Plastic (general purpose) |
| Board Mounting | Standoffs molded into interior; mounting posts accept #2 x 3/16" self-tap screws |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1551ACLR?▾
The part page lists 35 mm x 20 mm x 15 mm (1.38 in x 0.79 in x 0.61 in). The drawing shows a 15.50 mm [0.61 in] height and the series ordering table lists the depth as 16 mm (0.63 in).
What comes in the package?▾

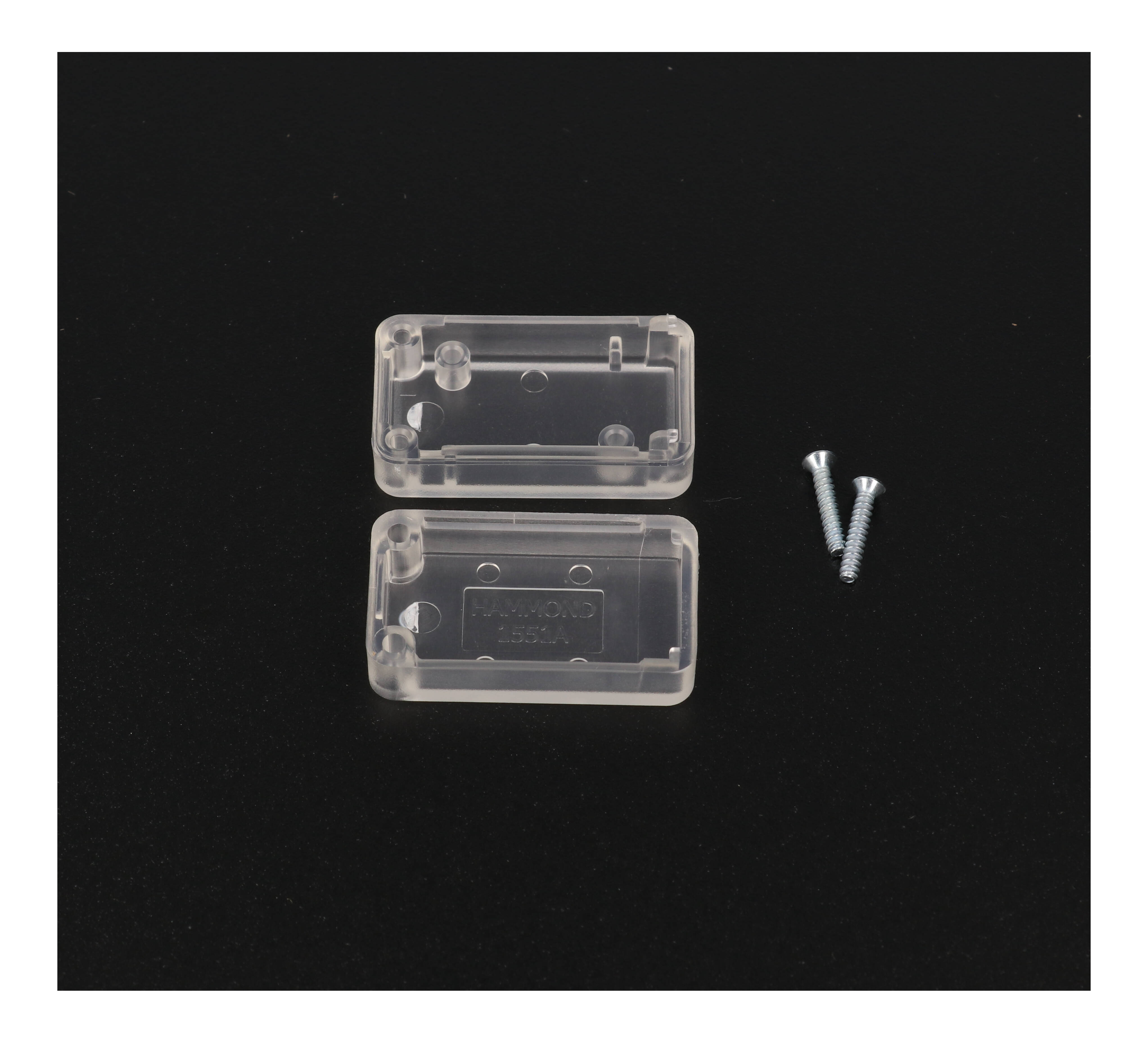

The box, lid and two #2 x 1/2" self-tapping cover screws. Translucent clear boxes are supplied with silver screws.
What size circuit board fits inside?▾
The maximum PC board size is 15.5 mm x 29 mm. Boards mount on molded-in posts with #2 x 3/16" self-tapping screws (part 1553WTS100, pack of 100), which are not included.
Is it sealed against dust and water?▾
The 1551MINI series is designed to meet IP54, and the ABS carries a UL94 HB flammability rating.
Where can I get replacement lid screws?▾
Silver #2 x 1/2" self-tapping screws are 1551USB50 (pack of 50); black ones are 1551USB50BK (pack of 50).
