Hammond 1551CBK 65 x 30mm Subminiature Black ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Largest 1551MINI size: 65 x 30 x 15 mm (2.56 x 1.18 x 0.61 in)
- Black RAL 9011 ABS with satin texture finish
- PC board up to 25.5 x 59 mm on molded standoffs
- Designed to meet IP54; UL94 HB rated
- Recessed cover for label installation
- Two black #2 x 1/2" self-tapping lid screws included
- RoHS and REACH compliant

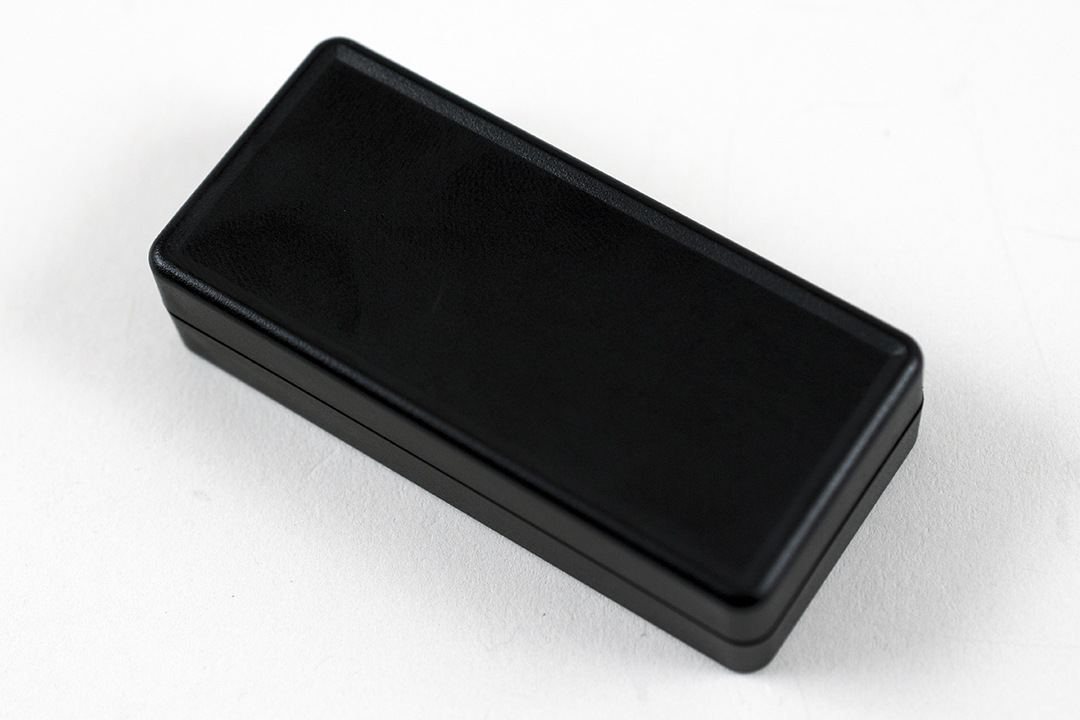

The 1551CBK is the largest of the three 1551MINI subminiature enclosure sizes, molded in black ABS and measuring 65 mm x 30 mm x 15 mm (2.56 in x 1.18 in x 0.61 in). It is designed for dongles and small printed circuit boards with USB connectors, and its extra length suits slightly larger boards.
The box uses general purpose ABS in black (RAL 9011) with a satin texture finish and a UL94 HB flammability rating, and is designed to meet IP54. The cover is recessed 0.50 mm [0.02 in] for easy label installation.
The maximum PC board size is 25.5 mm x 59 mm. Molded standoffs accept #2 x 3/16" self-tapping screws, which are not included (order 1553WTS100, pack of 100). Two black #2 x 1/2" self-tapping lid screws are supplied, with a recommended torque of 35-43 ozf.in (25-30 cN.m).
The 1551CBK is RoHS and REACH compliant, packed in a bag, with a listed shipping weight of 0.03 lbs (0.01 kg). Replacement black lid screws are 1551USB50BK (pack of 50). The 1551USB3 series is this size with a USB-A male connector cutout. Factory modification (milling, drilling, printing) is available, and solid models can be had in .stp or .x_t format. As with any ABS enclosure, avoid acetone, ketones, thread-locking compounds, cutting fluids and strong solvents, which can damage the plastic.
Ideal For
- USB dongle housing
- Small PC board enclosure
- Miniature electronic modules
- Potting box
Hardware

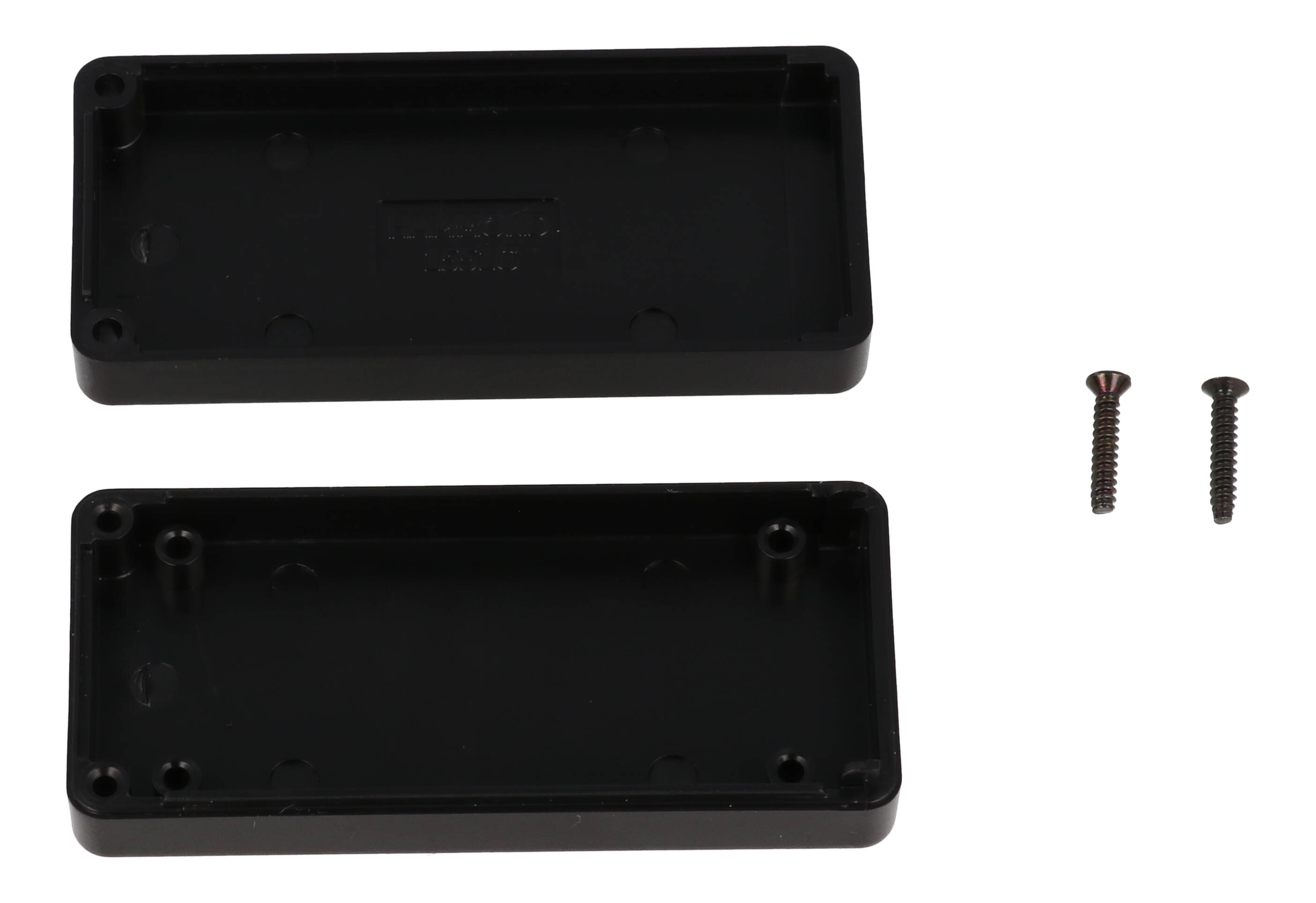

| Included | Box, lid, 2 cover screws |
| Cover Screws | #2 x 1/2" self-tapping, black |
| Recommended Screw Torque | (35-43) Ozf.in / (25-30) cN.m |
| Replacement Cover Screws | 1551USB50 (silver/plated, pack of 50) or 1551USB50BK (black, pack of 50) |
| PC Board Screws (Not Included) | #2 x 3/16" self-tapping (4.8mm), part number 1553WTS100 (pack of 100) |
Overview
| Type | Miniature, general purpose |
| Series | 1551MINI Series Subminiature Plastic Enclosures |
| Part Number | 1551CBK |
| Short Description | 65 X 30 X 15.5MM ABS BLACK |
Dimensions
| Width | 1.18 in (30 mm) |
| Length | 2.56 in (65 mm) |
| Height (Drawing) | 15.50 mm [0.61 in] |
| Size (L X W X H) | 2.56 in x 1.18 in x 0.61 in (65 mm x 30 mm x 15 mm) |
| Max. P.C. Board Width | 59 mm |
| Depth (Ordering Table) | 0.63 in (16 mm) |
| Max. P.C. Board Length | 25.5 mm |
| Lid Label Recess (Inlay) Depth | 0.50 mm [0.02 in] |
Identifiers
| UPC | 623980572987 |
| UNSPSC | 39121301 |
Customization
| 3D Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Other Materials / Colours | Available, consult factory |
Related Parts
| Same Size With USB-A Cutout | 1551USB3 series |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.03 lbs (0.01 kg) |
Construction & Finish
| Color | Black |
| Cover | Recessed for label installation |
| Finish | Satin texture |
| Material | ABS Plastic (general purpose) |
| RAL Colour | RAL 9011 |
| Board Mounting | Standoffs molded into interior; mounting posts accept #2 x 3/16" self-tap screws |
Environmental & Protection
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 HB |
| Chemical Resistance | the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1551CBK?▾
The part page lists 65 mm x 30 mm x 15 mm (2.56 in x 1.18 in x 0.61 in). The drawing shows a 15.50 mm [0.61 in] height and the series ordering table lists the depth as 16 mm (0.63 in).
What size circuit board fits inside?▾
The maximum PC board size is 25.5 mm x 59 mm. Boards mount on molded-in posts with #2 x 3/16" self-tapping screws (part 1553WTS100, pack of 100), which are not included.
What comes in the package?▾
The box, lid and two #2 x 1/2" self-tapping cover screws. Black boxes are supplied with black screws.
Is it sealed against dust and water?▾
The 1551MINI series is designed to meet IP54, and the ABS carries a UL94 HB flammability rating.
Is there a version with a USB cutout?▾
Yes. The same size molded with a USB-A male connector cutout is the 1551USB3 series.
