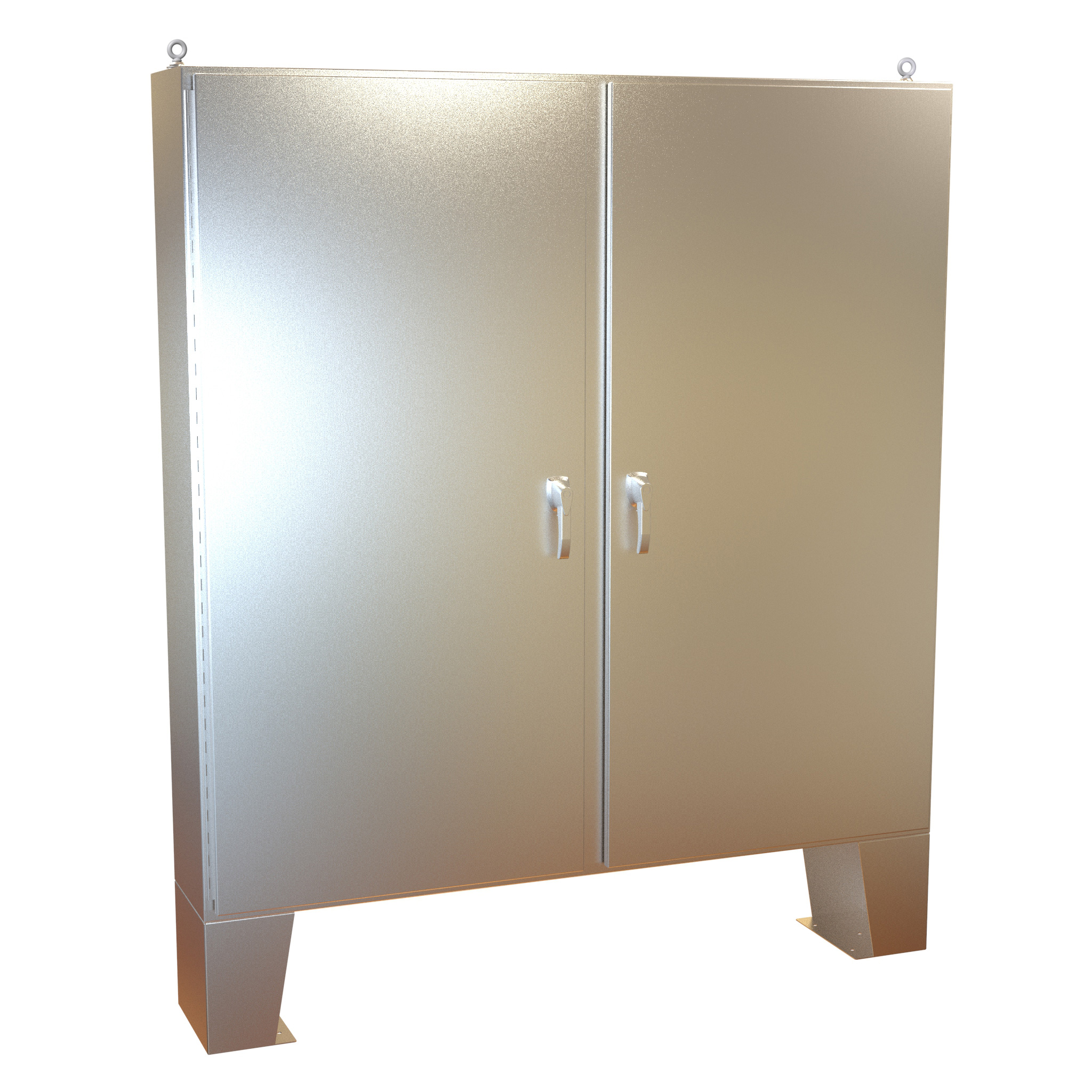

Type 4X Stainless Steel Two Door Floormount Enclosure HN4 FM SS Series

Type 4X Stainless Steel Two Door Floormount Enclosure · HN4 FM SS Series

Brand: Hammond Manufacturing · 18 part numbers

Continuous Hinge Door with Handle

  • ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
  • ■Formed 12 gauge 304 or 316 stainless steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts or holes.
  • ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
  • ■Doors are supported with heavy gauge continuous hinges.

from $7,179.06

18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your HN4 FM SS Series part number

Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

18 of 18 part numbers · 18 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

304 S.S. · Part Number316 S.S. · Part NumberEnclosure · HEnclosure · WEnclosure · DPanel · HPanel · WPriceOrder

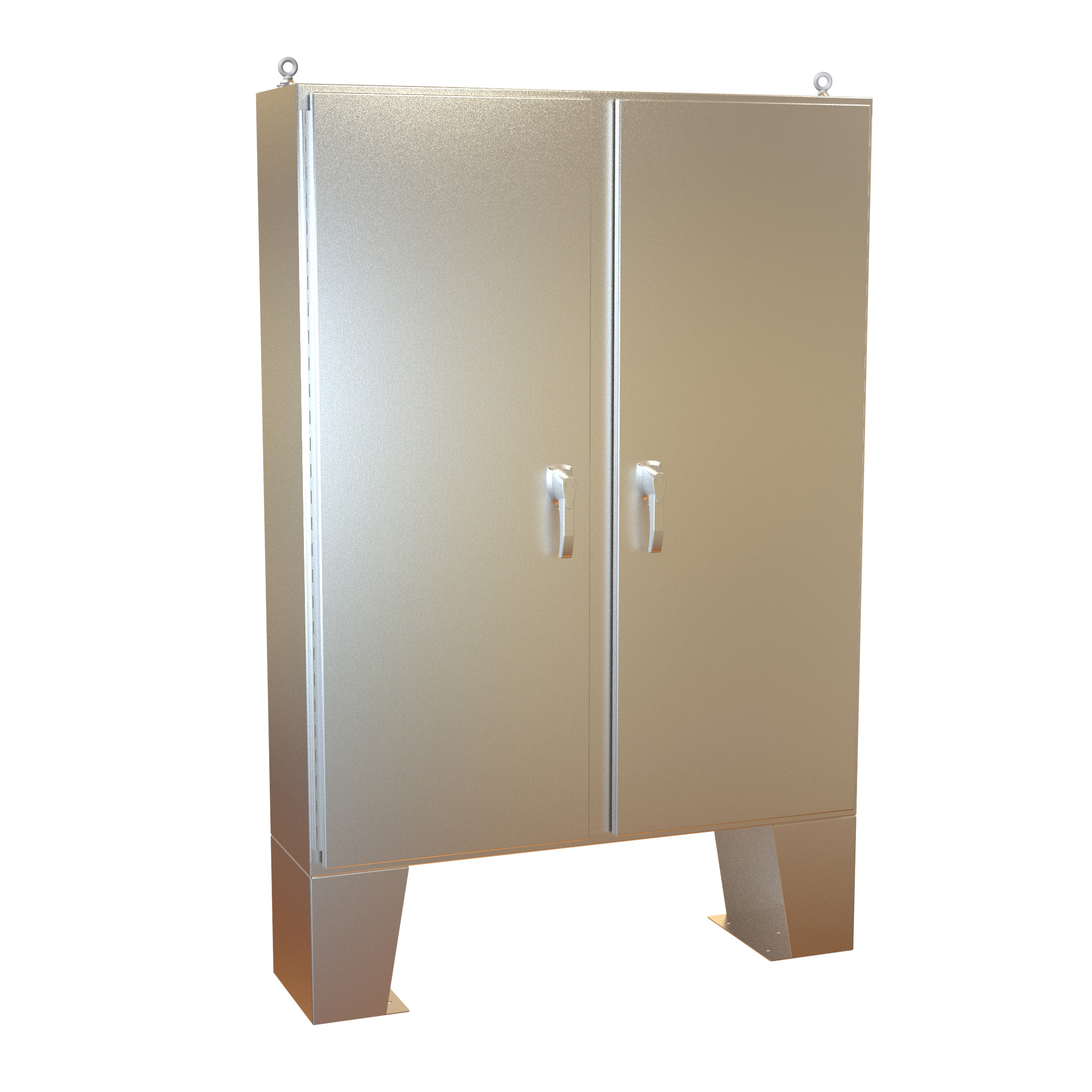

HN4FM604812SSHN4FM604812S1660.1348.0612.6956.0044.00$7,179.06In stockHN4FM604812SSBuy now

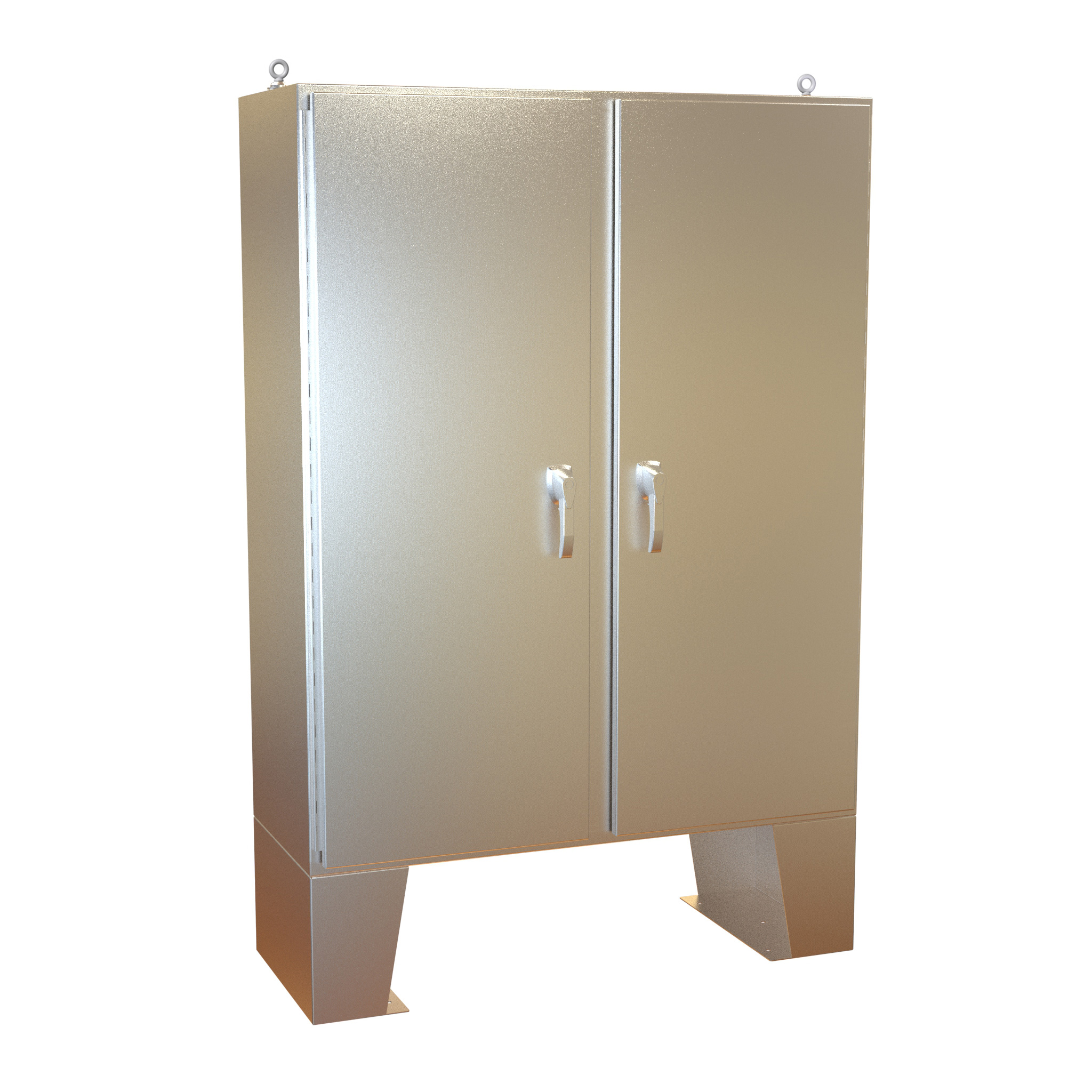

HN4FM604818SSHN4FM604818S1660.1348.0618.6956.0044.00$7,918.26BackorderHN4FM604818SSBuy now

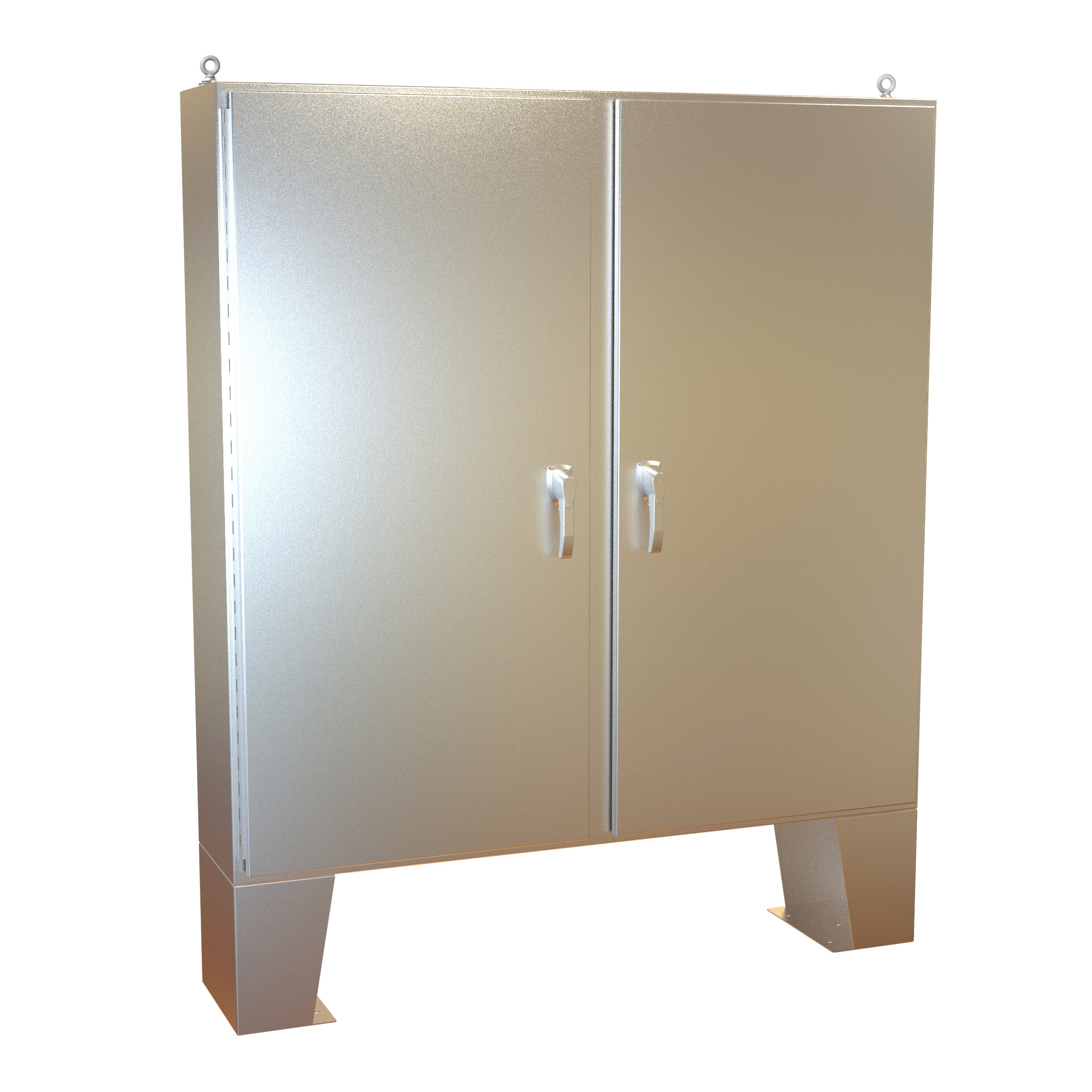

HN4FM606012SSHN4FM606012S1660.1360.0612.6956.0056.00$8,103.18BackorderHN4FM606012SSBuy now

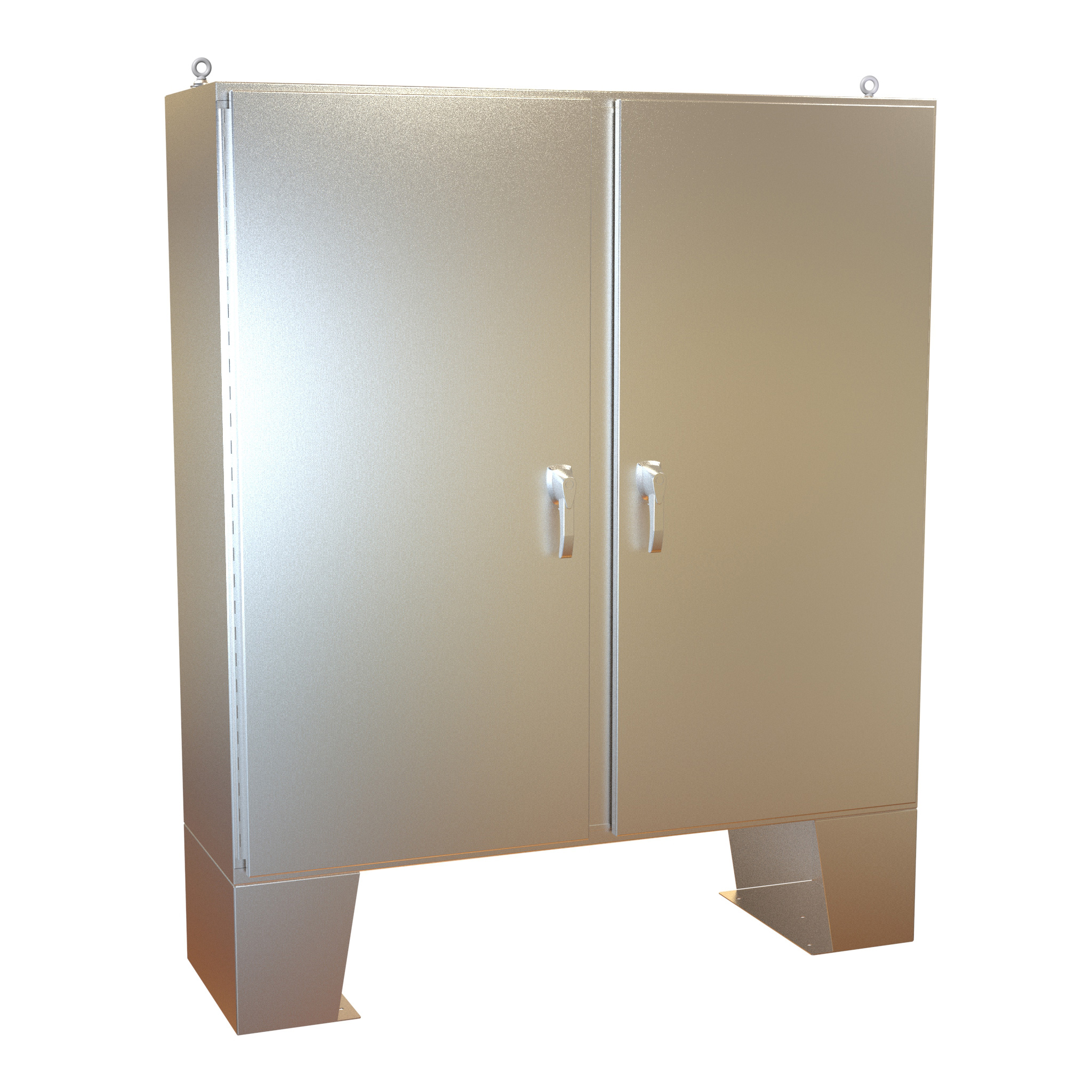

HN4FM606018SSHN4FM606018S1660.1360.0618.6956.0056.00$8,858.51BackorderHN4FM606018SSBuy now

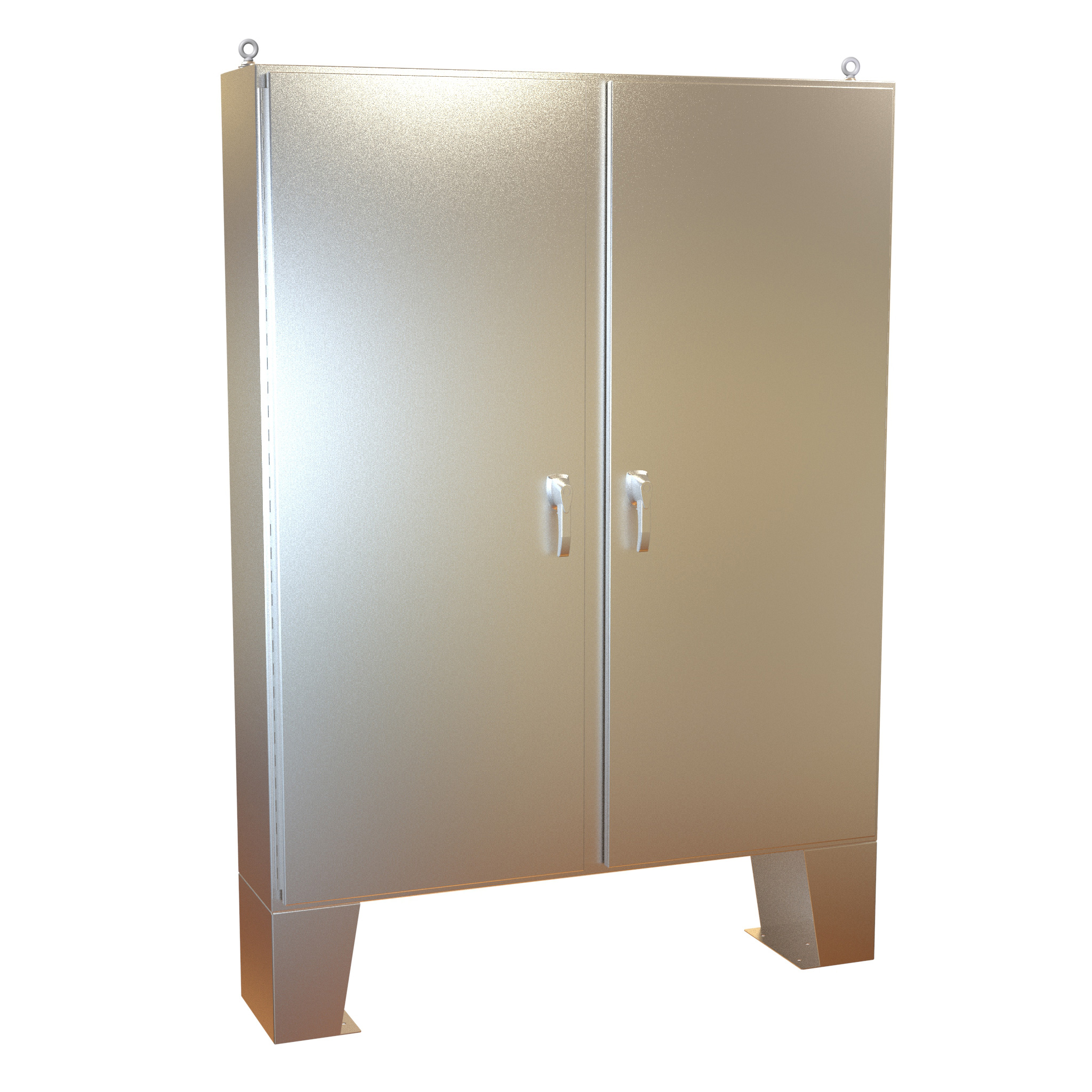

HN4FM726012SSHN4FM726012S1672.1360.0612.6968.0056.00$9,722.43BackorderHN4FM726012SSBuy now

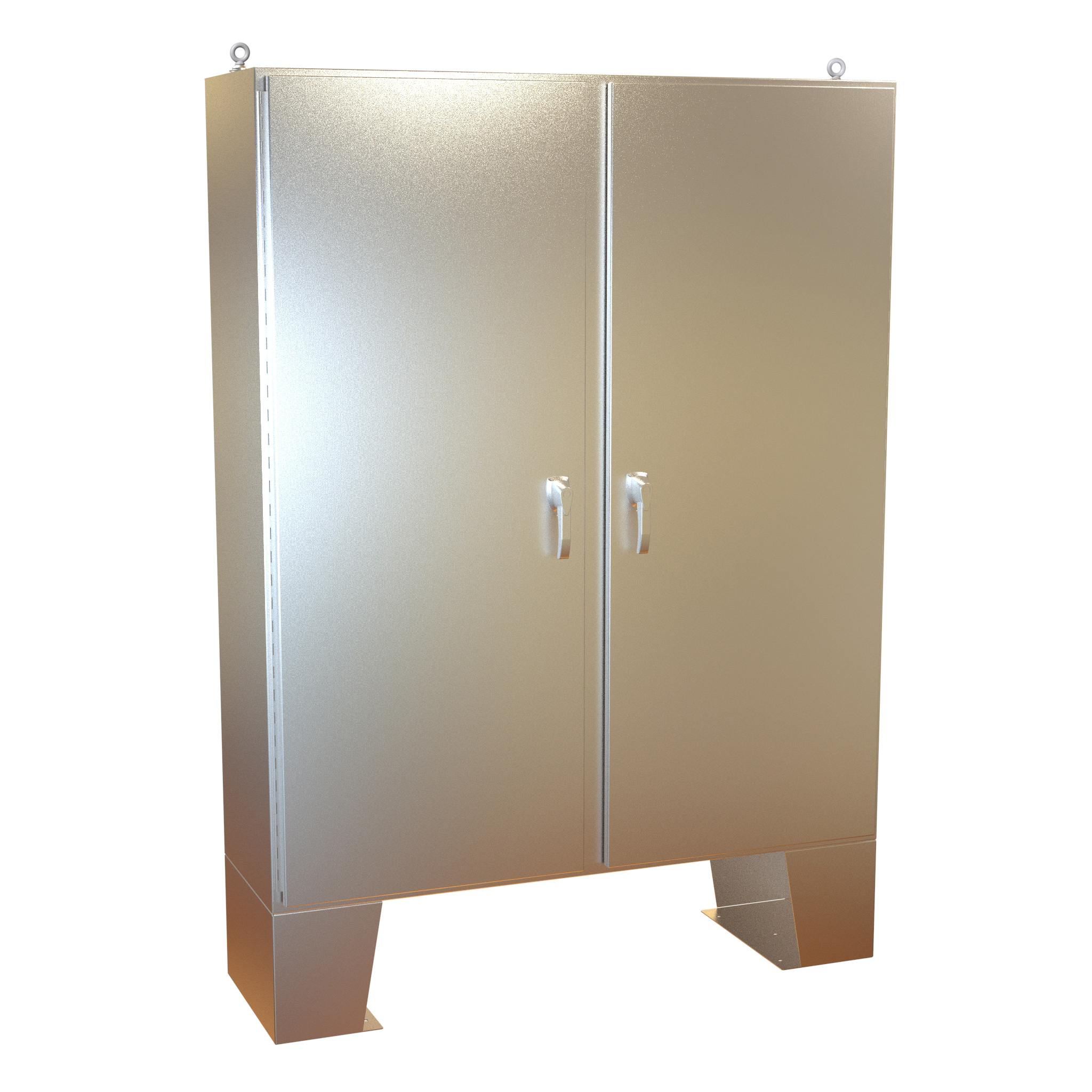

HN4FM726018SSHN4FM726018S1672.1360.0618.6968.0056.00$10,433.67BackorderHN4FM726018SSBuy now
HN4FM727212SSHN4FM727212S1672.1372.0612.6968.0068.00$10,049.83In stockHN4FM727212SSBuy now

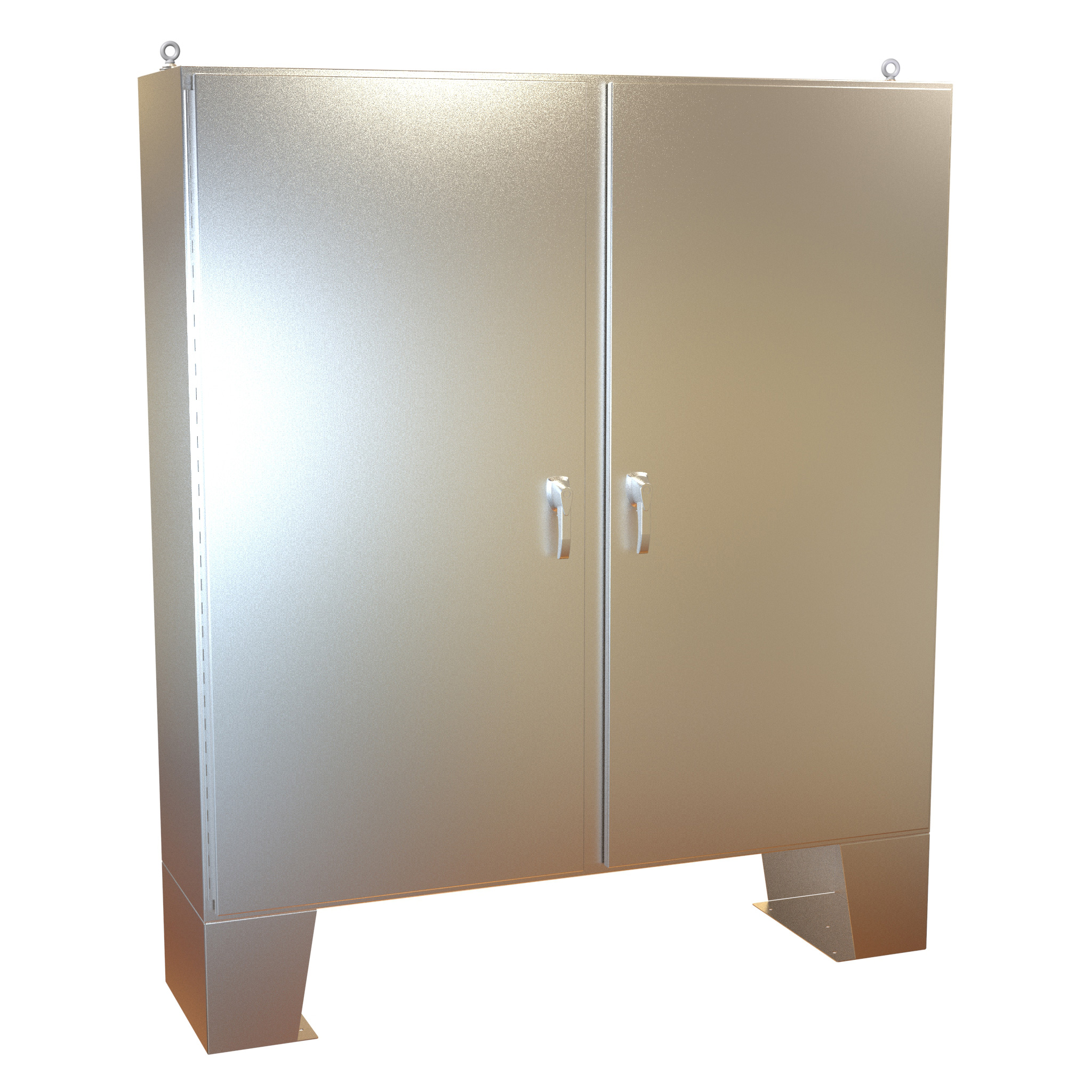

HN4FM727218SSHN4FM727218S1672.1372.0618.6968.0068.00$10,934.72BackorderHN4FM727218SSBuy now

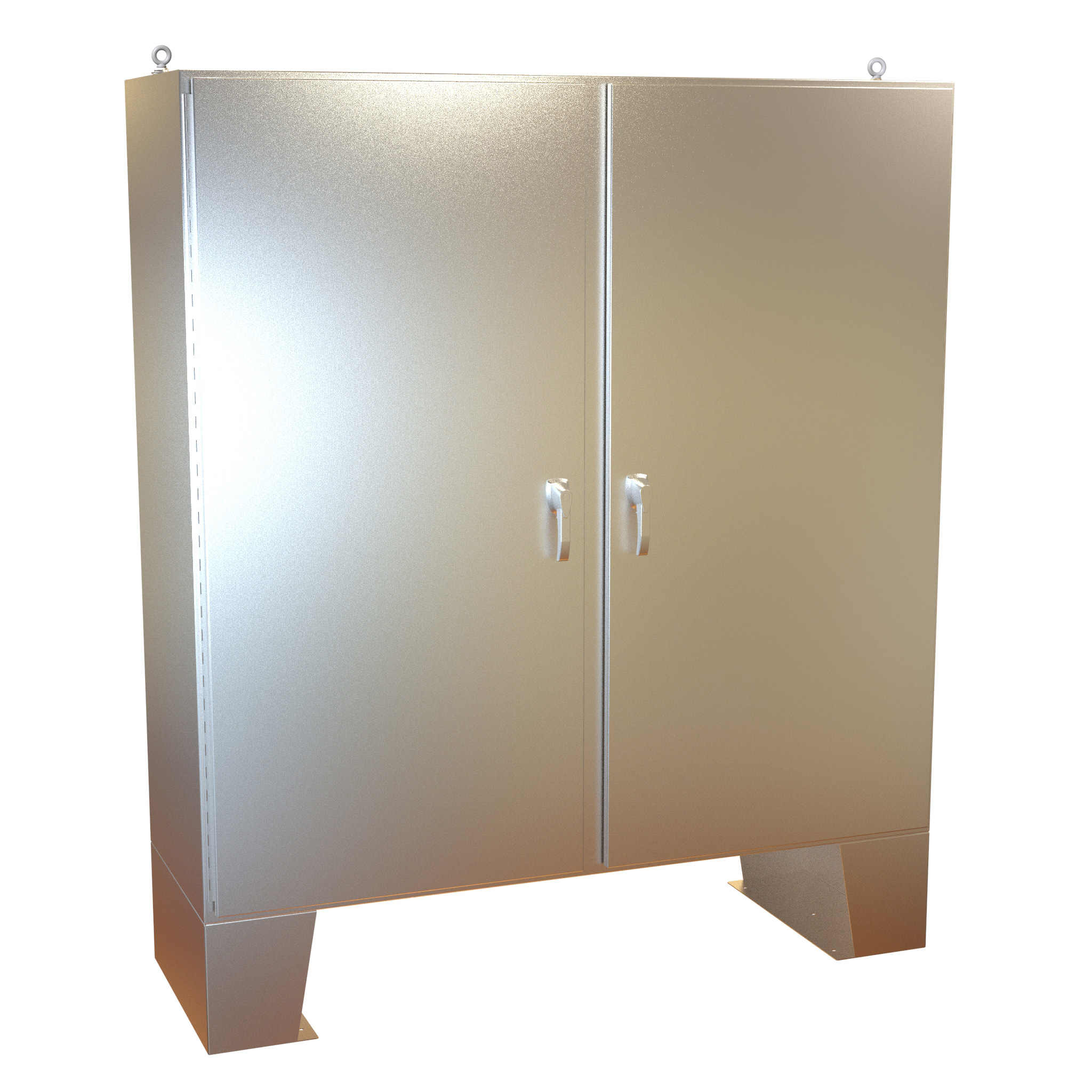

HN4FM727224SSHN4FM727224S1672.1372.0624.6968.0068.00$12,665.76BackorderHN4FM727224SSBuy now

Application

  • ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.

Construction

  • ■Formed 12 gauge 304 or 316 stainless steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts or holes.
  • ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
  • ■Doors are supported with heavy gauge continuous hinges.
  • ■New 3-pt padlocking door handle.
  • ■Seamless poured-in place gasket.
  • ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
  • ■Center post is removable for easy installation of the inner panel.
  • ■12" floor stands are welded to the enclosure.

Standards

  • ■UL 508A Type 3R, 4X and 12
  • ■CSA Type 3R, 4X and 12
  • ■Complies with: NEMA Type 3R, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4X, 12 and 13
  • ■IEC 60529, IP66

Finish

  • ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • ■Removable 10 gauge inner panel is finished in white powder coating.

Documents

Specification SheetCE Declaration

Additional information

Part Details

304 S.S. · Part Number316 S.S. · Part NumberEnclosure · HEnclosure · WEnclosure · DPanel · HPanel · W
HN4FM604812SSHN4FM604812S1660.1348.0612.6956.0044.00
HN4FM604818SSHN4FM604818S1660.1348.0618.6956.0044.00
HN4FM606012SSHN4FM606012S1660.1360.0612.6956.0056.00
HN4FM606018SSHN4FM606018S1660.1360.0618.6956.0056.00
HN4FM726012SSHN4FM726012S1672.1360.0612.6968.0056.00
HN4FM726018SSHN4FM726018S1672.1360.0618.6968.0056.00
HN4FM727212SSHN4FM727212S1672.1372.0612.6968.0068.00
HN4FM727218SSHN4FM727218S1672.1372.0618.6968.0068.00
HN4FM727224SSHN4FM727224S1672.1372.0624.6968.0068.00
