Type 4X Stainless Steel Freestanding Enclosure · 1418 N4 FS SS Series

Brand: Hammond Manufacturing · 9 part numbers

Continuous Hinge Door with Clamps

■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
■UL 508A Type 3R, 4, 4X and 12
■CSA Type 3R, 4, 4X and 12
■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66

from $371.26

9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1418 N4 FS SS Series part number

Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

6 of 6 part numbers · 6 priced online

1418N4S16W18

1418N4 316 SS Freest 72X25X18

$7,510.22Backorder

Buy now

1418N4S16X24

1418N4 316 SS Freest 72X31X24

$9,181.61Backorder

Buy now

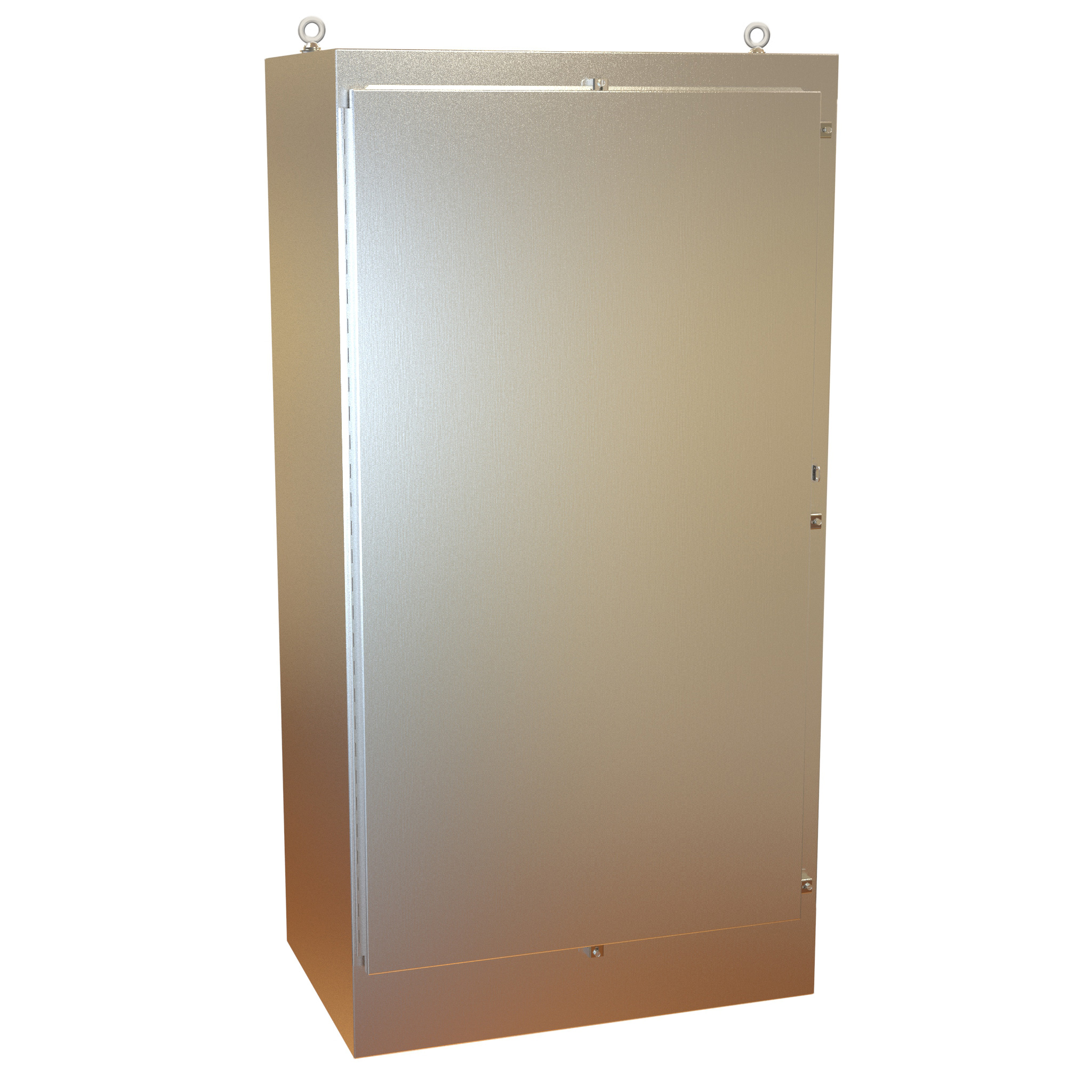

1418N4S16Y24

1418N4 316 SS Freest 72X37X24

$10,021.87Backorder

Buy now

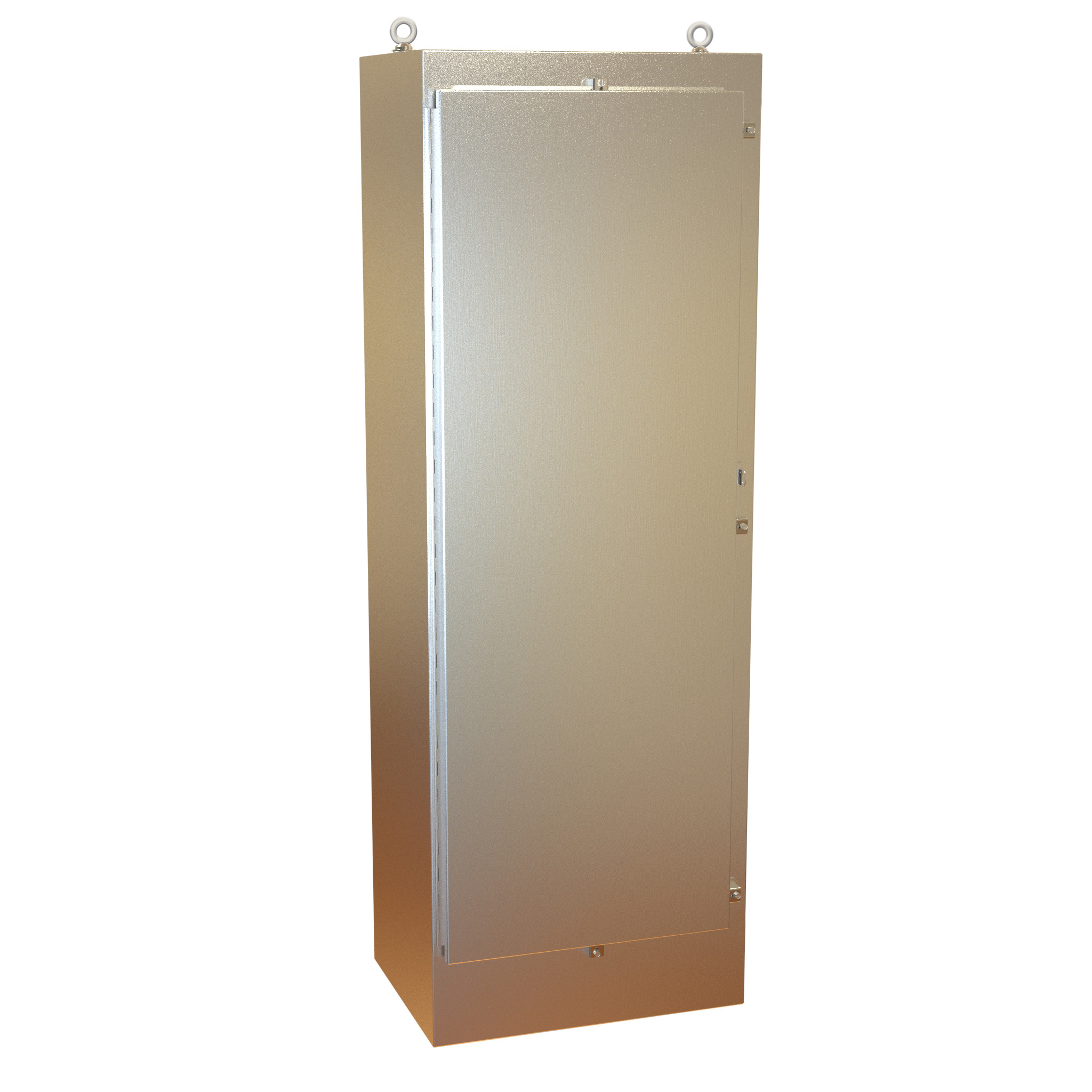

1418N4SSW18

1418N4X SS Freest 72X25X18

$5,748.52In stock

Buy now

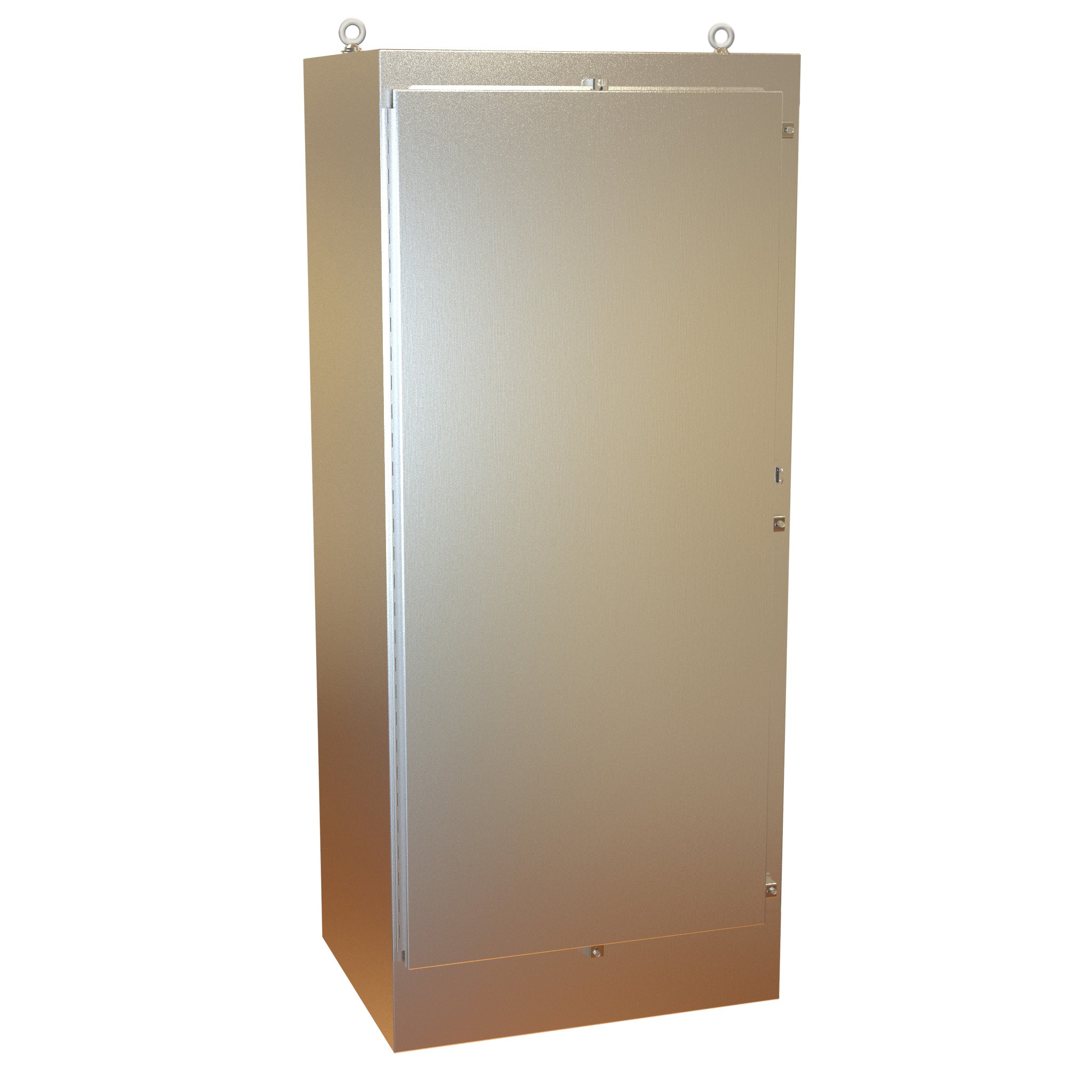

1418N4SSX24

1418N4X SS Freest 72X31X24

$7,032.30Backorder

Buy now

1418N4SSY24

1418N4X SS Freest 72X37X24

$7,669.88Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

304 S.S. · Part No.	316 S.S. · Part No.	Enclosure · H	Enclosure · W	Enclosure · D	Optional Full Size · Inner Panel (Part No.)	Price	Order
1418N4SSW18	1418N4S16W18	72.06	25.06	18.06	72WFW	$5,748.52In stock1418N4SSW18	Buy now
1418N4SSX24	1418N4S16X24	72.06	31.06	24.06	72XFW	$7,032.30Backorder1418N4SSX24	Buy now
1418N4SSY24	1418N4S16Y24	72.06	37.06	24.06	72YFW	$7,669.88Backorder1418N4SSY24	Buy now

Application

■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Standards

■UL 508A Type 3R, 4, 4X and 12
■CSA Type 3R, 4, 4X and 12
■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
■NEMA Type 3R, 4, 4X, 12 and 13
■IEC 60529, IP66

Construction

■Formed 12 gauge 304 or 316 stainless steel.
■Smooth, continuously welded seams without knockouts, cutouts or holes.
■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
■Doors are supported with heavy gauge continuous hinges.
■Doors are secured with heavy duty stainless steel clamps.
■Seamless poured-in place gasket.
■Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
