7X4X4 1 Hole Pbutton
$61.72In stock
Buy now

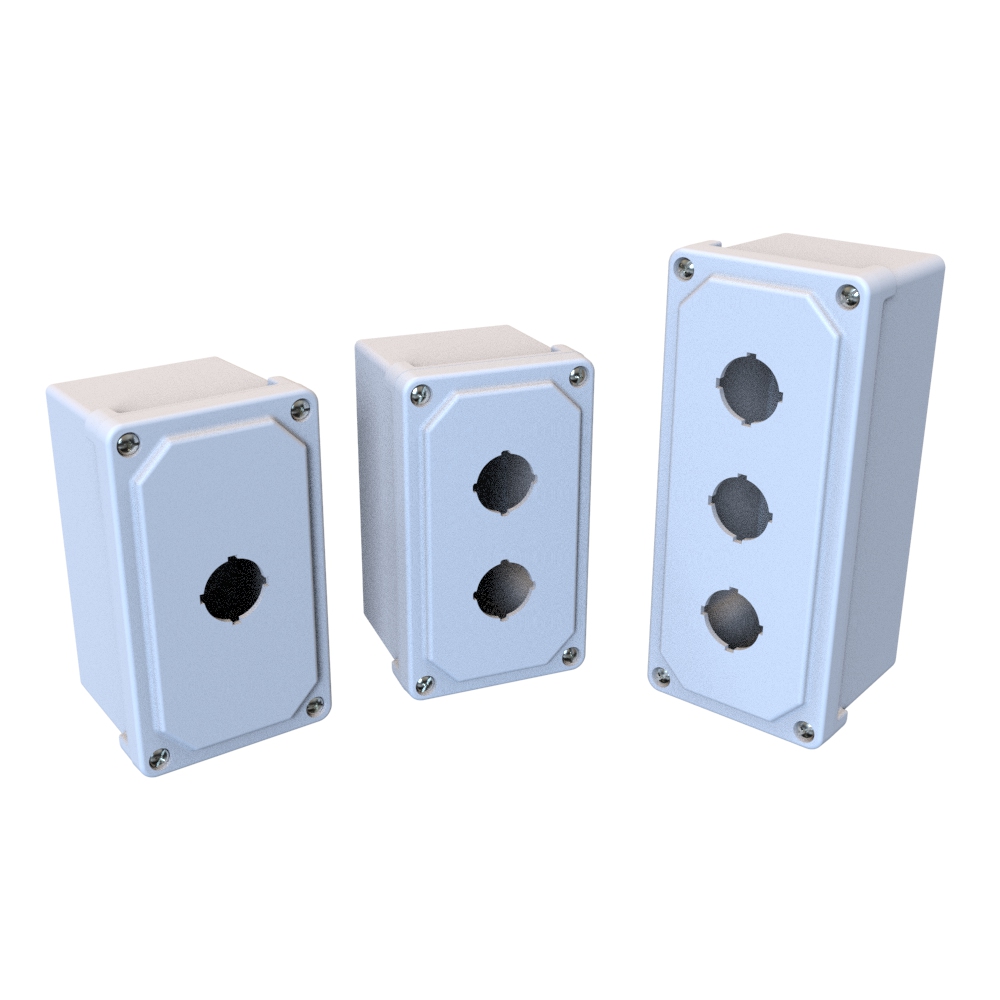

Type 4, 4X Polyester Pushbutton Enclosure · PJPB Series
Brand: Hammond Manufacturing · 8 part numbers
- ■Designed for use as pushbutton enclosures for 22.5mm or 30.5mm devices.
- ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- ■Ideal in applications with high temperatures or highly corrosive environments.
- ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- ■CSA Type 1, 2, 3, 4, 4X, 12 and 13
- ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
from $12.80
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your PJPB Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | # of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Optional Aluminum Panel · Part No. | Optional Aluminum Panel · H | Optional Aluminum Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|

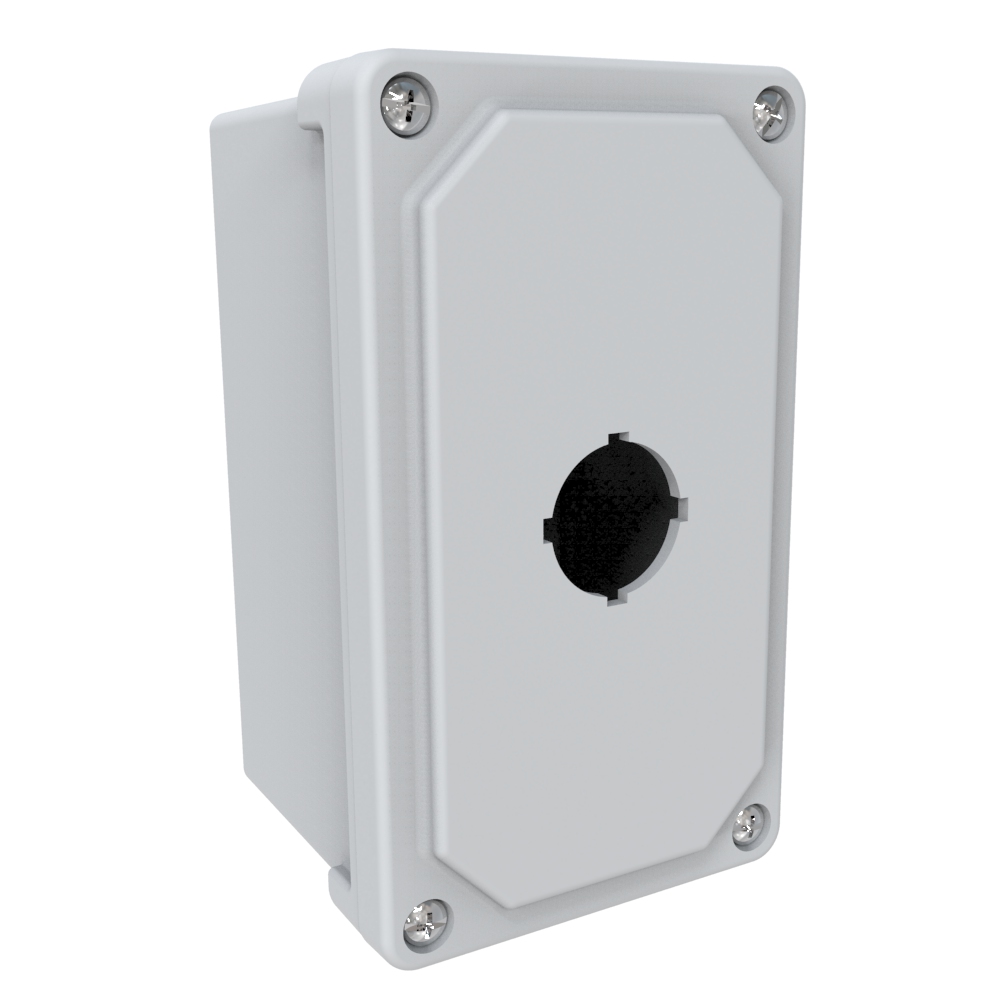

| PJ744P1 | PJ744P221 | 1 | 6.74 | 3.93 | 3.88 | PJP74 | 4.00 | 3.13 | $61.72In stockPJ744P1 | Buy now |

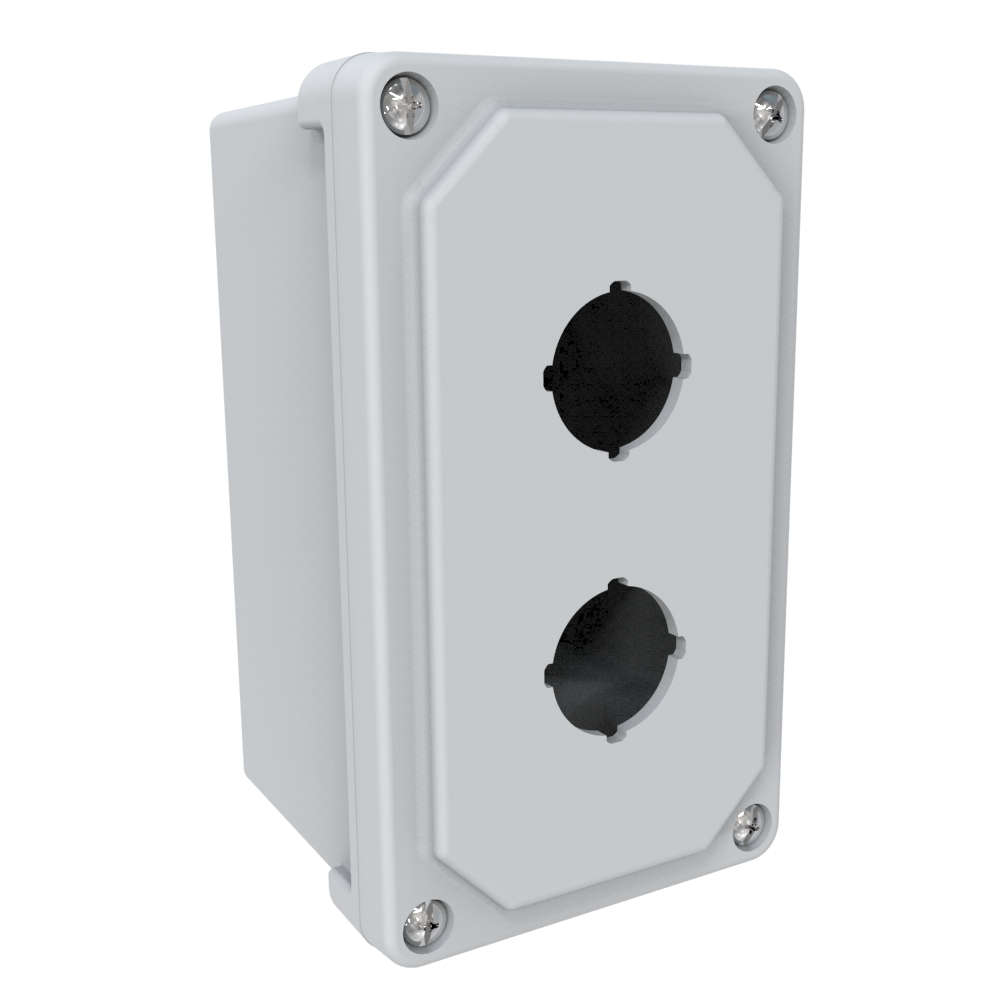

| PJ744P2 | PJ744P222 | 2 | 6.74 | 3.93 | 3.88 | PJP74 | 4.00 | 3.13 | $63.06In stockPJ744P2 | Buy now |
| PJ944P3 | PJ944P223 | 3 | 8.99 | 3.93 | 3.88 | PJP94 | 6.25 | 3.13 | $67.45BackorderPJ944P3 | Buy now |
Application
- ■Designed for use as pushbutton enclosures for 22.5mm or 30.5mm devices.
- ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- ■Ideal in applications with high temperatures or highly corrosive environments.
Standards
- ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- ■CSA Type 1, 2, 3, 4, 4X, 12 and 13
- ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- ■Cover is fastened with captive stainless steel screws in threaded brass inserts.
- ■Captive oil resistant gasket provides a positive seal.
- ■Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
- ■Enhanced UV inhibitors protect against outdoor weathering.
- ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
- ■Impact index of 6.78J (5 ft/lb).
- ■For corrosion resistance information, please refer to table in Technical Information.
Finish
- ■Fiberglass polyester material has a gray finish.
- ■Optional aluminum inner panel natural finish.
Documents
Additional information
Part Details
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | # of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Optional Aluminum Panel · Part No. | Optional Aluminum Panel · H | Optional Aluminum Panel · W |
|---|---|---|---|---|---|---|---|---|
| PJ744P1 | PJ744P221 | 1 | 6.74 | 3.93 | 3.88 | PJP74 | 4.00 | 3.13 |
| PJ744P2 | PJ744P222 | 2 | 6.74 | 3.93 | 3.88 | PJP74 | 4.00 | 3.13 |
| PJ944P3 | PJ944P223 | 3 | 8.99 | 3.93 | 3.88 | PJP94 | 6.25 | 3.13 |
