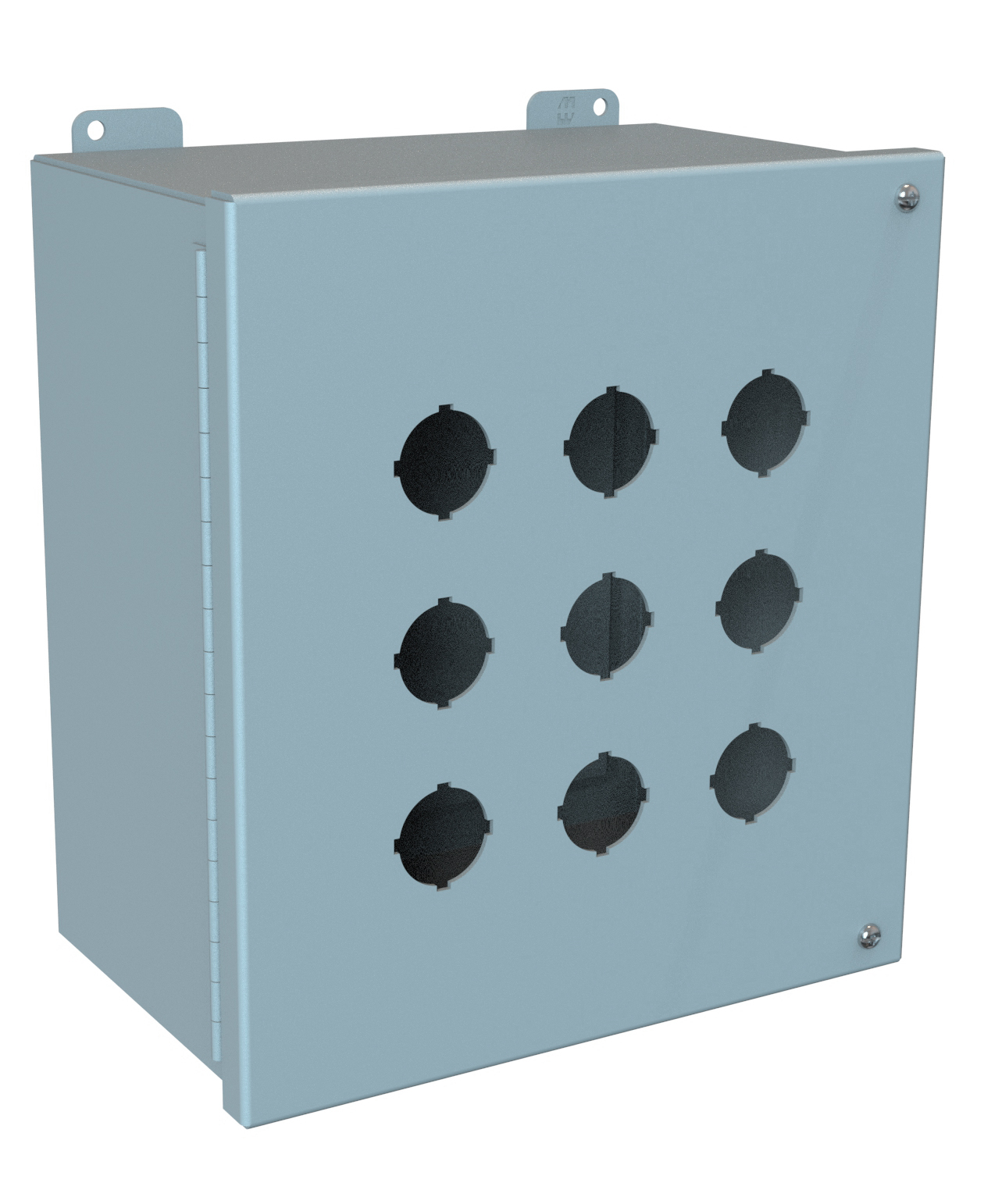

Type 12 Mild Steel Pushbutton Enclosures · 1489 Series
Brand: Hammond Manufacturing · 20 part numbers
Hinged Cover
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
from $147.11
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1489 Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
16 Pb 22MM 12.8X11.8X6
$253.44In stock
Buy now20 Pb 22MM 15X11.8X6
$282.87In stock
Buy now25PB 22MM 15X14X6
$316.98In stock
Buy now30 Pb 22MM 17.3X14X6
$352.42Backorder
Buy now36PB 22MM 17.3X16.3X6
$390.53In stock
Buy now4 Pb 22MM 8.3X7.3X6
$147.11In stock
Buy now42 Pb 22MM 19.5X16.3X6
$426.65In stock
Buy now6 Pb 22MM 10.5X7.3X6
$169.19Backorder
Buy now9PB 22MM 10.5X9.5X6
$195.27In stock
Buy nowN12 Hngd P/B Box 12.75X9.50
$228.03In stock
Buy nowN12 Hngd P/B Box 12.75X11.75
$260.80In stock
Buy nowN12 Hngd P/B Box 15.00X11.75
$291.56In stock
Buy nowN12 Hngd P/B Box 15.00X14.00
$327.67In stock
Buy nowN12 Hngd P/B Box 15.00X14.00
$362.45Backorder
Buy nowN12 Hngd P/B Box 17.25X16.25
$402.57Backorder
Buy nowN12 Hngd P/B Box 8.25X7.25
$150.46In stock
Buy nowN12 Hngd P/B Box 19.50X16.25
$441.35Backorder
Buy nowN12 Hngd P/B Box 10.50X7.25
$173.87Backorder
Buy nowN12 Hngd P/B Box 10.50X9.50
$201.95Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm

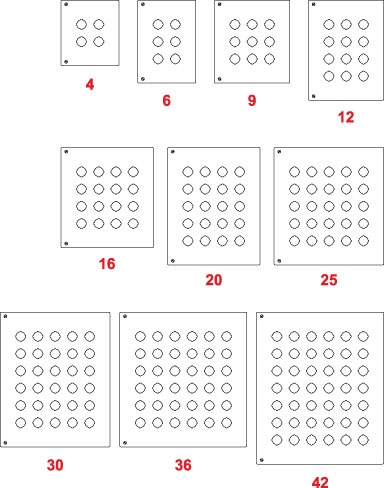

| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 1489P4 | 1489MP4 | 4 | 8.25 | 7.25 | 6.00 | 6.25 | 5.25 | $150.46In stock1489P4 | Buy now |
| 1489P6 | 1489MP6 | 6 | 10.50 | 7.25 | 6.00 | 8.50 | 5.25 | $173.87Backorder1489P6 | Buy now |
| 1489P9 | 1489MP9 | 9 | 10.50 | 9.50 | 6.00 | 8.50 | 7.50 | $201.95Backorder1489P9 | Buy now |
| 1489P12 | 1489MP12 | 12 | 12.75 | 9.50 | 6.00 | 10.75 | 7.50 | $228.03In stock1489P12 | Buy now |
| 1489P16 | 1489MP16 | 16 | 12.75 | 11.75 | 6.00 | 10.75 | 9.75 | $260.80In stock1489P16 | Buy now |
| 1489P20 | 1489MP20 | 20 | 15.00 | 11.75 | 6.00 | 13.00 | 9.75 | $291.56In stock1489P20 | Buy now |
| 1489P25 | 1489MP25 | 25 | 15.00 | 14.00 | 6.00 | 13.00 | 12.00 | $327.67In stock1489P25 | Buy now |
| 1489P30 | 1489MP30 | 30 | 17.25 | 14.00 | 6.00 | 15.25 | 12.00 | $362.45Backorder1489P30 | Buy now |
| 1489P36 | 1489MP36 | 36 | 17.25 | 16.25 | 6.00 | 15.25 | 14.25 | $402.57Backorder1489P36 | Buy now |
| 1489P42 | 1489MP42 | 42 | 19.50 | 16.25 | 6.00 | 17.50 | 14.25 | $441.35Backorder1489P42 | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 16 gauge steel.
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Continuously hinged cover is secured with captive, plated steel screws which fasten into threaded sealed wells.
- ■Oil resistant gasket and adhesive.
- ■Weldnuts are provided for mounting inner panels.
- ■A removable 14 gauge inner panel is included.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. Of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|---|---|
| 1489P4 | 1489MP4 | 4 | 8.25 | 7.25 | 6.00 | 6.25 | 5.25 |
| 1489P6 | 1489MP6 | 6 | 10.50 | 7.25 | 6.00 | 8.50 | 5.25 |
| 1489P9 | 1489MP9 | 9 | 10.50 | 9.50 | 6.00 | 8.50 | 7.50 |
| 1489P12 | 1489MP12 | 12 | 12.75 | 9.50 | 6.00 | 10.75 | 7.50 |
| 1489P16 | 1489MP16 | 16 | 12.75 | 11.75 | 6.00 | 10.75 | 9.75 |
| 1489P20 | 1489MP20 | 20 | 15.00 | 11.75 | 6.00 | 13.00 | 9.75 |
| 1489P25 | 1489MP25 | 25 | 15.00 | 14.00 | 6.00 | 13.00 | 12.00 |
| 1489P30 | 1489MP30 | 30 | 17.25 | 14.00 | 6.00 | 15.25 | 12.00 |
| 1489P36 | 1489MP36 | 36 | 17.25 | 16.25 | 6.00 | 15.25 | 14.25 |
| 1489P42 | 1489MP42 | 42 | 19.50 | 16.25 | 6.00 | 17.50 | 14.25 |
