N4,12 Wallmt 24X42X8 Steel/Gr
$1,265.95Backorder
Buy now
Type 4 Two Door Wallmount Enclosure · HN4 WM Series
Brand: Hammond Manufacturing · 12 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■Formed 12 gauge steel
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Doors are supported with heavy gauge continuous hinges.
- ■3-pt padlocking door handle.
from $1,265.95
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HN4 WM Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
N4,12 Wallmt 24X48X8 Steel/Gr
$1,381.27Backorder
Buy now
N4,12 Wallmt 30X42X10 Steel/G
$1,535.58In stock
Buy now

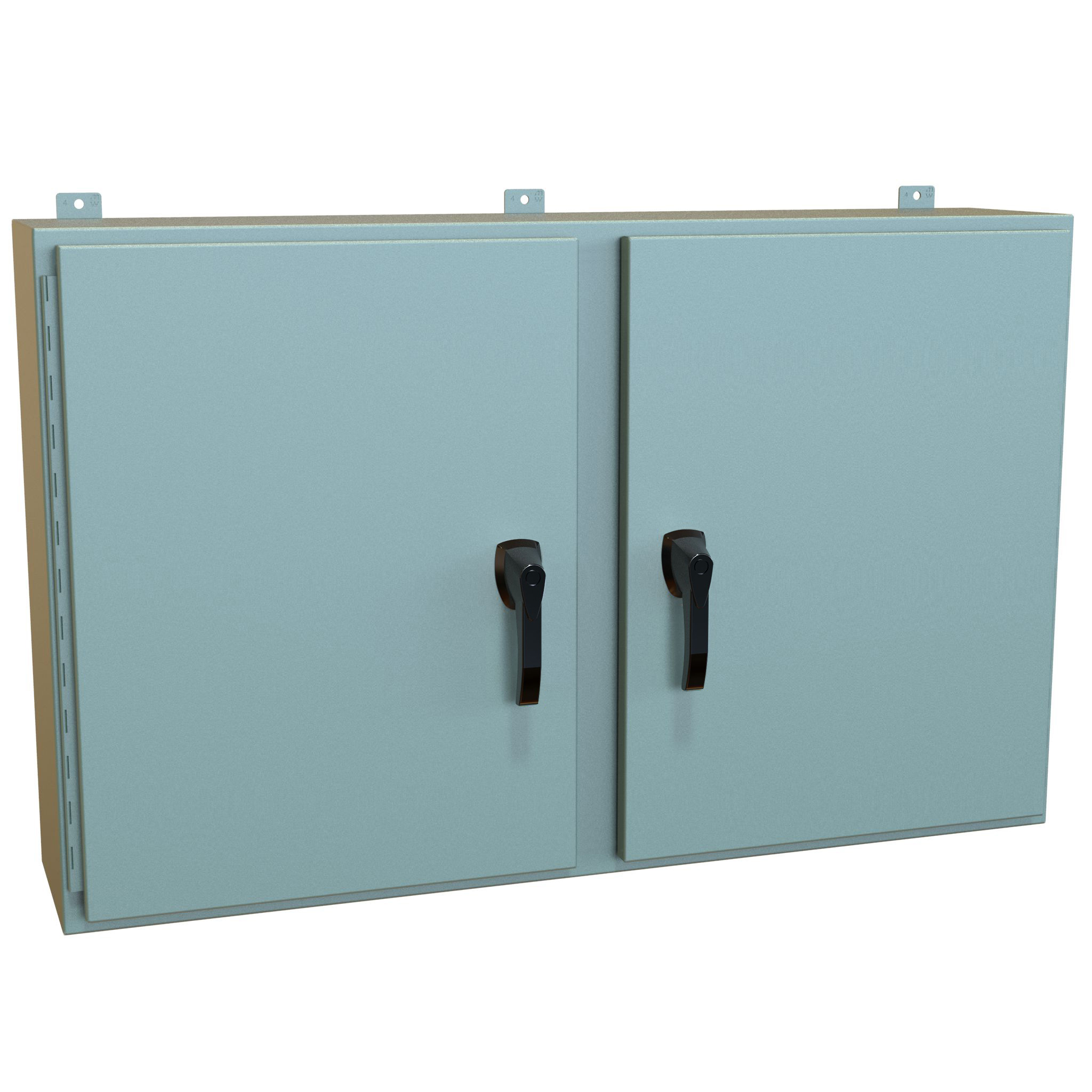

N4,12 Wallmt 30X48X10 Steel/G
$1,678.64Backorder
Buy now

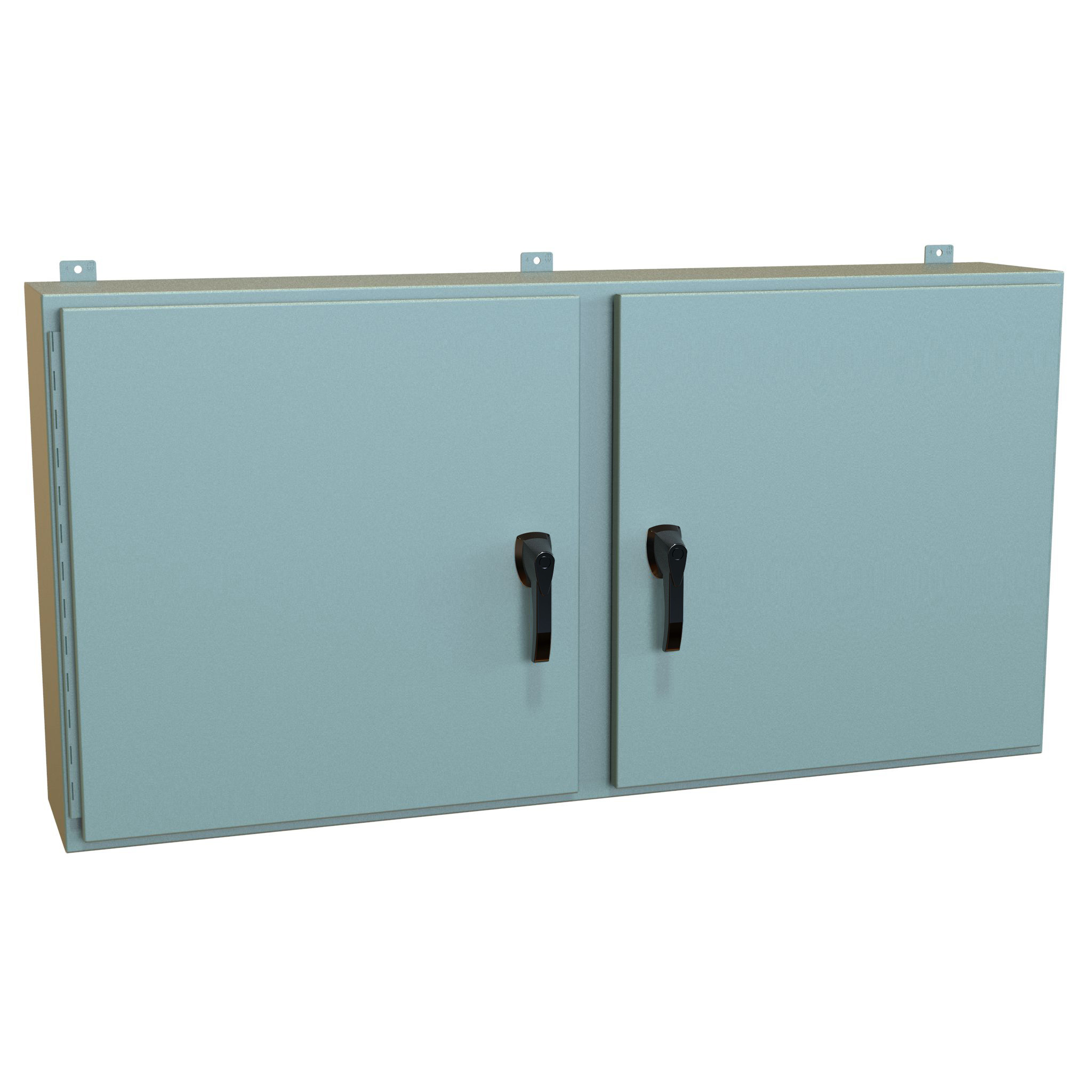

N4,12 Wallmt 30X60X10 Steel/G
$2,013.44Backorder
Buy now

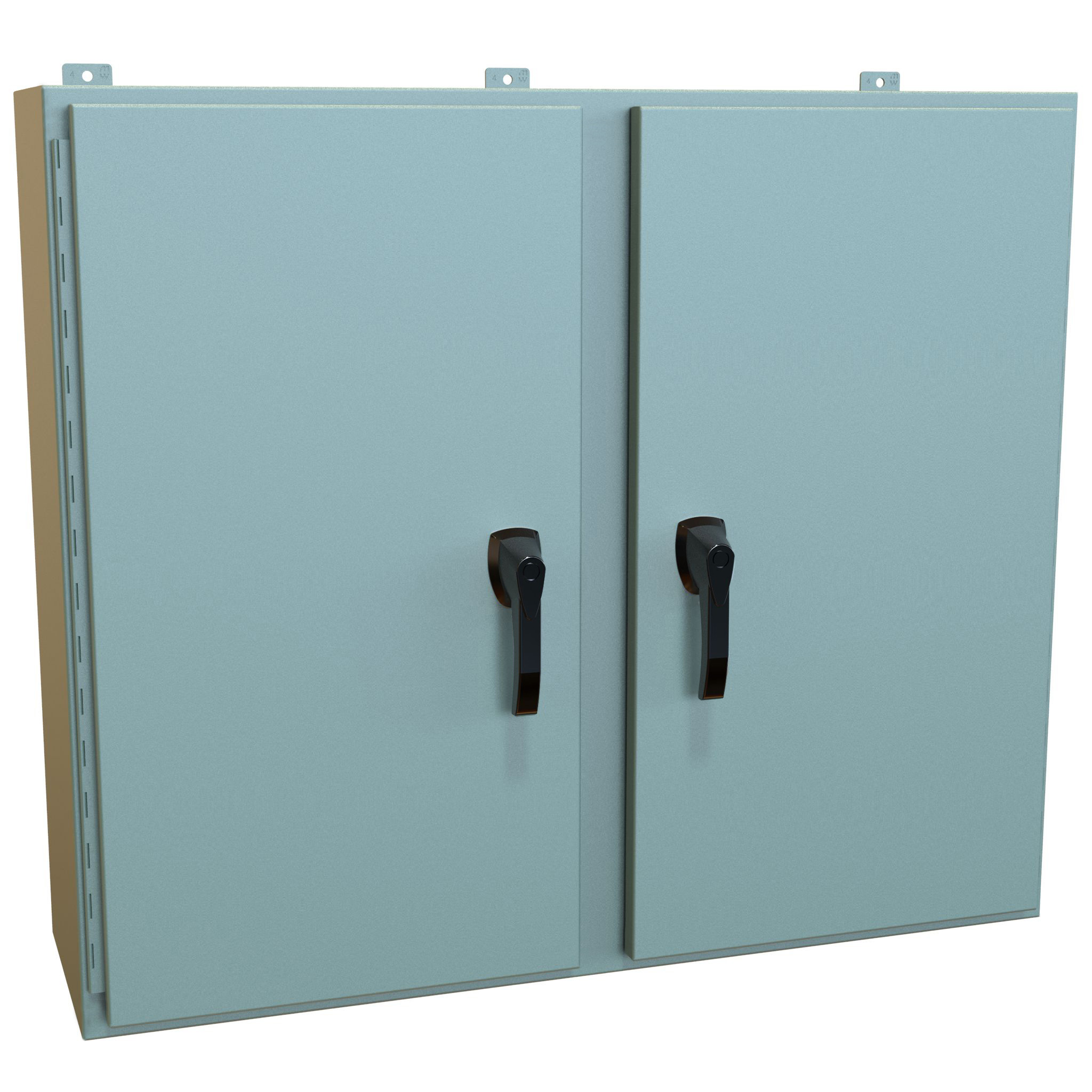

N4,12 Wallmt 36X42X12STEEL/GR
$1,842.39In stock
Buy now

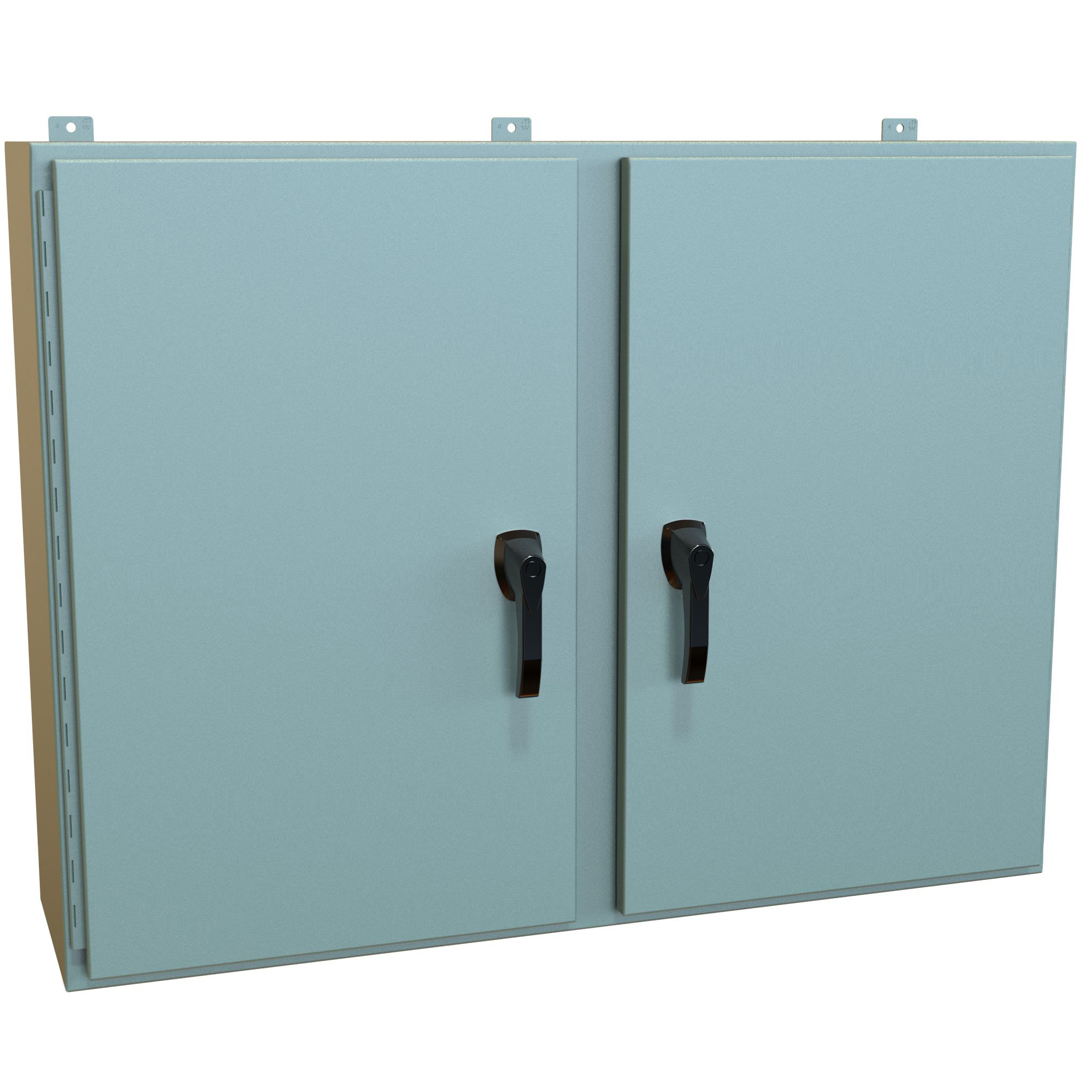

N4,12 WALLMT36X48X12 Steel/Gr
$1,971.57Backorder
Buy now

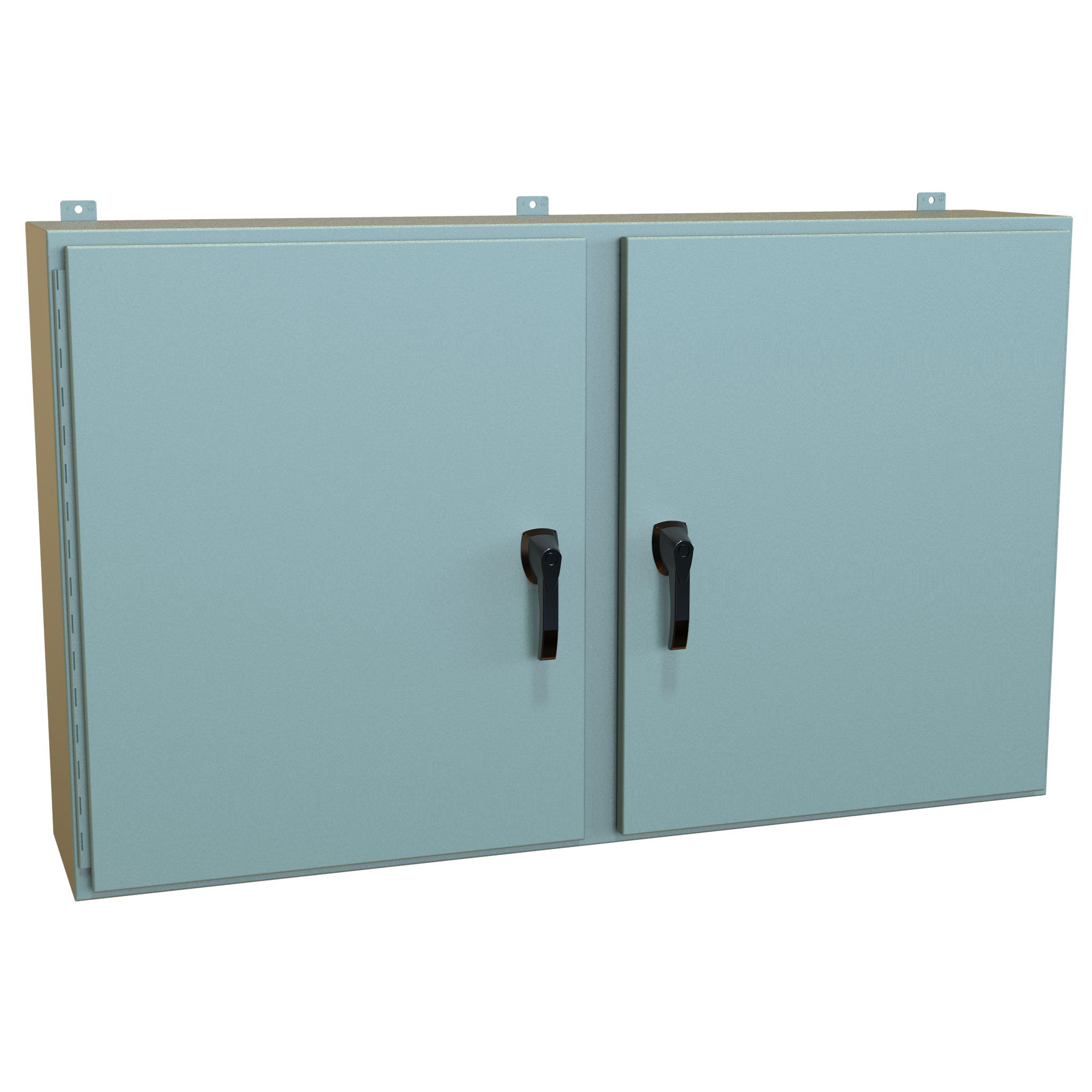

N4,12 Wallmt 36X60X12 Steel/G
$2,314.76In stock
Buy now

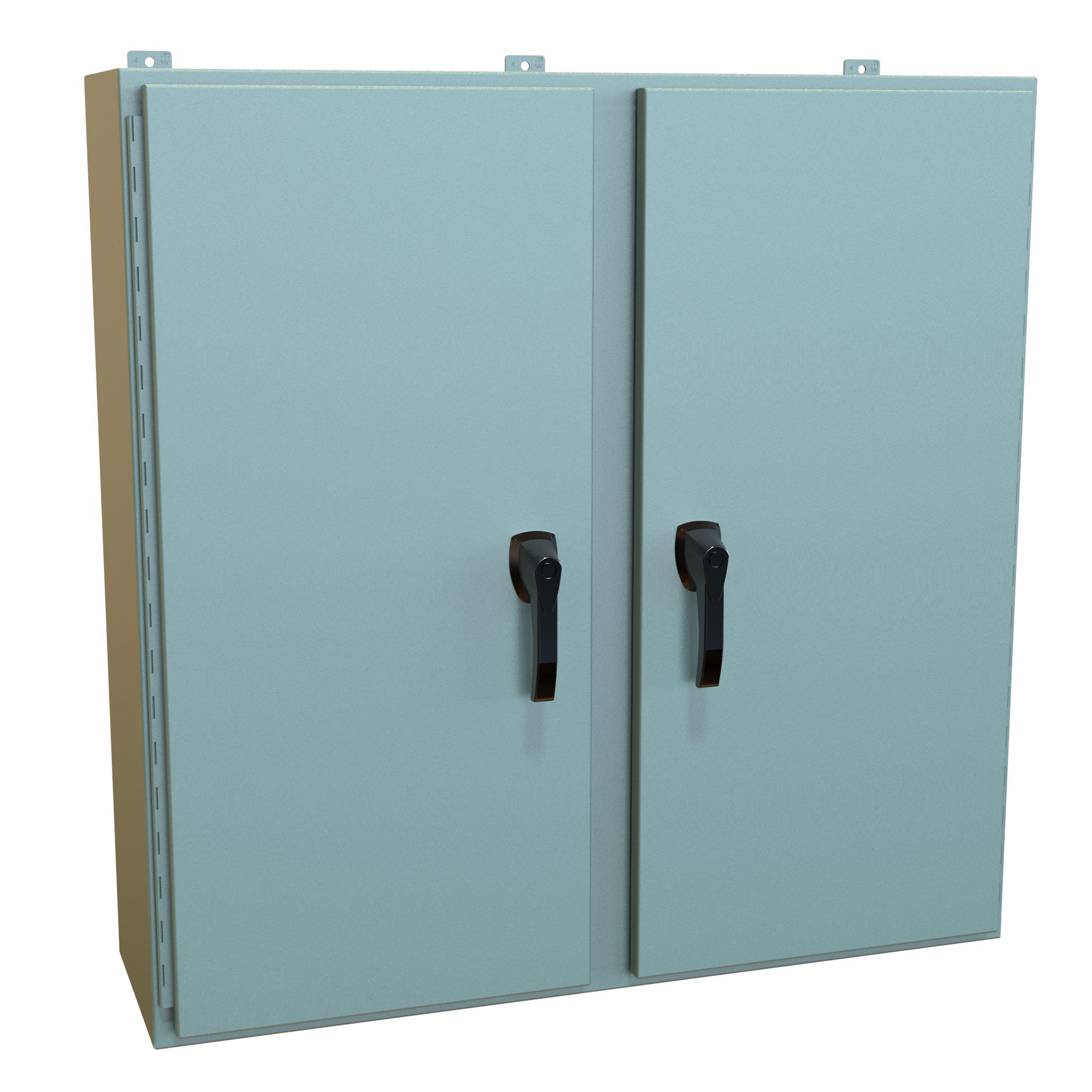

N4,12 Wallmt 42X42X12 Steel/G
$2,041.56In stock
Buy now

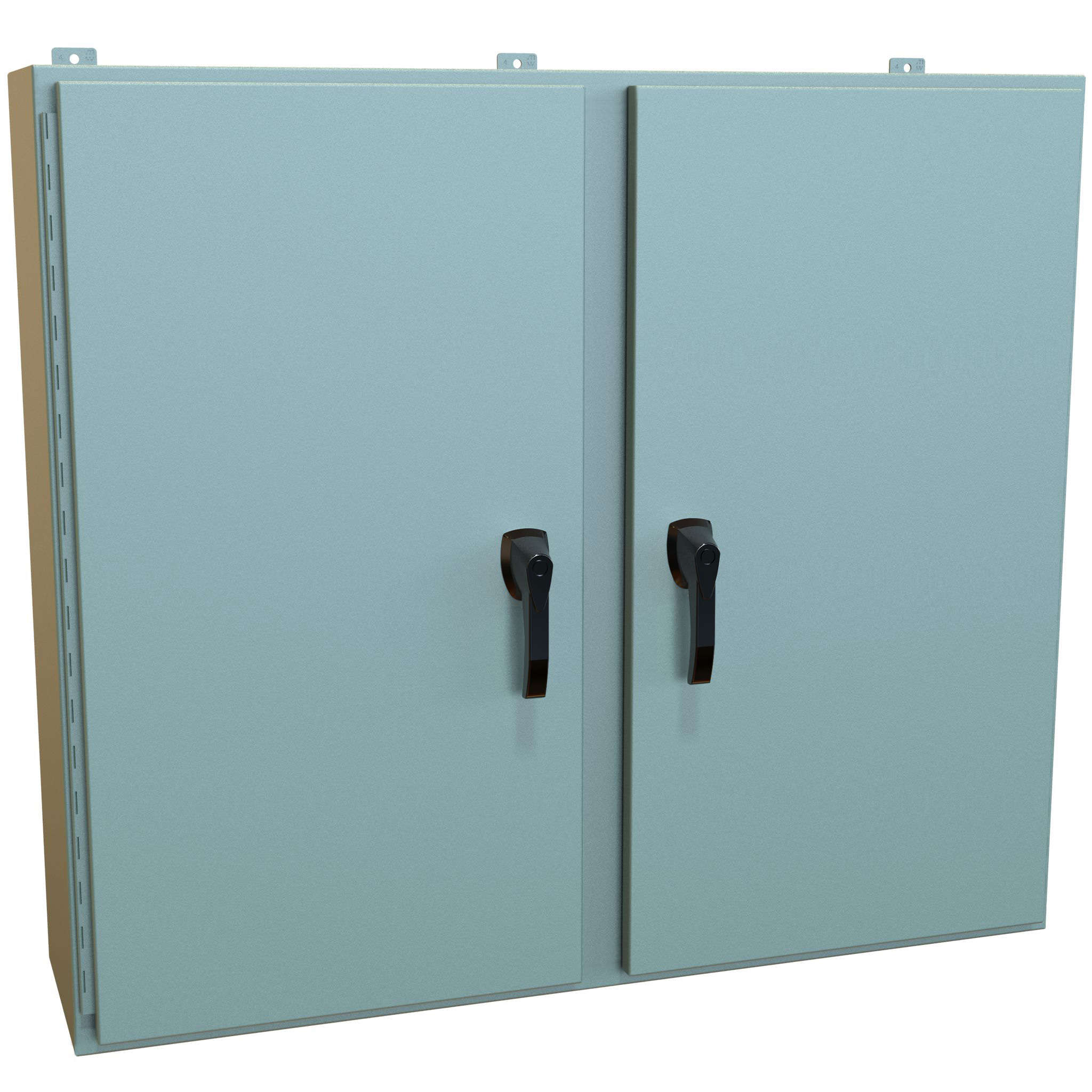

N4,12 Wallmt 42X48X12 Steel/Gr
$2,241.68Backorder
Buy now
N4,12 Wallmt 42X60X12 Steel/G
$2,602.81Backorder
Buy now

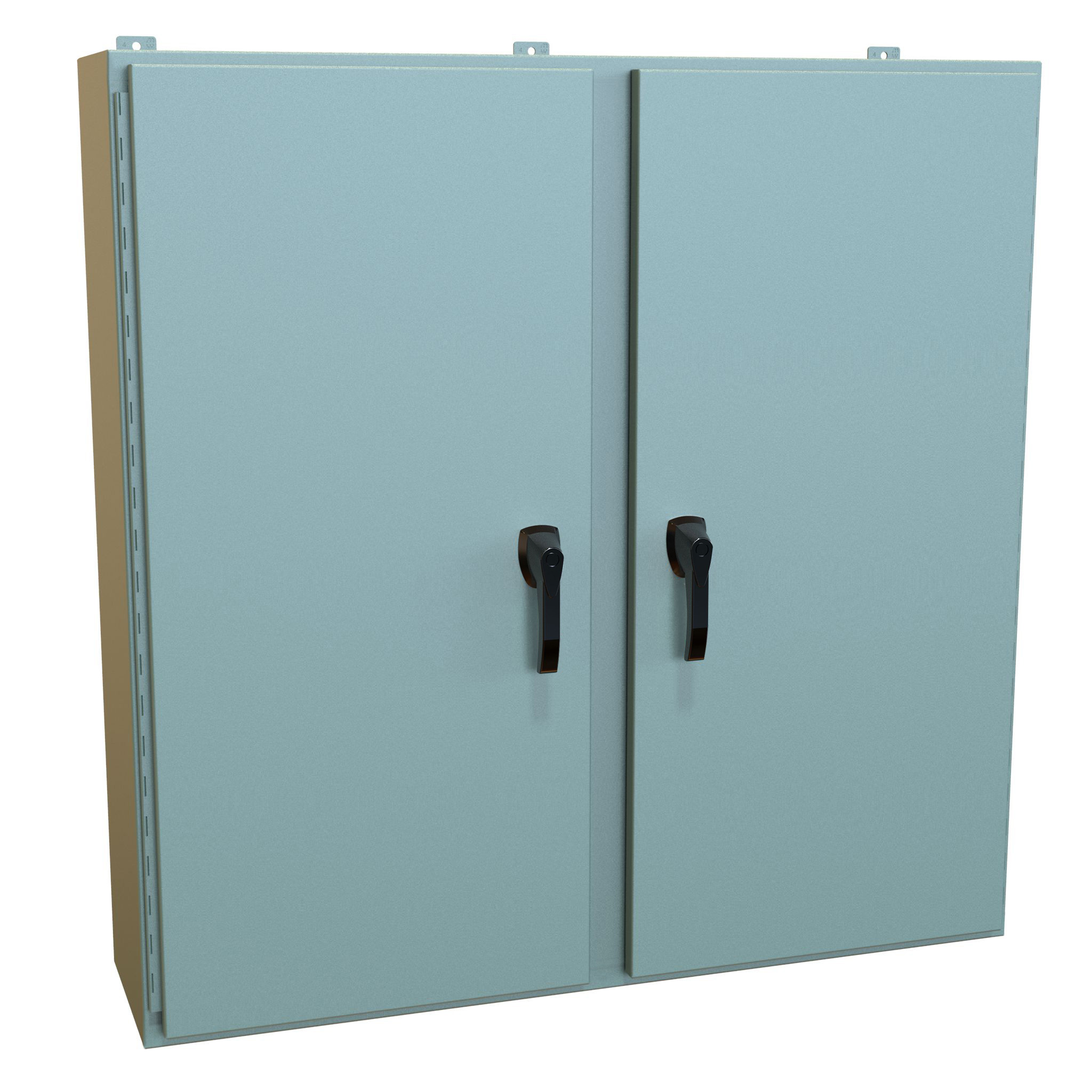

N4,12 WALLMT48X48X12 Steel/Gr
$2,432.39Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part Number | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

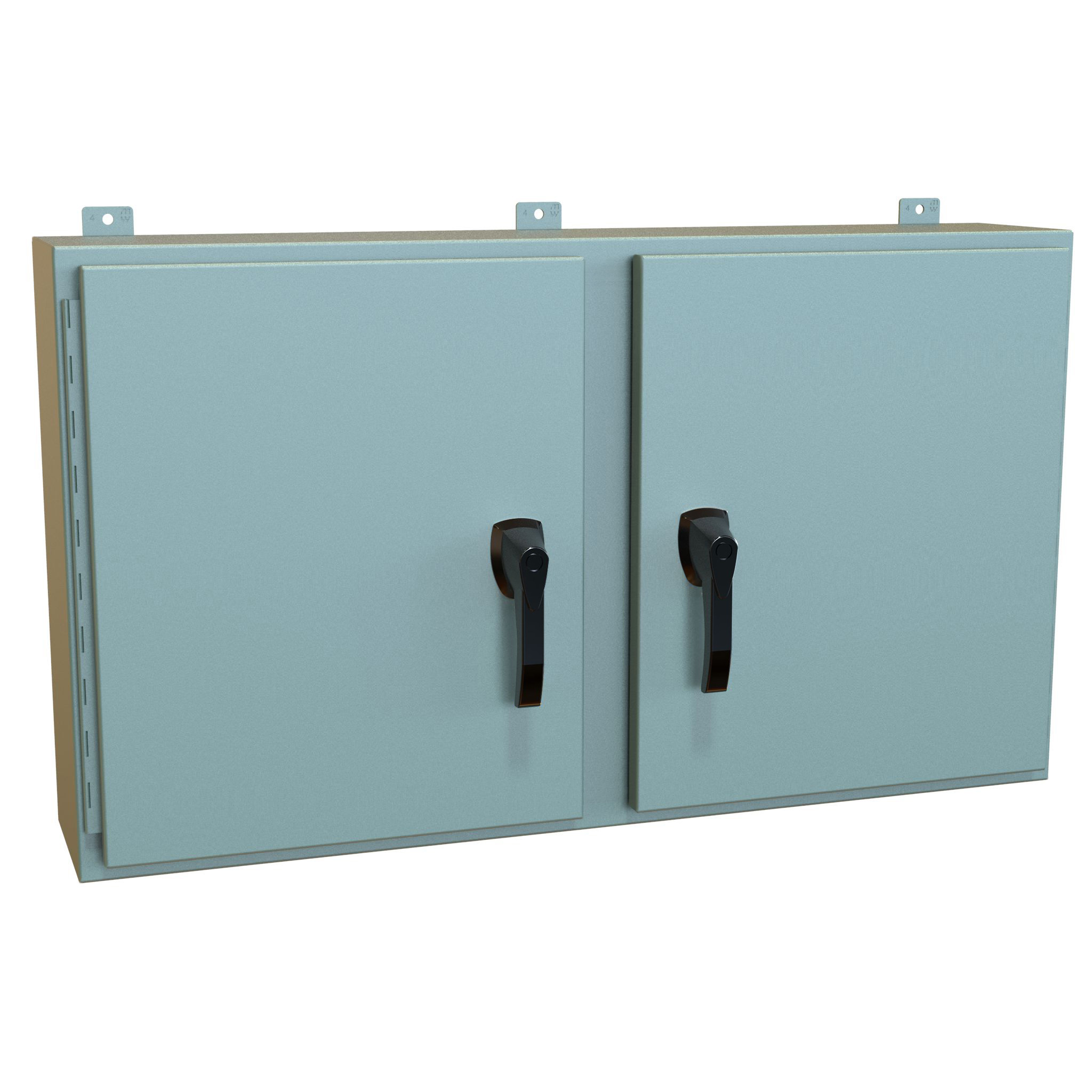

| HN4WM24428GY | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 | $1,265.95Backorder | Buy now |

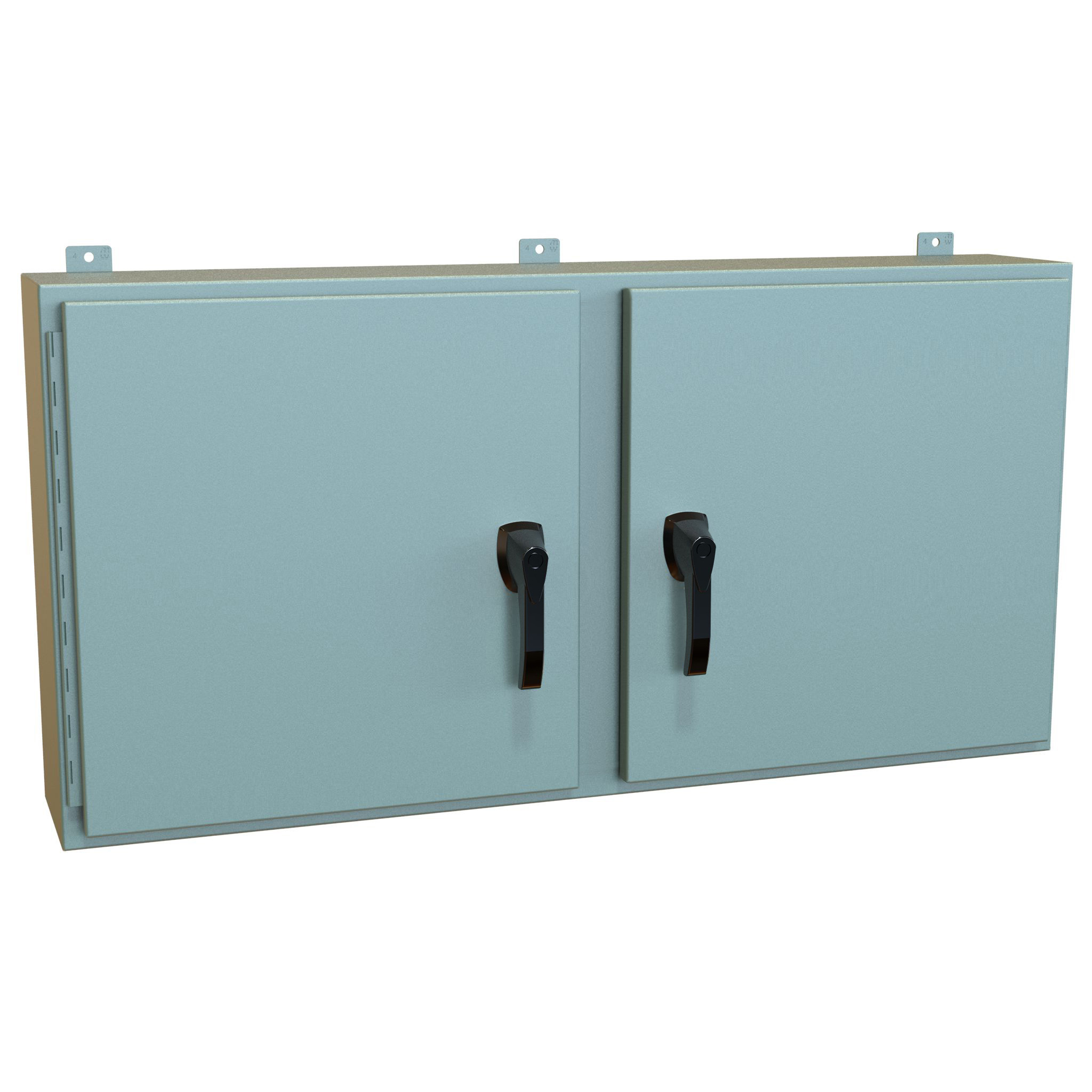

| HN4WM24488GY | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 | $1,381.27Backorder | Buy now |

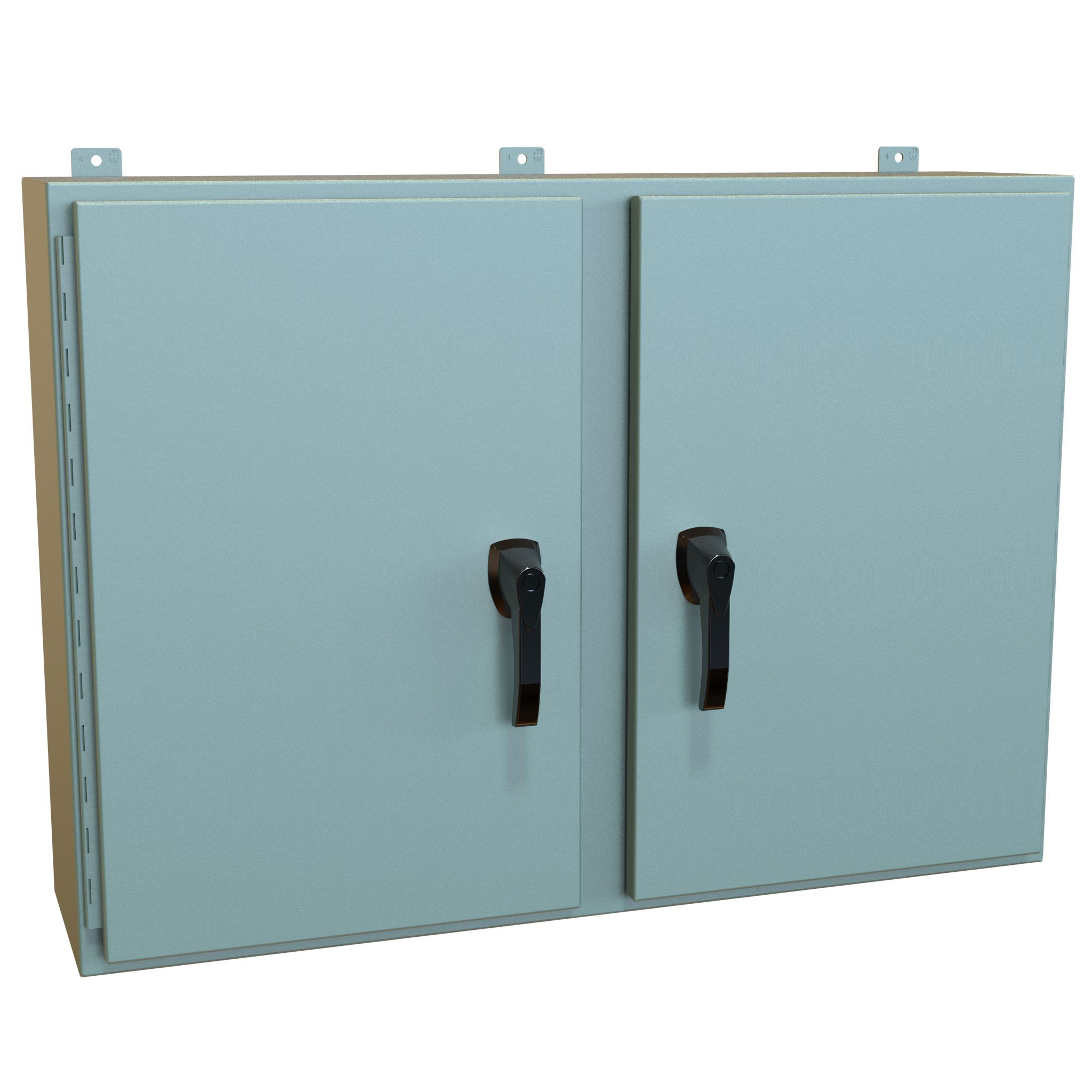

| HN4WM304210GY | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 | $1,535.58In stock | Buy now |
| HN4WM304810GY | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 | $1,678.64Backorder | Buy now |
| HN4WM306010GY | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 | $2,013.44Backorder | Buy now |
| HN4WM364212GY | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 | $1,842.39In stock | Buy now |
| HN4WM364812GY | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 | $1,971.57Backorder | Buy now |
| HN4WM366012GY | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 | $2,314.76In stock | Buy now |
| HN4WM424212GY | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 | $2,041.56In stock | Buy now |
| HN4WM424812GY | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 | $2,241.68Backorder | Buy now |

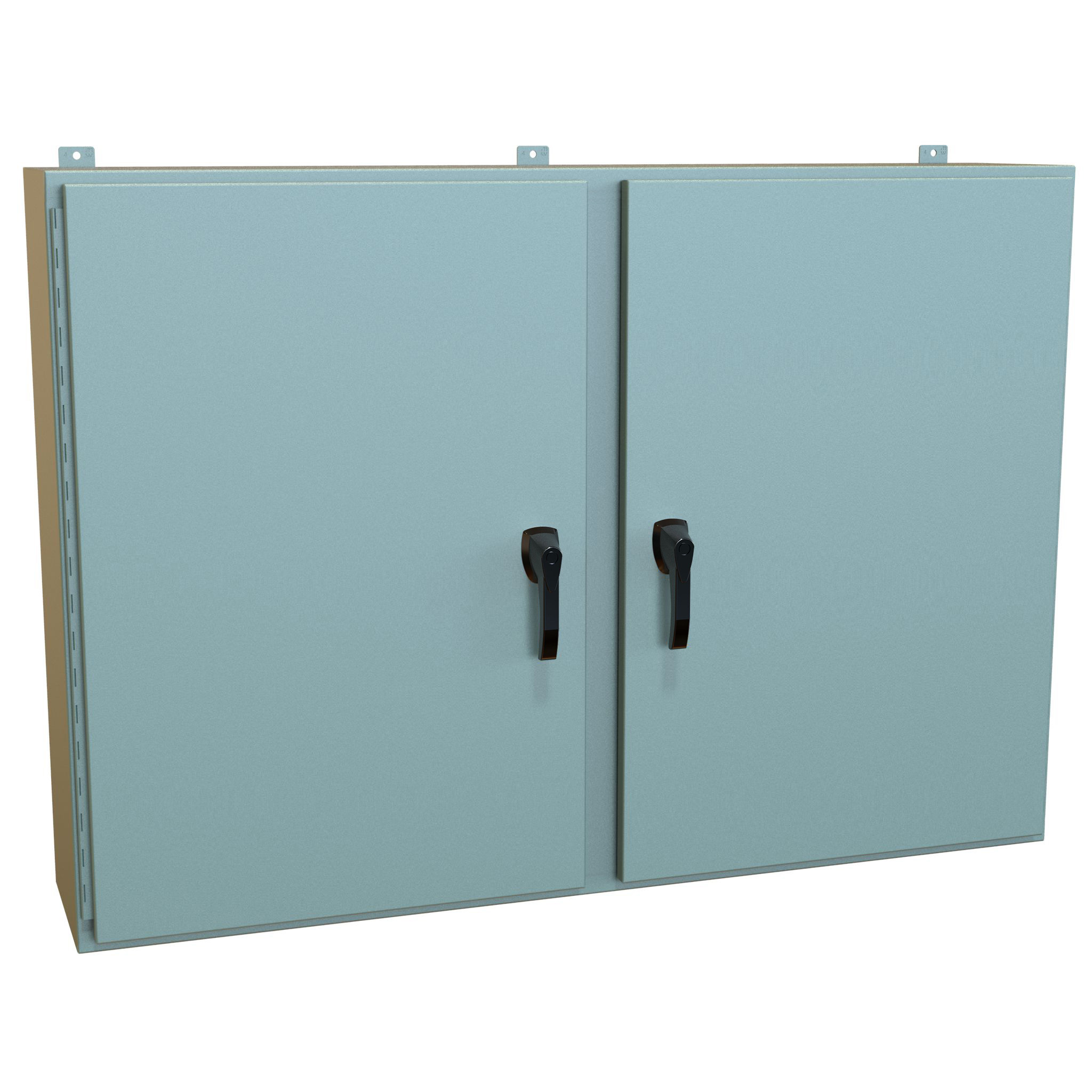

| HN4WM426012GY | 42.00 | 60.00 | 12.00 | 38.00 | 56.00 | $2,602.81Backorder | Buy now |
| HN4WM484812GY | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 | $2,432.39Backorder | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Construction
- ■Formed 12 gauge steel
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Doors are supported with heavy gauge continuous hinges.
- ■3-pt padlocking door handle.
- ■Seamless poured-in place gasket.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■Center post is removable for easy installation of the inner panel.
Standards
- ■UL 508A Type 3R, 4, and 12
- ■CSA Type 3R, 4, and 12
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part Number | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| HN4WM24428GY | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 |
| HN4WM24488GY | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 |
| HN4WM304210GY | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 |
| HN4WM304810GY | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 |
| HN4WM306010GY | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 |
| HN4WM364212GY | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 |
| HN4WM364812GY | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 |
| HN4WM366012GY | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 |
| HN4WM424212GY | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 |
| HN4WM424812GY | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 |
| HN4WM426012GY | 42.00 | 60.00 | 12.00 | 38.00 | 56.00 |
| HN4WM484812GY | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 |
