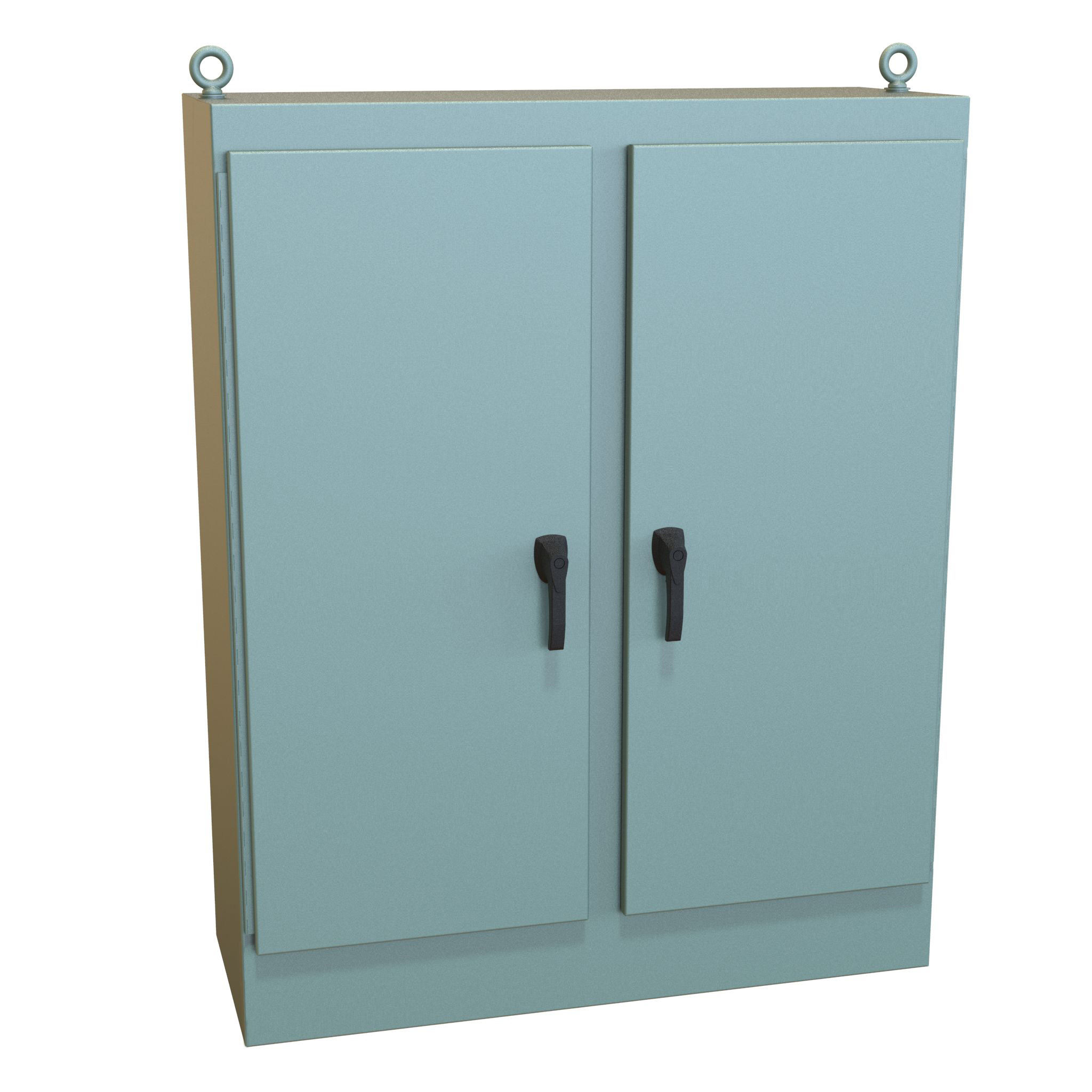

N4 2DR Freest 60X48X18
$3,269.92Backorder
Buy now
Type 4 Two Door Freestanding Enclosure · HN4 FSTD Series
Brand: Hammond Manufacturing · 23 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications.
- ■Formed 12 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- ■Doors are supported with heavy gauge continuous hinges.
from $683.01
23 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HN4 FSTD Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online

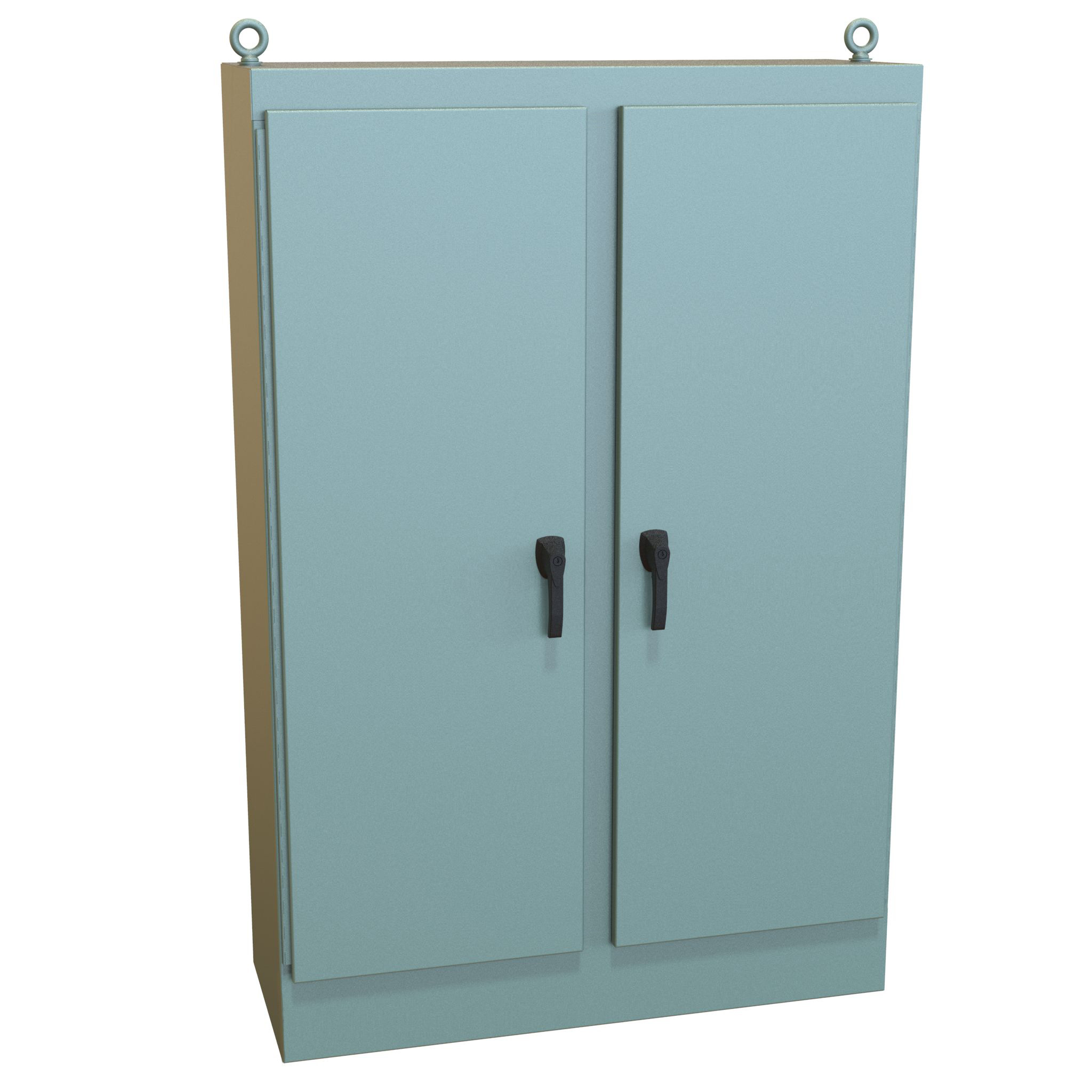

N4 2DR Freest 72X48X18
$3,499.18Backorder
Buy now

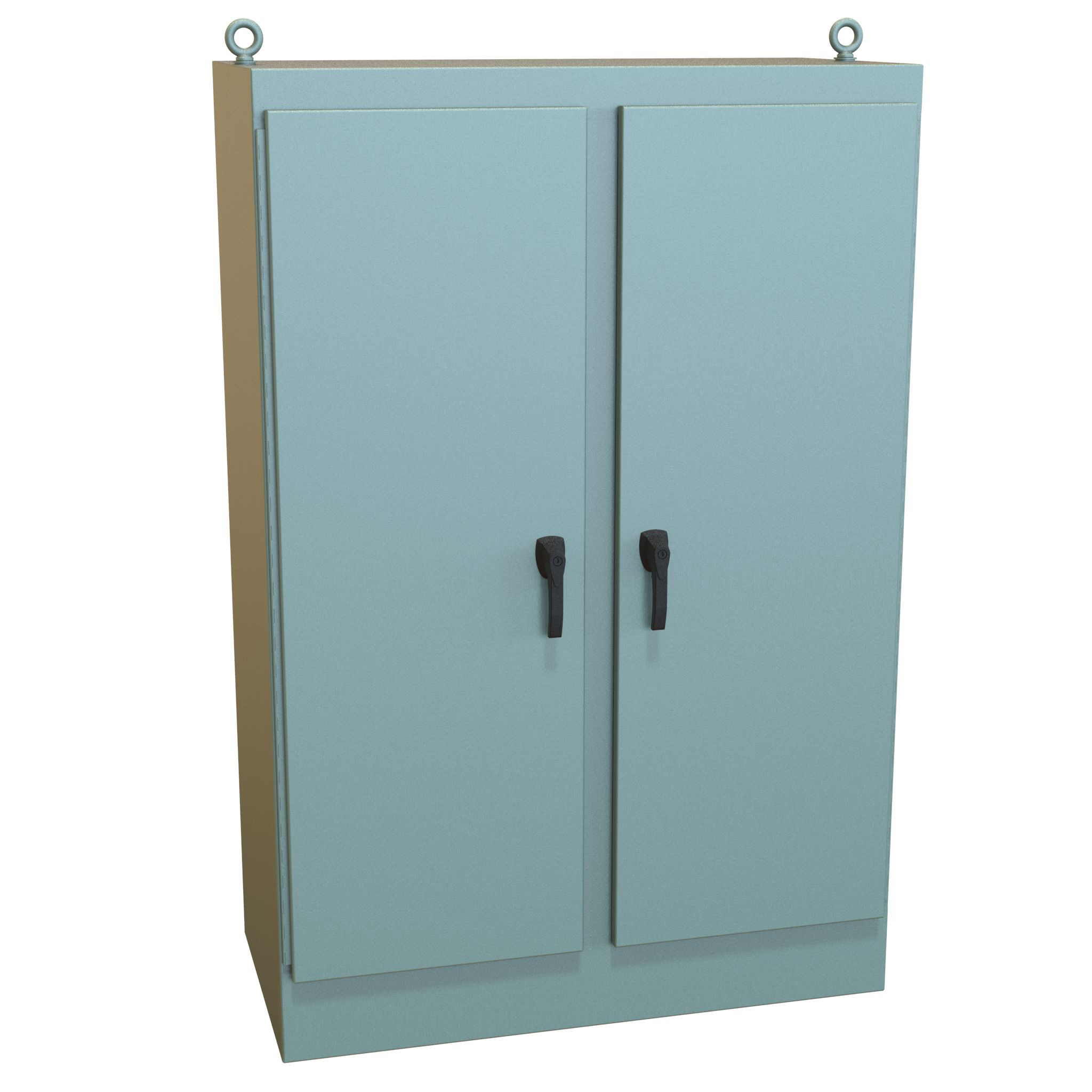

N4 2DR Freest 72X48X24
$3,897.40Backorder
Buy now
N4 2DR Freest 72X48X24 Dual
$4,218.68Backorder
Buy now
N4 2DR Freest 72X60X18
$3,934.68Backorder
Buy now
N4 2DR Freest 72X60X24
$4,377.33Backorder
Buy nowN4 2DR Freest 72X60X24 Dual
$4,733.52Backorder
Buy now
N4 2DR Freest 72X60X36
$5,034.96Backorder
Buy nowN4 2DR Freest 72X60X36 Dual
$5,446.67In stock
Buy now
N4 2DR Freest 72X72X18
$4,369.40Backorder
Buy now

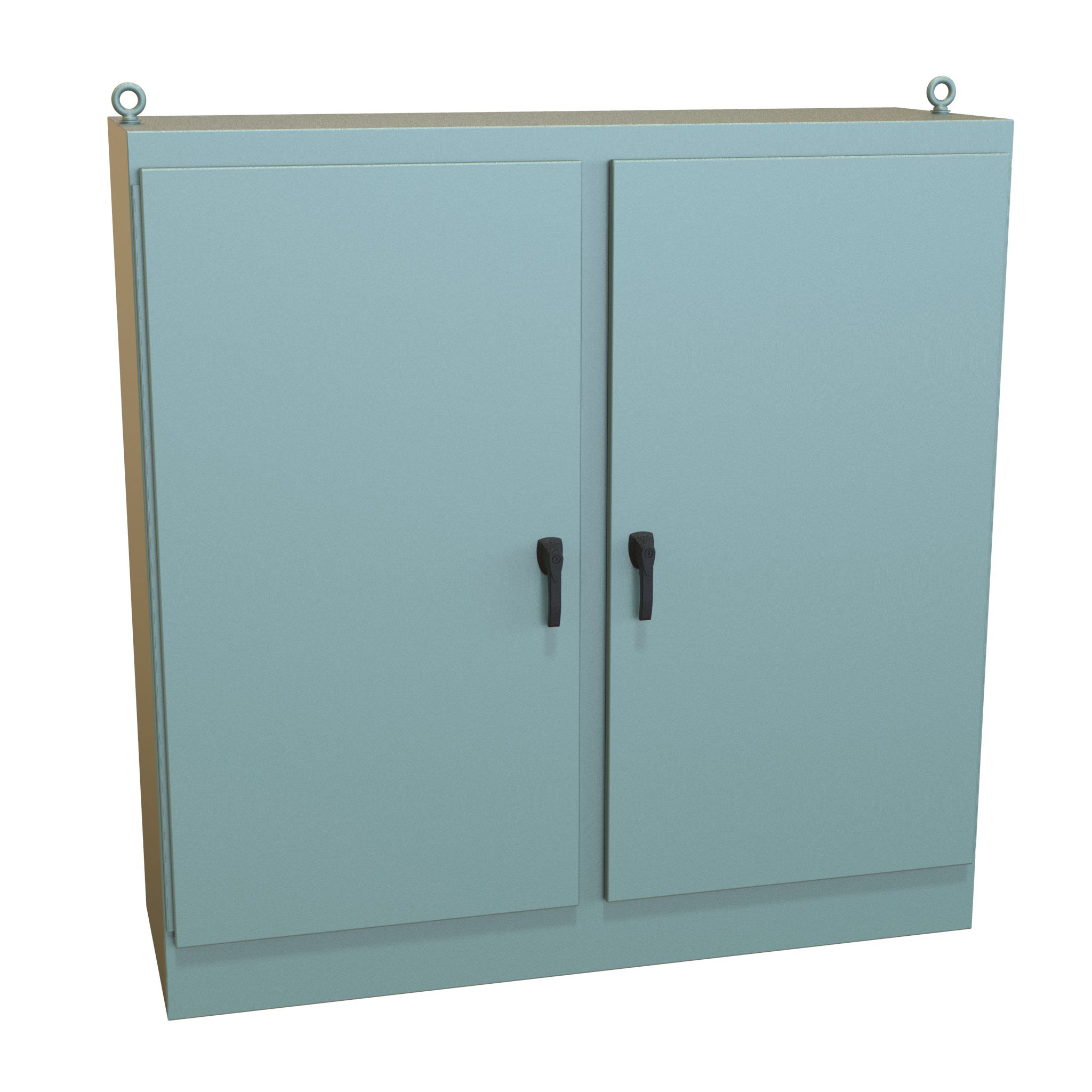

N4 2DR Freest 72X72X24
$4,717.65In stock
Buy nowN4 2DR Freest 72X72X24 Dual
$5,252.32Backorder
Buy now
N4 2DR Freest 90X48X20
$4,091.76Backorder
Buy now
N4 2DR Freest 90X72X20
$5,155.55Backorder
Buy now
N4 2DR Freest 90X72X24
$5,420.50Backorder
Buy nowN4 2DR Freest 90X72X24 Dual
$6,030.53Backorder
Buy now
N4 2DR Freest 90X72X36
$6,383.54In stock
Buy nowDimension tables (inches / mm)
Single Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| HN4FS604818 | 60.00 | 48.00 | 18.00 | 60AWFW | $3,269.92BackorderHN4FS604818 | Buy now |
| HN4FS724818 | 72.00 | 48.00 | 18.00 | 72ZWFW | $3,499.18BackorderHN4FS724818 | Buy now |
| HN4FS726018 | 72.00 | 60.00 | 18.00 | 72ZXFW | $3,934.68BackorderHN4FS726018 | Buy now |
| HN4FS727218 | 72.00 | 72.00 | 18.00 | 72ZYFW | $4,369.40BackorderHN4FS727218 | Buy now |
| HN4FS904820 | 90.00 | 48.00 | 20.00 | 90BWFW | $4,091.76BackorderHN4FS904820 | Buy now |
| HN4FS907220 | 90.00 | 72.00 | 20.00 | 90BYFW | $5,155.55BackorderHN4FS907220 | Buy now |
| HN4FS724824 | 72.00 | 48.00 | 24.00 | 72ZWFW | $3,897.40BackorderHN4FS724824 | Buy now |
| HN4FS726024 | 72.00 | 60.00 | 24.00 | 72ZXFW | $4,377.33BackorderHN4FS726024 | Buy now |
| HN4FS727224 | 72.00 | 72.00 | 24.00 | 72ZYFW | $4,717.65In stockHN4FS727224 | Buy now |

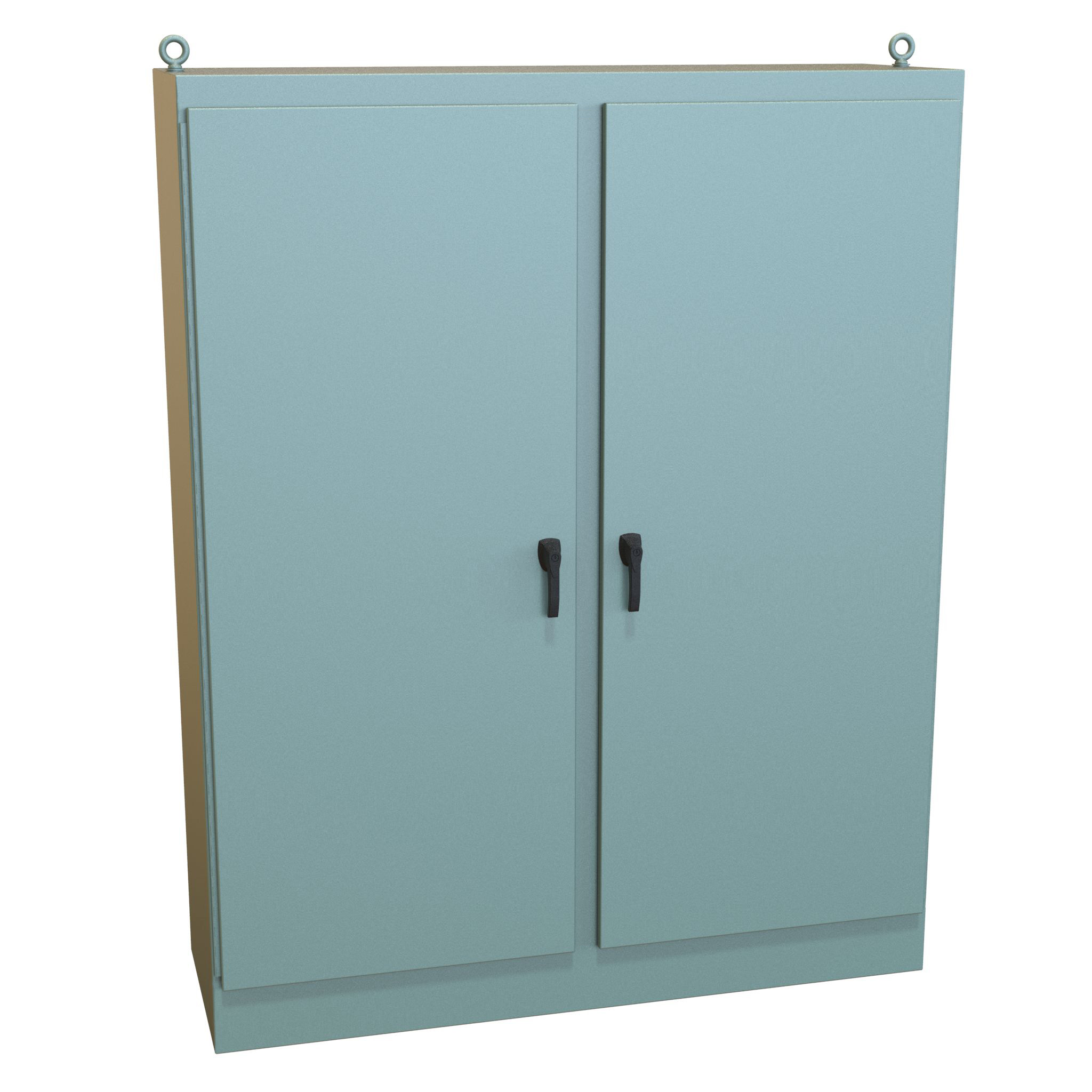

| HN4FS907224 | 90.00 | 72.00 | 24.00 | 90BYFW | $5,420.50BackorderHN4FS907224 | Buy now |
| HN4FS726036 | 72.00 | 60.00 | 36.00 | 72ZXFW | $5,034.96BackorderHN4FS726036 | Buy now |
| HN4FS907236 | 90.00 | 72.00 | 36.00 | 90BYFW | $6,383.54In stockHN4FS907236 | Buy now |
Dual Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| HN4FS724824DA | 72.00 | 48.00 | 24.00 | 72ZWFW | $4,218.68BackorderHN4FS724824DA | Buy now |
| HN4FS726024DA | 72.00 | 60.00 | 24.00 | 72ZXFW | $4,733.52BackorderHN4FS726024DA | Buy now |
| HN4FS727224DA | 72.00 | 72.00 | 24.00 | 72ZYFW | $5,252.32BackorderHN4FS727224DA | Buy now |
| HN4FS907224DA | 90.00 | 72.00 | 24.00 | 90BYFW | $6,030.53BackorderHN4FS907224DA | Buy now |
| HN4FS726036DA | 72.00 | 60.00 | 36.00 | 72ZXFW | $5,446.67In stockHN4FS726036DA | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications.
Construction
- ■Formed 12 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- ■Doors are supported with heavy gauge continuous hinges.
- ■Dual Access versions have doors front and back.
- ■3-pt padlocking door handle.
- ■Seamless poured-in place gasket.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■Center post is removable for easy installation of the inner panel.
Standards
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with: NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- ■Optional inner panels are available in white powder coating, or unpainted galvanized steel.
Documents
Additional information
Single Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| HN4FS604818 | 60.00 | 48.00 | 18.00 | 60AWFW |
| HN4FS724818 | 72.00 | 48.00 | 18.00 | 72ZWFW |
| HN4FS726018 | 72.00 | 60.00 | 18.00 | 72ZXFW |
| HN4FS727218 | 72.00 | 72.00 | 18.00 | 72ZYFW |
| HN4FS904820 | 90.00 | 48.00 | 20.00 | 90BWFW |
| HN4FS907220 | 90.00 | 72.00 | 20.00 | 90BYFW |
| HN4FS724824 | 72.00 | 48.00 | 24.00 | 72ZWFW |
| HN4FS726024 | 72.00 | 60.00 | 24.00 | 72ZXFW |
| HN4FS727224 | 72.00 | 72.00 | 24.00 | 72ZYFW |
| HN4FS907224 | 90.00 | 72.00 | 24.00 | 90BYFW |
| HN4FS726036 | 72.00 | 60.00 | 36.00 | 72ZXFW |
| HN4FS907236 | 90.00 | 72.00 | 36.00 | 90BYFW |
Dual Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| HN4FS724824DA | 72.00 | 48.00 | 24.00 | 72ZWFW |
| HN4FS726024DA | 72.00 | 60.00 | 24.00 | 72ZXFW |
| HN4FS727224DA | 72.00 | 72.00 | 24.00 | 72ZYFW |
| HN4FS907224DA | 90.00 | 72.00 | 24.00 | 90BYFW |
| HN4FS726036DA | 72.00 | 60.00 | 36.00 | 72ZXFW |
