Type 4 Mild Steel Freestanding Enclosure · HN4 FS Series

Brand: Hammond Manufacturing · 6 part numbers

Continuous Hinge Door with Handle

■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
■Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a critical problem.
■Various inner panels, rack mounting rails and swing-out frames are available to provide flexibility in mounting arrangements.
■Formed 12 gauge steel.
■Smooth, continuously welded seams without knockouts, cutouts or holes.
■Lifting eyes provide for easy enclosure handling.

from $371.26

6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

We are looking at adding a rack mounting solution similar to this enclosure. Click here to provide your input .

Part details Features Documents Additional information

Configure & price

Find your HN4 FS Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 3 priced online

HN4FS722518

N4 Freest 72X25X18 W/Hndl

$2,196.60Backorder

Buy now

HN4FS723124

N4 Freest 72X31X24 W/Hndl

$2,676.53Backorder

Buy now

HN4FS723724

N4 Fs 72X37X24 W/Hndl

$2,916.11Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Enclosure · H	Enclosure · W	Enclosure · D	Optional · Inner Panel (Part No.)	Price	Order

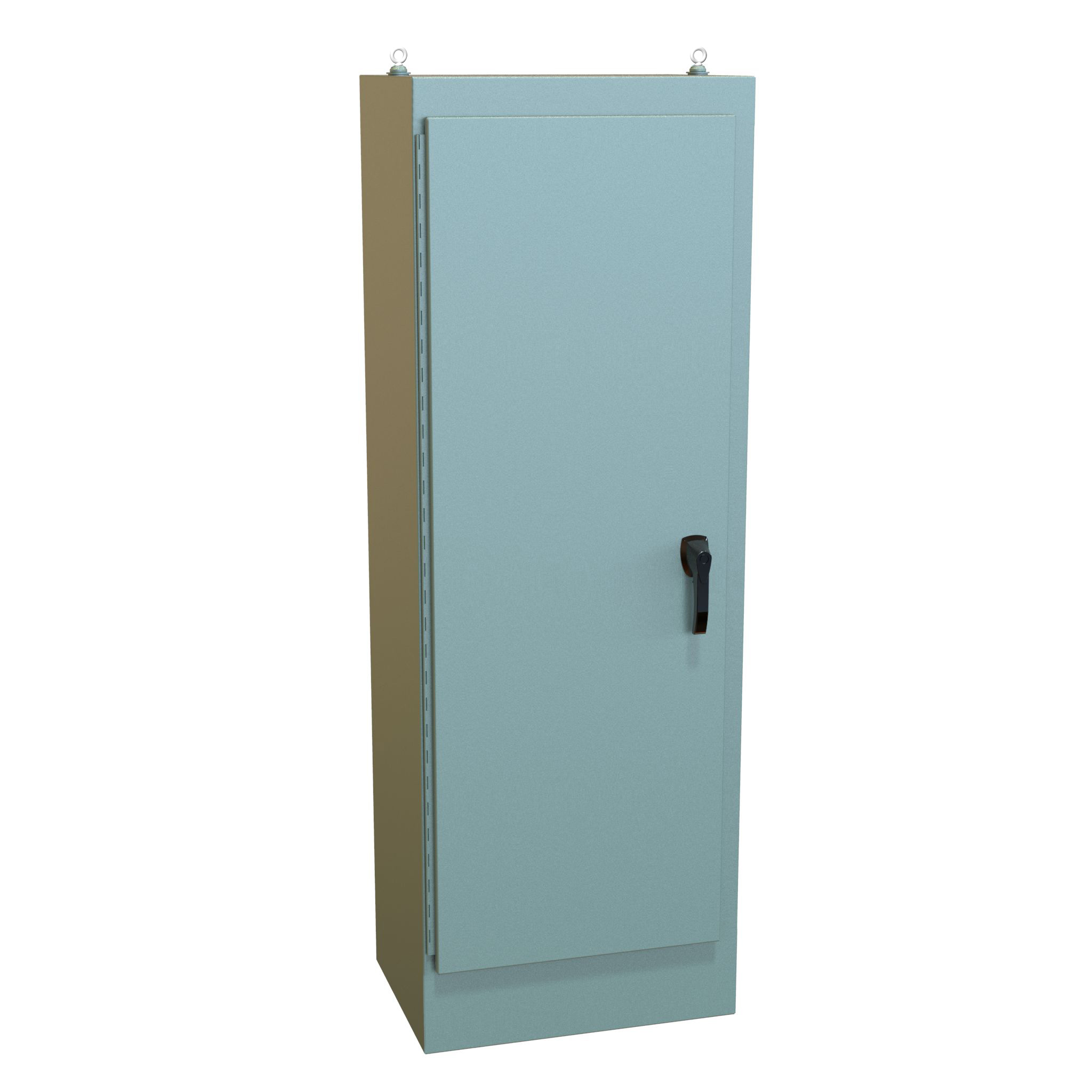

HN4FS722518	72.06	25.06	18.06	72WFW	$2,196.60BackorderHN4FS722518	Buy now

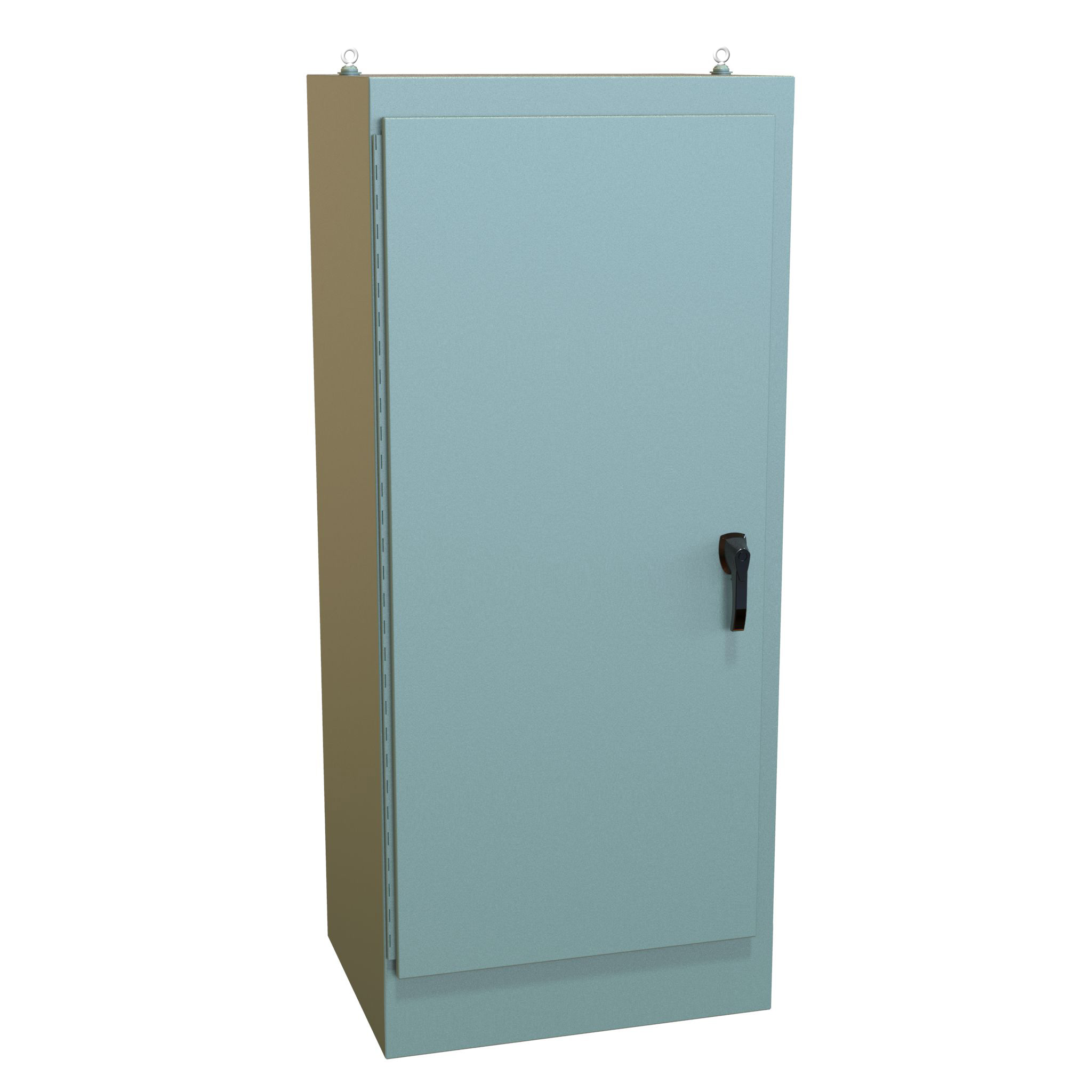

HN4FS723124	72.06	31.06	24.06	72XFW	$2,676.53BackorderHN4FS723124	Buy now

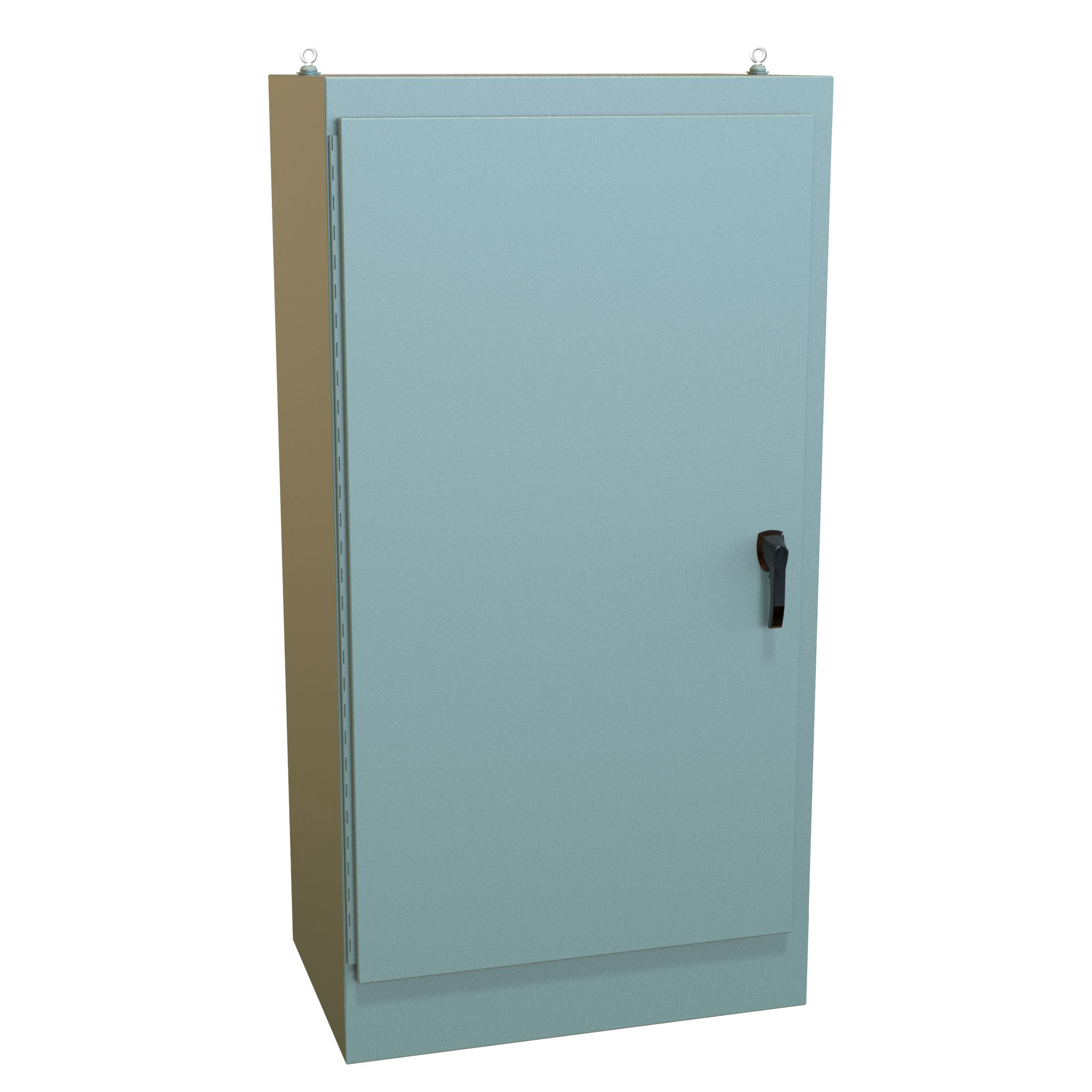

HN4FS723724	72.06	37.06	24.06	72YFW	$2,916.11BackorderHN4FS723724	Buy now

Application

■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
■Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a critical problem.
■Various inner panels, rack mounting rails and swing-out frames are available to provide flexibility in mounting arrangements.

Construction

■Formed 12 gauge steel.
■Smooth, continuously welded seams without knockouts, cutouts or holes.
■Lifting eyes provide for easy enclosure handling.
■Doors are supported with heavy gauge continuous hinges.
■New 3-pt padlocking door handle.
■Seamless poured-in-place gasket.
■Provision for light kit mounting.
■A grounding stud is provided in the enclosure, and a bonding stud is provided on the door.
■Mounting channels are welded inside the enclosure for mounting optional inner panels or rack equipment rails.

Standards

■UL 508A Type 3R, 4 and 12
■CSA Type 3R, 4 and 12
■Complies with: NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
■NEMA Type 3R, 4, 12 and 13
■IEC 60529, IP66

Finish

■The cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
■Optional inner panels are available in white powder coating or unpainted galvanized steel.
