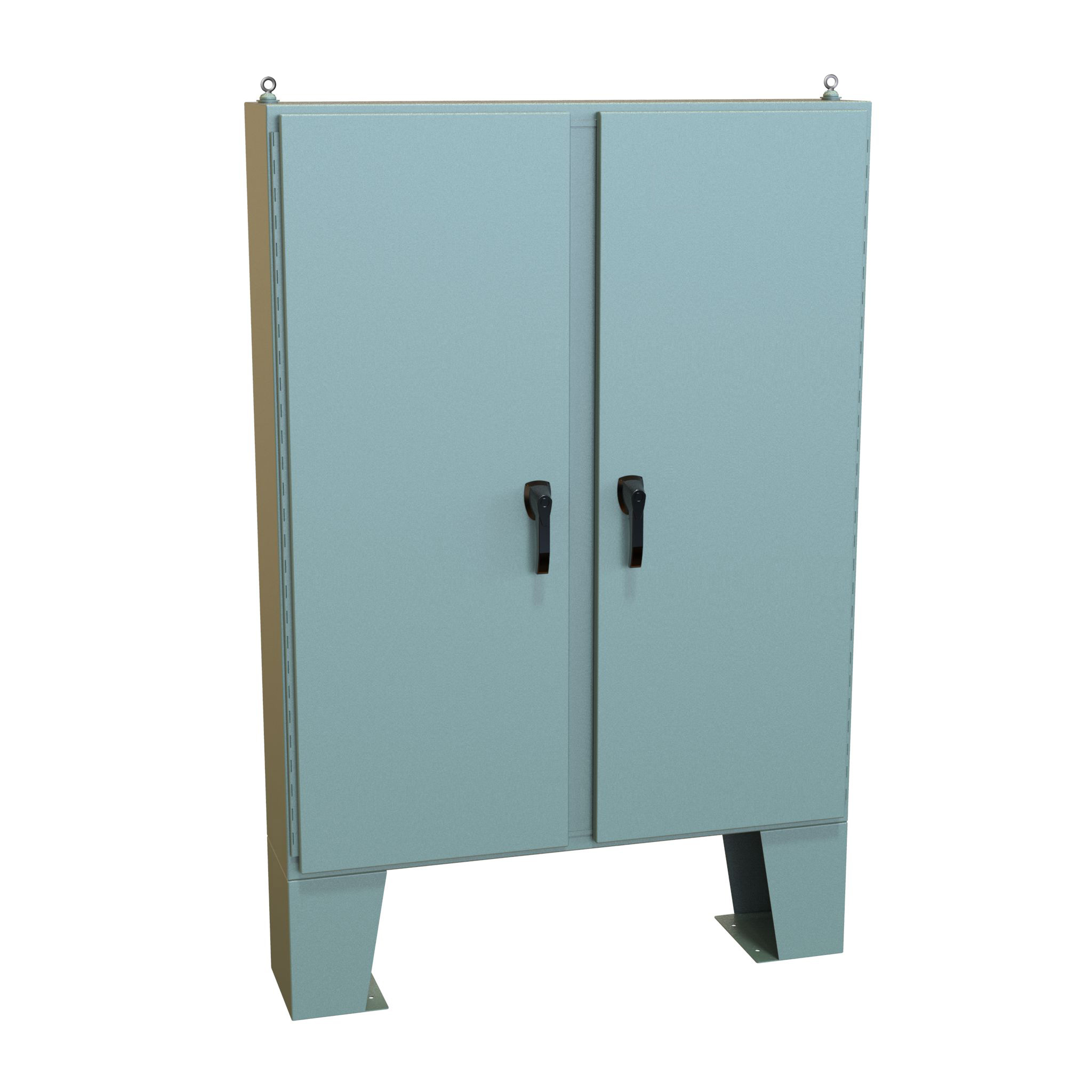

N4 Floormt 60X48X10 W/Hndl
$3,261.97In stock
Buy now

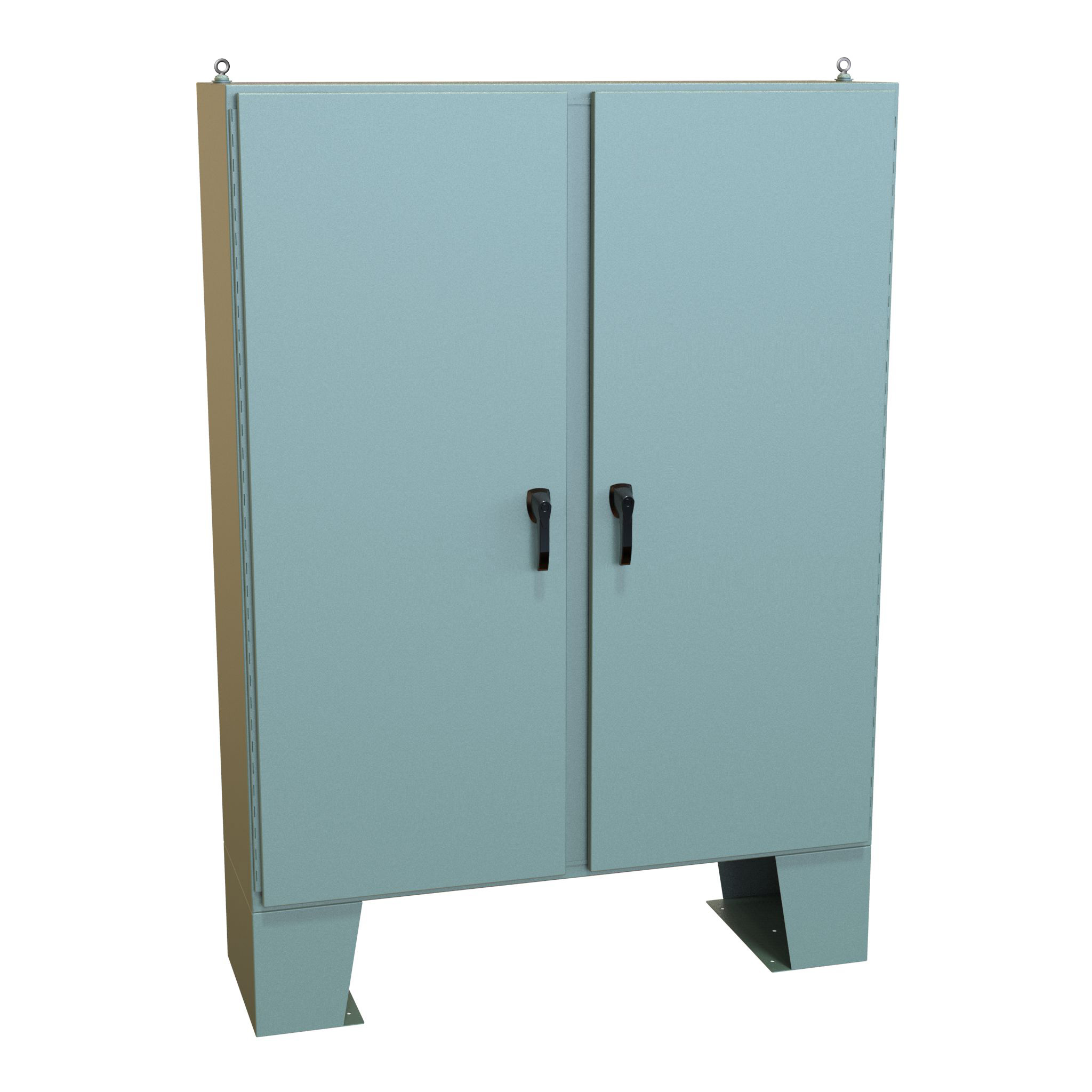

Type 4 Mild Steel Two Door Floormount Enclosure · HN4 FM Series
Brand: Hammond Manufacturing · 9 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- ■Enclosures are formed steel - 12 gauge (60" high) or combination 10/12 gauge (72" high).
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Lifting eyes provide for easy enclosure handling.
- ■Doors are supported with heavy gauge continuous hinges.
from $3,261.97
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HN4 FM Series part number
Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
9 of 9 part numbers · 9 priced online

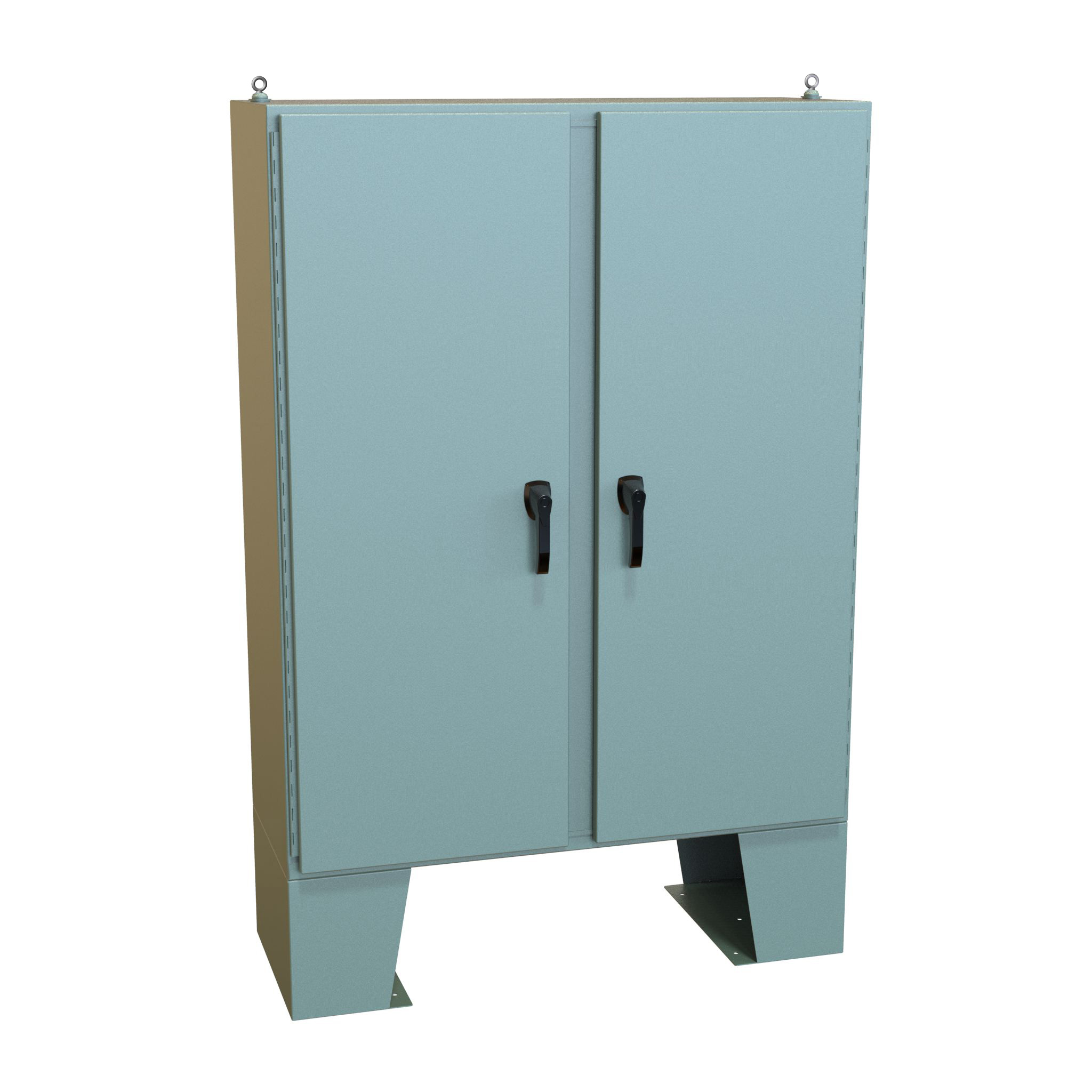

N4 Floormt 60X48X18 W/Hndl
$3,577.71In stock
Buy now

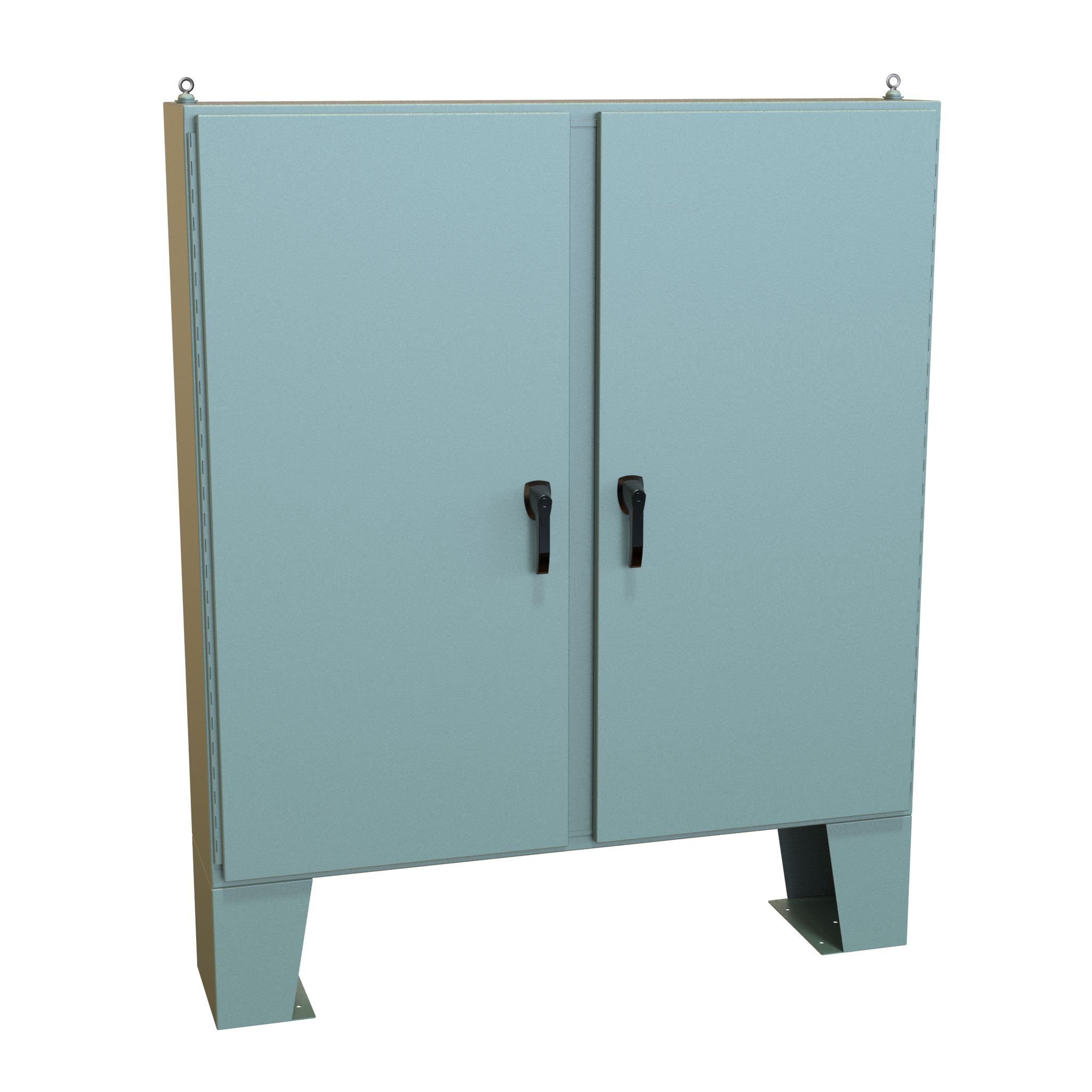

N4 Floormt 60X60X12 W/Hndl
$3,803.79Backorder
Buy now
HN4FM 3PT - Weld Assembly
$4,121.11Backorder
Buy now

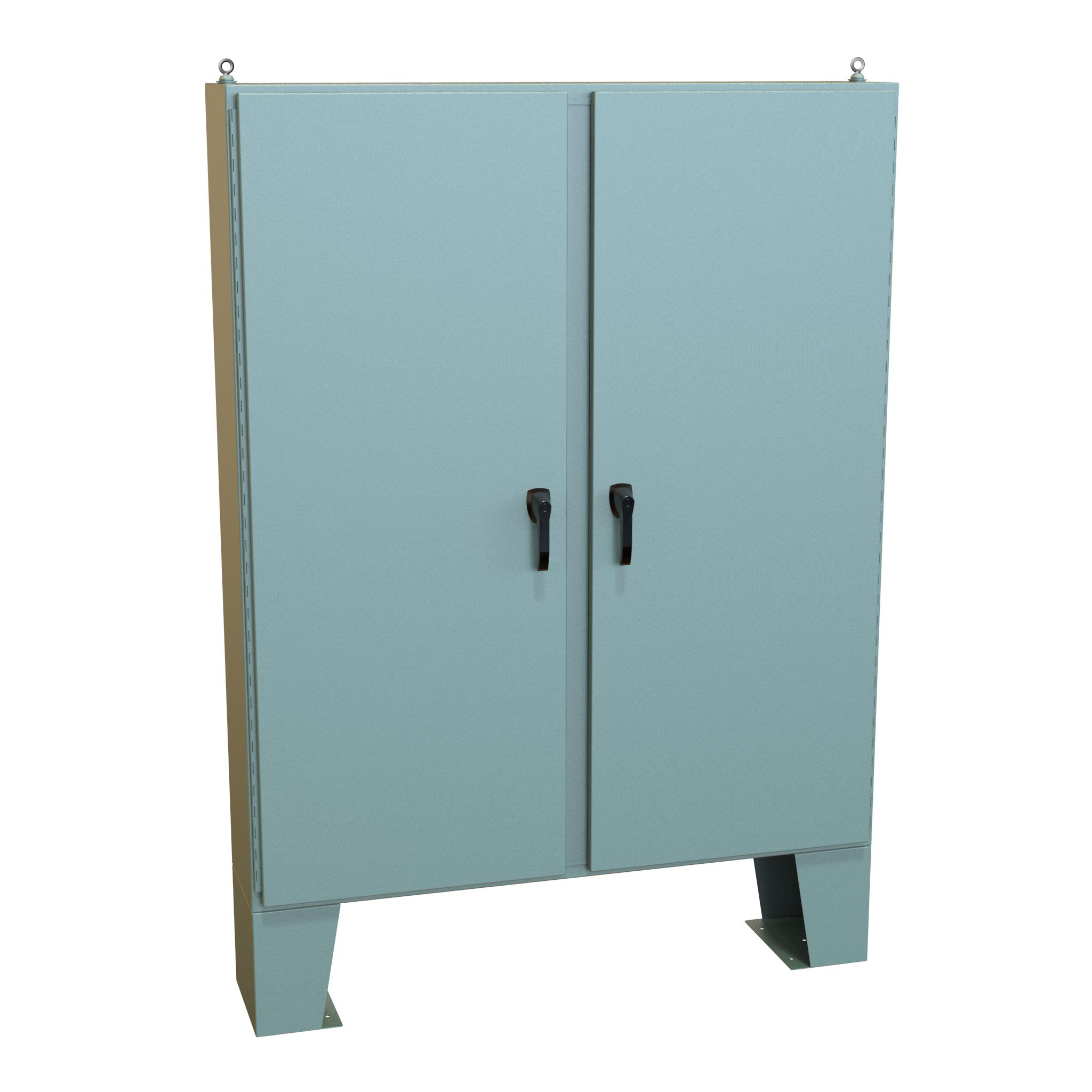

N4 Floormt 72X60X12 W/Hndl
$4,259.13Backorder
Buy now
N4 Floormt 72X60X18 W/Hndl
$4,575.66In stock
Buy now

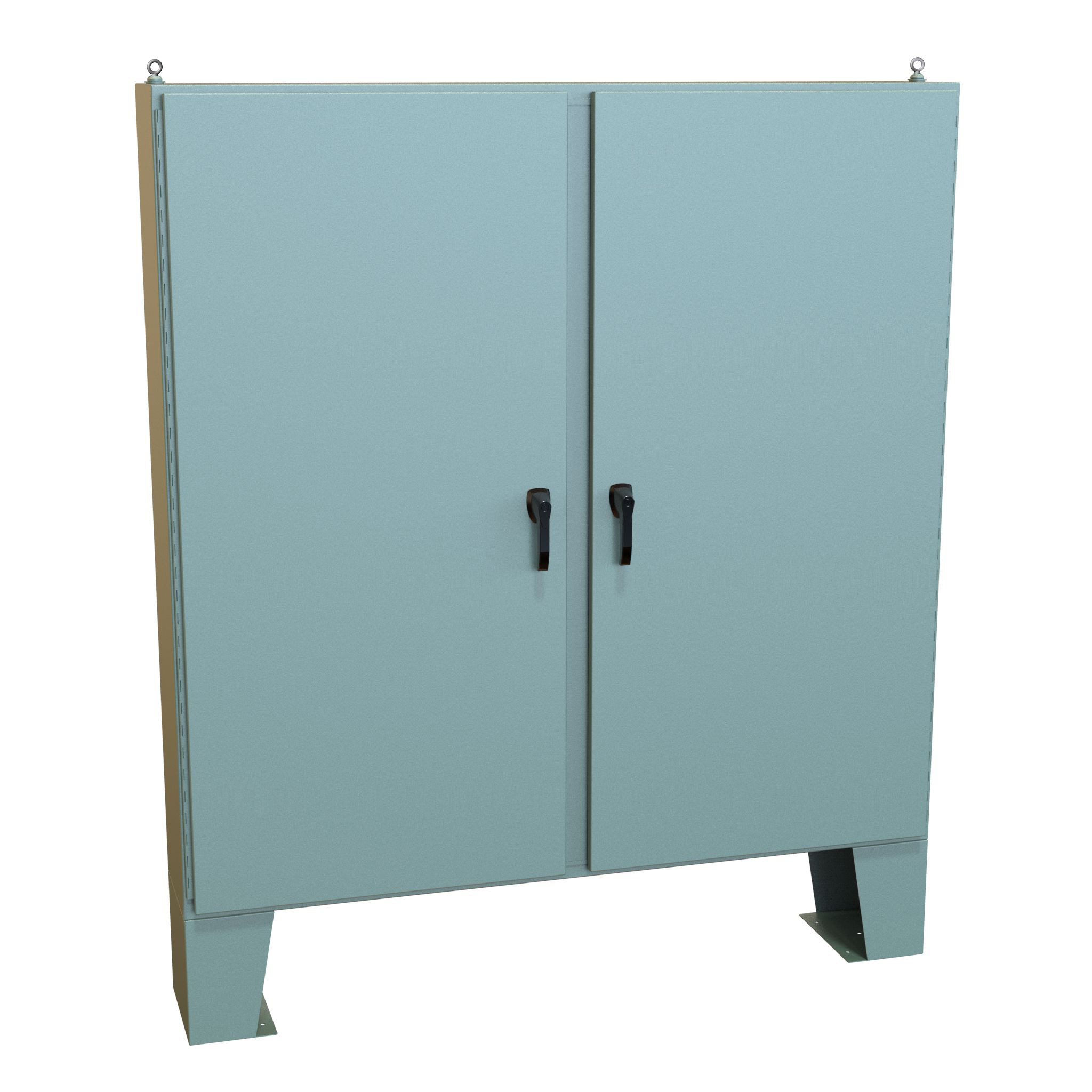

N4 Floormt 72X72X12 W/Hndl
$4,790.63Backorder
Buy now

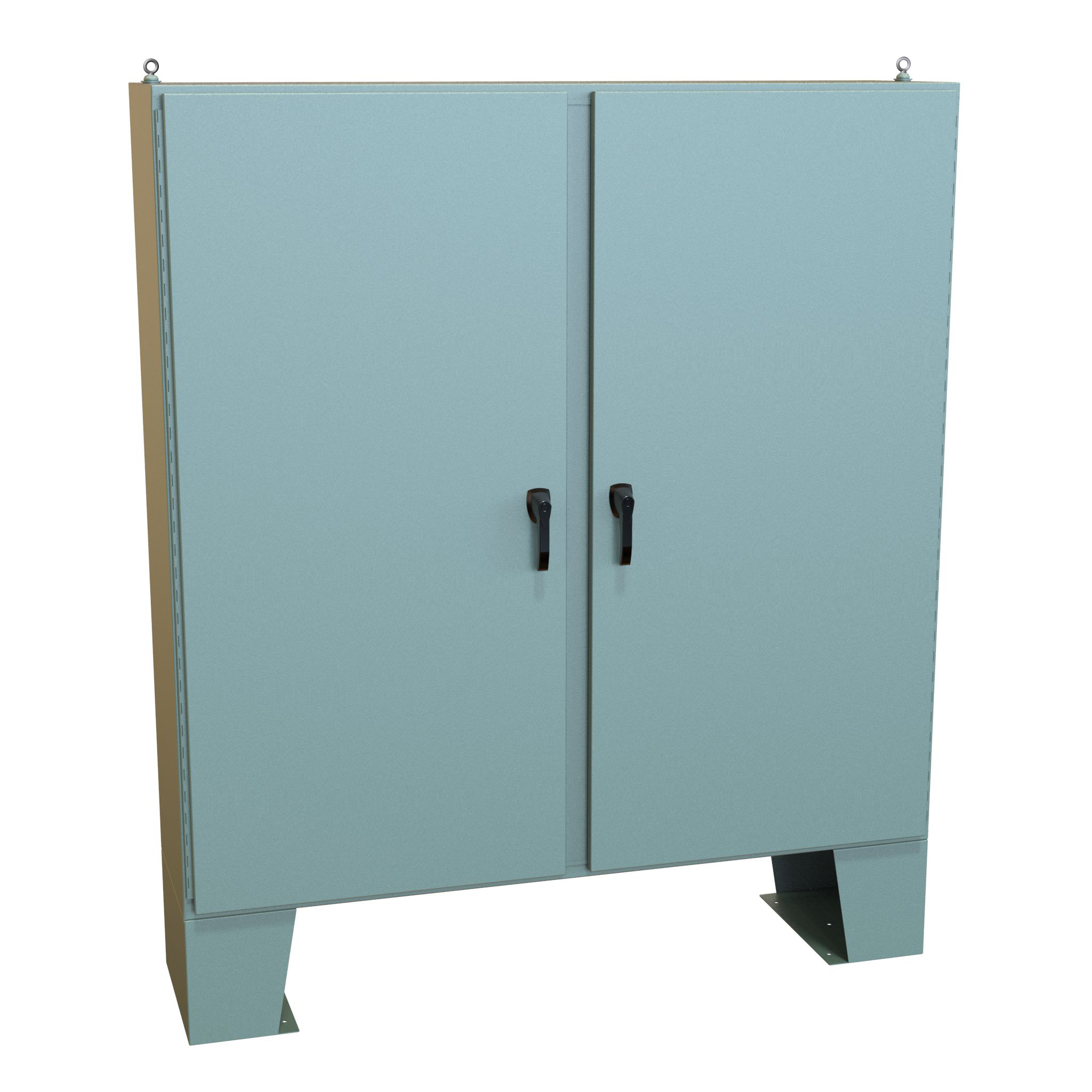

N4 Floormt 72X72X18 W/Hndl
$5,106.35In stock
Buy now

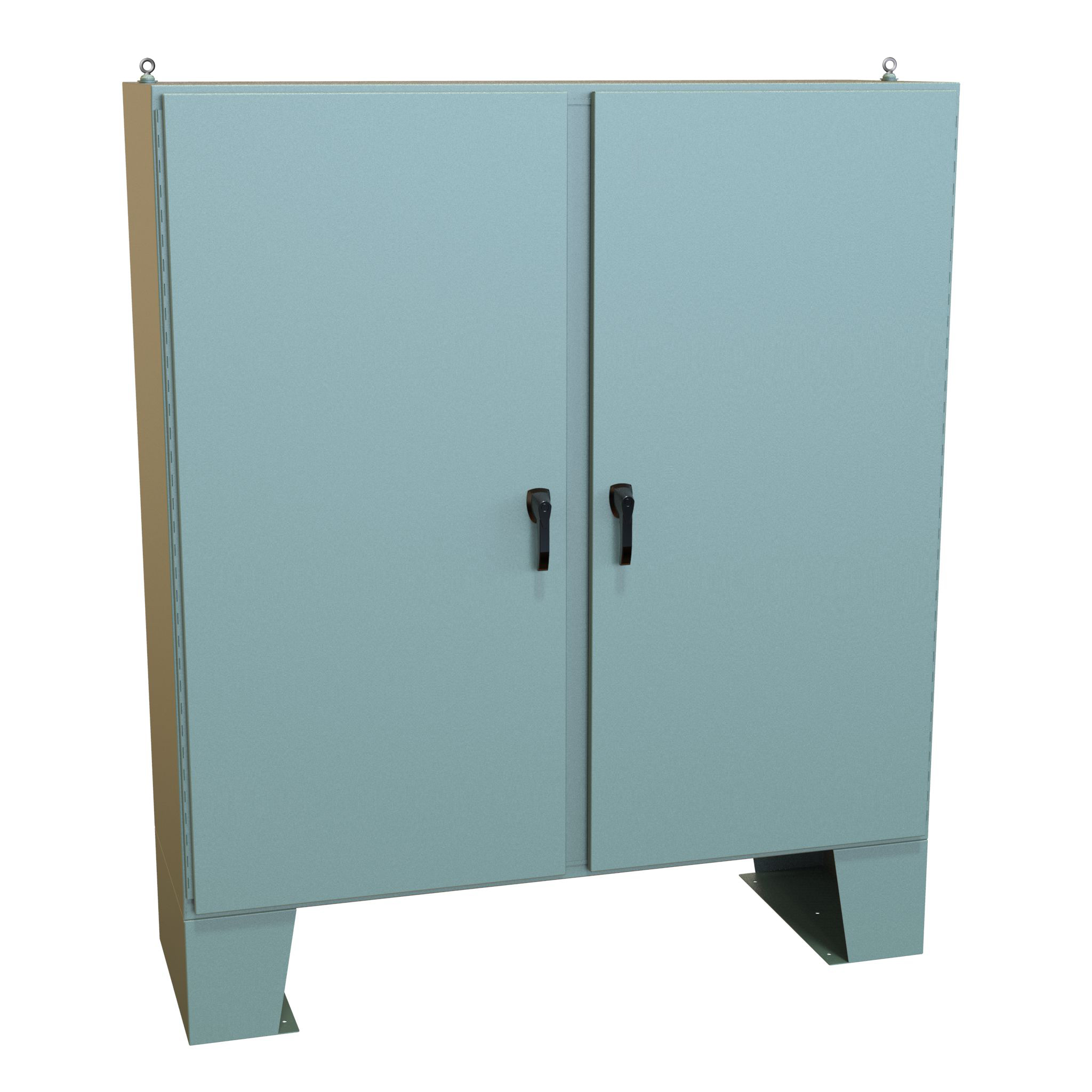

N4 Floormt 72X72X24 W/Hndl
$5,499.03Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| HN4FM604810 | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 | $3,261.97In stock | Buy now |
| HN4FM604818 | 60.13 | 48.06 | 18.69 | 56.00 | 44.00 | $3,577.71In stock | Buy now |
| HN4FM606012 | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 | $3,803.79Backorder | Buy now |

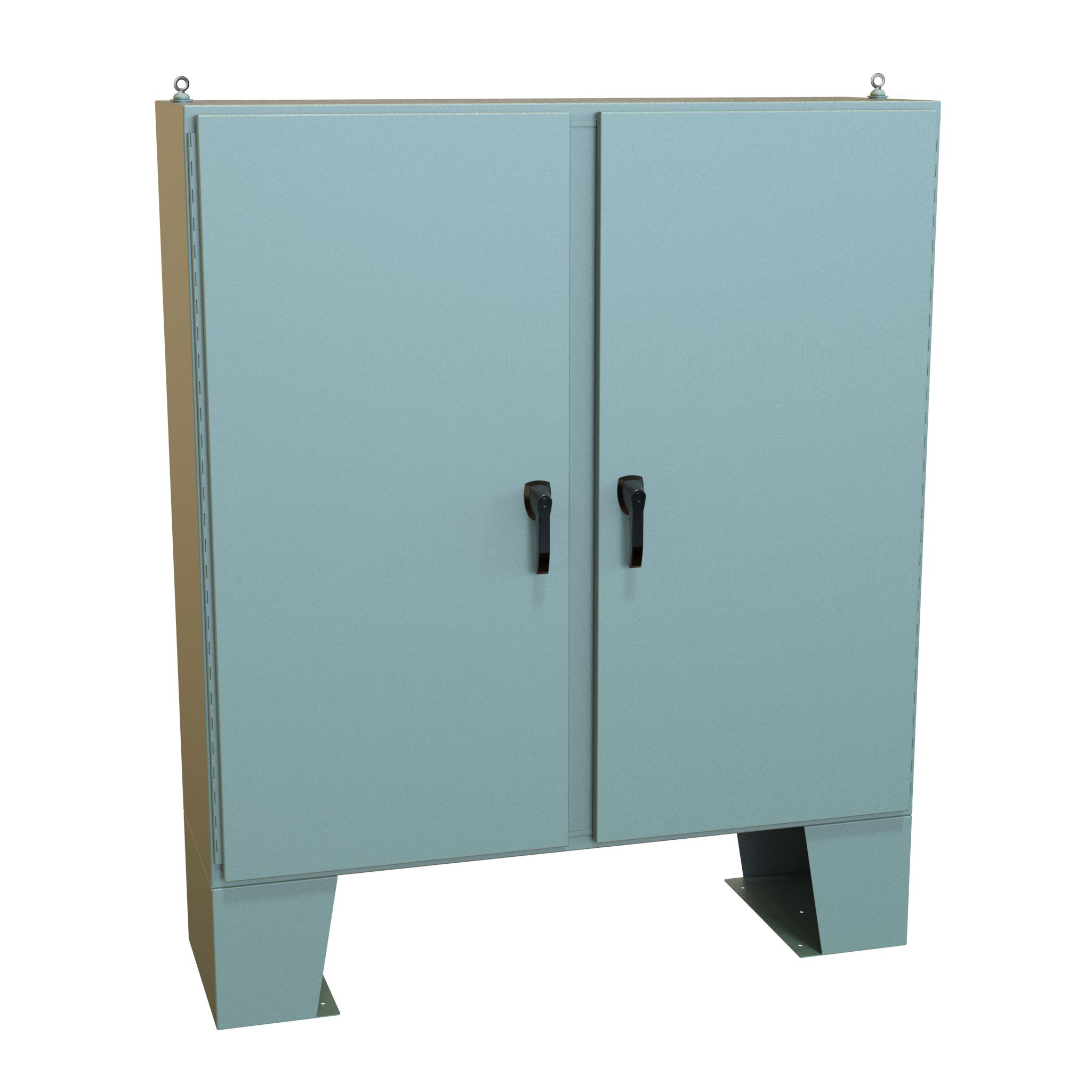

| HN4FM606018 | 60.13 | 60.06 | 18.69 | 56.00 | 56.00 | $4,121.11Backorder | Buy now |
| HN4FM726012 | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 | $4,259.13Backorder | Buy now |
| HN4FM726018 | 72.13 | 60.06 | 18.69 | 68.00 | 56.00 | $4,575.66In stock | Buy now |
| HN4FM727212 | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 | $4,790.63Backorder | Buy now |
| HN4FM727218 | 72.13 | 72.06 | 18.69 | 68.00 | 68.00 | $5,106.35In stock | Buy now |
| HN4FM727224 | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 | $5,499.03Backorder | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
Construction
- ■Enclosures are formed steel - 12 gauge (60" high) or combination 10/12 gauge (72" high).
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Lifting eyes provide for easy enclosure handling.
- ■Doors are supported with heavy gauge continuous hinges.
- ■3-pt padlocking door handle.
- ■Seamless poured-in place gasket.
- ■Provision for light kit mounting.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■Center post is removable for easy installation of the inner panel.
- ■12" floor stands are welded to the enclosure.
- ■Body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
- ■A removable 10 gauge inner panel is included.
- ■Panel supports are provided for easy panel installation.
- ■Collar studs are provided for mounting inner panels.
- ■A literature pocket is provided for the inside of the door.
Standards
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with: NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable white inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| HN4FM604810 | 60.13 | 48.06 | 10.69 | 56.00 | 44.00 |
| HN4FM604818 | 60.13 | 48.06 | 18.69 | 56.00 | 44.00 |
| HN4FM606012 | 60.13 | 60.06 | 12.69 | 56.00 | 56.00 |
| HN4FM606018 | 60.13 | 60.06 | 18.69 | 56.00 | 56.00 |
| HN4FM726012 | 72.13 | 60.06 | 12.69 | 68.00 | 56.00 |
| HN4FM726018 | 72.13 | 60.06 | 18.69 | 68.00 | 56.00 |
| HN4FM727212 | 72.13 | 72.06 | 12.69 | 68.00 | 68.00 |
| HN4FM727218 | 72.13 | 72.06 | 18.69 | 68.00 | 68.00 |
| HN4FM727224 | 72.13 | 72.06 | 24.69 | 68.00 | 68.00 |
