St - Assembly
- Latch Type A
$283.67In stock
Buy now

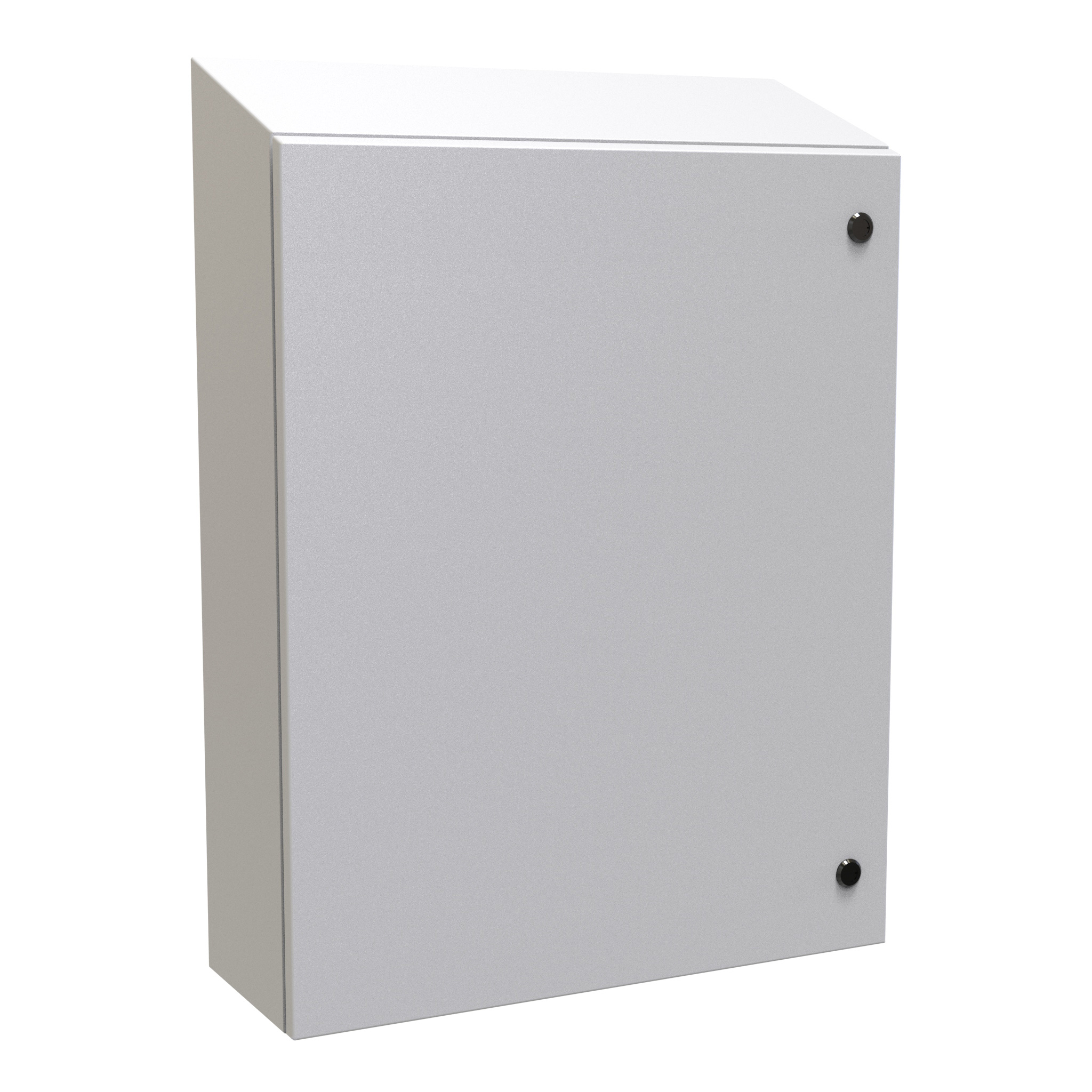

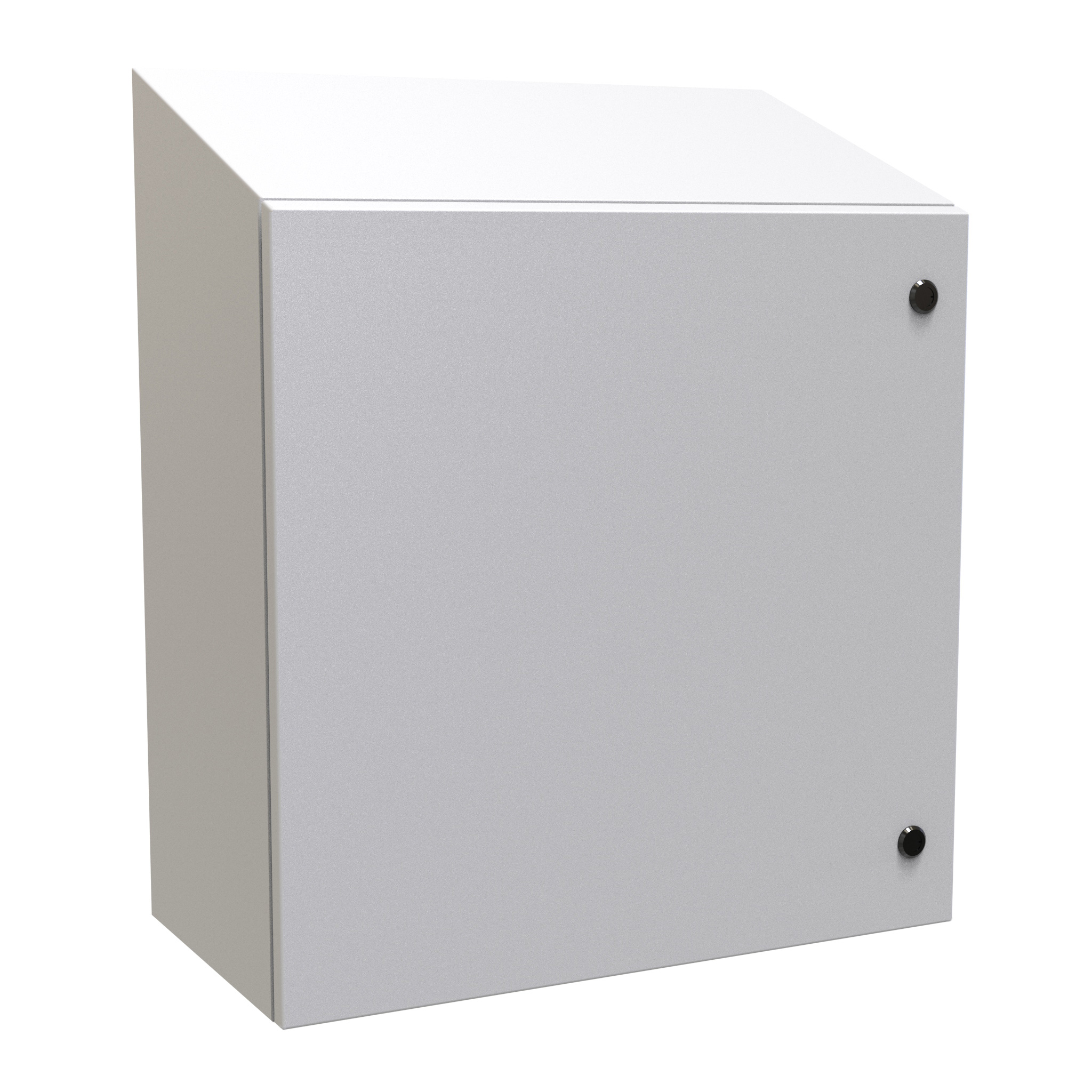

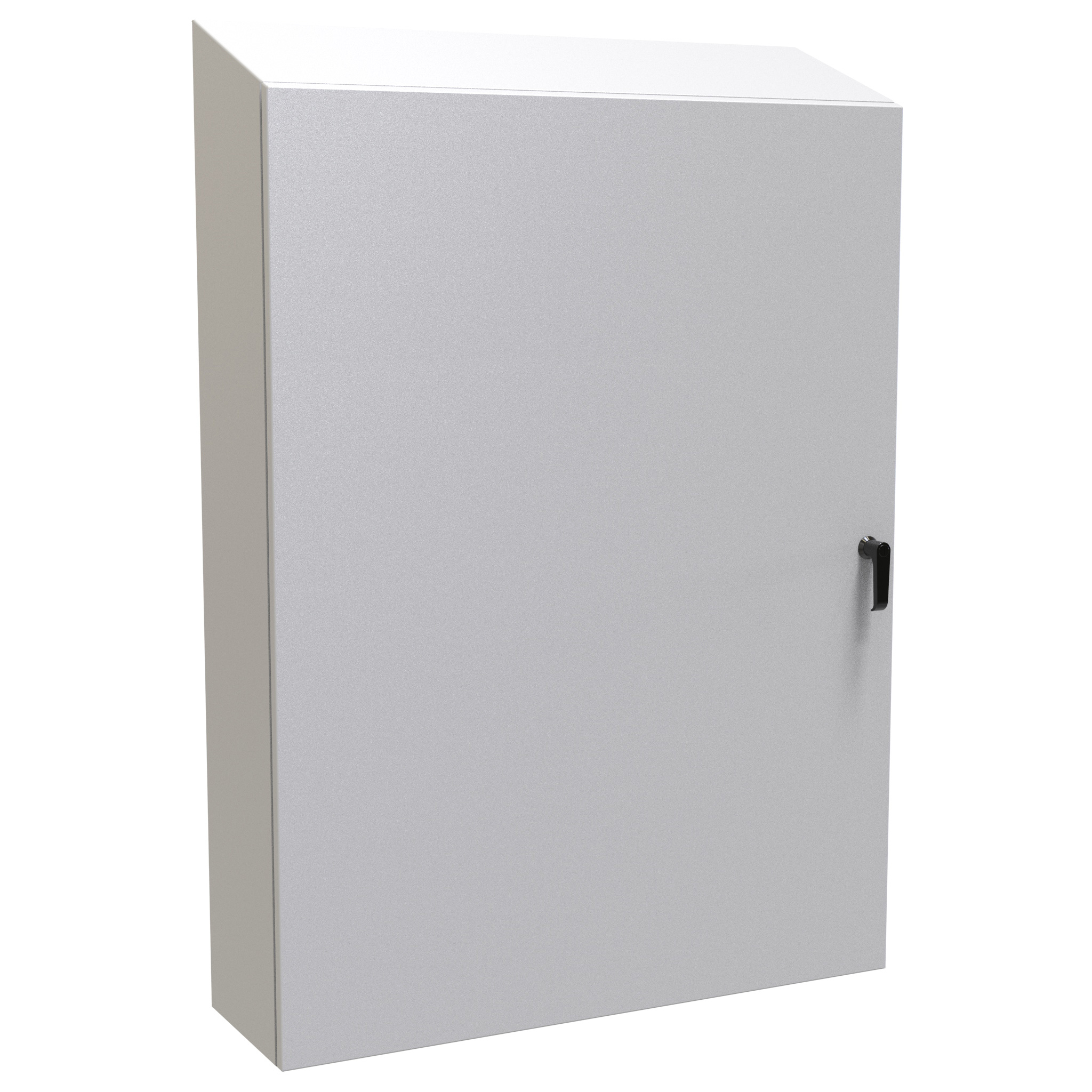

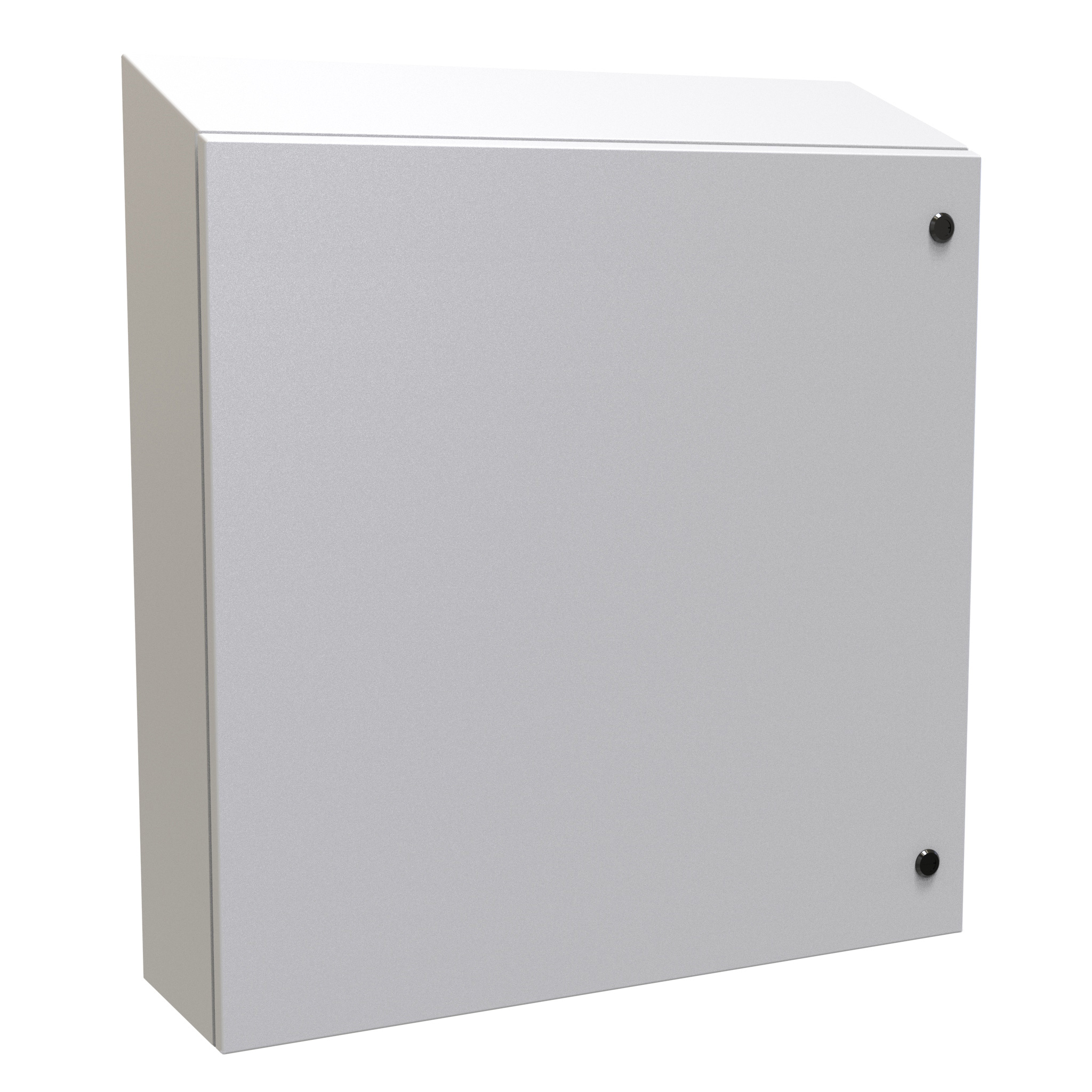

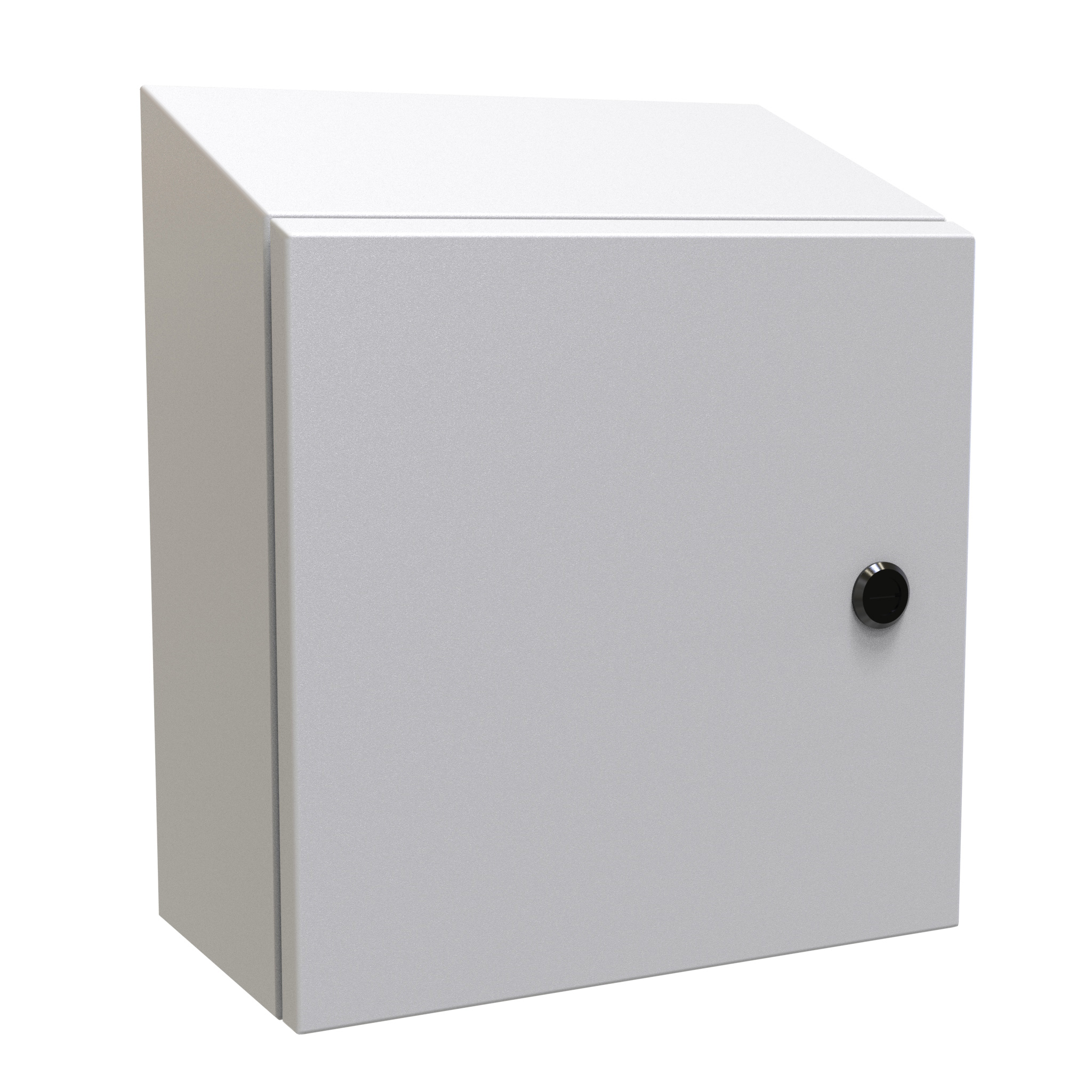

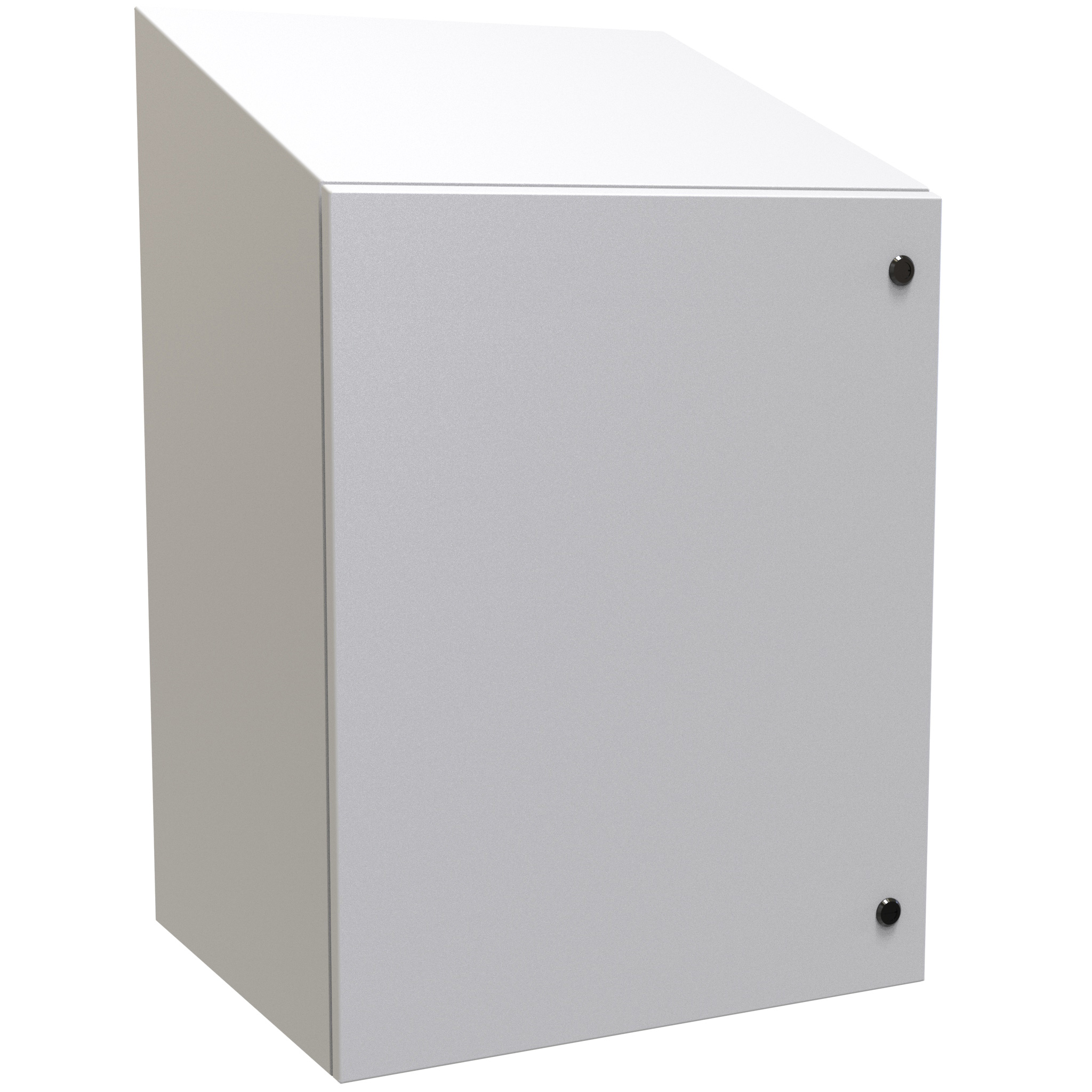

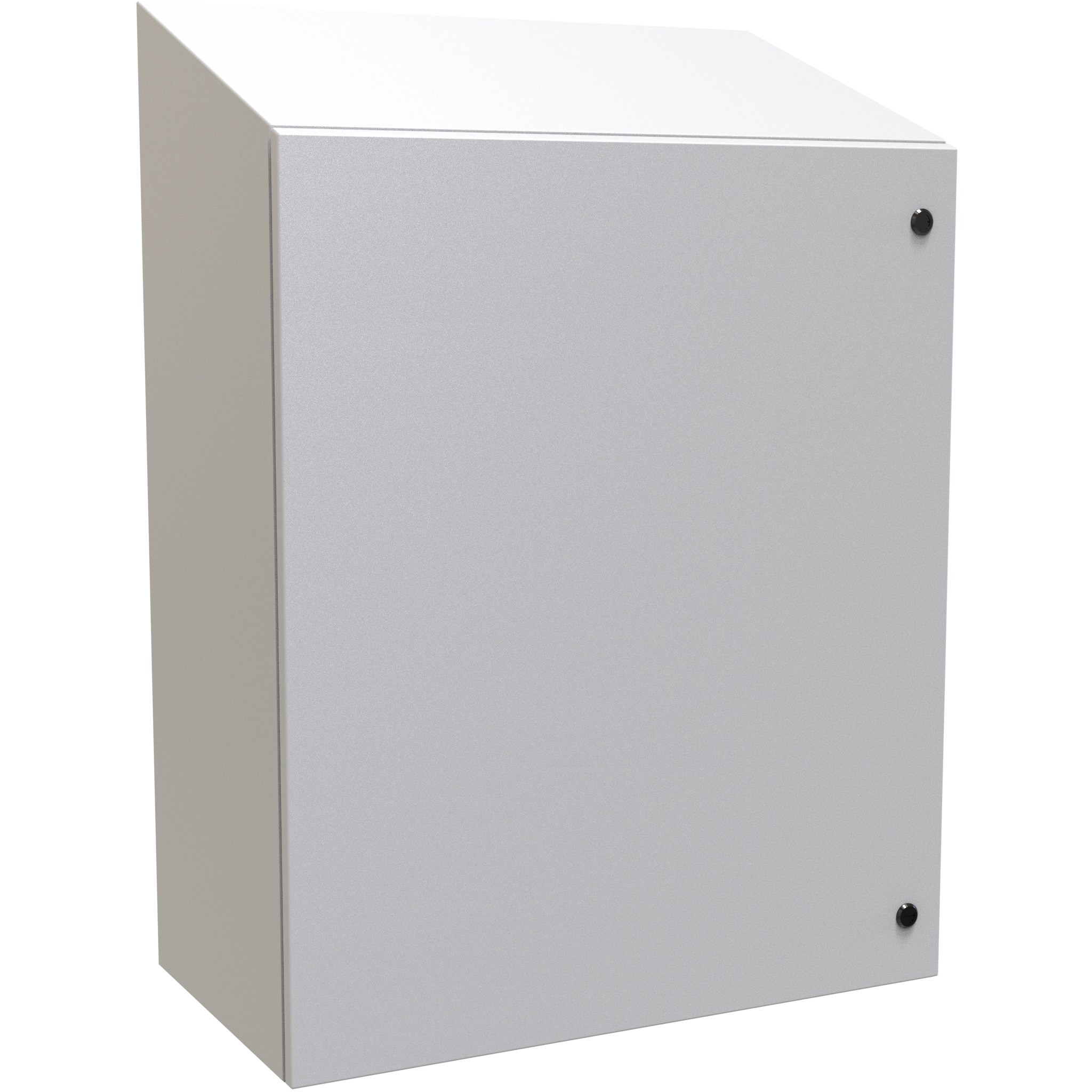

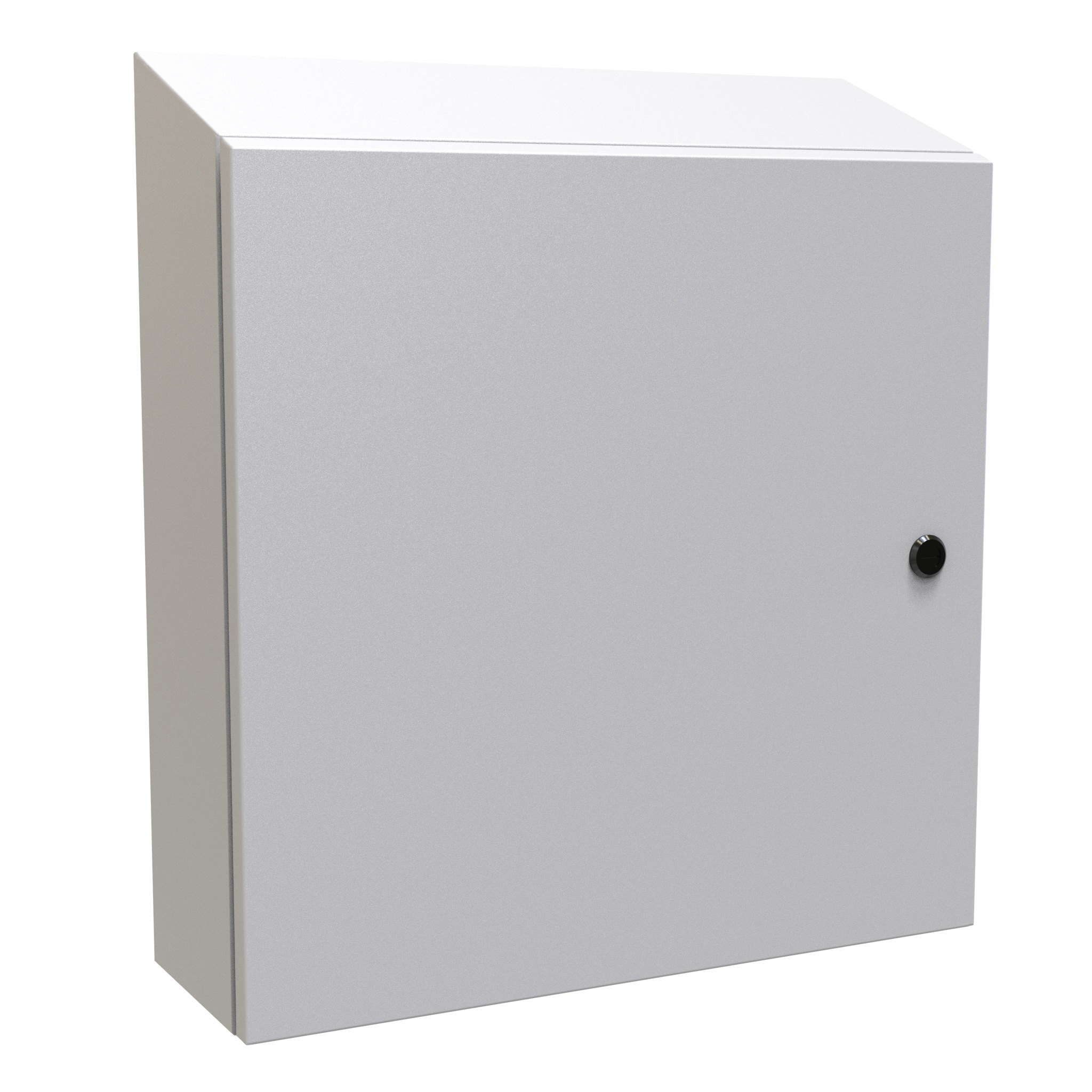

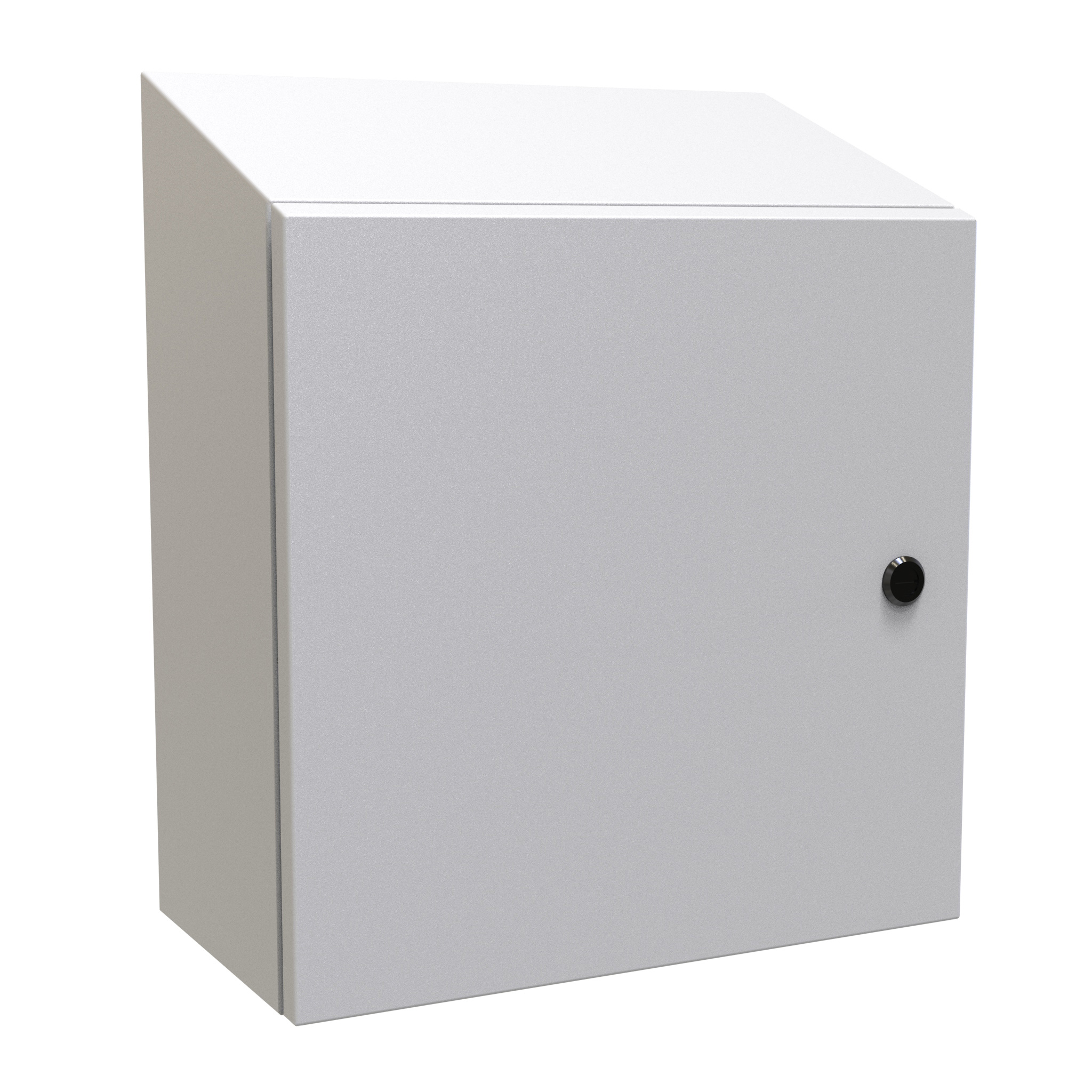

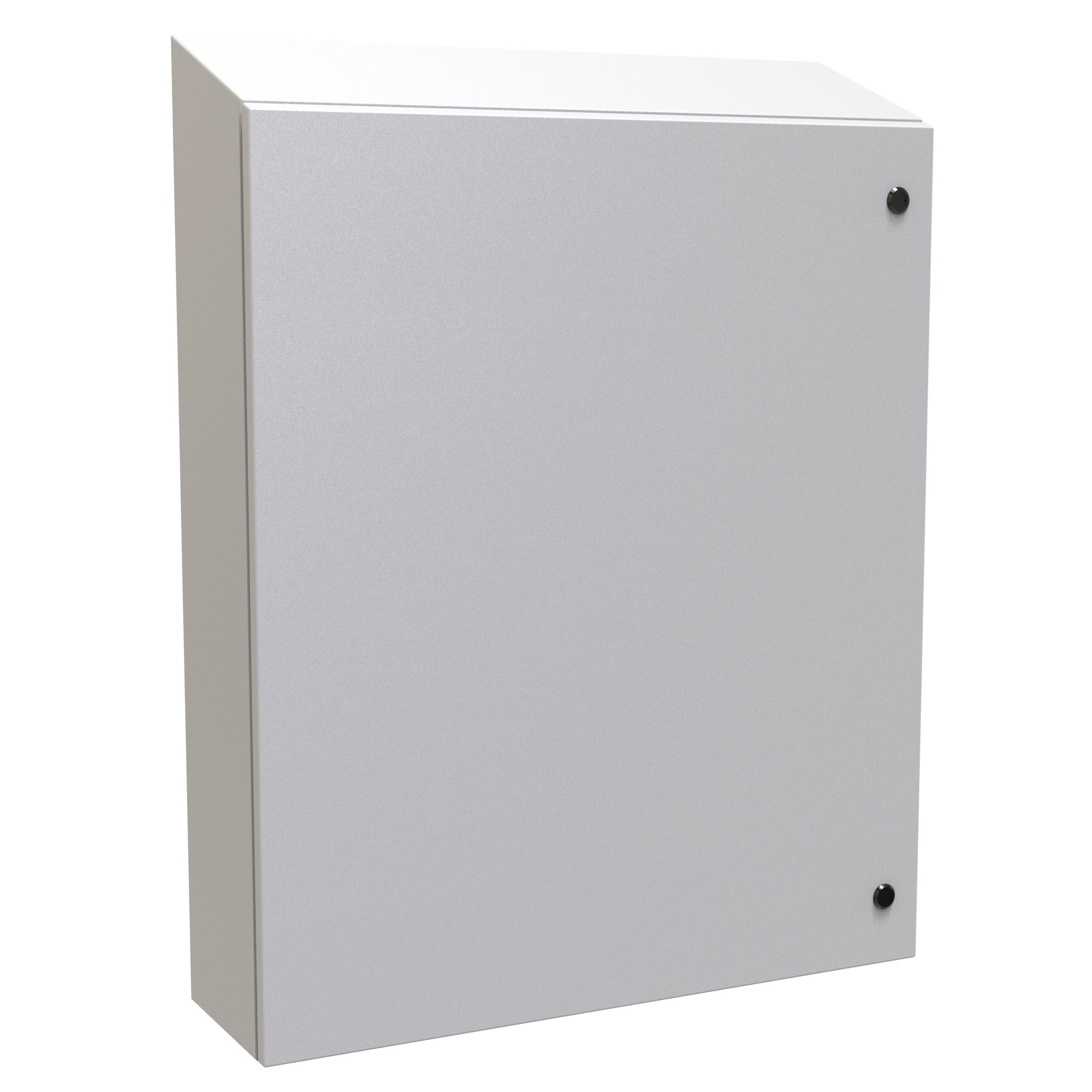

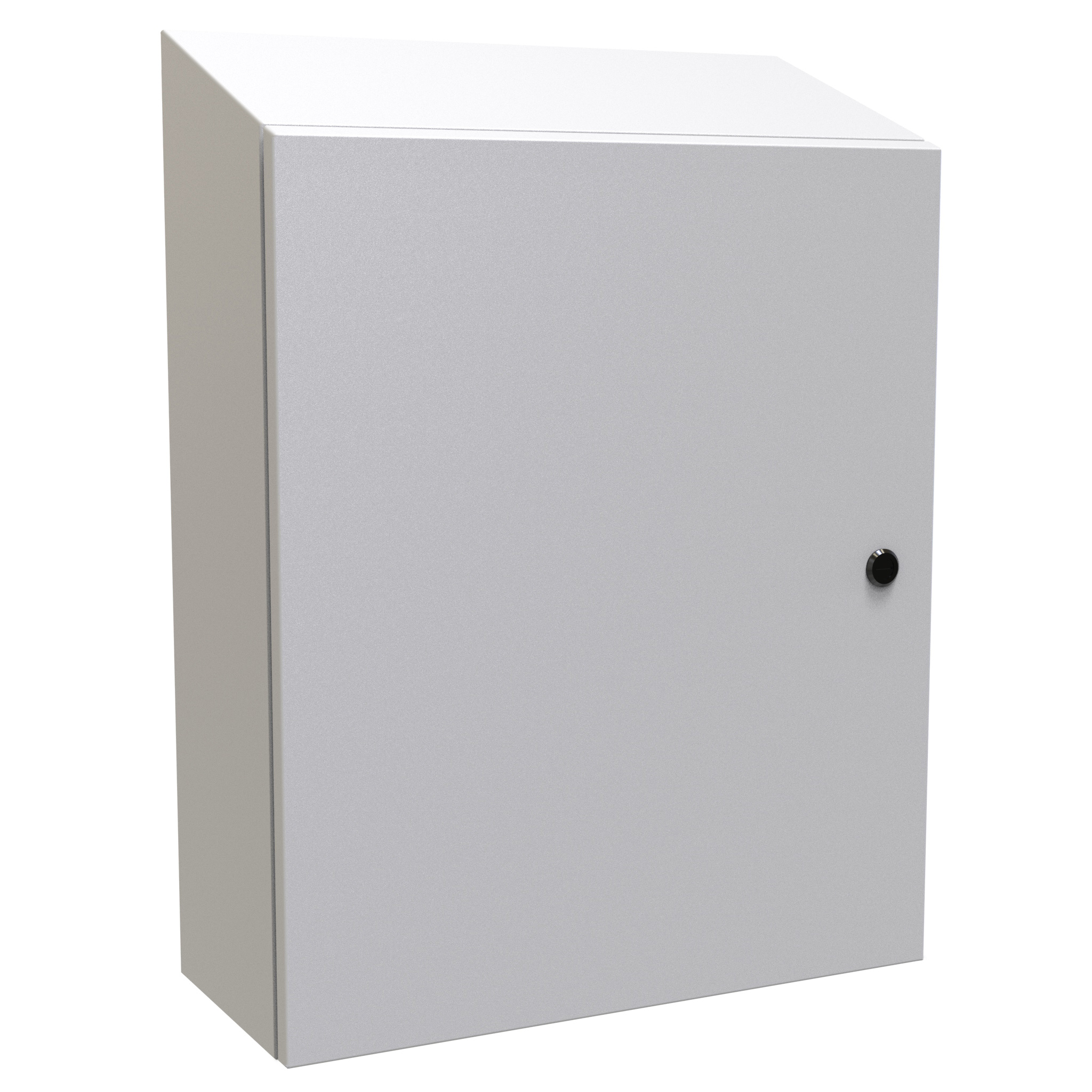

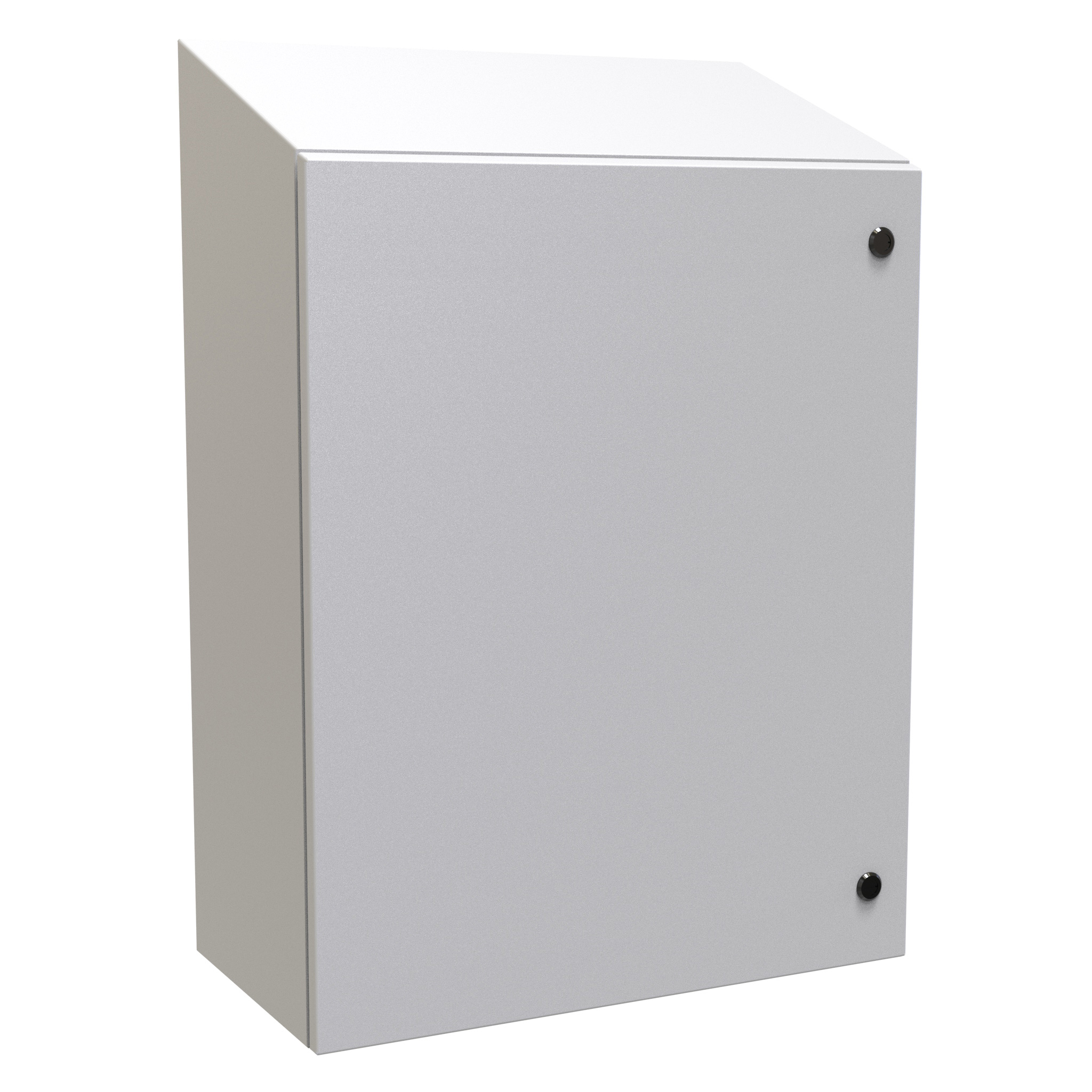

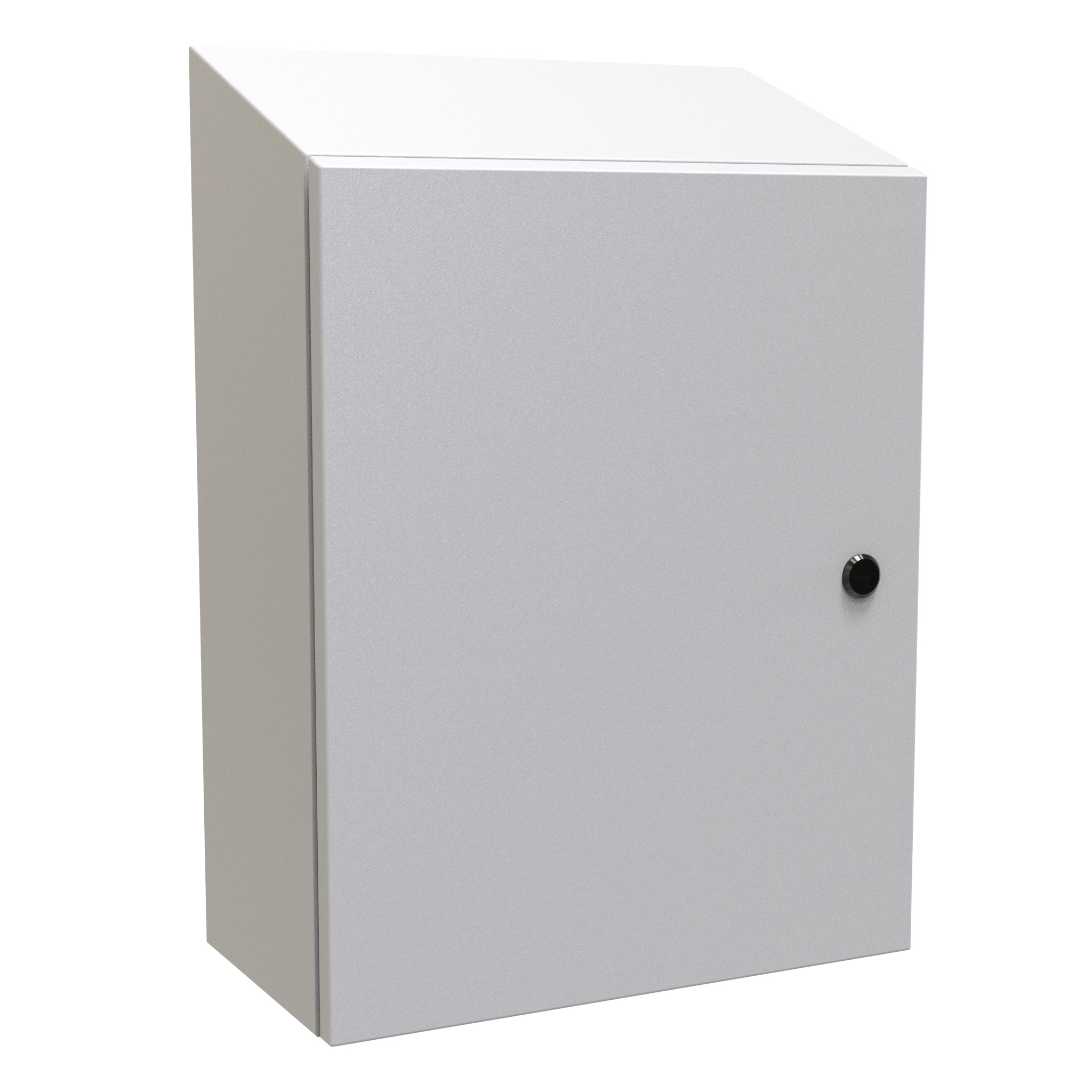

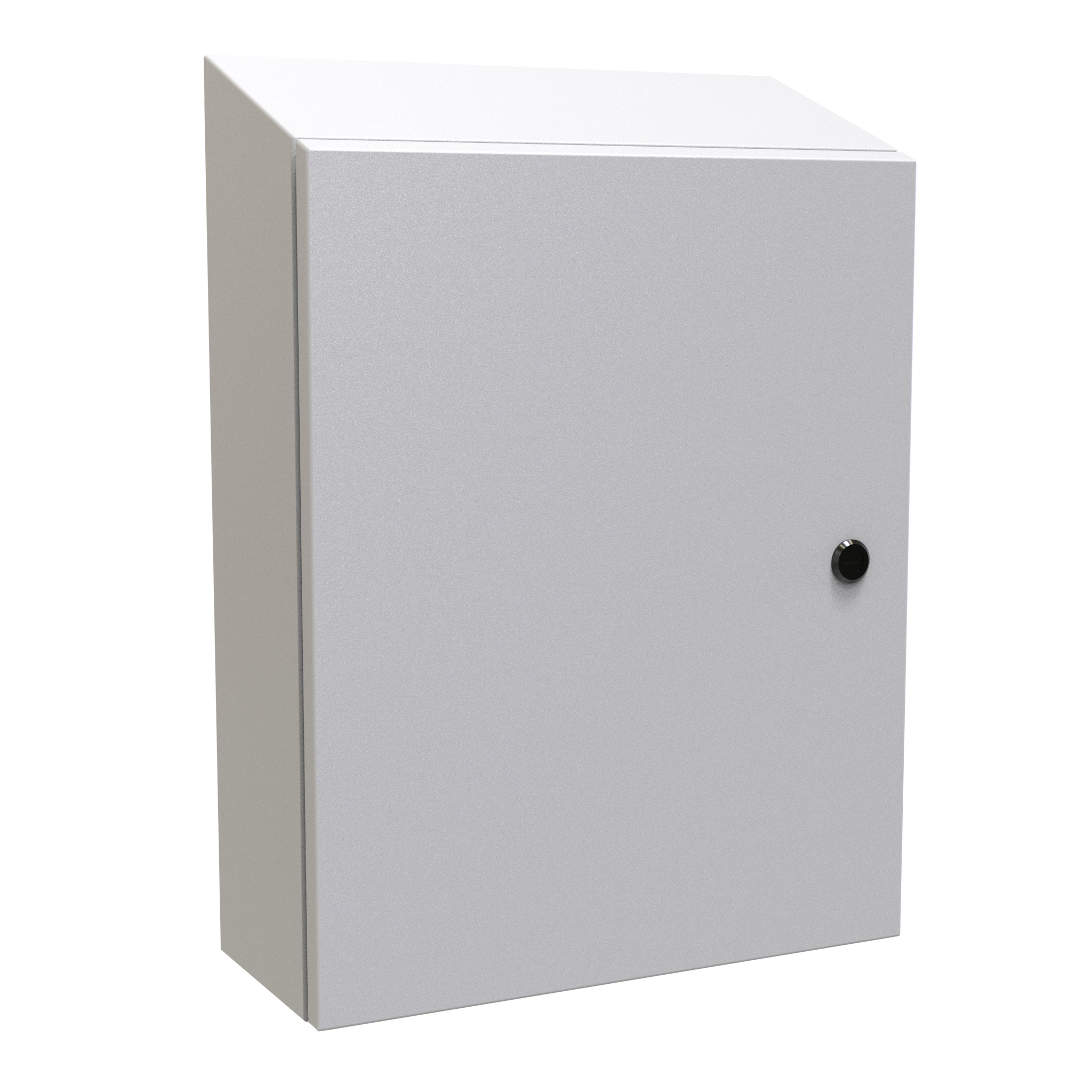

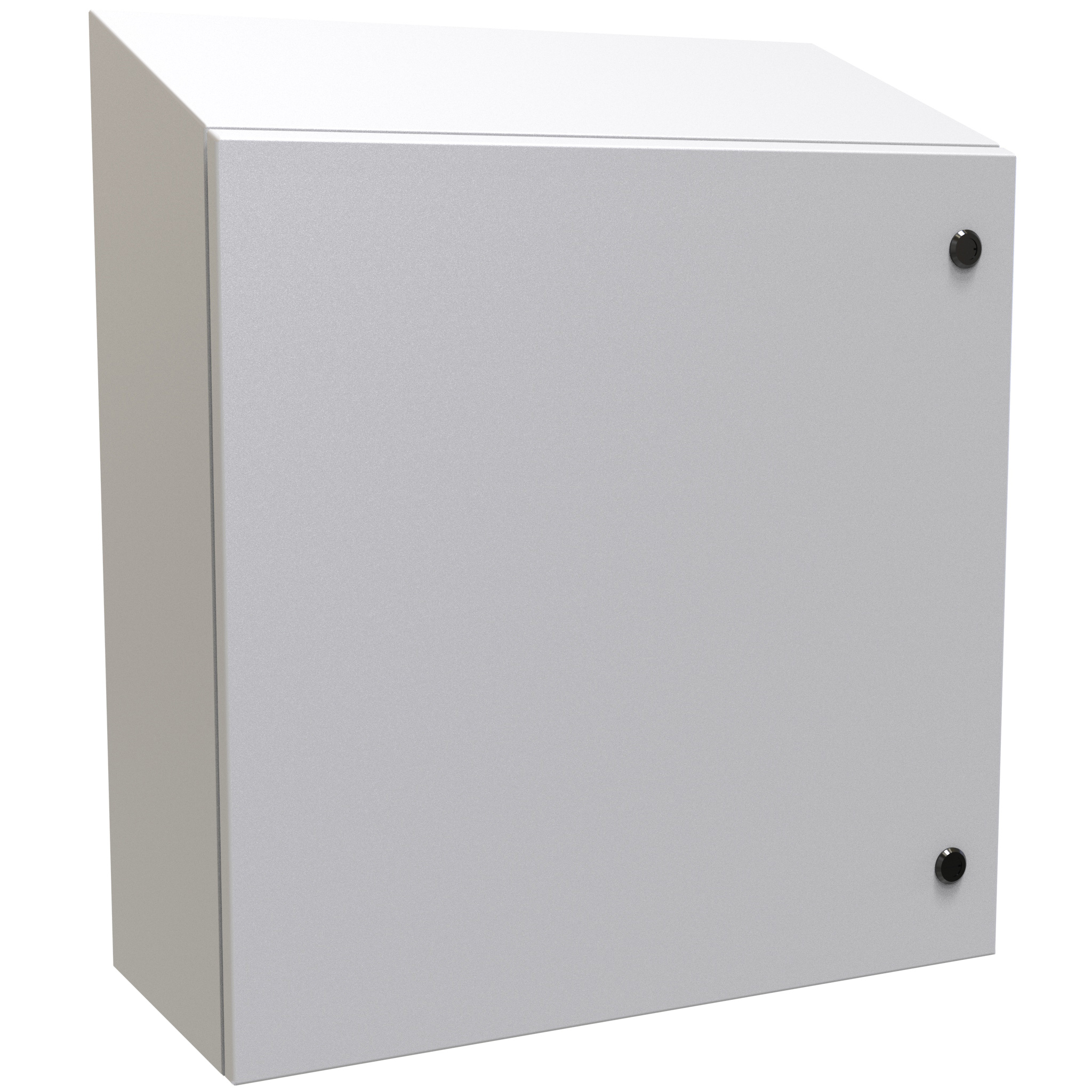

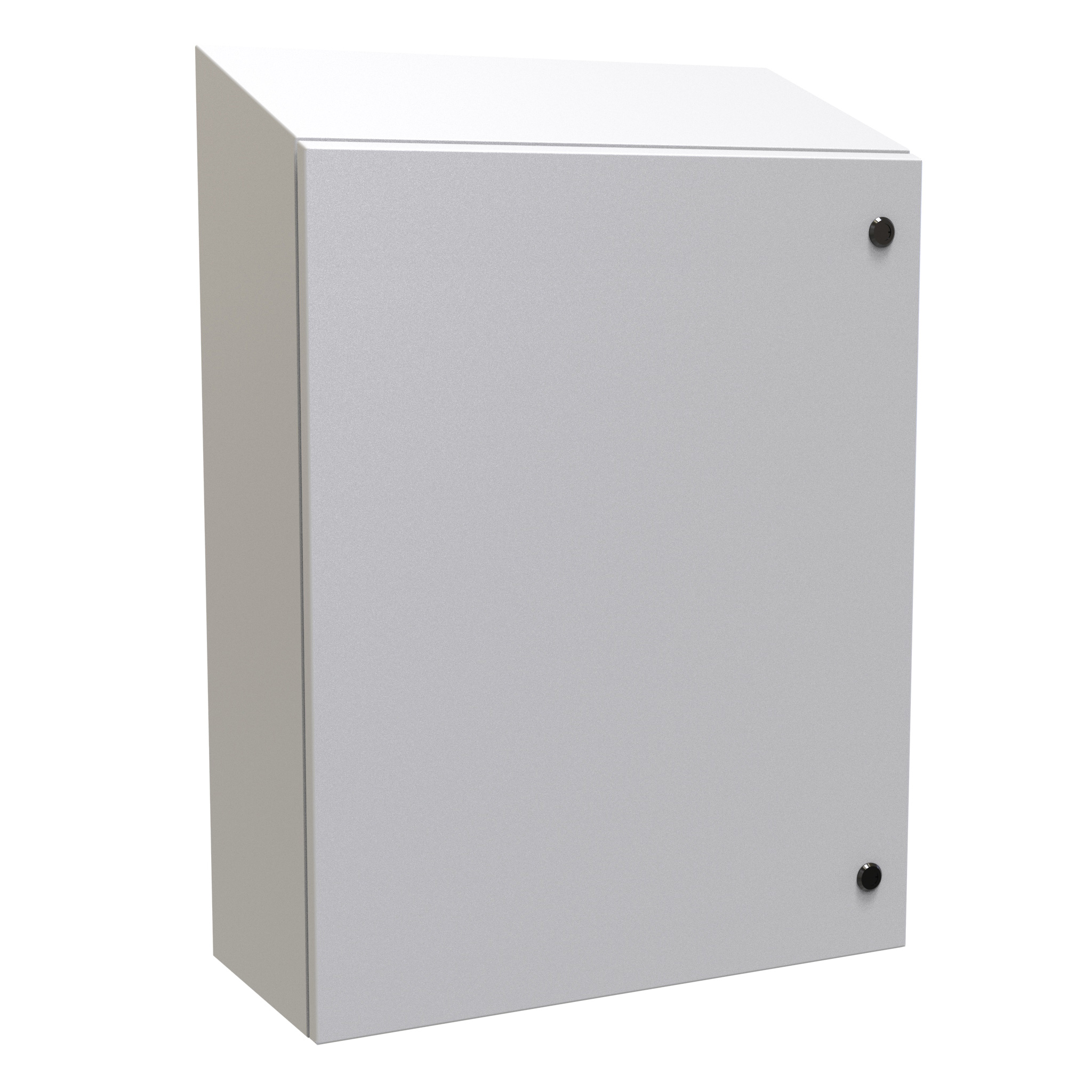

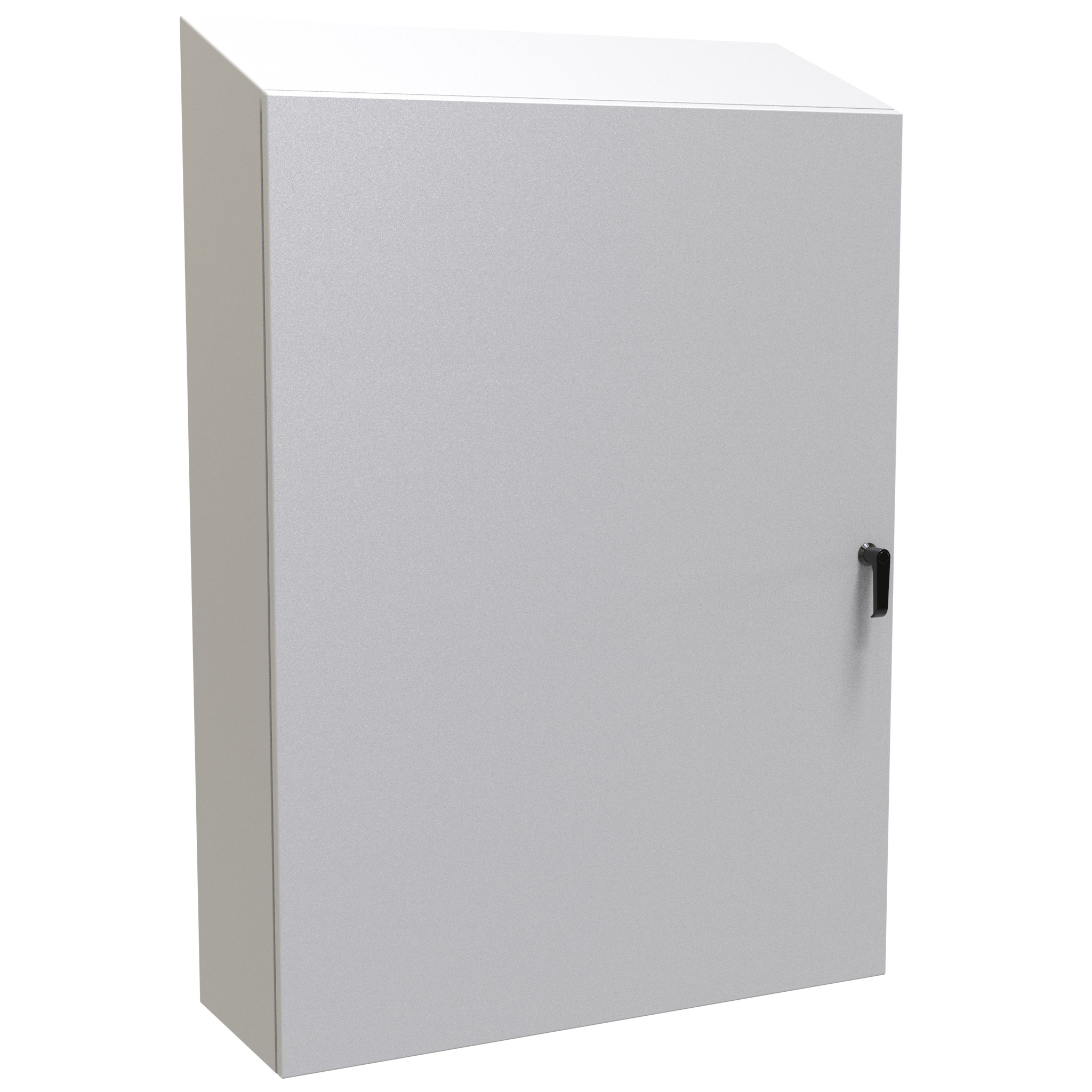

Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top · ST Series
Brand: Hammond Manufacturing · 31 part numbers
Hinge Door with Quarter Turn
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Sloped top prevents water from resting on top as well as providing potential for controls mounting.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
from $14.98
31 of 31 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your ST Series part number
Filter 25 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
25 of 25 part numbers · 25 priced online
Slope Top 16X12X6
- Latch Type A
$304.26In stock
Buy now
Slope Top 16X16X8
- Latch Type A
$343.35In stock
Buy now
Slope Top 20X16X6
- Latch Type A
$349.73Backorder
Buy now
Slope Top 20X16X8
- Latch Type A
$367.93In stock
Buy now
Slope Top 20X20X6
- Latch Type A
$378.50Backorder
Buy now
Slope Top 20X20X8
- Latch Type A
$398.82Backorder
Buy now
Slope Top 24X20X8
- Latch Type A
$427.61In stock
Buy now
Slope Top 24X24X10
- Latch Type A
$474.66In stock
Buy now
Slope Top 24X24X12
- Latch Type A
$513.98In stock
Buy now
Slope Top 24X24X8
- Latch Type A
$462.02In stock
Buy now
Slope Top 30X24X10
- Latch Type A
$527.32In stock
Buy now
Slope Top 30X24X12
- Latch Type A
$568.74In stock
Buy now
Slope Top 30X24X20
- Latch Type A
$706.17Backorder
Buy now
Slope Top 30X24X8
- Latch Type A
$514.91In stock
Buy now
Slope Top 30X30X8
- Latch Type A
$575.10In stock
Buy now
Slope Top 36X30X10
- Latch Type A
$651.61Backorder
Buy now
Slope Top 36X30X12
- Latch Type A
$702.86Backorder
Buy now
Slope Top 36X30X16
- Latch Type A
$799.79Backorder
Buy now
Slope Top 36X30X8
- Latch Type A
$637.29In stock
Buy now
Slope Top 36X36X12
- Latch Type A
$781.73In stock
Buy now
Slope Top 48X36X10
- Latch Type B
$898.76Backorder
Buy now
Slope Top 48X36X12
- Latch Type B
$937.54Backorder
Buy now
Slope Top 48X36X16
- Latch Type B
$1,029.16In stock
Buy now
Slope Top 60X36X12
- Latch Type B
$1,094.03In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Latch Type | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ST12126LG | 12.00 | 14.20 | 12.00 | 6.00 | A | EP1212 | 10.20 | 10.20 | $283.67In stockST12126LG | Buy now |
| ST16126LG | 16.00 | 18.20 | 12.00 | 6.00 | A | EP1612 | 14.20 | 10.20 | $304.26In stockST16126LG | Buy now |
| ST20166LG | 20.00 | 22.20 | 16.00 | 6.00 | A | EP2016 | 18.20 | 14.20 | $349.73BackorderST20166LG | Buy now |
| ST20206LG | 20.00 | 22.20 | 20.00 | 6.00 | A | EP2020 | 18.20 | 18.20 | $378.50Backorder | Buy now |
| ST16168LG | 16.00 | 18.90 | 16.00 | 8.00 | A | EP1616 | 14.20 | 14.20 | $343.35In stockST16168LG | Buy now |
| ST20168LG | 20.00 | 22.90 | 16.00 | 8.00 | A | EP2016 | 18.20 | 14.20 | $367.93In stockST20168LG | Buy now |
| ST20208LG | 20.00 | 22.90 | 20.00 | 8.00 | A | EP2020 | 18.20 | 18.20 | $398.82Backorder | Buy now |
| ST24208LG | 24.00 | 26.90 | 20.00 | 8.00 | A | EP2420 | 22.20 | 18.20 | $427.61In stock | Buy now |
| ST24248LG | 24.00 | 26.90 | 24.00 | 8.00 | A | EP2424 | 22.20 | 22.20 | $462.02In stock | Buy now |
| ST30248LG | 30.00 | 32.90 | 24.00 | 8.00 | A | EP3024 | 28.20 | 22.20 | $514.91In stock | Buy now |
| ST30308LG | 30.00 | 32.90 | 30.00 | 8.00 | A | EP3030 | 28.20 | 28.20 | $575.10In stockST30308LG | Buy now |
| ST36308LG | 36.00 | 38.90 | 30.00 | 8.00 | A | EP3630 | 34.20 | 28.20 | $637.29In stock | Buy now |
| ST242410LG | 24.00 | 27.60 | 24.00 | 10.00 | A | EP2424 | 22.20 | 22.20 | $474.66In stock | Buy now |
| ST302410LG | 30.00 | 33.60 | 24.00 | 10.00 | A | EP3024 | 28.20 | 22.20 | $527.32In stock | Buy now |
| ST363010LG | 36.00 | 39.60 | 30.00 | 10.00 | A | EP3630 | 34.20 | 28.20 | $651.61Backorder | Buy now |
| ST483610LG | 48.00 | 51.60 | 36.00 | 10.00 | B | EP4836 | 46.20 | 34.20 | $898.76Backorder | Buy now |
| ST242412LG | 24.00 | 28.40 | 24.00 | 12.00 | A | EP2424 | 22.20 | 22.20 | $513.98In stock | Buy now |
| ST302412LG | 30.00 | 34.40 | 24.00 | 12.00 | A | EP3024 | 28.20 | 22.20 | $568.74In stock | Buy now |
| ST363012LG | 36.00 | 40.30 | 30.00 | 12.00 | A | EP3630 | 34.20 | 28.20 | $702.86Backorder | Buy now |
| ST363612LG | 36.00 | 40.30 | 36.00 | 12.00 | A | EP3636 | 34.20 | 34.20 | $781.73In stockST363612LG | Buy now |
| ST483612LG | 48.00 | 52.30 | 36.00 | 12.00 | B | EP4836 | 46.20 | 34.20 | $937.54Backorder | Buy now |
| ST603612LG | 60.00 | 64.30 | 36.00 | 12.00 | B | EP6036 | 58.20 | 34.20 | $1,094.03In stock | Buy now |
| ST363016LG | 36.00 | 41.80 | 30.00 | 16.00 | A | EP3630 | 34.20 | 28.20 | $799.79Backorder | Buy now |
| ST483616LG | 48.00 | 53.80 | 36.00 | 16.00 | B | EP4836 | 46.20 | 34.20 | $1,029.16In stock | Buy now |
| ST302420LG | 30.00 | 37.30 | 24.00 | 20.00 | A | EP3024 | 28.20 | 22.20 | $706.17Backorder | Buy now |
