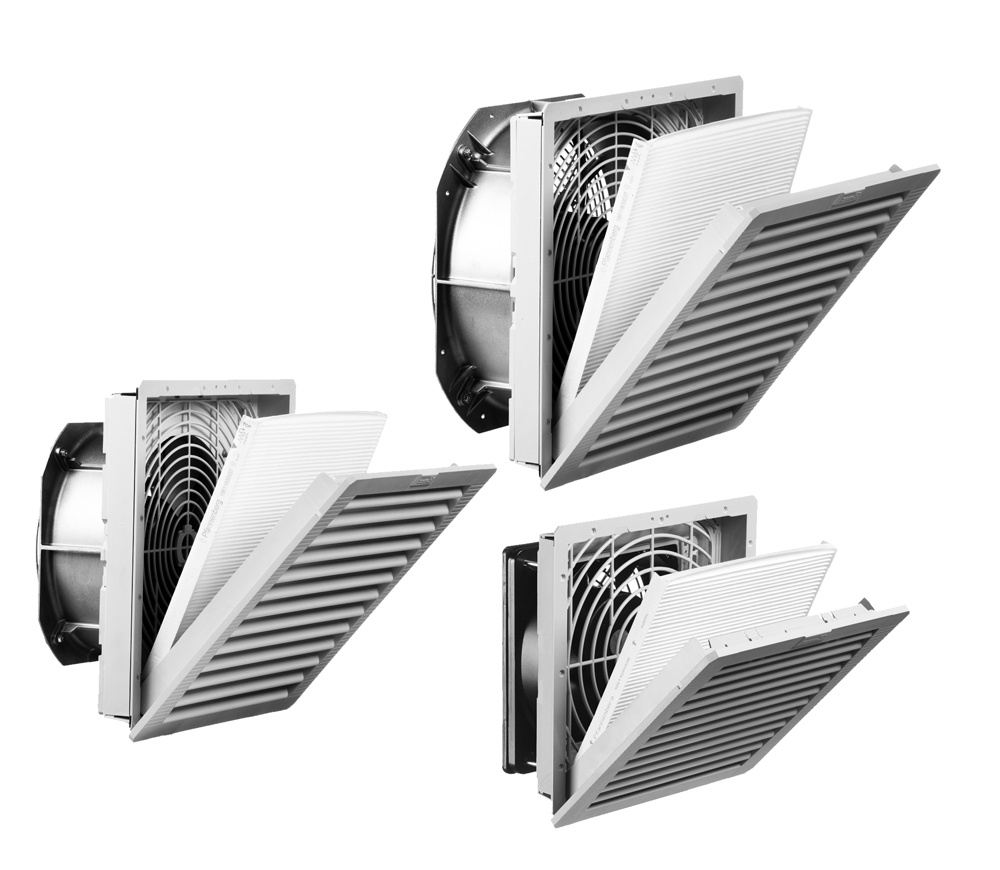

152-427 CFM Slimline Filterfans PF SL GEN4 Series

152-427 CFM Slimline Filterfans · PF SL GEN4 Series

Brand: Hammond Manufacturing · 20 part numbers

Type 12

  • ■Low installation depth
  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8
  • ■UL File #E175229
  • ■CSA #246217
  • ■Patented “Click & Fit” design provides a hardware-free installation

from $52.46

17 of 20 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your PF SL GEN4 Series part number

Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

16 of 16 part numbers · 13 priced online

Dimension tables (inches / mm)
RAL7035 · Light GrayRAL9011 · BlackVoltagePowerExhaust Filter · RAL7035 · Light Gray (Part No.)Exhaust Filter · RAL9011 · Black (Part No.)PriceOrder
PF33000T12LGSLPF33000T12BKSL115V AC40WPFA30000LGPFA30000BK$52.46In stockPFA30000LGBuy now
PF33000T12LGSL2PF33000T12BKSL2230V AC39WPFA30000LGPFA30000BK$239.81In stockPF33000T12LGSL2Buy now
PF330DCT12LGSL2PF330DCT12BKSL224V DC12WPFA30000LGPFA30000BK$254.66In stockPF330DCT12LGSL2Buy now
PF65000T12LGSLPF65000T12BKSL115V AC80WPFA60000LGPFA60000BK$346.93In stockPF65000T12LGSLBuy now
PF65000T12LGSL2PF65000T12BKSL2230V AC80WPFA60000LGPFA60000BK$357.16BackorderPF65000T12LGSL2Buy now
PF67000T12LGSLPF67000T12BKSL115V AC120WPFA60000LGPFA60000BK$590.24BackorderPF67000T12LGSLBuy now
PF67000T12LGSL2PF67000T12BKSL2230V AC127WPFA60000LGPFA60000BK$600.34In stockPF67000T12LGSL2Buy now
PF67000T12LGSL4PF67000T12BKSL4460V AC110WPFA60000LGPFA60000BK$665.90BackorderPF67000T12LGSL4Buy now
Airflow dataPF 33000 SLPF 65000 SLPF 67000 SLPriceOrder
Filter materialType 12 FiltermatType 12 FiltermatType 12 FiltermatQuoteQuote
Unimpeded airflow152 CFM325 CFM427 CFMQuoteQuote
Cooling Dissipation (W)/°T168 W/K262 W/K317 W/KQuoteQuote
Airfl ow in combination115 CFM250 CFM342 CFMQuoteQuote
(Filterfan + Exhaust Filter)(PF 33000 + PFA 30000)(PF 65000 + PFA 60000)(PF 67000 + PFA 60000)QuoteQuote
Capacity in combination127 W/K167 W/K208 W/KQuoteQuote
(Filterfan + Exhaust Filter)(PF 33000 + PFA 30000)(PF 65000 + PFA 60000)(PF 67000 + PFA 60000)QuoteQuote
Max. static pressure (Airfl ow = 0)74 Pa134 Pa187 PaQuoteQuote
Filtration effi ciency0.910.910.91QuoteQuote
Filter material gradeG 4 (DIN EN 779)G 4 (DIN EN 779)G 4 (DIN EN 779)QuoteQuote
Duty cycle111QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Technical dataPF 33000SLPF 65000SLPF 67000SLPriceOrder
Outside dimensions in mm (height x width x installation depth)202 x 202 x 87320 x 320 x 124320 x 320 x 127QuoteQuote
Cut Out Dimension177 x 177291 x 291291 x 291QuoteQuote
Bearing typeball bearingsball bearingsball bearingsQuoteQuote
Fitting positionany, horizontal airflow preferredany, horizontal airflow preferredany, horizontal airflow preferredQuoteQuote
Constructionhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOQuoteQuote
Weight3.2 kg3.2 kg3.7 kgQuoteQuote
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001QuoteQuote
ColorRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyQuoteQuote
Connectionscage clamp (AC), leads (DC)cage clamp (AC), leads (DC)cage clamp (AC), leads (DC)QuoteQuote
ApprovalNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedQuoteQuote
Noise Level (EN ISO 3741)42 dB (A)52 dB (A)69 dB (A)QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Low installation depth
  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8
  • ■UL File #E175229
  • ■CSA #246217
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Plastic made from strong, heat resistant ABS, UL 94 V0 fire approved material
  • ■Options: Black Grills, Reverse Flow Exhaust

Documents

Specification SheetReversing Filter Fan AirflowPF Manual
