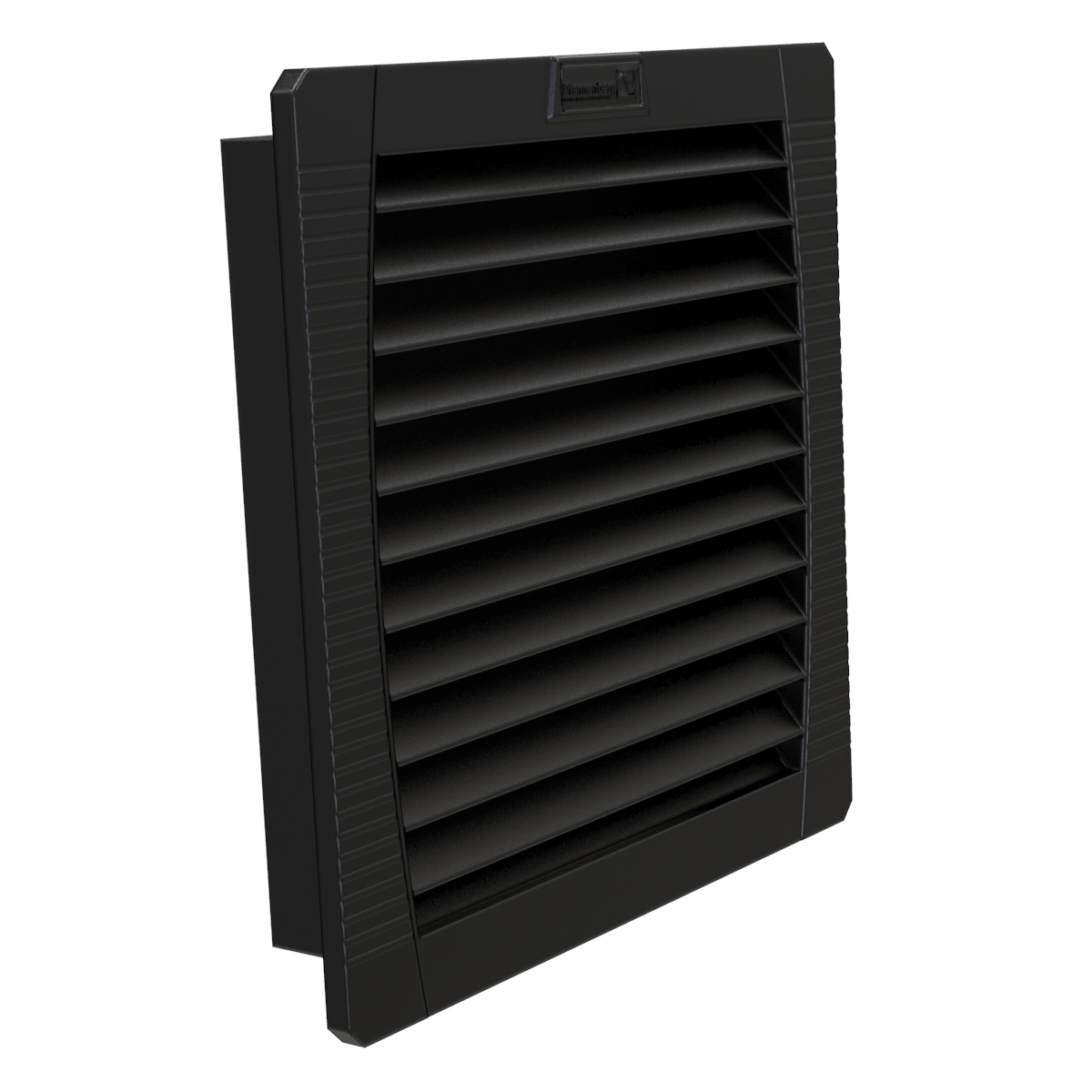

Hammond PFA30000BK 8" Type 12 Exhaust Filter for 65 CFM Fans, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Exhaust filter for 65 CFM PF 32000 filter fans (115V AC, 230V AC and 24V DC)
- 38 CFM / 21 W/K when combined with a PF 32000 filter fan
- 202 x 202 x 34 mm with only 34 mm installation depth
- Uses the same 177 mm cutout as the PF 32000 fans
- Type 12 filter mat, grade G 4 (DIN EN 779)
- Sprayed thermoplastic housing, self-extinguishing UL 94 V0; any fitting position
- RAL 9011 black finish; REACH and RoHS compliant
The PFA30000BK is an 8" Type 12 exhaust filter in RAL 9011 black, the outlet partner for the 65 CFM PF 32000 filter fans in the PF GEN4 Series. Installed on the opposite side of the enclosure from the fan, it lets heated air escape through a Type 12 filter mat while keeping the enclosure sealed. It is listed as the black exhaust filter for the PF32000T12BK (115V AC), PF32000T12BK230 (230V AC) and PF32000T12BK24 (24V DC) fans.
With a PF 32000 filter fan, the fan-plus-exhaust-filter combination is rated at 38 CFM and 21 W/K. The filter material is a Type 12 filter mat of grade G 4 (DIN EN 779).
The exhaust filter measures 202 x 202 x 34 mm (height x width x installation depth) and weighs 0.26 kg. Its housing and guard are sprayed thermoplastic, self-extinguishing to UL 94 V0, and it may be fitted in any position. It uses the same 177 mm +1/-0 installation cutout as the PF 32000 fans in material up to 2 mm, or 178 mm +1/-0 for material over 2 mm and under 3 mm.
The series is rated NEMA Type 12, IP 55 (EN 60 529) when installed as specified, with an operating range of -15 °C (-5 °F) to +55 °C (+131 °F). The PFA30000BK is REACH and RoHS compliant. A light gray version is available as PFA30000LG.
Ideal For
- Exhaust outlet for PF 32000 enclosure filter fans
- Completing a Type 12 fan-and-filter ventilation set
- Venting heat from electrical control enclosures
Overview
| Model | PFA 30000 |
| Colour | RAL 9011 Black |
| Series | PF GEN4 Series, 65 CFM Filterfans |
| Description | 8" Exhaust Filter N12 - Black |
| Product Type | Exhaust filter, Type 12 |
| Short Description | 8" EXHAUST FILTER T12 |
| Light Gray Equivalent | PFA30000LG |
Dimensions
| Nominal Size | 8 in |
| Outside Dimensions (H X W X Installation Depth) | 202 x 202 x 34 mm |
Identifiers
| UPC | 623980015736 |
| UNSPSC | 39121302 |
| Part Number | PFA30000BK |
Compatibility
| Matching Filter Fans (Black) | PF32000T12BK (115V AC, 20W), PF32000T12BK230 (230V AC, 18W), PF32000T12BK24 (24V DC, 5W) |
| Matching Filter Fans (Light Gray) | PF32000T12LG, PF32000T12LG230, PF32000T12LG24 |
Packaging & Shipping
| Shipping Weight | 0.45 lbs (0.20 kg) |
Airflow & Performance
| Filter Material | Type 12 filter mat |
| Filter Material Grade | G 4 (DIN EN 779) |
| Airflow In Combination (PF 32000 + PFA 30000) | 38 CFM |
| Capacity In Combination (PF 32000 + PFA 30000) | 21 W/K |
Construction & Finish
| Unit Weight | 0.26 kg |
| Construction | Housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 V0 |
| Fitting Position | Any |
Environmental & Protection
| Storage Temperature | -20 °C (-4 °F) to +70 °C (+158 °F) |
| System Of Protection | NEMA Type 12, IP 55 (EN 60 529), when installed as specified |
| Operating Temperature | -15 °C (-5 °F) to +55 °C (+131 °F) |
| Max. Relative Humidity | 0.9 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which filter fans is the PFA30000BK used with?▾
It is the black exhaust filter listed for the PF32000T12BK (115V AC), PF32000T12BK230 (230V AC) and PF32000T12BK24 (24V DC) filter fans. The light gray fans list PFA30000LG.
What airflow do I get with a fan and this exhaust filter?▾
A PF 32000 filter fan combined with the PFA 30000 exhaust filter is rated at 38 CFM and 21 W/K.
What cutout does it need?▾
177 mm +1/-0 in material up to 2 mm thick, or 178 mm +1/-0 in material over 2 mm and under 3 mm, the same as the PF 32000 fans.
How deep is it?▾
The outside dimensions are 202 x 202 x 34 mm, so the installation depth is 34 mm.
Does it need power?▾
No electrical data is listed for the PFA 30000; it is a filtered outlet with no fan, bearing or connection specified.
