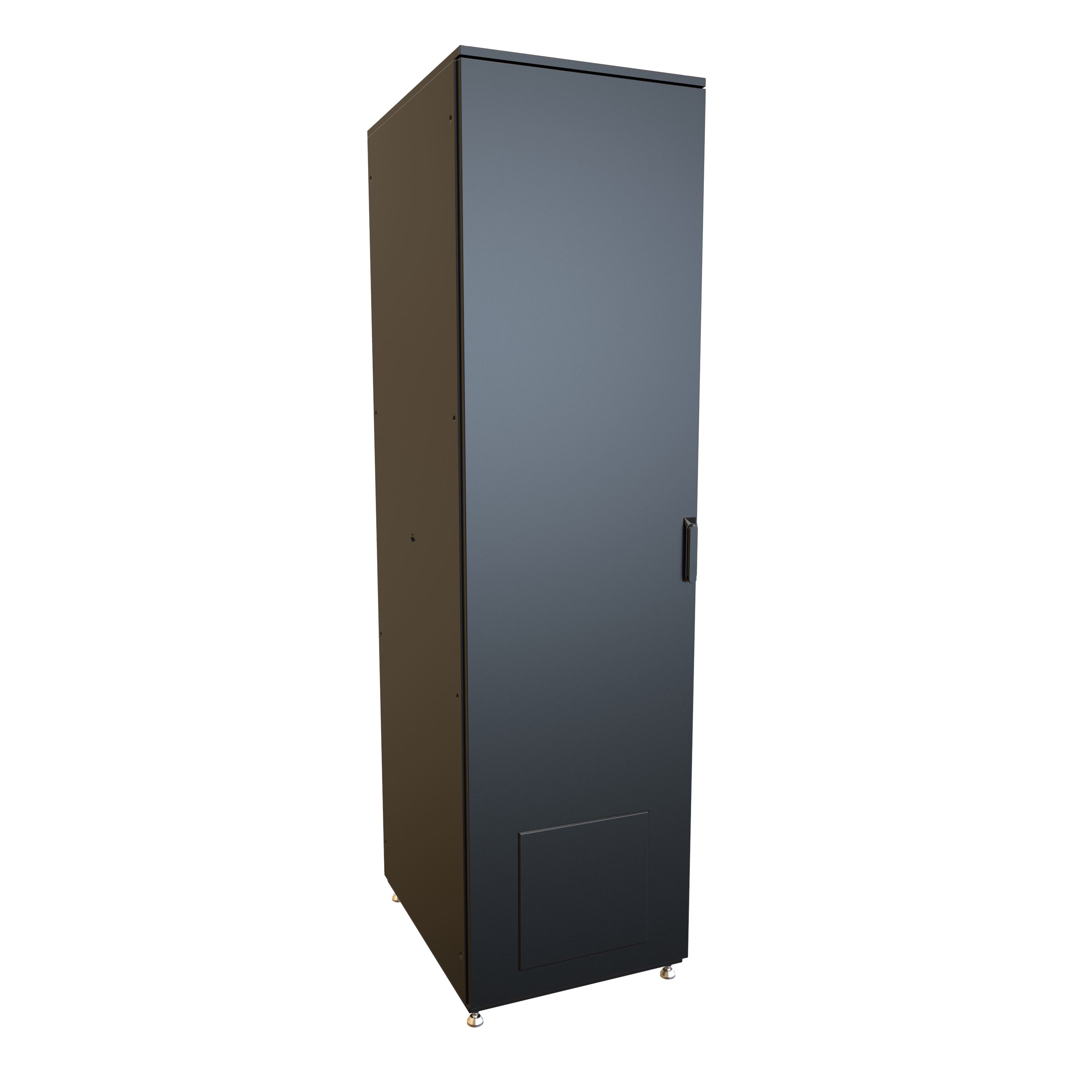

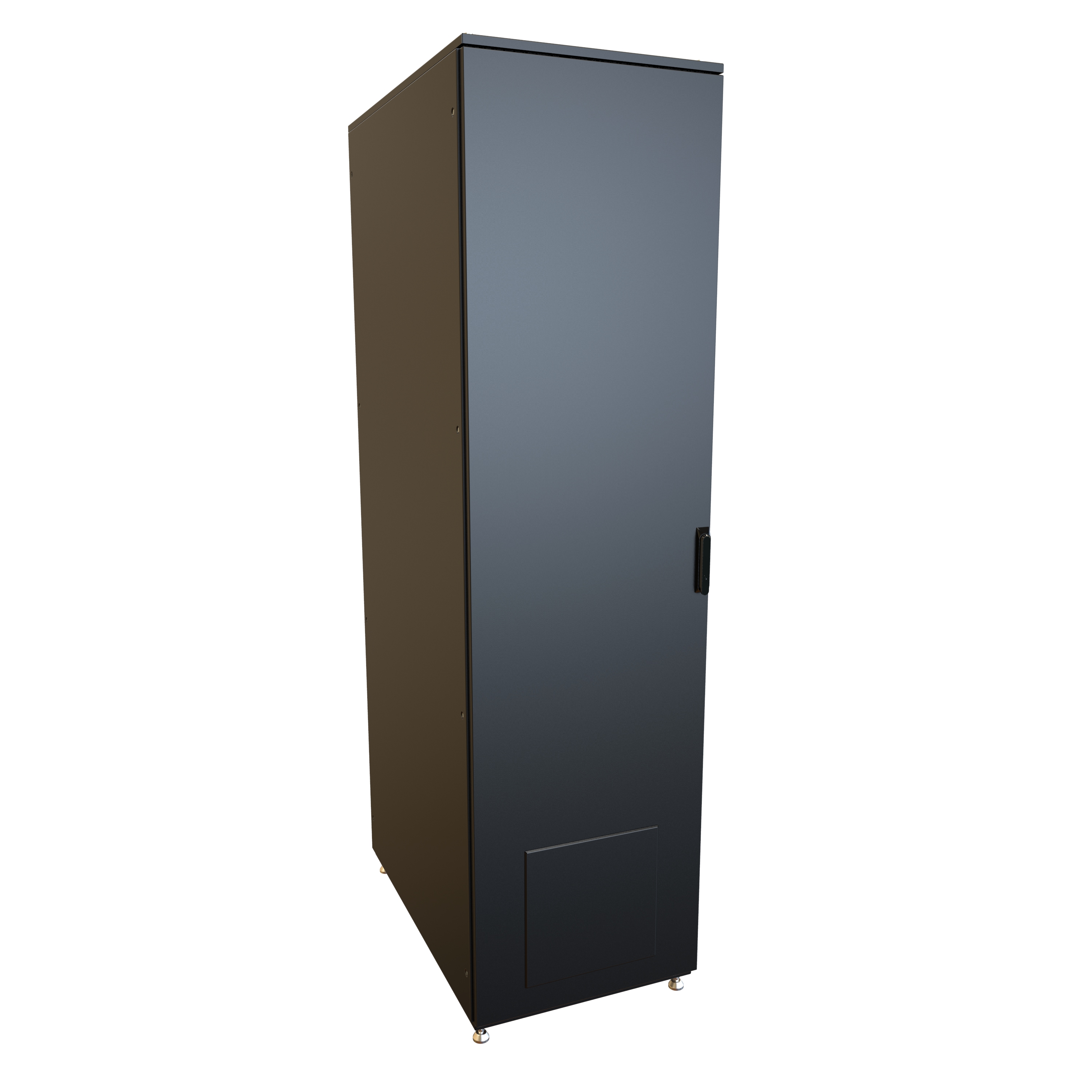

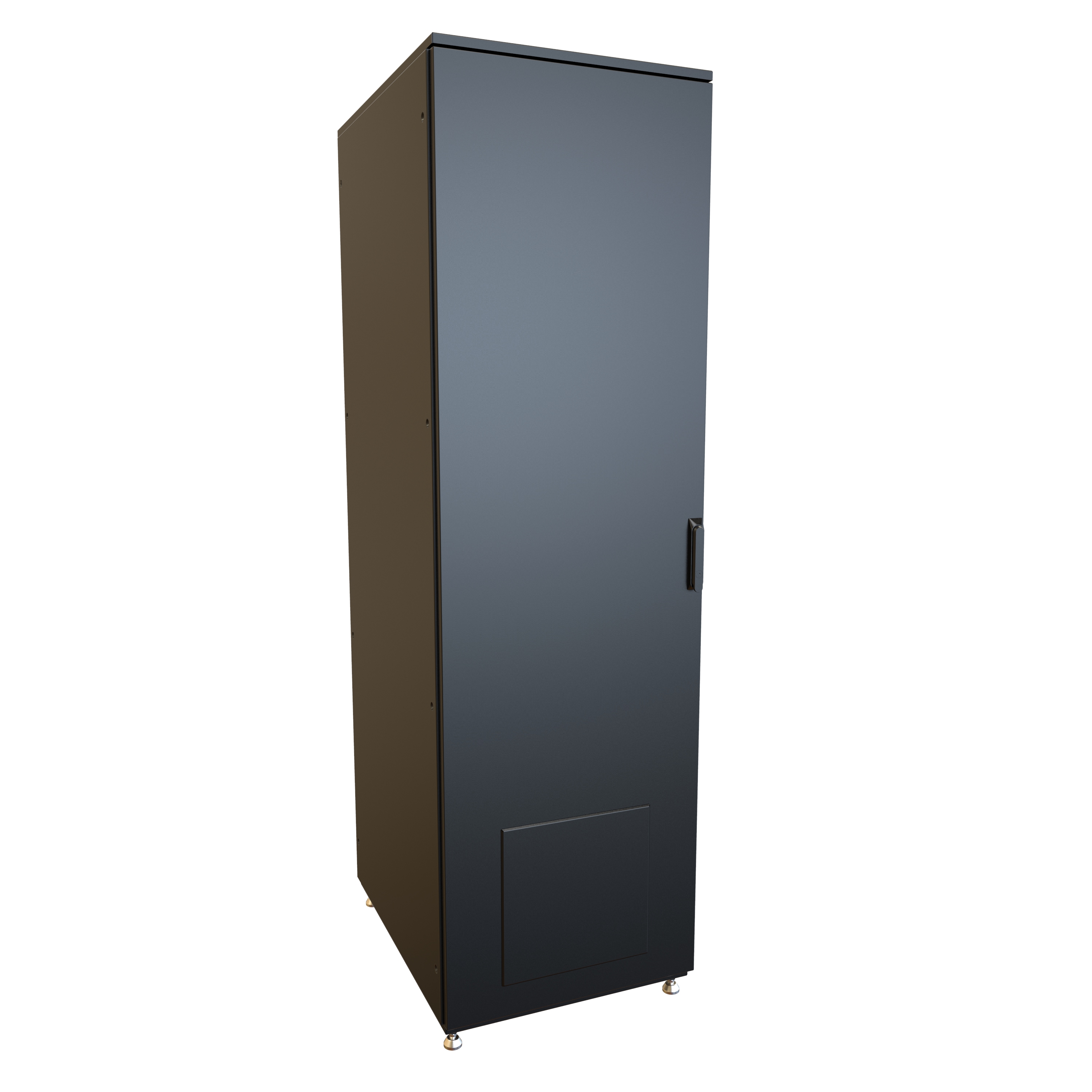

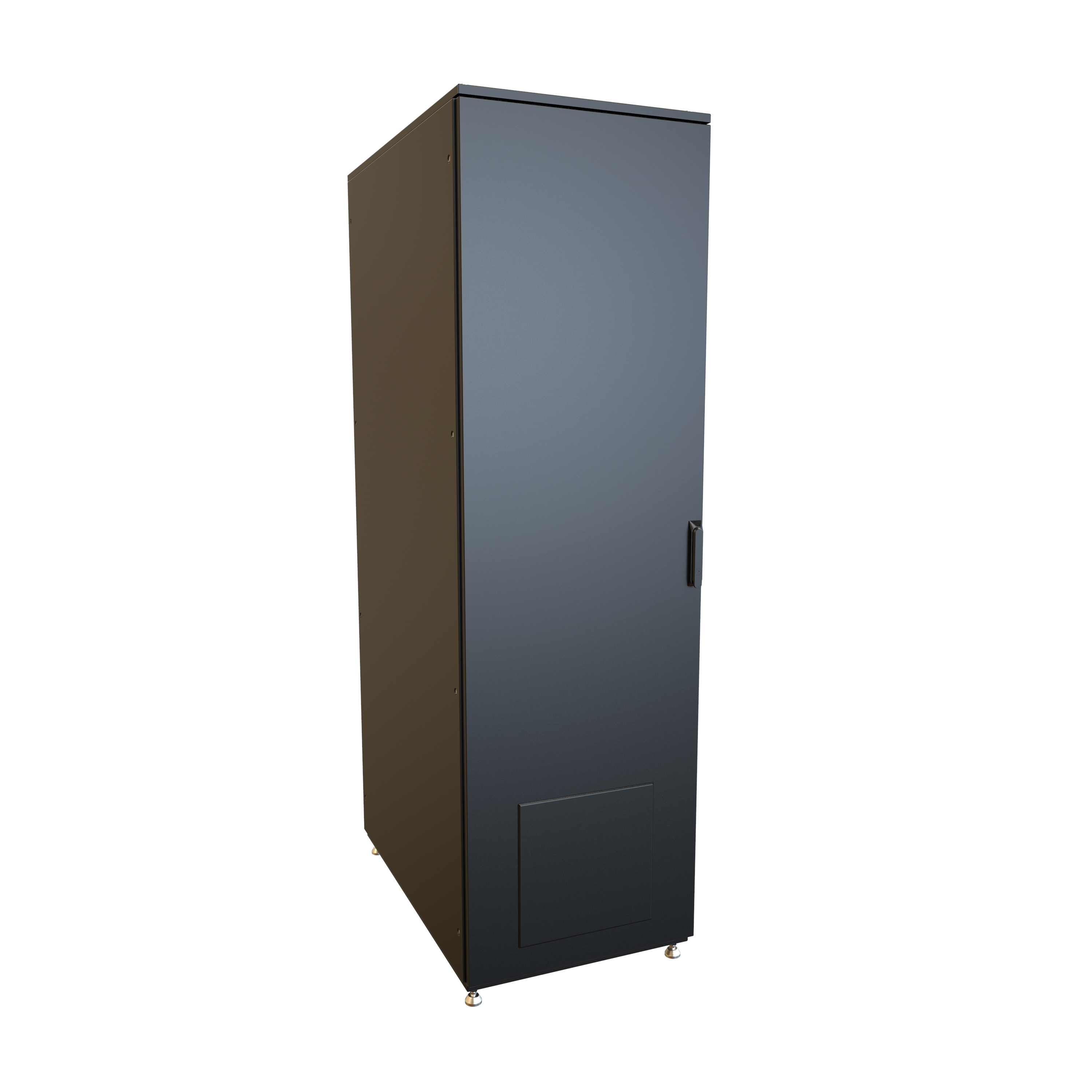

NEMA 12 Server Rack Cabinet (3000 lb) · HDME Series

Key Features and Benefits

The HDME Series NEMA 12 server rack cabinet is designed for industrial and harsh environments where standard IT cabinets are not suitable. With a 3000 lb load capacity and sealed construction, it protects equipment from dust, dirt, moisture, and contaminants.

Built for factory floors, utilities, and non-climate-controlled environments, the HDME supports server and network equipment while maintaining environmental protection and installation flexibility.

• ■14-gauge welded steel frame with sealed doors and panels (3000 lb capacity ) provides heavy-duty protection for equipment in harsh environments. Lift-tested to 900 lbs (408 kg) of equipment load when used with our HDMELB lifting eye bolts.
• ■NEMA Type 12 rated enclosure (UL 508A) protects against dust, dirt, dripping liquids, and airborne contaminants.
• ■Sealed cabinet construction with gasketed doors and panels ensures protection from moisture, dust, and air contaminants.

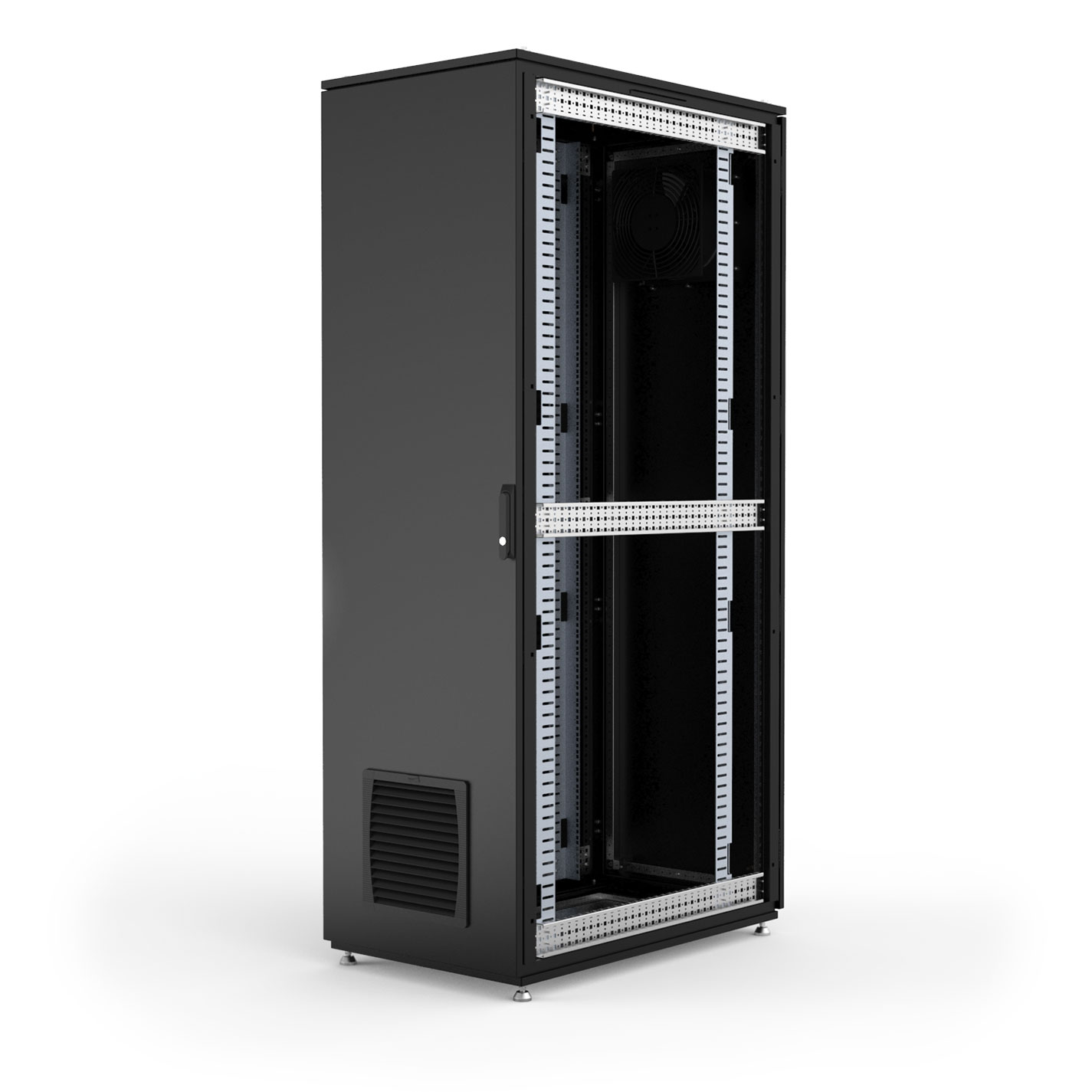

• ■Square hole EIA-310 compliant mounting rails (12-gauge steel) support server and network equipment, including sliding rail compatibility.
• ■Two (2) pairs of adjustable depth mounting rails support flexible equipment installation and configuration. Includes a starter pack of mounting hardware ( CAGKIT 1032-50 ).
• ■Integrated gland plates (top and bottom) support sealed cable entry and environmental protection.
• ■Optional cooling solutions (filter fans and accessories) support airflow in sealed environments.

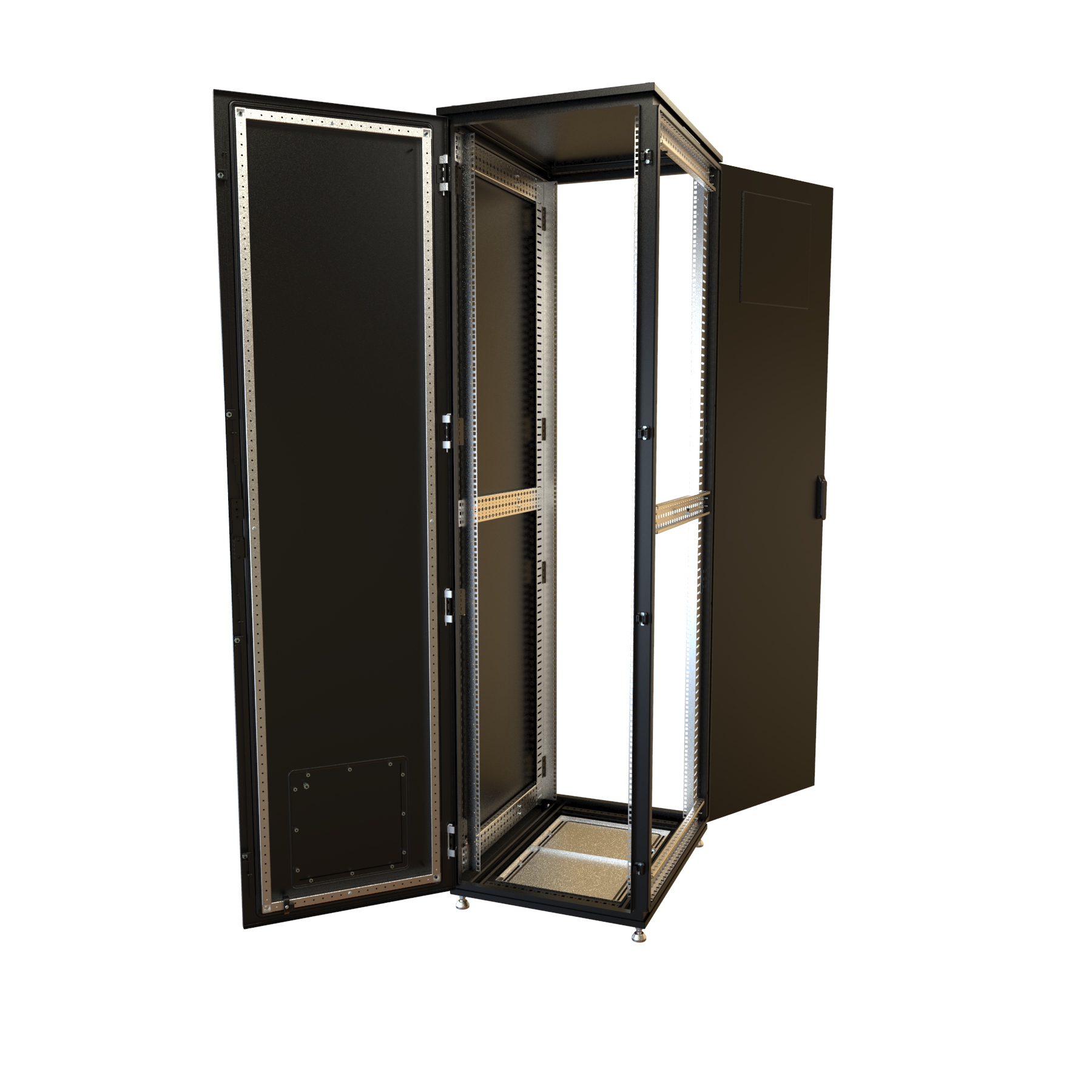

• ■Doors open to 135° with optional window door configuration support access and visibility by special order.
• ■Reinforced top panel with lifting provisions supports safe handling and installation in industrial environments.
• ■Welded frame with factory-installed leveling feet, grounding studs, and caster mounting points supports stable installation, grounding, and mobility.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) when properly configured and installed supports secure deployment of payment and sensitive data systems.
• ■TAA-compliant, manufactured in North America supports government procurement requirements.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need a wall-mounted sealed solution for smaller industrial applications, consider our NWC or NWM Series.
