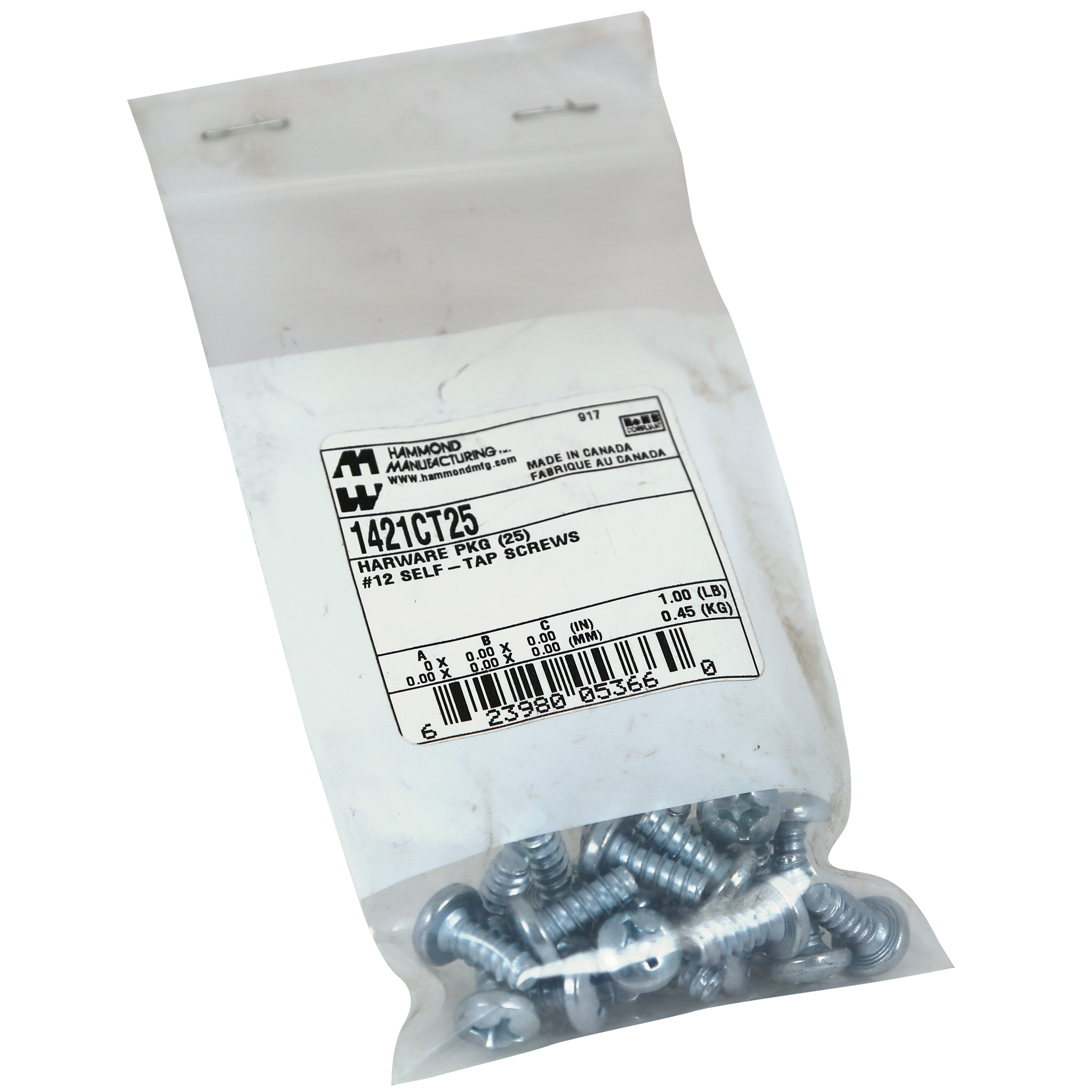

Screw 12-24 X 0.5IN (25)
- Description 25 of Pan/Phillips Threadrolling #12-24 screws x 0.5”
$9.37Backorder
Buy now
Grid System · HMEGS Series
Brand: Hammond Manufacturing · 32 part numbers
- ■A variety of hardware options are available for the Grid System.
- ■Square holes accommodate cage nuts listed.
- ■Round holes accommodate M5 and #12 thread forming screws listed.
from $9.37
31 of 32 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HMEGS Series part number
Filter 26 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
26 of 26 part numbers · 26 priced online
Screw Hex M6 X 12MM (25)
- Description 25 of Hex/Phillips M6 screws x 12mm
$12.65In stock
Buy now

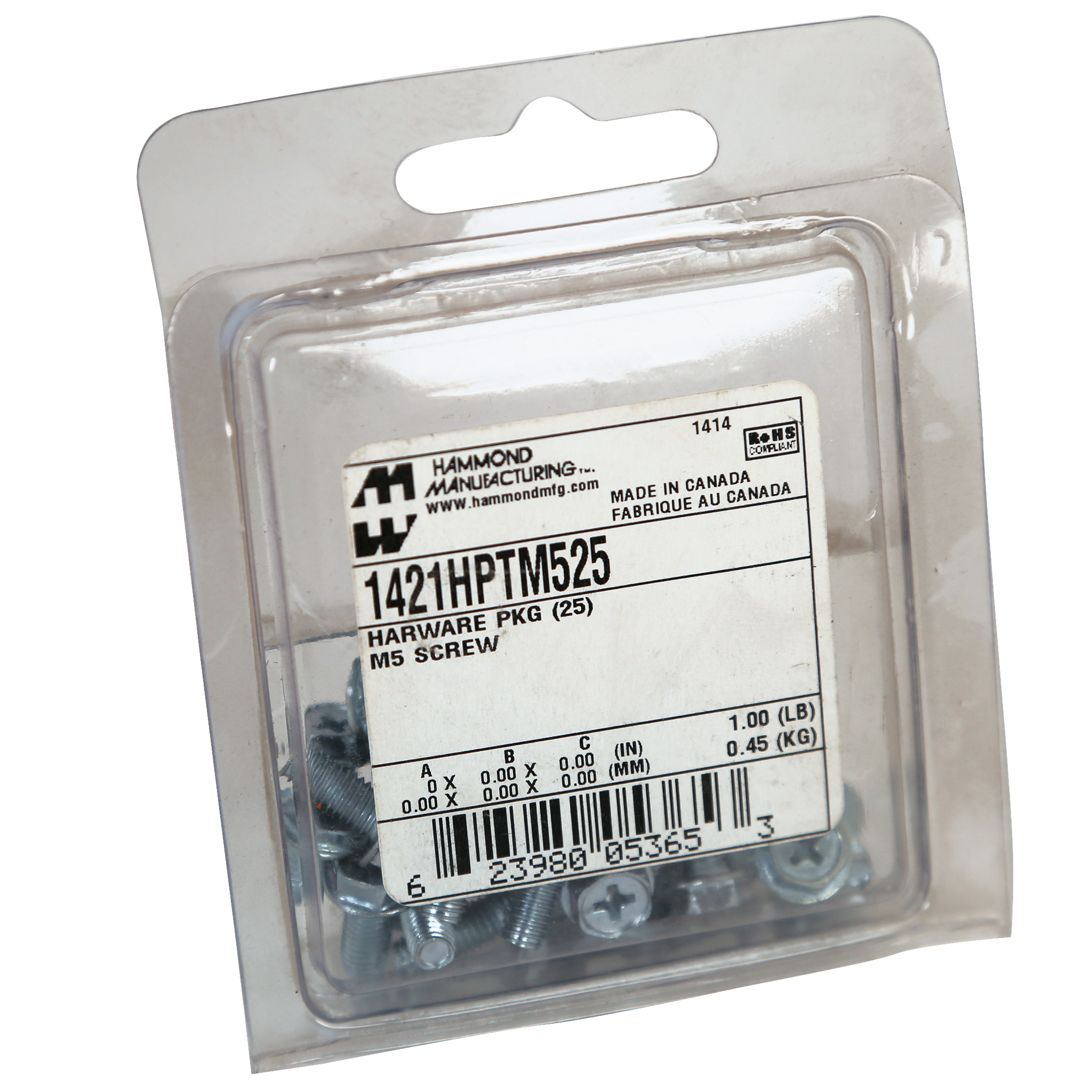

Screw Hex M5 X 12MM (25)
- Description 25 of Hex/Phillips Threadrolling M5 screws x 12mm
$12.97Backorder
Buy nowGrid Straps (2) 25MM-FITS 400D
- Description 25mm wide with mounting flange
$17.56In stock
Buy nowGrid Straps (2) 25MM-FITS 500D
- Description 25mm wide with mounting flange
$21.00In stock
Buy nowGrid Straps (2) 25MM-FITS 600D
- Description 25mm wide with mounting flange
$25.20In stock
Buy nowGrid Straps (2) 25MM-FITS 800D
- Description 25mm wide with mounting flange
$32.67In stock
Buy nowGrid Straps (2) 75MM-FITS 400D
- Description 75mm wide with mounting flange
$53.68Backorder
Buy nowGrid Straps (2) 75MM-FITS 500D
- Description 75mm wide with mounting flange
$63.77In stock
Buy nowGrid Straps (2) 75MM-FITS 600D
- Description 75mm wide with mounting flange
$88.94In stock
Buy nowGrid Straps (2) 75MM-FITS 800D
- Description 75mm wide with mounting flange
$110.70In stock
Buy nowDr Rails (2) - Fits Dr 1000W
- Description 25mm wide with mounting flange
$31.87Backorder
Buy nowDr Rails (2) - Fits Dr 400W
- Description 25mm wide with mounting flange
$14.26Backorder
Buy nowDr Rails (2) - Fits Dr 500W
- Description 25mm wide with mounting flange
$21.00In stock
Buy nowDr Rails (2) - Fits Dr 600W
- Description 25mm wide with mounting flange
$23.49In stock
Buy nowDr Rails (2) - Fits Dr 800W
- Description 25mm wide with mounting flange
$25.94In stock
Buy nowDr Rails (2) - Fits Dr 900W
- Description 25mm wide with mounting flange
$29.37Backorder
Buy nowVertical Grid Straps (2)-1150MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H 1400*
$120.80Backorder
Buy nowVertical Grid Straps (2)-1350MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H 1600*
$157.81Backorder
Buy nowVertical Grid Straps (2)-1550MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H 1800*
$166.10In stock
Buy nowVertical Grid Straps (2)-1750MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H 2000*
$189.60In stock
Buy nowVertical Grid Straps (2)-1950MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H 2200*
$214.80In stock
Buy nowVertical Grid Straps (2)-350MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H n/a
$62.87Backorder
Buy nowVertical Grid Straps (2)-550MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H n/a
$74.62Backorder
Buy nowVertical Grid Straps (2)-750MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H n/a
$93.14Backorder
Buy nowVertical Grid Straps (2)-950MM
- Description 75mm wide with flush mount bracket
- Fits Full Height H n/a
$102.33In stock
Buy nowDimension tables (inches / mm)
Depth Grid Straps
Units shown: mm . Switch units to: inch
| Part No. | Description | Length | Fits Full · Depth HME | Price | Order |
|---|---|---|---|---|---|
| HGD14 | 25mm wide with mounting flange | 8.74 | 15.75 | $17.56In stock | Buy now |
| HGD15 | 25mm wide with mounting flange | 12.72 | 19.69 | $21.00In stock | Buy now |
| HGD16 | 25mm wide with mounting flange | 16.65 | 23.62 | $25.20In stock | Buy now |
| HGD18 | 25mm wide with mounting flange | 24.53 | 31.50 | $32.67In stock | Buy now |
| HGD34 | 75mm wide with mounting flange | 8.78 | 15.75 | $53.68Backorder | Buy now |
| HGD35 | 75mm wide with mounting flange | 12.72 | 19.69 | $63.77In stock | Buy now |
| HGD36 | 75mm wide with mounting flange | 16.65 | 23.62 | $88.94In stock | Buy now |
| HGD38 | 75mm wide with mounting flange | 24.53 | 31.50 | $110.70In stock | Buy now |
Vertical Grid Straps
Units shown: mm . Switch units to: inch
| Part No. | Description | Length | Fits Full · Height HME | Price | Order |
|---|---|---|---|---|---|
| HGV35 | 75mm wide with flush mount bracket | 13.78 | n/a | $62.87Backorder | Buy now |
| HGV55 | 75mm wide with flush mount bracket | 21.65 | n/a | $74.62Backorder | Buy now |
| HGV75 | 75mm wide with flush mount bracket | 29.53 | n/a | $93.14Backorder | Buy now |
| HGV95 | 75mm wide with flush mount bracket | 37.40 | n/a | $102.33In stock | Buy now |
| HGV115 | 75mm wide with flush mount bracket | 45.28 | 1400* | $120.80Backorder | Buy now |
| HGV135 | 75mm wide with flush mount bracket | 53.15 | 1600* | $157.81Backorder | Buy now |
| HGV155 | 75mm wide with flush mount bracket | 61.02 | 1800* | $166.10In stock | Buy now |
| HGV175 | 75mm wide with flush mount bracket | 68.90 | 2000* | $189.60In stock | Buy now |
| HGV195 | 75mm wide with flush mount bracket | 76.77 | 2200* | $214.80In stock | Buy now |
Door Support Rails
Units shown: mm . Switch units to: inch
| Part No. | Description | Length | Fits HME · Door Width | Price | Order |
|---|---|---|---|---|---|
| HGDSR4 | 25mm wide with mounting flange | 9.76 | 15.75 | $14.26Backorder | Buy now |
| HGDSR5 | 25mm wide with mounting flange | 13.70 | 19.69 | $21.00In stock | Buy now |
| HGDSR6 | 25mm wide with mounting flange | 17.64 | 23.62 | $23.49In stock | Buy now |
| HGDSR8 | 25mm wide with mounting flange | 25.51 | 31.50 | $25.94In stock | Buy now |
| HGDSR9 | 25mm wide with mounting flange | 29.45 | 900* | $29.37Backorder | Buy now |
| HGDSR10 | 25mm wide with mounting flange | 33.39 | 39.37 | $31.87Backorder | Buy now |
Square hole Hardware
| Part No. | Description | Price | Order |
|---|---|---|---|
| RCNIT | Cage nut insertion tool | $11.68In stock | Buy now |
| CAGKIT1032-100 | 100 of 10-32 screws and cage nuts | $97.35In stock | Buy now |
| CAGKIT1224-100 | 100 of 12-24 screws and cage nuts | $103.84Backorder | Buy now |
| CAGKITM6-100 | 100 of M6 screws and cage nuts | $103.84In stock | Buy now |
| SCREWM6-100 | 100 of M6 screws with washer | $77.88In stock | Buy now |
| 1421CNBF100 | 100 of M6 front load cage nut | Quote | Quote |
| 1421HPM625 | 25 of Hex/Phillips M6 screws x 12mm | $12.65In stock | Buy now |
Round Hole Hardware
| Part No. | Description | Price | Order |
|---|---|---|---|
| 1421HPTM525 | 25 of Hex/Phillips Threadrolling M5 screws x 12mm | $12.97Backorder | Buy now |
| 1421CT25 | 25 of Pan/Phillips Threadrolling #12-24 screws x 0.5” | $9.37Backorder | Buy now |
Grid Mounting Hardware
- ■A variety of hardware options are available for the Grid System.
- ■Square holes accommodate cage nuts listed.
- ■Round holes accommodate M5 and #12 thread forming screws listed.
