Hammond CAGKIT1032-100 100-Pack 10-32 Rack Screw & Cage Nut Kit

CAGKIT1032-100 is a 100-piece rack mounting hardware kit that pairs 100 black 10-32 rack screws with 100 zinc-plated cage nuts, giving IT integrators, AV installers, electricians and facilities teams everything needed to mount equipment in square-hole rack rails. Because the screws and nuts are supplied in matching quantities, there is no need to order the two components separately.

The screws are 10-32 x 3/4" Quadrex truss head machine screws with a full dog point and a captive flat washer, made from low carbon steel with a black oxide finish and heat treated to ANSI B18.6.3. The Quadrex head accepts either a #2R Type-III square recess or a #2 Type-I Phillips cross recess driver. Captive washers are black Nylon 6/6, 0.429"-0.439" outside diameter and 0.030"-0.040" thick, helping protect painted rack rails and equipment faceplates from scratches. The self-guiding pilot point helps align equipment quickly while reducing cross-threading. Cage nuts are zinc plated austempered spring steel, heat treated to HRC 38-42, and fit standard 3/8-inch (9.54 mm) square-hole rack rails, making them compatible with Hammond cabinets and most industry-standard square-hole racks.

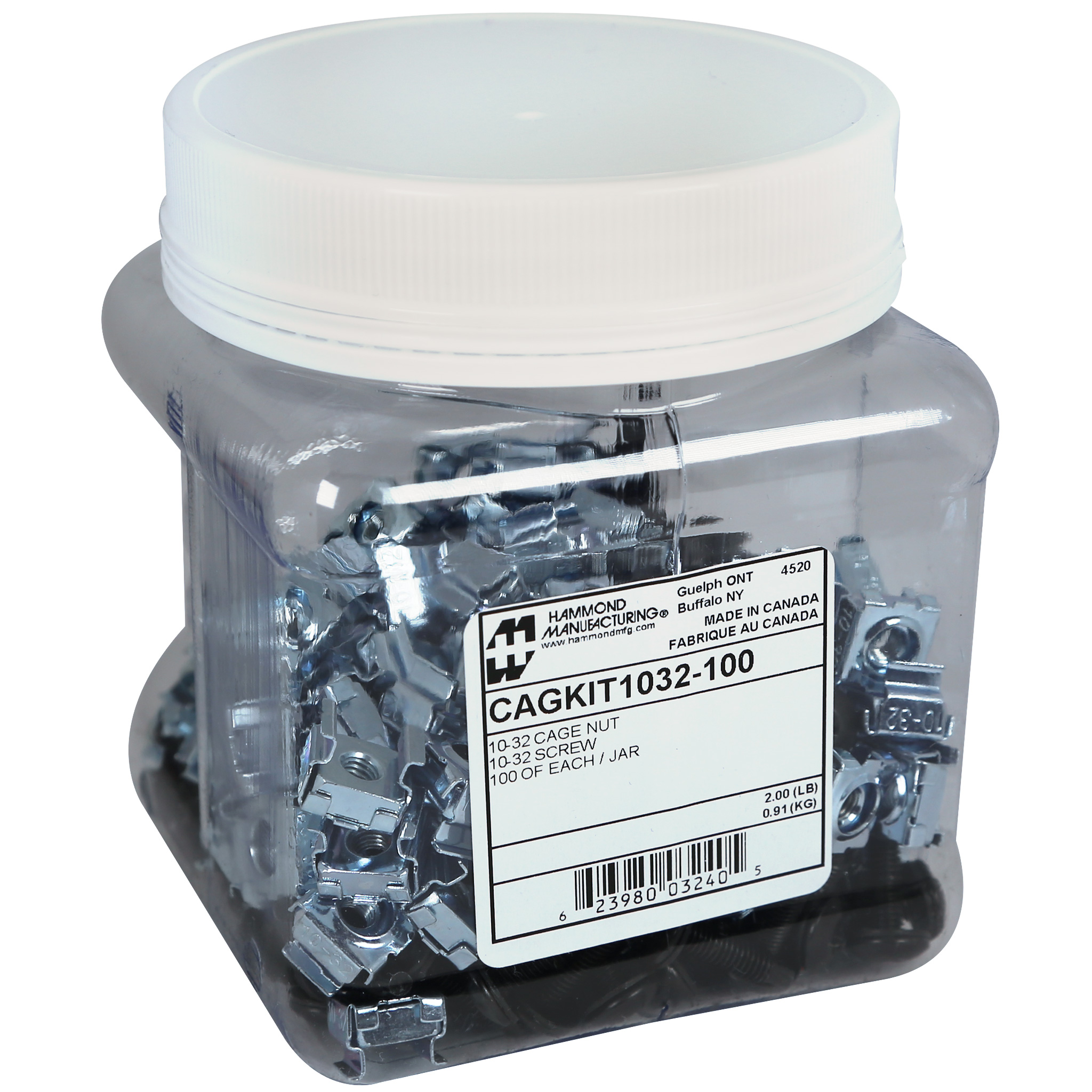

Hardware in this 100-of-each kit ships in a plastic jar, which keeps the parts together for service vehicles, contractor kits and staged data center deployments. Shipping weight is 2 lbs (0.91 kg).

CAGKIT1032-100 is manufactured in North America (country of origin CA) within an ISO 9001 certified facility and is TAA-compliant, USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99. Typical uses include mounting servers, switches, storage, patch panels, PDUs, UPS systems and AV equipment in IT, telecommunications, industrial networking and data center racks.
