Audio TX Matching Auto
- Line Output 75 & 25V
- Mounting Type Bracket
- Line Output 70v only
- Mounting Type X Mtg.
$59.06In stock
Buy now
Audio Sound Distribution Line Matching · 119 Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Suitable for driving from solid state amplifiers where isolated windings are not required or can be used with our "Classic" 1600 tube output transformers to provide a 25V or 70V line output.
- ■8 or 16 ohm input, 25V or 70V line output.
- ■Frequency response 50 Hz. to 10 Khz. at full ratings
- ■Leads 6" long minimum
- ■Can be reversed for operation at high power speaker locations.
- ■For speaker matching from older "Classic" 600 Ohm equipment - check out our 119DA matching transformer.
from $33.64
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 119 Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Audio TX Matching Auto
- Line Output 75 & 25V
- Mounting Type X Mtg
- Line Output 70v only
- Mounting Type X Mtg.
$74.66In stock
Buy now
Audio TX Matching Auto
- Line Output 70V only
- Mounting Type X Mtg
- Line Output 70 & 25v
- Mounting Type Bracket
$33.64In stock
Buy nowAudio TX Matching Auto
- Line Output 70V only
- Mounting Type X Mtg
- Line Output 70 & 25v
- Mounting Type X Mtg.
$54.14In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Max Output · (Watts) | Line · Output | Mounting · Type | Mounting · Centers | Mounting · Centers (2) | Mounting · Centers (3) | Mounting · Hole Slot G | Mounting · Hole Slot G (2) | Mounting · Hole Slot G (3) | Wt. · ( lbs.) | Drawing · Figure | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

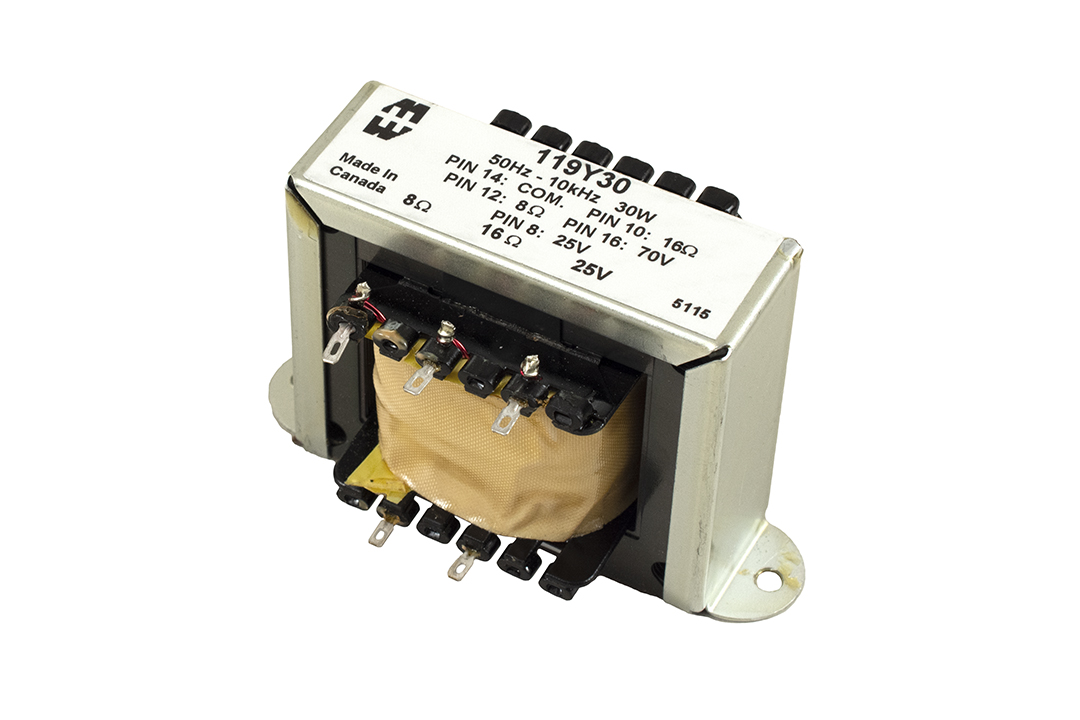

| 119Y30 | 30 | 70 & 25v | Bracket | 3.56 | 3.56 | 3.56 | 0.19 | 0.19 | 0.19 | 2.40 | 1.00 | 4.03 | 2.25 | 2.63 | 3.56 | - | $33.64In stock | Buy now |
| 119Y60 | 60 | 70 & 25v | X Mtg. | 2.00 | x | 2.19 | 0.20 | x | 0.38 | 3.30 | 2.00 | 2.50 | 3.25 | 3.06 | 2.00 | 2.19 | $54.14In stock | Buy now |
| 119Y100 | 100 | 70v only | X Mtg. | 2.50 | x | 2.19 | 0.20 | x | 0.38 | 4.70 | 2.00 | 3.13 | 3.50 | 3.81 | 2.50 | 2.19 | $59.06In stock | Buy now |
| 119Y250 | 250 | 70v only | X Mtg. | 2.50 | x | 2.94 | 0.20 | x | 0.38 | 6.70 | 2.00 | 3.13 | 4.25 | 3.81 | 2.50 | 2.94 | $74.66In stock | Buy now |
Features
- ■Suitable for driving from solid state amplifiers where isolated windings are not required or can be used with our "Classic" 1600 tube output transformers to provide a 25V or 70V line output.
- ■8 or 16 ohm input, 25V or 70V line output.
- ■Frequency response 50 Hz. to 10 Khz. at full ratings
- ■Leads 6" long minimum
- ■Can be reversed for operation at high power speaker locations.
- ■For speaker matching from older "Classic" 600 Ohm equipment - check out our 119DA matching transformer.
Documents
Any questions? Talk with an expert
Call us (224) 955-1644Related products
