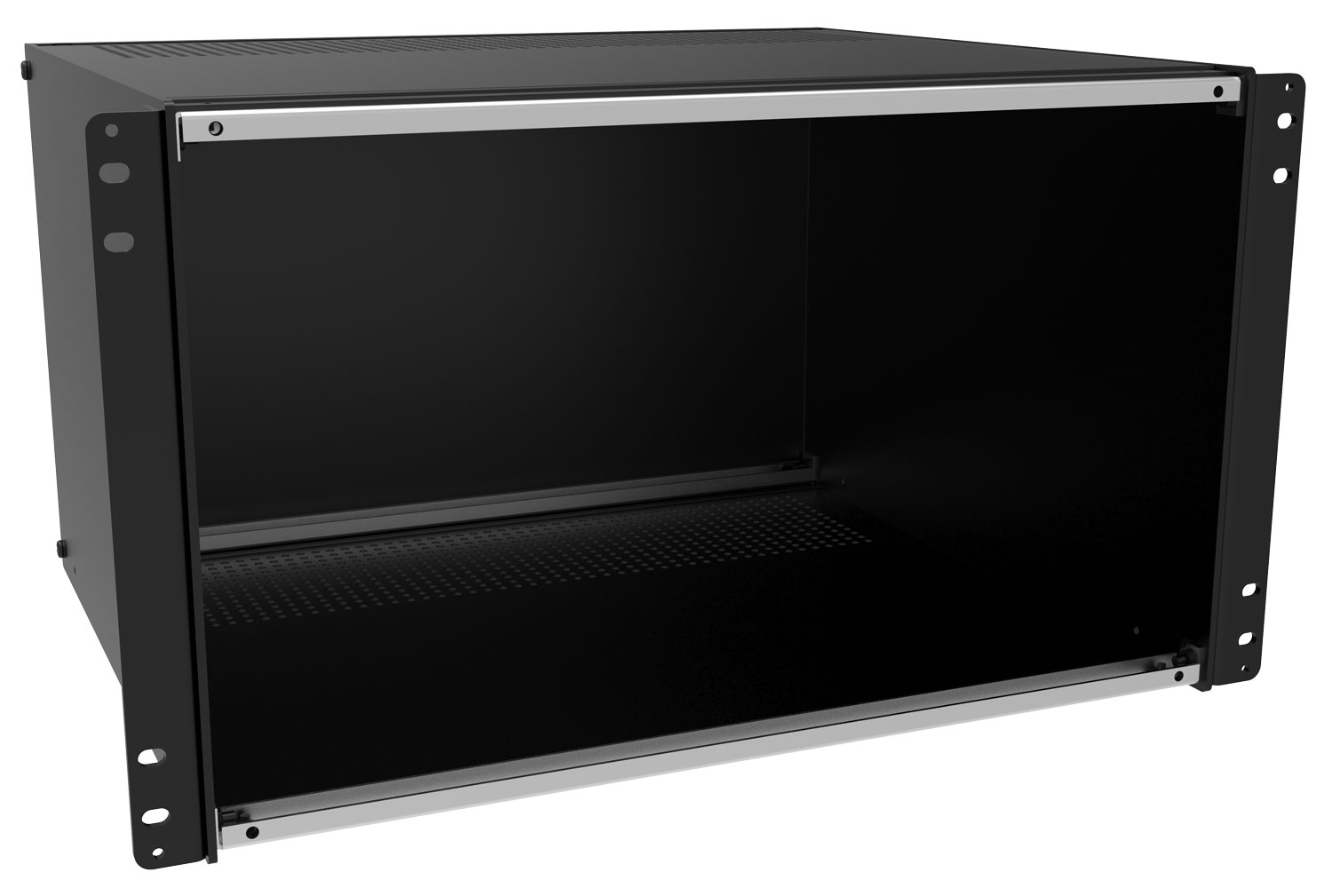

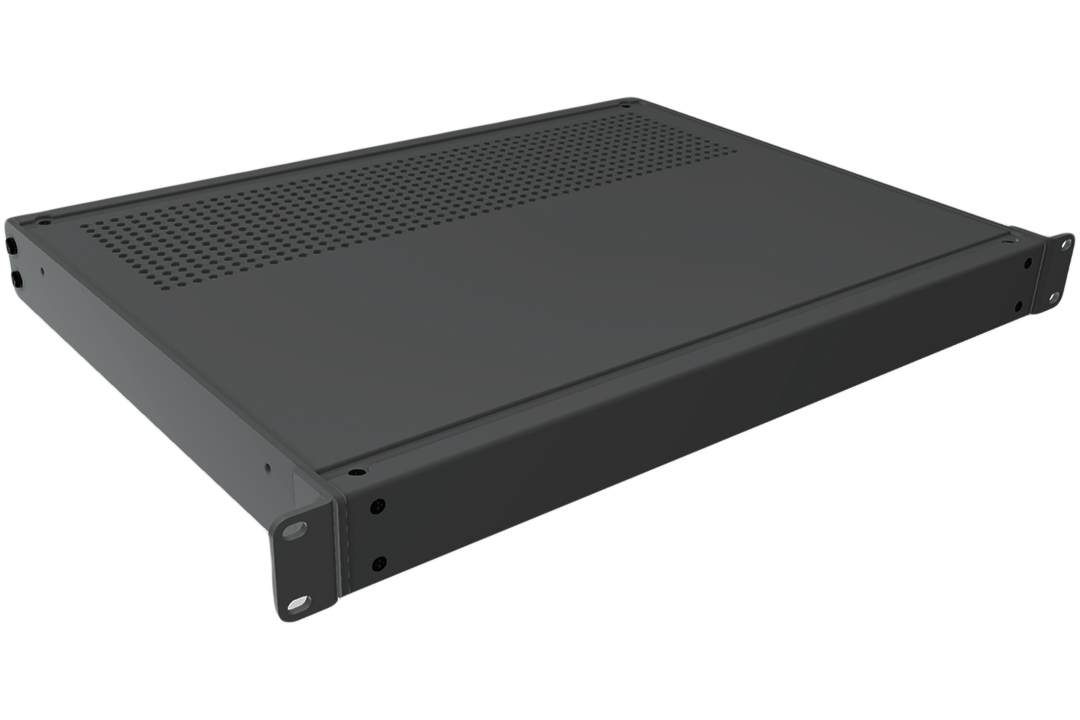

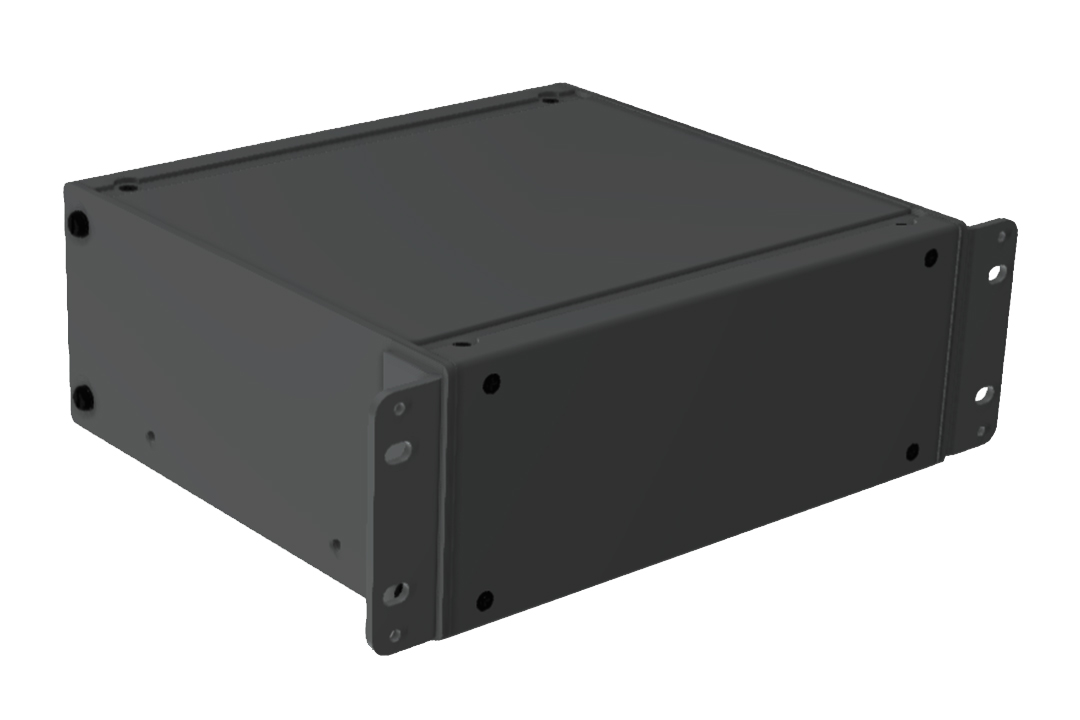

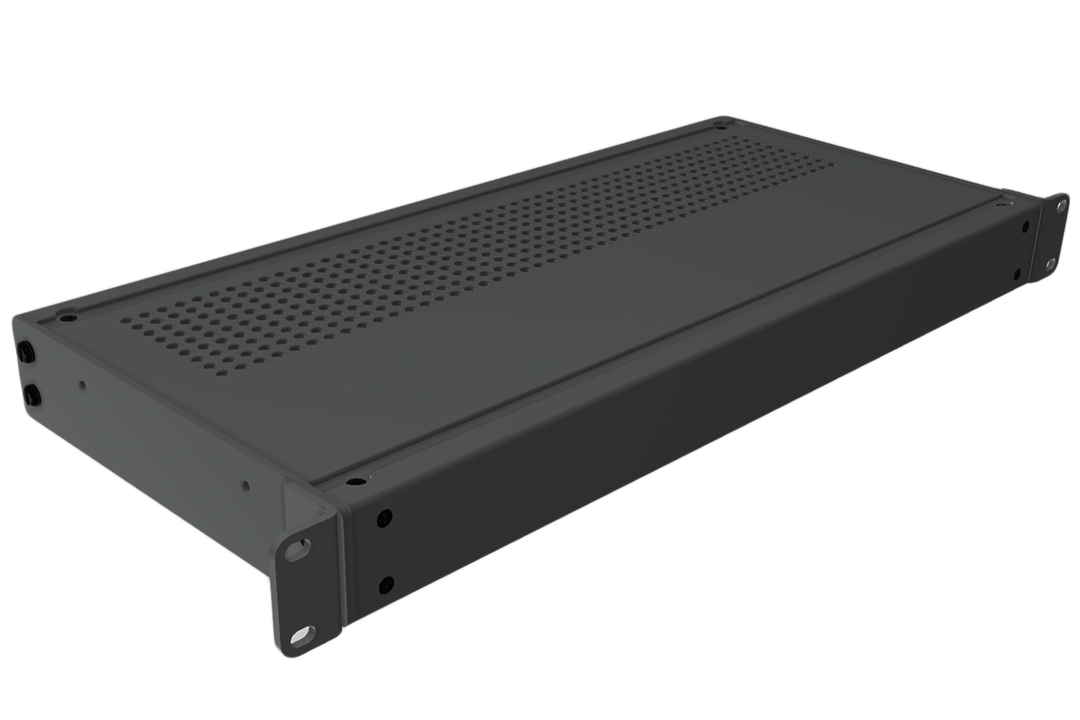

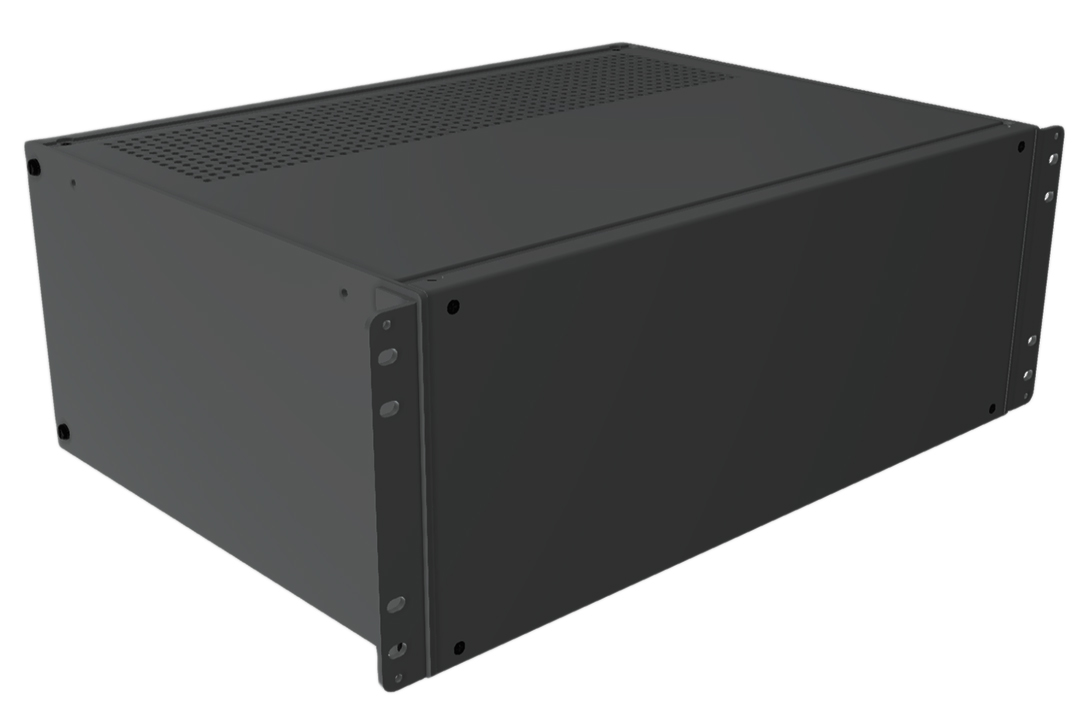

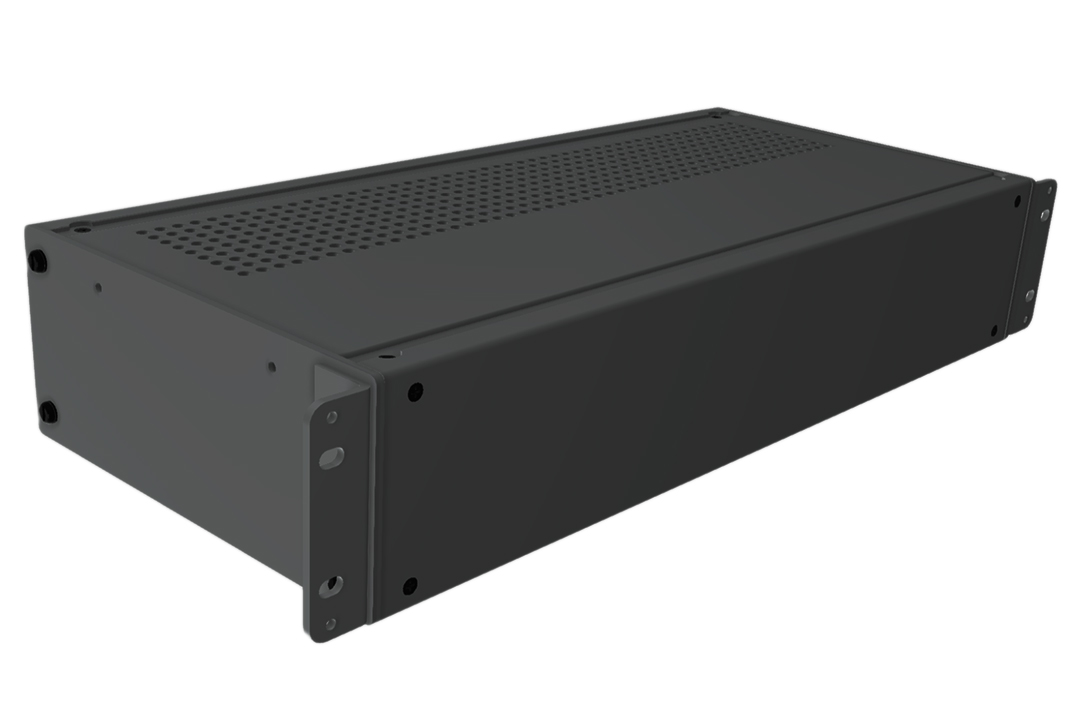

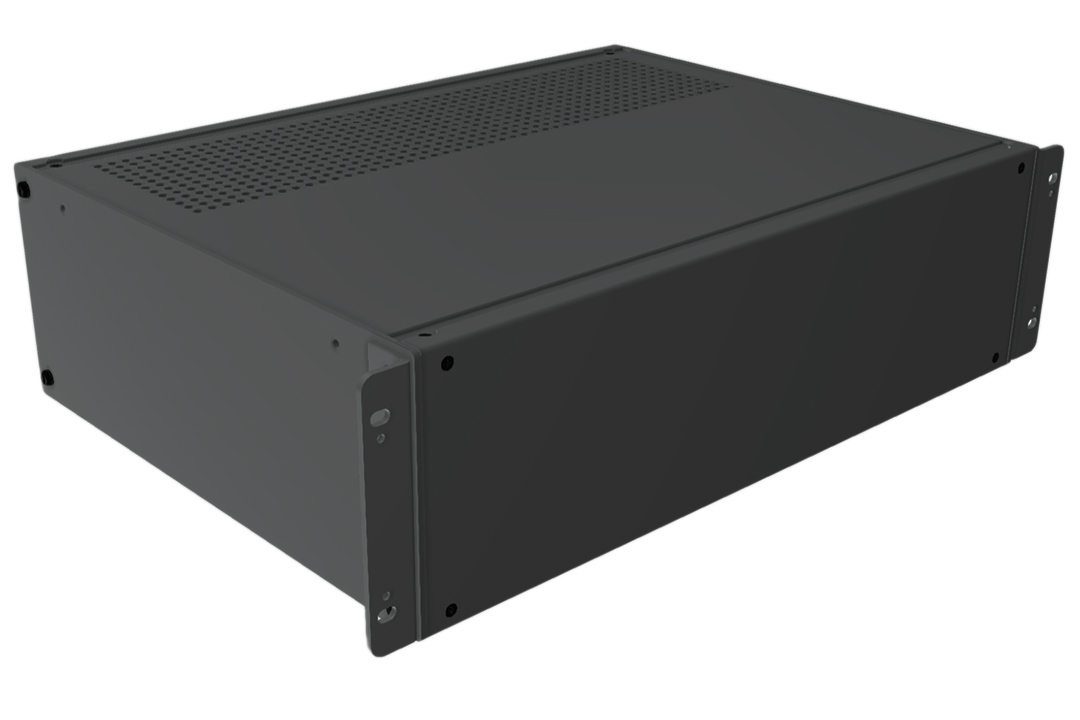

Rack Mount Aluminum Instrument Enclosure · RMC Series

Features

Replacement Hardware kit: RMCHDWKIT includes:

• ■Uses all machine screw and PEM nut construction, perfect for applications where repetitive assembly and disassembly are required

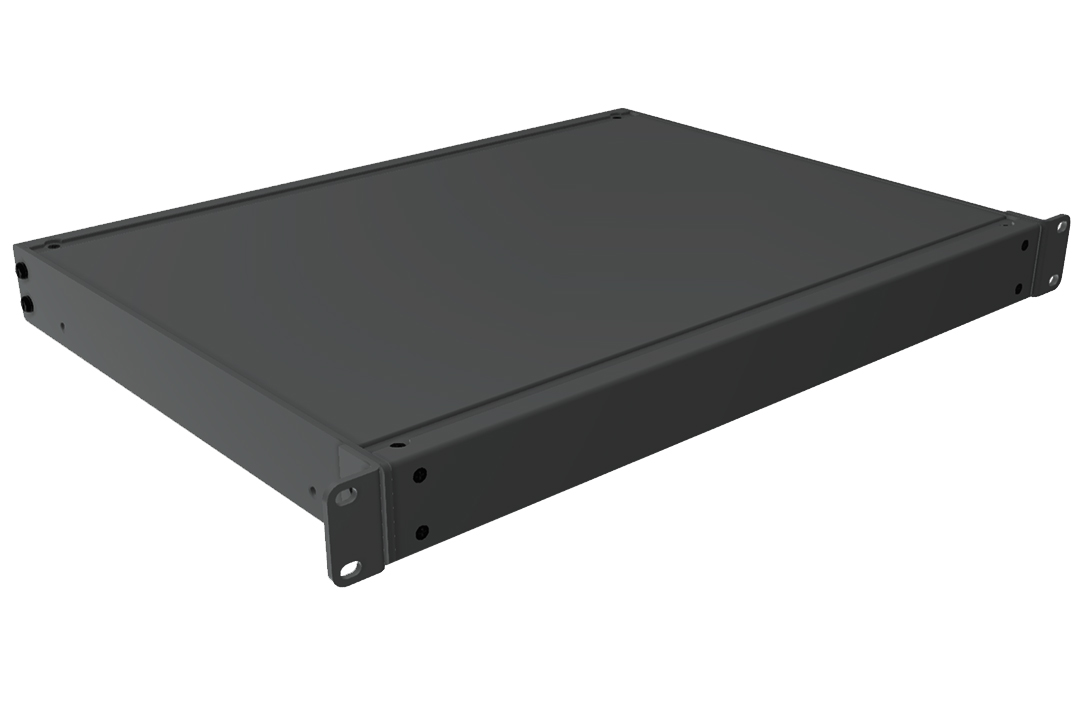

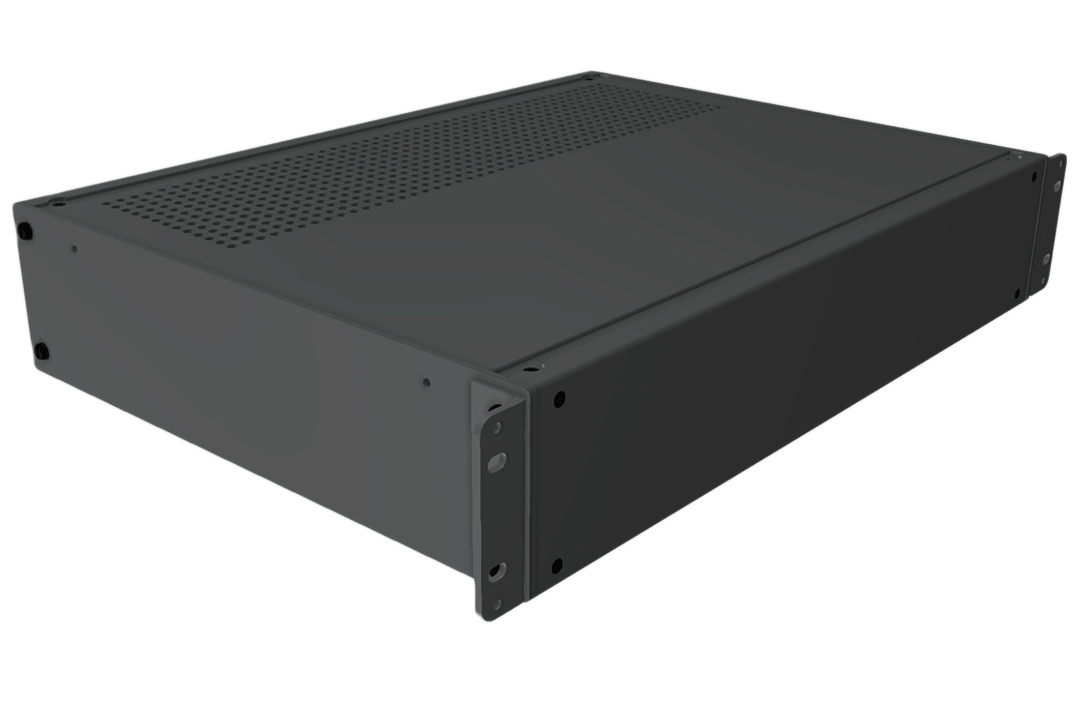

• ■Lightweight aluminum design for easy modification (type 5052 H32). For example, the 19" rack mountable enclosure RMCS190313BK1 shown in the photo to the left weighs only 5 pounds (2.3 kg).
• ■Strong design construction using: 0.125" (3.2 mm) thick - side panels and rack mount brackets 0.064" (1.6 mm) thick - front and rear panels 0.062" (1.6 mm) thick - top and bottom panels
• ■0.125" (3.2 mm) thick - side panels and rack mount brackets
• ■0.064" (1.6 mm) thick - front and rear panels
• ■0.062" (1.6 mm) thick - top and bottom panels
• ■Can be used with or without rack mounting brackets (included)
• ■Enclosure is finished in rugged, satin textured black powder coat
• ■Includes top, bottom, side panels, front and rear panels, rubber self adhesive feet, rack-mount brackets, and all hardware

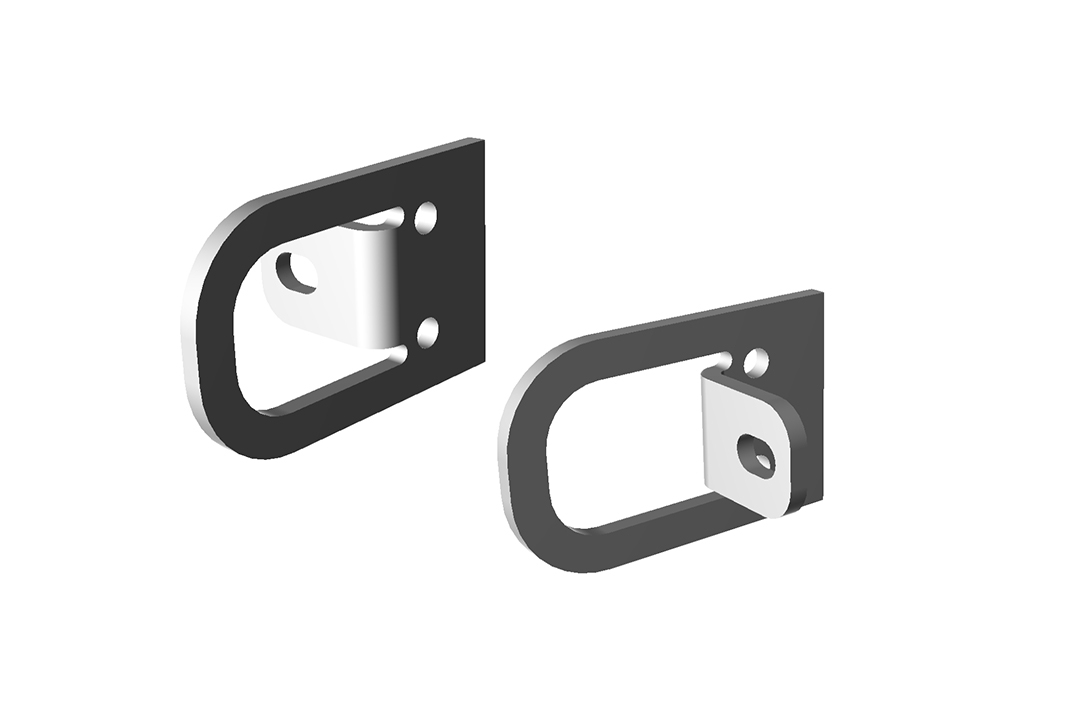

• ■Pull handle accessory kit available
• ■Easy access to inside; only 4 screws need to be removed from any of the 6 panels for internal access
• ■Internal aluminum chassis panel is optional (see below)
• ■Knockdown design ships unassembled for easy handling and shipping protection
• ■Note: Panels are not grounded to frame due to powder coat finish. Grounding method to be determined by user
• ■#10‐32 X 5/8" Pan head black, qty 8
• ■#6‐32 X 3/8" Flat head black, qty 16
• ■Rubber bumpon, qty 4
