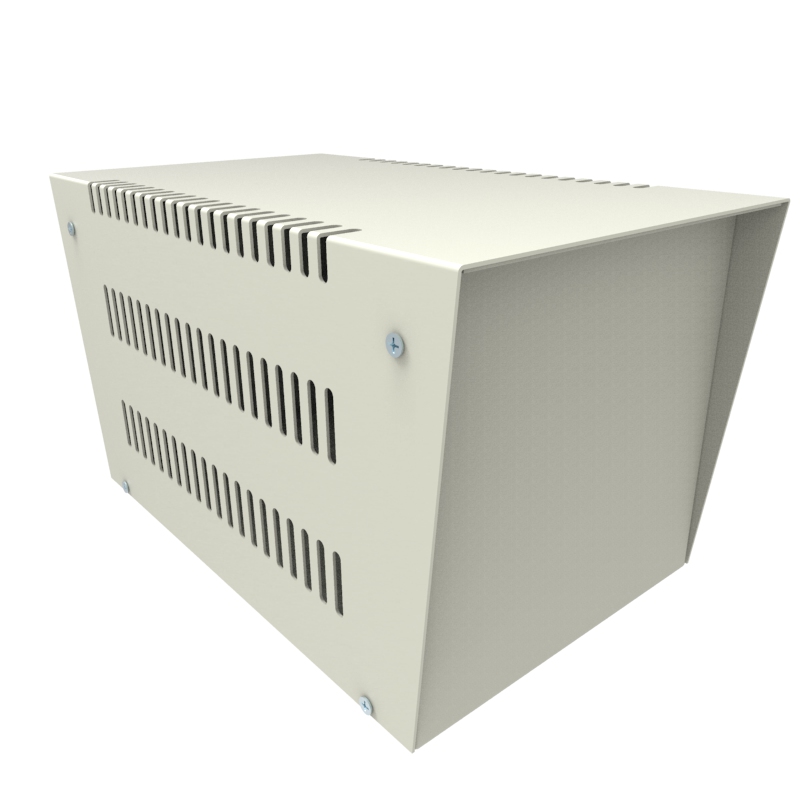

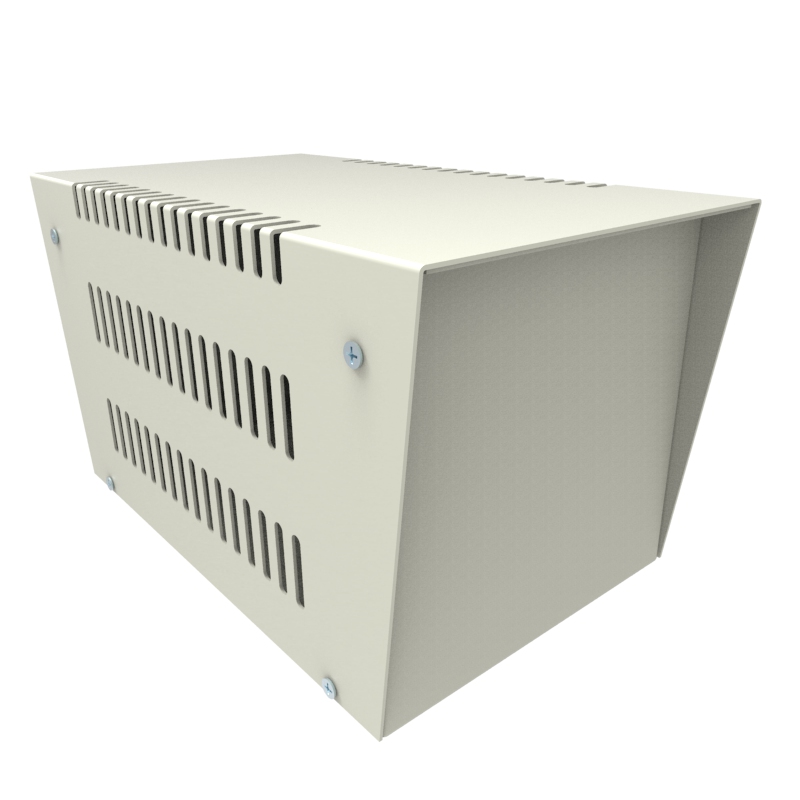

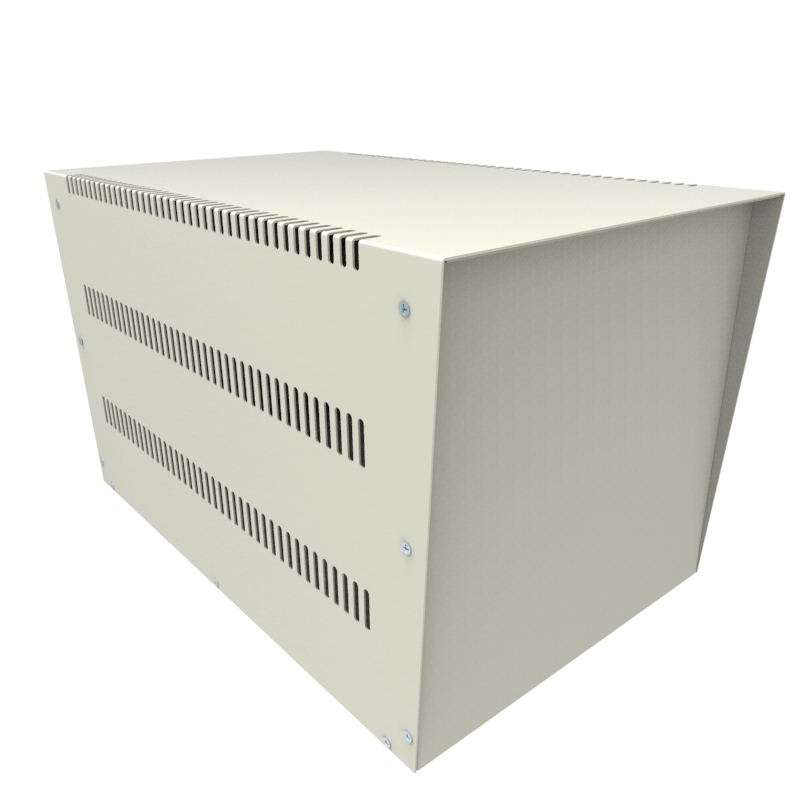

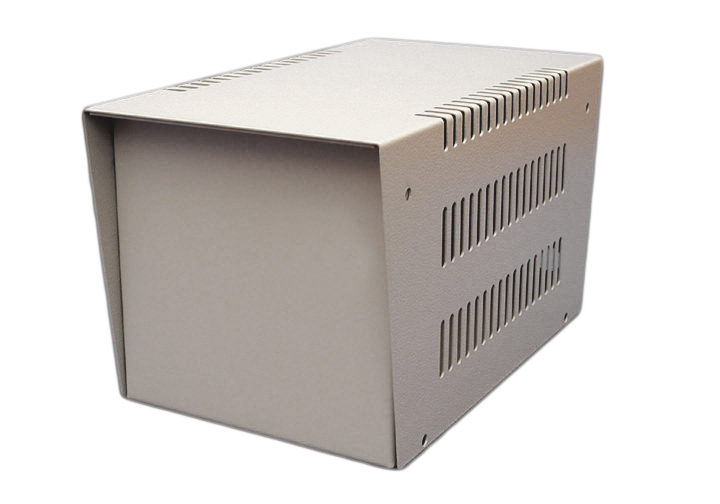

Heavy Duty Steel Instrument · 1453 Series

Key Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■All steel, heavy duty construction designed to house heavy, heat producing items such as power supplies.
• ■Bottom of unit is 16 gauge steel, top is 18 gauge steel.
• ■Finished in a rugged beige powder coat.
• ■Top half is of an upside down “U” shape design for easy removal, bottom half is also “U” shaped but includes a fold on all sides including front & back for extra strength and mounting of top case.
• ■Top case section is heavily ventilated for excellent air circulation with an attractive slant (also doubles as a lifting area - both front & back).
• ■Top lip extends 0.75” (19 mm) on both sides adding 1.5” (38 mm) to the total depth.
• ■Bottom is solid except for 4 holes for mounting heavy duty rubber feet.
• ■Includes nickel plated self-tapping screws and screw on 0.75” (19 mm) high, rubber feet ( 1421T7 ).
