Hardware Kit - 10.0" Length
- Type Card Guide Extrusion
- Color Natural Aluminum
- Fits Eurocard Size 160 x 234
$13.34Backorder
Buy now

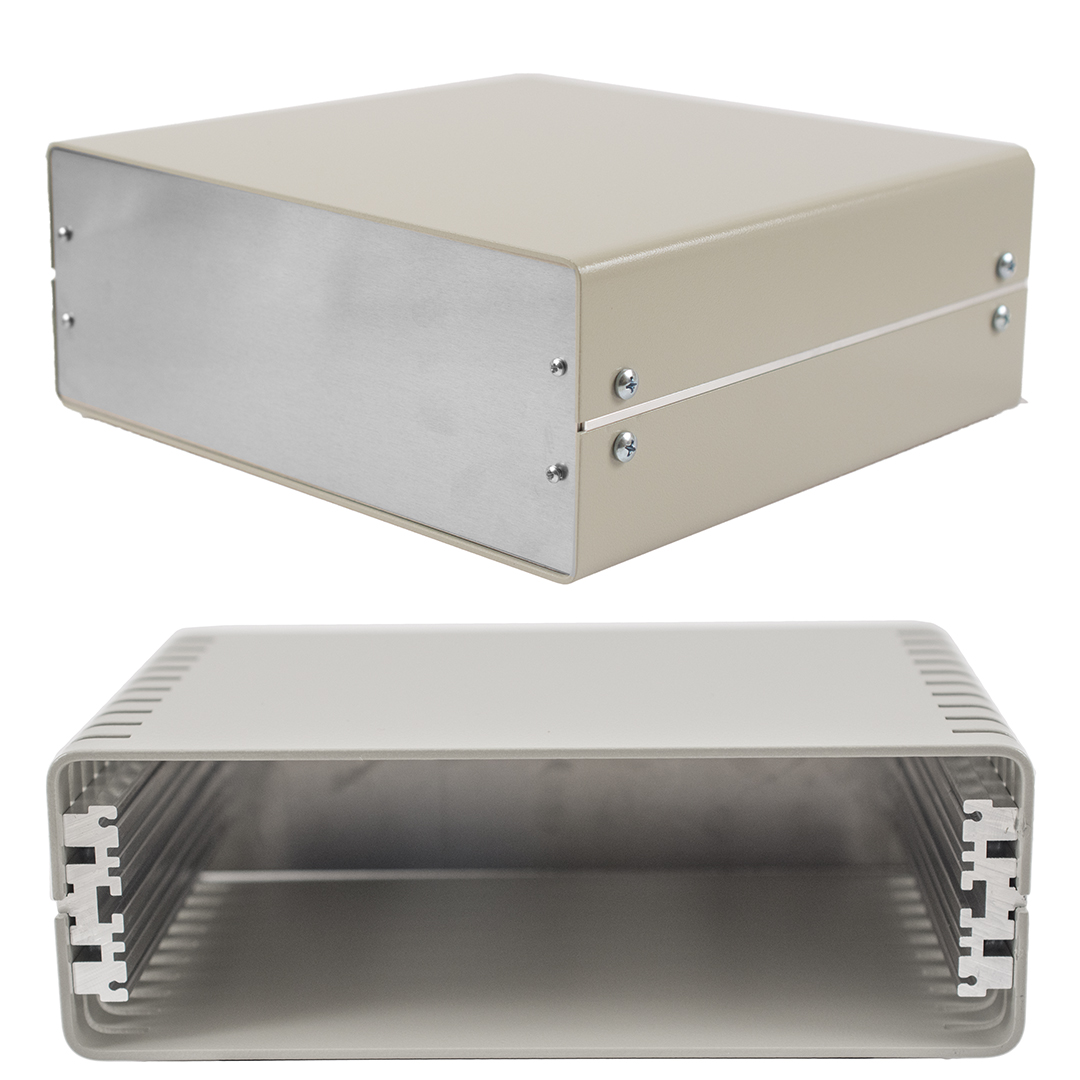

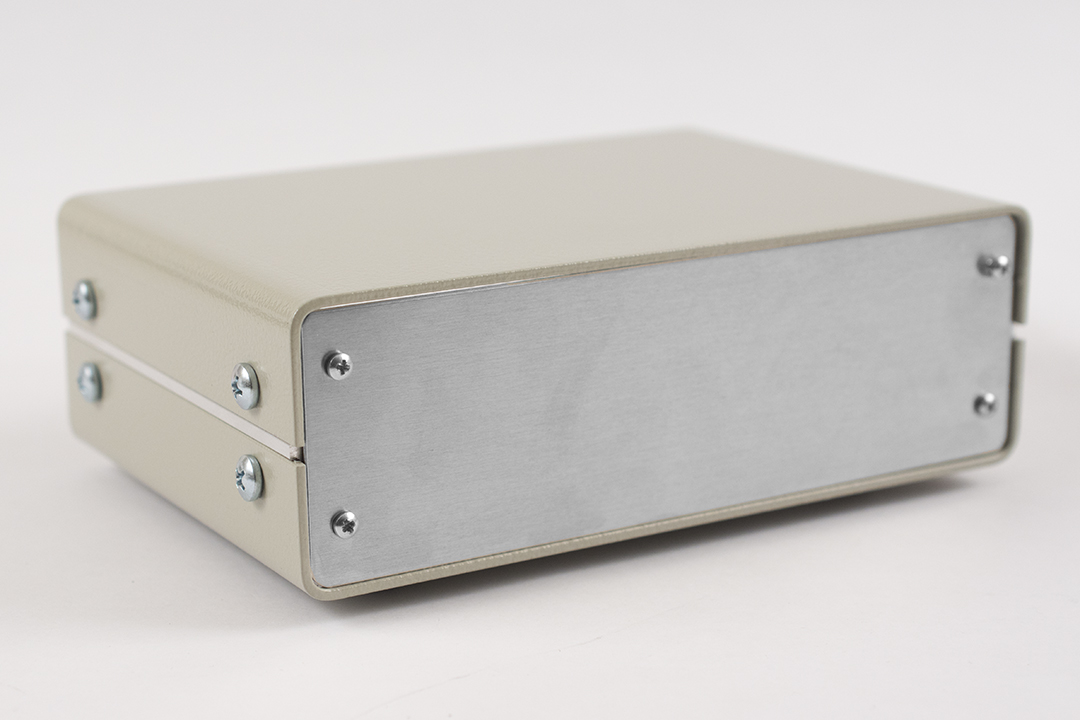

Metal Instrument Enclosures · 1402 Series
Brand: Hammond Manufacturing · 14 part numbers

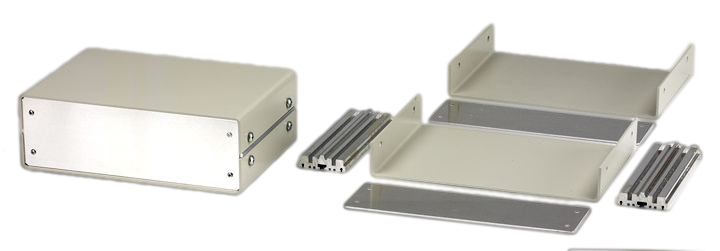

- ■Top and bottom made from 12 gauge aluminum finished in beige.
- ■Top and bottom are attached to an internal aluminum extrusion which contains mounting slots for printed circuit boards or panels.
- ■Front and rear panels are natural aluminum (paper coated one side) which are attached with screws to the aluminum mounting extrusion.
- ■Panels can be easily removed for access to components.
- ■Tops and bottoms are available in solid or with vent slots.
- ■All hardware and self-adhesive rubber feet are included.
from $10.15
14 of 14 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1402 Series part number
Filter 14 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
14 of 14 part numbers · 14 priced online
Hardware Kit - 4.625" Length
- Type Card Guide Extrusion
- Color Natural Aluminum
- Fits Eurocard Size 160 x 100
$10.15Backorder
Buy now
Hardware Kit - 7.0" Length
- Type Card Guide Extrusion
- Color Natural Aluminum
- Fits Eurocard Size 160 x 160
$11.54Backorder
Buy now
Hardware Kit - 9.375" Length
- Type Card Guide Extrusion
- Color Natural Aluminum
- Fits Eurocard Size 234 x 220
$13.28Backorder
Buy now
Instrument Case 2.38X4.88X6.34
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 100
$43.05In stock
Buy now
Instrument Case 2.38X7.13X4.88
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 100
$44.53In stock
Buy now
Instrument Case 2.38X7.13X7.25
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 160
$47.07In stock
Buy now
Instrument Case 2.38X7.13X7.25
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 160
$48.61In stock
Buy now
Instrument Case 3.13X7.13X10.2
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 234
$56.90In stock
Buy now
Instrument Case 3.13X7.13X10.2
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 160 x 234
$58.43Backorder
Buy now
Instrument Case 3.88X10.03X7.2
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 234 x 160
$55.11In stock
Buy now
Instrument Case 3.88X10.0X7.25
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 234 x 160
$57.22In stock
Buy now
Instrument Case 3.88X10.0X9.63
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 234 x 220
$64.86In stock
Buy now
Instrument Case 3.88X10.0X9.63
- Type Instrument Enclosure
- Color Gray
- Fits Eurocard Size 234 x 220
$66.95Backorder
Buy nowDimension tables (inches / mm)
Enclosures
Units shown: inch . Switch units to: mm
| Solid (Part No.) | Vented (Part No.) | Height | Width | Depth | PC Board Clearance Width | Fits Eurocard Size | Replacement Hardware Pack (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 1402B | 1402BV | 2.40 | 7.10 | 4.90 | 6.34 | 160 x 100 | 1402-4H | $43.05In stock1402B | Buy now |
| 1402D | 1402DV | 2.40 | 7.10 | 7.30 | 6.34 | 160 x 160 | 1402-7H | $47.07In stock1402D | Buy now |
| 1402F | 1402FV | 3.10 | 7.10 | 10.30 | 6.34 | 160 x 234 | 1402-10H | $56.90In stock1402F | Buy now |
| 1402H | 1402HV | 3.90 | 10.00 | 7.30 | 9.25 | 234 x 160 | 1402-7H | $55.11In stock1402H | Buy now |
| 1402K | 1402KV | 3.90 | 10.00 | 9.60 | 9.25 | 234 x 220 | 1402-9H | $64.86In stock1402K | Buy now |
Key Features:
- ■Top and bottom made from 12 gauge aluminum finished in beige.
- ■Top and bottom are attached to an internal aluminum extrusion which contains mounting slots for printed circuit boards or panels.
- ■Front and rear panels are natural aluminum (paper coated one side) which are attached with screws to the aluminum mounting extrusion.
- ■Panels can be easily removed for access to components.
- ■Tops and bottoms are available in solid or with vent slots.
- ■All hardware and self-adhesive rubber feet are included.
- ■Replacement hardware packages include front panel screws, side screws, extrusions, and rubber feet.
