Hammond 1402-4H 4.625 in Replacement Hardware Kit for 1402 Enclosures

The 1402-4H is a hardware kit for 1402 series metal instrument enclosures, with a 4.625" length. The part page classifies it as a card guide extrusion accessory in natural aluminum. It is the replacement pack for the shallowest 1402 enclosures, the solid 1402B and vented 1402BV, which are 4.90 in deep and fit a 160 x 100 Eurocard. It is intended for technicians, OEM builders and maintenance teams who need to rebuild or replace the internal hardware of an existing 1402 enclosure.

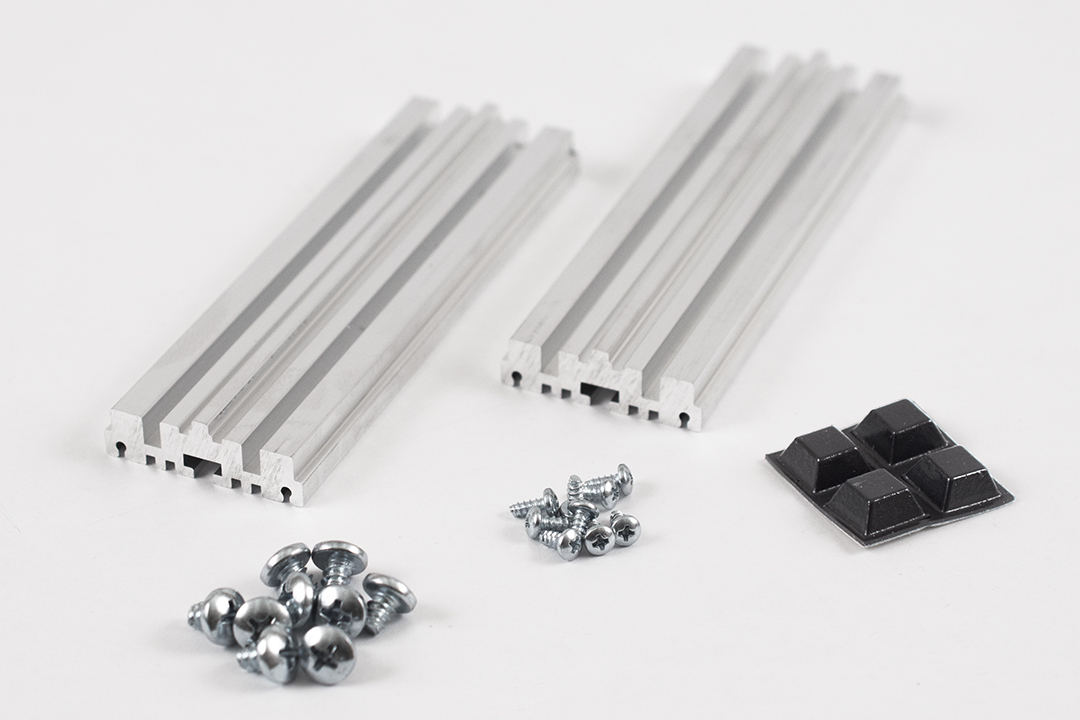

In the 1402 series, the top and bottom (12 gauge aluminum finished in beige) attach to an internal aluminum extrusion that contains mounting slots for printed circuit boards or panels, and the natural aluminum front and rear panels are attached with screws to that extrusion. According to the series sheet, replacement hardware packages include front panel screws, side screws, extrusions, and rubber feet.

Enclosures that list the 1402-4H as their replacement hardware pack:

• 1402B (solid) and 1402BV (vented): 2.40 in (61 mm) high x 7.10 in (180 mm) wide x 4.90 in (124 mm) deep, PC board clearance width 6.34 in (161 mm), fits Eurocard size 160 x 100

The 1402-4H is made of aluminum, is RoHS and REACH compliant, and is packed in a bag with a shipping weight of 0.5 lbs (0.23 kg). Because the extrusion carries the board slots, matching the kit length to your enclosure depth keeps PCBs and panels properly supported.
