Hammond 1402H 10 in Wide Solid Instrument Case, 234 x 160 Eurocard

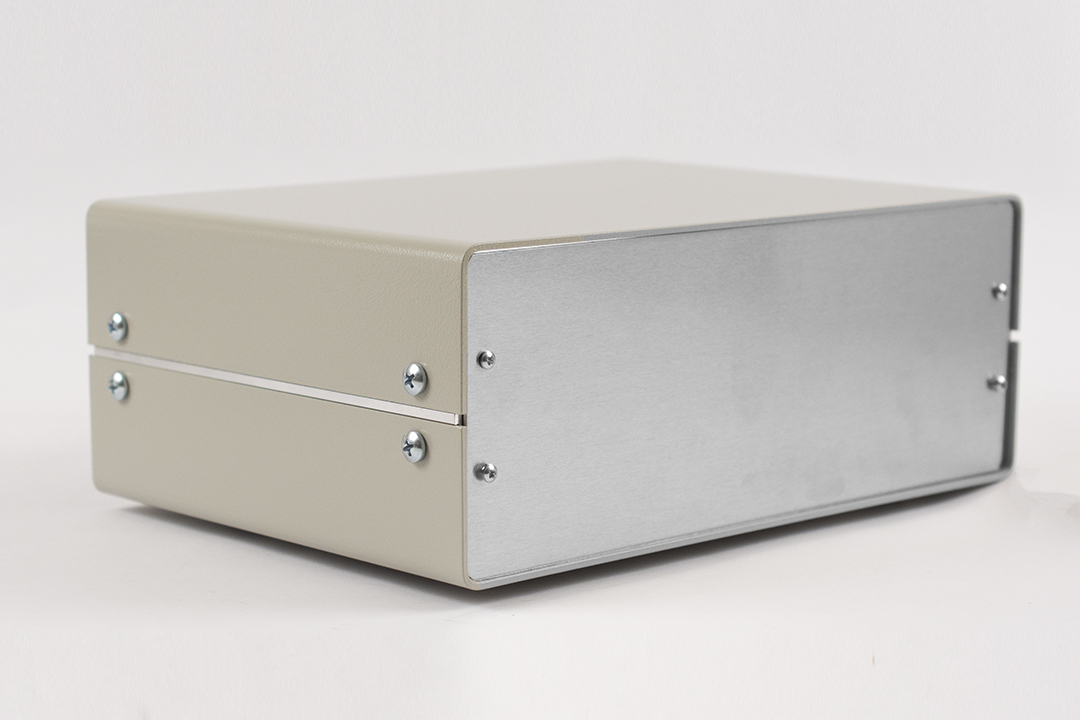

The 1402H is a solid 1402 Series metal instrument enclosure: a 3.90 in (99 mm) high, 10.00 in (254 mm) wide and 7.30 in (185 mm) deep aluminum case with solid top and bottom. It is aimed at engineers, OEM builders and integrators who need a bench or desktop housing for electronics built around a 234 x 160 Eurocard, with 9.25 in (235 mm) of PC board clearance width.

The H size moves to the wider 10.00 in (254 mm) body with 3.90 in (99 mm) of height and 7.30 in (185 mm) of depth, and fits a 234 x 160 Eurocard. The same size is also offered with vent slots as the 1402HV.

Construction follows the 1402 Series design. The top and bottom are 12 gauge aluminum finished in beige and attach to an internal aluminum extrusion that carries mounting slots for printed circuit boards or panels. The front and rear panels are 14 gauge natural aluminum, paper coated on one side, and are screwed to the extrusion, so they can be removed easily for access to components.

The purchased assembly includes the base, cover, end panels, extrusions, cover screws, panel screws and self-adhesive rubber feet. Cover screws are #10-32 x 1/4 in self-tapping and panel screws are #4-24 x 1/4 in self-tapping; the recommended cover screw torque is 14-15 lbf-in (160-170 cN-m). Replacement hardware for this size is pack 1402-7H, which contains front panel screws, side screws, extrusions and rubber feet.

The 1402H is RoHS and REACH compliant, ships in shrink wrap and has a listed shipping weight of 3.01 lbs (1.37 kg). The enclosure can be factory modified (milling, drilling, printing), and solid models are available in .stp or .x_t format.
