Hammond 1402-7H 7.0 in Replacement Hardware Kit for 1402 Enclosures

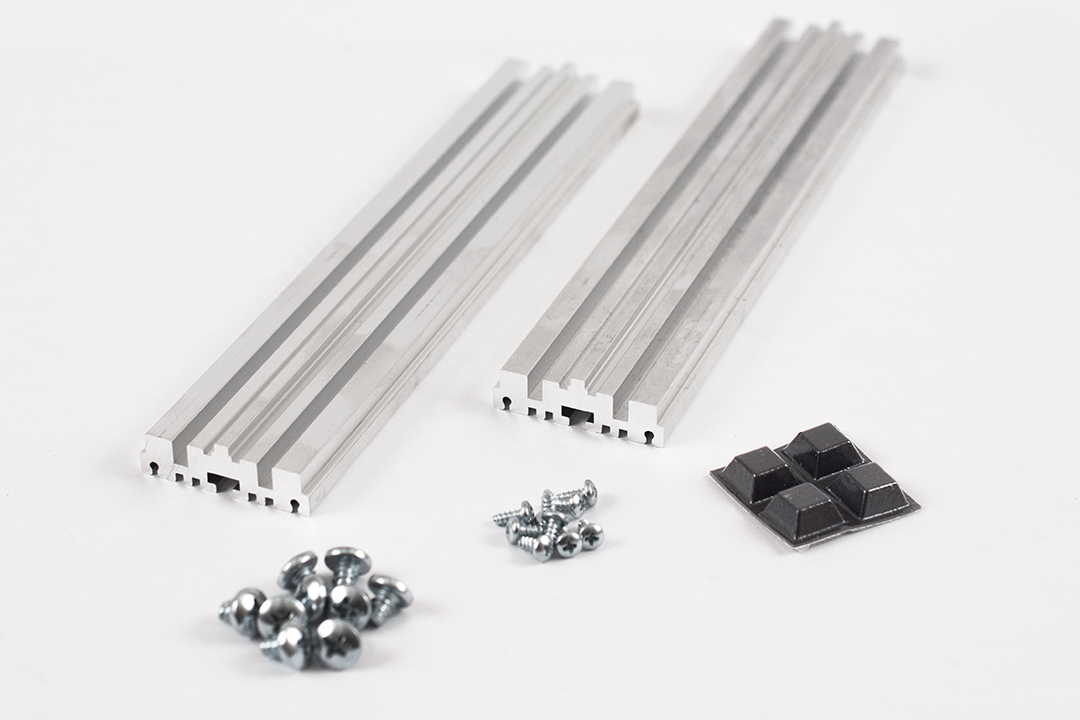

The 1402-7H is a hardware kit for 1402 series metal instrument enclosures, with a 7.0" length. The part page classifies it as a card guide extrusion accessory in natural aluminum. It serves two enclosure families: the 7.10 in wide 1402D / 1402DV and the 10.00 in wide 1402H / 1402HV, both 7.30 in deep. It is intended for technicians, OEM builders and maintenance teams who need to rebuild or replace the internal hardware of an existing 1402 enclosure.

In the 1402 series, the top and bottom (12 gauge aluminum finished in beige) attach to an internal aluminum extrusion that contains mounting slots for printed circuit boards or panels, and the natural aluminum front and rear panels are attached with screws to that extrusion. According to the series sheet, replacement hardware packages include front panel screws, side screws, extrusions, and rubber feet.

Enclosures that list the 1402-7H as their replacement hardware pack:

• 1402D (solid) and 1402DV (vented): 2.40 in (61 mm) high x 7.10 in (180 mm) wide x 7.30 in (185 mm) deep, PC board clearance width 6.34 in (161 mm), fits Eurocard size 160 x 160
• 1402H (solid) and 1402HV (vented): 3.90 in (99 mm) high x 10.00 in (254 mm) wide x 7.30 in (185 mm) deep, PC board clearance width 9.25 in (235 mm), fits Eurocard size 234 x 160

The 1402-7H is made of aluminum, is RoHS and REACH compliant, and is packed in a bag with a shipping weight of 0.65 lbs (0.29 kg). Because the extrusion carries the board slots, matching the kit length to your enclosure depth keeps PCBs and panels properly supported.
