Hammond 1402-10H 10.0 in Replacement Hardware Kit for 1402 Enclosures

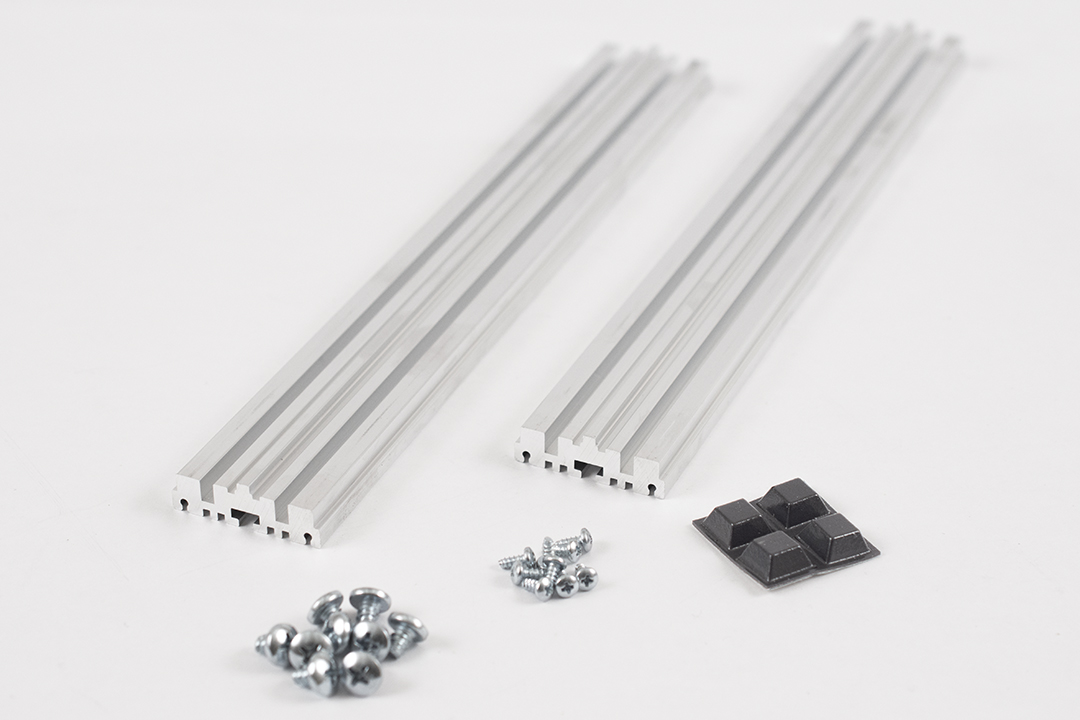

The 1402-10H is a hardware kit for 1402 series metal instrument enclosures, with a 10.0" length. The part page classifies it as a card guide extrusion accessory in natural aluminum. It is matched to the deepest 1402 enclosures, the solid 1402F and vented 1402FV, which are 10.30 in deep and fit a 160 x 234 Eurocard. It is intended for technicians, OEM builders and maintenance teams who need to rebuild or replace the internal hardware of an existing 1402 enclosure.

In the 1402 series, the top and bottom (12 gauge aluminum finished in beige) attach to an internal aluminum extrusion that contains mounting slots for printed circuit boards or panels, and the natural aluminum front and rear panels are attached with screws to that extrusion. According to the series sheet, replacement hardware packages include front panel screws, side screws, extrusions, and rubber feet.

Enclosures that list the 1402-10H as their replacement hardware pack:

• 1402F (solid) and 1402FV (vented): 3.10 in (79 mm) high x 7.10 in (180 mm) wide x 10.30 in (262 mm) deep, PC board clearance width 6.34 in (161 mm), fits Eurocard size 160 x 234

The 1402-10H is made of aluminum, is RoHS and REACH compliant, and is packed in a bag with a shipping weight of 0.7 lbs (0.32 kg). Because the extrusion carries the board slots, matching the kit length to your enclosure depth keeps PCBs and panels properly supported.
