Hammond RMCHANDLE6U 6U Pull Handle Bracket Kit, Black Steel Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Optional pull handle mounting bracket kit for 6U RMC Series enclosures
- Listed for RMCS191013BK1/RMCV191013BK1, RMCS191015BK1/RMCV191015BK1
- Sold as a pair, black steel construction
- Drawing height 260.35 mm [10.250 in]; handle projects 59.56 mm [2.345 in]
- Two-step install: remove bracket hardware, attach handle with that hardware
- Shipping weight 1 lbs (0.45 kg), packed in a bag
- RoHS and REACH compliant

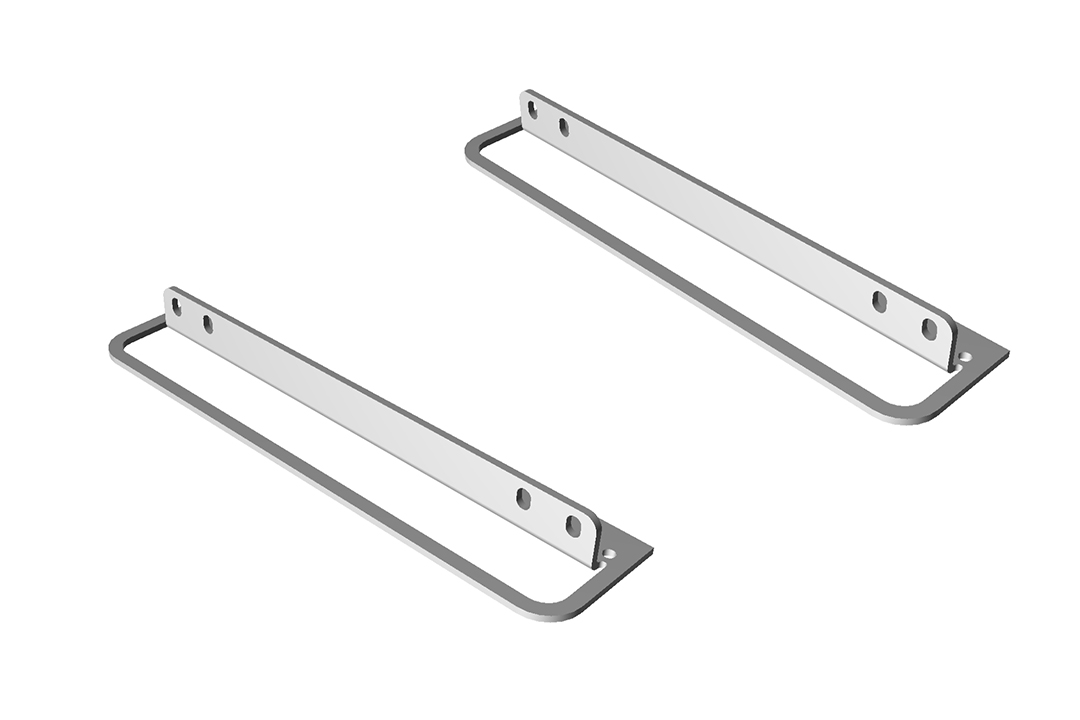

The RMCHANDLE6U is the optional pull handle mounting bracket kit for 6U RMC Series rack mount aluminum instrument enclosures, sold as a pair. It adds front pull handles so a 6U instrument or electronics enclosure can be slid in and out of a 19 in rack, or carried more easily on the bench.
It is listed for the 6U RMC bodies in both depths: RMCS191013BK1/RMCV191013BK1 at 13.00 in (330 mm) and RMCS191015BK1/RMCV191015BK1 at 15.00 in (381 mm), each 10.48 in (266 mm) high and 17.00 in (432 mm) wide. These enclosures have a usable mounting height of 10.50 in (267 mm) and 9.56 in (243 mm) of inside height clearance with the chassis installed.
The handles are black steel. On the part drawing the handle bracket measures 260.35 mm [10.250 in] in height, the handle projects 59.56 mm [2.345 in], and the material is 3.18 mm [.125 in] thick.
Installation follows the RMC handle installation sheet: first remove the rack mount bracket hardware, then attach the handle using the hardware from the bracket. The kit ships in a bag with a shipping weight of 1 lbs (0.45 kg) and is RoHS and REACH compliant.
Ideal For
- Adding front pull handles to 6U RMC instrument enclosures
- Sliding rack-mounted enclosures in and out of a 19 in rack
- Portable bench and test instrument cases
- OEM electronics enclosures that are serviced often
Overview
| Series | RMC Series Rack Mount Aluminum Instrument Enclosure |
| Quantity | Pair |
| Description | Rack - handle kit for 6U RMC series. Sold as a pair. |
| Product Type | Handles (chassis handle kit) |
| Short Description | Chassis handle kit for RMC 6U |
Dimensions
| Height (Drawing) | 260.35 mm [10.250 in] |
| Handle Projection | 59.56 mm [2.345 in] |
| Material Thickness | 3.18 mm [.125 in] |
Identifiers
| UPC | 623980403502 |
| UNSPSC | 43201602 |
Rack Mounting
| Installation | Step 1: remove bracket hardware. Step 2: attach handle with hardware from bracket. |
| Enclosure Height | 6U |
| Matching Enclosure Overall Height | 10.48 in (266 mm) |
| Compatible Enclosures (Solid/Vented) | RMCS191013BK1/RMCV191013BK1, RMCS191015BK1/RMCV191015BK1 |
| Usable Mounting Height Of Matching Enclosures | 10.50 in (267 mm) |
| Matching Enclosure Inside Height Clearance (Chassis Installed) | 9.56 in (243 mm) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Color | Black |
| Material | Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which RMC enclosures use the RMCHANDLE6U?▾
The series ordering table lists RMCHANDLE6U as the optional pull handle kit for RMCS191013BK1/RMCV191013BK1 and RMCS191015BK1/RMCV191015BK1.
Is this a single handle or a pair?▾
It is sold as a pair.
How do I install the handles?▾
Per the RMC handle installation sheet: remove the bracket hardware, then attach the handle using the hardware from the bracket.
What are the handles made of?▾
Black steel, 3.18 mm [.125 in] thick on the drawing, with a 260.35 mm [10.250 in] height and a 59.56 mm [2.345 in] projection.
How much does the kit weigh?▾
The shipping weight is 1 lbs (0.45 kg).
