Hammond RMCHANDLE5U 5U Chassis Handle Kit, Black Steel Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Optional pull handle mounting bracket kit for 5U RMC Series enclosures
- Listed for RMCS190813BK1/RMCV190813BK1
- Sold as a pair, black steel construction
- Drawing height 215.90 mm [8.500 in]; handle projects 59.56 mm [2.345 in]
- Two-step install: remove bracket hardware, attach handle with that hardware
- Shipping weight 1 lbs (0.45 kg), packed in a bag
- RoHS and REACH compliant

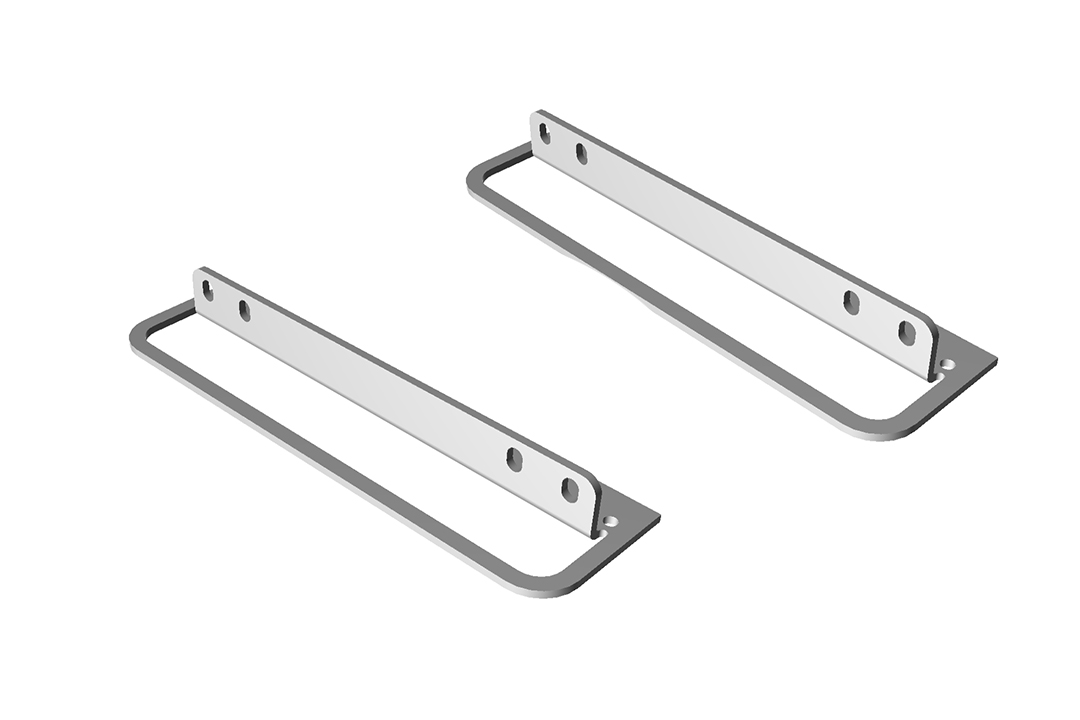

The RMCHANDLE5U is the optional pull handle mounting bracket kit for 5U RMC Series rack mount aluminum instrument enclosures, sold as a pair. It adds front pull handles so a 5U instrument or electronics enclosure can be slid in and out of a 19 in rack, or carried more easily on the bench.
It is listed for the 5U RMCS190813BK1 (solid) and RMCV190813BK1 (vented) enclosures, 8.73 in (222 mm) high by 17.00 in (432 mm) wide by 13.00 in (330 mm) deep. These enclosures have a usable mounting height of 8.75 in (222 mm) and 7.81 in (198 mm) of inside height clearance with the chassis installed.
The handles are black steel. On the part drawing the handle bracket measures 215.90 mm [8.500 in] in height, the handle projects 59.56 mm [2.345 in], and the material is 3.18 mm [.125 in] thick.
Installation follows the RMC handle installation sheet: first remove the rack mount bracket hardware, then attach the handle using the hardware from the bracket. The kit ships in a bag with a shipping weight of 1 lbs (0.45 kg) and is RoHS and REACH compliant.
Ideal For
- Adding front pull handles to 5U RMC instrument enclosures
- Sliding rack-mounted enclosures in and out of a 19 in rack
- Portable bench and test instrument cases
- OEM electronics enclosures that are serviced often
Overview
| Series | RMC Series Rack Mount Aluminum Instrument Enclosure |
| Quantity | Pair |
| Description | Rack - handle kit for 5U RMC series. Sold as a pair. |
| Product Type | Handles (chassis handle kit) |
| Short Description | Chassis handle kit for RMC 5U |
Dimensions
| Height (Drawing) | 215.90 mm [8.500 in] |
| Handle Projection | 59.56 mm [2.345 in] |
| Material Thickness | 3.18 mm [.125 in] |
Identifiers
| UPC | 623980403410 |
| UNSPSC | 43201602 |
Rack Mounting
| Installation | Step 1: remove bracket hardware. Step 2: attach handle with hardware from bracket. |
| Enclosure Height | 5U |
| Matching Enclosure Overall Height | 8.73 in (222 mm) |
| Compatible Enclosures (Solid/Vented) | RMCS190813BK1/RMCV190813BK1 |
| Usable Mounting Height Of Matching Enclosures | 8.75 in (222 mm) |
| Matching Enclosure Inside Height Clearance (Chassis Installed) | 7.81 in (198 mm) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Color | Black |
| Material | Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which RMC enclosures use the RMCHANDLE5U?▾
The series ordering table lists RMCHANDLE5U as the optional pull handle kit for RMCS190813BK1/RMCV190813BK1.
Is this a single handle or a pair?▾
It is sold as a pair.
How do I install the handles?▾
Per the RMC handle installation sheet: remove the bracket hardware, then attach the handle using the hardware from the bracket.
What are the handles made of?▾
Black steel, 3.18 mm [.125 in] thick on the drawing, with a 215.90 mm [8.500 in] height and a 59.56 mm [2.345 in] projection.
How much does the kit weigh?▾
The shipping weight is 1 lbs (0.45 kg).
