Hand-Held Plastic Enclosures w/ EMI/ RFI Shielding · 1599RFI Series

Features:

• ■Designed for EMI/RFI shielding applications - using conductive plastic (a compound of plastic and stainless steel fibers).
• ■Attractively styled and ergonomically designed for use as a handheld instrument enclosure.
• ■Molded from a compound of stainless steel fibers and flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
• ■Lap joint construction provides protection against dust accumulation and splashing water.
• ■Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
• ■Designed to meet IP54.
• ■NOTE: Material is brittle - acts like phenolic - NOT FOR HIGH IMPACT USE.

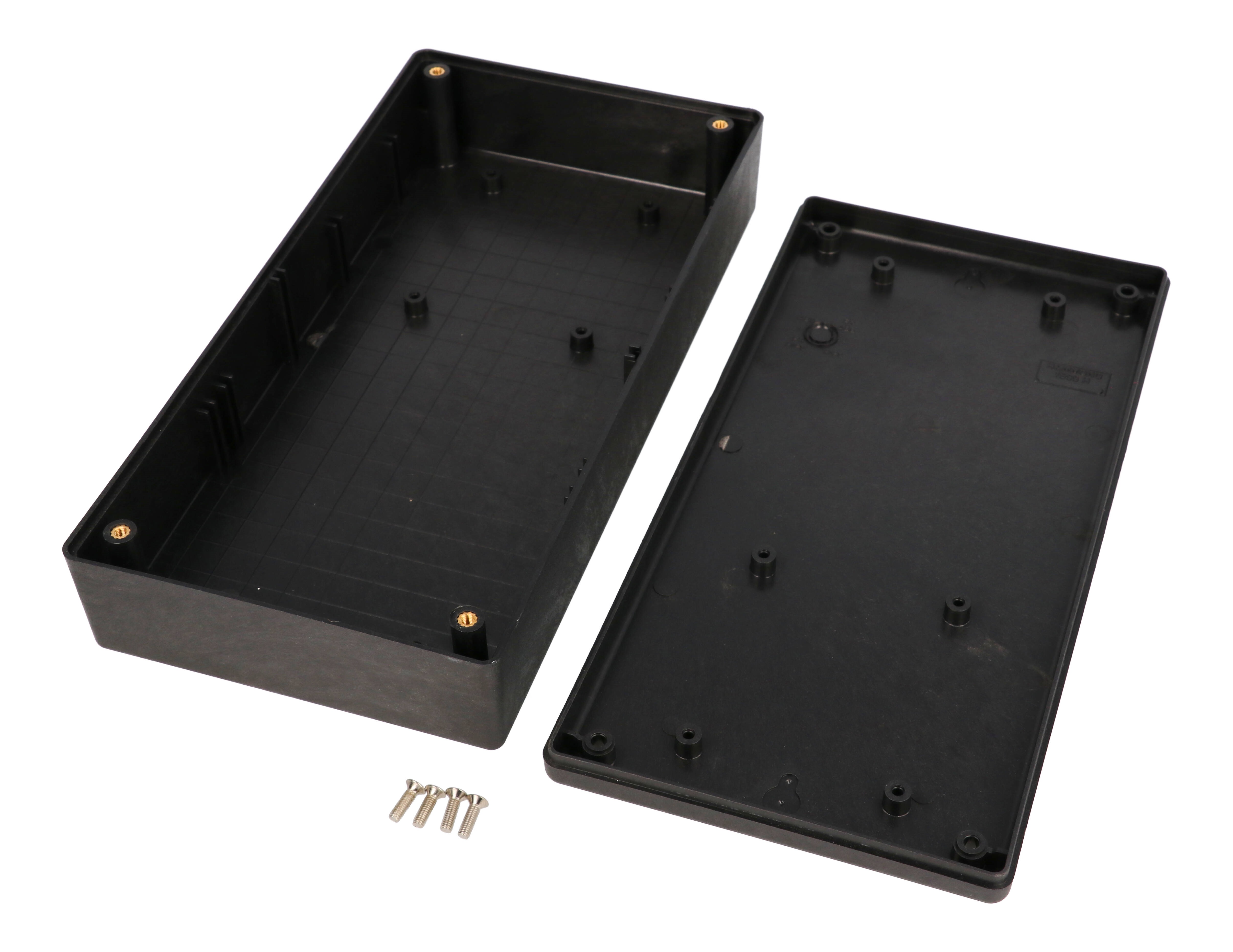

• ■Lid is secured with Philips machine screws, threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
• ■For non-shielded applications, try series 1599
• ■50 pack of optional PC board screws (#4 x 1/4" Self-Tapping), part number 1593ATS50
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■Conductive plastic is NOT an insulator - these enclosures must be treated like a metal enclosure.
• ■Conductive plastic will act as a heating element - any significant current flow will cause the plastic to heat and produce smoke.
