Thick-Wall Plastic Enclosures w/ EMI/ RFI Shielding · 1594R Series

Key Features:

For non-shielded applications, try series 1594 (general purpose and water-tight options)

• ■Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
• ■Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
• ■Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

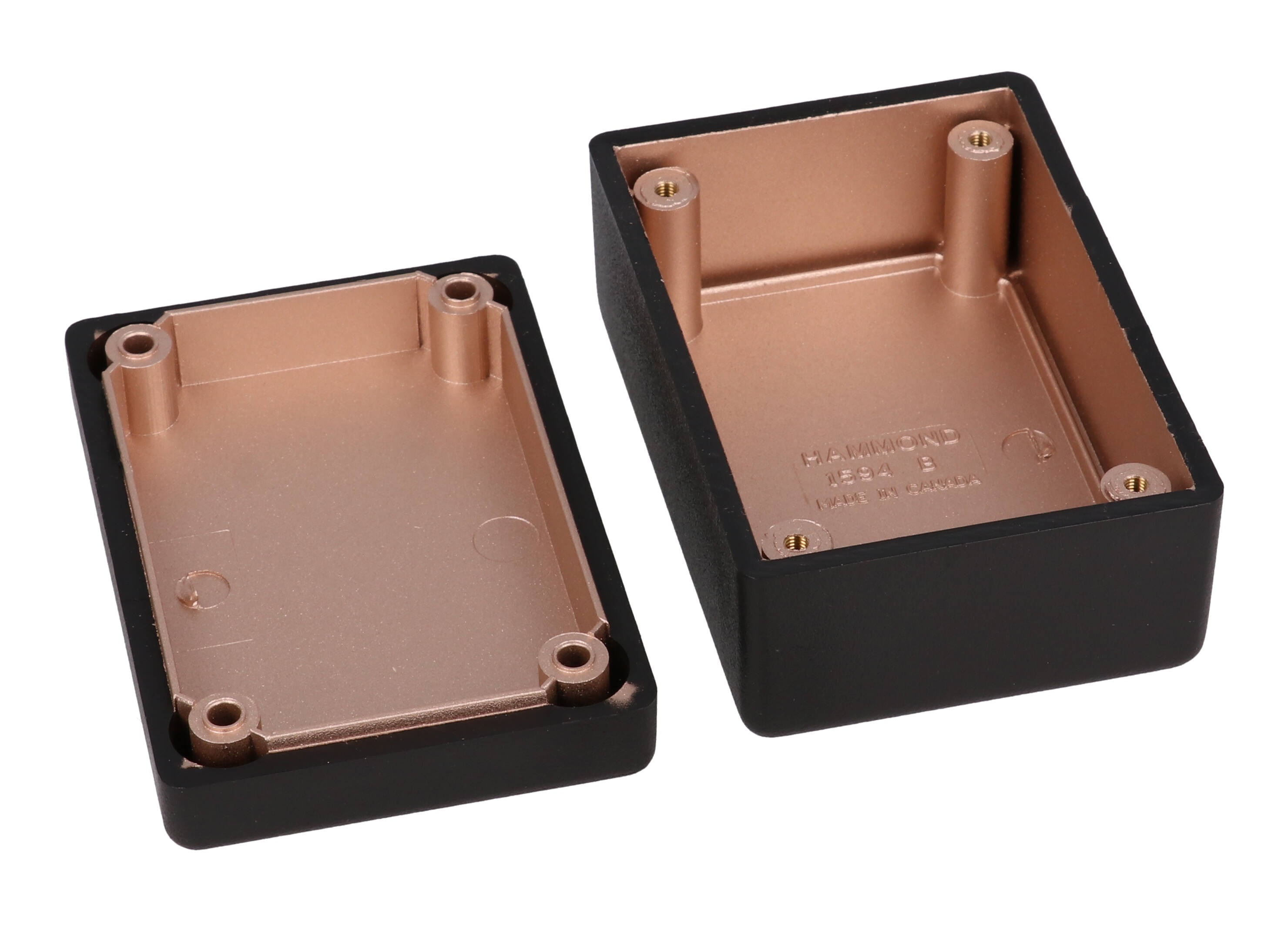

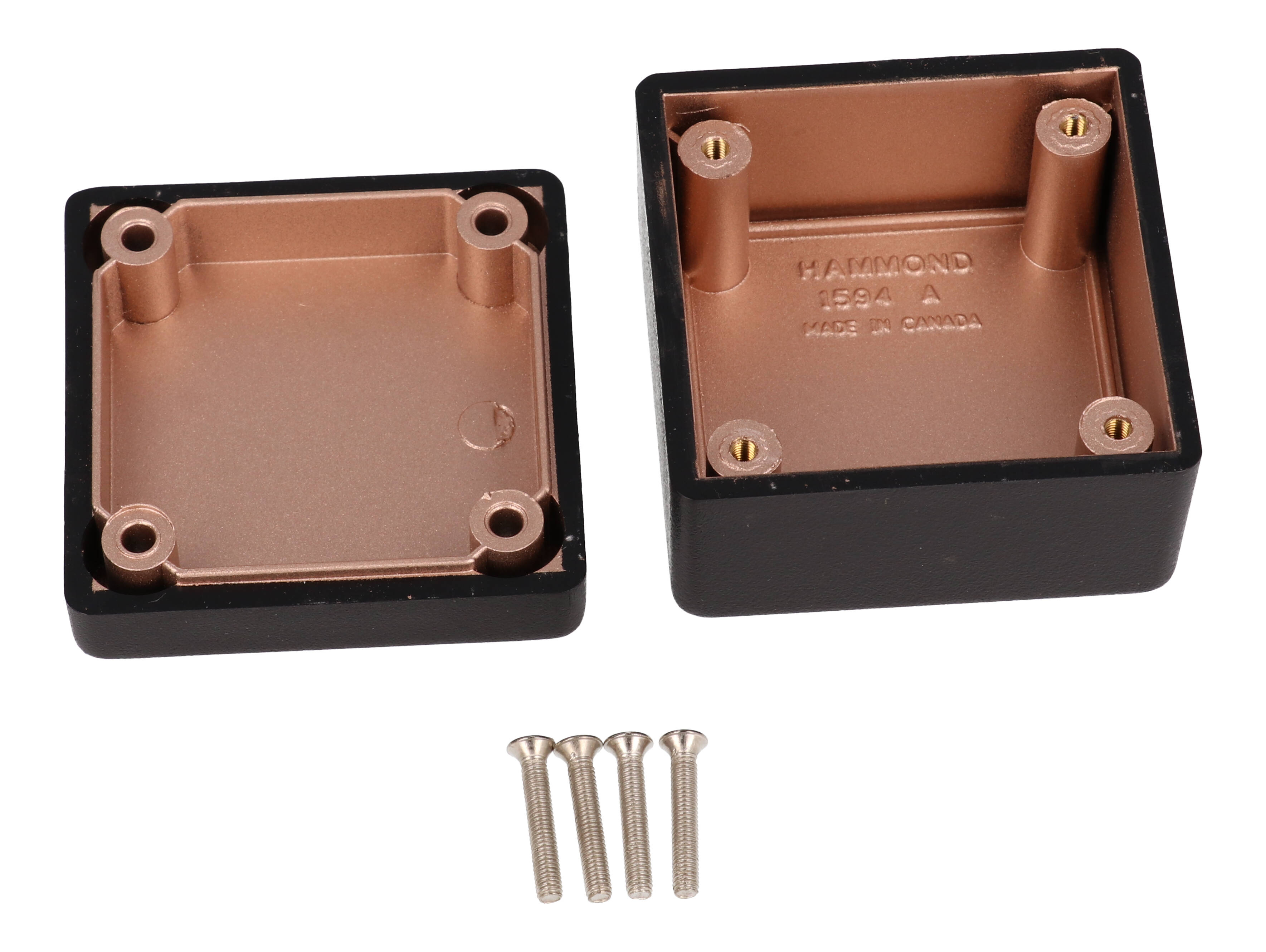

• ■Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
• ■Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
• ■Designed to meet IP54.

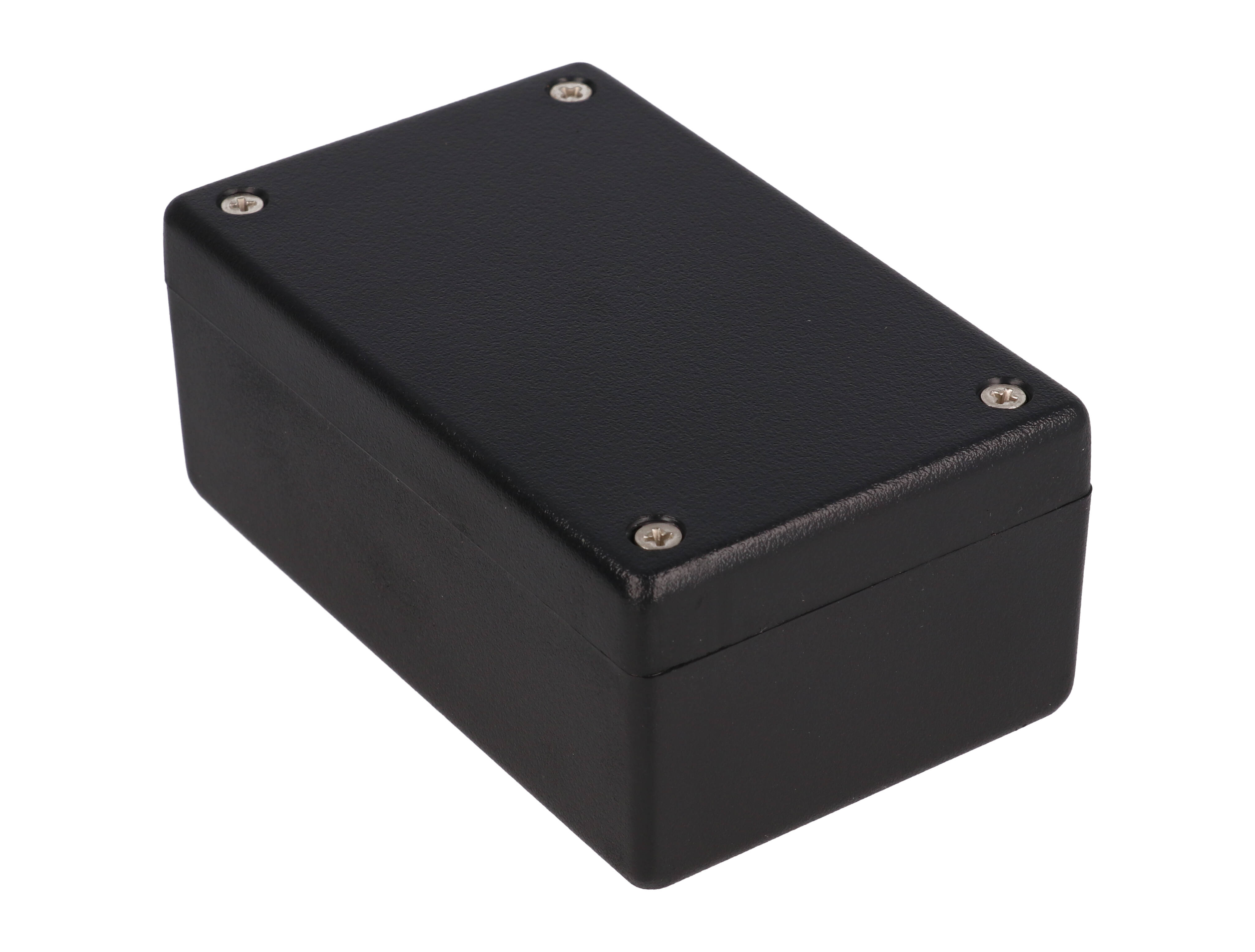

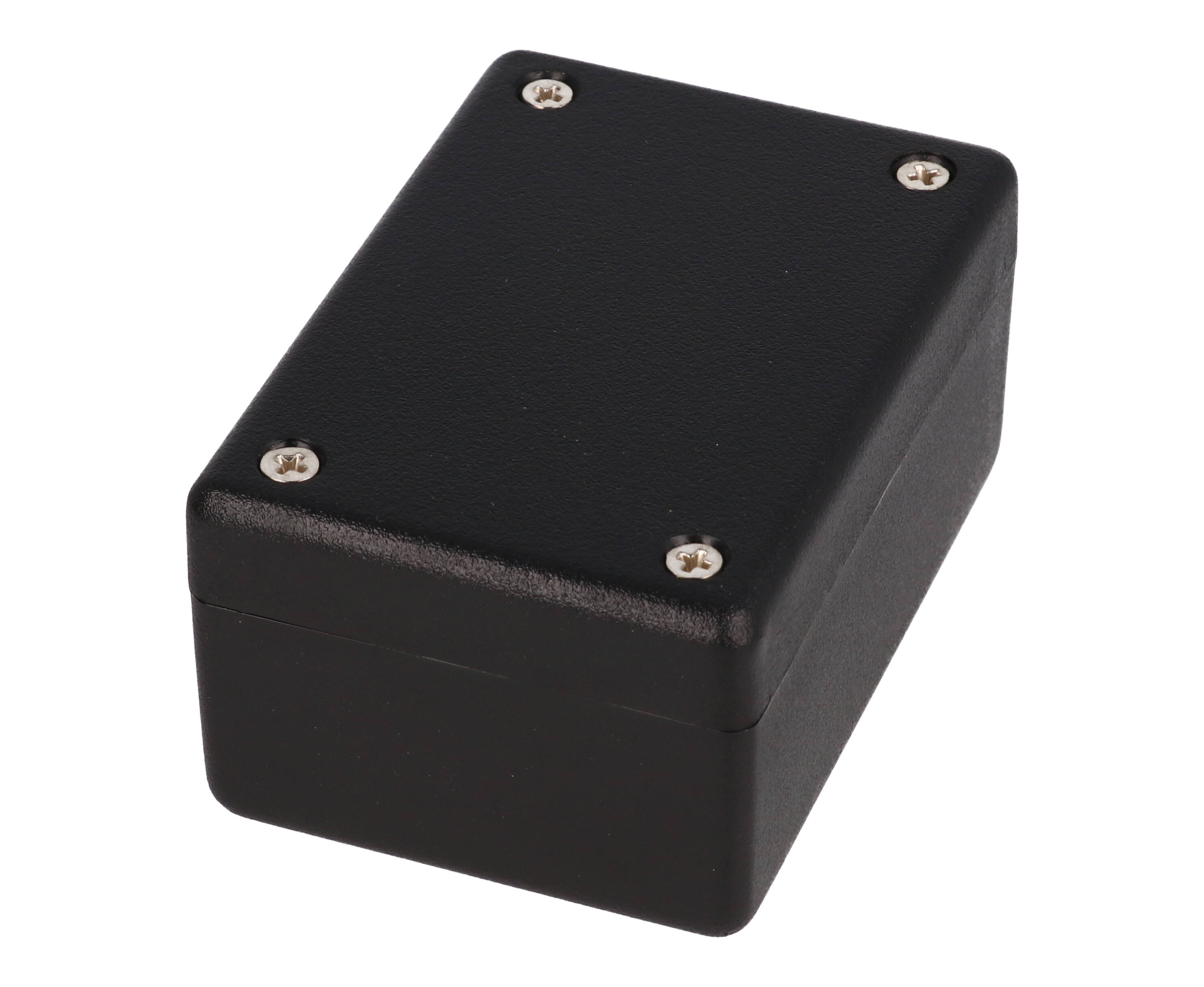

• ■Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.

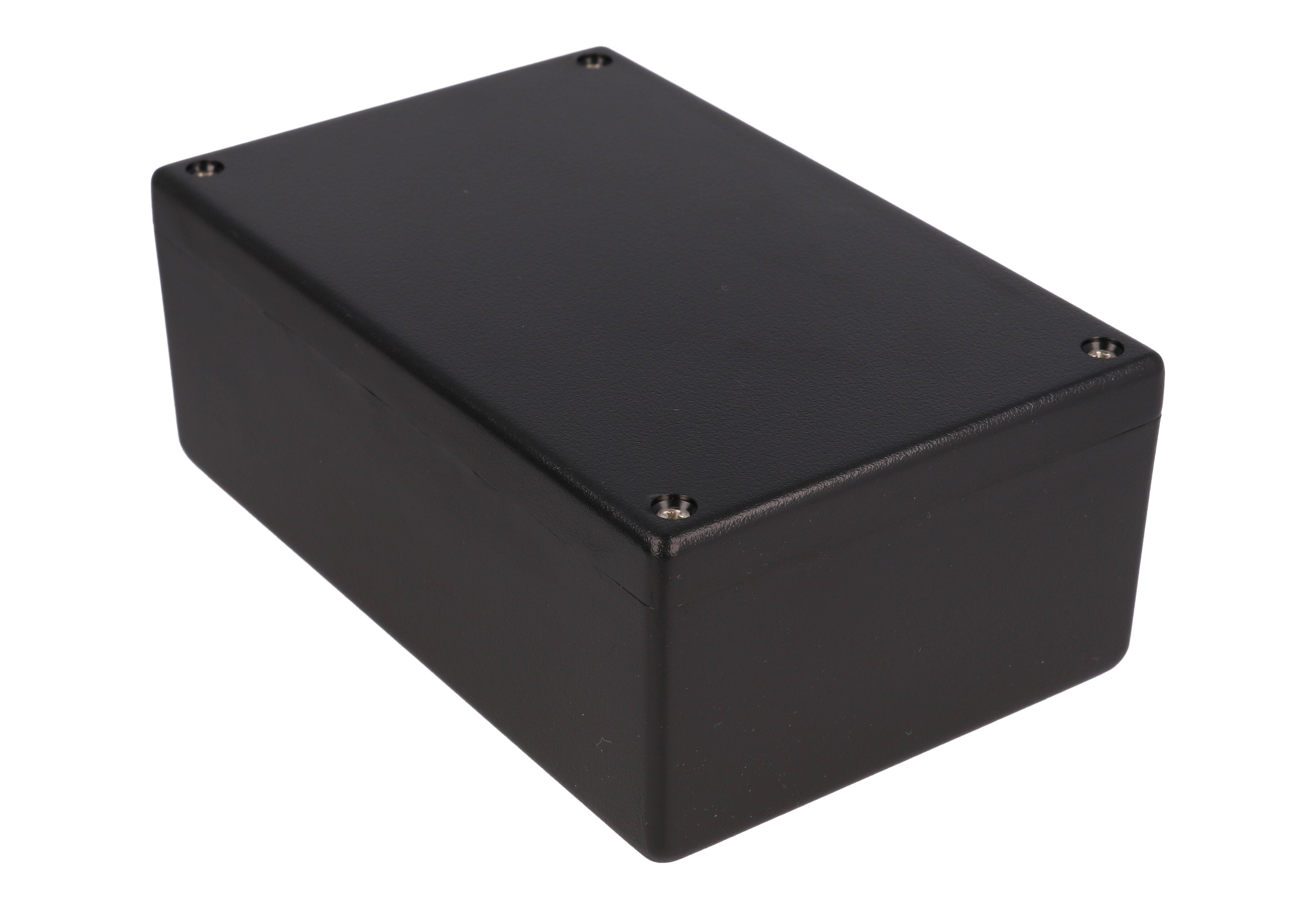

• ■Stocked in black with matte textured finish.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
