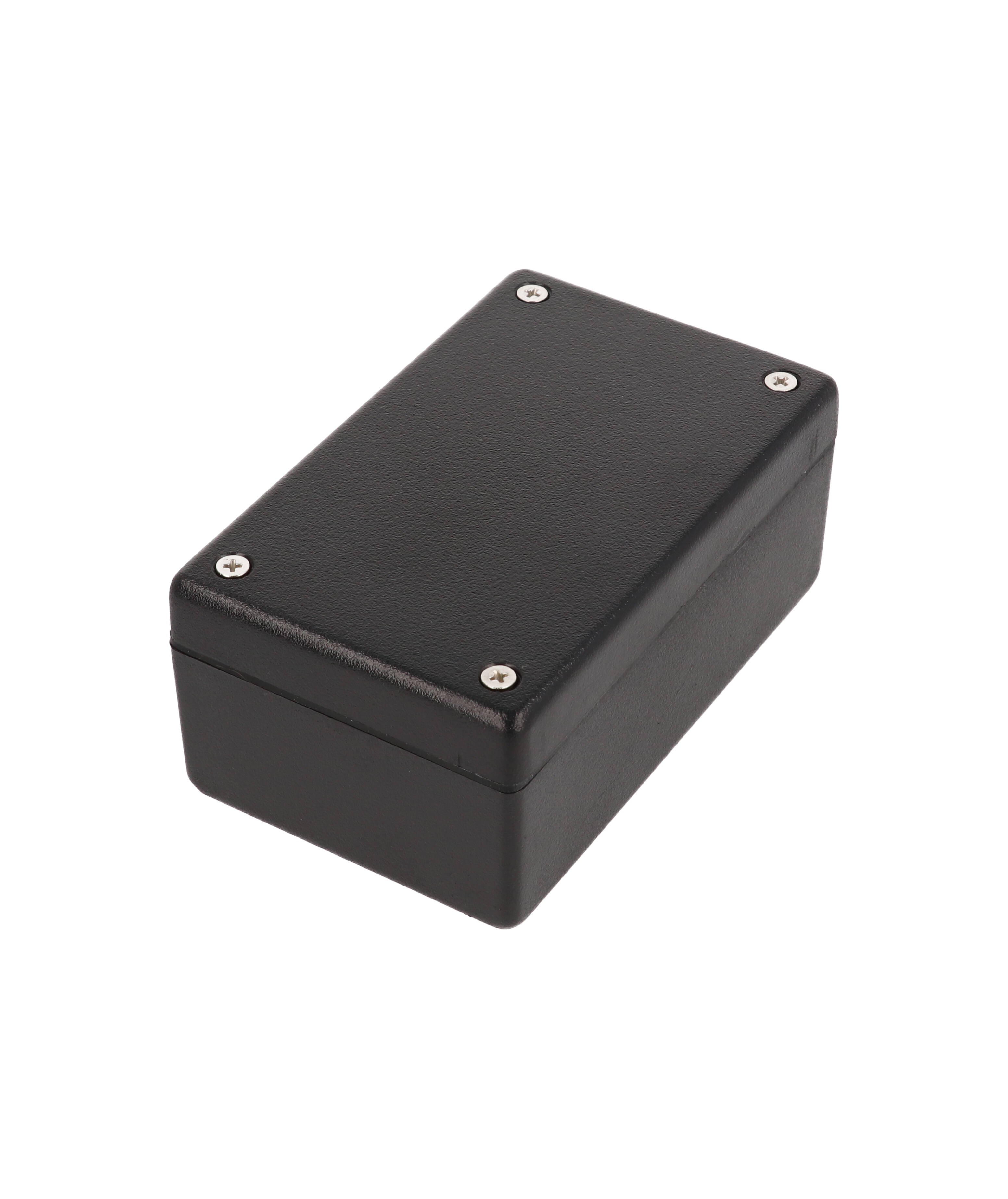

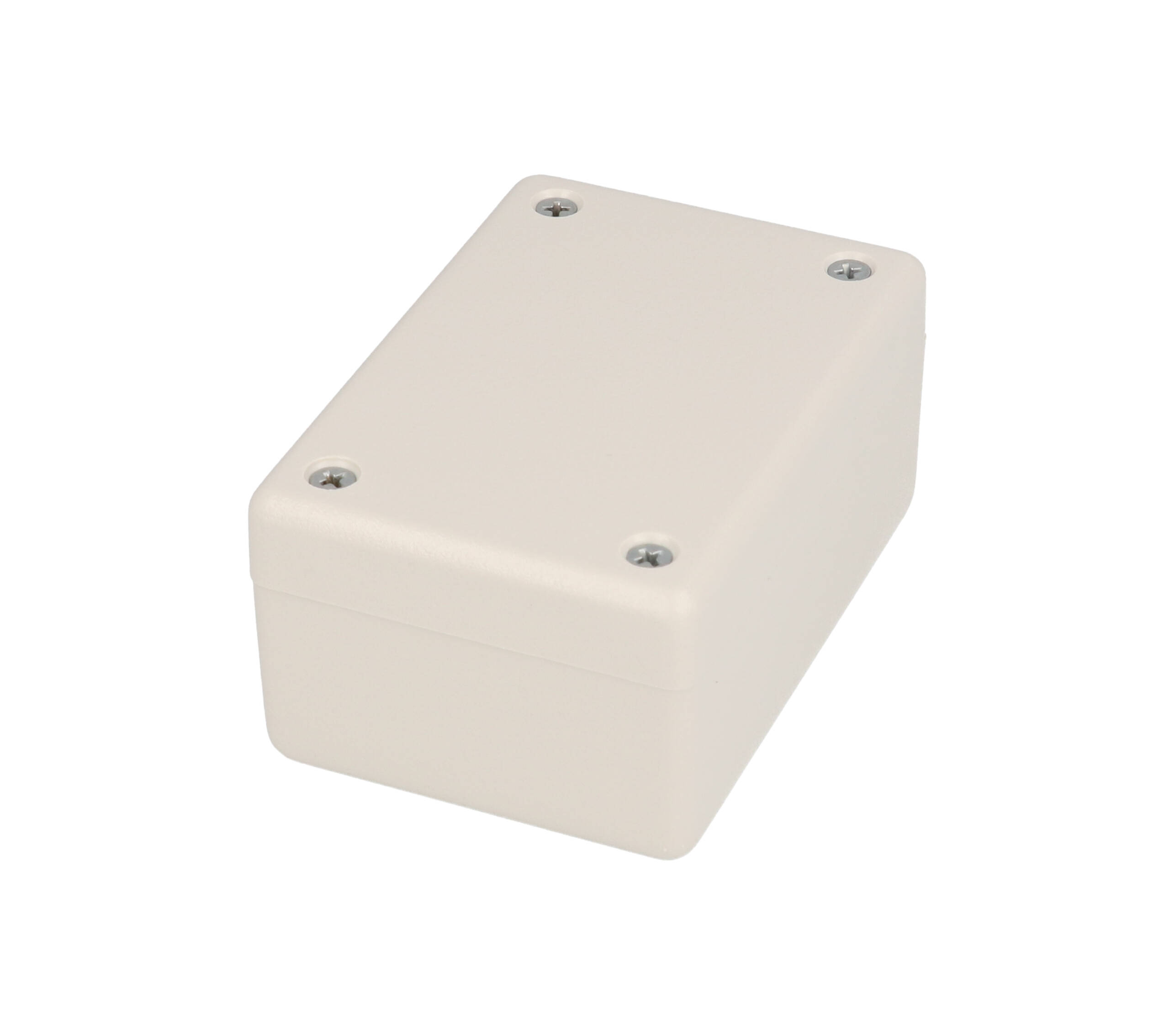

Heavy Duty ABS Enclosures · 1594 Series

Brand: Hammond Manufacturing · 35 part numbers

Multipurpose, Thick Walls, Water-Tight Options

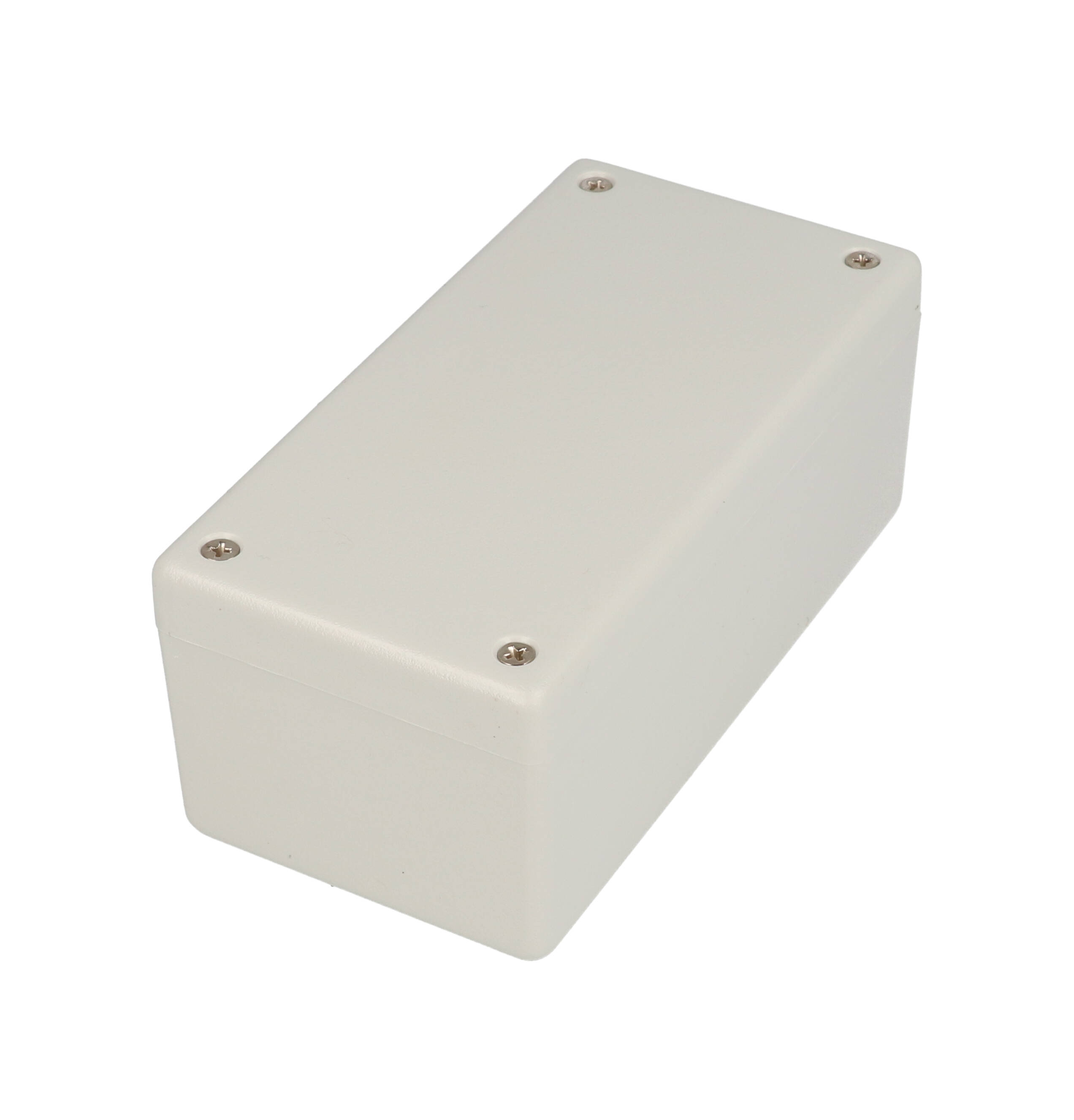

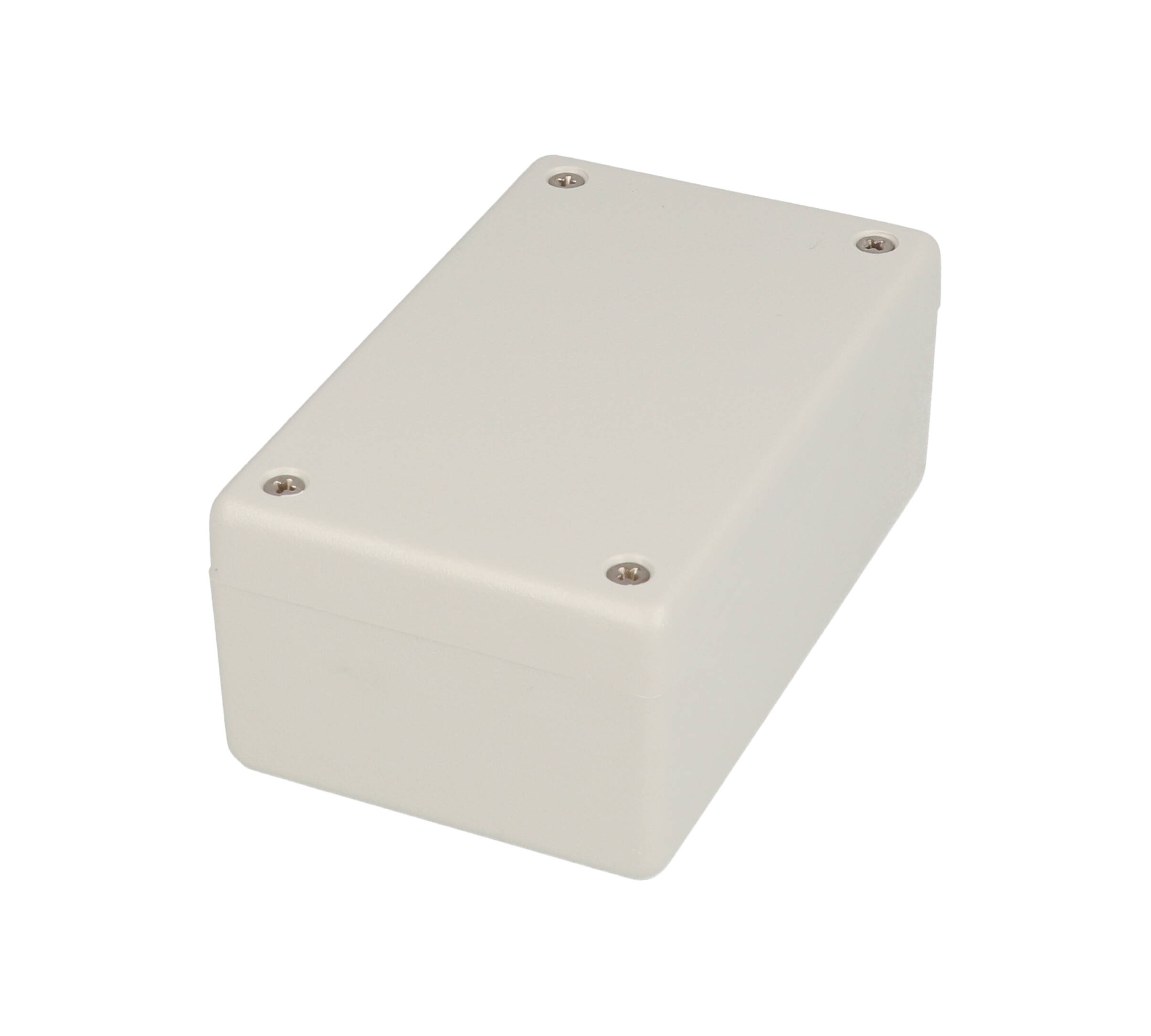

■Rugged electronic instrument enclosures ideally suited for mounting printed circuit boards.
■Heavy duty thick-wall design has an average wall thickness of 0.13” (3.3 mm).
■Stocked in black and light gray with matte textured finish.
■Standard versions are molded in flame retardant ABS plastic which carries a UL flammability rating of 94V-0.

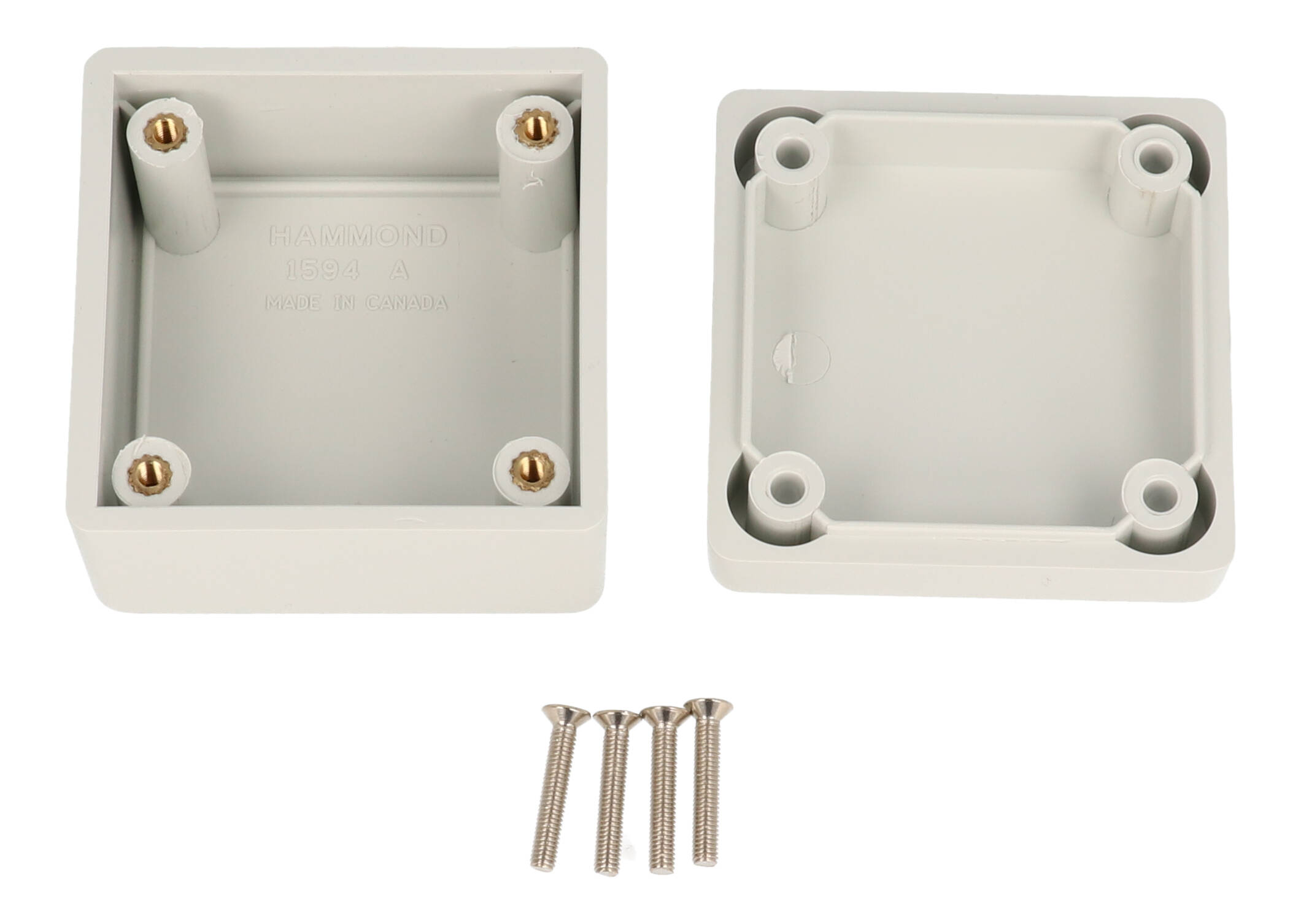

■On standard and water-tight versions, lid is secured with four M3 x 0.5 - 0.71” (18 mm) long Phillips machine screws threaded into integral brass bushings.
■Economy versions are molded in general purpose ABS plastic.

from $3.20

35 of 35 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1594 Series part number

Filter 35 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

35 of 35 part numbers · 35 priced online

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$6.80In stock

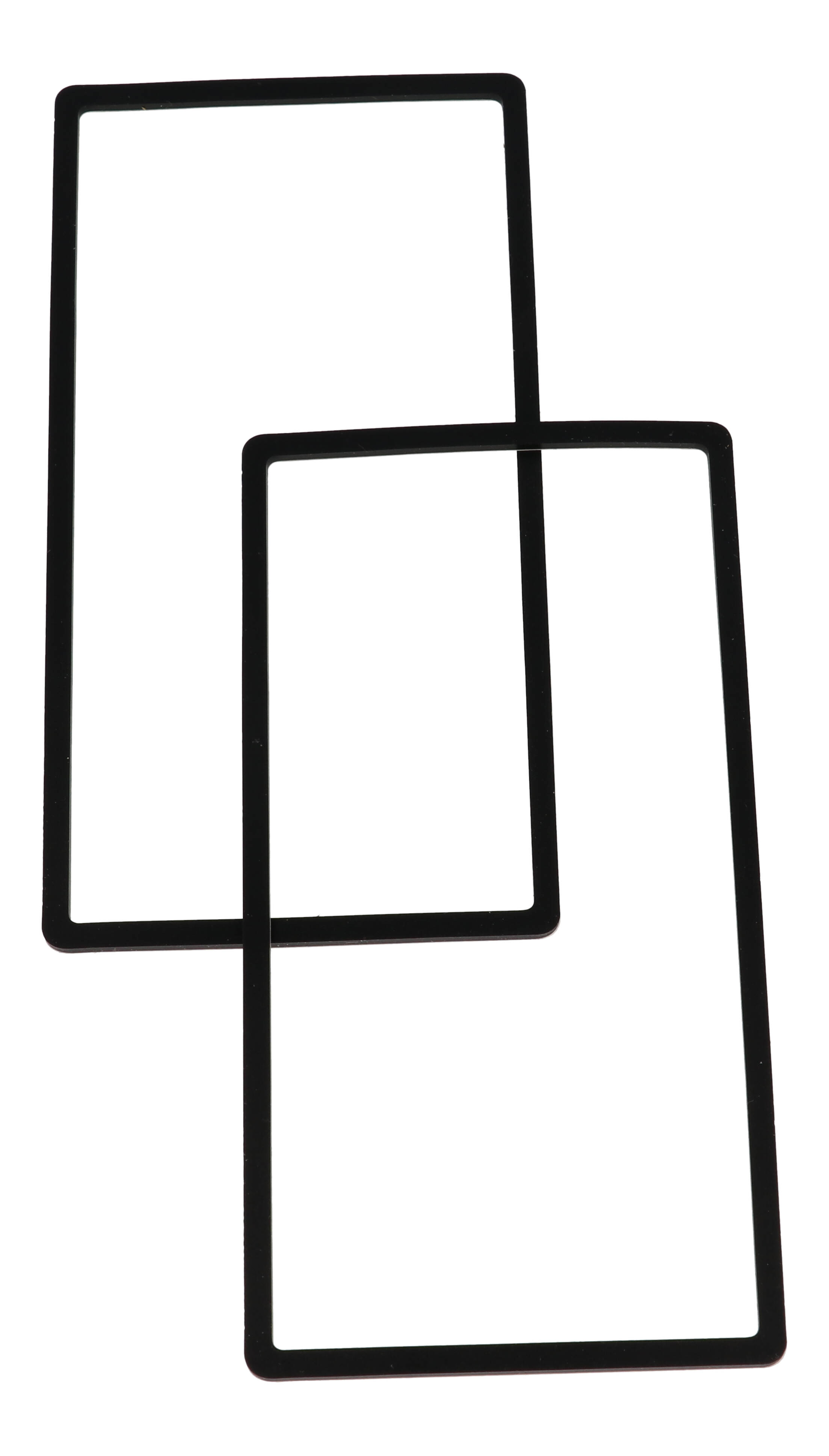

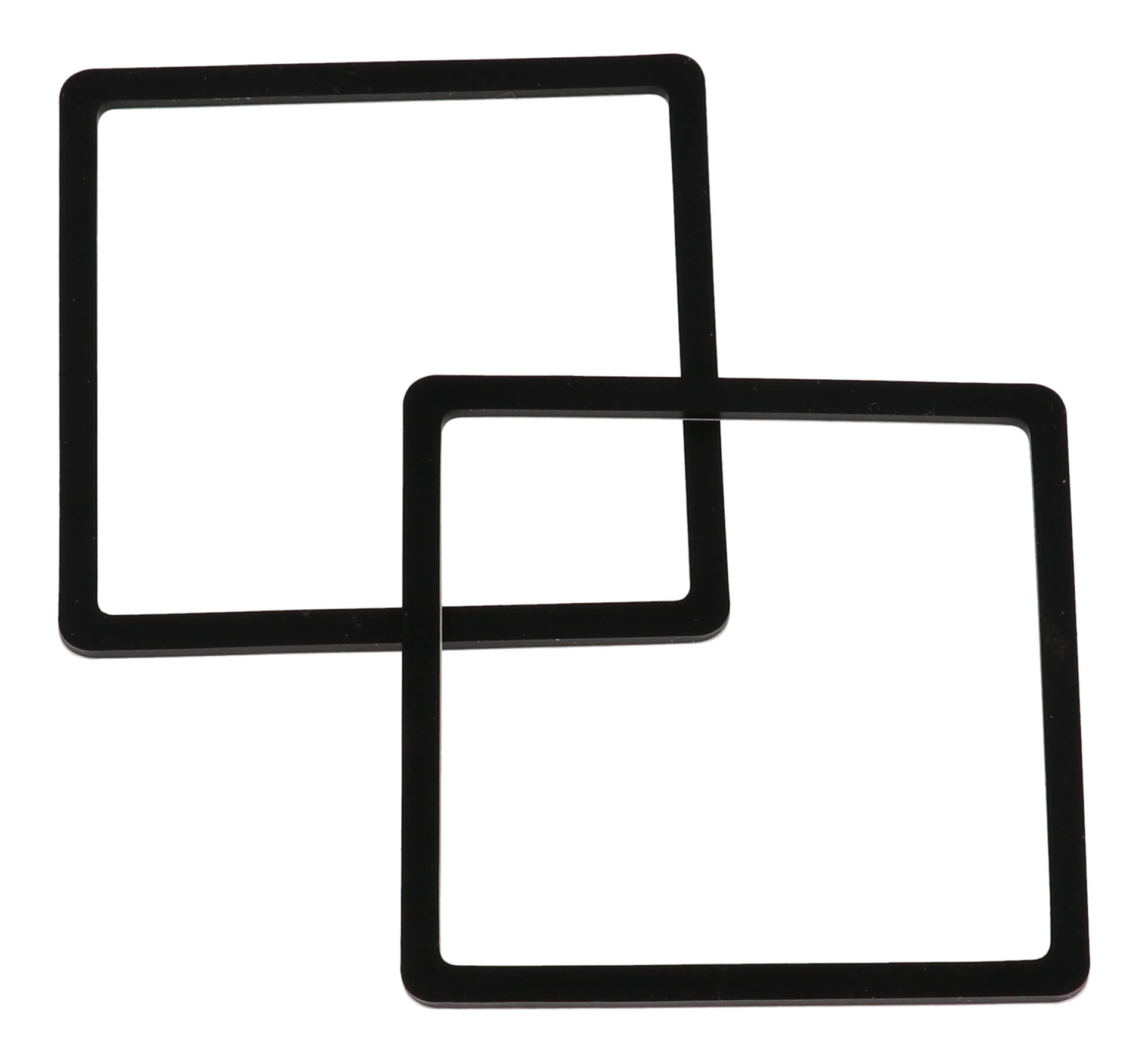

Silicone Gasket

Type Gasket
Material Silicone
IP Rating IP65

$3.20In stock

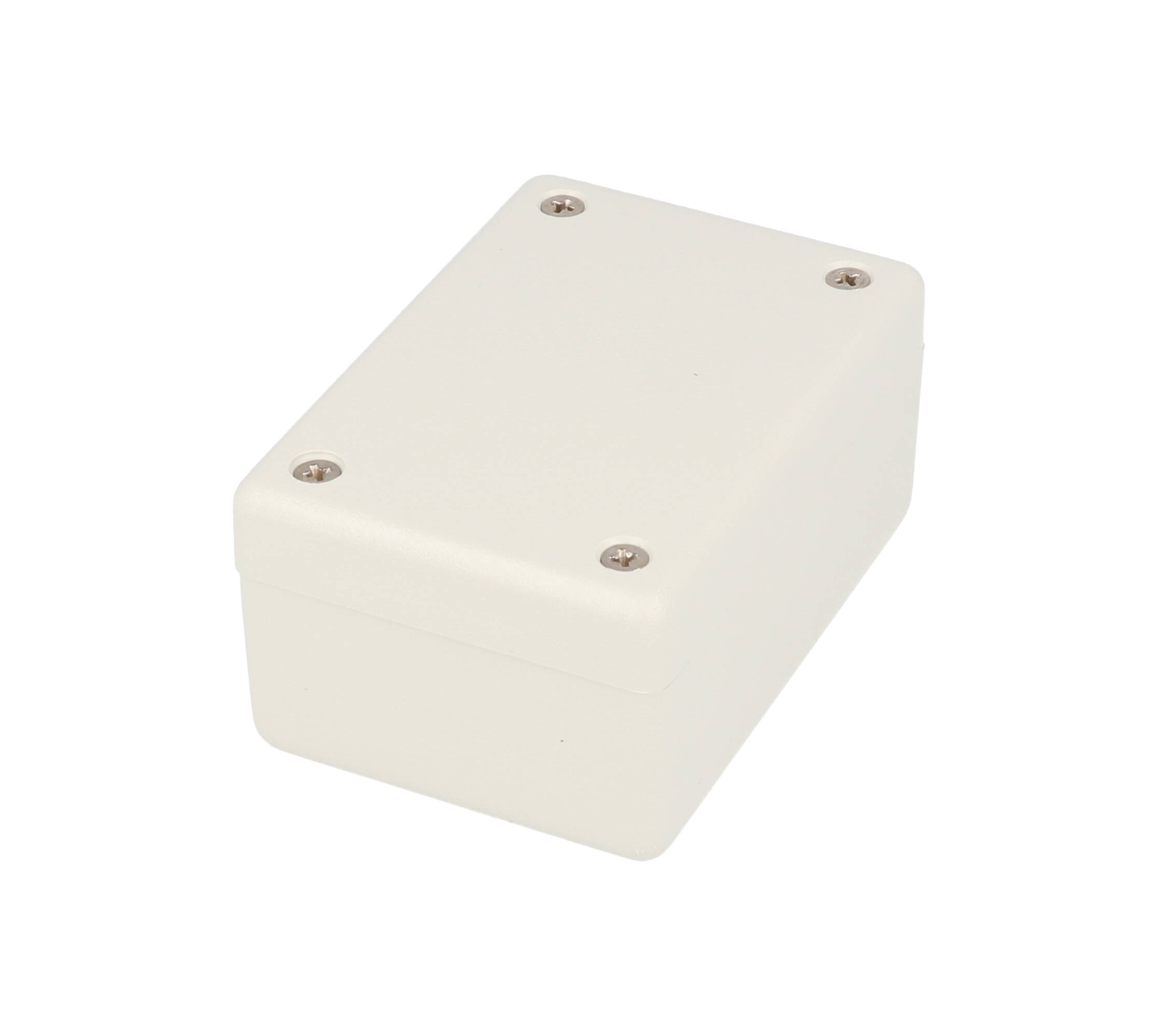

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$6.80In stock

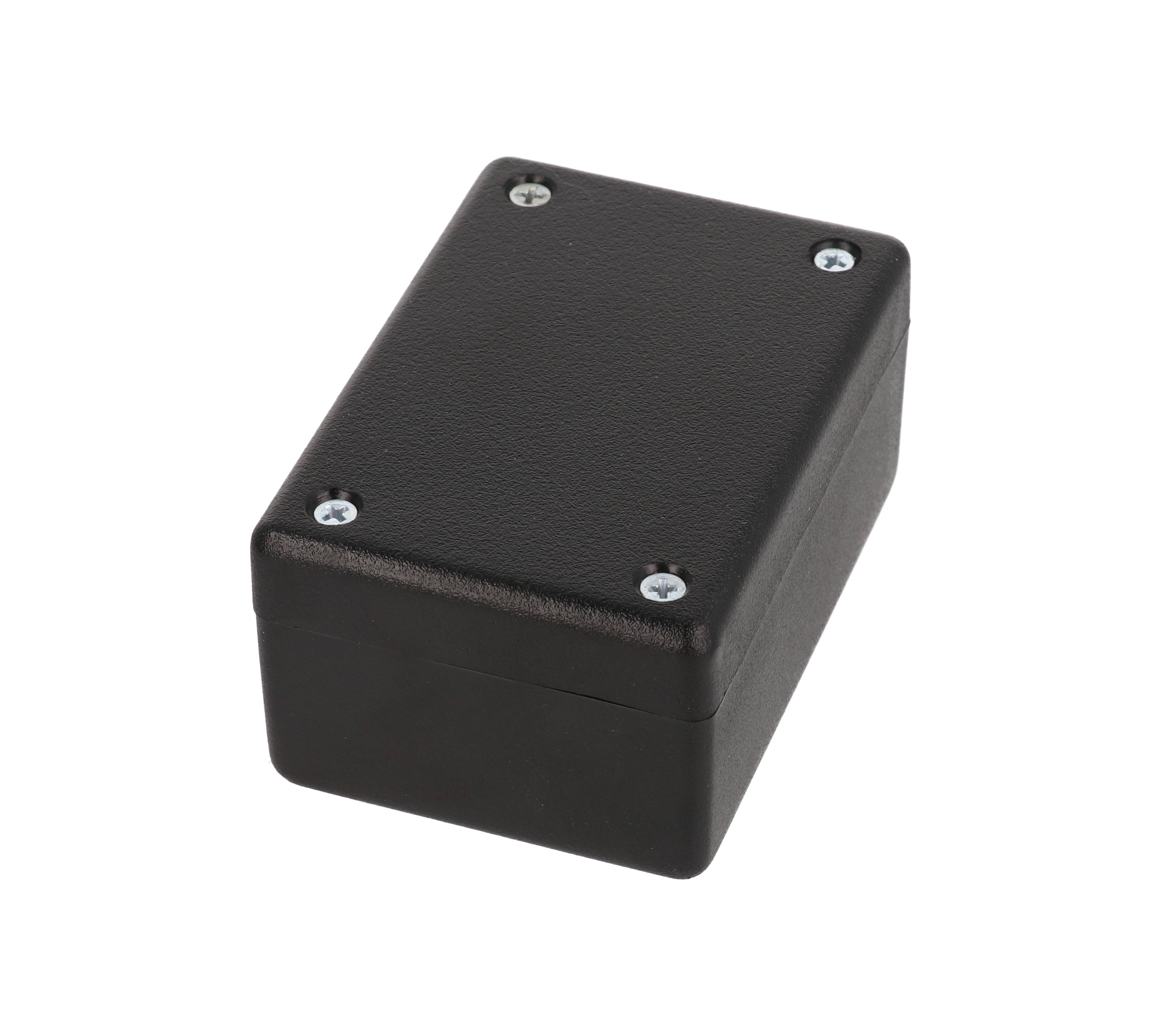

Gpabs Enclosure

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$4.31In stock

Heavy Duty Plastic Box

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$4.31In stock

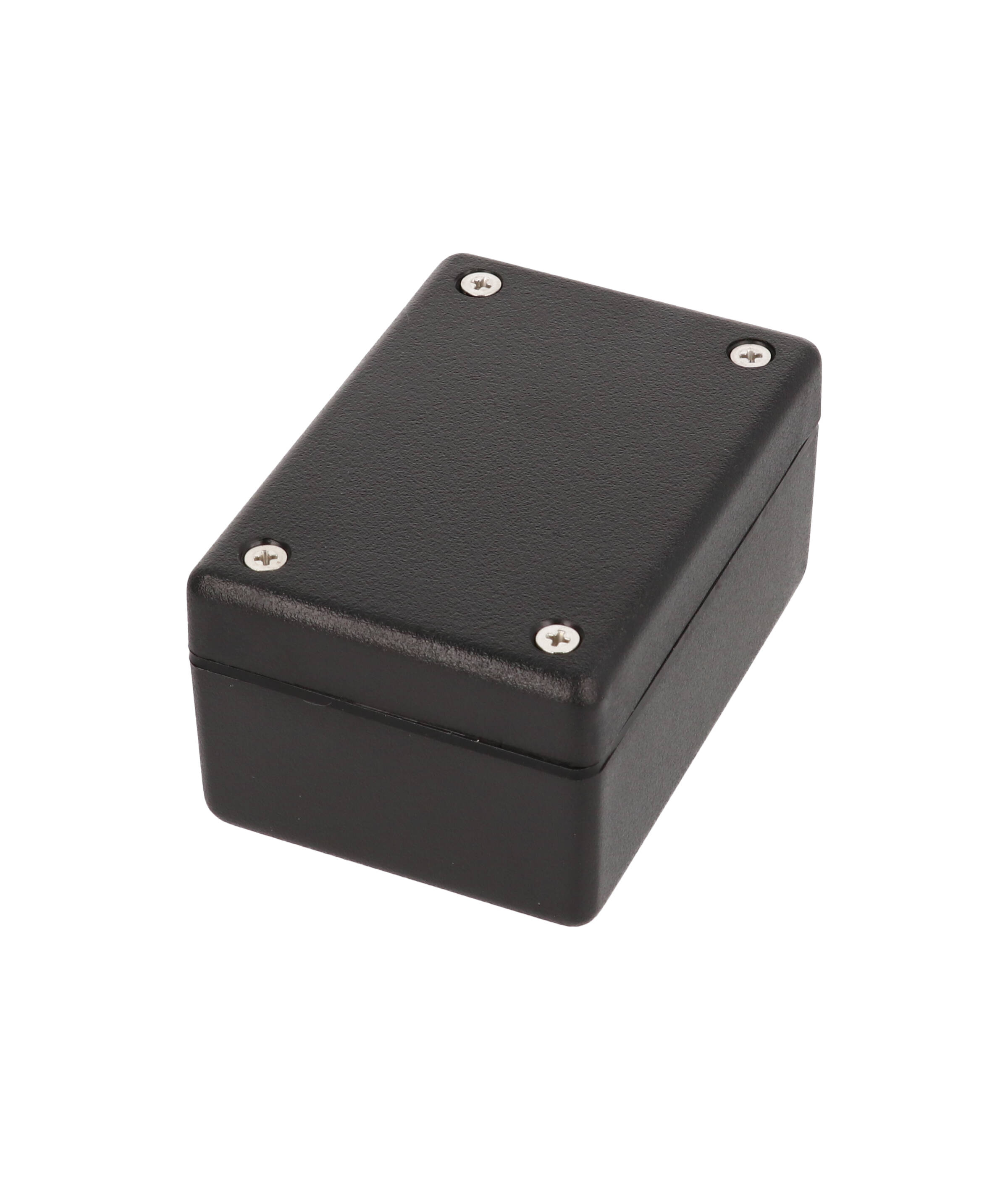

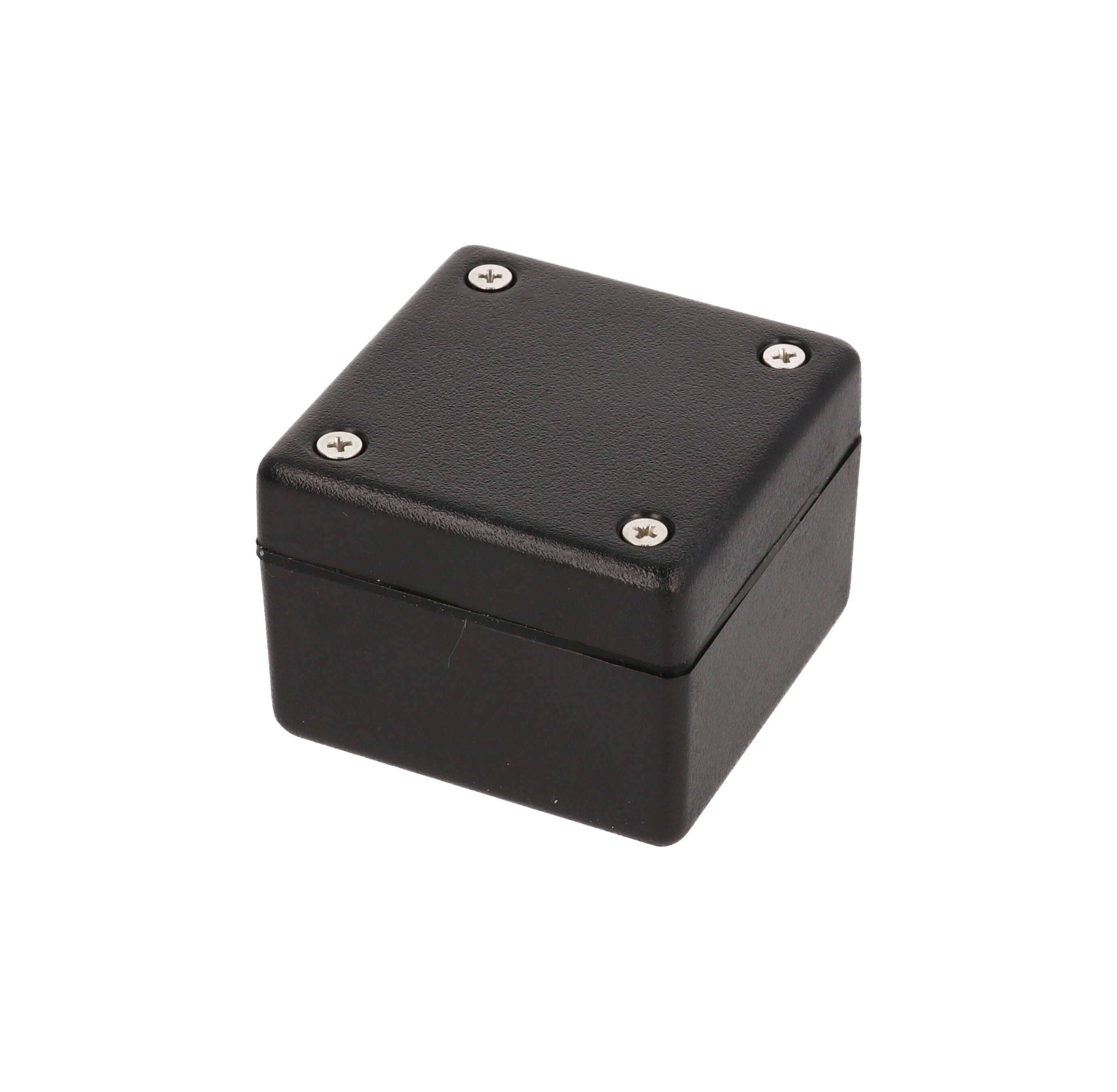

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Black
IP Rating IP65

$7.50In stock

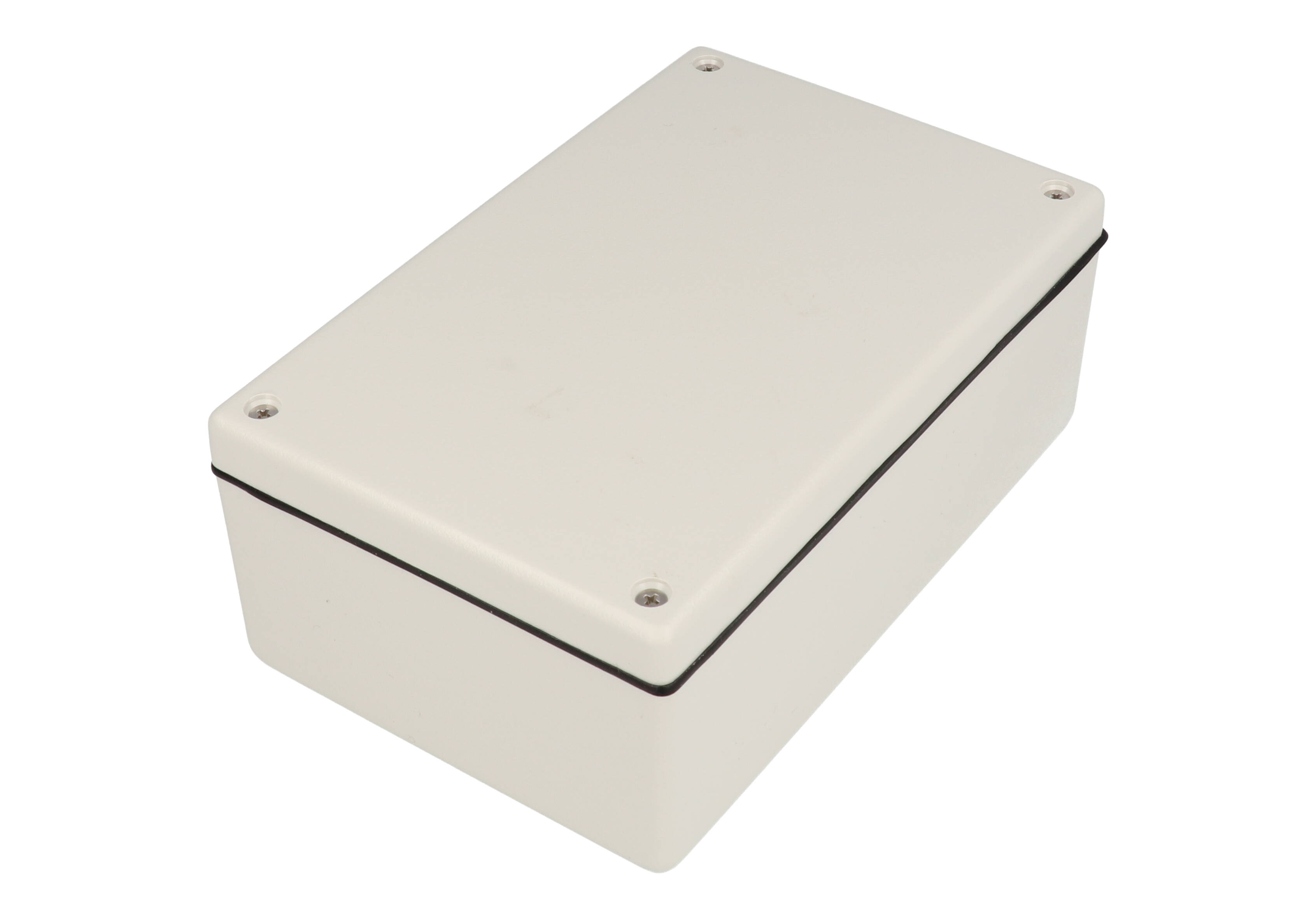

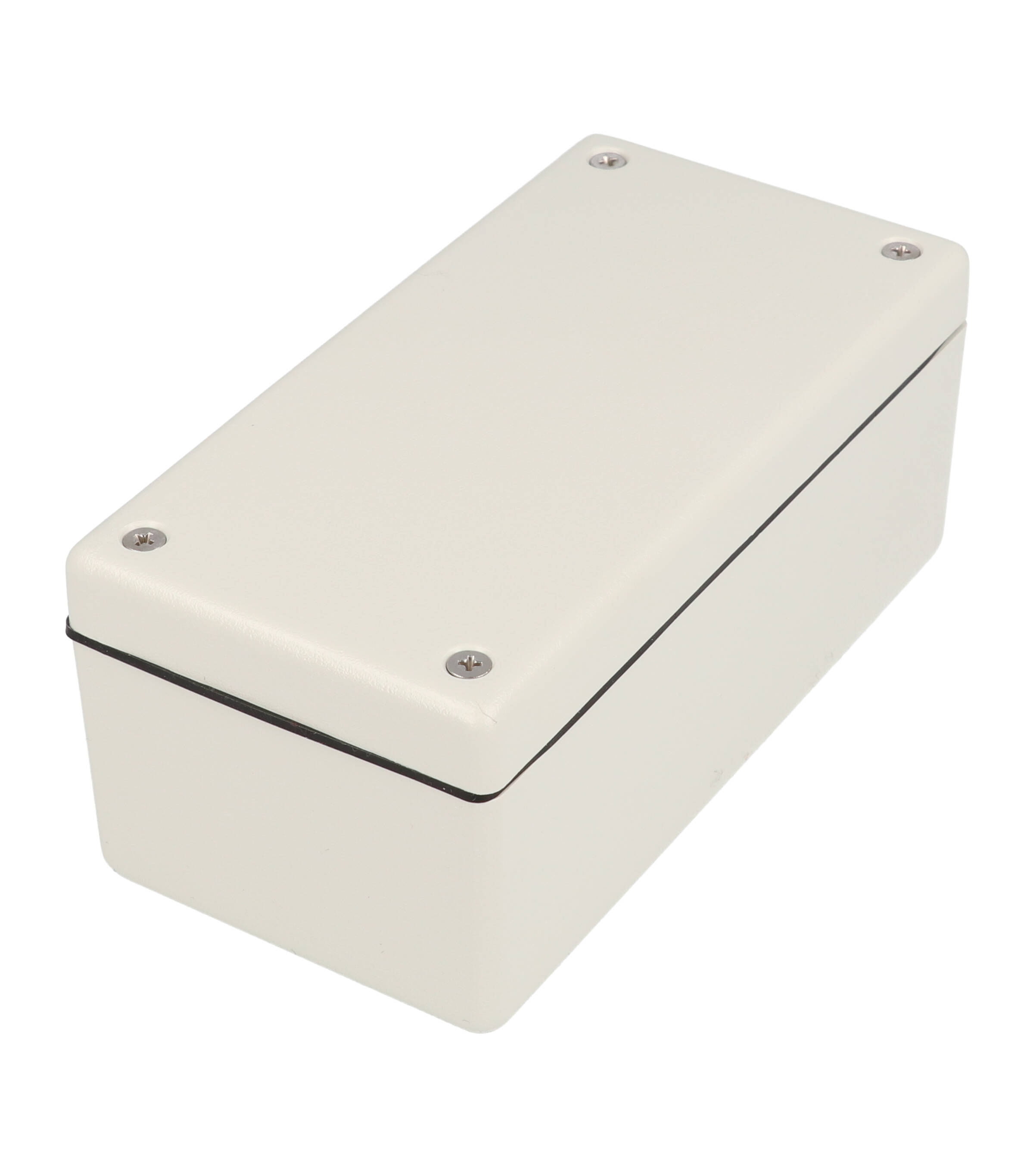

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Light Gray
IP Rating IP65

$7.50In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$7.12In stock

Silicone Gasket

Type Gasket
Material Silicone
IP Rating IP65

$3.62In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$7.12In stock

Gpabs Enclosure

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$4.53In stock

Heavy Duty Plastic Box

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$4.53In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Black
IP Rating IP65

$8.51In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Light Gray
IP Rating IP65

$8.51In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$8.73In stock

Silicone Gasket

Type Gasket
Material Silicone
IP Rating IP65

$3.97In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$8.73In stock

Gpabs Enclosure

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$4.96In stock

Heavy Duty Plastic Box

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$4.96In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Black
IP Rating IP65

$9.55In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Light Gray
IP Rating IP65

$9.55In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$10.40In stock

Silicone Gasket

Type Gasket
Material Silicone
IP Rating IP65

$4.32In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$10.40In stock

Gpabs Enclosure

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$5.30In stock

Heavy Duty Plastic Box

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$5.30In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Black
IP Rating IP65

$11.28In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Light Gray
IP Rating IP65

$11.28In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$12.82In stock

Silicone Gasket

Type Gasket
Material Silicone
IP Rating IP65

$5.97In stock

ABS PC Mnt Bxs&Ld

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$12.82In stock

Gpabs Case & Lid

Type Thick wall, general purpose
Material ABS Plastic
Color Black
IP Rating IP54

$6.86In stock

Heavy Duty Plastic Box

Type Thick wall, general purpose
Material ABS Plastic
Color Light Gray
IP Rating IP54

$6.86In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Black
IP Rating IP65

$13.44In stock

Watertight ABS Pcmnt Box And L

Type Thick wall, water-tight
Material ABS Plastic
Color Light Gray
IP Rating IP65

$13.44In stock

Dimension tables (inches / mm)

Part Numbers

Flame Retardant ABS Plastic · Black (Part No.)	Flame Retardant ABS Plastic · Gray (Part No.)	Economy ABS Plastic · Black (Part No.)	Economy ABS Plastic · Gray (Part No.)	Water-Tight Flame Retardant ABS · Black (Part No.)	Water-Tight Flame Retardant ABS · Gray (Part No.)	Length (mm)	Width (mm)	Depth (mm)	Replacement · Gaskets (Part No.)	Price	Order

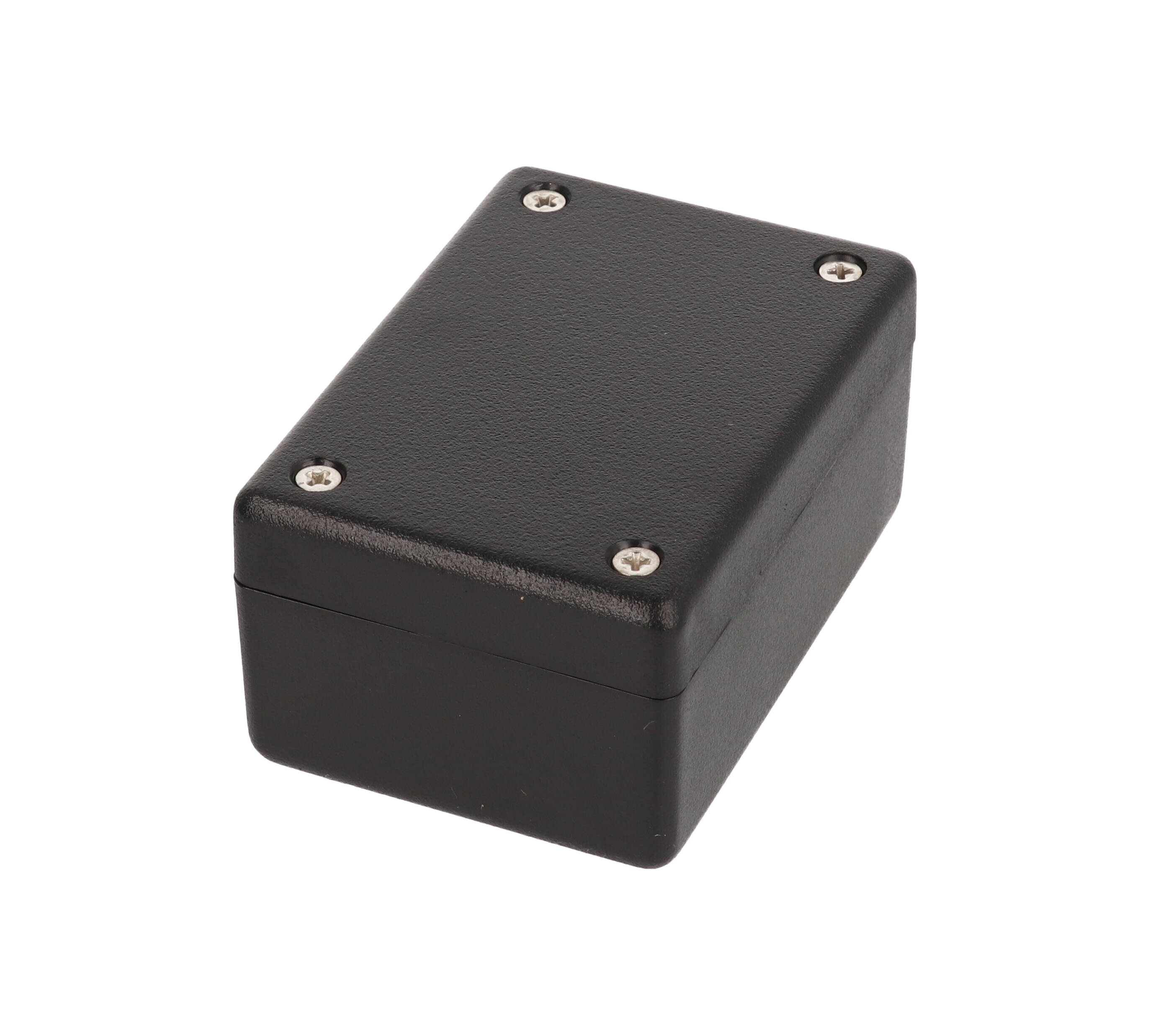

1594ABK	1594AGY	1594ASBK	1594ASGY	1594AWBK	1594AWGY	56	56	40	1594AGASKET	$6.80In stock1594ABK	Buy now

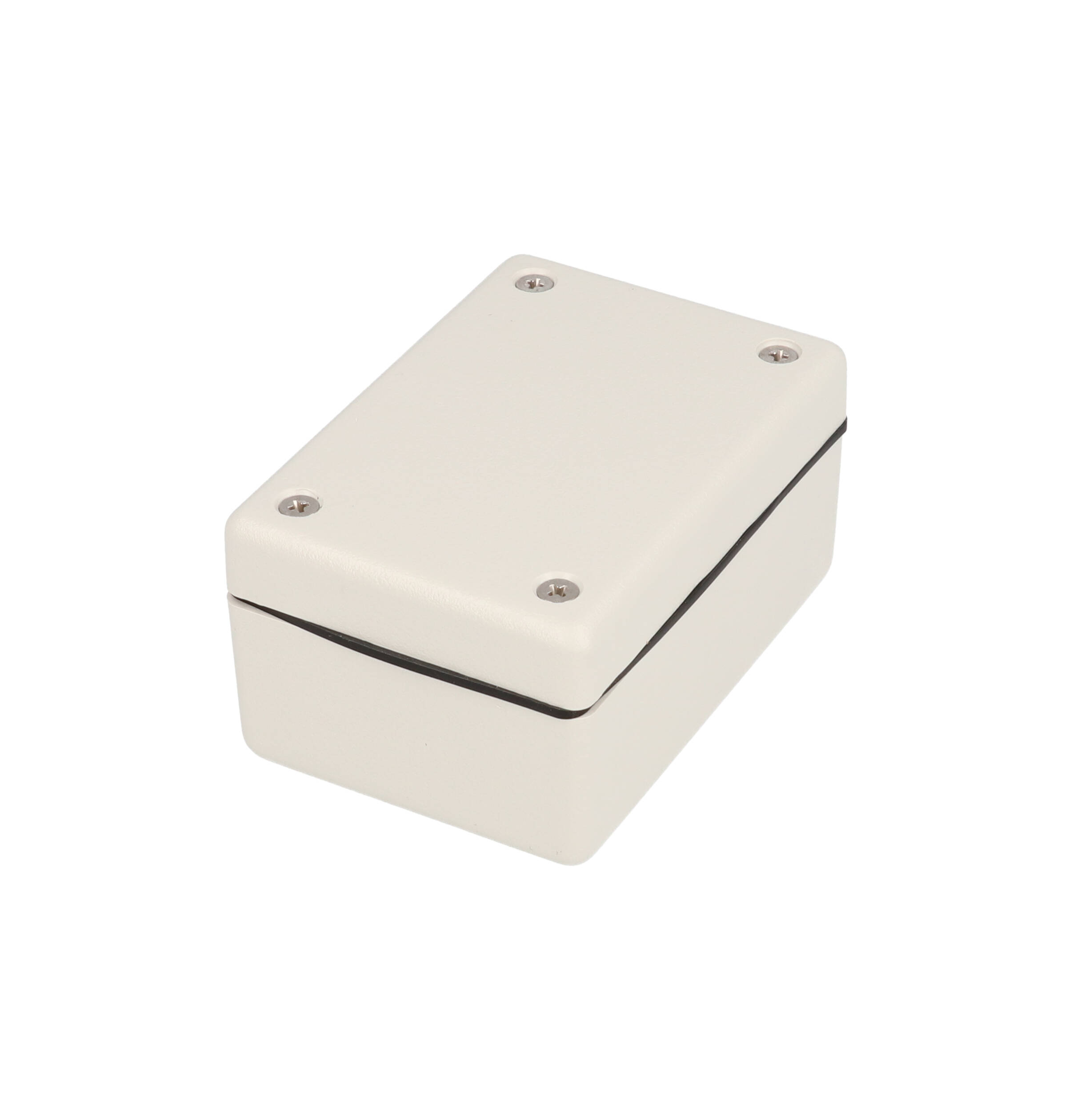

1594BBK	1594BGY	1594BSBK	1594BSGY	1594BWBK	1594BWGY	81	56	40	1594BGASKET	$7.12In stock1594BBK	Buy now

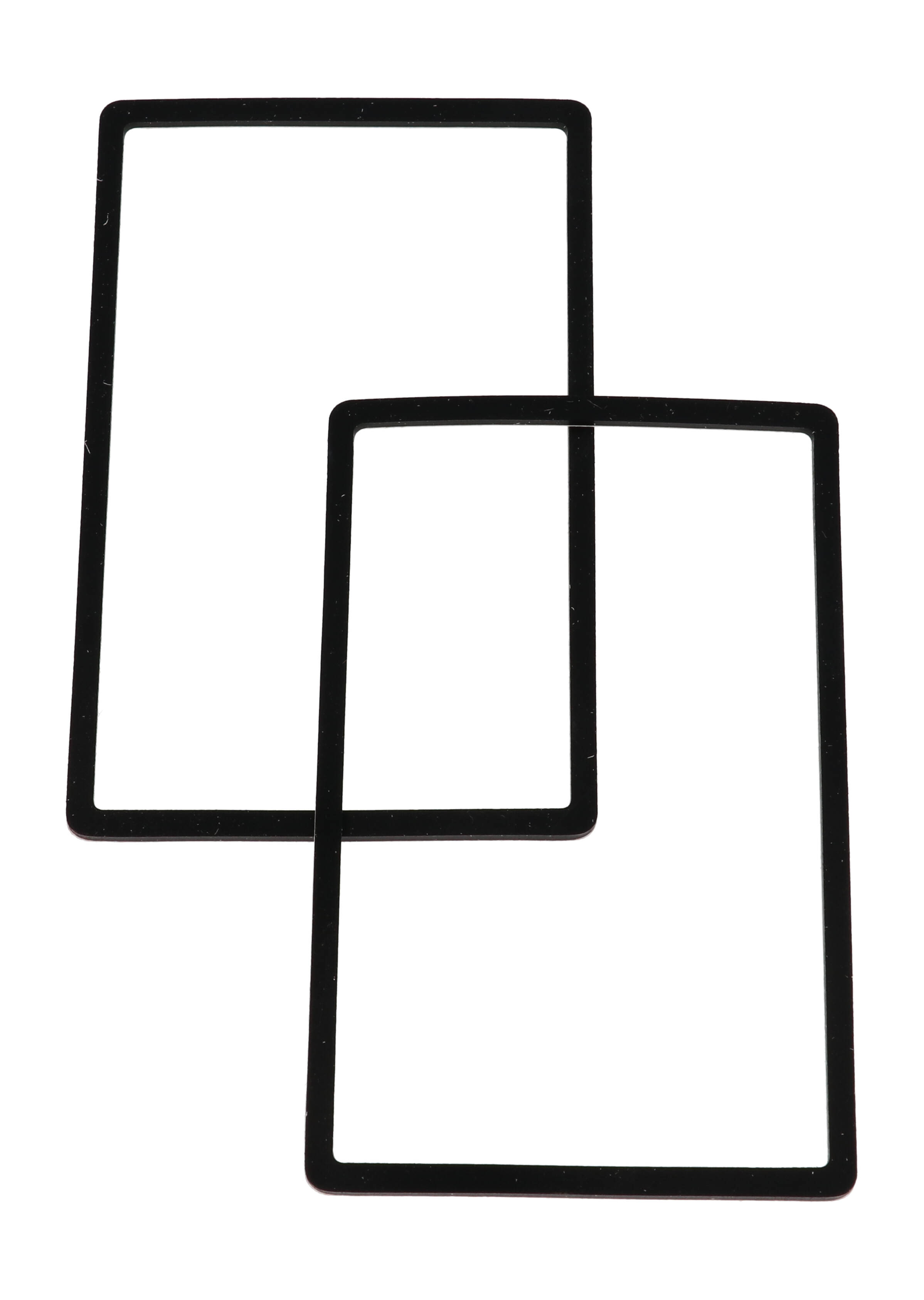

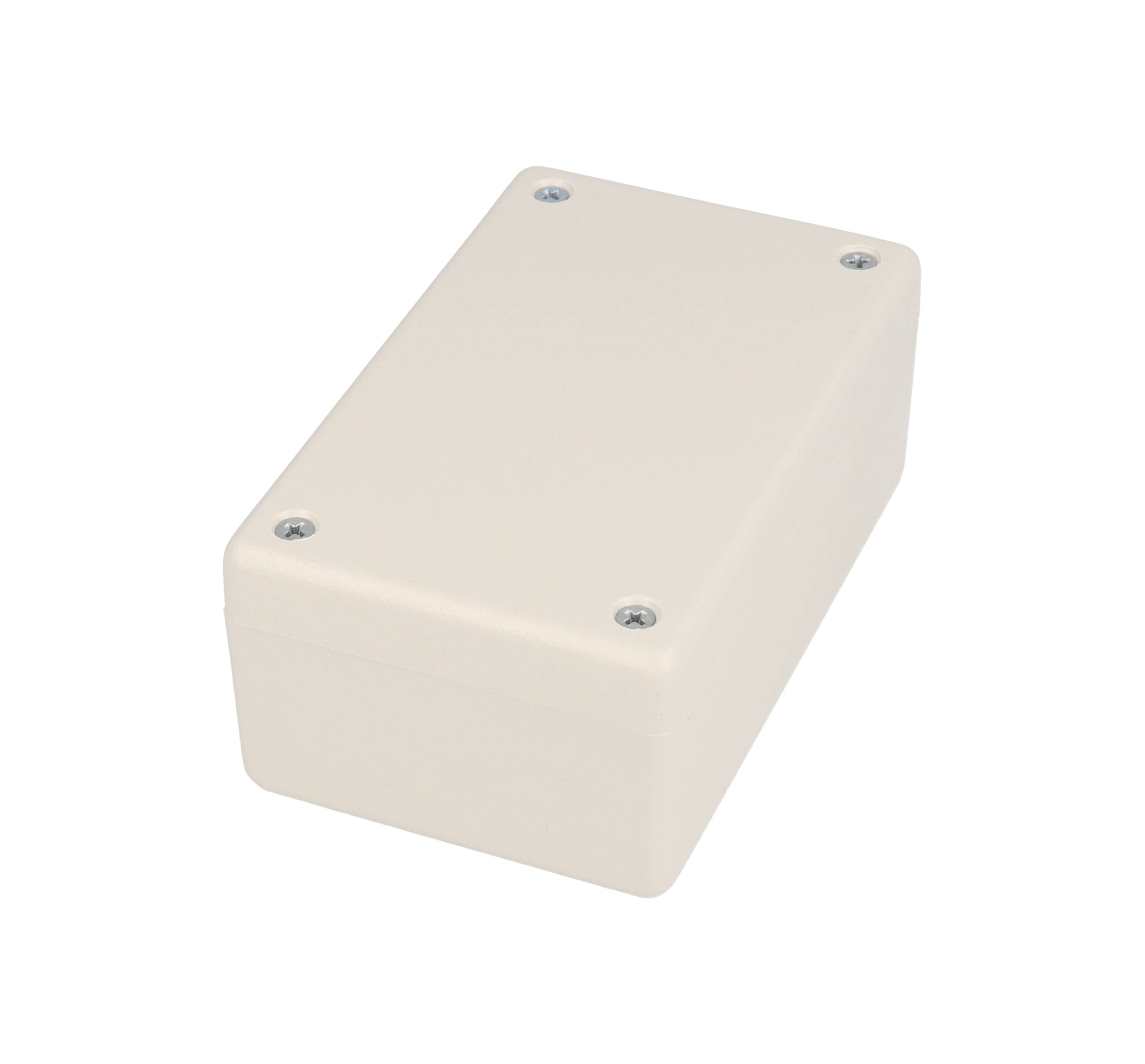

1594CBK	1594CGY	1594CSBK	1594CSGY	1594CWBK	1594CWGY	106.5	66	45	1594CGASKET	$8.73In stock1594CBK	Buy now

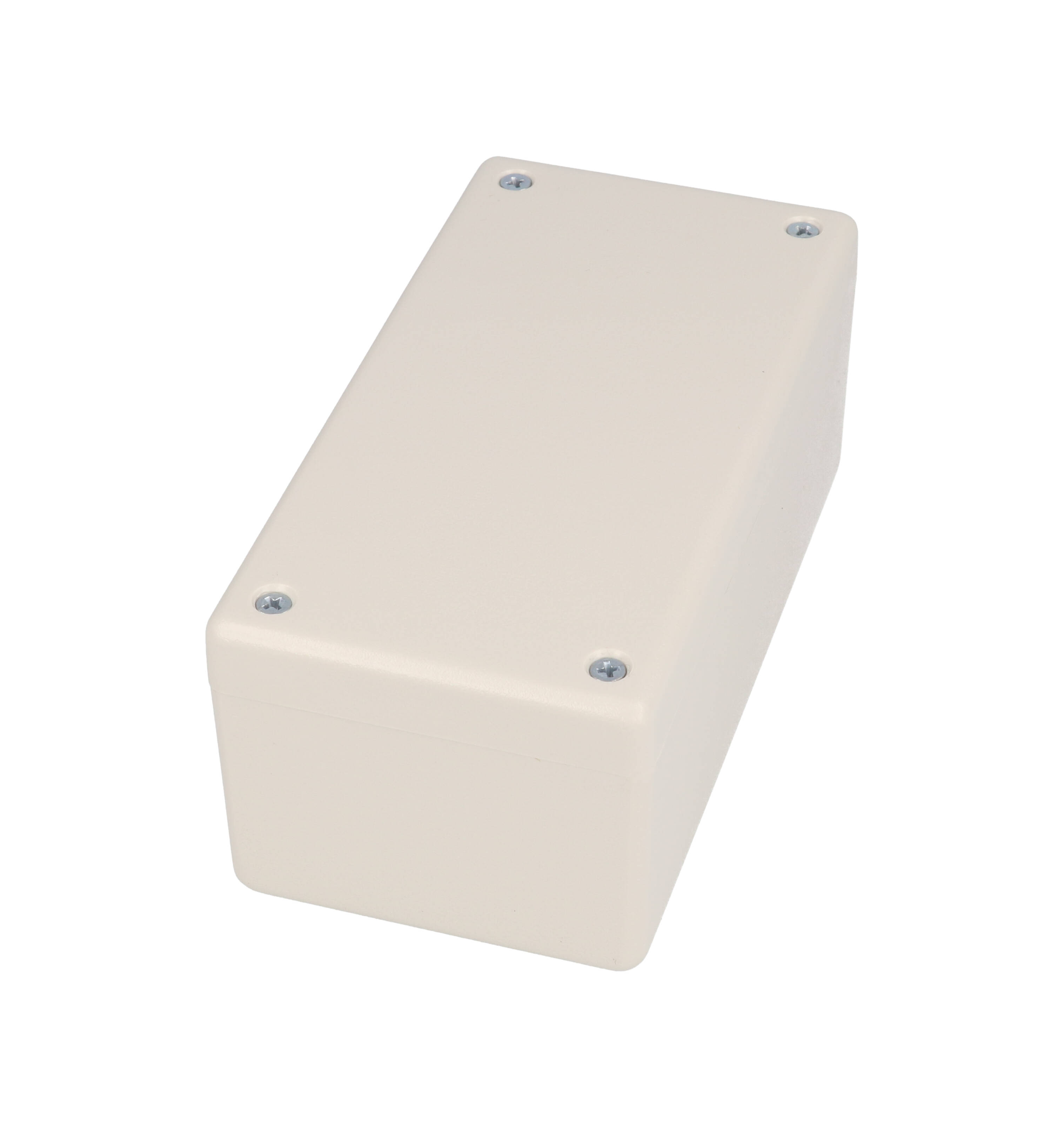

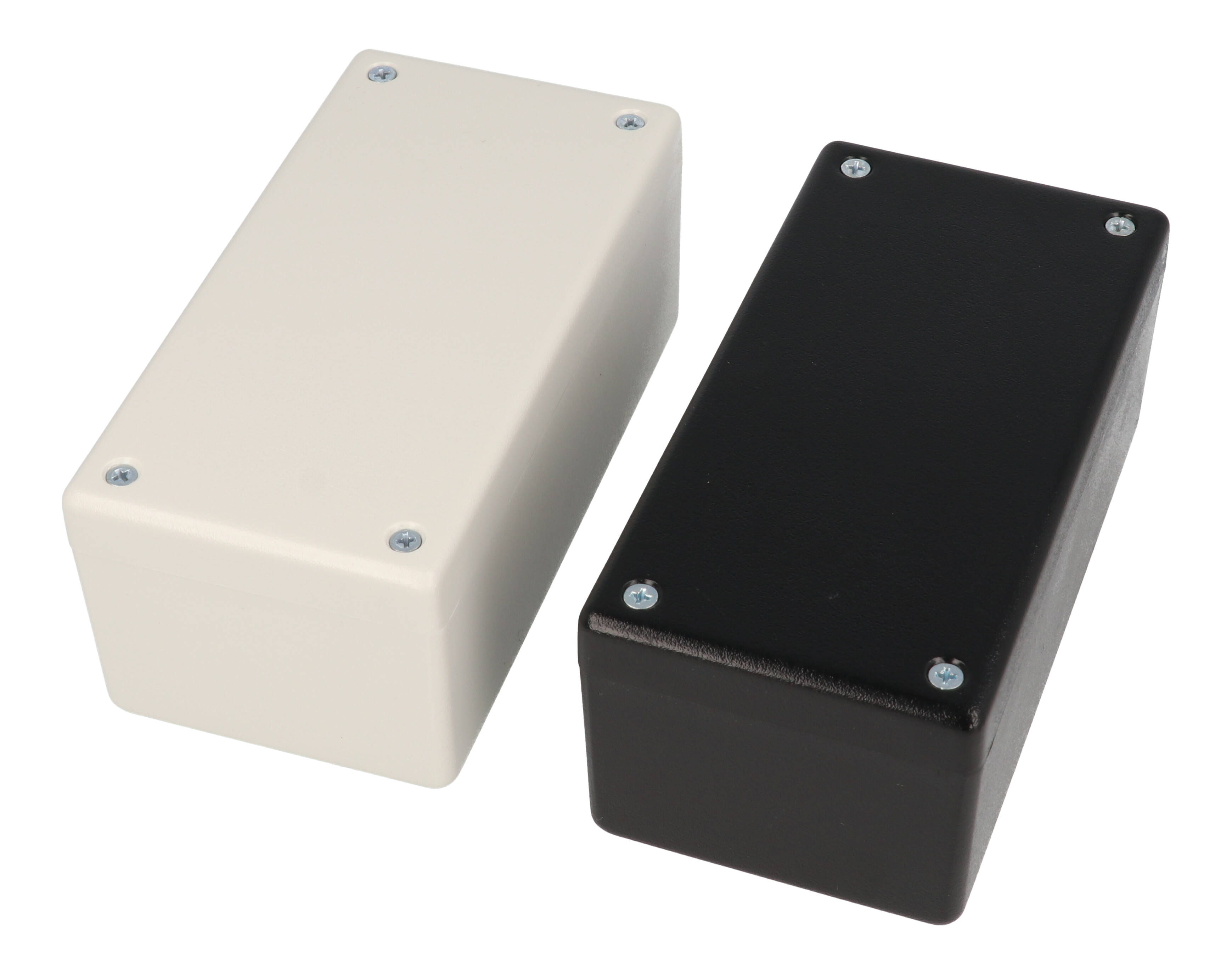

1594DBK	1594DGY	1594DSBK	1594DSGY	1594DWBK	1594DWGY	131.5	66	55	1594DGASKET	$10.40In stock1594DBK	Buy now

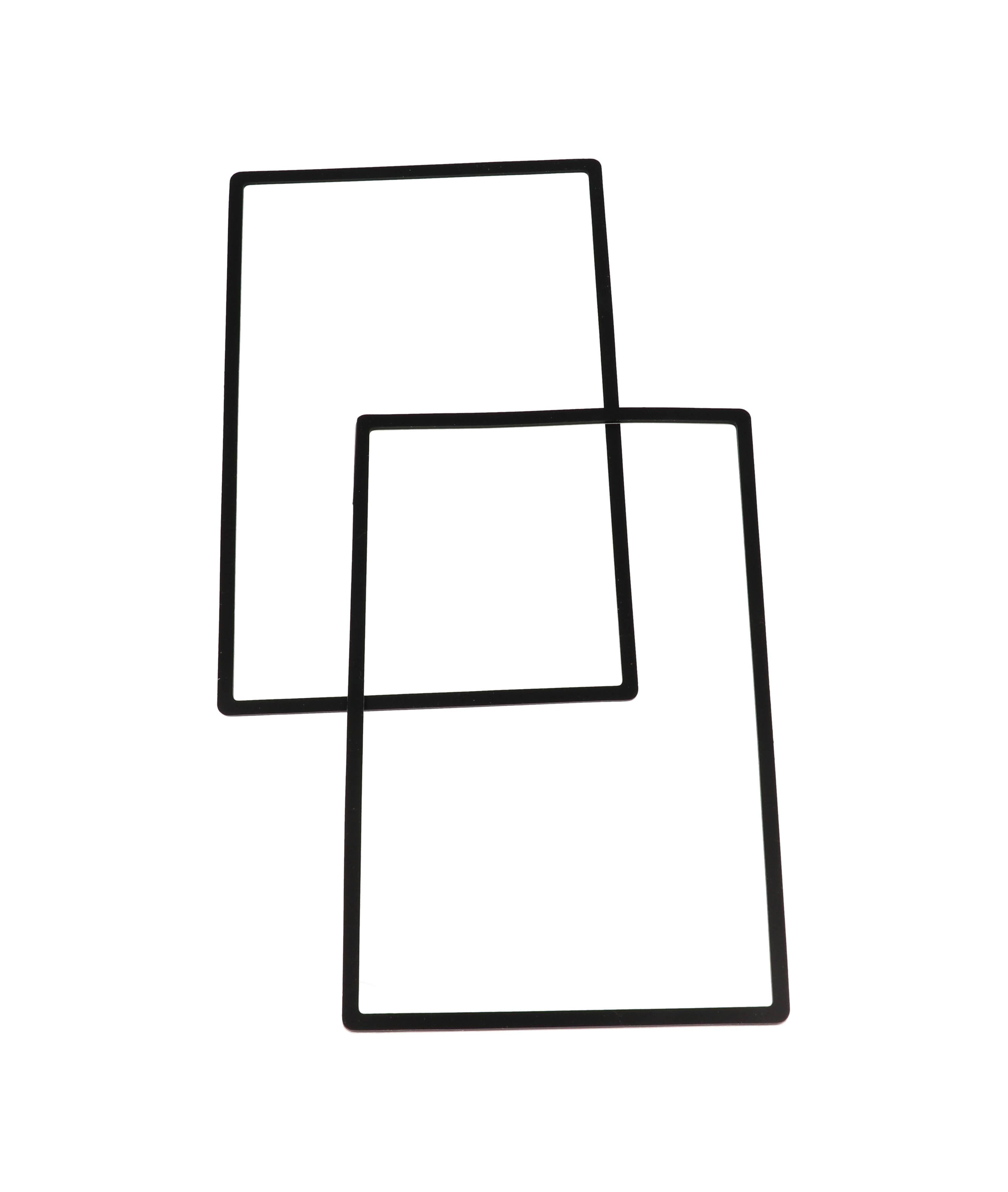

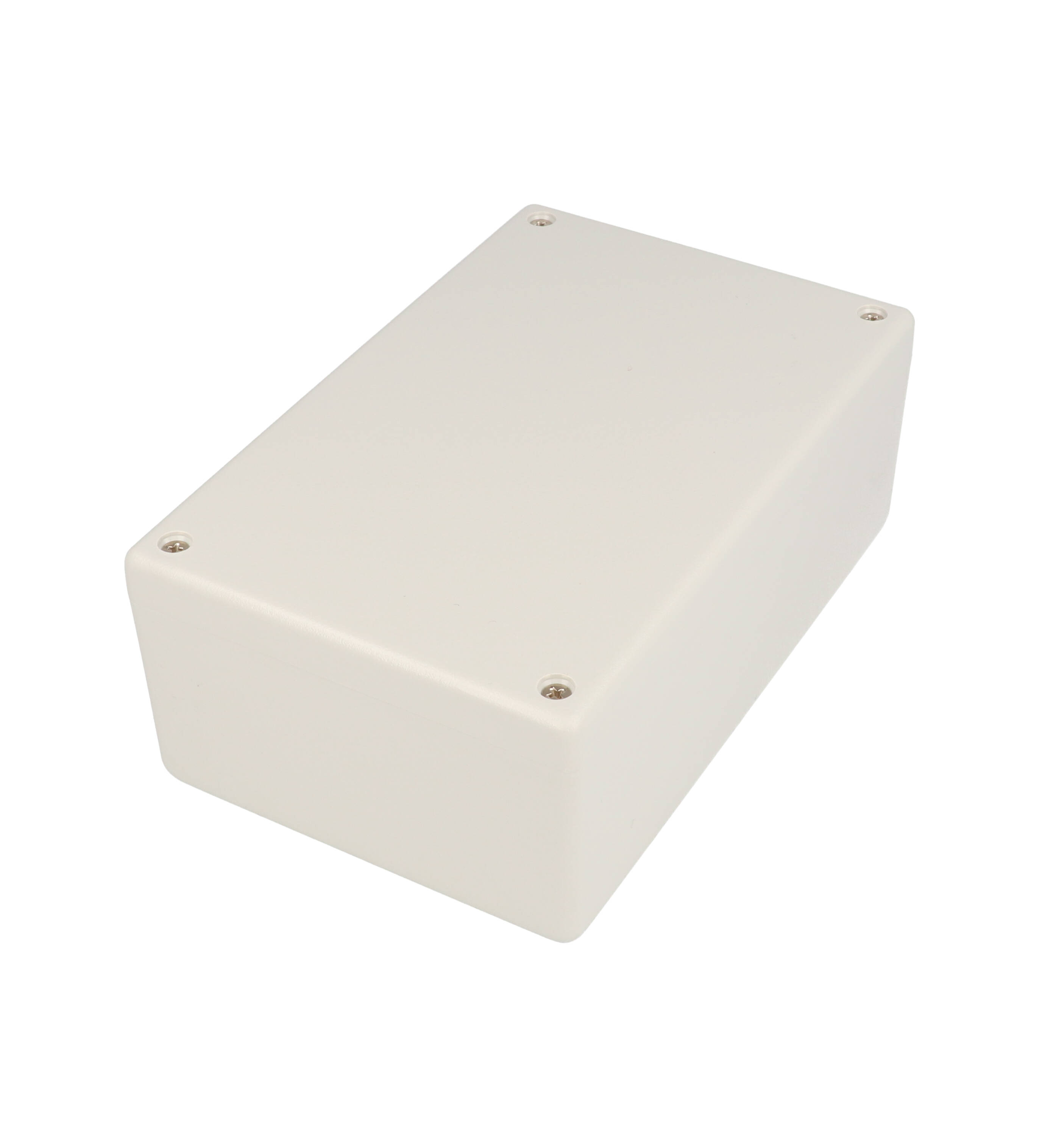

1594EBK	1594EGY	1594ESBK	1594ESGY	1594EWBK	1594EWGY	167	107	65	1594EGASKET	$12.82In stock1594EBK	Buy now

Features:

■Rugged electronic instrument enclosures ideally suited for mounting printed circuit boards.
■Heavy duty thick-wall design has an average wall thickness of 0.13” (3.3 mm).
■Stocked in black and light gray with matte textured finish.
■Standard versions are molded in flame retardant ABS plastic which carries a UL flammability rating of 94V-0.

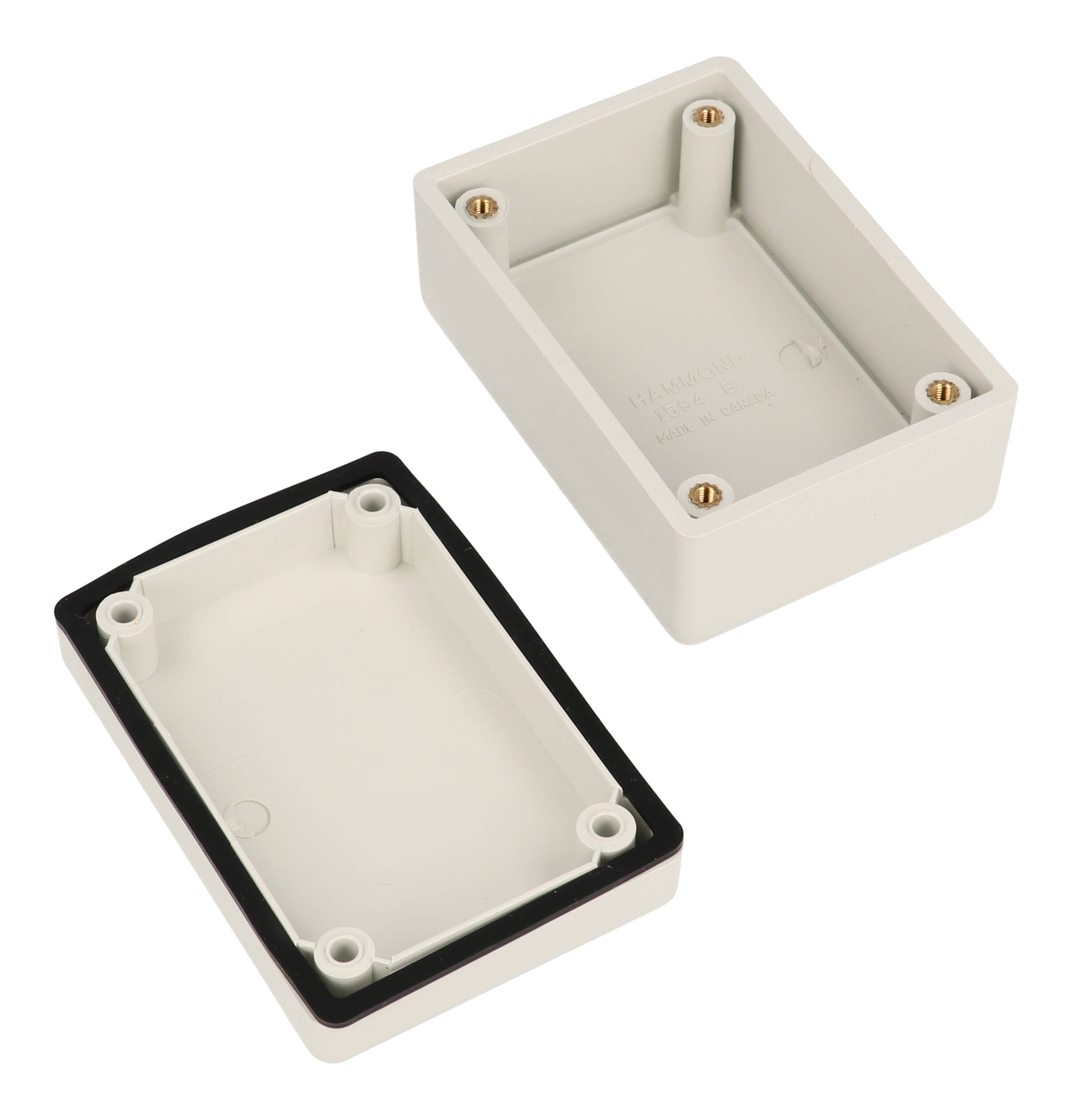

■On standard and water-tight versions, lid is secured with four M3 x 0.5 - 0.71” (18 mm) long Phillips machine screws threaded into integral brass bushings.
■Economy versions are molded in general purpose ABS plastic.
■Economy versions utilize self-tapping screws into plastic posts.

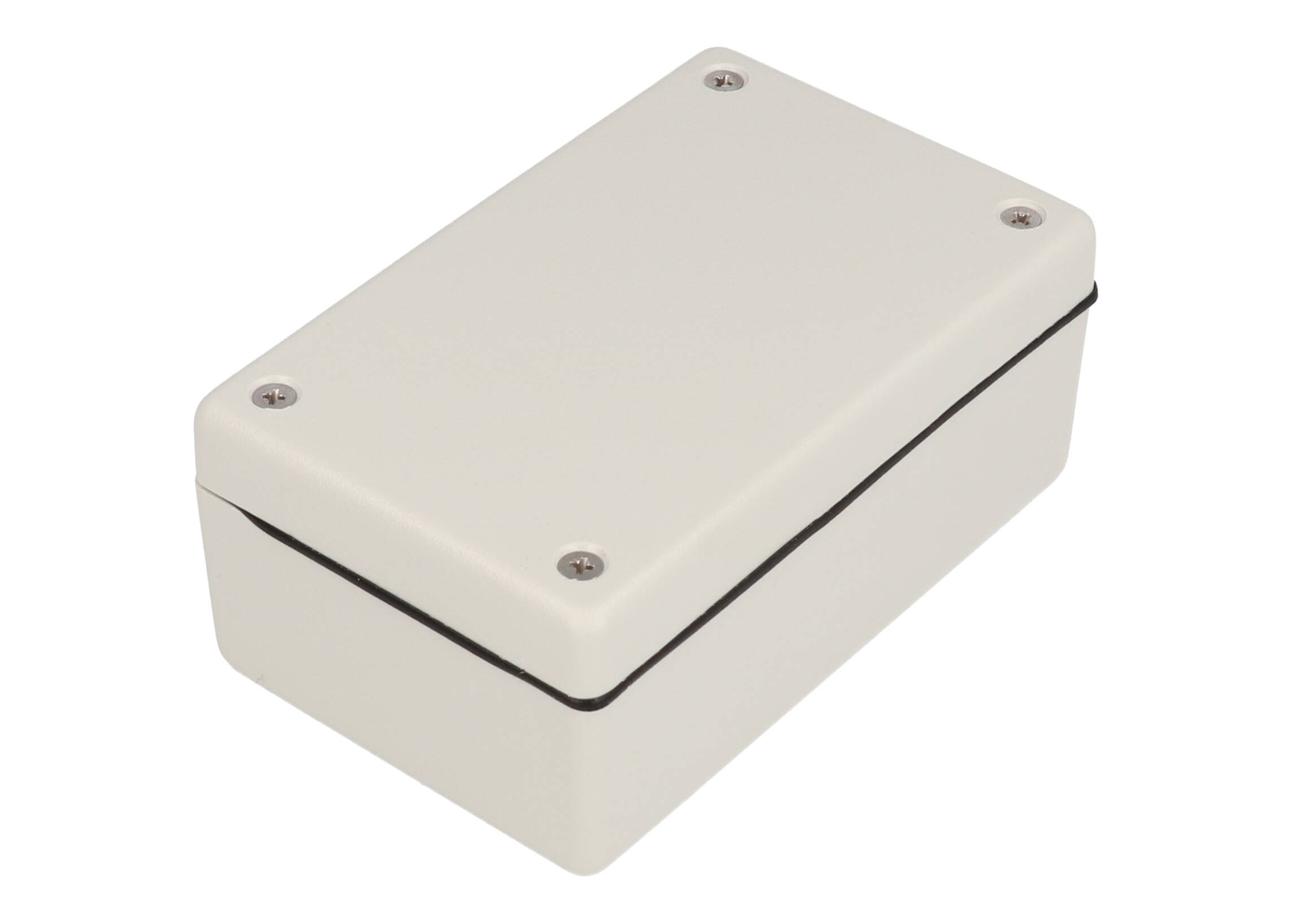

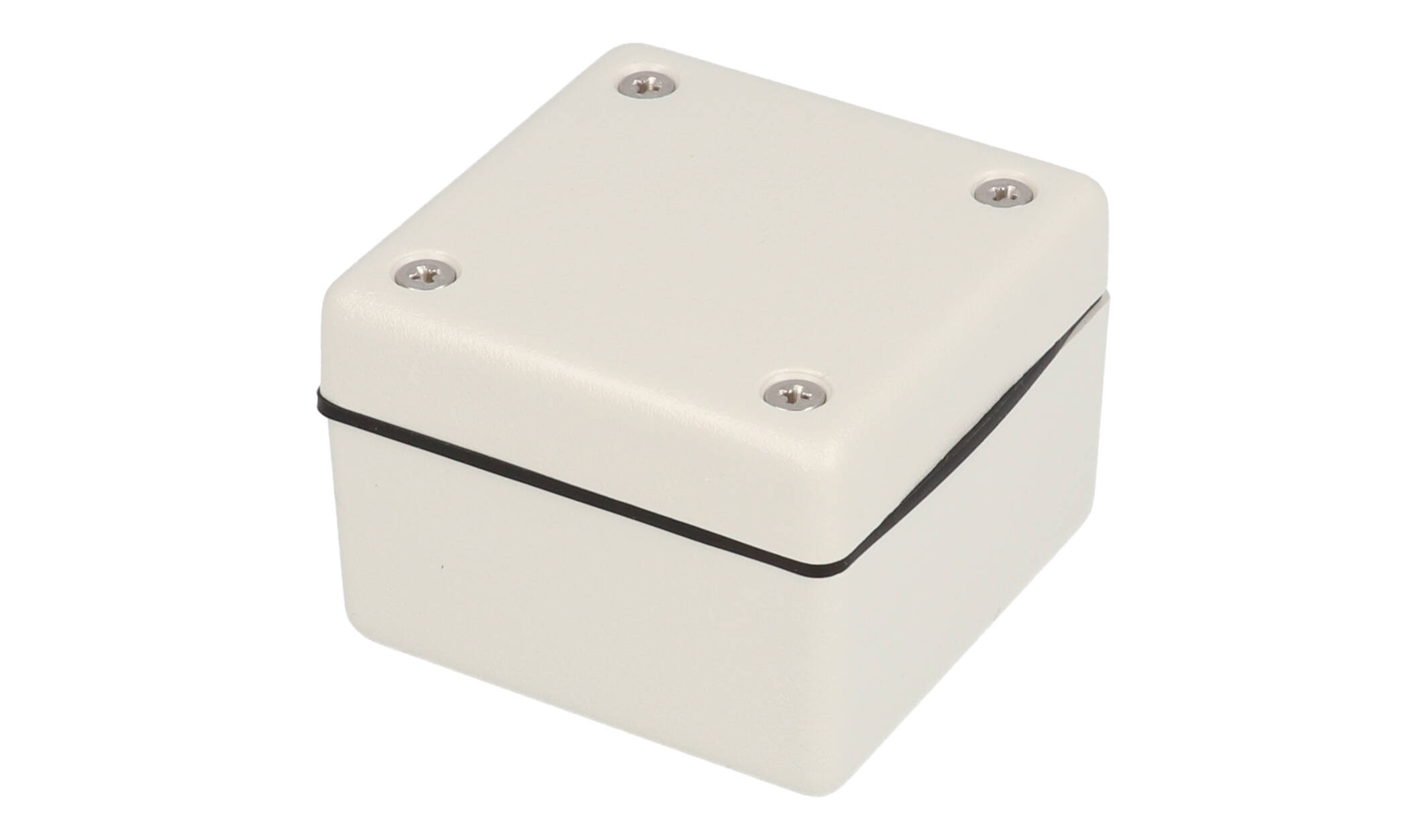

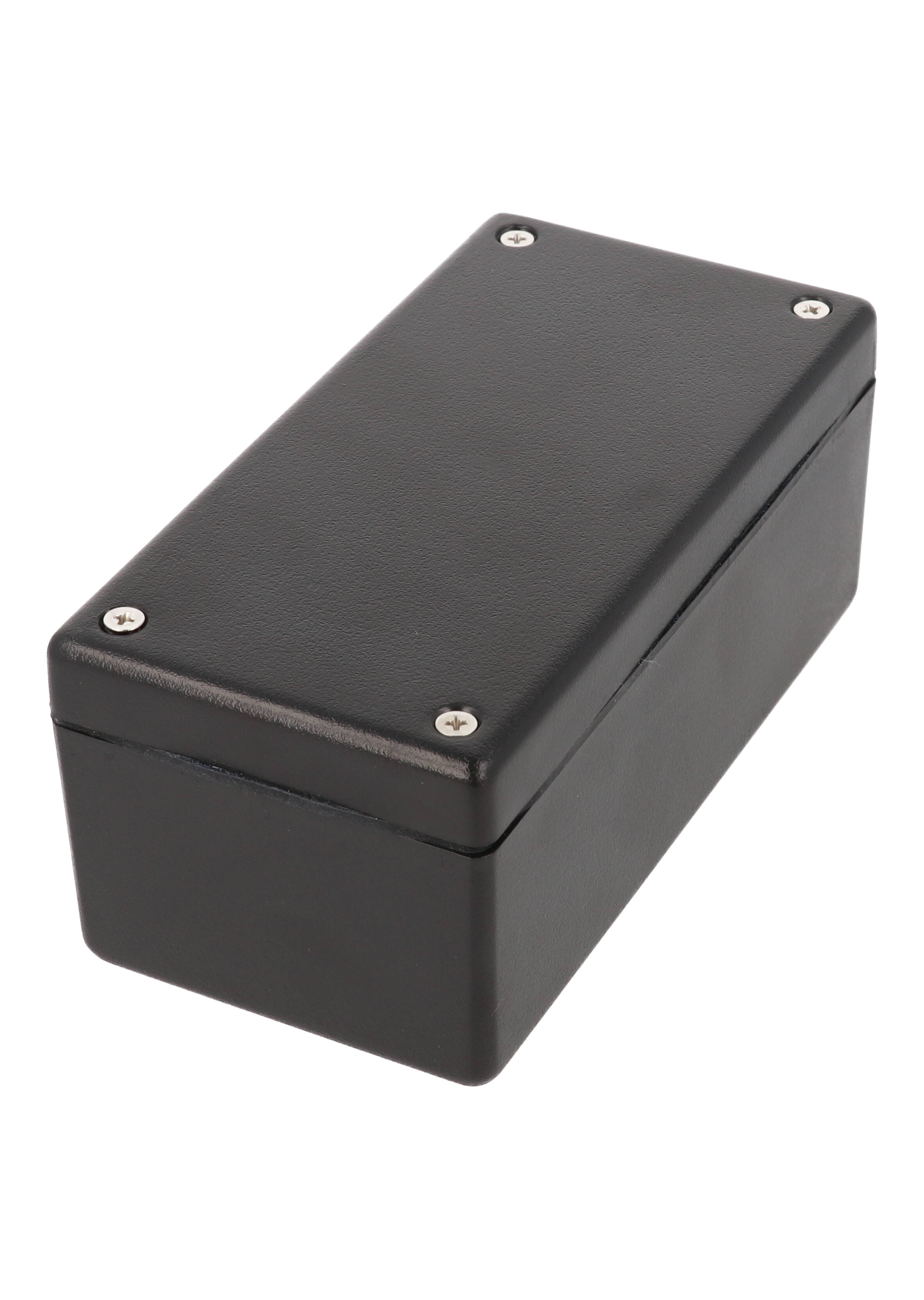

■Water-tight versions have been tested to and meet IP66 ratings.
■Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
■For EMI/ RFI shielded versions, try “ 1594RFI ” or “ 1594R. ”
■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Notes:

■Replacement machine screws for standard versions are sold in packs of 100 (part number 1594MS100 )
■Replacement self-tapping screws for economy versions are sold in packs of 100 (part number 1594TS100 )

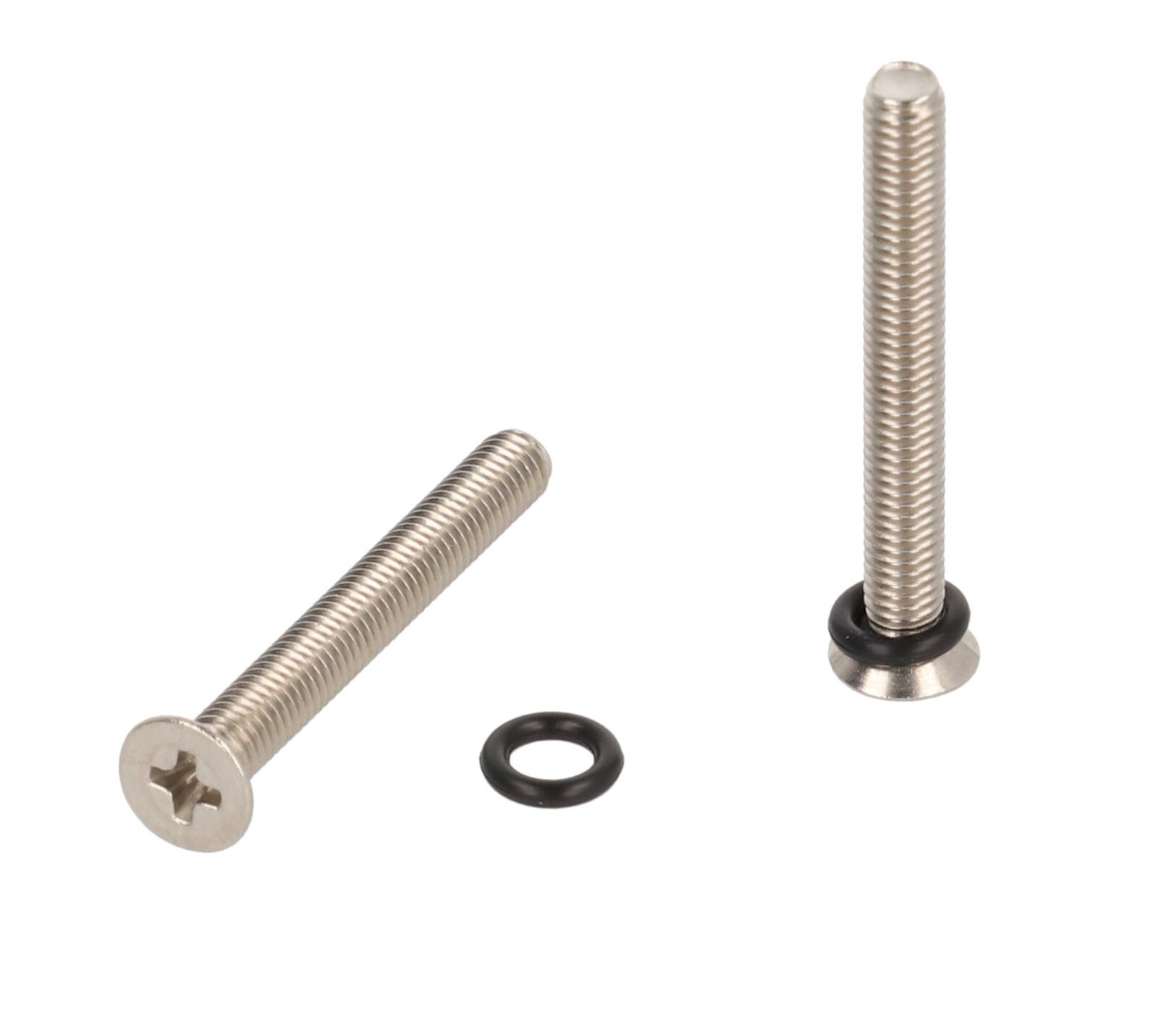

■Replacement machine screws with o-rings for water-tight versions are sold in packs of 100 (part number 1594WMS100 )
