1591A Transparent Blue
- Color Trans. Blue
$4.96In stock
Buy now

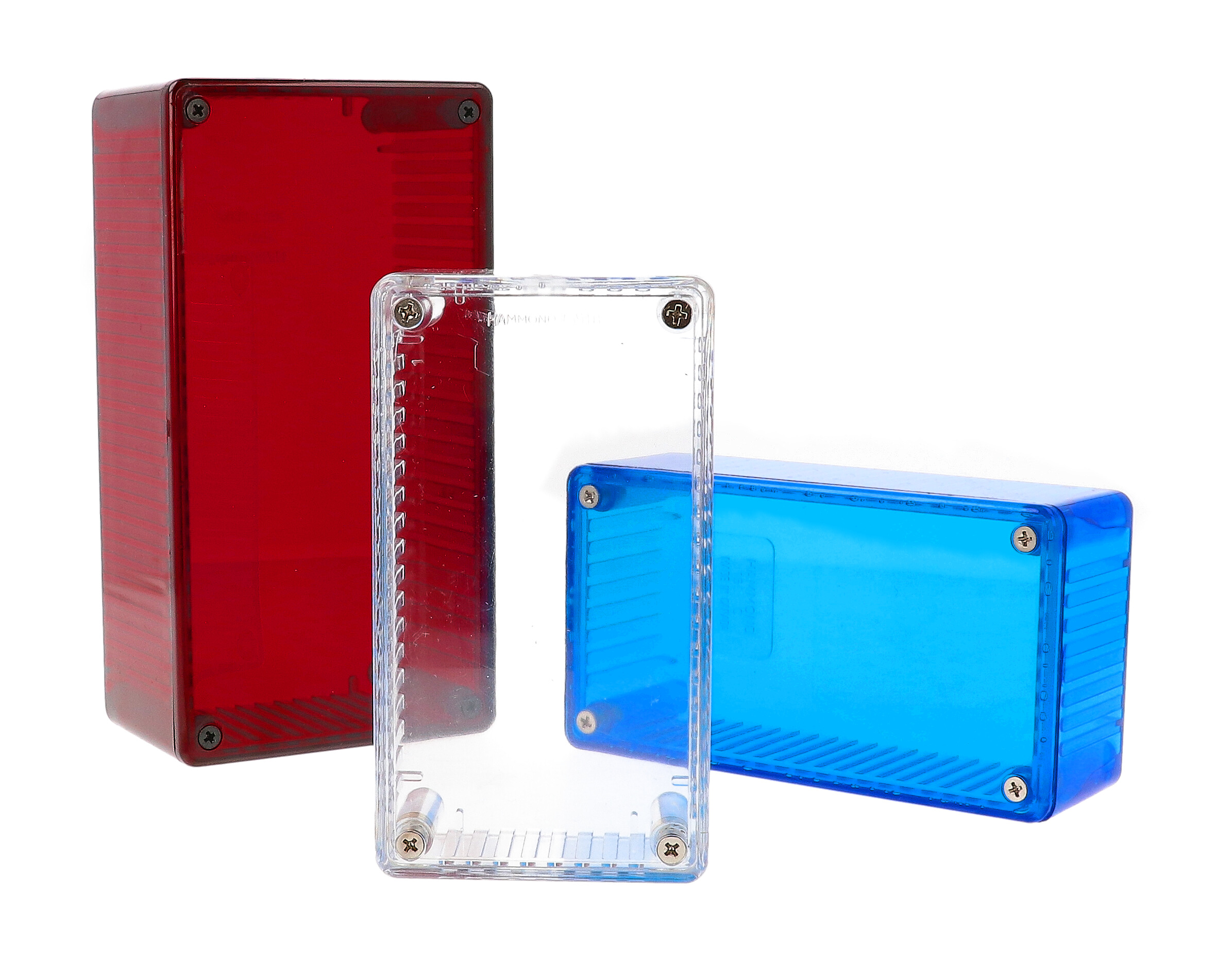

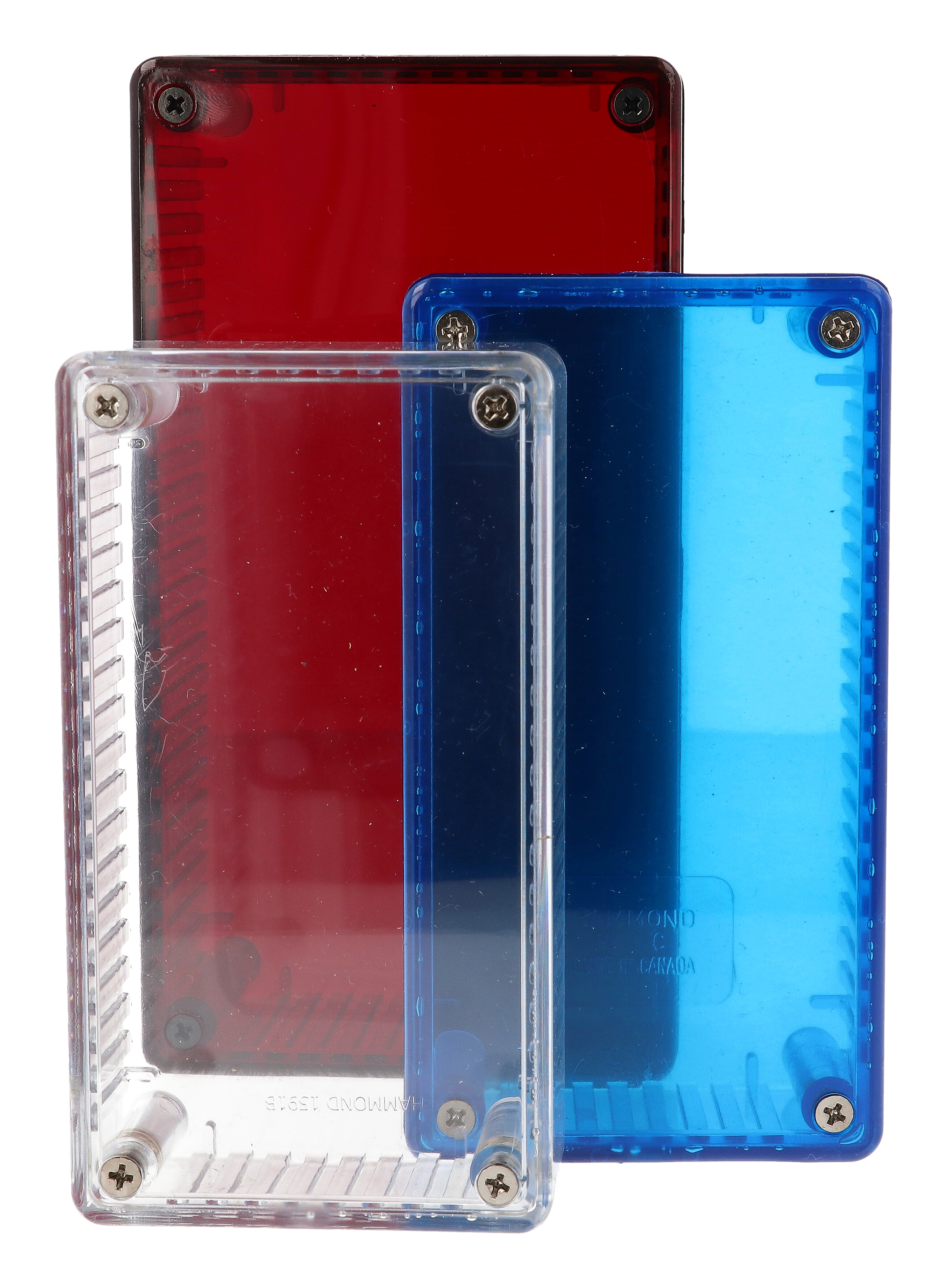

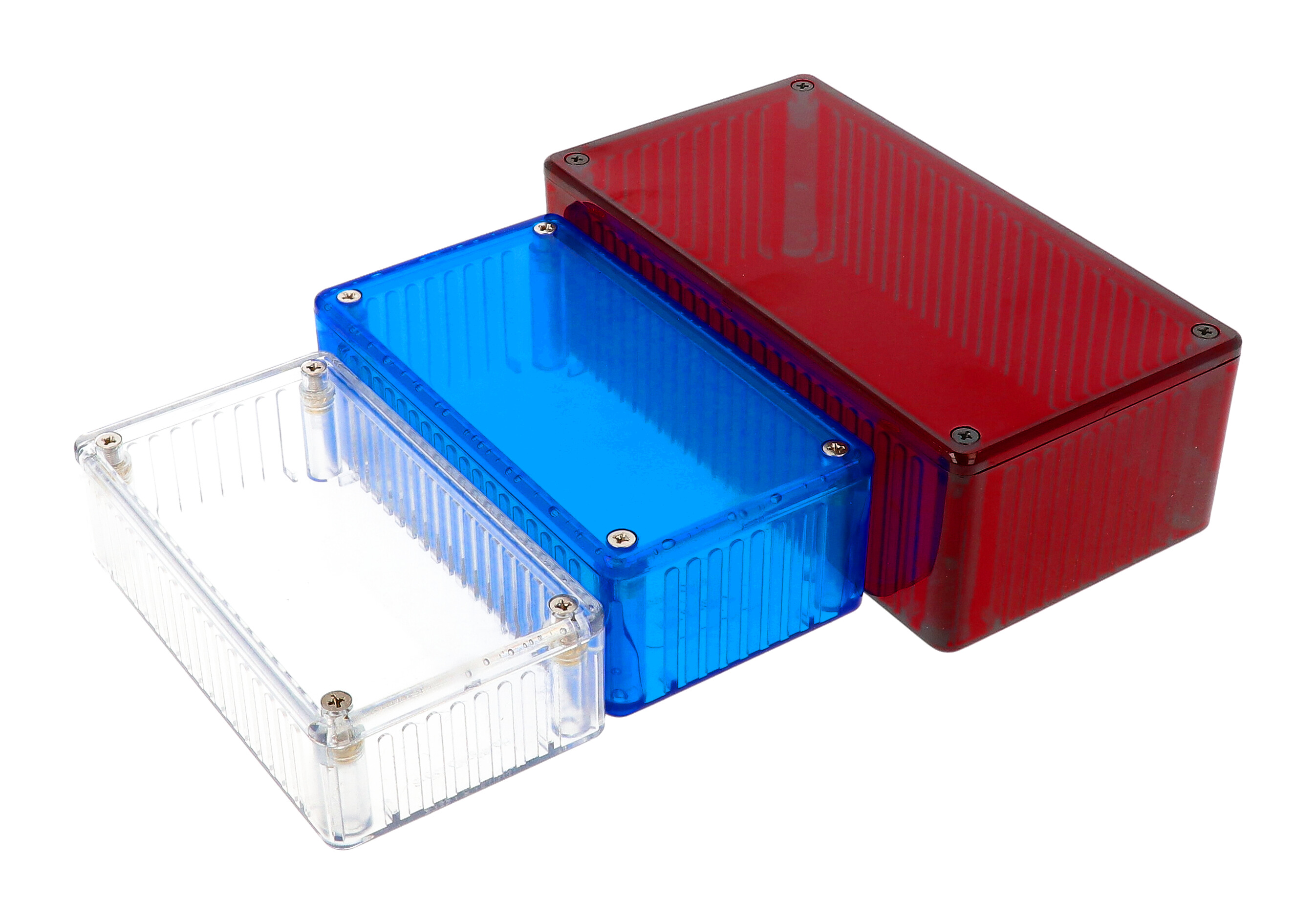

Clear Plastic Enclosures for Electronics · 1591T Series
Brand: Hammond Manufacturing · 18 part numbers
General Purpose w/ Card Guide
- ■Ideally suited for mounting printed circuit boards.
- ■Perfect for applications where parts, sensors, or indicators need to be visible.
- ■Ice Blue version is almost totally transparent to blue, white, and near-white LEDs, readouts, and displays.
- ■Crystal Clear version is almost totally transparent.
- ■IR Red version is almost totally transparent to infrared devices.
- ■Integral card guides accept 1.5 mm (0.062”) PC cards.
from $4.96
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1591T Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
1591A Clear Polycarb
- Color Clear
$4.96In stock
Buy now
1591A Transp Red
- Color Trans. Red
$4.96In stock
Buy now
1591B Transparent Blue
- Color Trans. Blue
$5.80In stock
Buy now
1591B Clear Polycarbonate
- Color Clear
$5.80In stock
Buy now
1591B Transp Red
- Color Trans. Red
$5.80In stock
Buy now
1591C Transparent Blue
- Color Trans. Blue
$7.85In stock
Buy now
1591C Clear Polycarbonate
- Color Clear
$7.85In stock
Buy now
1591C Transp Red
- Color Trans. Red
$7.85In stock
Buy now

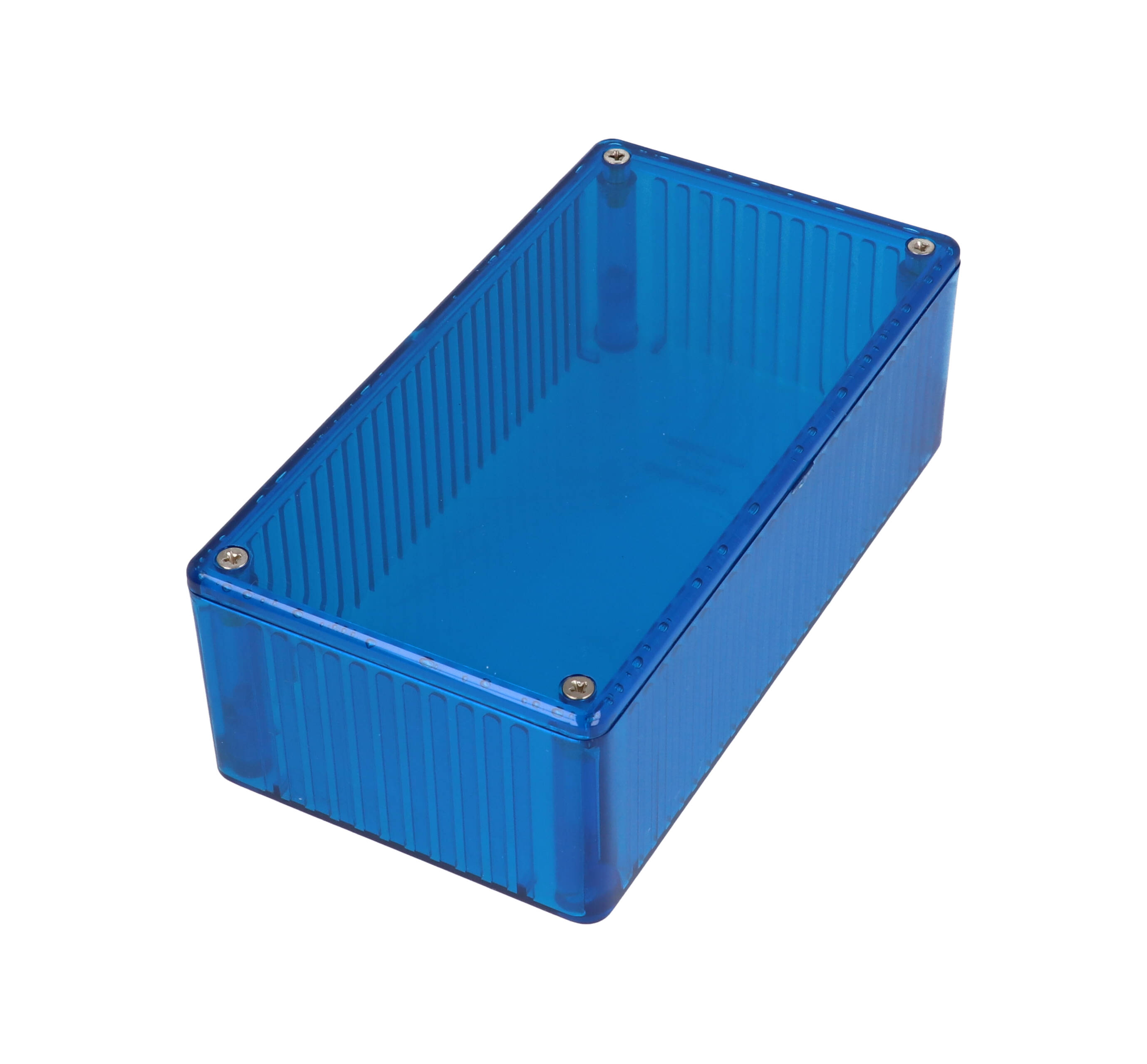

1591D Transparent Blue
- Color Trans. Blue
$9.92In stock
Buy now
1591D Clear Polycarbonate
- Color Clear
$9.92In stock
Buy now

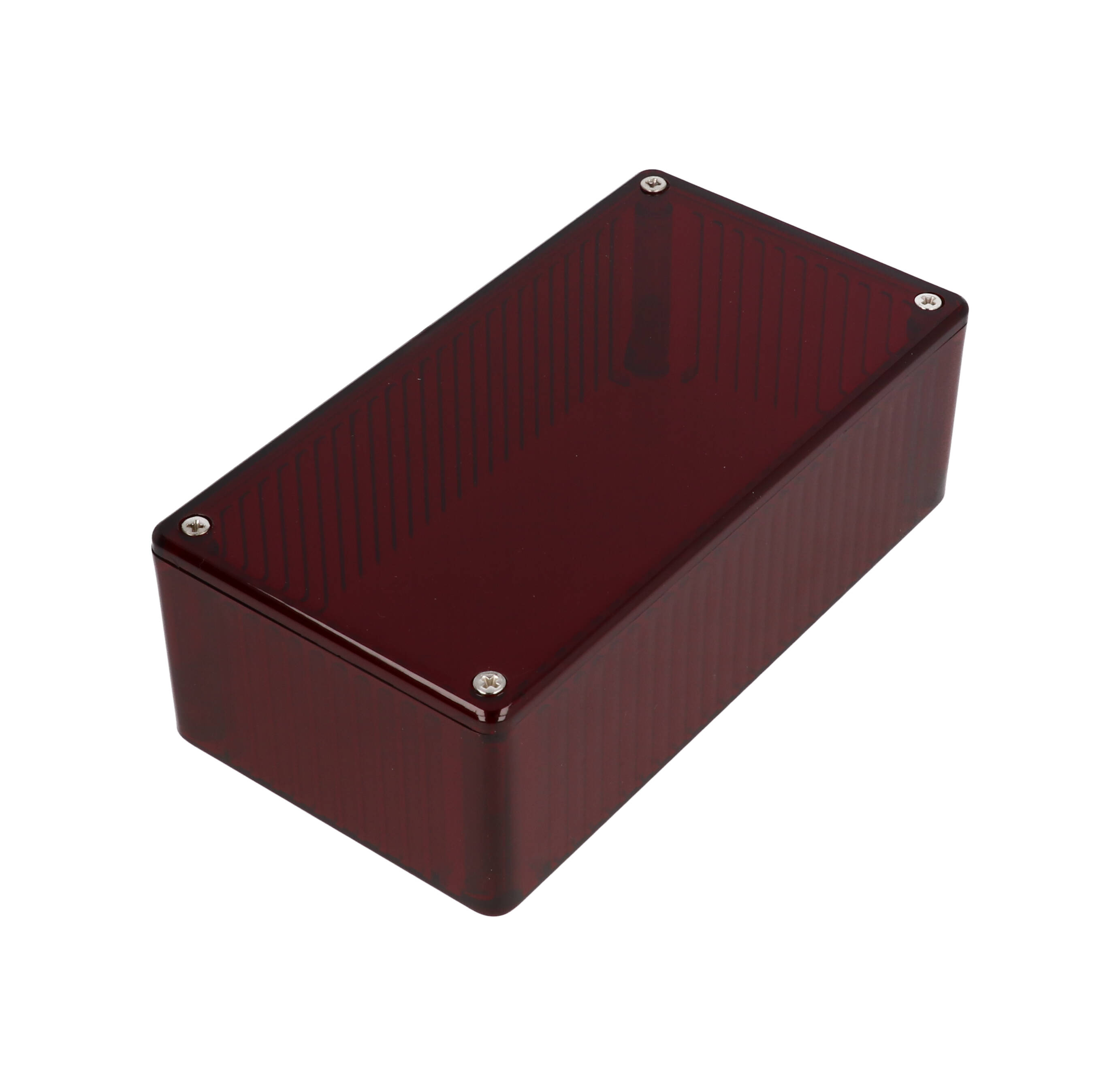

1591D Transp Red
- Color Trans. Red
$9.92In stock
Buy now
1591E Transparent Blue
- Color Trans. Blue
$14.47In stock
Buy now
1591E Clear Polycarbonate
- Color Clear
$14.47In stock
Buy now

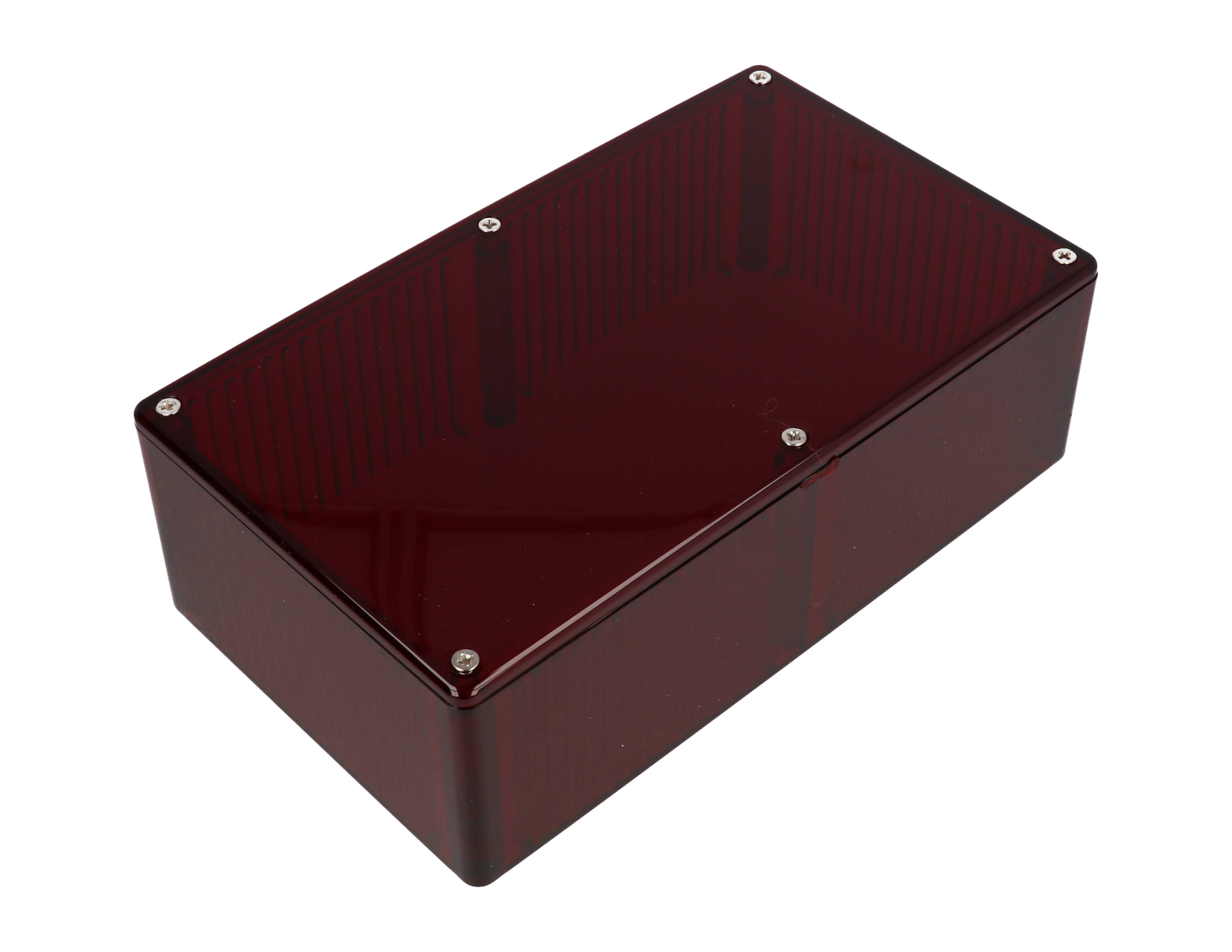

1591E Transp Red
- Color Trans. Red
$14.47In stock
Buy now
1591S Transparent Blue
- Color Trans. Blue
$8.69In stock
Buy now
1591S Transparent Clear
- Color Clear
$8.69In stock
Buy now
1591S Transp Red
- Color Trans. Red
$8.69In stock
Buy nowDimension tables (inches / mm)
Part Numbers
Units shown: mm . Switch units to: inch
| Ice Blue (Part No.) | Clear (Part No.) | IR Red (Part No.) | Length | Width | Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| 1591ATBU | 1591ATCL | 1591ATRD | 3.94 | 1.97 | 0.98 | $4.96In stock1591ATBU | Buy now |
| 1591STBU | 1591STCL | 1591STRD | 4.33 | 3.23 | 1.73 | $8.69In stock1591STBU | Buy now |
| 1591BTBU | 1591BTCL | 1591BTRD | 4.41 | 2.44 | 1.22 | $5.80In stock1591BTBU | Buy now |
| 1591CTBU | 1591CTCL | 1591CTRD | 4.72 | 2.56 | 1.57 | $7.85In stock1591CTBU | Buy now |
| 1591DTBU | 1591DTCL | 1591DTRD | 5.91 | 3.15 | 1.97 | $9.92In stock1591DTBU | Buy now |
| 1591ETBU | 1591ETCL | 1591ETRD | 7.48 | 4.37 | 2.40 | $14.47In stock1591ETBU | Buy now |
Key Features:
- ■Ideally suited for mounting printed circuit boards.
- ■Perfect for applications where parts, sensors, or indicators need to be visible.
- ■Ice Blue version is almost totally transparent to blue, white, and near-white LEDs, readouts, and displays.
- ■Crystal Clear version is almost totally transparent.
- ■IR Red version is almost totally transparent to infrared devices.
- ■Integral card guides accept 1.5 mm (0.062”) PC cards.
- ■Lap joint construction provides protection against access of dust and splashing water.
- ■Designed to meet IP54.
- ■Molded from flame retardant translucent polycarbonate that is easy to machine. Material carries a UL flammability rating of UL94 V-2.

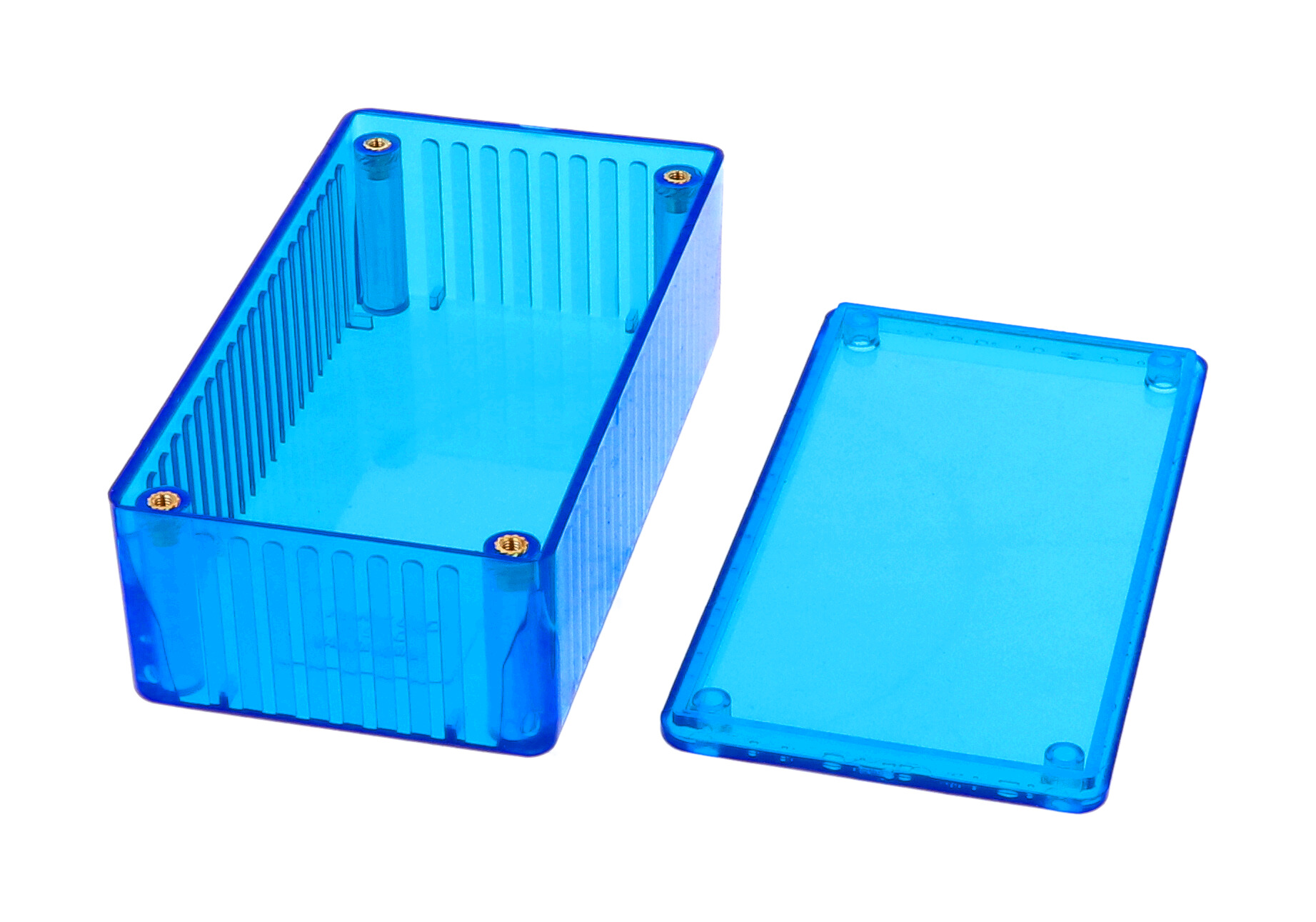

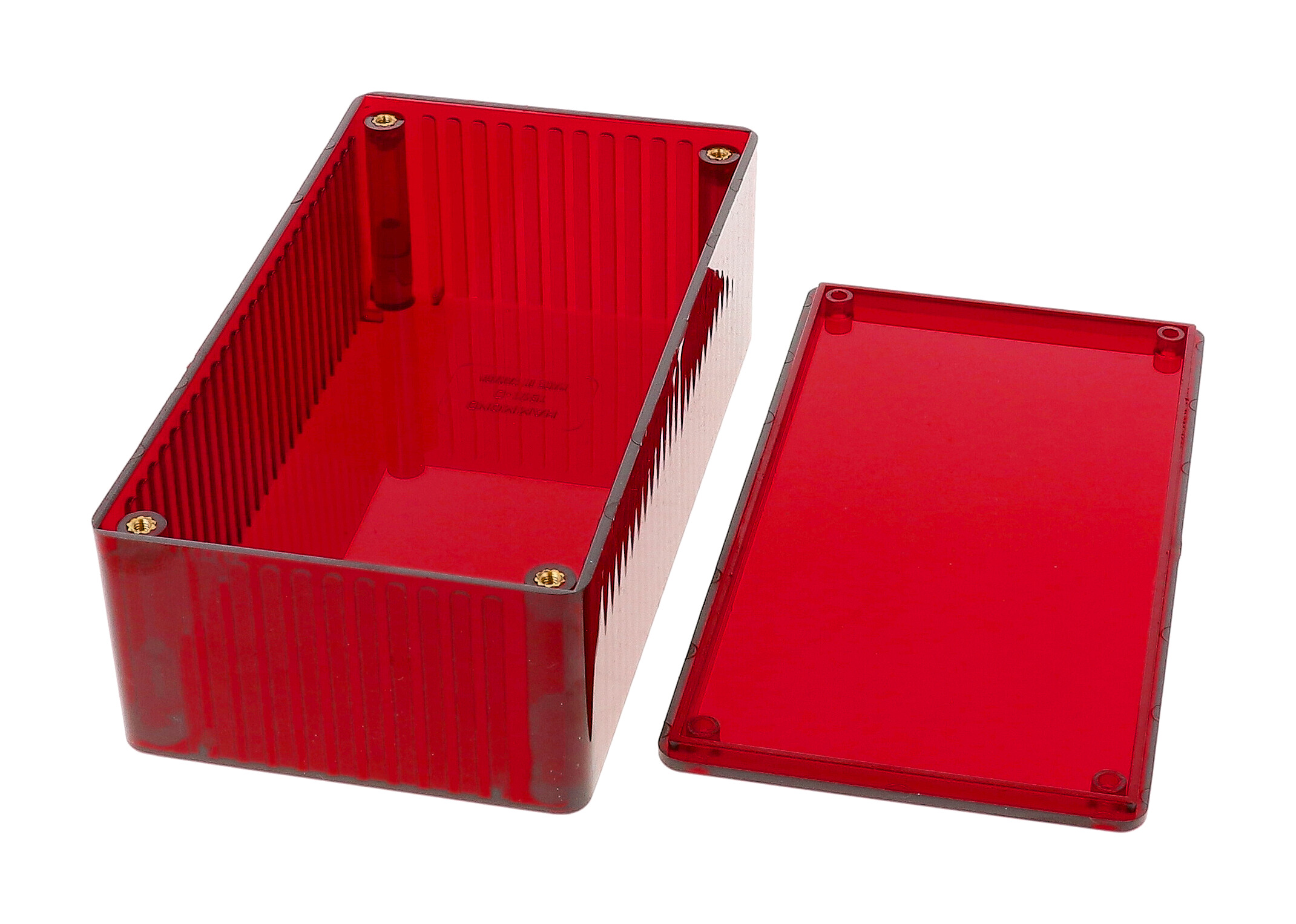

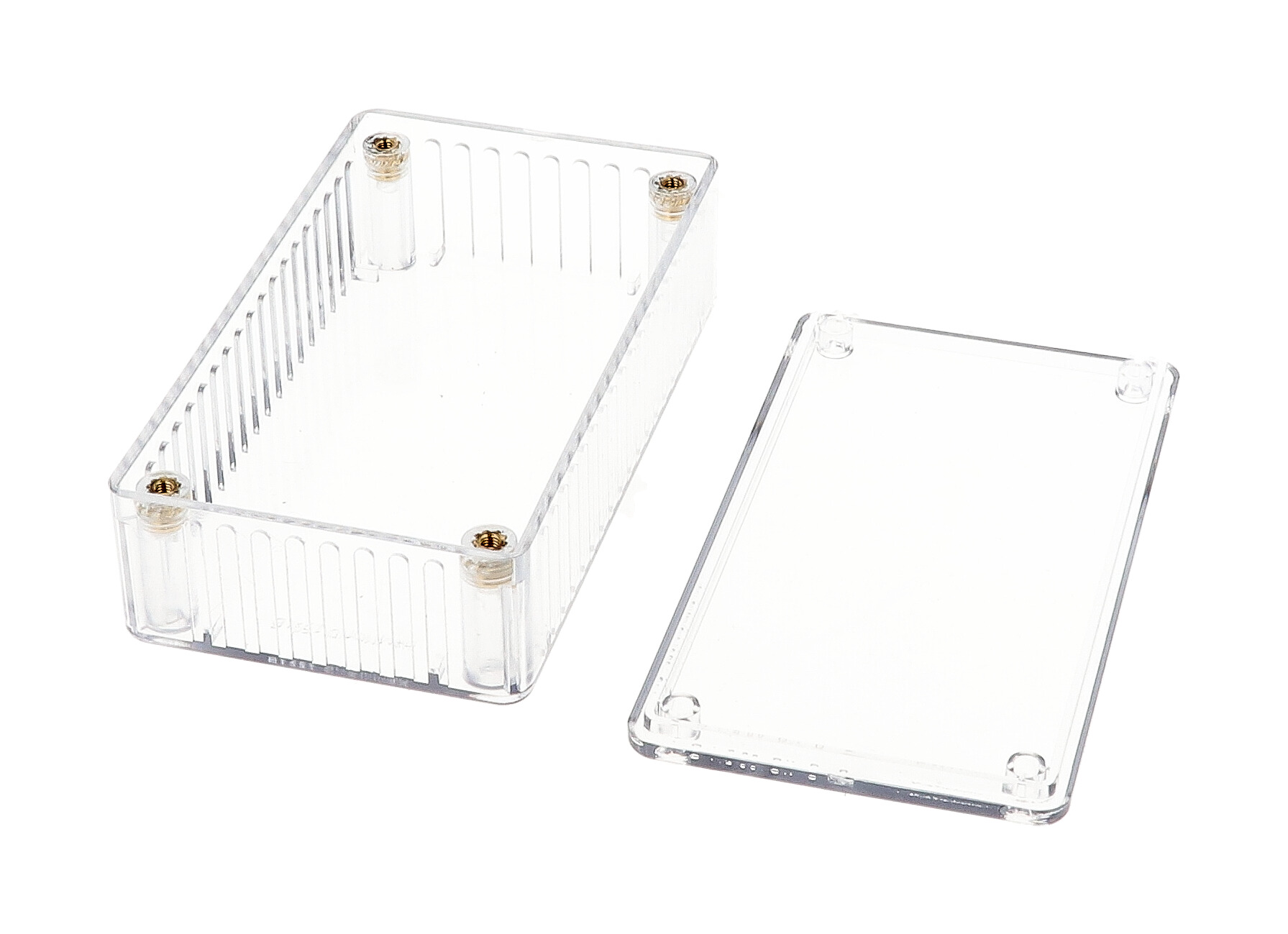

- ■Lid is secured with M3 x 10 mm phillips machine screws, threaded into integral brass bushings.
- ■For replacement screws order part number 1591MS100.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

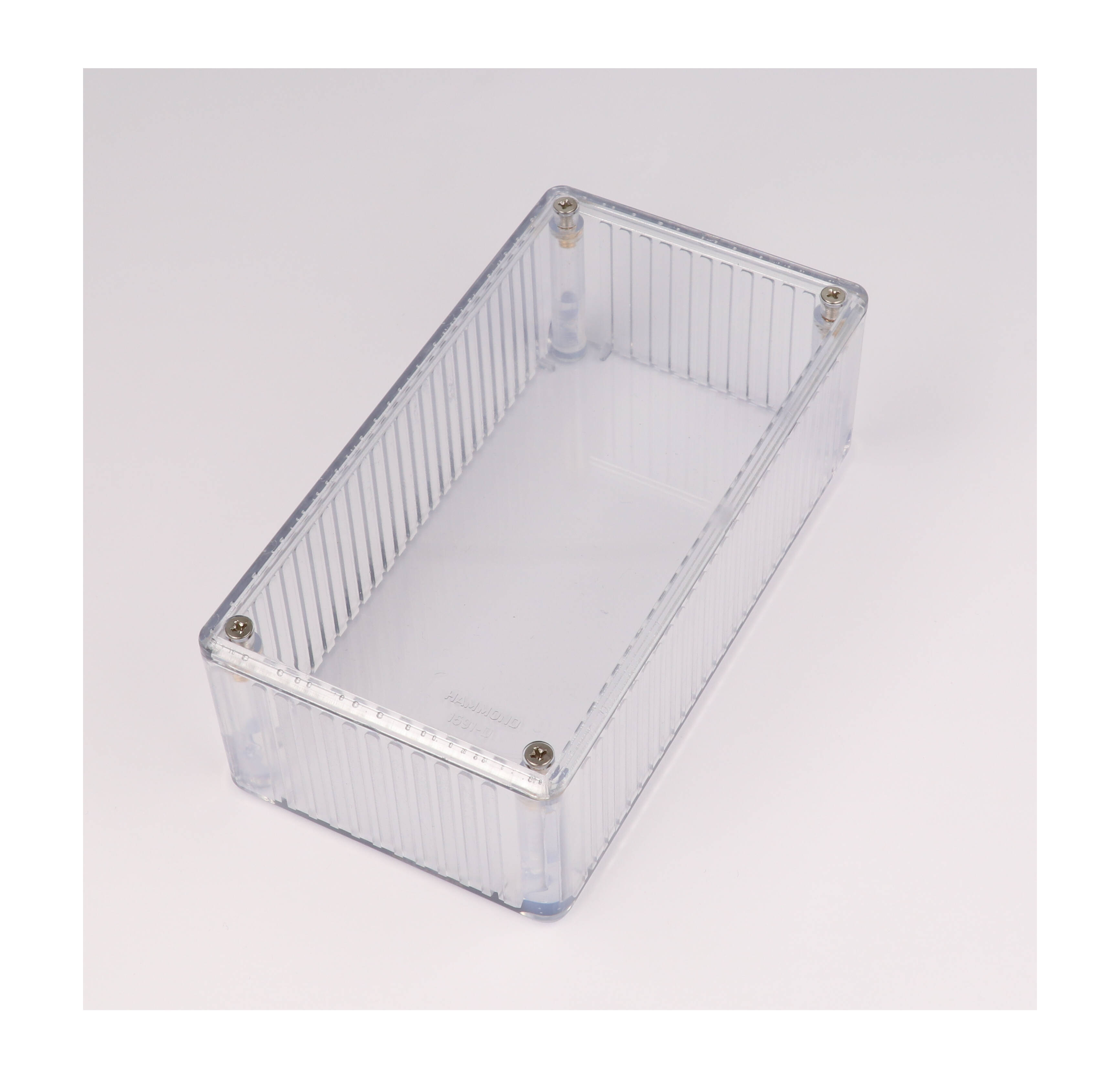

Photo Features:
Documents
Additional information
Part Numbers
| Ice Blue | Clear | IR Red | Length | Width | Depth |
|---|---|---|---|---|---|
| 1591ATBU | 1591ATCL | 1591ATRD | 100 | 50 | 25 |
| 1591STBU | 1591STCL | 1591STRD | 110 | 82 | 44 |
| 1591BTBU | 1591BTCL | 1591BTRD | 112 | 62 | 31 |
| 1591CTBU | 1591CTCL | 1591CTRD | 120 | 65 | 40 |
| 1591DTBU | 1591DTCL | 1591DTRD | 150 | 80 | 50 |
| 1591ETBU | 1591ETCL | 1591ETRD | 190 | 111 | 61 |
