Hammond 1591STRD IR Red 110mm Polycarbonate Card-Guide Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IR red polycarbonate, almost totally transparent to infrared devices
- Compact nominal 110 x 82 x 44 mm
- Card guides accept 1.5 mm (0.062") PC cards
- Designed to meet IP54; lap joint keeps out dust and splashing water
- 4 M3 x 10 mm Phillips screws into brass inserts
- Machinable flame retardant polycarbonate
- RoHS and REACH compliant

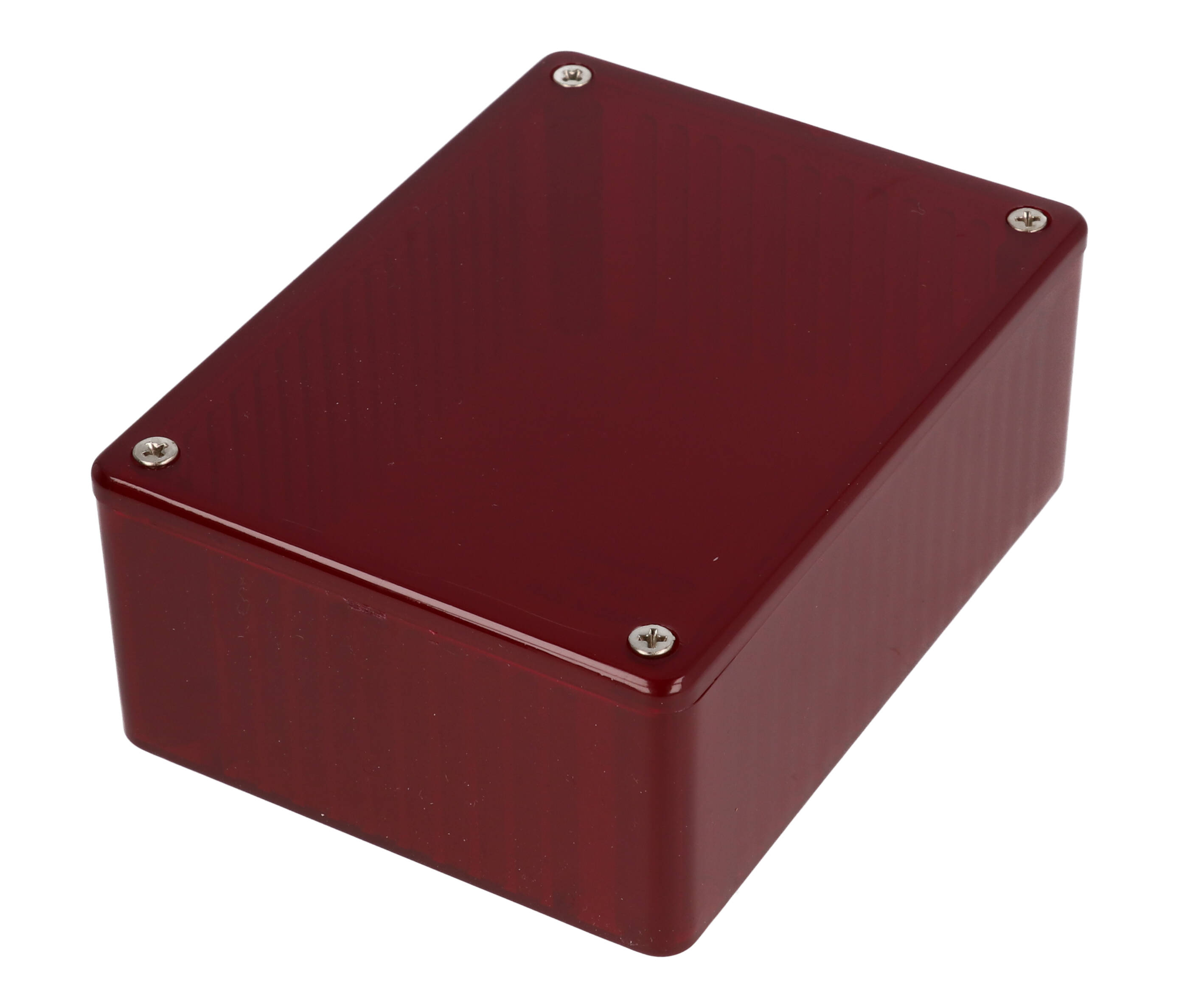

The 1591STRD is a compact IR red enclosure from the 1591T series. Its translucent red polycarbonate is almost totally transparent to infrared devices, for infrared devices housed inside the closed 110 x 82 x 44 mm box. It suits designers packaging infrared devices on a printed circuit board.

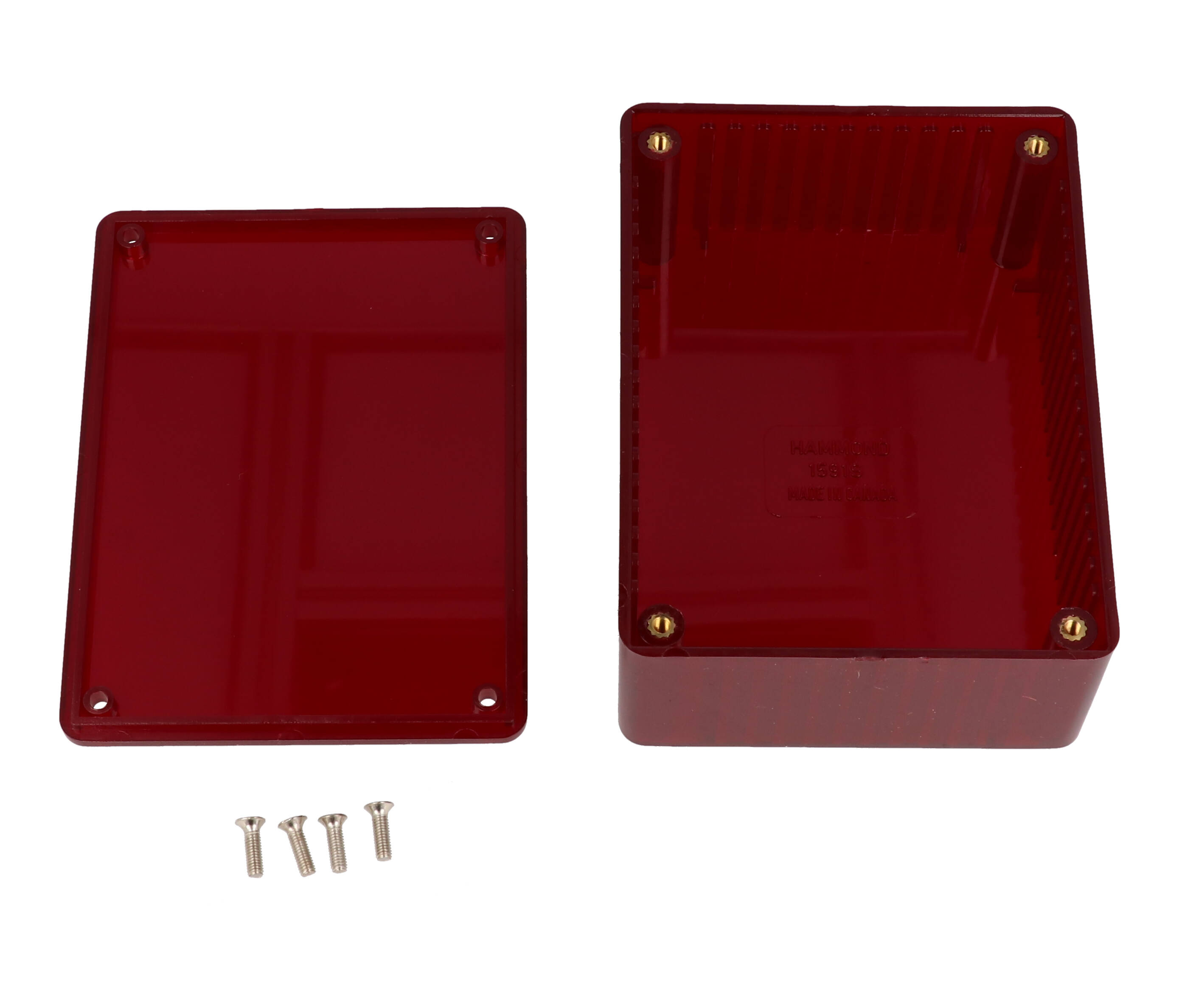

The enclosure is molded from flame retardant translucent polycarbonate that machines easily. A lap joint seals the box-to-lid interface against access of dust and splashing water, and the design is intended to meet IP54. Four M3 x 10 mm Phillips machine screws thread into integral brass bushings; the package includes box, lid, 4 cover screws and pre-installed brass inserts.
Per the ordering table the 1591STRD is 4.33 in (110 mm) long, 3.23 in (82 mm) wide and 1.73 in (44 mm) deep. The drawing shows an inside length of 103.77 mm, inside width of 75.87 mm and inside height of 39.90 mm. Integral card guides accept 1.5 mm (0.062") PC cards for mounting a printed circuit board.
It is RoHS and REACH compliant, shrink wrapped, and ships at 0.23 lbs (0.10 kg). Solid models are available in STEP or IGES, and a separate clear lid is listed as 1591SC.
Ideal For
- Housing infrared devices
- Mounting printed circuit boards with IR components
- Small PCB enclosures with card guides
- General purpose project box
Overview
| Type | project box, general purpose |
| Colour | Trans. Red |
| Series | 1591T Series – Clear Plastic Enclosures for Electronics, General Purpose w/ Card Guide |
| Description | enclosure - plastic |
| Part Number | 1591STRD |
| Short Description | 1591S TRANSP RED |
| Optical Transparency | Almost totally transparent to infrared devices |
| Colour (Ordering Table) | IR Red |
| Other Colours In This Size | 1591STBU, 1591STCL |
Dimensions
| Inside Width | 75.87 mm [2.987 in] |
| Inside Height | 39.90 mm [1.571 in] |
| Inside Length | 103.77 mm [4.085 in] |
| Size L X W X H | 4.33 in x 3.24 in x 1.73 in (110 mm x 82 mm x 44 mm) |
| Nominal Size – Depth | 1.73 in (44 mm) |
| Nominal Size – Width | 3.23 in (82 mm) |
| Nominal Size – Length | 4.33 in (110 mm) |
| Overall Width (Drawing) | 82.20 mm [3.236 in] |
| Overall Height (Drawing) | 44.00 mm [1.732 in] |
| Overall Length (Drawing) | 110.10 mm [4.335 in] |
Identifiers
| UPC | 623980533476 |
| UNSPSC | 39121301 |
PCB Mounting
| Slot Width | 2.06 mm [.081 in] |
| Card Guides | Integral; accept 1.5 mm (0.062") PC cards |
| Guide Depth | 1.16 mm [.046 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 34.90 mm [1.374 in] |
| PC Board Card Adapters (Accessory) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.23 lbs (0.10 kg) |
Construction & Finish
| Joint | Lap joint construction |
| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | Polycarbonate |
| Screw Thread | Accepts M3-0.5 machine screw |
| Solid Models | Available in STEP or IGES |
| Lid Fastening | M3 x 10 mm Phillips machine screws threaded into integral brass bushings |
| Clear Lid Only | 1591SC (flame retardant polycarbonate) |
| Recommended Torque | 42-57 ozf.in (30-40 cN.m) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Material Description | Flame retardant translucent polycarbonate, easy to machine |
Environmental & Protection
| IP Rating | IP54 |
| Ingress Protection | Designed to meet IP54; lap joint protects against access of dust and splashing water |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Flame Rating (Part Data) | UL94 V-0 |
| Material Flammability Rating (Series Spec Sheet) | UL94 V-2 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591STRD suitable for infrared devices?▾
The IR red version is almost totally transparent to infrared devices.
What are the drawing dimensions?▾
Overall 110.10 x 82.20 x 44.00 mm; inside 103.77 x 75.87 x 39.90 mm.
What is included?▾
Box, lid, 4 cover screws and pre-installed brass inserts.
What is the shipping weight?▾
0.23 lbs (0.10 kg).
What UPC does the 1591STRD use?▾
UPC 623980533476.
