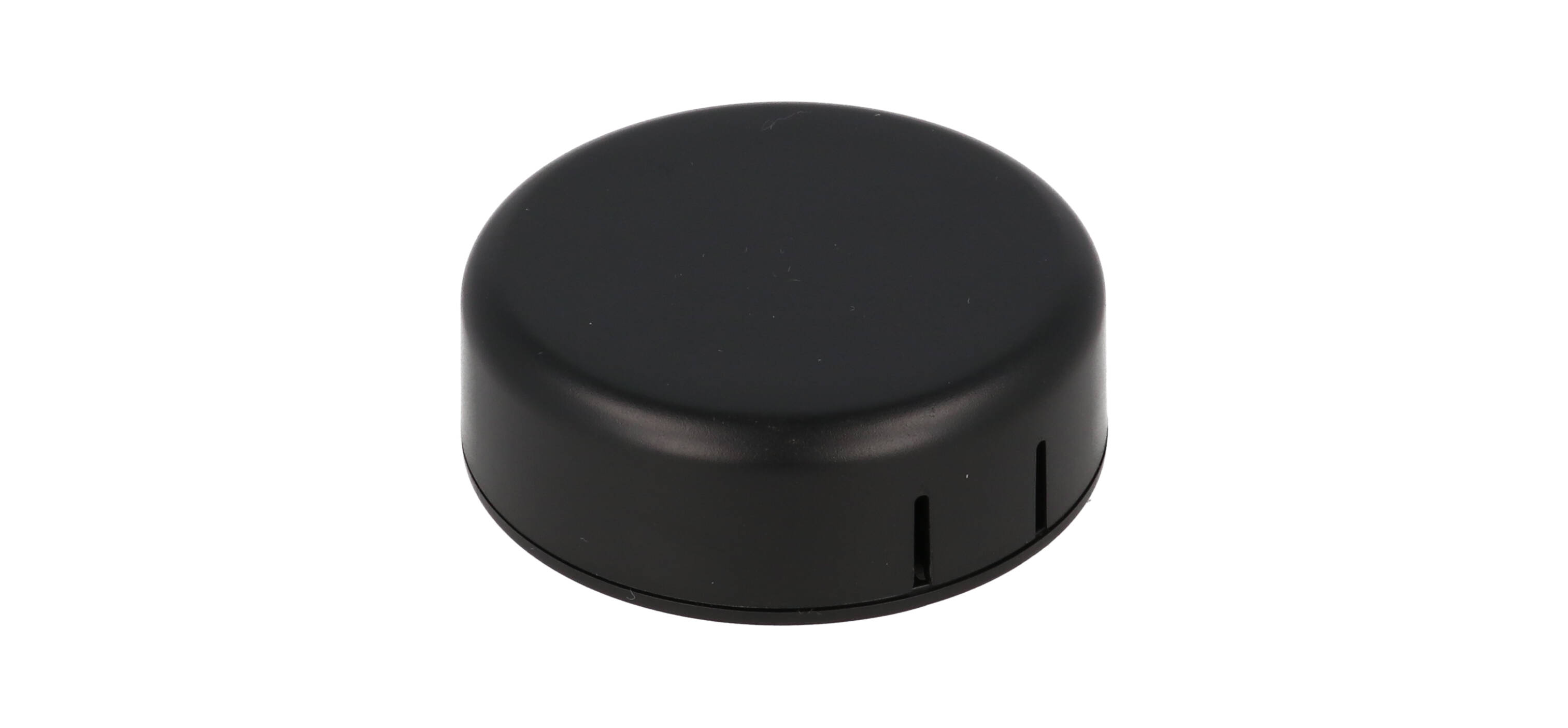

Snap Enclosure Round X 45 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.23In stock
Buy now
ABS Plastic Miniature Enclosures · Snap-fit, wall-mount. 1551SNAP Series
Brand: Hammond Manufacturing · 42 part numbers

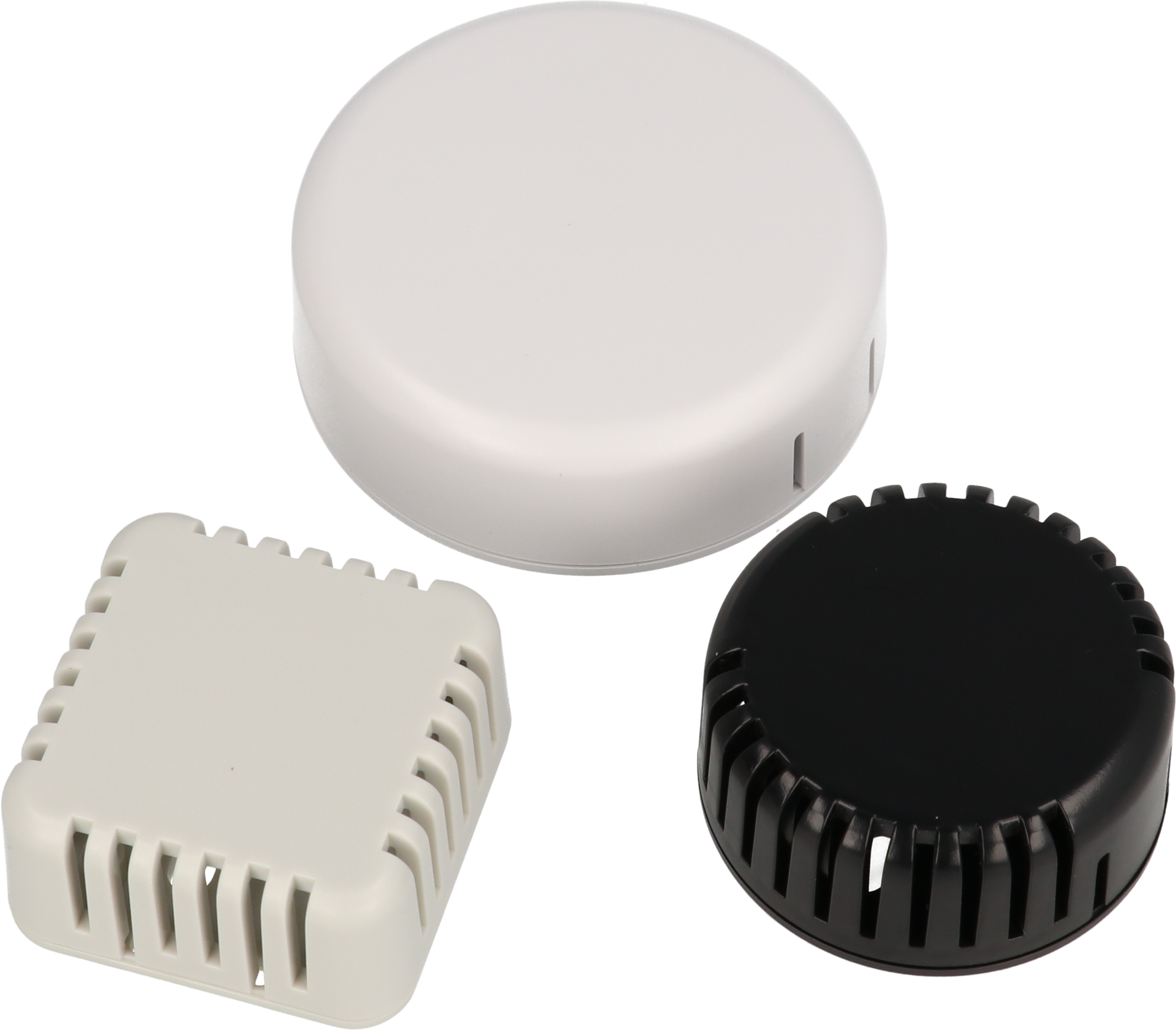

Vented Sensor Enclosure
- ■Simple snap fit assembly and wallmounting features designed for IoT or general purpose applications.
- ■Choice of vented or unvented.
- ■Vented versions protect electronics from harmful contact with hands or tools, but allow entry of air and moisture for applications which require environmental exposure (e.g., sensors).
- ■Ideally suited for mounting printed circuit boards.
- ■Slots on the base of the enclosure allow for easy wallmounting.
- ■Knockout on the base can be removed with a screwdriver and used for wire entry.
from $1.08
42 of 42 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Snap-fit, wall-mount. 1551SNAP Series part number
Filter 42 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
42 of 42 part numbers · 42 priced online

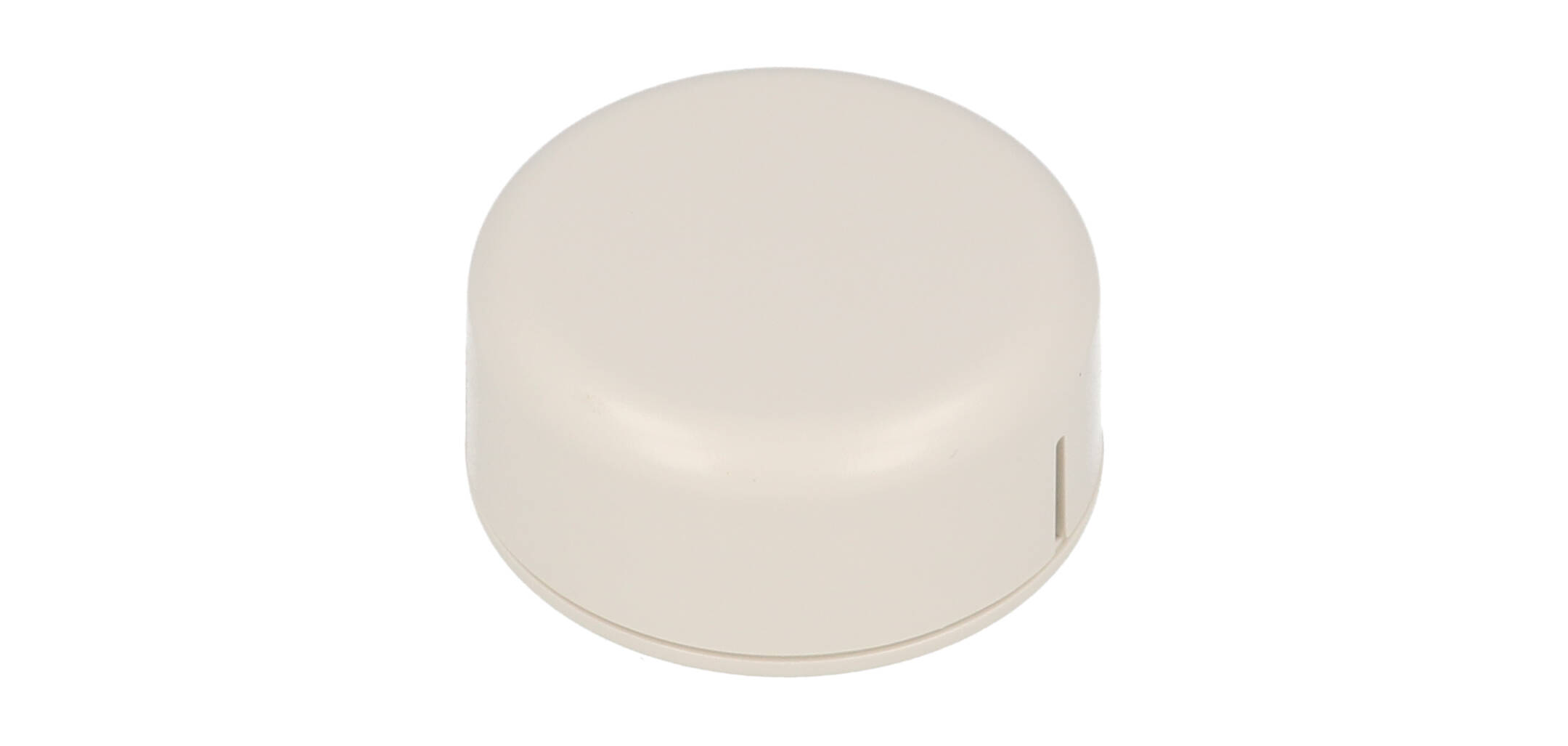

Snap Enclosure Round X 45 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.23In stock
Buy now
Snap Enclosure Round X 45 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.23In stock
Buy now
Snap Enclosure Round X 60 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.60In stock
Buy now

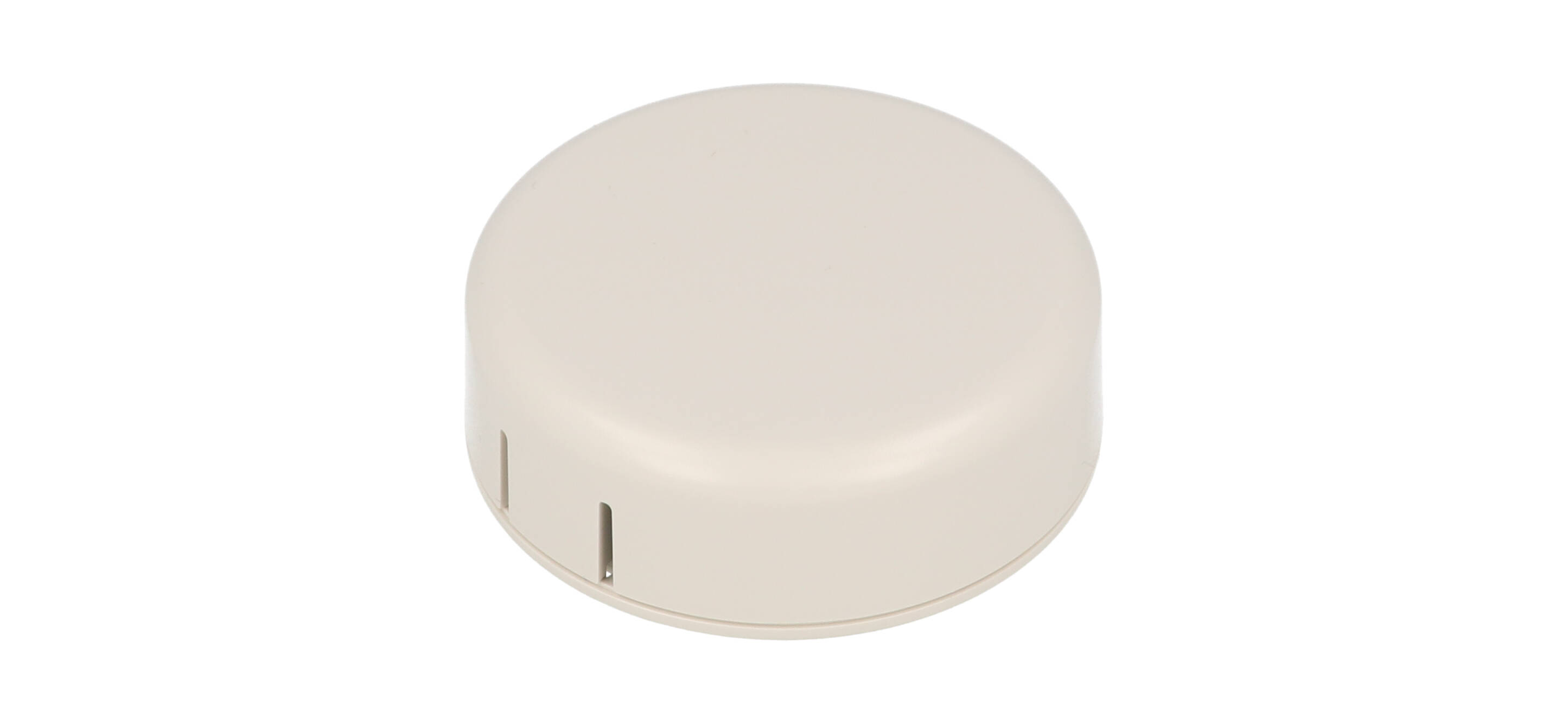

Snap Enclosure Round X 60 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.60In stock
Buy now

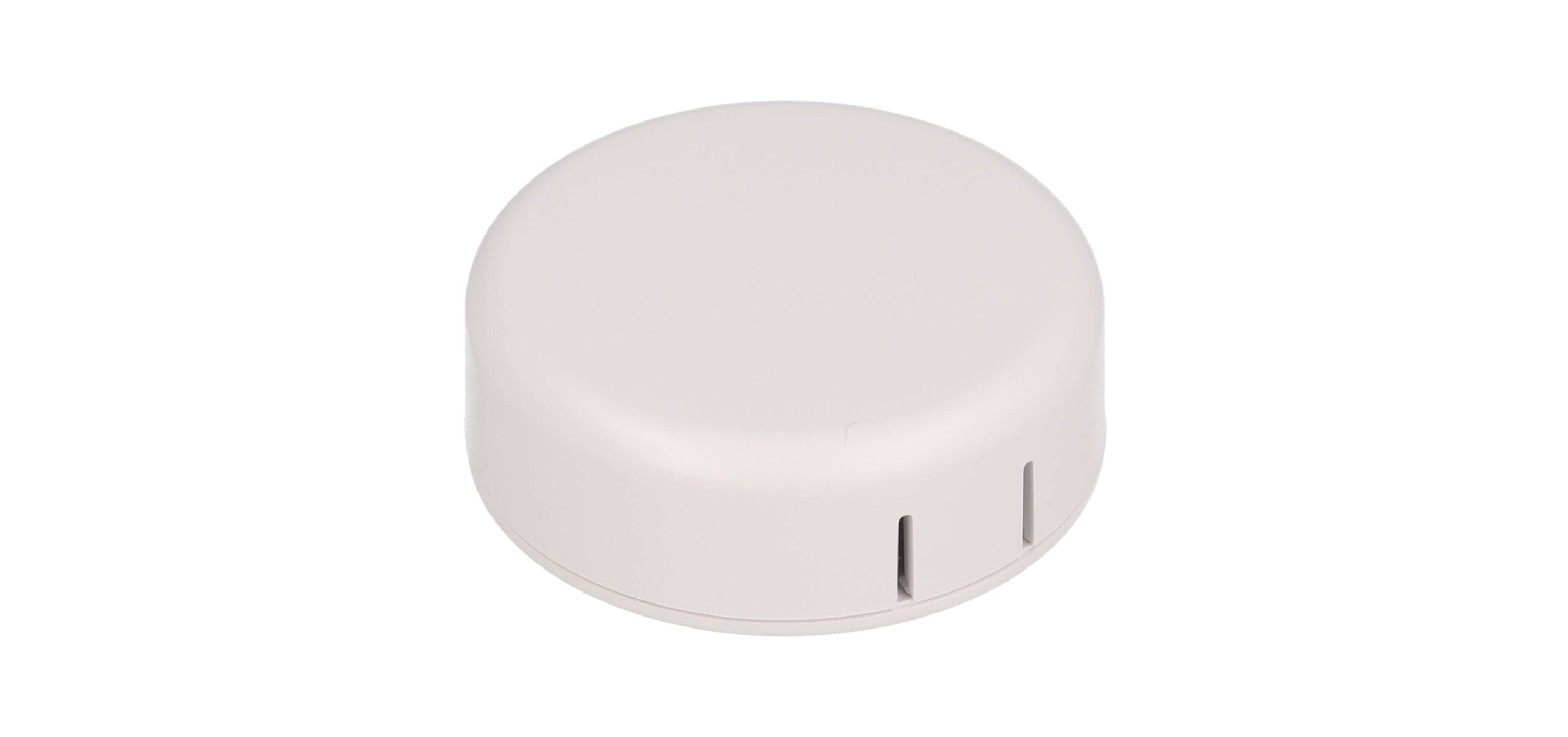

Snap Enclosure Round X 60 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.60In stock
Buy now
Snap Enclosure Round X 80 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.80In stock
Buy now

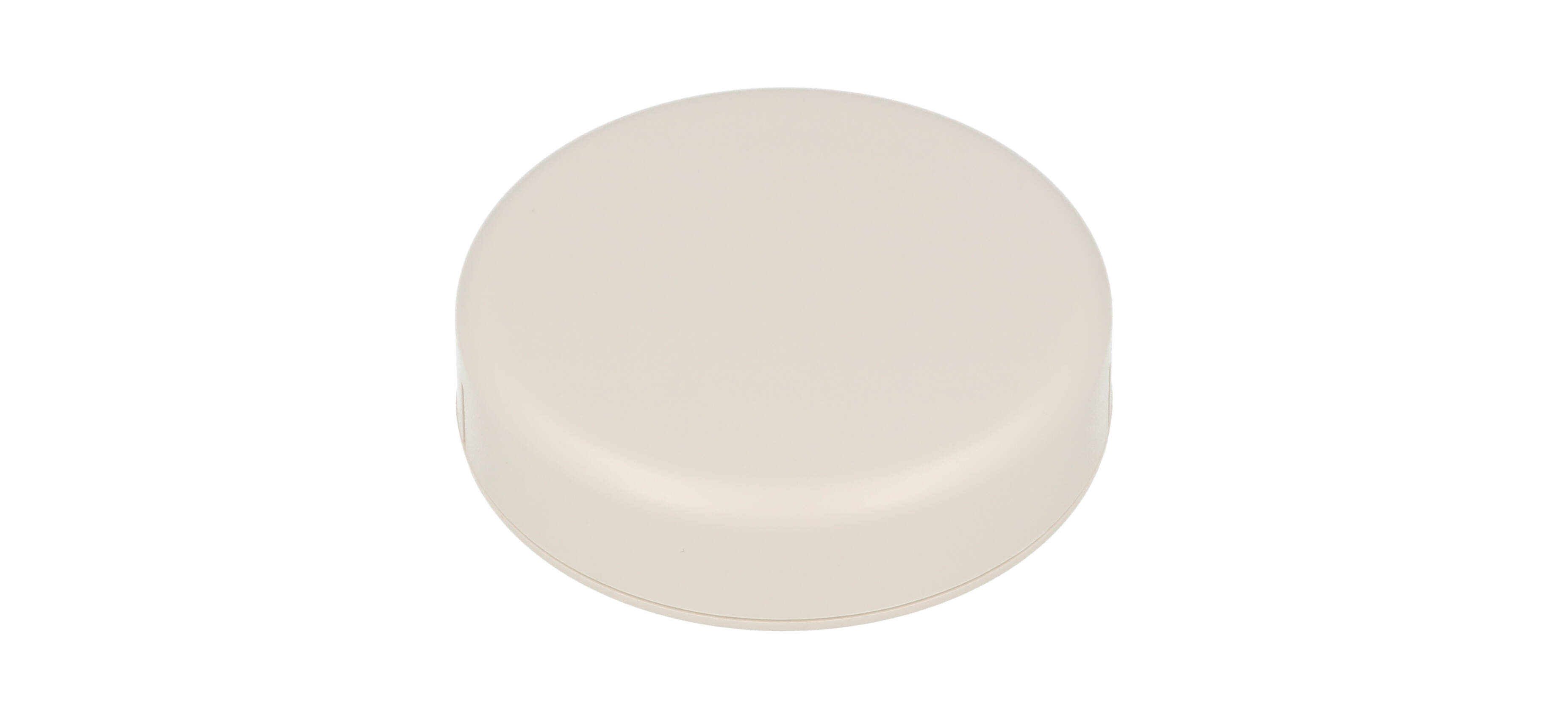

Snap Enclosure Round X 80 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.80In stock
Buy now

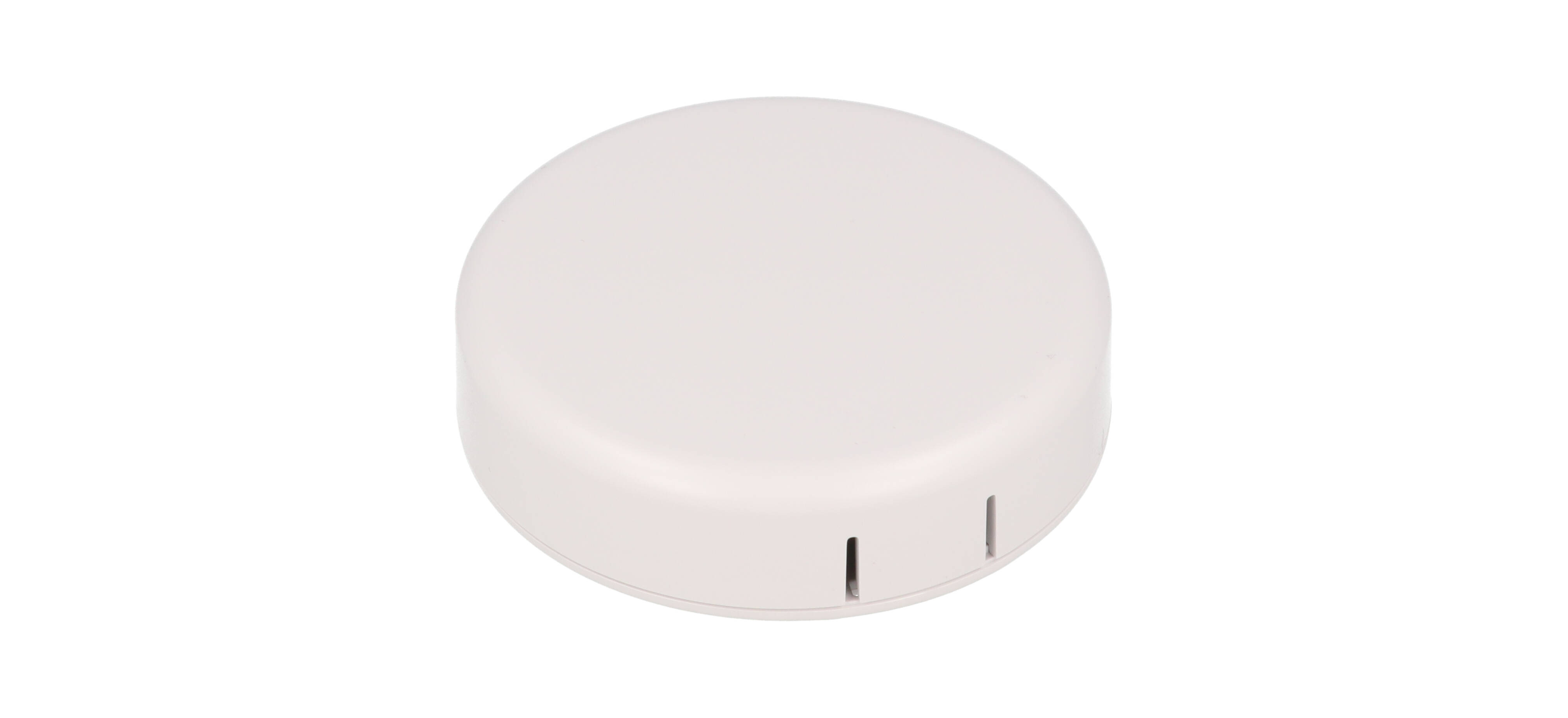

Snap Enclosure Round X 80 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.80In stock
Buy now
Snap Enclosure 40 X 40 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.08In stock
Buy now
Snap Enclosure 40 X 40 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.08In stock
Buy now

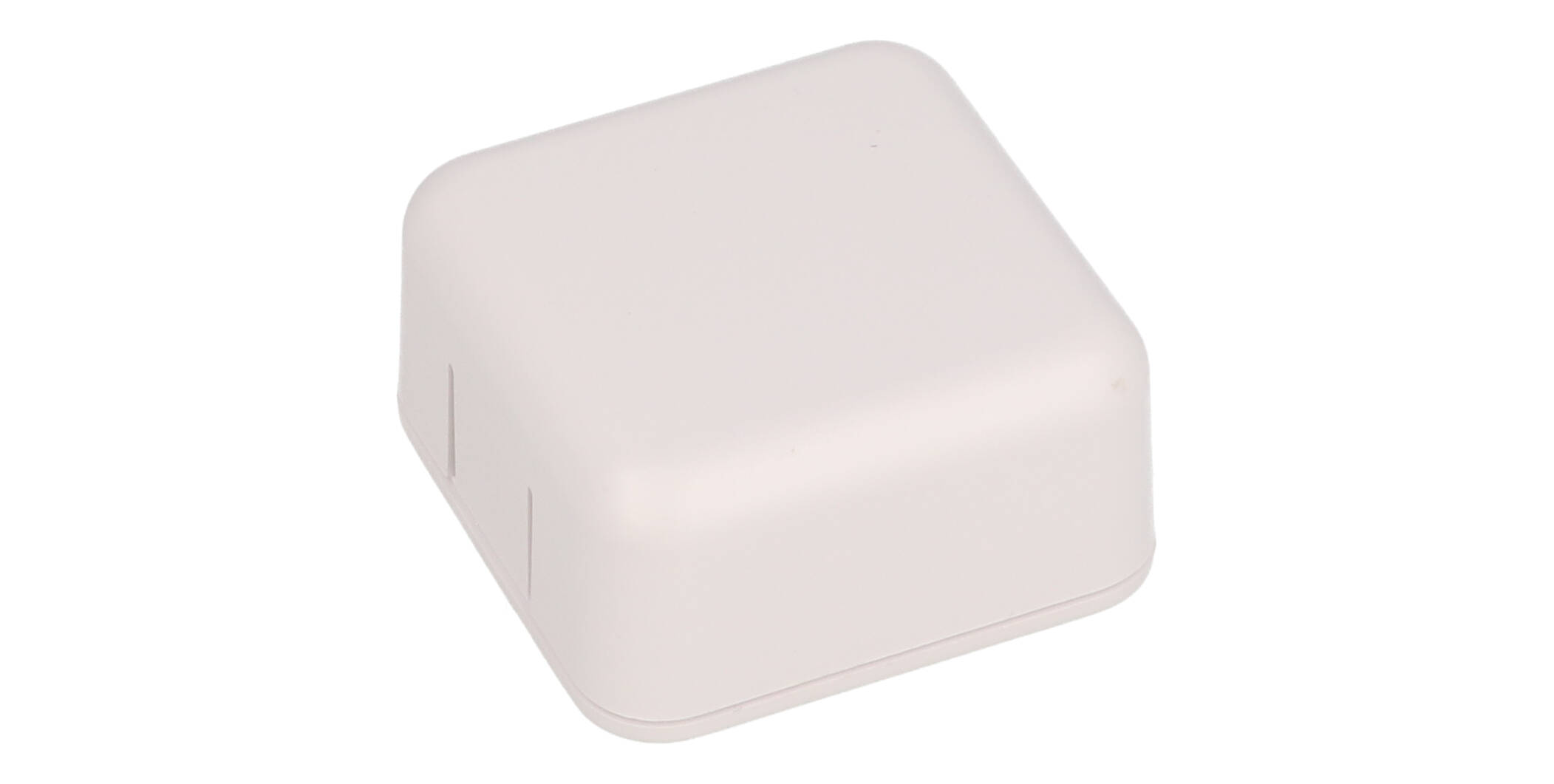

Snap Enclosure 40 X 40 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.08In stock
Buy now

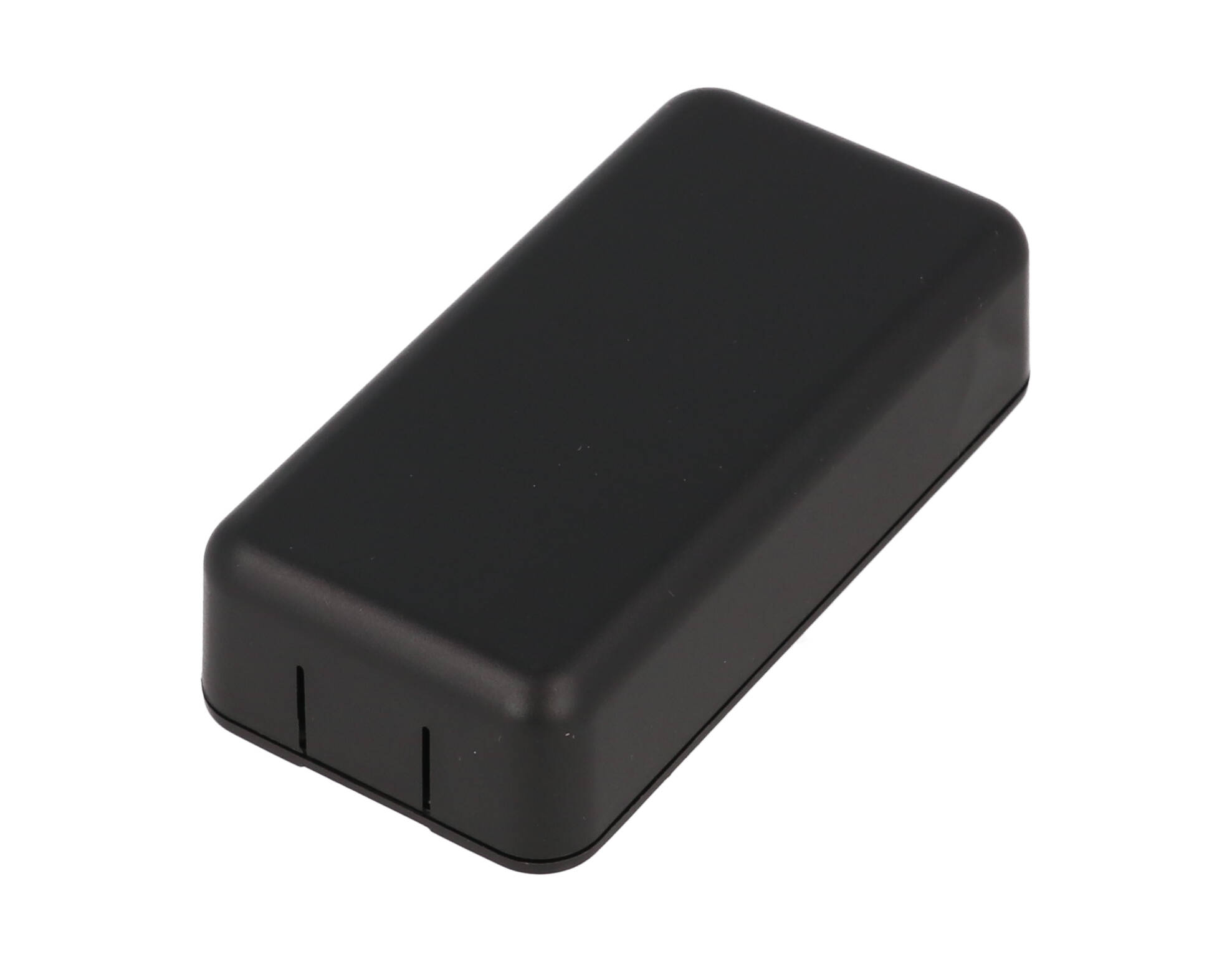

Snap Enclosure 40 X 80 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.45In stock
Buy now
Snap Enclosure 40 X 80 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.45In stock
Buy now
Snap Enclosure 40 X 80 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.45In stock
Buy now
Snap Enclosure 60 X 60 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.45In stock
Buy now

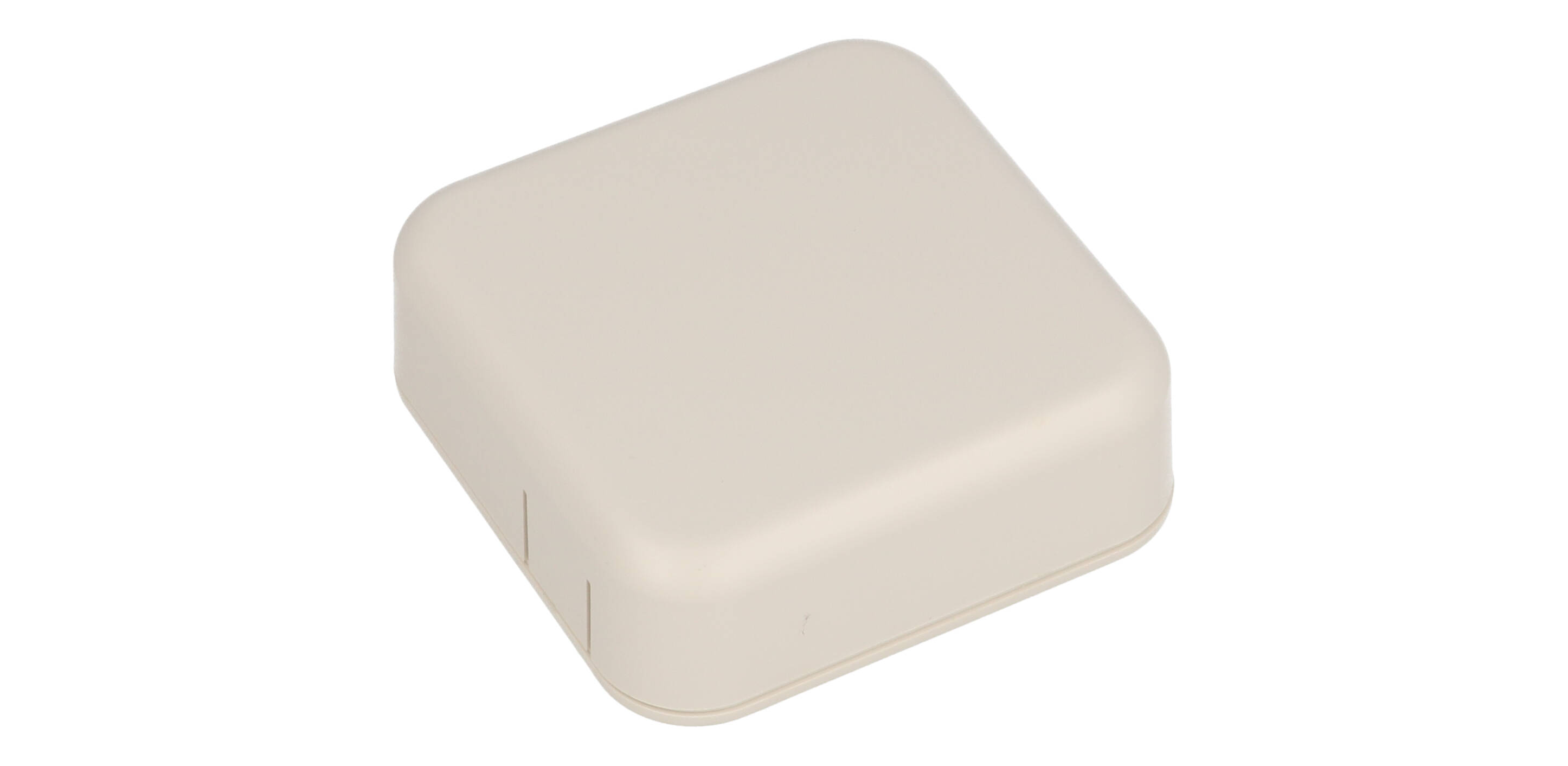

Snap Enclosure 60 X 60 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.45In stock
Buy now
Snap Enclosure 60 X 60 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.45In stock
Buy now
Snap Enclosure 80 X 80 ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.58In stock
Buy now
Snap Enclosure 80 X 80 ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.58In stock
Buy now
Snap Enclosure 80 X 80 ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.58In stock
Buy now

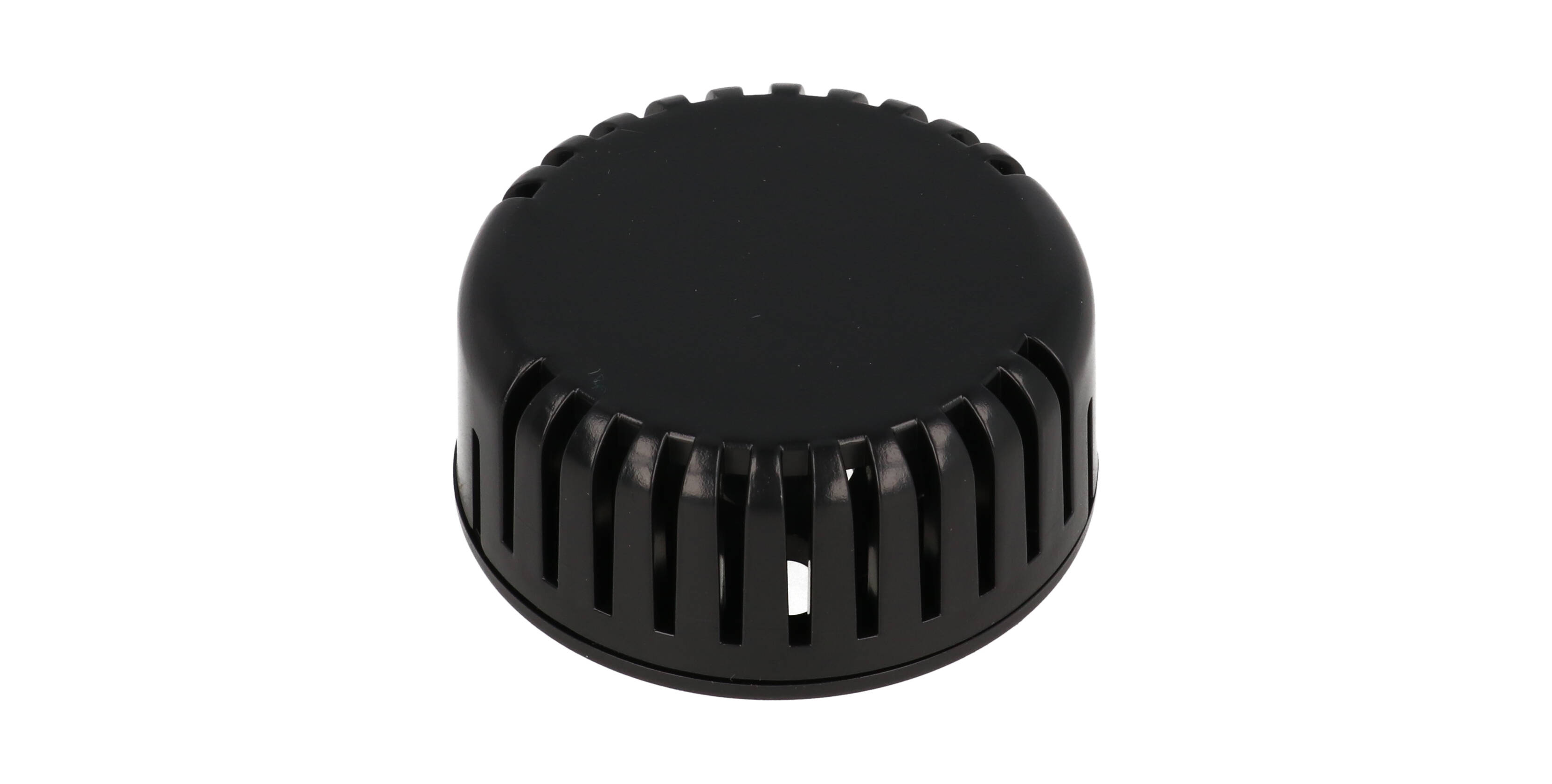

Snap Enclosure Vented Rd 45MM ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.23In stock
Buy now
Snap Enclosure Vented Rd 45MM ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.23In stock
Buy now
Snap Enclosure Vented Rd 45MM ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.23In stock
Buy now
Snap Enclosure Vented Rd 60MM ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.60In stock
Buy now
Snap Enclosure Vented Rd 60MM ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.60In stock
Buy now

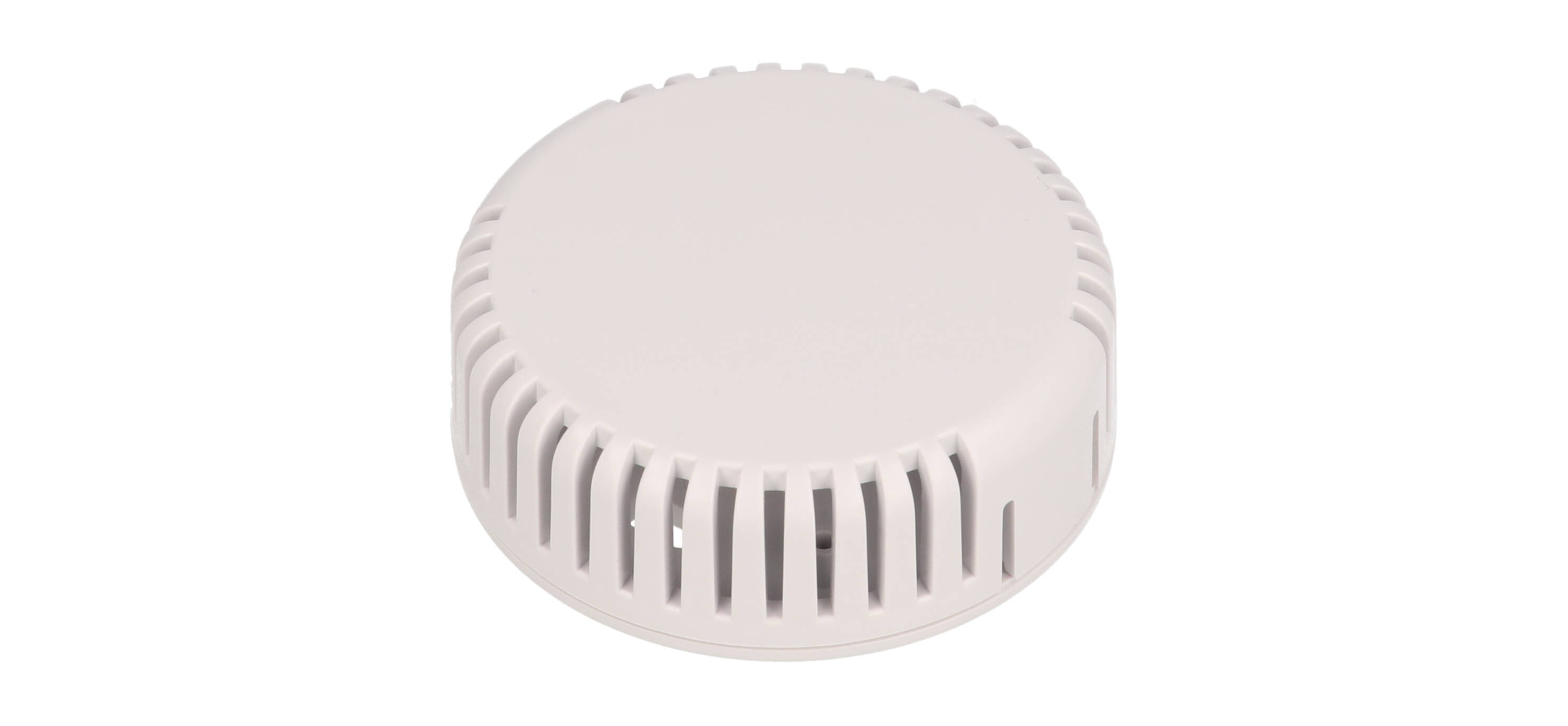

Snap Enclosure Vented Rd 60MM ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.60In stock
Buy now

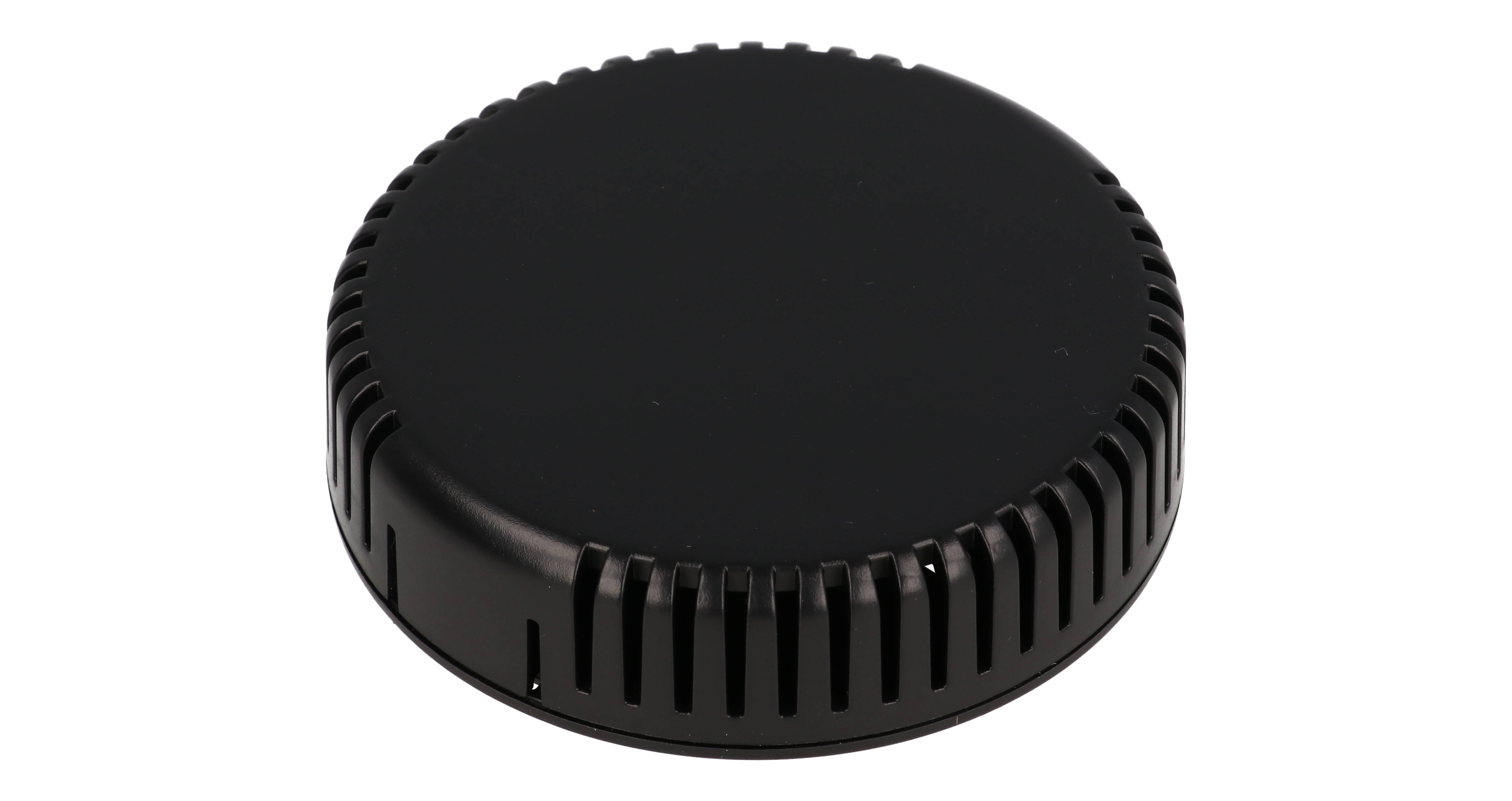

Snap Enclosure Vented Rd 80MM ABS Black
- Type Miniature, sensor
- Color Black
- Color Black
$1.80In stock
Buy now

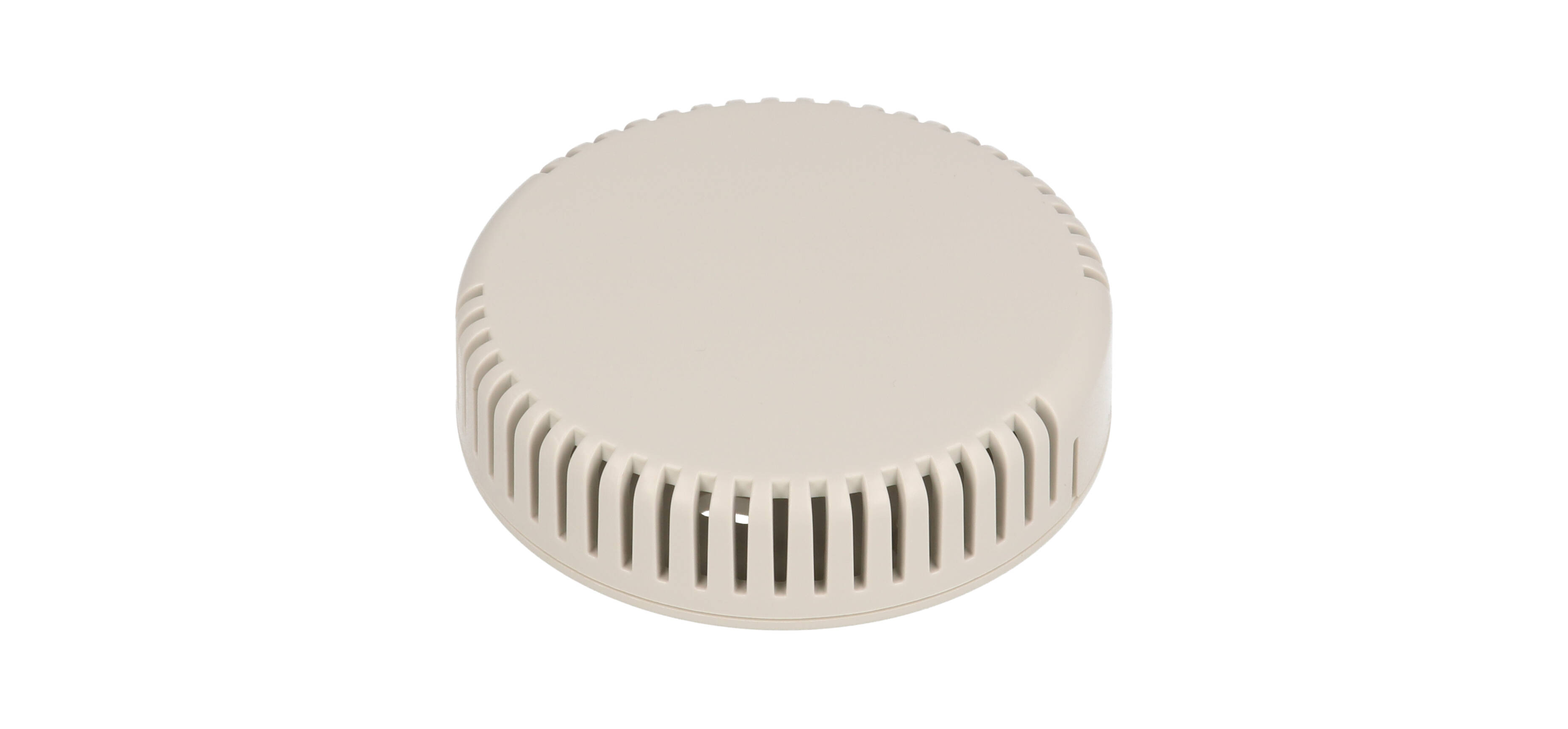

Snap Enclosure Vented Rd 80MM ABS Grey
- Type Miniature, sensor
- Color Light Gray
- Color Grey
$1.80In stock
Buy now

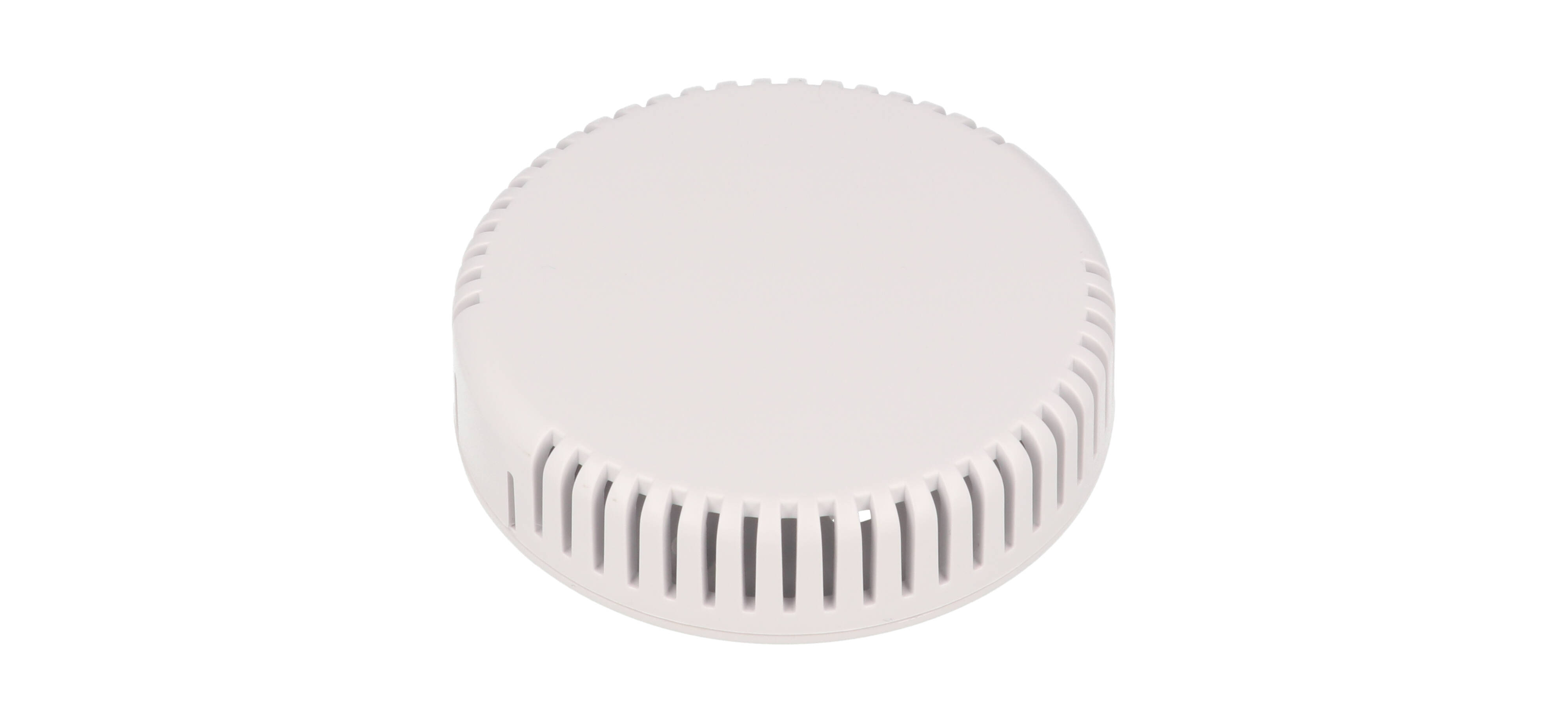

Snap Enclosure Vented Rd 80MM ABS White
- Type Miniature, sensor
- Color White
- Color White
$1.80In stock
Buy now

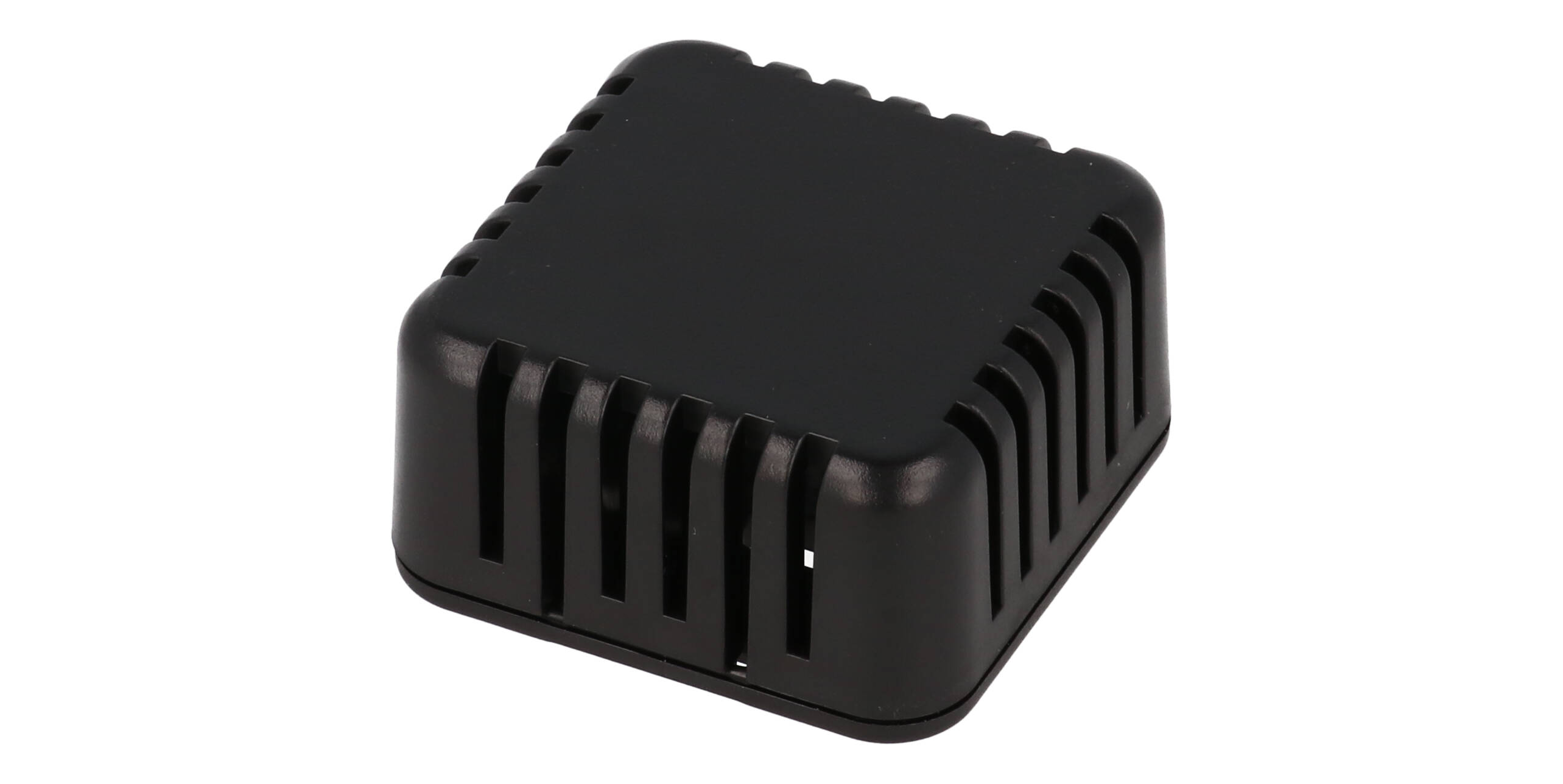

Snap Vented Enclosure 40 X 40 ABS
- Type Miniature, Sensor
- Color Black
- Color Black
$1.08In stock
Buy now
Snap Vented Enclosure 40 X 40 ABS
- Type Miniature, Sensor
- Color Gray
- Color Grey
$1.08In stock
Buy now
Snap Vented Enclosure 40 X 40 ABS
- Type Miniature, Sensor
- Color White
- Color White
$1.08In stock
Buy now

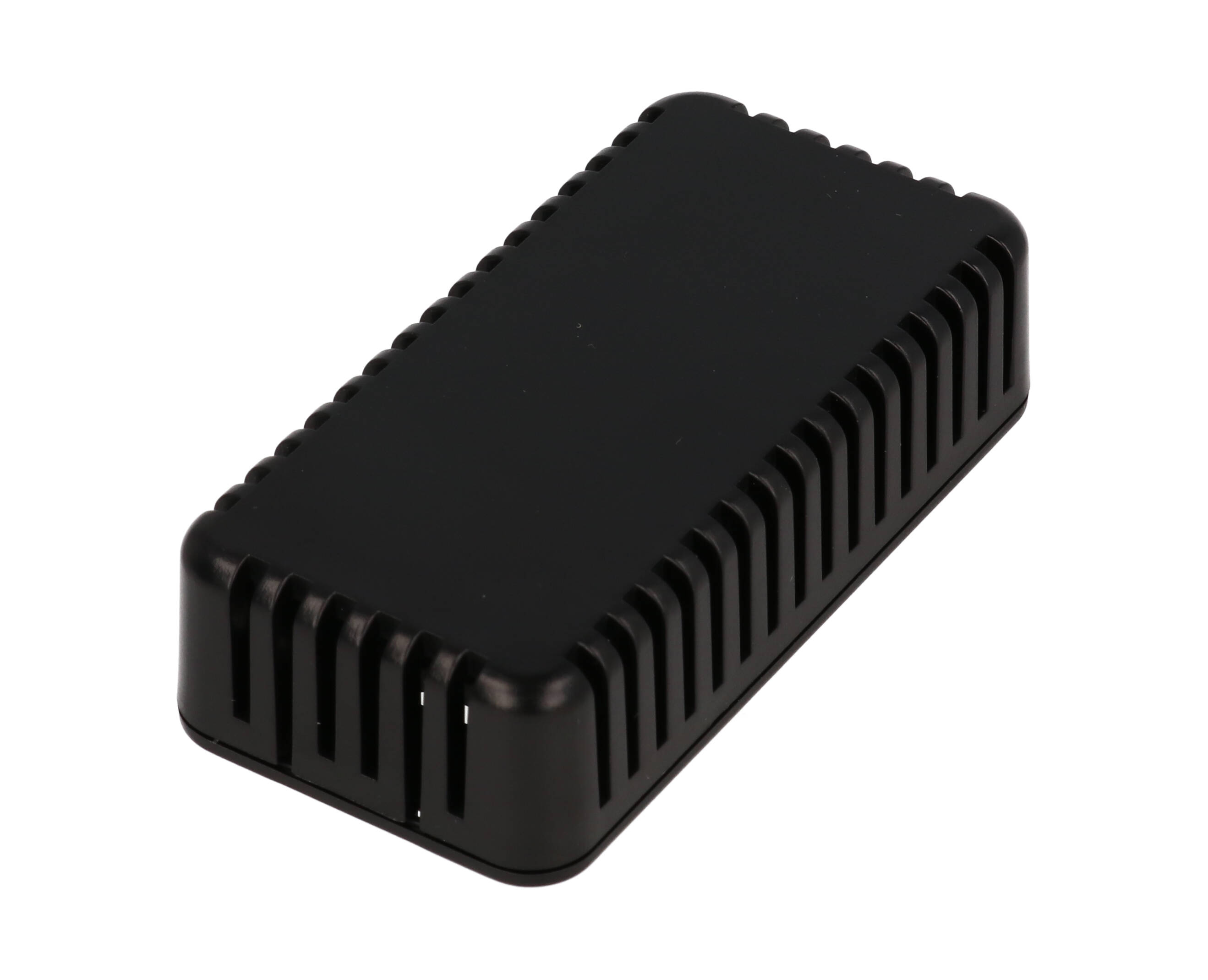

Snap Vented Enclosure 80 X 40 ABS
- Type Miniature, Sensor
- Color Black
- Color Black
$1.45In stock
Buy now
Snap Vented Enclosure 80 X 40 ABS
- Type Miniature, Sensor
- Color Gray
- Color Grey
$1.45In stock
Buy now
Snap Vented Enclosure 80 X 40 ABS
- Type Miniature, Sensor
- Color White
- Color White
$1.45In stock
Buy now
Snap Vented Enclosure 60 X 60 ABS
- Type Miniature, Sensor
- Color Black
- Color Black
$1.45In stock
Buy now

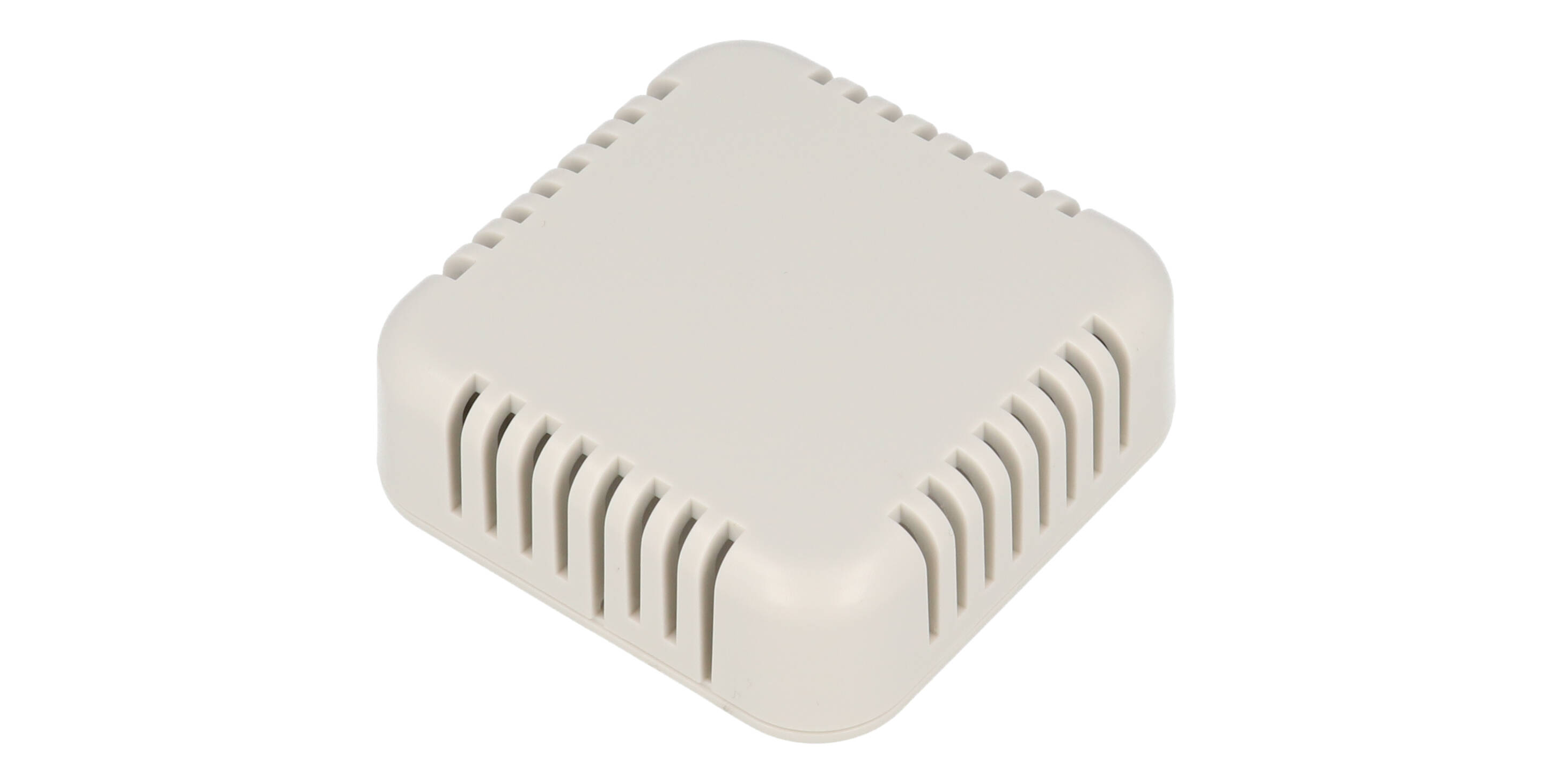

Snap Vented Enclosure 60 X 60 ABS
- Type Miniature, Sensor
- Color Gray
- Color Grey
$1.45In stock
Buy now
Snap Vented Enclosure 60 X 60 ABS
- Type Miniature, Sensor
- Color White
- Color White
$1.45In stock
Buy now

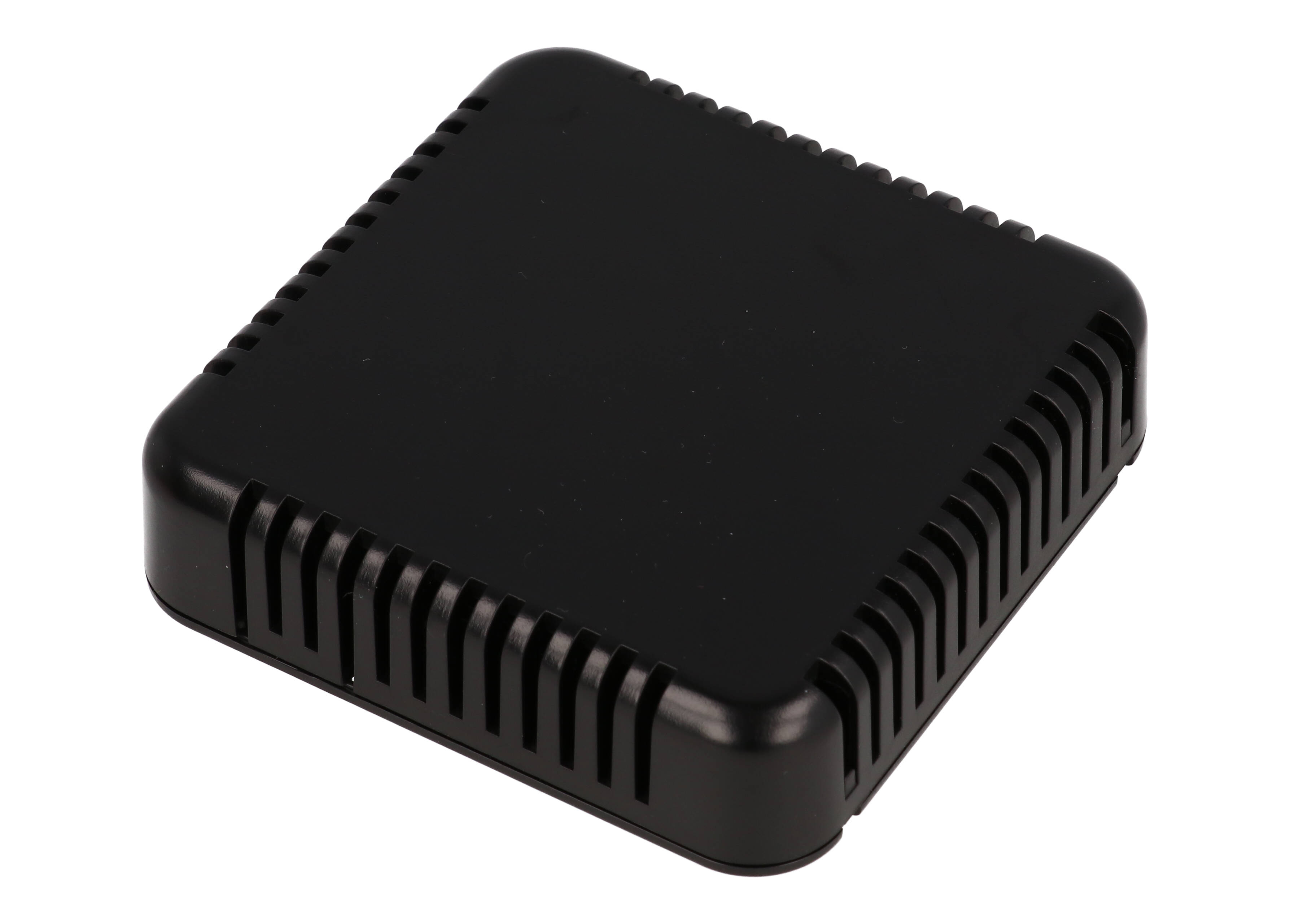

Snap Vented Enclosure 80 X 80 ABS
- Type Miniature, Sensor
- Color Black
- Color Black
$1.58In stock
Buy now

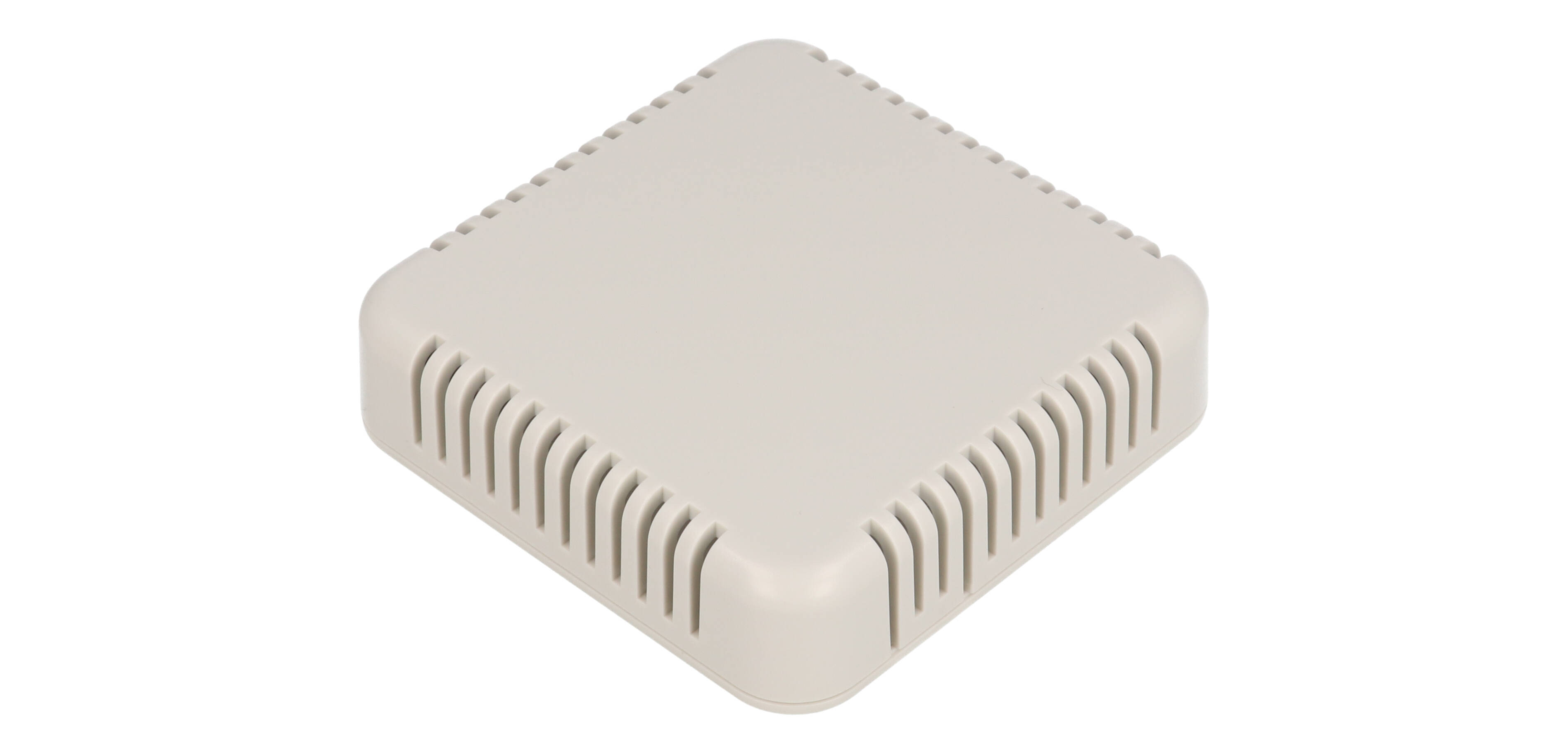

Snap Vented Enclosure 80 X 80 ABS
- Type Miniature, Sensor
- Color Gray
- Color Grey
$1.58In stock
Buy now
Snap Vented Enclosure 80 X 80 ABS
- Type Miniature, Sensor
- Color White
- Color White
$1.58In stock
Buy nowDimension tables (inches / mm)
Square and Rectangle Enclosures
Units shown: mm . Switch units to: inch
| Vented (Part No.) | Unvented (Part No.) | Color | Length | Width | Depth | Price | Order |
|---|---|---|---|---|---|---|---|

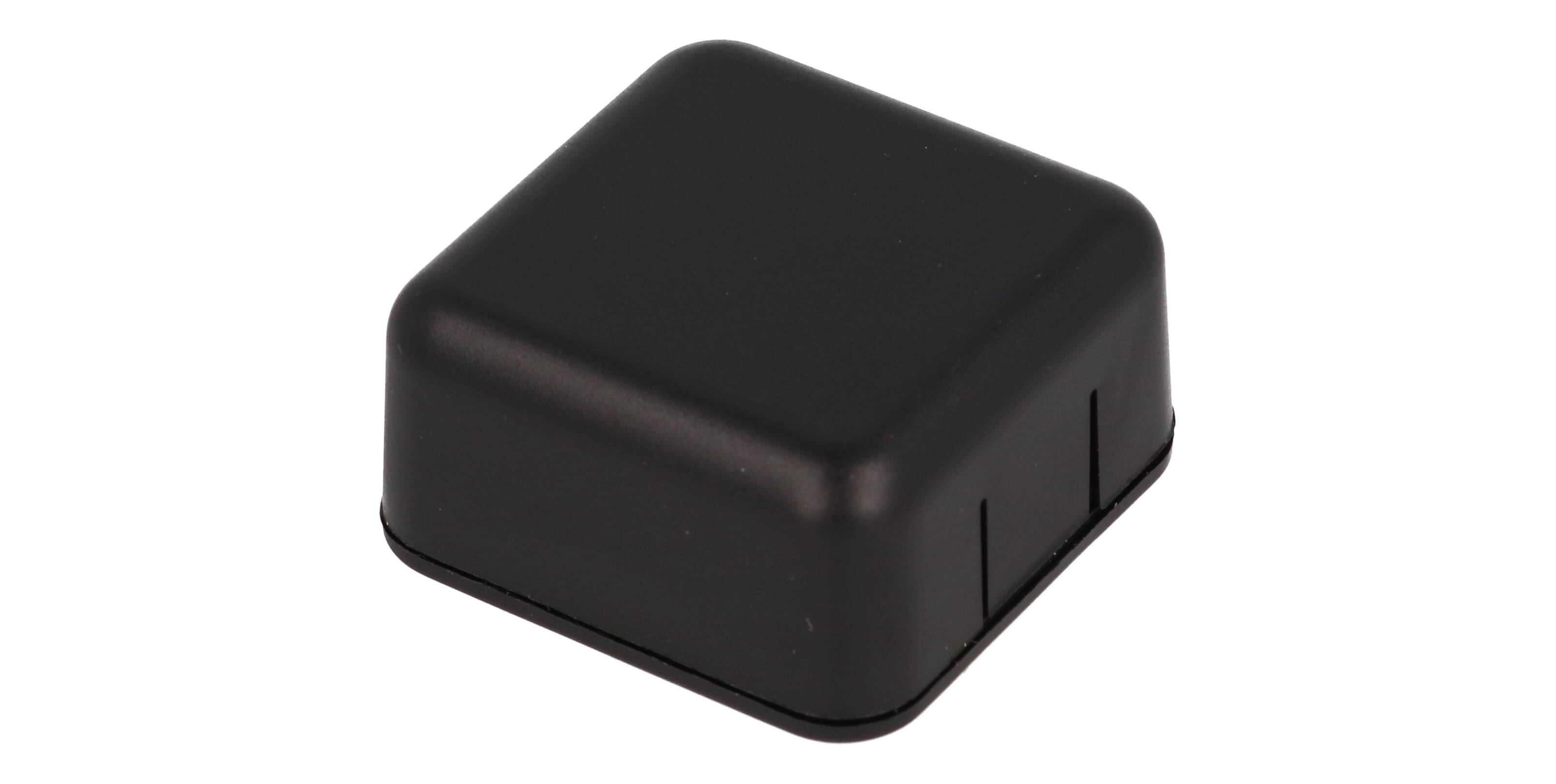

| 1551V1BK | 1551SNAP1BK | Black | 1.57 | 1.57 | 0.79 | $1.08In stock1551V1BK | Buy now |

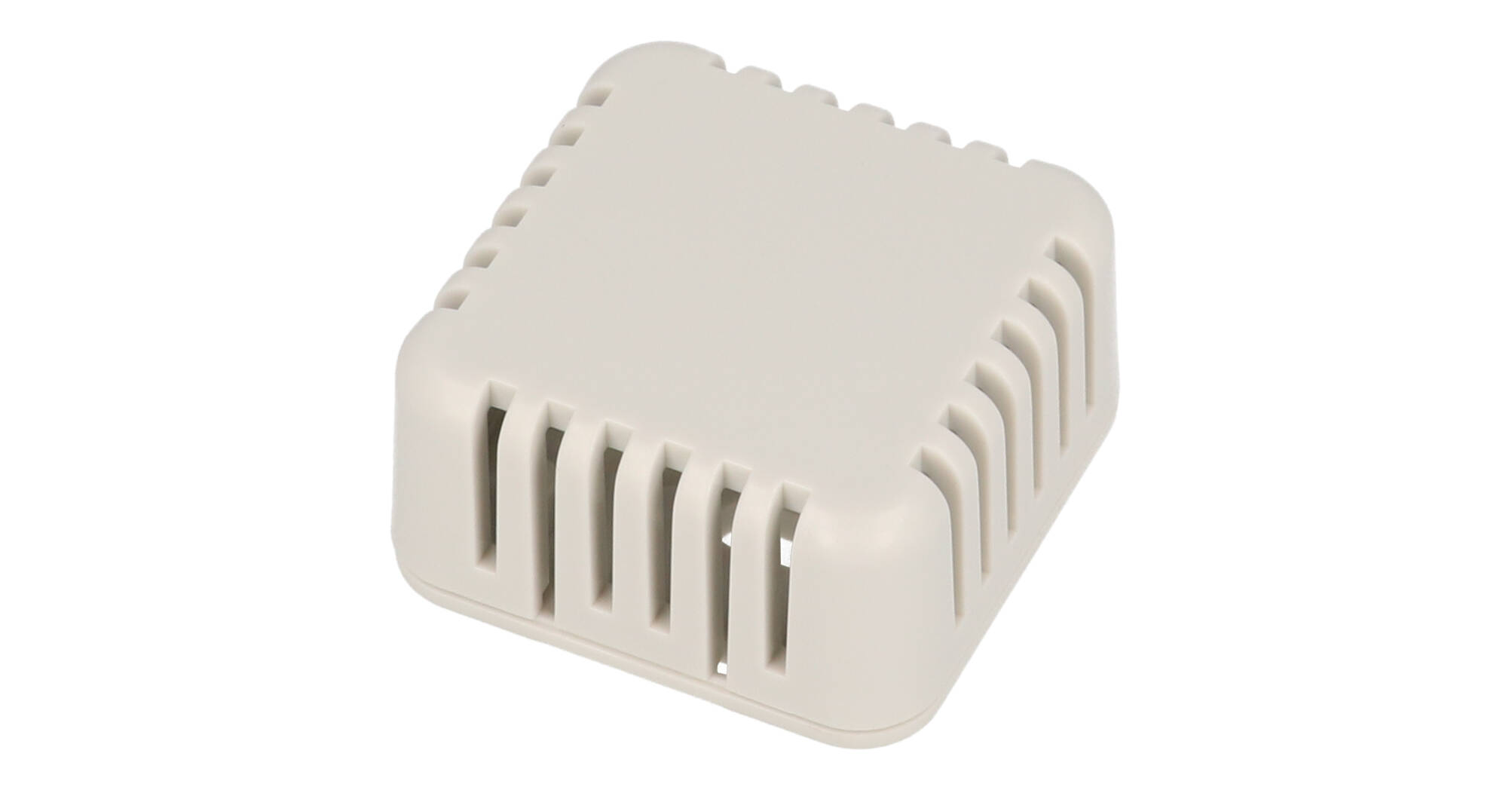

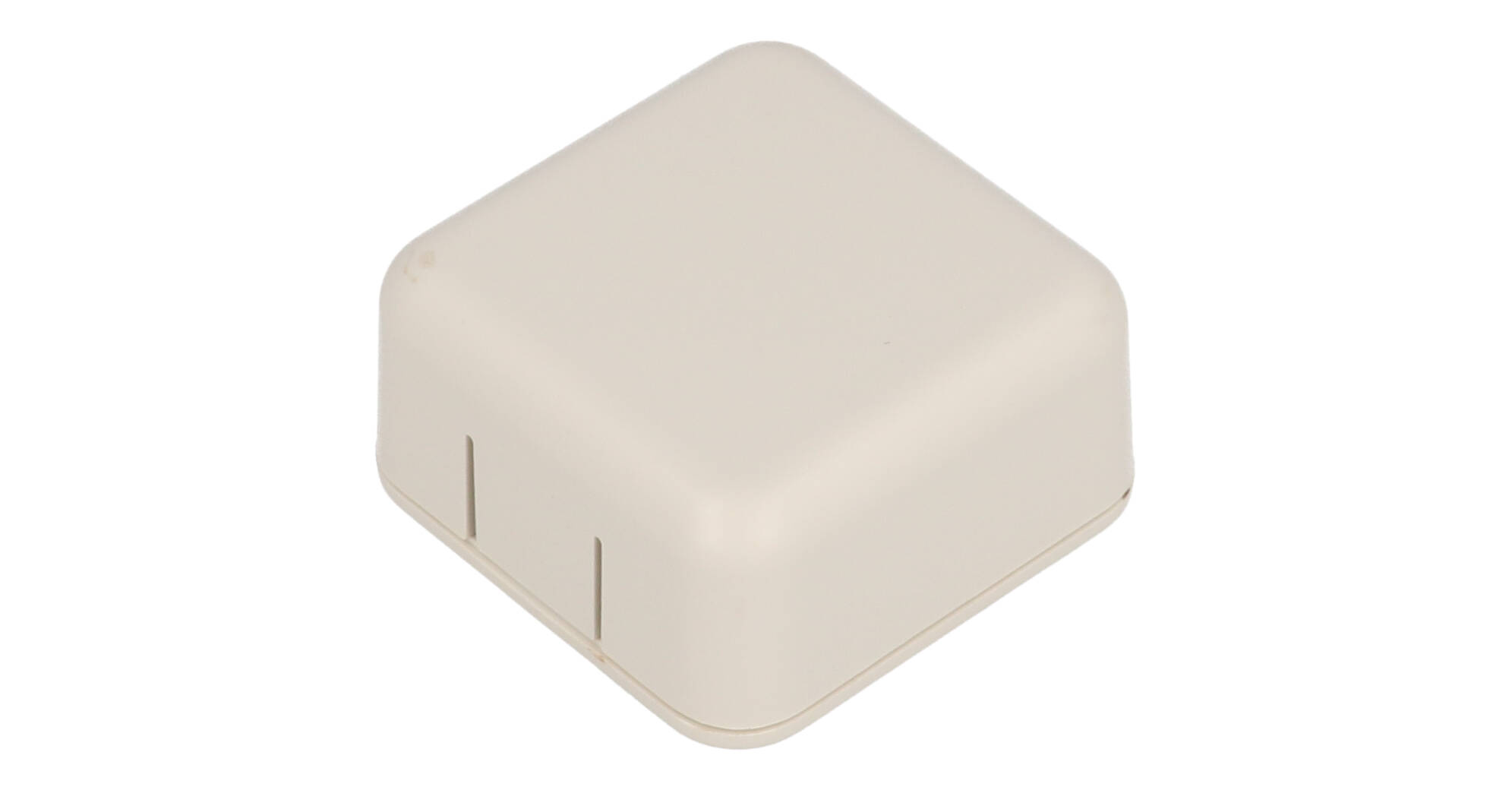

| 1551V1GY | 1551SNAP1GY | Grey | 1.57 | 1.57 | 0.79 | $1.08In stock1551V1GY | Buy now |
| 1551V1WH | 1551SNAP1WH | White | 1.57 | 1.57 | 0.79 | $1.08In stock1551V1WH | Buy now |

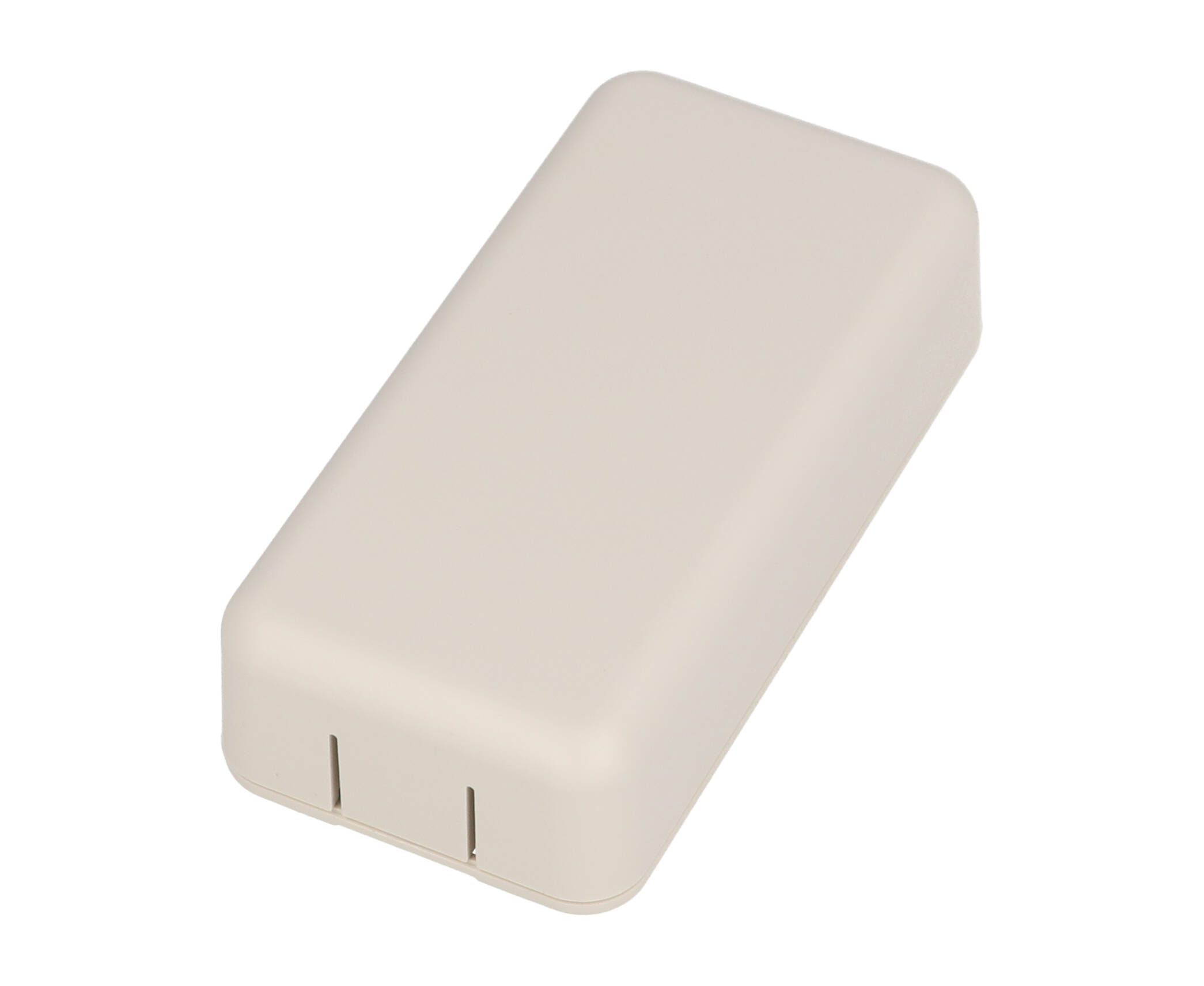

| 1551V2BK | 1551SNAP2BK | Black | 3.15 | 1.57 | 0.79 | $1.45In stock1551V2BK | Buy now |

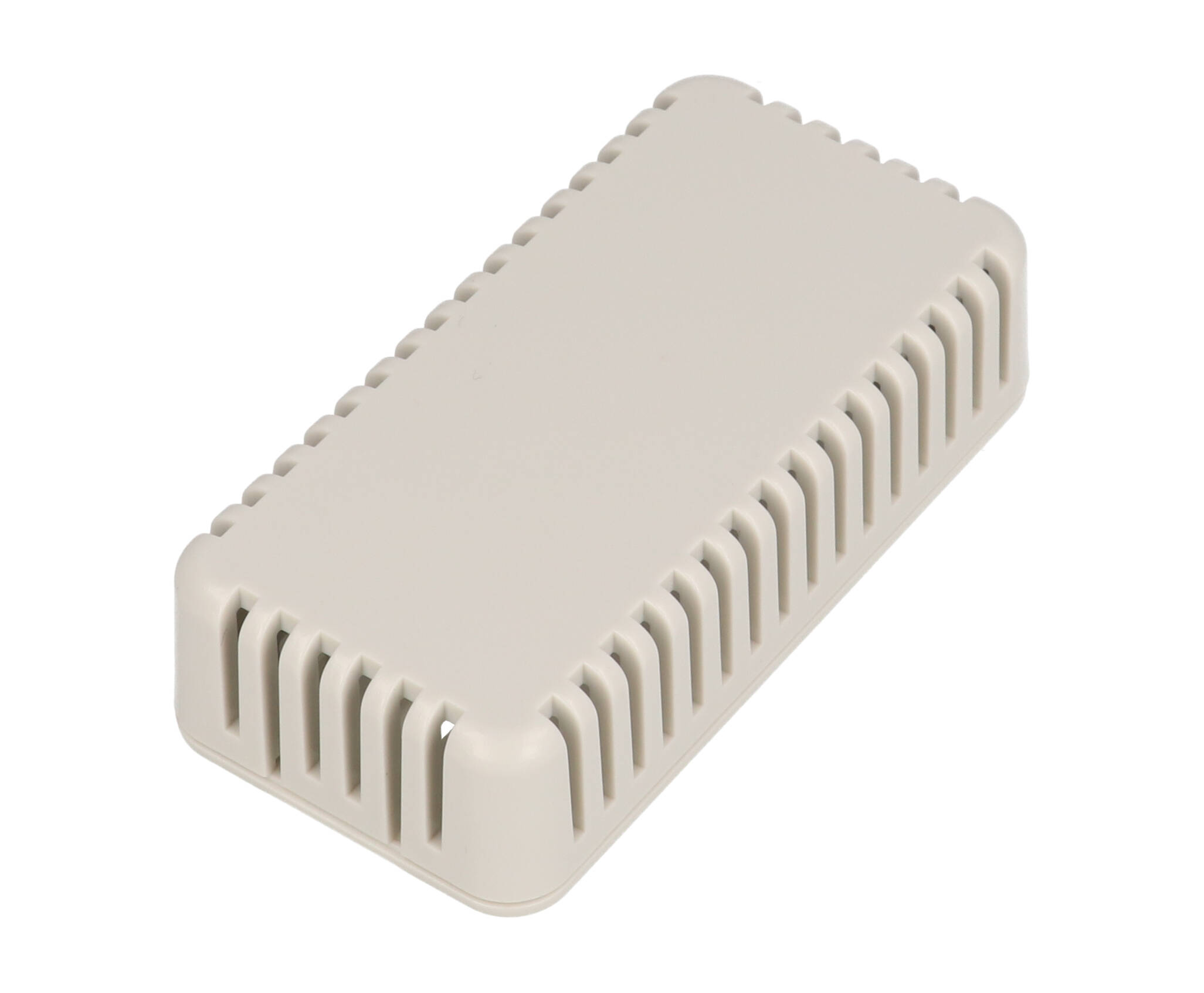

| 1551V2GY | 1551SNAP2GY | Grey | 3.15 | 1.57 | 0.79 | $1.45In stock1551V2GY | Buy now |
| 1551V2WH | 1551SNAP2WH | White | 3.15 | 1.57 | 0.79 | $1.45In stock1551V2WH | Buy now |

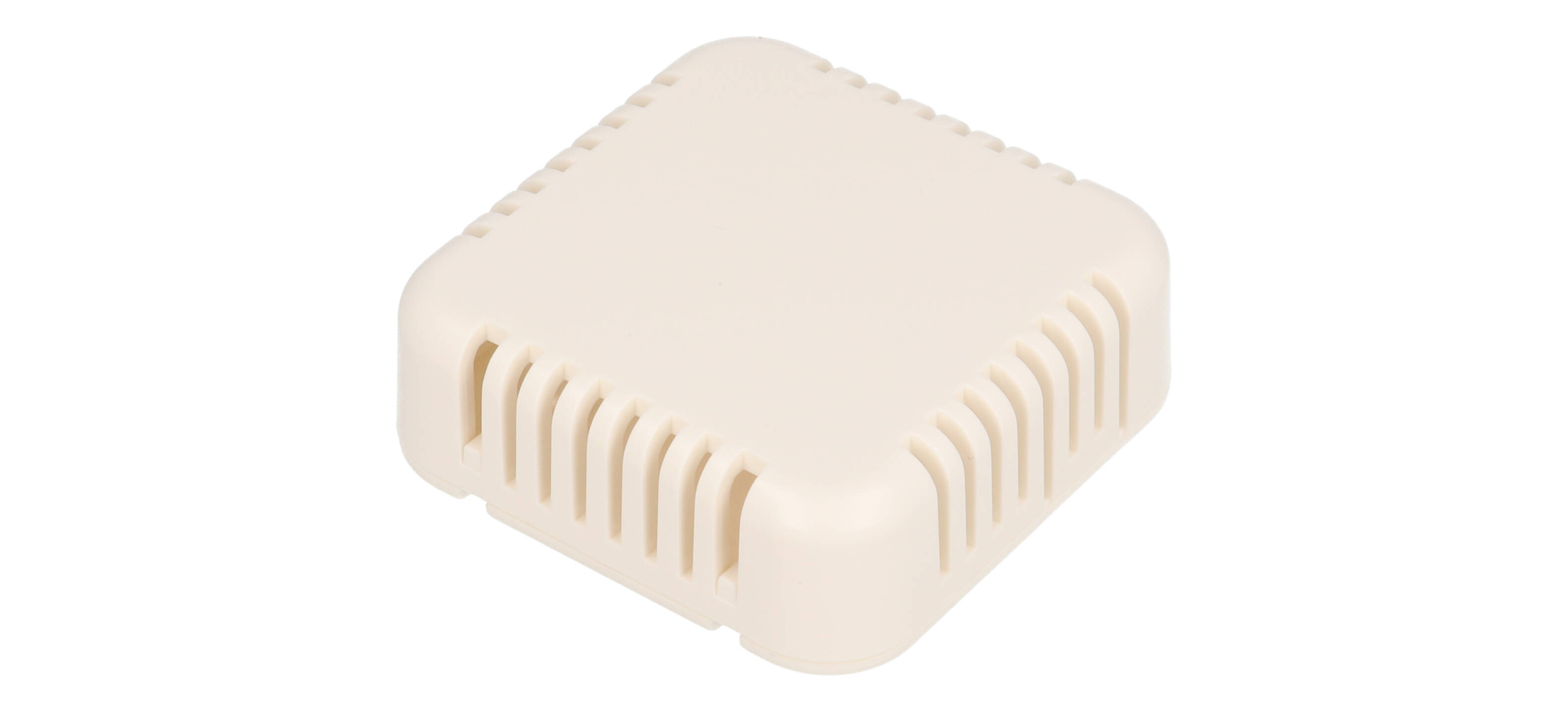

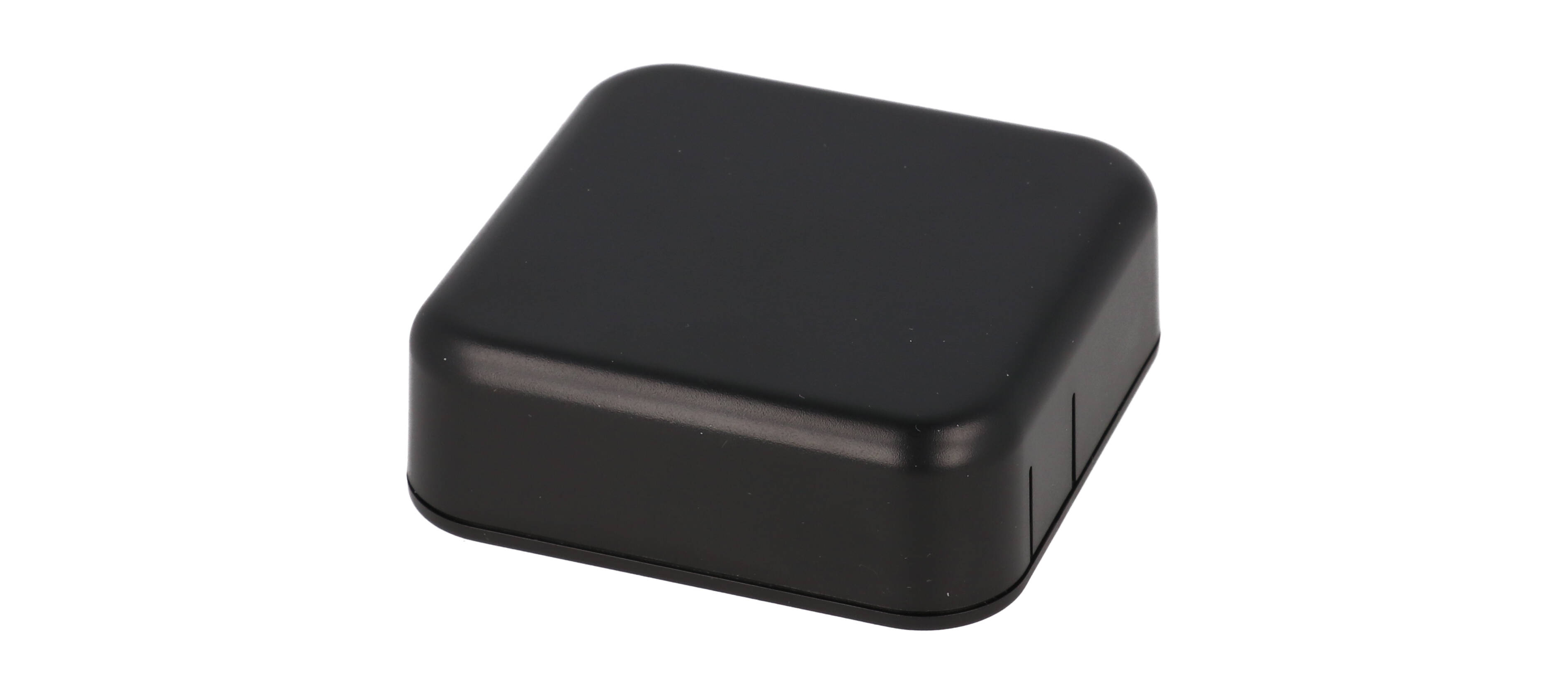

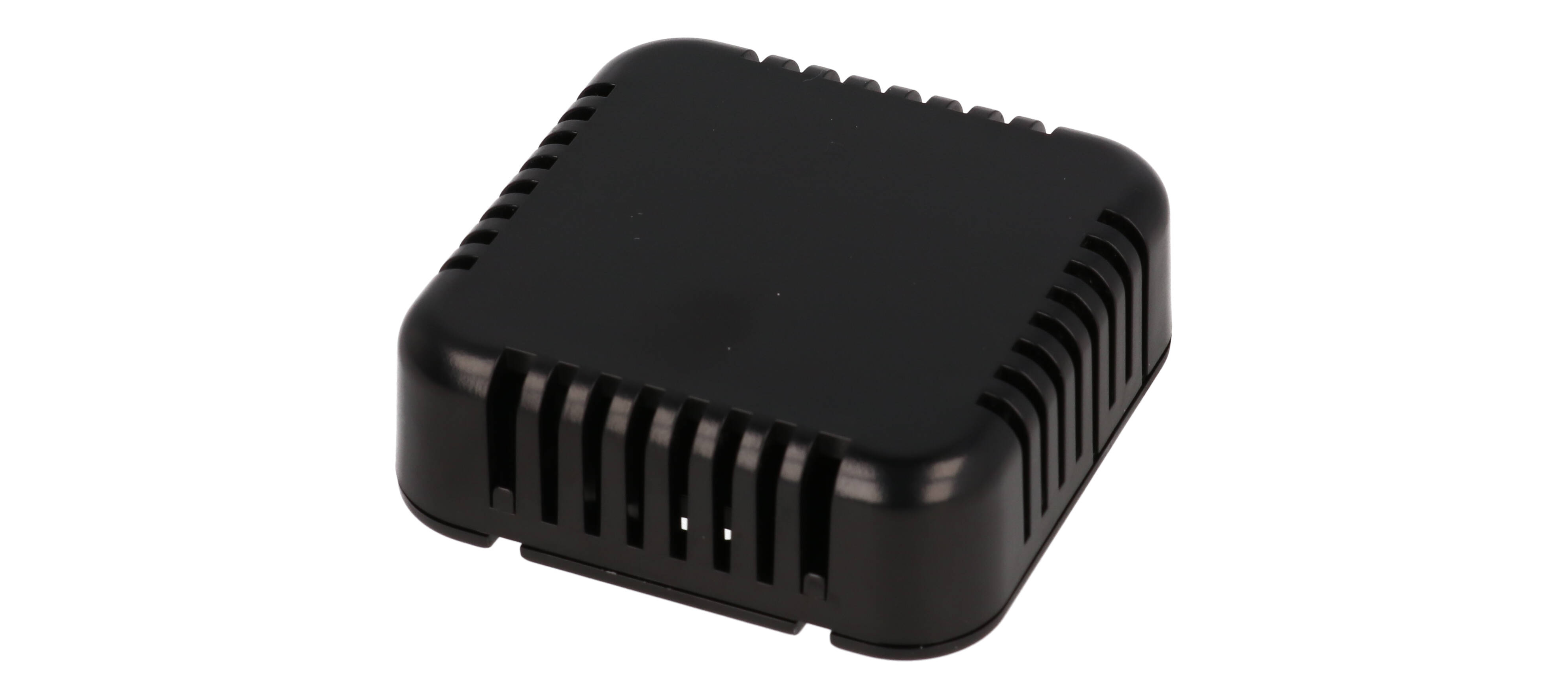

| 1551V3BK | 1551SNAP3BK | Black | 2.36 | 2.36 | 0.79 | $1.45In stock1551V3BK | Buy now |
| 1551V3GY | 1551SNAP3GY | Grey | 2.36 | 2.36 | 0.79 | $1.45In stock1551V3GY | Buy now |
| 1551V3WH | 1551SNAP3WH | White | 2.36 | 2.36 | 0.79 | $1.45In stock1551V3WH | Buy now |

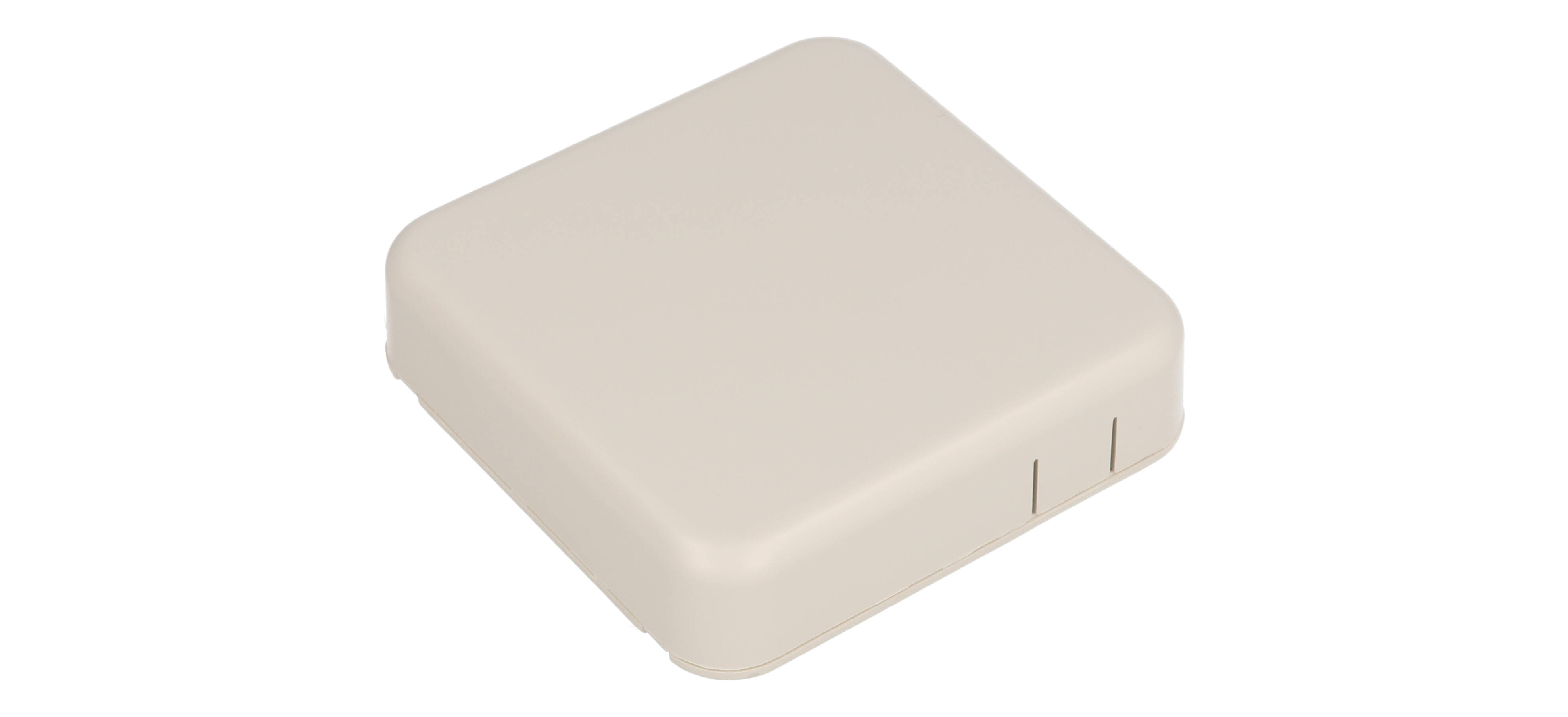

| 1551V4BK | 1551SNAP4BK | Black | 3.15 | 3.15 | 0.79 | $1.58In stock1551V4BK | Buy now |
| 1551V4GY | 1551SNAP4GY | Grey | 3.15 | 3.15 | 0.79 | $1.58In stock1551V4GY | Buy now |

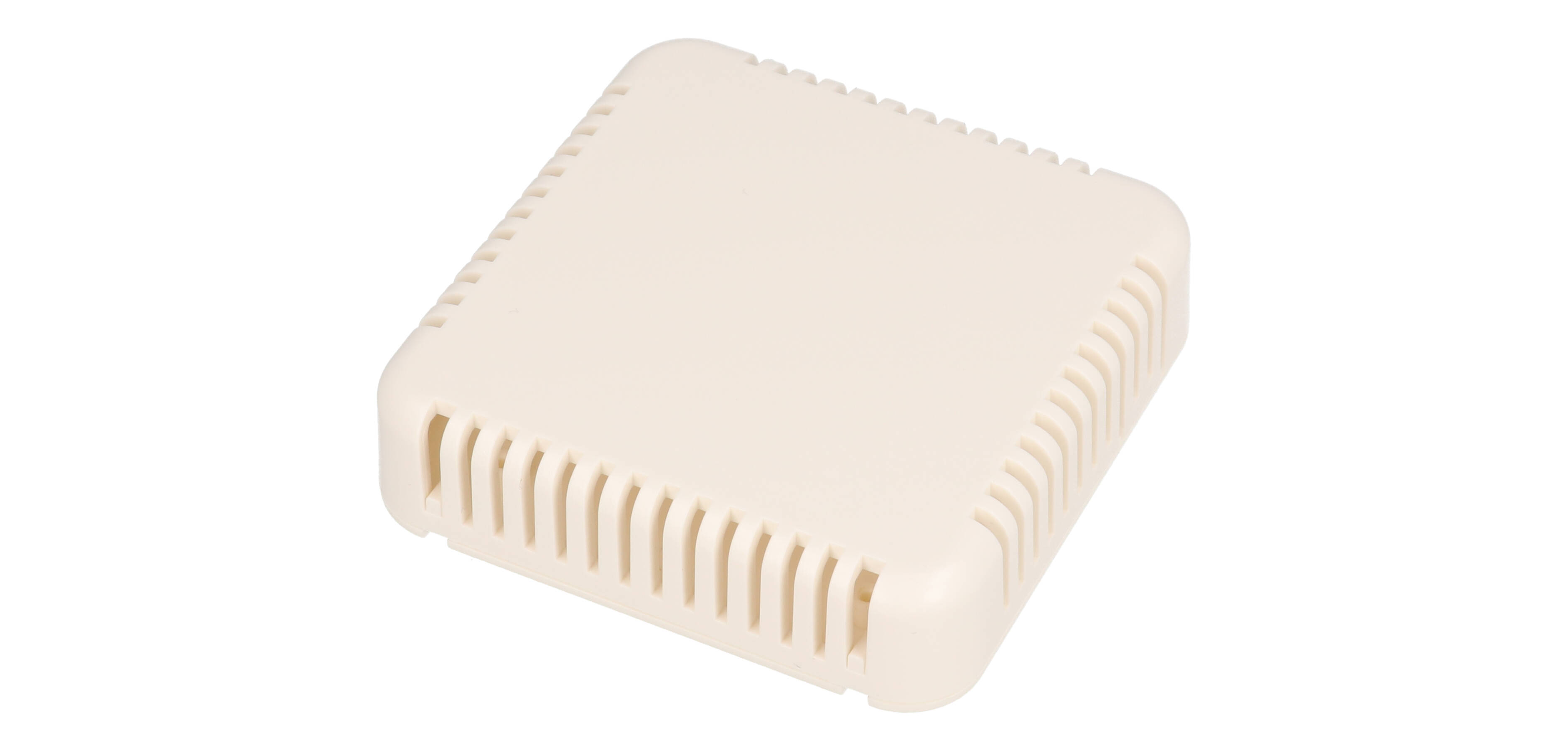

| 1551V4WH | 1551SNAP4WH | White | 3.15 | 3.15 | 0.79 | $1.58In stock1551V4WH | Buy now |
Circle Enclosures
Units shown: mm . Switch units to: inch
| Vented (Part No.) | Unvented (Part No.) | Color | Diameter | Depth | Price | Order |
|---|---|---|---|---|---|---|

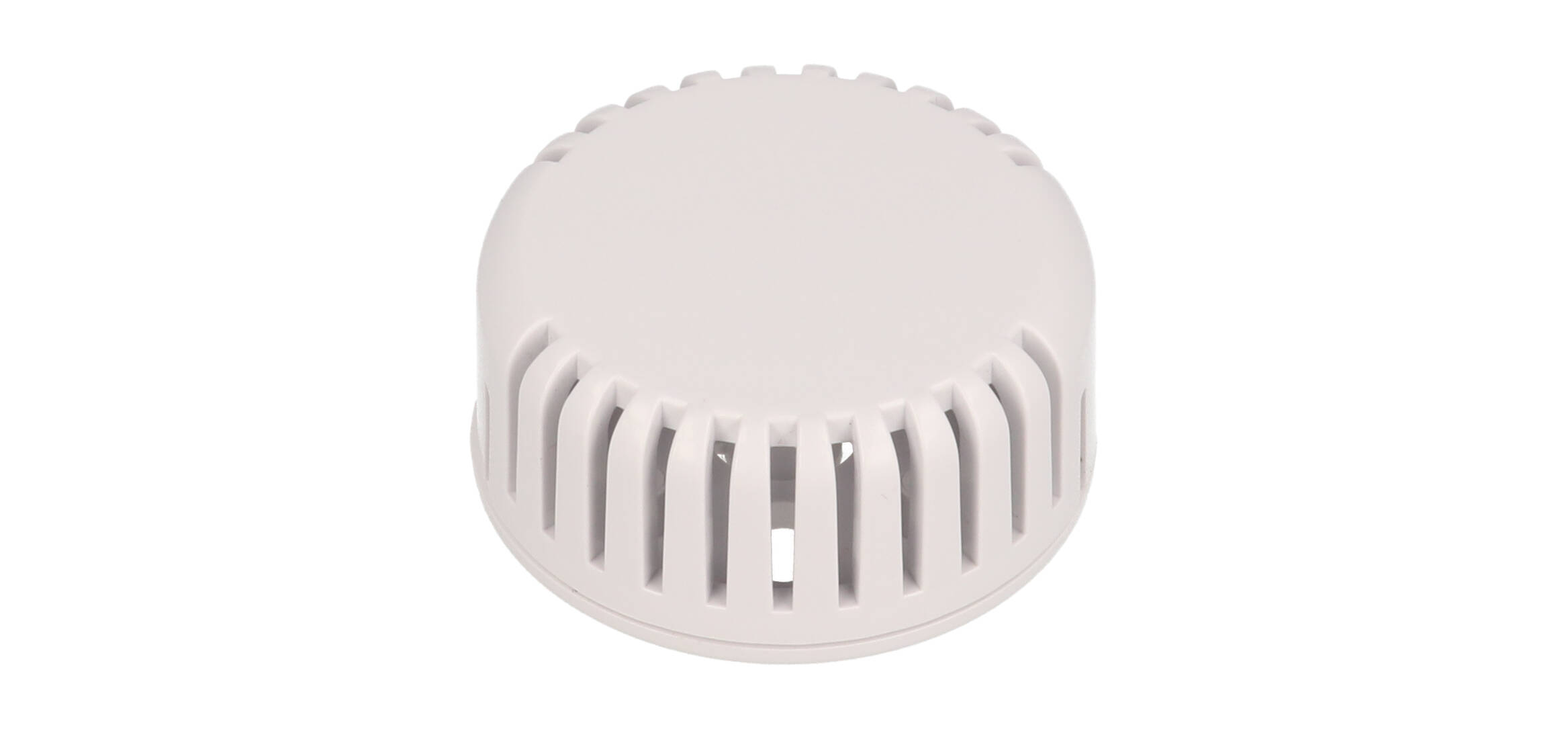

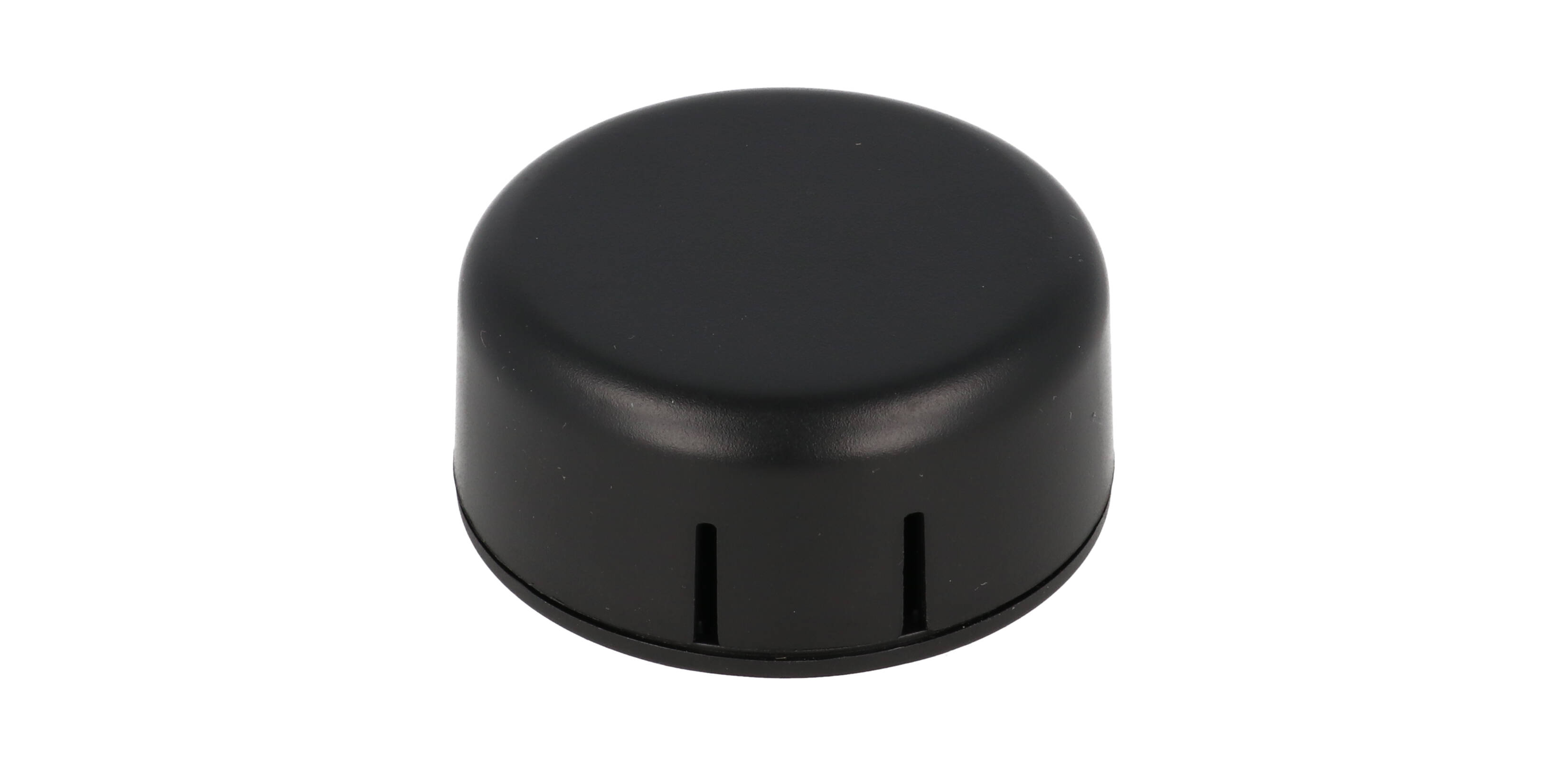

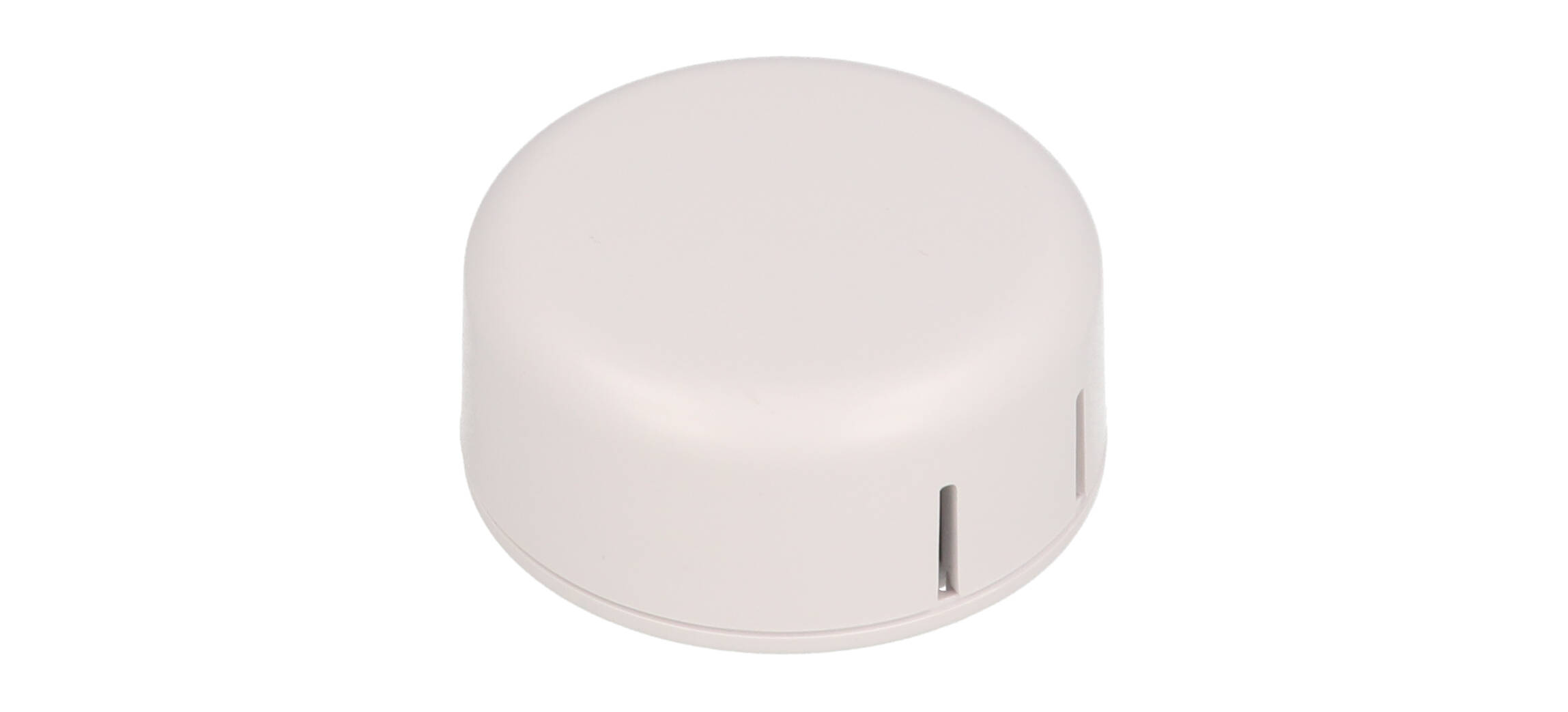

| 1551V11BK | 1551SNAP11BK | Black | 1.77 | 0.79 | $1.23In stock1551V11BK | Buy now |

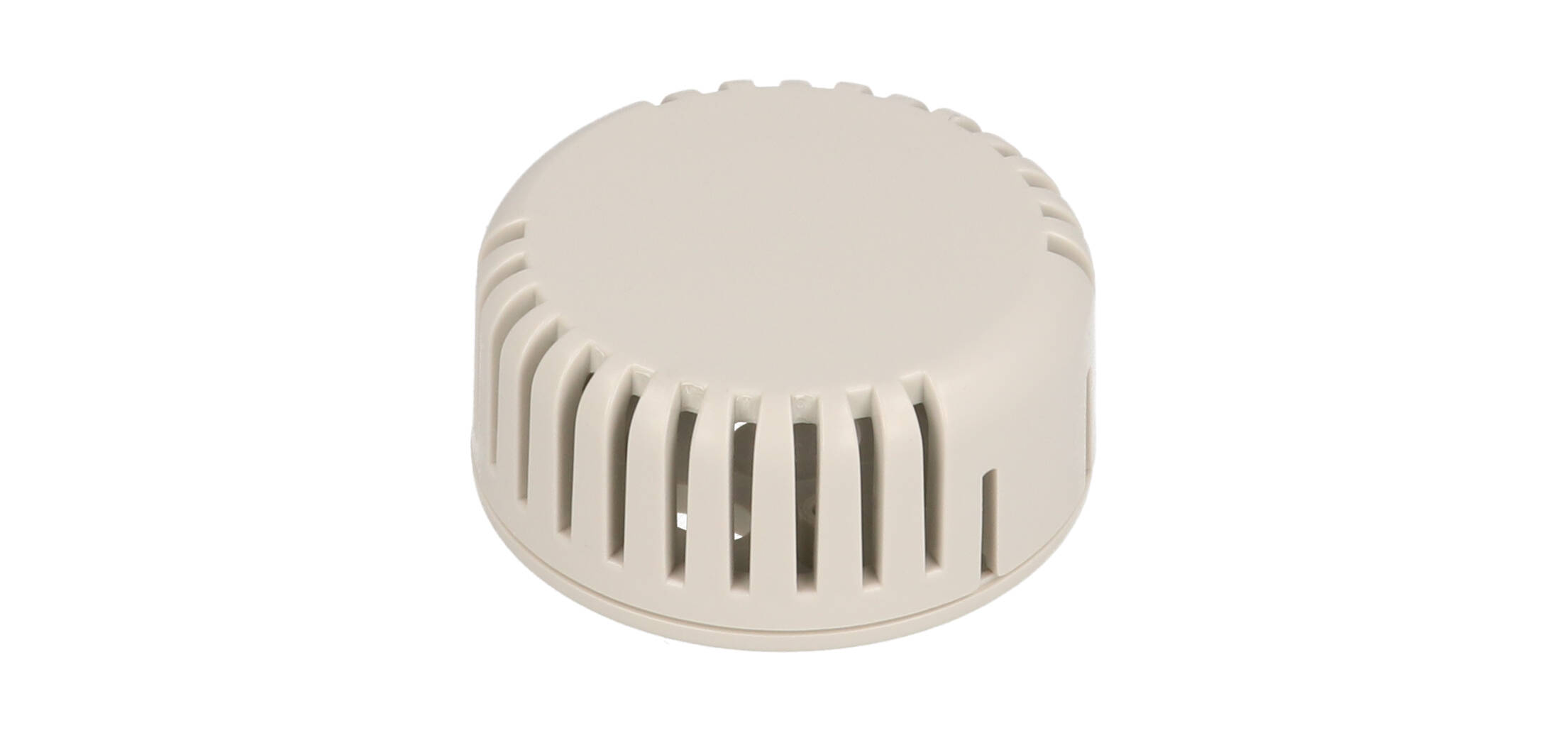

| 1551V11GY | 1551SNAP11GY | Grey | 1.77 | 0.79 | $1.23In stock1551V11GY | Buy now |
| 1551V11WH | 1551SNAP11WH | White | 1.77 | 0.79 | $1.23In stock1551V11WH | Buy now |

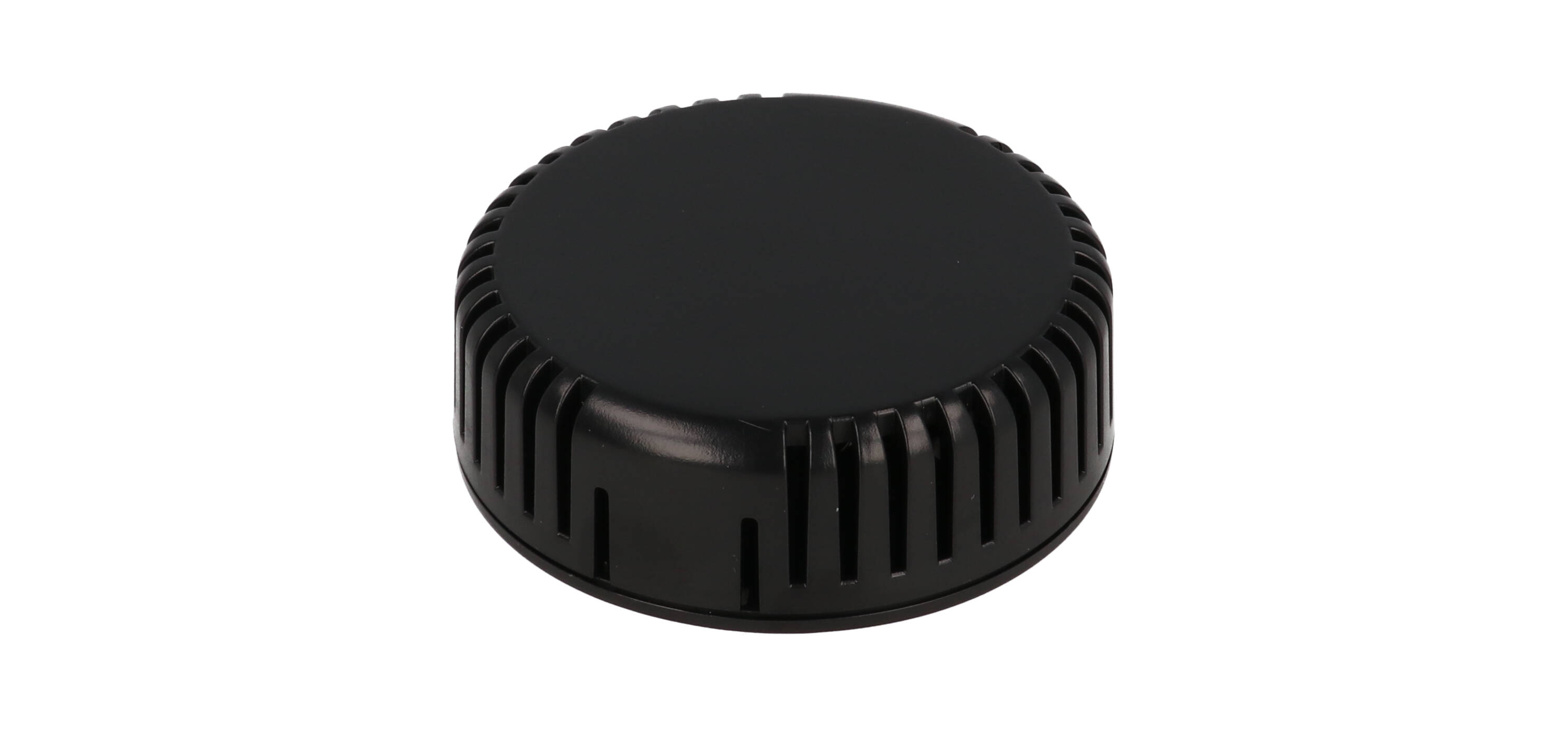

| 1551V12BK | 1551SNAP12BK | Black | 2.36 | 0.79 | $1.60In stock1551V12BK | Buy now |
| 1551V12GY | 1551SNAP12GY | Grey | 2.36 | 0.79 | $1.60In stock1551V12GY | Buy now |
| 1551V12WH | 1551SNAP12WH | White | 2.36 | 0.79 | $1.60In stock1551V12WH | Buy now |

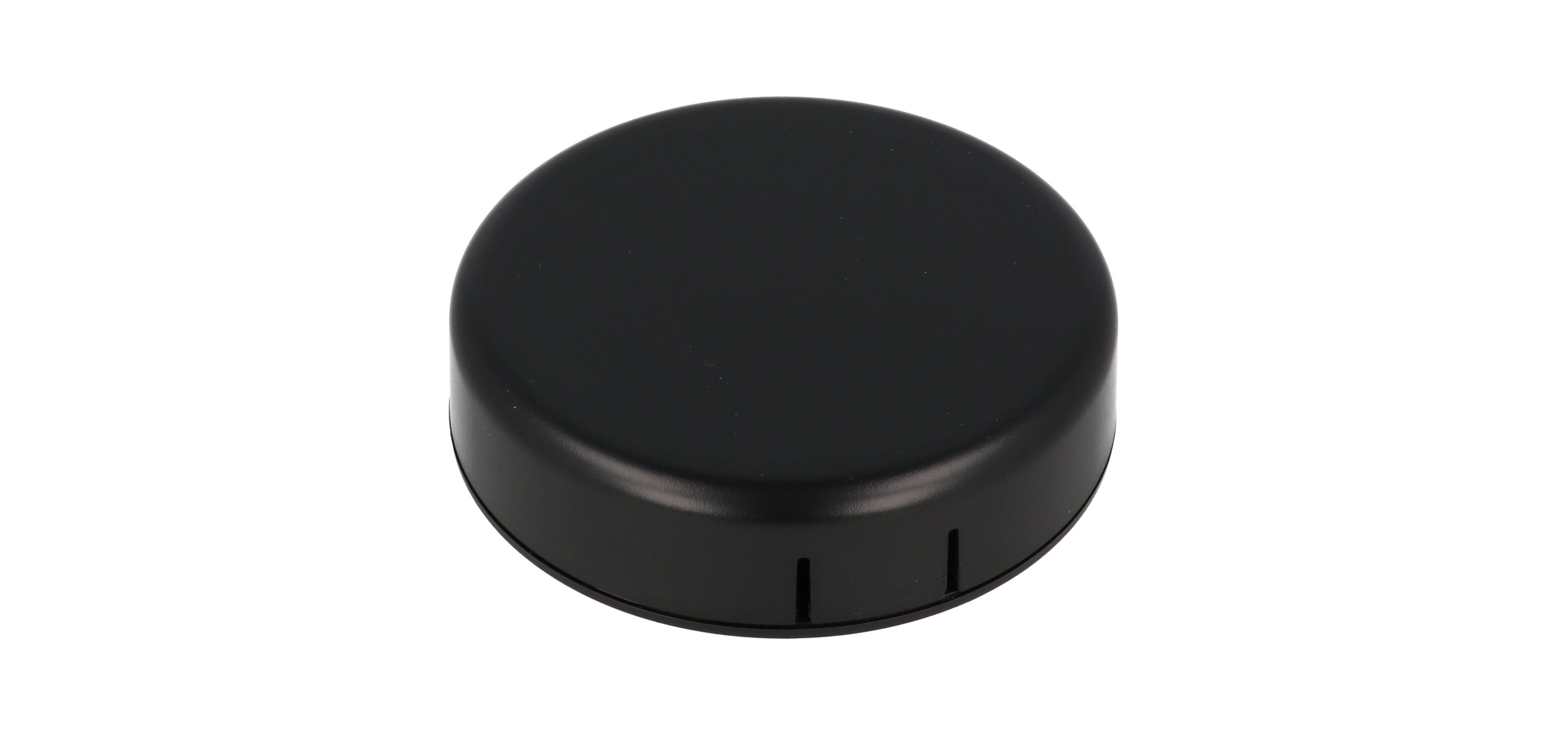

| 1551V13BK | 1551SNAP13BK | Black | 3.15 | 0.79 | $1.80In stock1551V13BK | Buy now |
| 1551V13GY | 1551SNAP13GY | Grey | 3.15 | 0.79 | $1.80In stock1551V13GY | Buy now |
| 1551V13WH | 1551SNAP13WH | White | 3.15 | 0.79 | $1.80In stock1551V13WH | Buy now |
Key Features:
- ■Simple snap fit assembly and wallmounting features designed for IoT or general purpose applications.
- ■Choice of vented or unvented.
- ■Vented versions protect electronics from harmful contact with hands or tools, but allow entry of air and moisture for applications which require environmental exposure (e.g., sensors).
- ■Ideally suited for mounting printed circuit boards.
- ■Slots on the base of the enclosure allow for easy wallmounting.
- ■Knockout on the base can be removed with a screwdriver and used for wire entry.
- ■Molded in ABS plastic. Material has a UL94-HB rating.
- ■Choice of (4) square/rectangle sizes and (3) circle sizes. Stocked in black, gray, and white.
- ■Enclosure features a snap fit assembly and can be reopened repeatedly as needed. No hardware required.
- ■(4) PC board standoffs molded into interior (see drawings for details).
- ■Designed to meet IP30.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Notes:
- ■To secure a PC board, use self tapping #2 x 3/16" screws (not included). See part number 1553WTS100 (pack of 100).

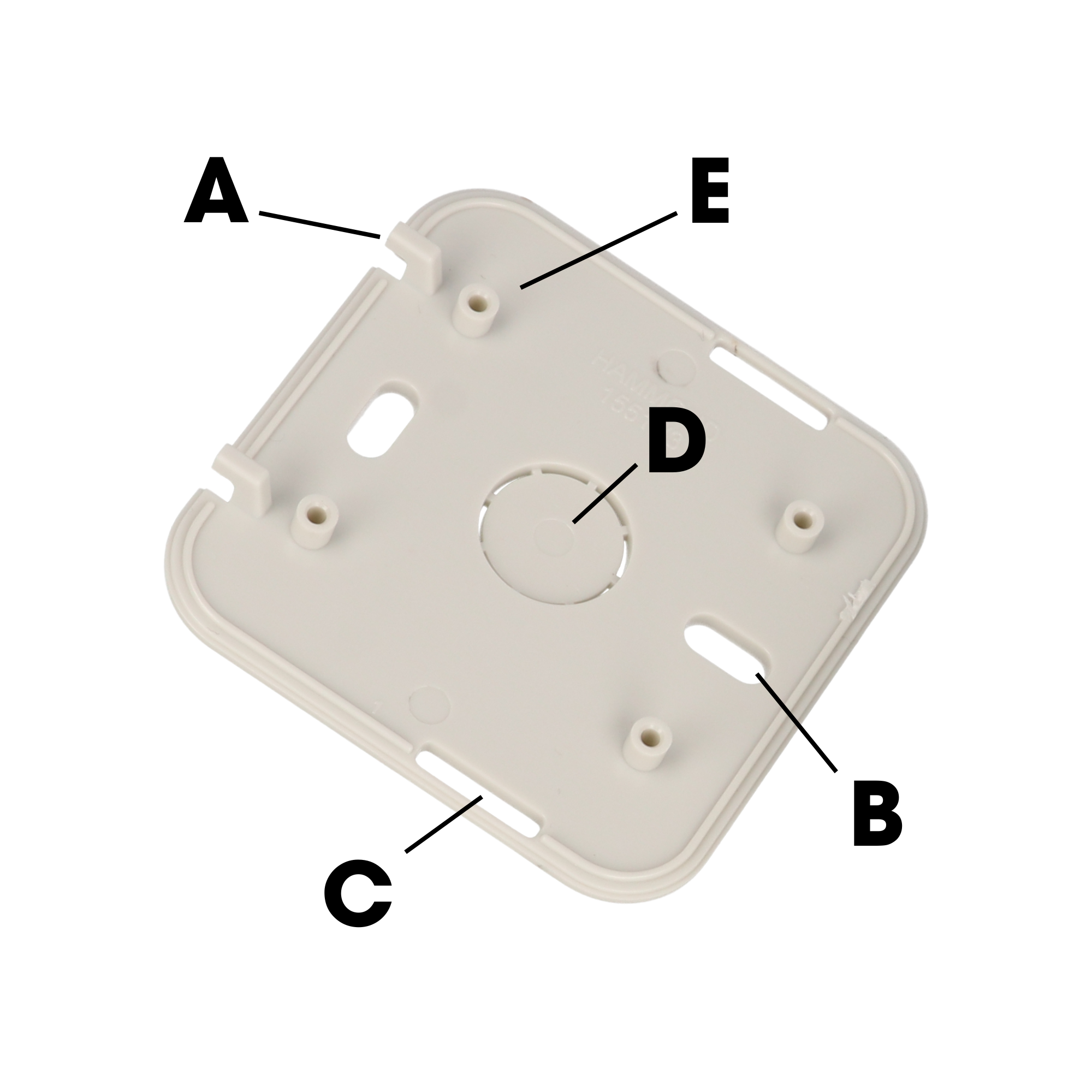

Photo Features:
- ■A) Assembly hooks (square/rectangle models only)
- ■B) Wall-mounting slots
- ■C) Snap-fit closures
- ■D) Wire entry knockout
- ■E) PC board standoffs
Documents
Additional information
Square and Rectangle Enclosures
| Vented | Unvented | Color | Length | Width | Depth |
|---|---|---|---|---|---|
| 1551V1BK | 1551SNAP1BK | Black | 40 | 40 | 20 |
| 1551V1GY | 1551SNAP1GY | Grey | 40 | 40 | 20 |
| 1551V1WH | 1551SNAP1WH | White | 40 | 40 | 20 |
| 1551V2BK | 1551SNAP2BK | Black | 80 | 40 | 20 |
| 1551V2GY | 1551SNAP2GY | Grey | 80 | 40 | 20 |
| 1551V2WH | 1551SNAP2WH | White | 80 | 40 | 20 |
| 1551V3BK | 1551SNAP3BK | Black | 60 | 60 | 20 |
| 1551V3GY | 1551SNAP3GY | Grey | 60 | 60 | 20 |
| 1551V3WH | 1551SNAP3WH | White | 60 | 60 | 20 |
| 1551V4BK | 1551SNAP4BK | Black | 80 | 80 | 20 |
| 1551V4GY | 1551SNAP4GY | Grey | 80 | 80 | 20 |
| 1551V4WH | 1551SNAP4WH | White | 80 | 80 | 20 |
Circle Enclosures
| Vented | Unvented | Color | Diameter | Depth |
|---|---|---|---|---|
| 1551V11BK | 1551SNAP11BK | Black | 45 | 20 |
| 1551V11GY | 1551SNAP11GY | Grey | 45 | 20 |
| 1551V11WH | 1551SNAP11WH | White | 45 | 20 |
| 1551V12BK | 1551SNAP12BK | Black | 60 | 20 |
| 1551V12GY | 1551SNAP12GY | Grey | 60 | 20 |
| 1551V12WH | 1551SNAP12WH | White | 60 | 20 |
| 1551V13BK | 1551SNAP13BK | Black | 80 | 20 |
| 1551V13GY | 1551SNAP13GY | Grey | 80 | 20 |
| 1551V13WH | 1551SNAP13WH | White | 80 | 20 |
