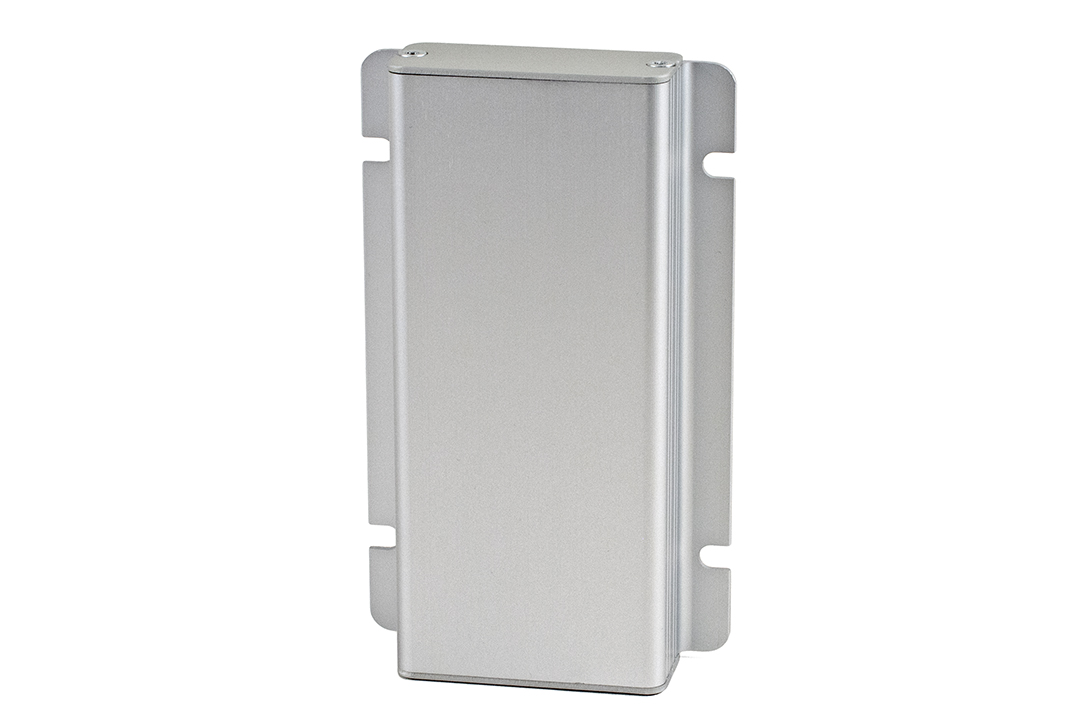

120x54x23mm Flanged Enclosure Clear
- Material Aluminum (Extruded)
- Color Clear (Anodize)
$12.69In stock
Buy now
Extruded Aluminum Enclosures with Integrated Flanges · 1455F Series
Brand: Hammond Manufacturing · 24 part numbers
- ■Designed to house P.C. boards or for equipment interfacing.
- ■Integrated slotted flanges allow for easy wall mounting.
- ■Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
- ■P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
- ■Rugged body constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).
- ■Extruded aluminum body - choice of clear or black anodized
from $11.83
24 of 24 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1455F Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online

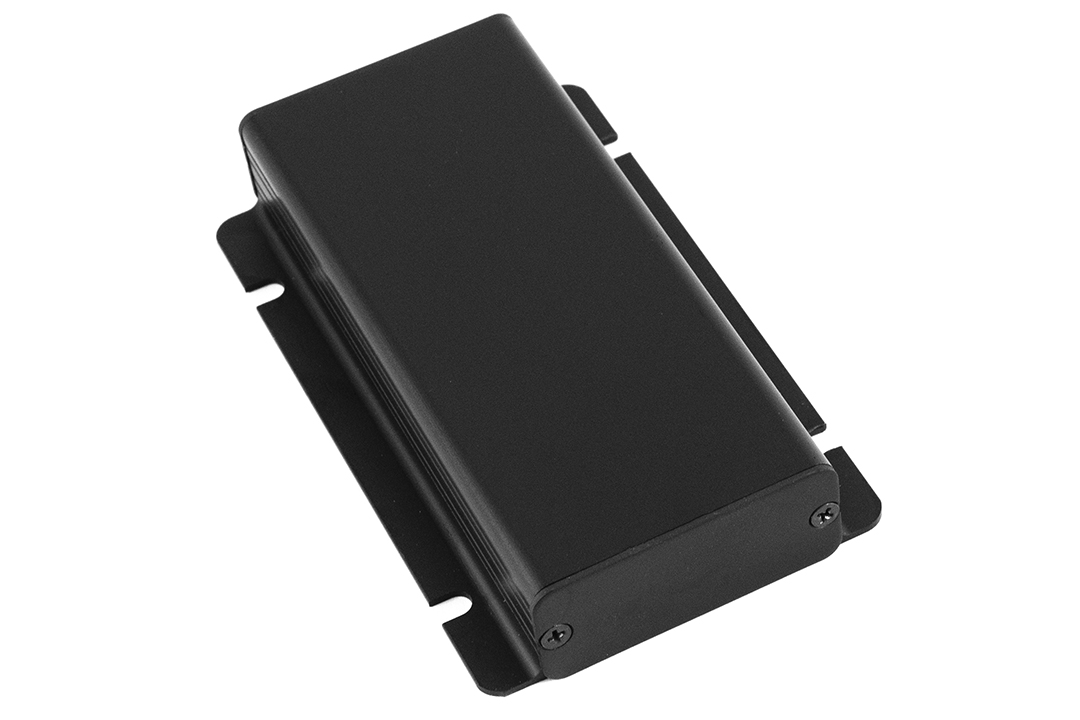

120x54x23mm Flanged Enclosure Black
- Material Aluminum (Extruded)
- Color Black
$13.75In stock
Buy now

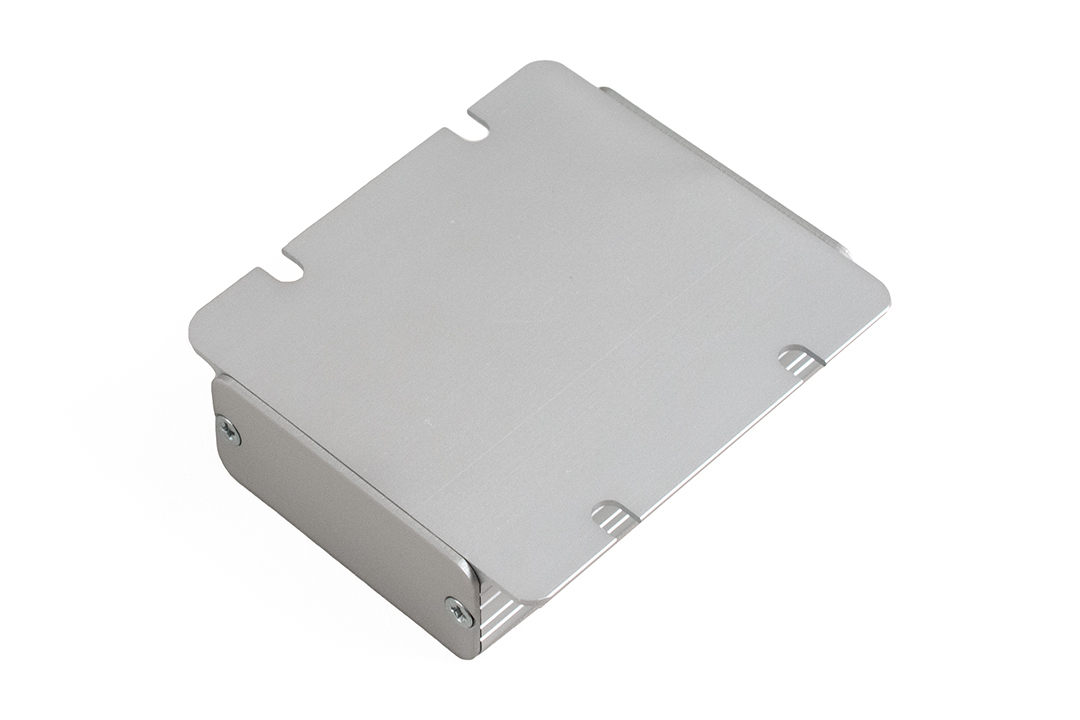

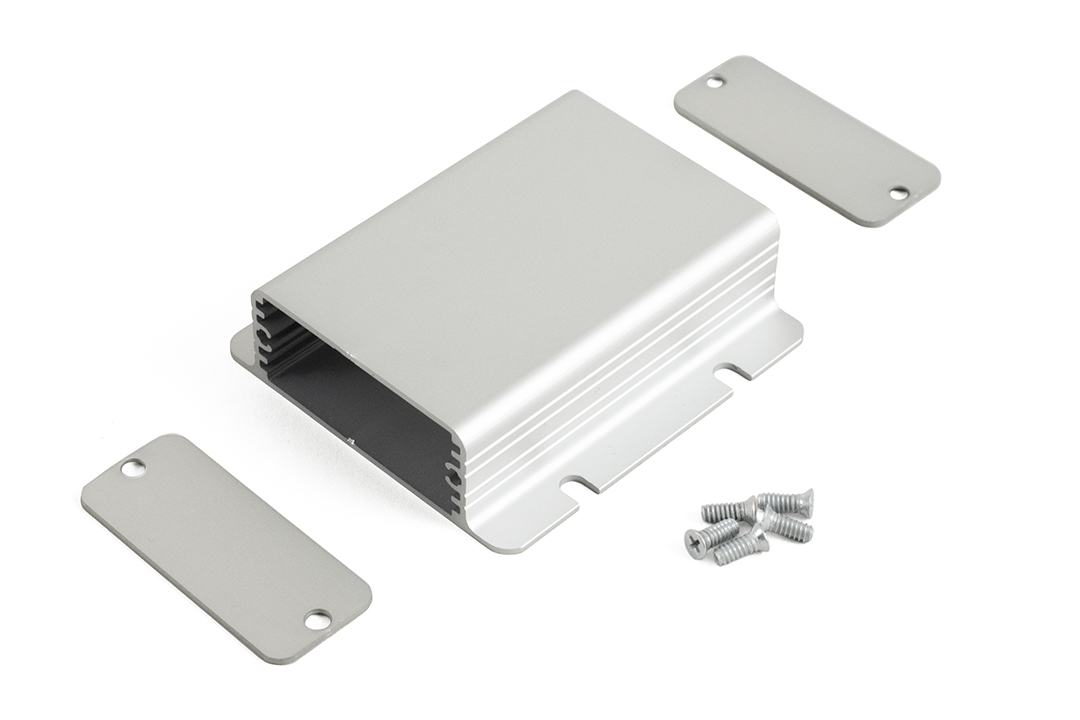

80x54x23mm Flanged Enclosure Clear
- Material Aluminum (Extruded)
- Color Clear (Anodize)
$11.92In stock
Buy now

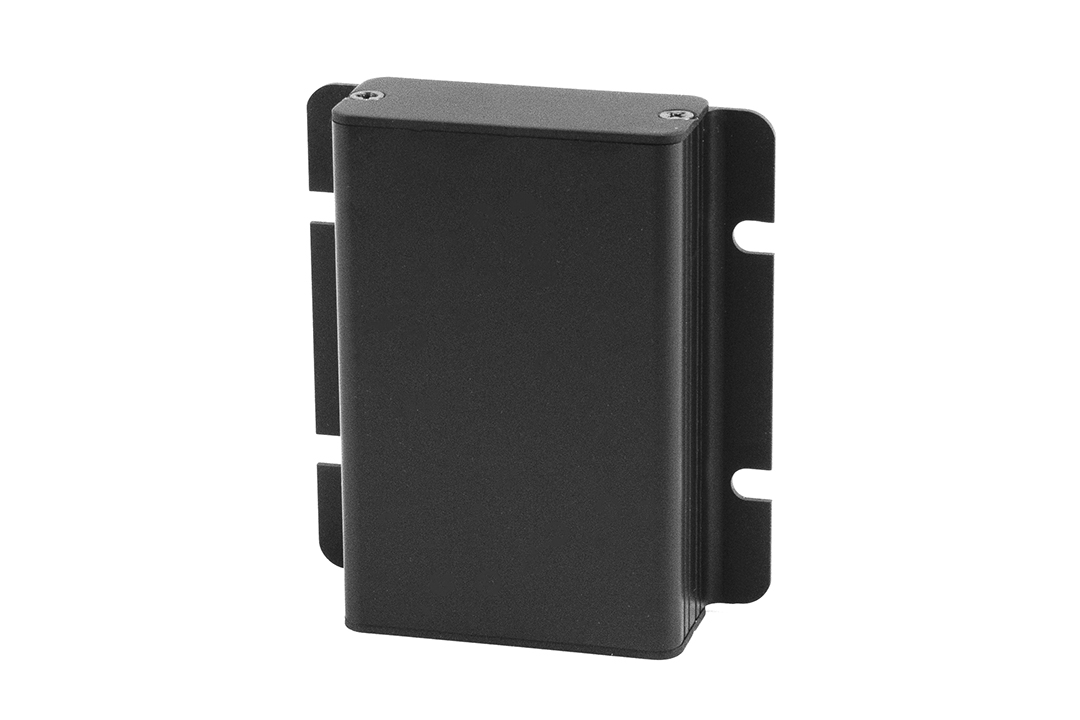

80x54x23mm Flanged Enclosure Black
- Material Aluminum (Extruded)
- Color Black
$12.77In stock
Buy now
120x75x25mm Flanged Enclosure Clear
- Material Aluminum
- Color Clear (Anodize)
$11.83In stock
Buy now

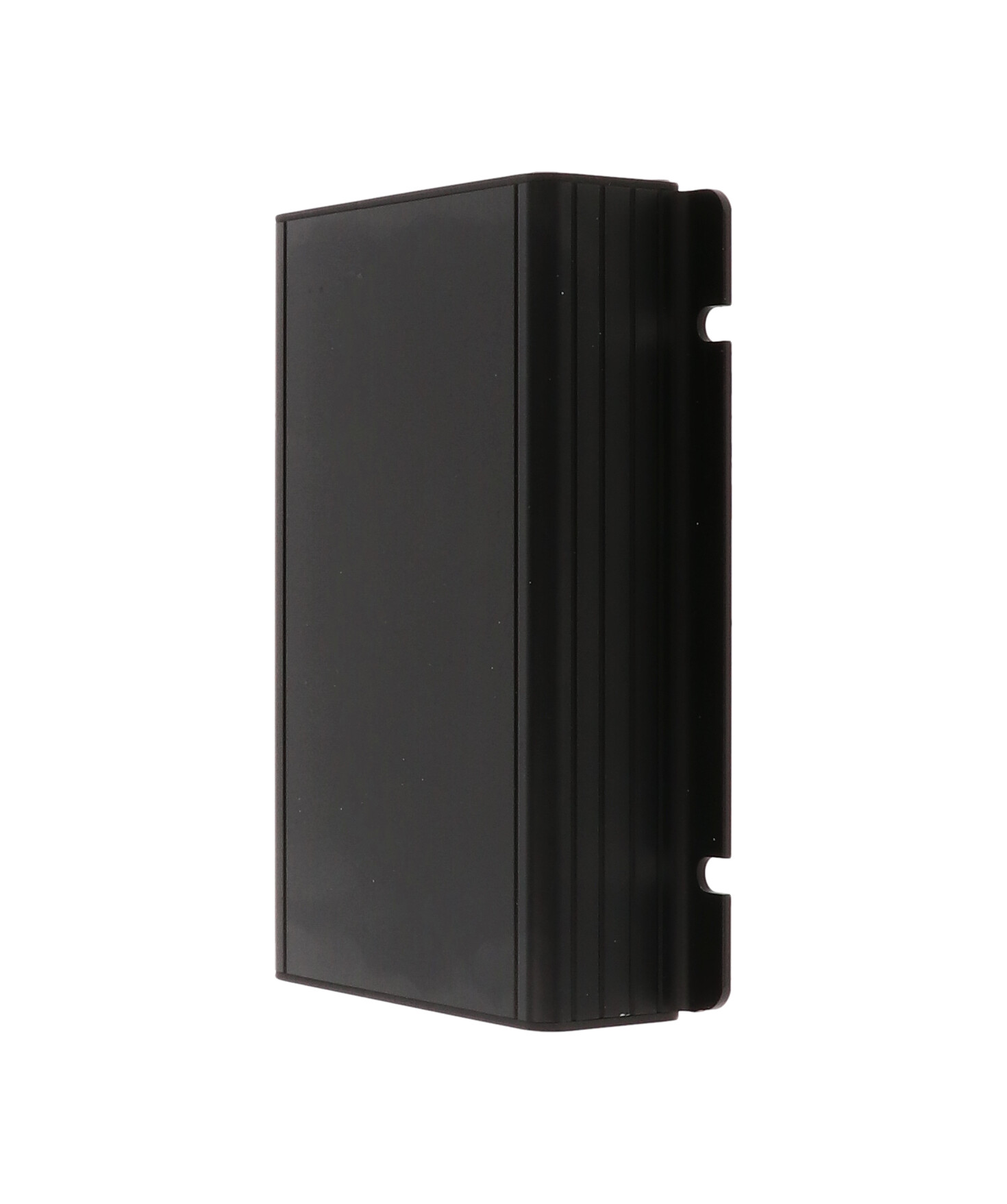

120x75x25mm Flanged Enclosure Black
- Material Aluminum
- Color Black
$12.41In stock
Buy now

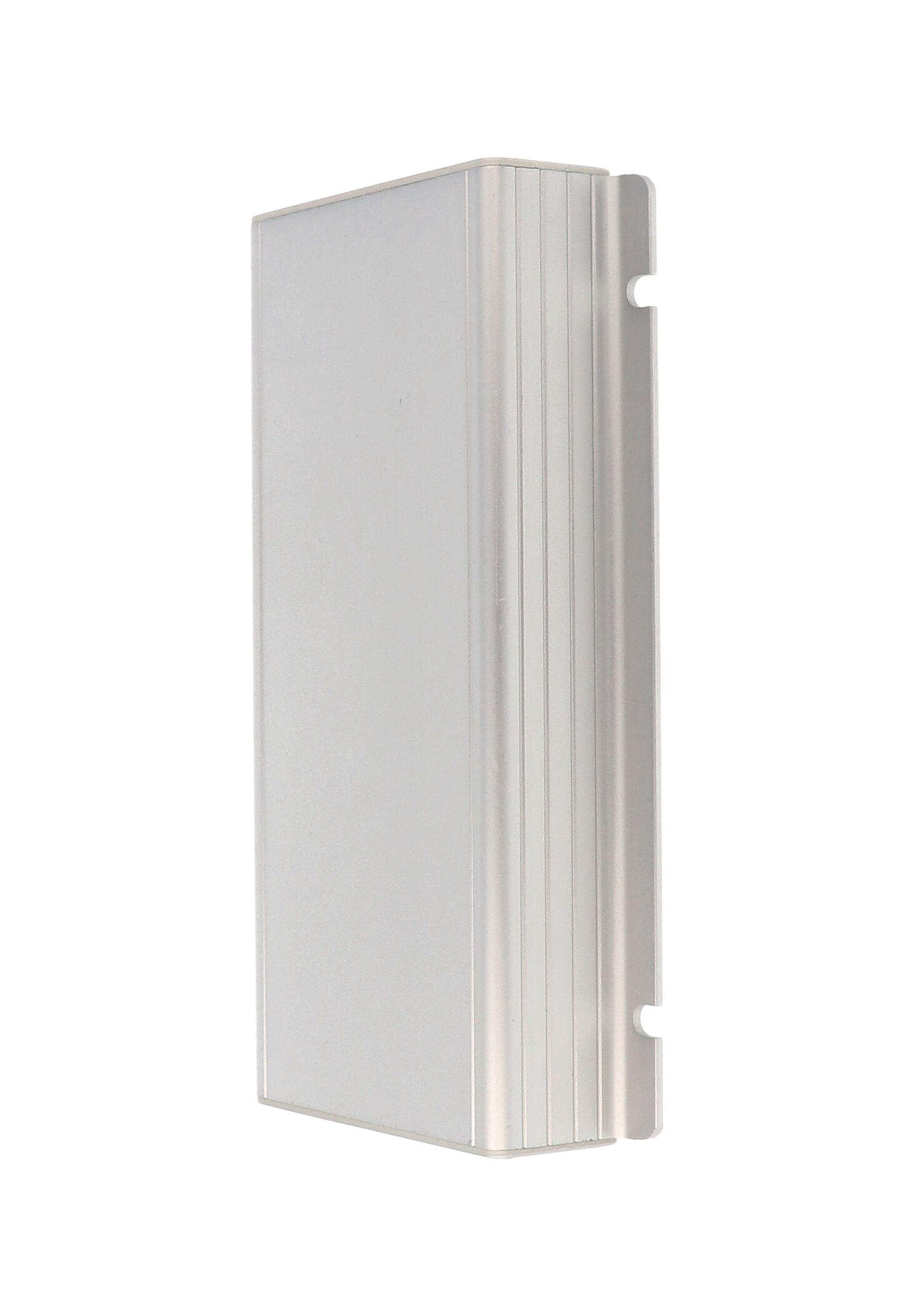

160x75x25mm Flanged Enclosure Clear
- Material Aluminum
- Color Clear (Anodize)
$12.77In stock
Buy now
160x75x25mm Flanged Enclosure Black
- Material Aluminum
- Color Black
$13.37In stock
Buy now
120x100x50mm Flanged Box Clear
- Material Aluminum
- Color Clear (Anodize)
$14.19In stock
Buy now

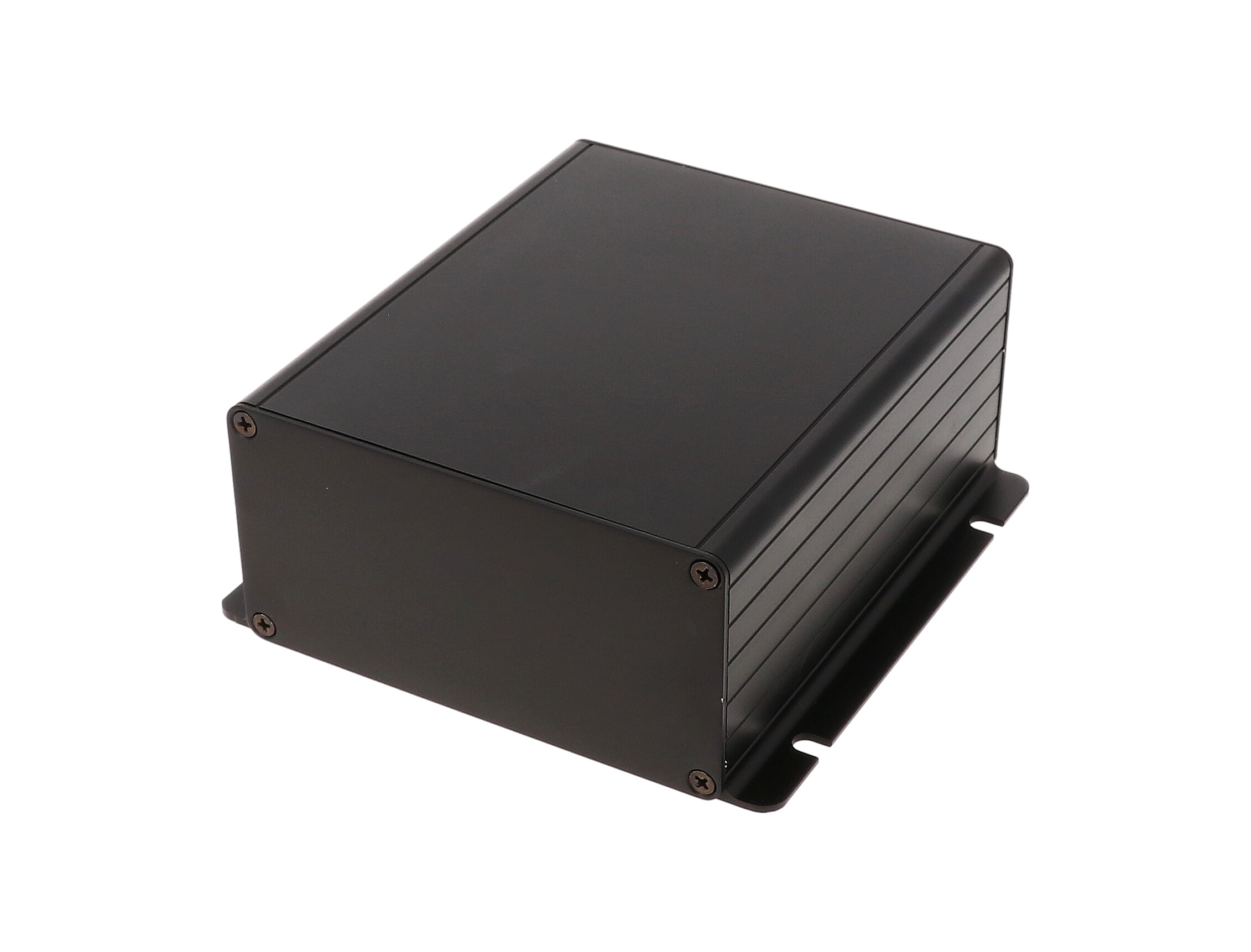

120x100x50mm Flanged Box Black
- Material Aluminum
- Color Black
$14.62In stock
Buy now
160x100x50mm Flanged Box Clear
- Material Aluminum
- Color Clear (Anodize)
$15.57In stock
Buy now

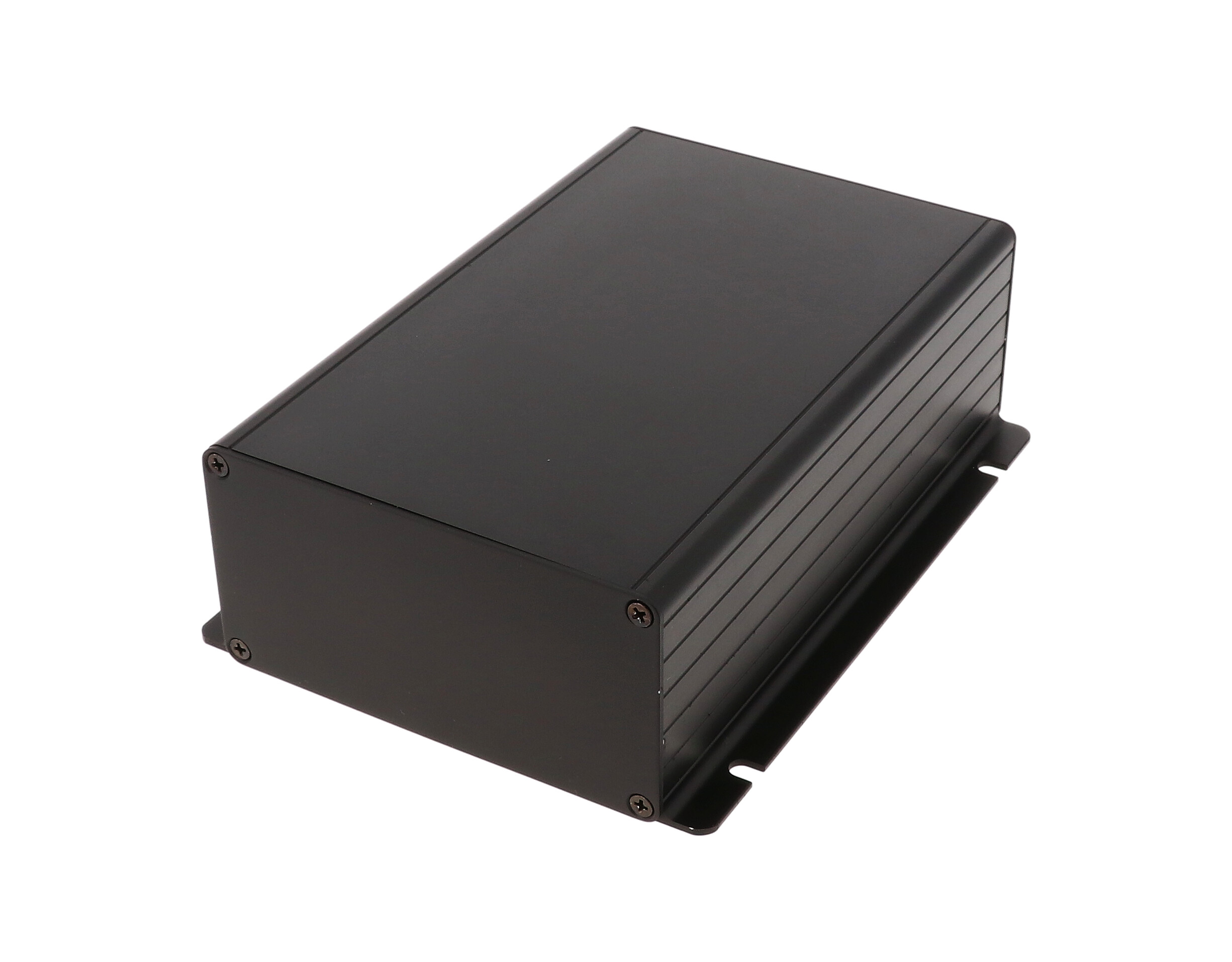

160x100x50mm Flanged Box Black
- Material Aluminum
- Color Black
$15.98In stock
Buy nowDimension tables (inches / mm)
Enclosures
| Clear Anodized Enclosure (Part No.) | Black Anodized Enclosure (Part No.) | Length (mm) | Enclosure Width (mm) | Total Width W/ Flanges (mm) | Total Outside Depth (mm) | Price | Order |
|---|---|---|---|---|---|---|---|
| 1455CF801 | 1455CF801BK | 80.00 | 54.00 | 74.00 | 23.00 | $11.92In stock1455CF801 | Buy now |
| 1455CF1201 | 1455CF1201BK | 120.00 | 54.00 | 74.00 | 23.00 | $12.69In stock1455CF1201 | Buy now |
| 1455JF1201 | 1455JF1201BK | 120.00 | 78.00 | 98.00 | 27.00 | $11.83In stock1455JF1201 | Buy now |

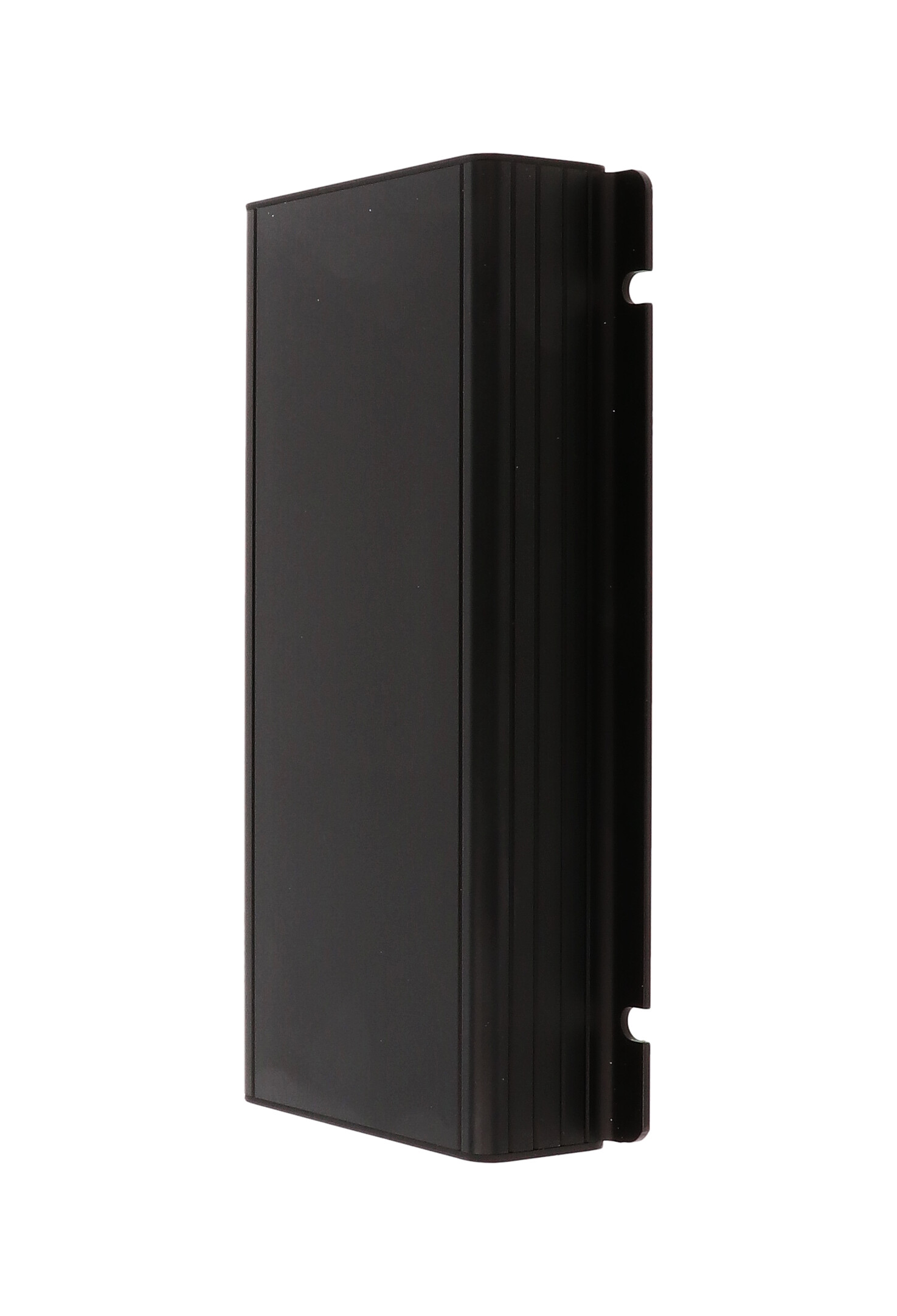

| 1455JF1601 | 1455JF1601BK | 160.00 | 78.00 | 98.00 | 27.00 | $12.77In stock1455JF1601 | Buy now |
| 1455NF1201 | 1455NF1201BK | 120.00 | 103.00 | 123.00 | 53.00 | $14.19In stock1455NF1201 | Buy now |
| 1455NF1601 | 1455NF1601BK | 160.00 | 103.00 | 123.00 | 53.00 | $15.57In stock1455NF1601 | Buy now |
Replacement End Panels
| For · Part Number · Starting With | Clear Anodize · 10-pack (Part No.) | Black Anodize · 10-pack (Part No.) | Blue Anodize · 10-pack (Part No.) | Red Anodize · 10-pack (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| 1455CF | 1455CAL-10 | 1455CALBK-10 | 1455CALBU-10 | 1455CALRD-10 | $14.43In stock1455CAL-10 | Buy now |
| 1455JF | 1455JAL-10 | 1455JALBK-10 | 1455JALBU-10 | 1455JALRD-10 | $15.40In stock1455JAL-10 | Buy now |
| 1455NF | 1455NAL-10 | 1455NALBK-10 | 1455NALBU-10 | 1455NALRD-10 | $16.91In stock1455NAL-10 | Buy now |
Key Features:
- ■Designed to house P.C. boards or for equipment interfacing.
- ■Integrated slotted flanges allow for easy wall mounting.
- ■Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
- ■P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
- ■Rugged body constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).

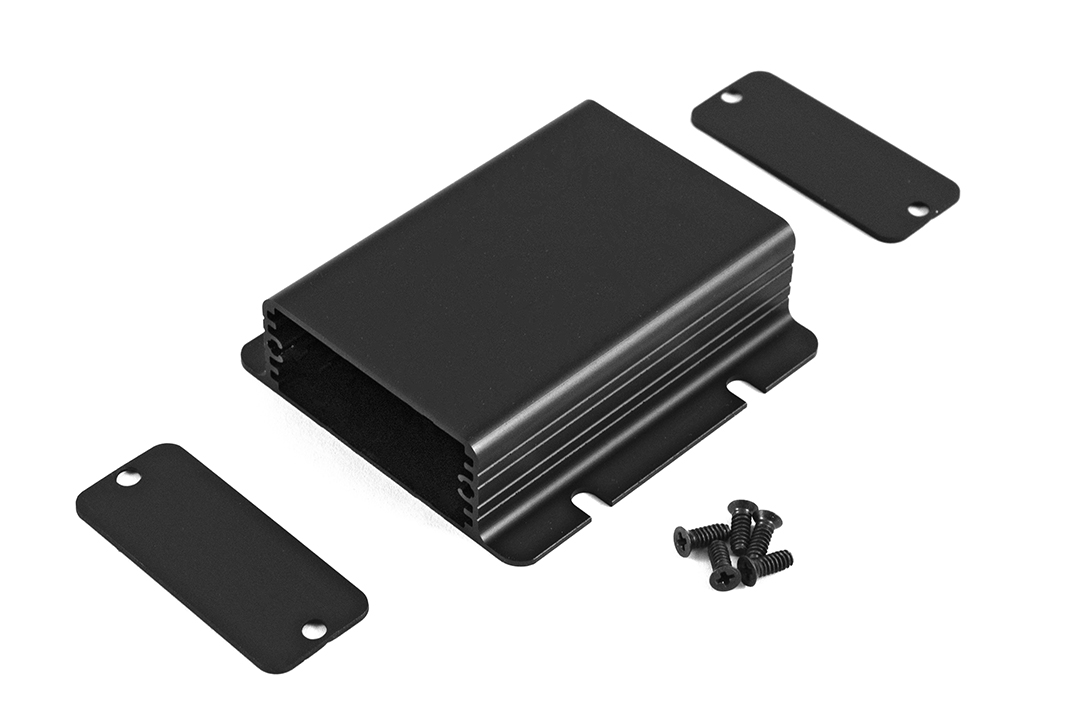

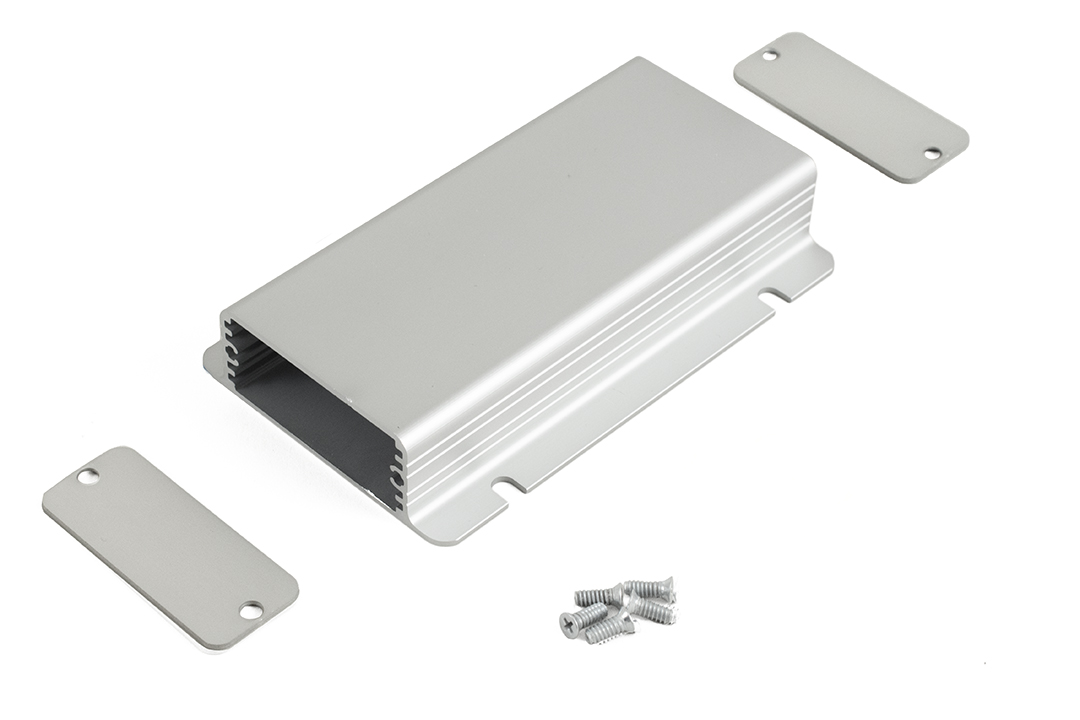

Includes:
Don't need wall-mounting flanges? Try our standard 1455 Series
- ■Extruded aluminum body - choice of clear or black anodized
- ■(2) Aluminum end panels
- ■Includes all hardware - end panel screws are zinc-plated #6 x 3/8” TTT thread rolling, steel screws with a #4 flat head phillips drive. Supplied screws are natural or black to match housing.
- ■Replacement end panels available in packs of 10 (see table below)
- ■For black replacement screws (quantity 100) order part number 1455MS100BK
- ■For clear replacement screws (quantity 100) order part number 1455MS100
- ■NOTE: Recommended screw torque is 5 lbf-in
