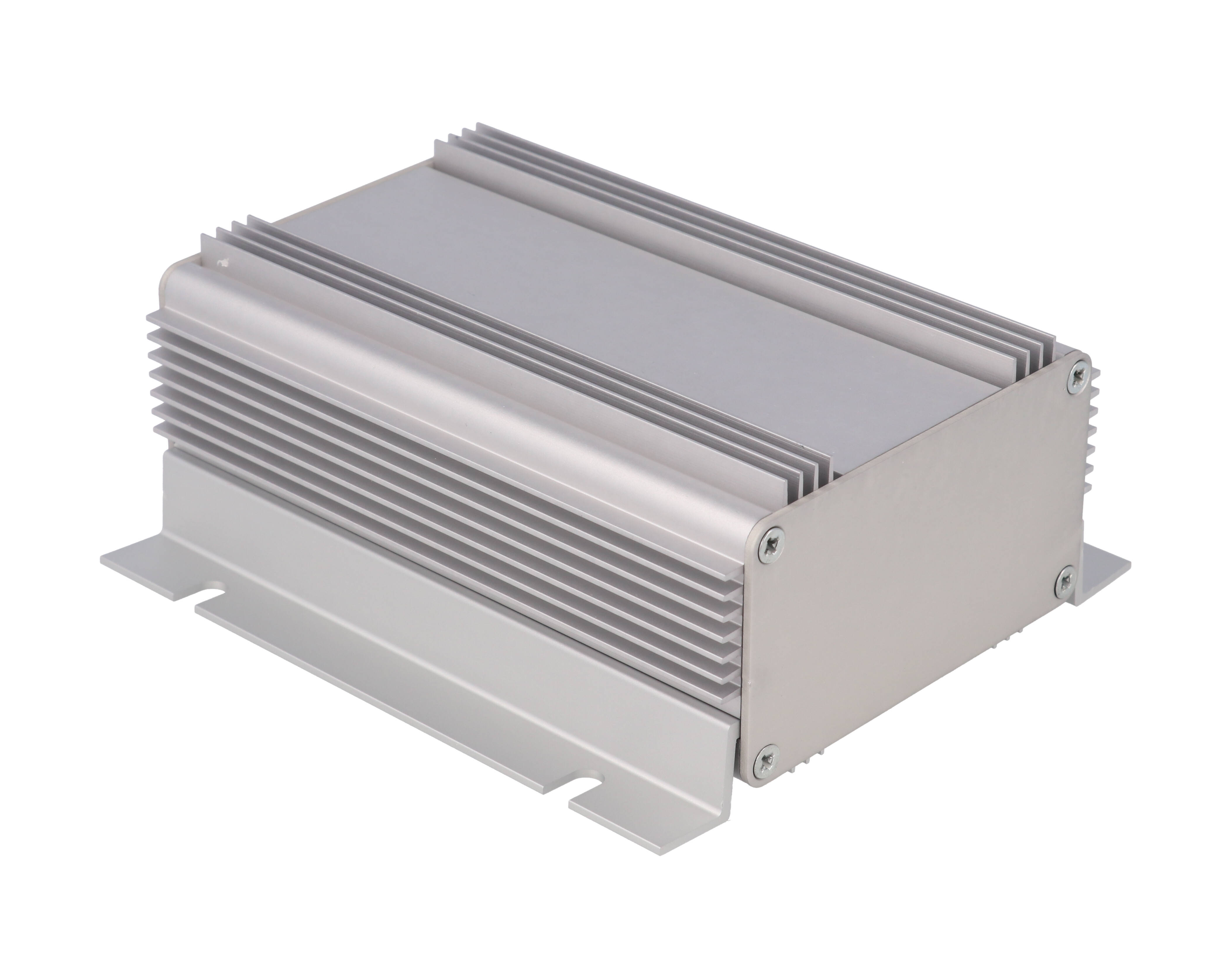

1455K "HD" 120mm Finned Enclosure
- Color Clear (Anodize)
- Anodize Color Clear
$27.81In stock
Buy now
Heat Dissipating Extruded Aluminum Enclosures · 1455HD Series
Brand: Hammond Manufacturing · 12 part numbers
Fins for Heat Dissipation, Wall-Mounting Flanges
- ■Designed to house P.C. boards or equipment.
- ■Easy wall mounting or shelf mounting with two removable flanges
- ■Sized for standard eurocard P.C. boards.

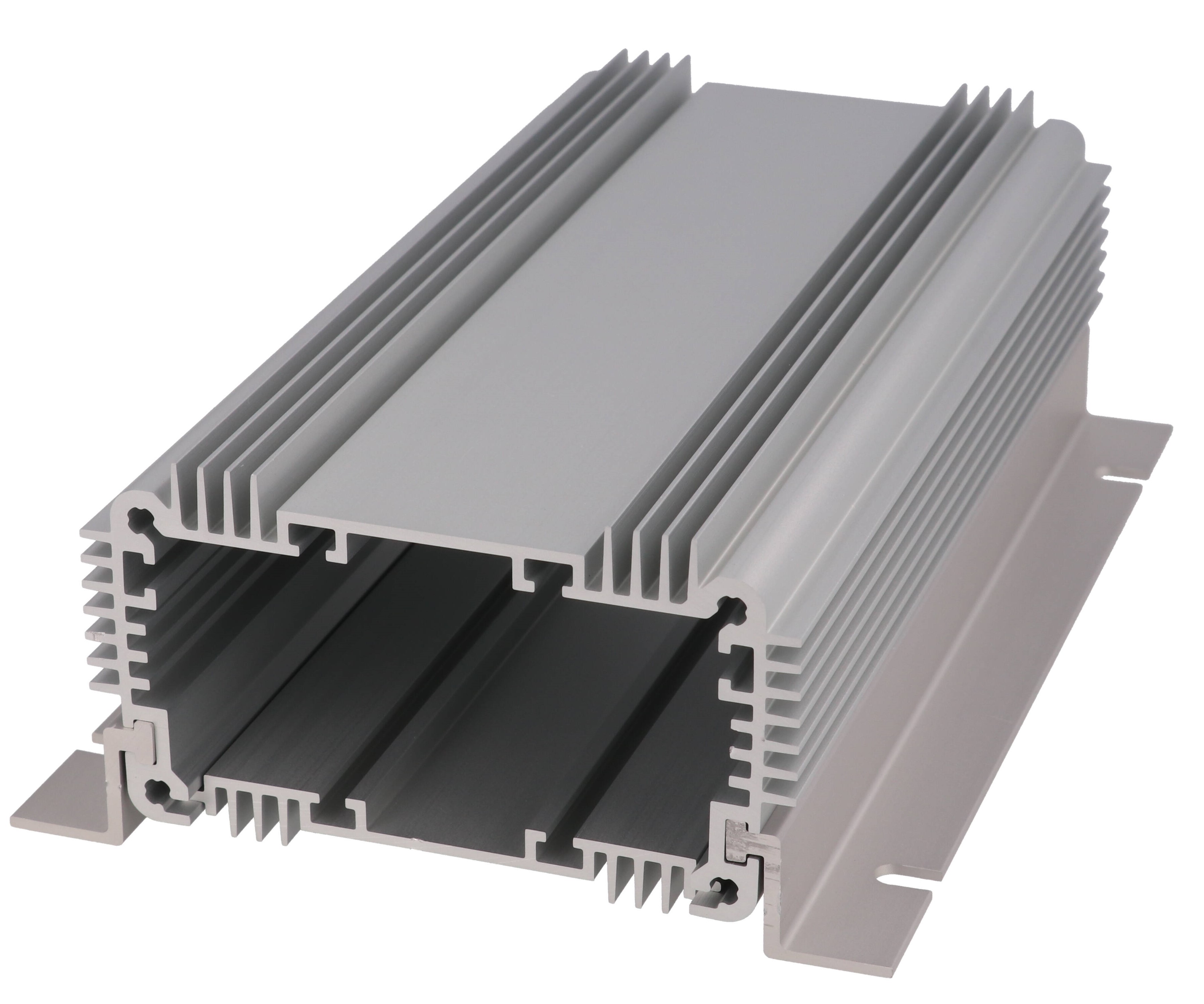

- ■P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.

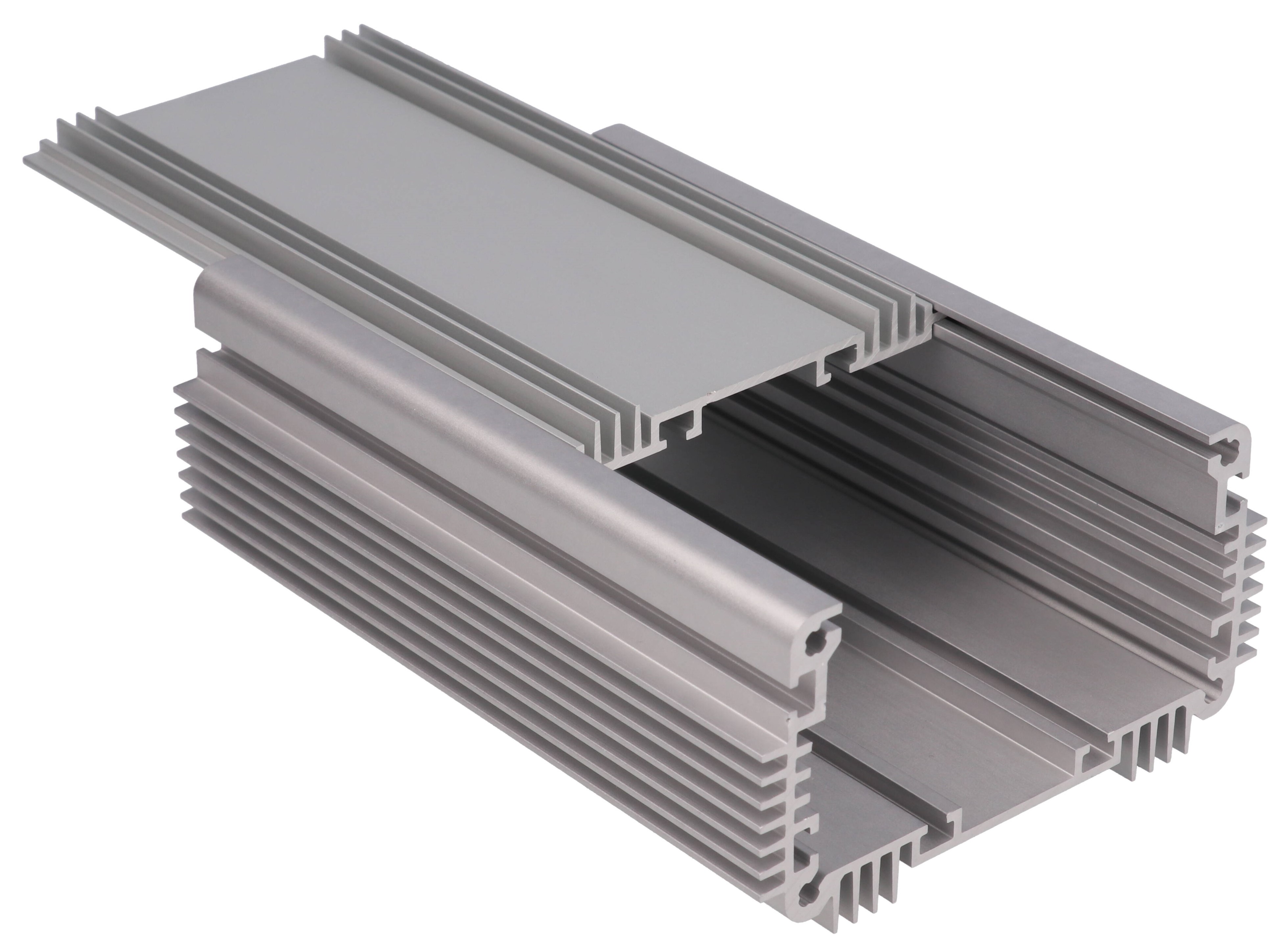

- ■Two piece body - with easily removable belly plate for easy access to top interior of enclosure.

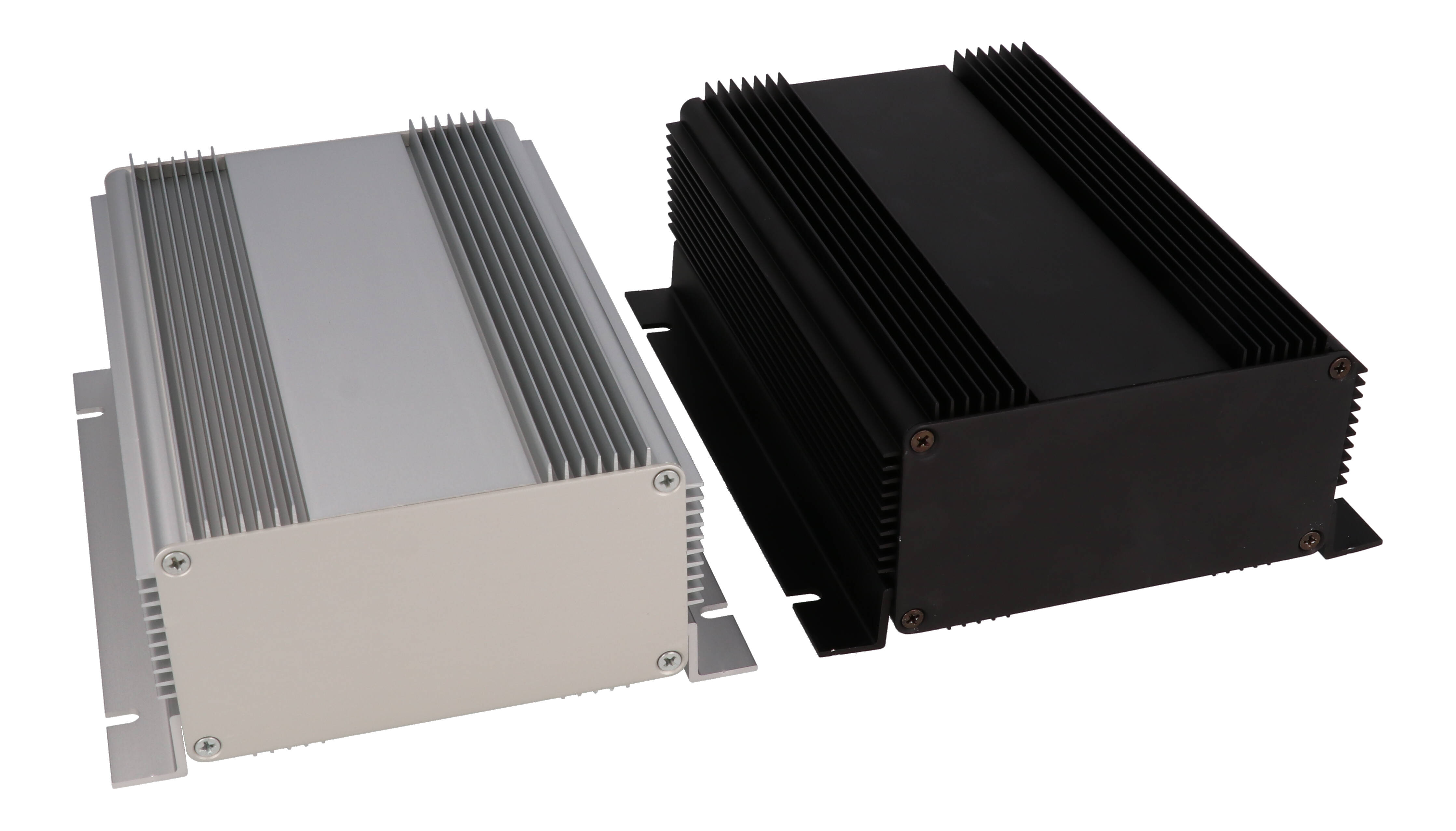

- ■Extruded body & aluminum endplates with a choice of either clear or black anodized finish.
from $16.20
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1455HD Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online

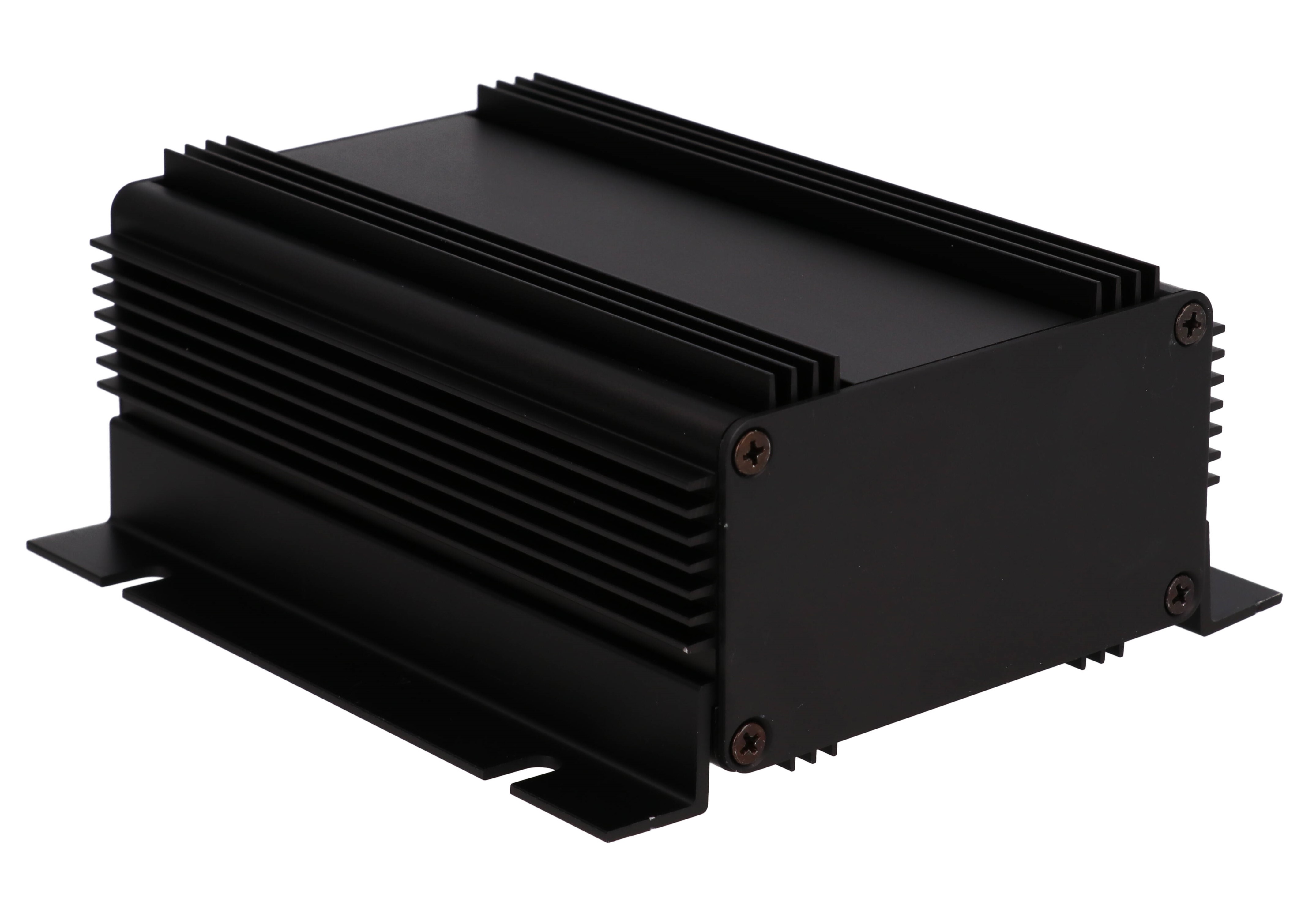

1455K "HD" 120mm Finned Enclosure
- Color Black
- Anodize Color Black
$29.14In stock
Buy now

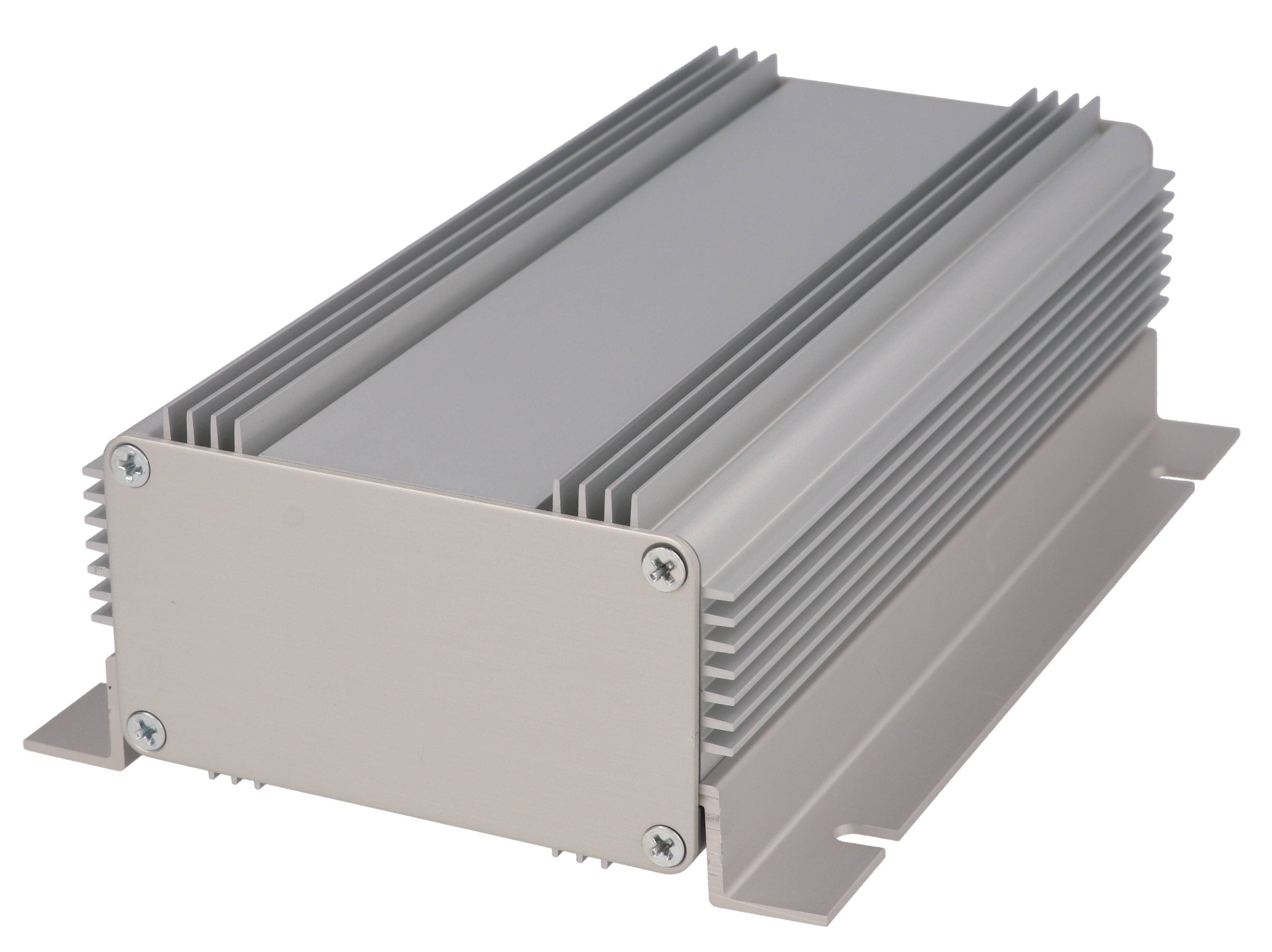

1455K "HD" 160mm Finned Enclosure
- Color Clear (Anodize)
- Anodize Color Clear
$30.86In stock
Buy now

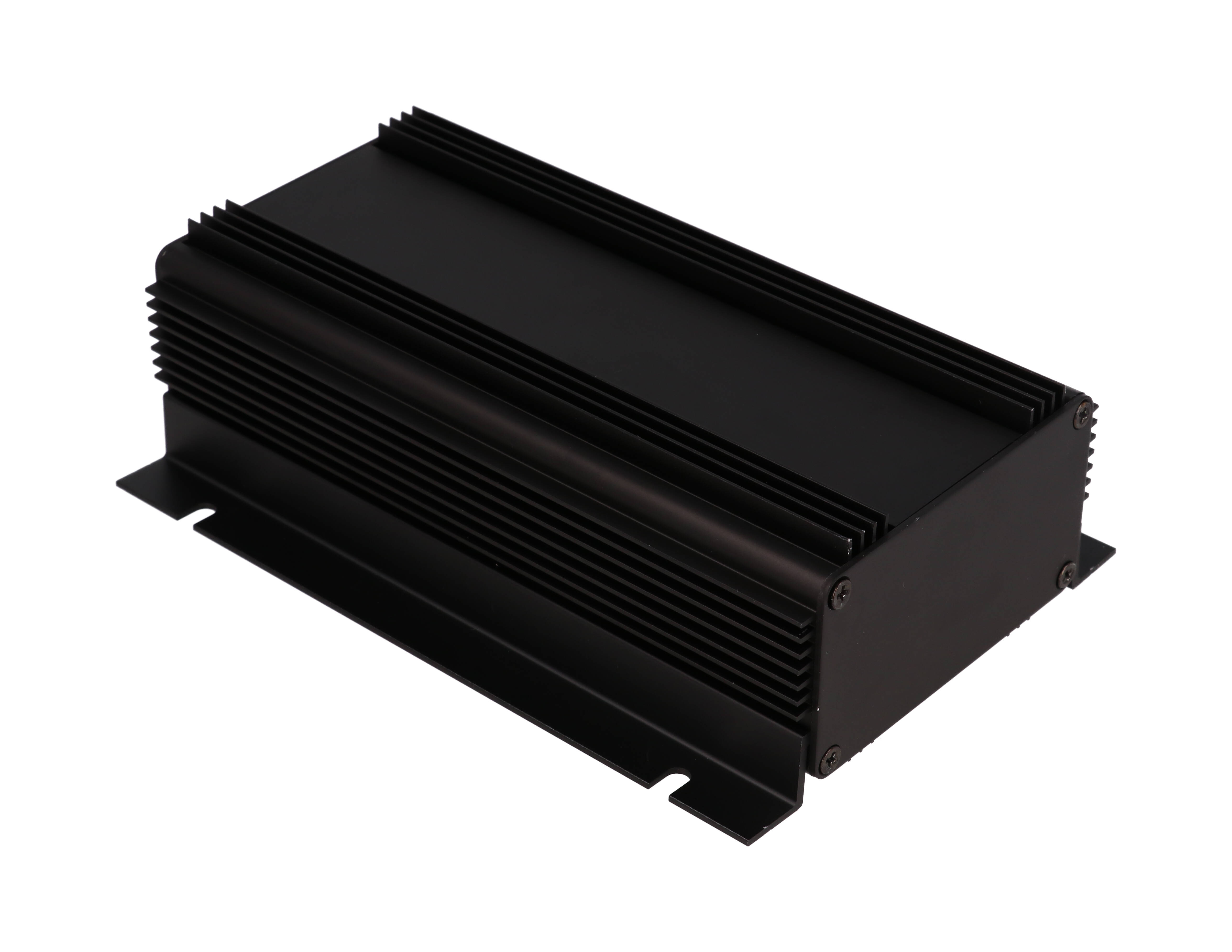

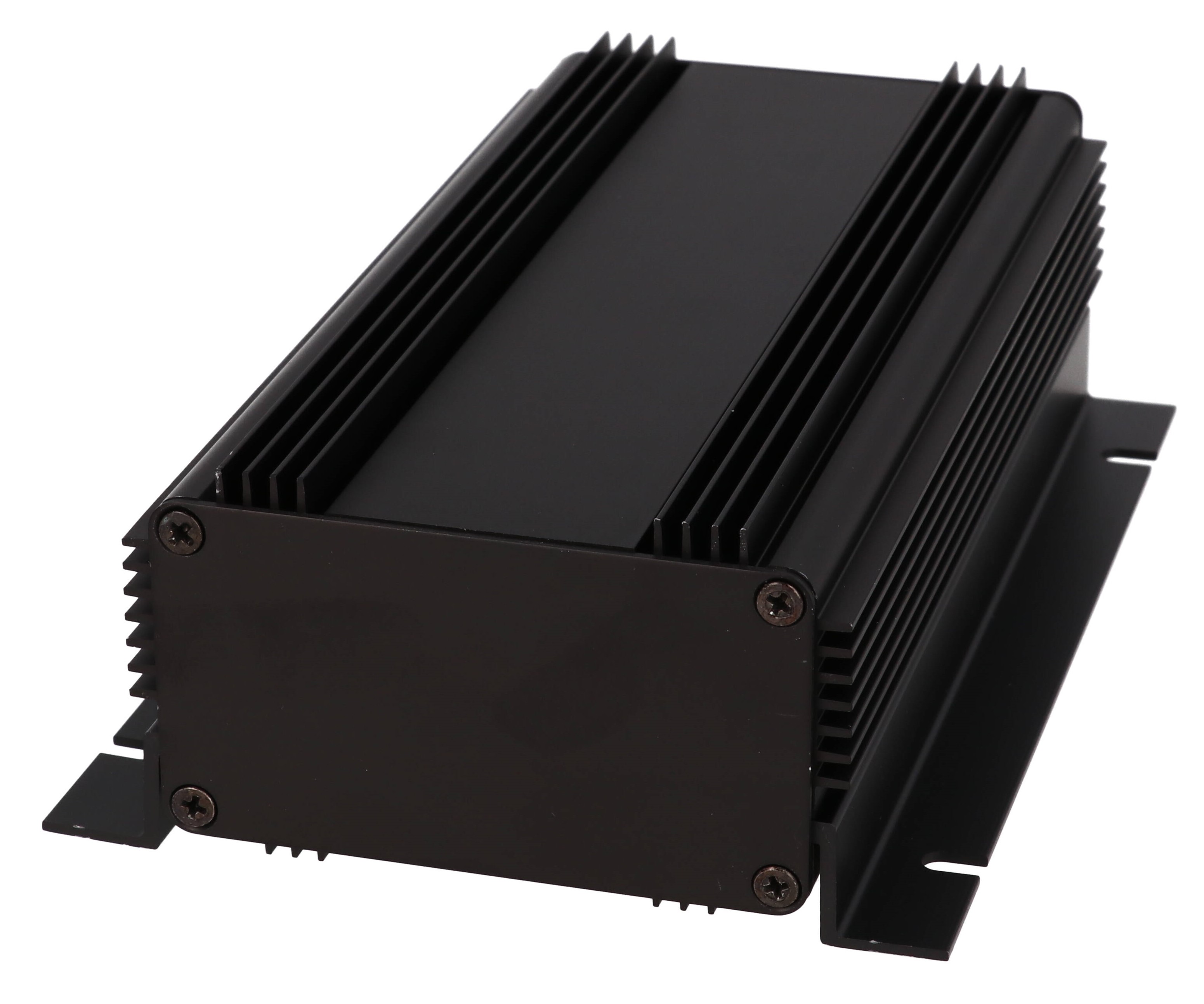

1455K "HD" 160mm Finned Enclosure
- Color Black
- Anodize Color Black
$32.31In stock
Buy now

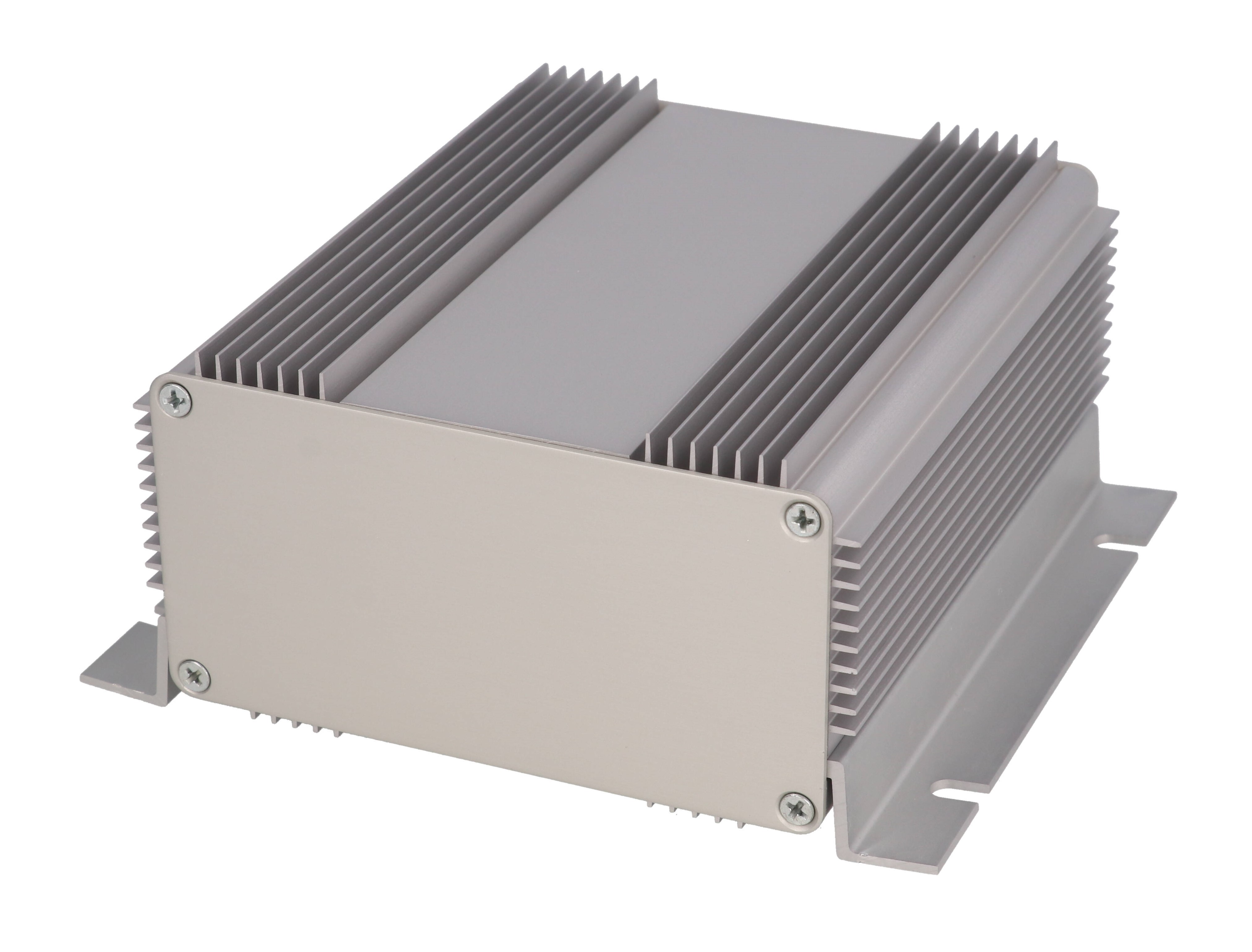

1455N "HD" 120mm Finned Enclosure
- Color Clear (Anodize)
- Anodize Color Clear
$30.15Backorder
Buy now

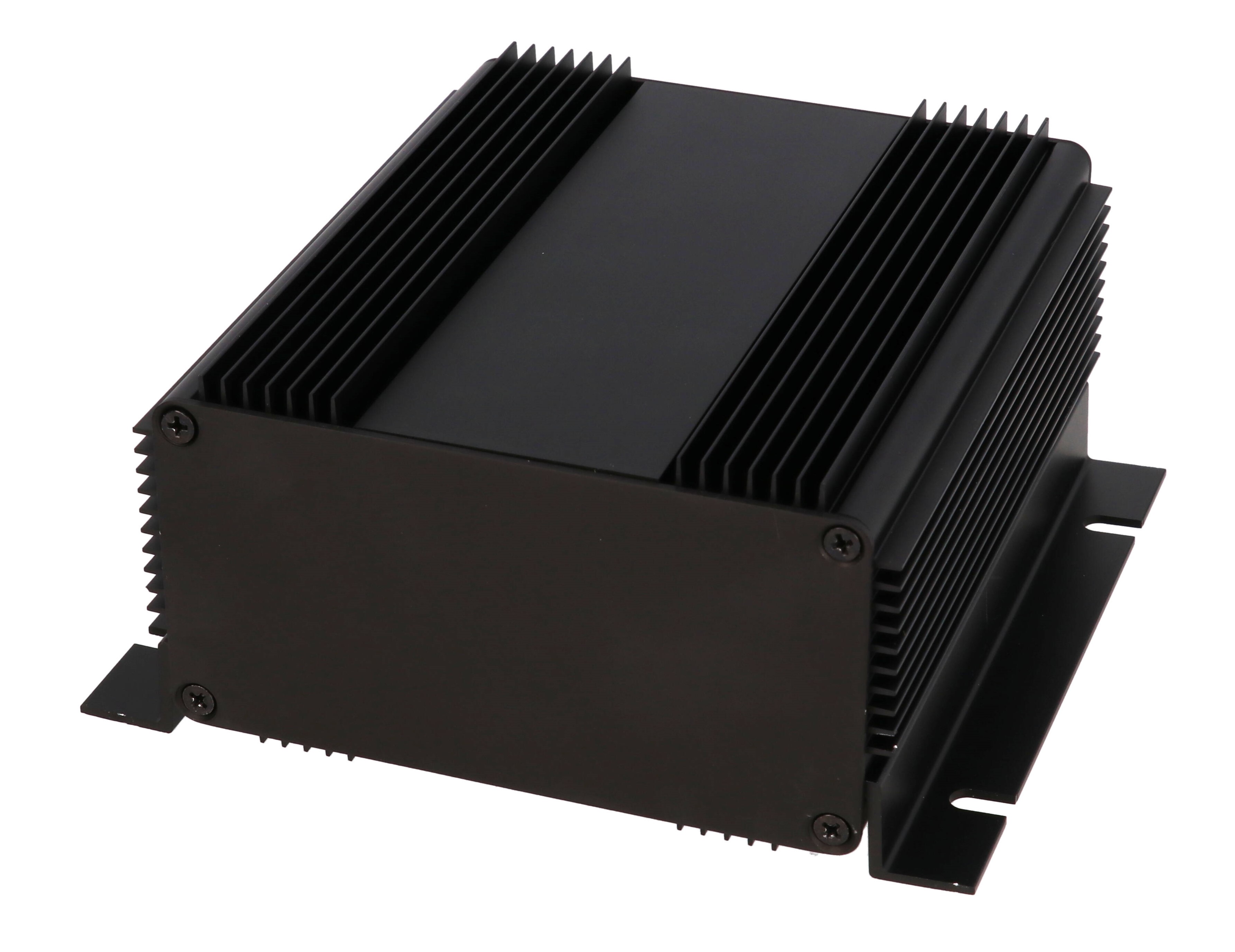

1455N "HD" 120mm Finned Enclosure
- Color Black
- Anodize Color Black
$31.14In stock
Buy now

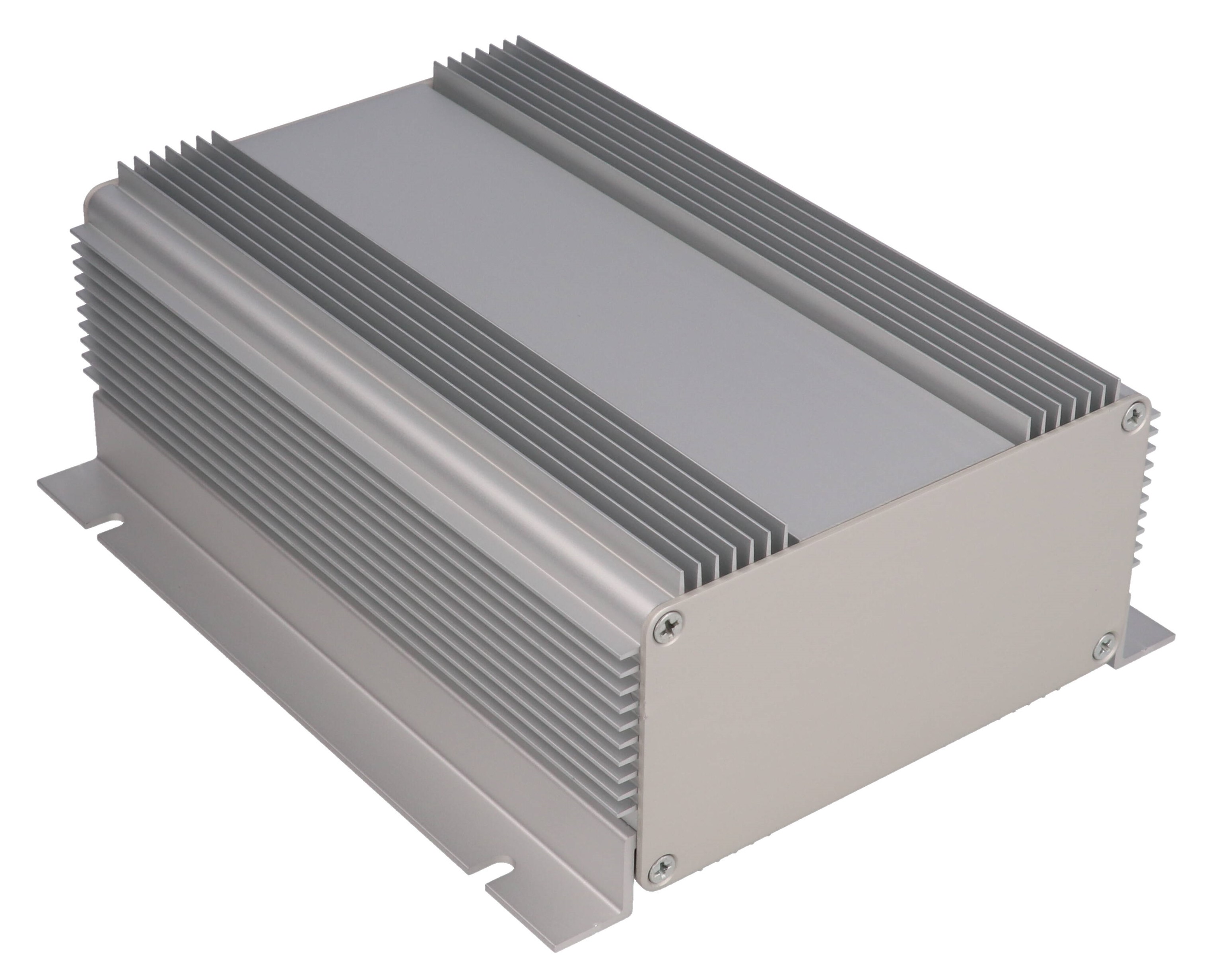

1455N "HD" 160mm Finned Enclosure
- Color Clear (Anodize)
- Anodize Color Clear
$32.66In stock
Buy now

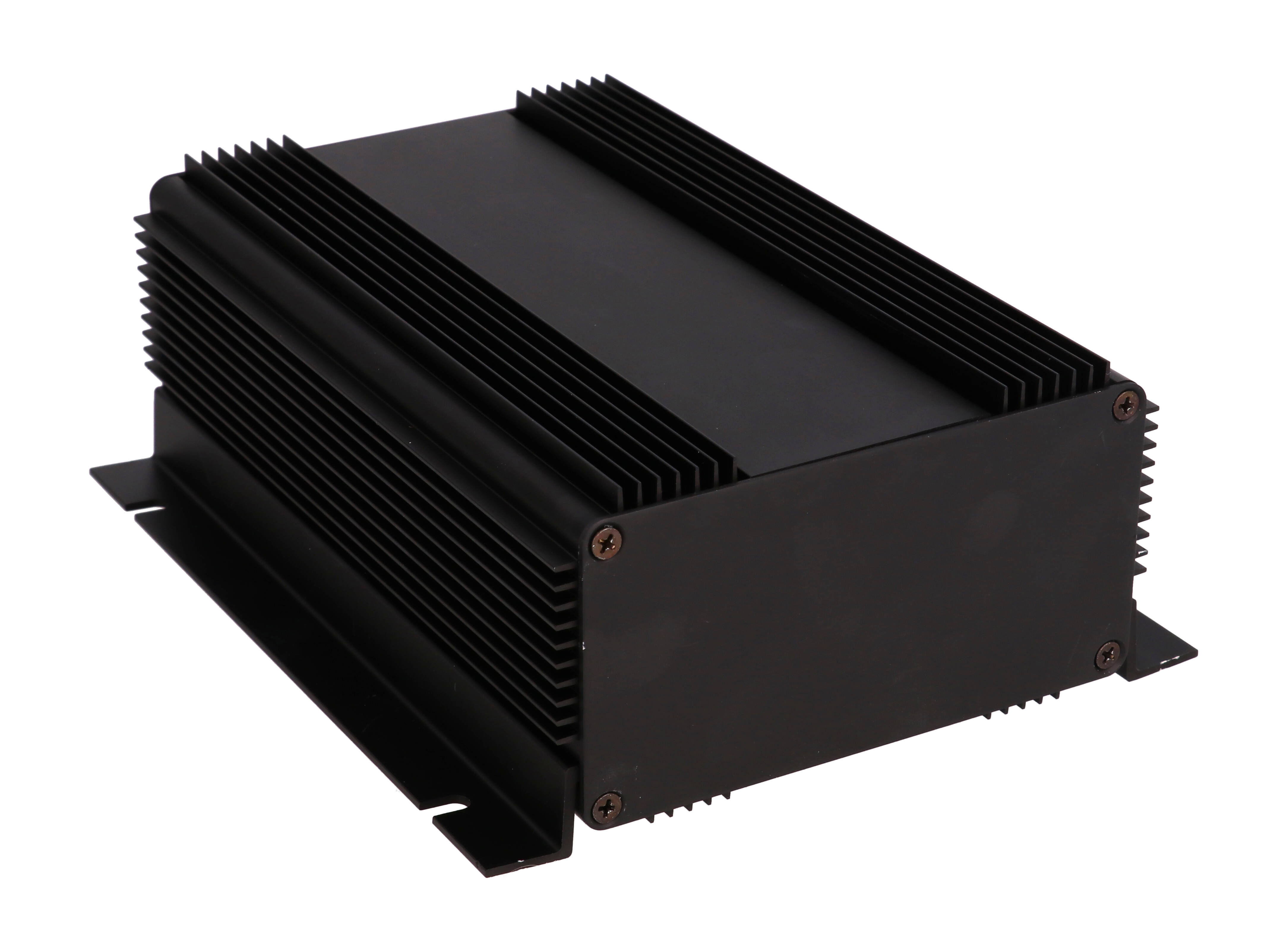

1455N "HD" 160mm Finned Enclosure
- Color Black
- Anodize Color Black
$33.96In stock
Buy nowDimension tables (inches / mm)
Enclosures
| Part Number | Anodize Color | Length (mm) | Width (mm) | Height (mm) | Price | Order |
|---|---|---|---|---|---|---|
| 1455KHD1201 | Clear | 120.00 | 86.02 | 51.02 | $27.81In stock | Buy now |
| 1455KHD1201BK | Black | 120.00 | 86.02 | 51.02 | $29.14In stock | Buy now |
| 1455KHD1601 | Clear | 160.00 | 86.02 | 51.02 | $30.86In stock | Buy now |
| 1455KHD1601BK | Black | 160.00 | 86.02 | 51.02 | $32.31In stock | Buy now |
| 1455NHD1201 | Clear | 120.00 | 111.00 | 60.76 | $30.15Backorder | Buy now |
| 1455NHD1201BK | Black | 120.00 | 111.00 | 60.76 | $31.14In stock | Buy now |
| 1455NHD1601 | Clear | 160.00 | 111.00 | 60.76 | $32.66In stock | Buy now |
| 1455NHD1601BK | Black | 160.00 | 111.00 | 60.76 | $33.96In stock | Buy now |
Replacement End Panels
| Enclosure Size | Clear Anodize · (10 pack) (Part No.) | Black Anodize · (10 pack) (Part No.) | Price | Order |
|---|---|---|---|---|
| 1455KHD | 1455KAL-10 | 1455KALBK-10 | $16.20In stock1455KAL-10 | Buy now |
| 1455NHD | 1455NAL-10 | 1455NALBK-10 | $16.91In stock1455NAL-10 | Buy now |
Key Features:
- ■Designed to house P.C. boards or equipment.
- ■Easy wall mounting or shelf mounting with two removable flanges
- ■Sized for standard eurocard P.C. boards.
- ■P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- ■Two piece body - with easily removable belly plate for easy access to top interior of enclosure.
- ■Extruded body & aluminum endplates with a choice of either clear or black anodized finish.

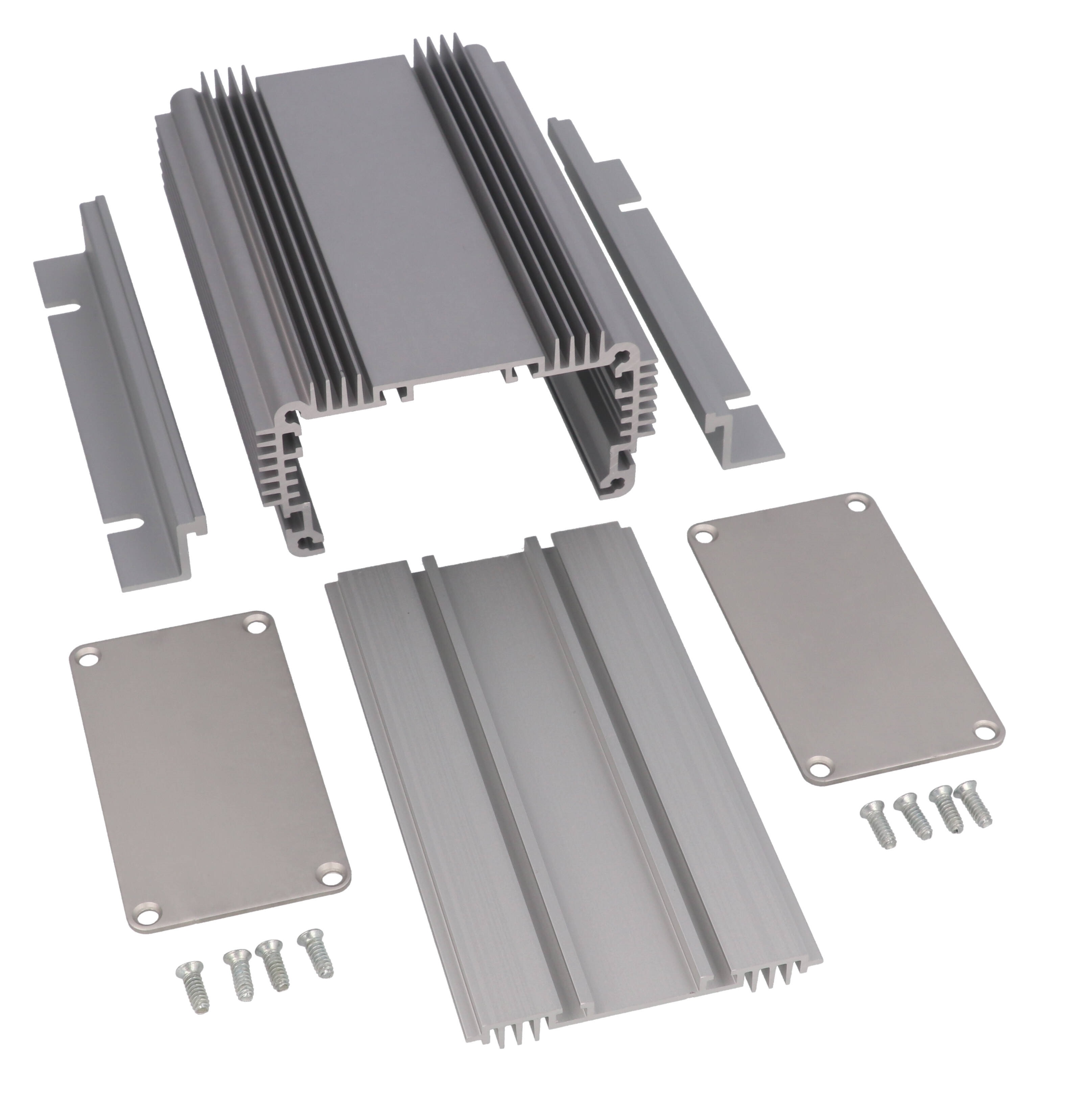

- ■Includes eight (8) assembly screws - either clear or black assembly screws to match enclosure panels & body. NOTE: Recommended screw torque is 5 lbf.in (56.5 cN.m).
- ■For black replacement screws (quantity 100) order part number 1455MS100BK
- ■For clear replacement screws (quantity 100) order part number 1455MS100
- ■For technical information, please refer to documentation under "Product Resources."
Photo Features:
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Documents
Additional information
Enclosures
| Part Number | Anodize Color | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| 1455KHD1201 | Clear | 120.00 | 86.02 | 51.02 |
| 1455KHD1201BK | Black | 120.00 | 86.02 | 51.02 |
| 1455KHD1601 | Clear | 160.00 | 86.02 | 51.02 |
| 1455KHD1601BK | Black | 160.00 | 86.02 | 51.02 |
| 1455NHD1201 | Clear | 120.00 | 111.00 | 60.76 |
| 1455NHD1201BK | Black | 120.00 | 111.00 | 60.76 |
| 1455NHD1601 | Clear | 160.00 | 111.00 | 60.76 |
| 1455NHD1601BK | Black | 160.00 | 111.00 | 60.76 |
Replacement End Panels
| Enclosure Size | Clear Anodize · (10 pack) | Black Anodize · (10 pack) |
|---|---|---|
| 1455KHD | 1455KAL-10 | 1455KALBK-10 |
| 1455NHD | 1455NAL-10 | 1455NALBK-10 |
