Extruded Aluminum Channel Mount Enclosure · 1455NC Series

Key Features:

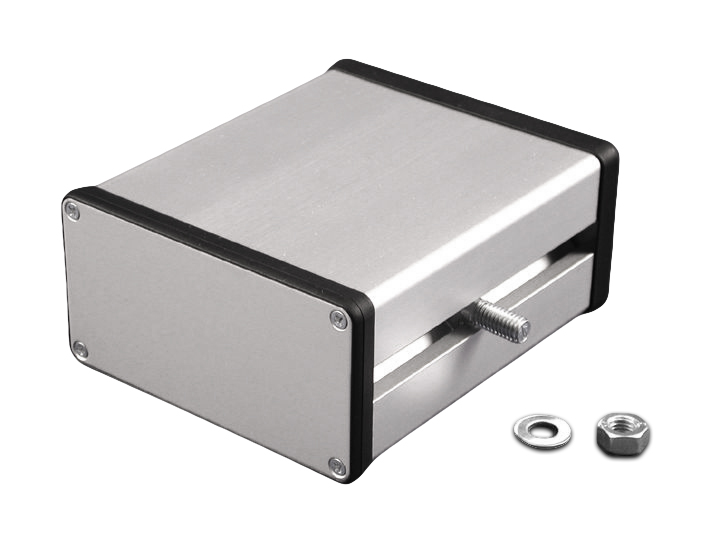

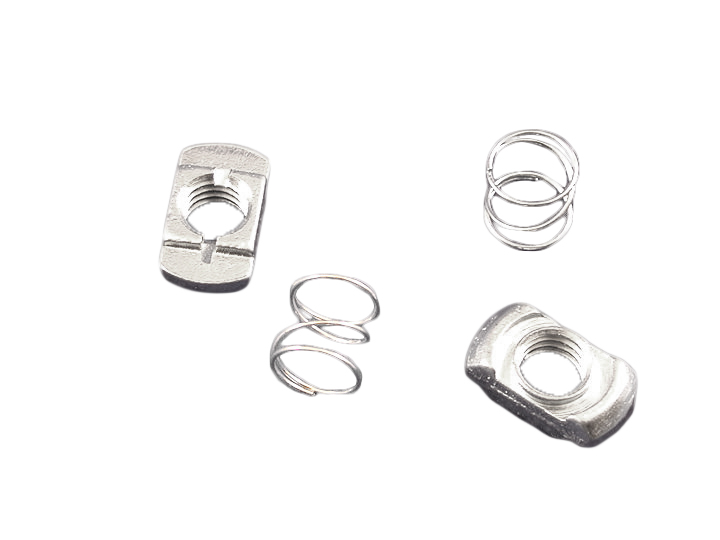

• ■Designed to house P.C. boards or equipment - for easy enclosure mounting to aluminum channel.
• ■Two versions to choose from: open bezel with metal endplates or solid ABS plastic bezel.
• ■Sized for P.C. boards 92mm (min) to 98mm (max) wide. Enclosures will not accept and were not designed for 100mm wide eurocard.

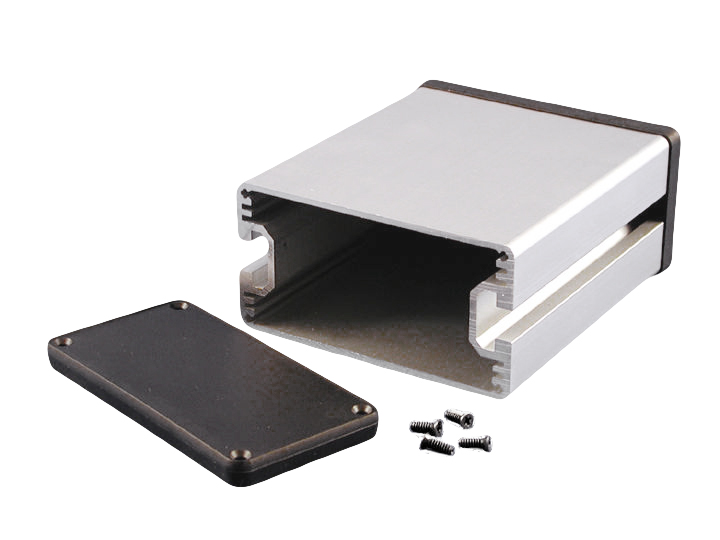

• ■P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.

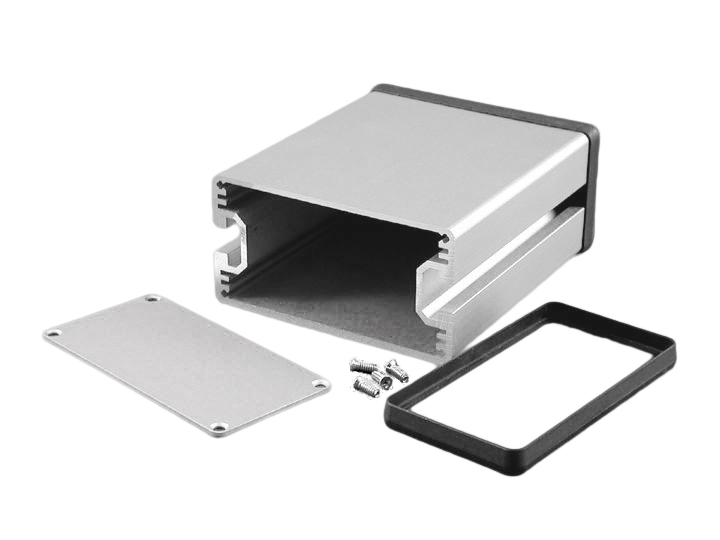

• ■Rugged one piece body - constructed from extruded aluminum with a minimum thickness of .09” (2.29 mm).
• ■Extruded body and aluminum endplates (on metal endplate version) are clear anodized.

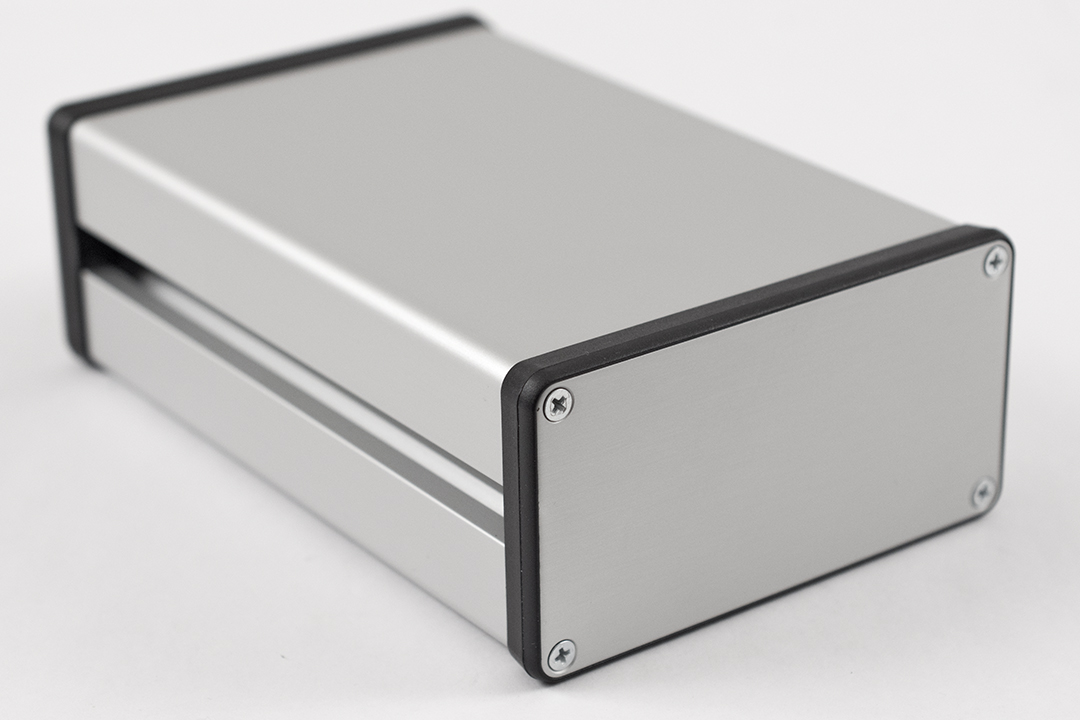

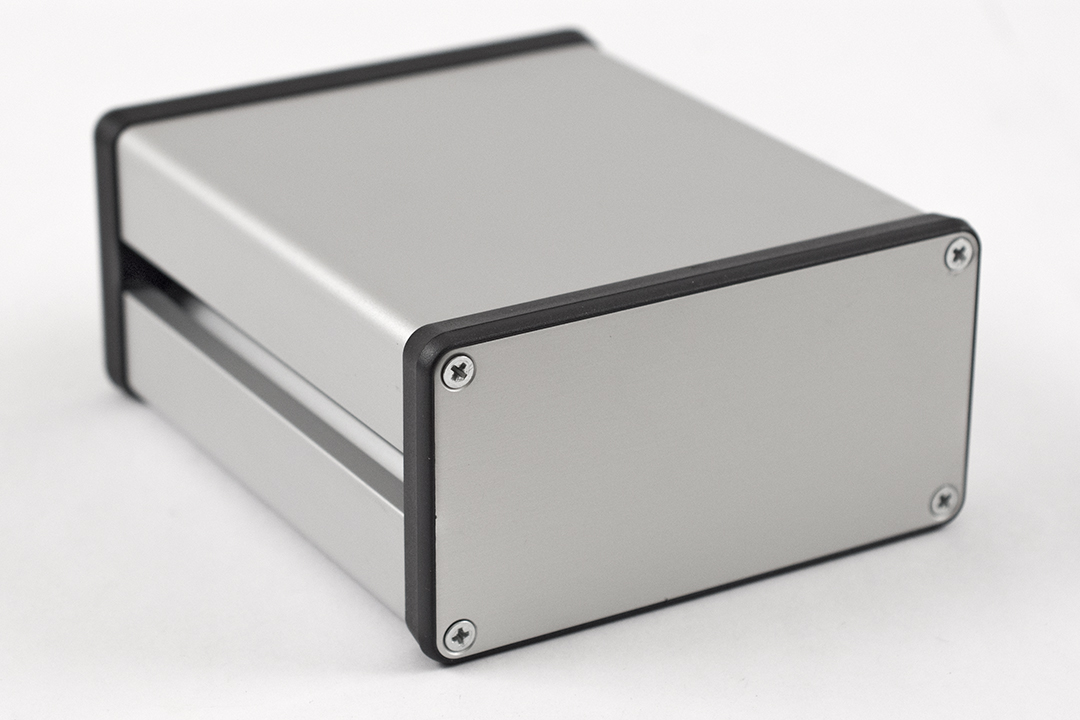

• ■Open bezel with metal endplate version includes eight (8) clear zinc-plated assembly screws. NOTE: Recommended screw torque is 5 lbf/in

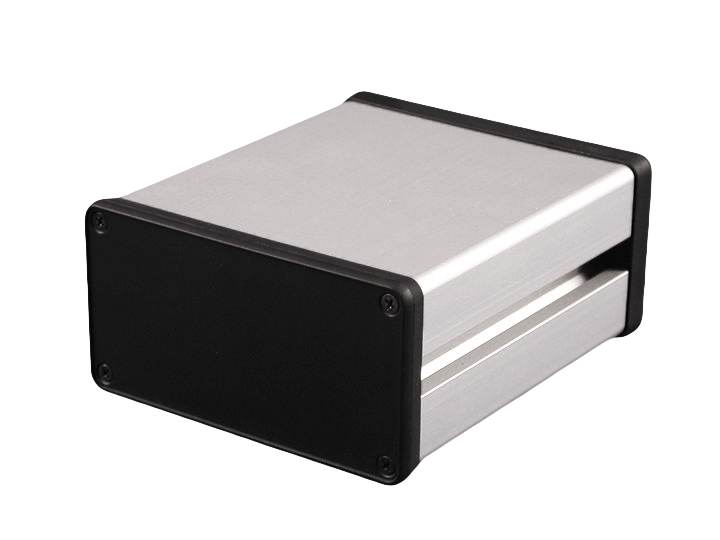

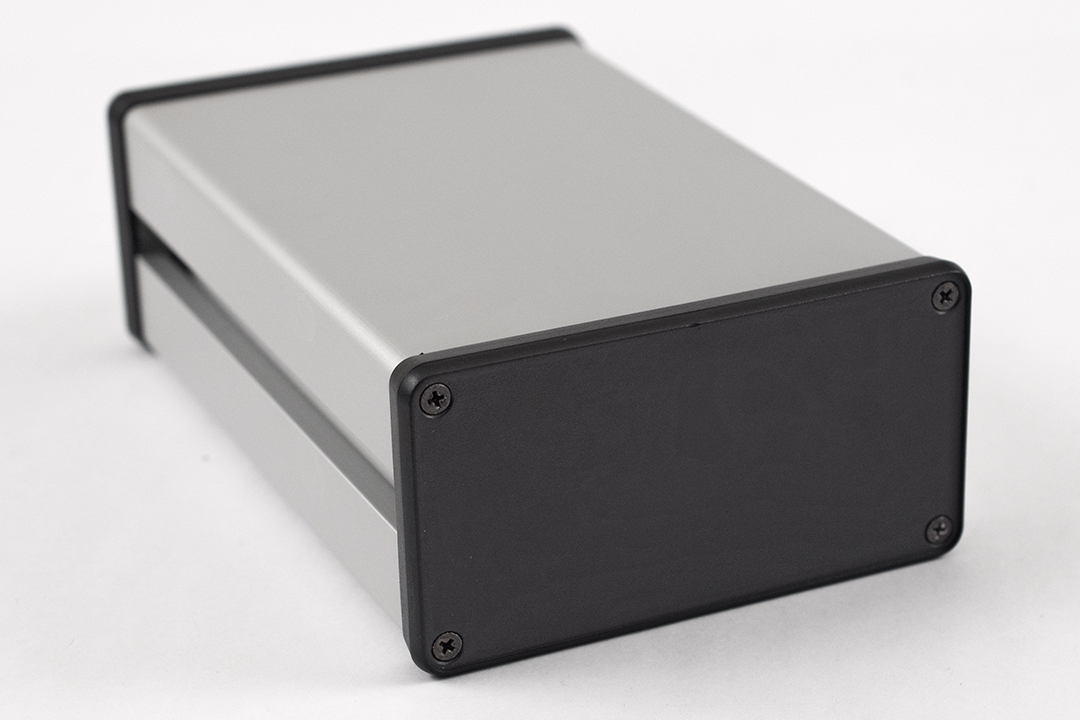

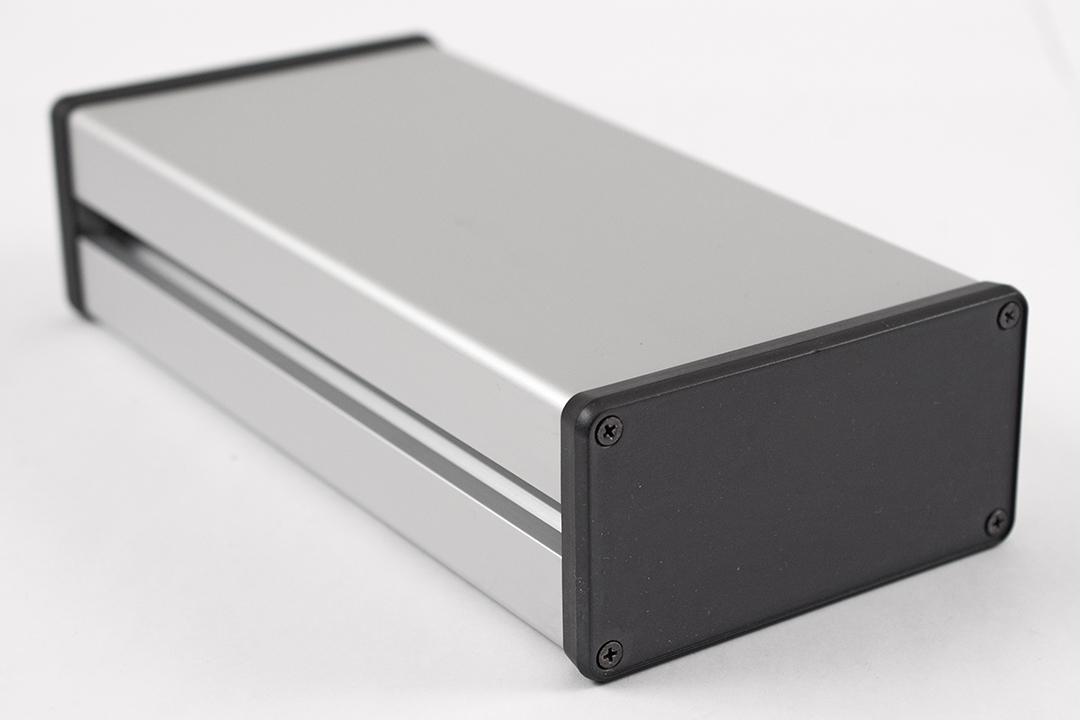

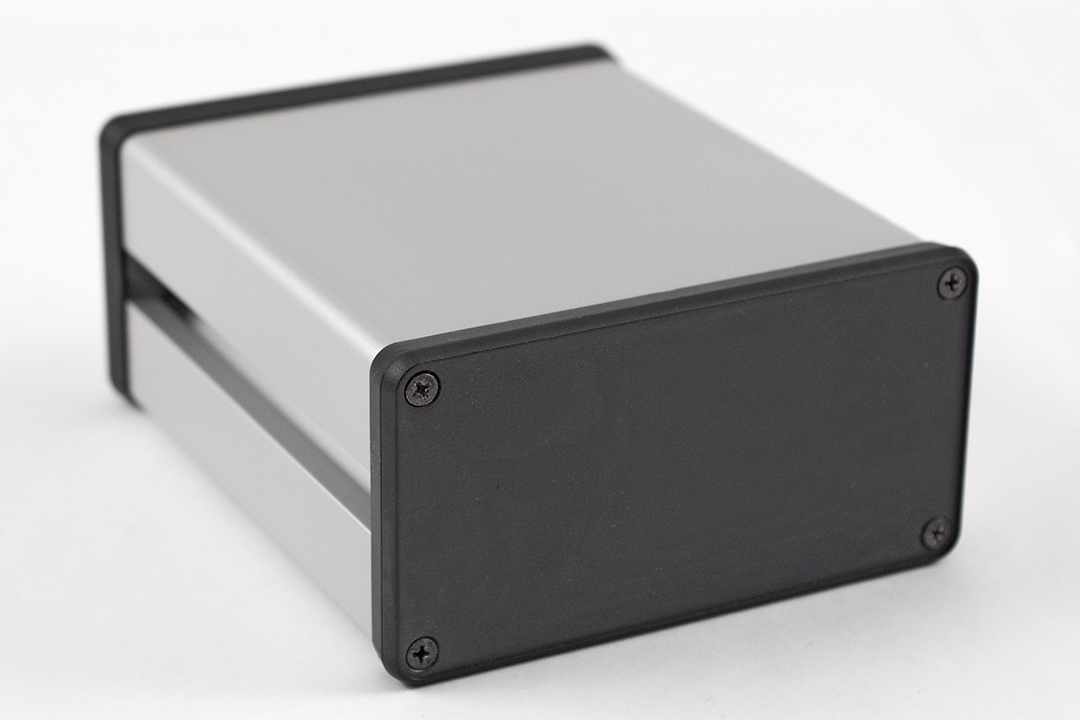

• ■Solid bezel version includes eight (8) black assembly screws. NOTE: Recommended screw torque is 5 lbf/in.
