Rolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$70.11Backorder
Buy now

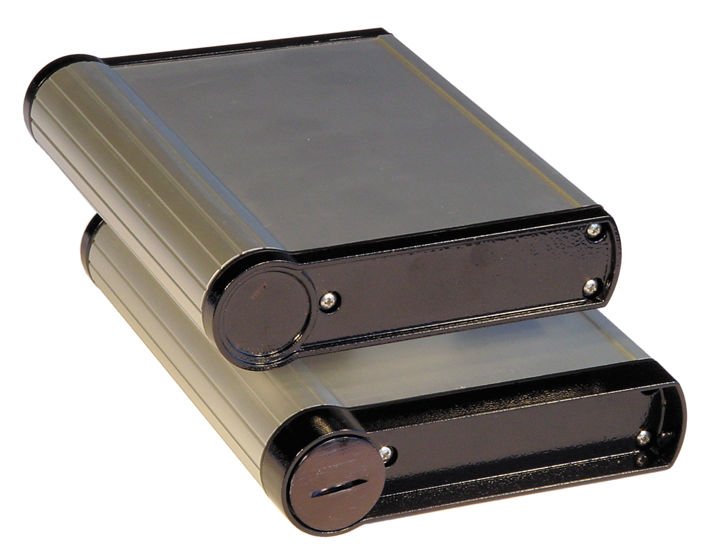

Extruded Aluminum Enclosures · R250 Series
Brand: Hammond Manufacturing · 33 part numbers

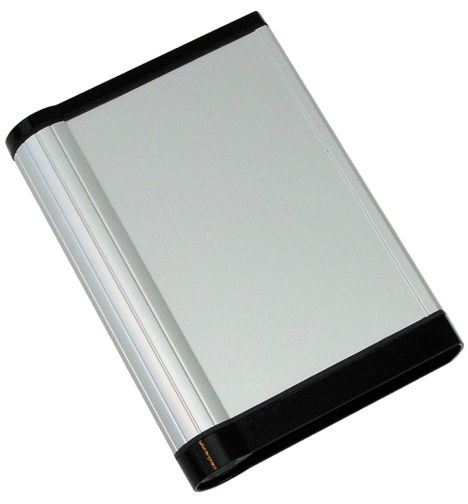

mobilCASE
- ■Modern and ergonomic design
- ■Designed to house P.C. boards (not included) or equipment for mobile use
- ■Sized for standard Eurocards

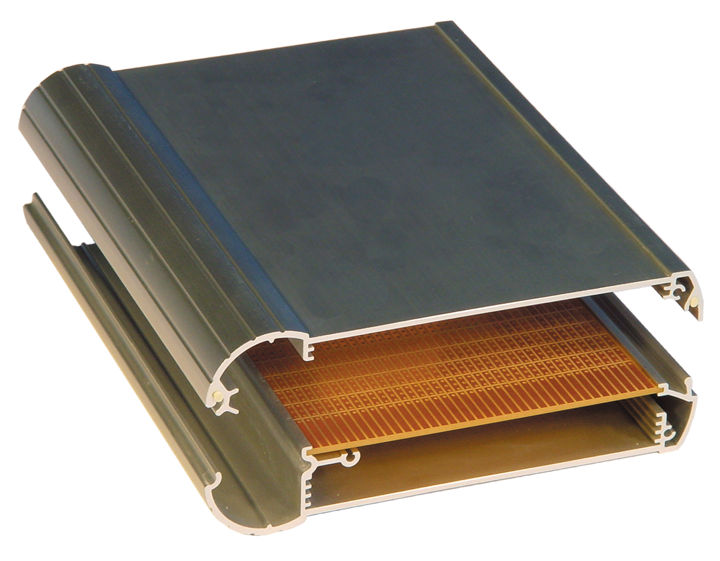

- ■P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- ■Internal height 1.06" (27mm)
- ■Rugged body constructed from extruded aluminum with diecast aluminum ends
from $14.51
31 of 33 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R250 Series part number
Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
33 of 33 part numbers · 31 priced online
Rolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$77.88Backorder
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$81.00In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$89.60In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$89.60In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$104.08In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$106.84Backorder
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$123.88In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$127.83In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$145.73In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$148.61In stock
Buy nowRolec Mobilcase Extrusion
- Type Extruded, PC Board Slots
- Material Aluminum
- Color Clear (Anodize)
$167.87In stock
Buy nowRolec Mobilcase 080 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Flat
$52.97Backorder
Buy nowRolec Mobilcase 100 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Flat
$53.42In stock
Buy nowRolec Mobilcase 130 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Flat
$83.34In stock
Buy nowRolec Mobilcase 080 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Collar
$88.73In stock
Buy nowRolec Mobilcase 100 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Collar
$89.16In stock
Buy nowRolec Mobilcase 130 End Panels
- Type End Panels
- Material Aluminum
- Color Black
- Style Collar
$94.63In stock
Buy nowRolec Mobilcase Shoulder Strap
- Type Shoulder Strap
- Material Nylon
- Color Black
- Use With Aluminum R250-080-120 or R251-080-120 or R250-080-160 or R251-080-160
$74.37Backorder
Buy nowRolec Mobilcase Shoulder Strap
- Type Shoulder Strap
- Material Nylon
- Color Black
- Use With Aluminum R250-100-160 or R251-100-160 or R250-100-200 or R251-100-200
$74.66In stock
Buy nowRolec Mobilcase Shoulder Strap
- Type Shoulder Strap
- Material Nylon
- Color Black
- Use With Aluminum R250-130-180 or R251-130-180 or R250-130-240 or R251-130-240
$76.07In stock
Buy nowRolec Mobilcase Batter Holder
- Type Battery Holder
- Material Aluminum
- Color Black
- Use With Aluminum Two Battery Holder (AA Size)
$14.51Backorder
Buy nowRolec Mobilcase Battery Holder
- Type Battery Holder
- Material Aluminum
- Color Black
- Use With Aluminum Four Battery Holder (AA Size)
$17.26Backorder
Buy nowRolec Mobilcase Cable Entry
- Type Cable Gland
- Material Aluminum
- Color Black
- Use With Aluminum Cable Gland Adaptor Kit
$41.18Backorder
Buy nowUse Part R580-080-000
- Material Aluminum
- Color Black
- Style Flat
- above 2 piece extrusion
QuoteRequest a quote
Use Part R580-100-000
- Type End Panels
- Material Aluminum
- Color Black
- Style Flat
$41.64Backorder
Buy nowUse Part R580-130-000
- Material Aluminum
- Color Black
- Style Flat
- above 2 piece extrusion
QuoteRequest a quote
Rolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$123.13In stock
Buy nowRolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$119.66In stock
Buy nowRolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$120.27In stock
Buy nowRolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$119.66Backorder
Buy nowRolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$120.27In stock
Buy nowRolec Pg Connector
- Type End Panels
- Material Aluminum
- Color Black
- Style Variable
$120.92In stock
Buy nowDimension tables (inches / mm)
Extrusion Body
| One Piece · Extrusion (Part No.) | Two Piece · Extrusion (Part No.) | Length · L | Width · W | Profile Width · P | Price | Order |
|---|---|---|---|---|---|---|
| R250-080-120 | R251-080-120 | 120 | 118 | 80 | $70.11BackorderR250-080-120 | Buy now |
| R250-080-160 | R251-080-160 | 160 | 118 | 80 | $77.88BackorderR250-080-160 | Buy now |
| R250-100-160 | R251-100-160 | 160 | 138 | 100 | $81.00In stockR250-100-160 | Buy now |
| R250-100-200 | R251-100-200 | 200 | 138 | 100 | $89.60In stockR250-100-200 | Buy now |
| R250-130-180 | R251-130-180 | 180 | 168 | 130 | $89.60In stockR250-130-180 | Buy now |
| R250-130-240 | R251-130-240 | 240 | 168 | 130 | $104.08In stockR250-130-240 | Buy now |
Flat & Collared Cover Plates & Gasket
| Part Number | Style | Use With Body Type (above) | Use With Aluminum Extrusion · Part Number | Price | Order |
|---|---|---|---|---|---|
| R580-080-000 | Flat | 1 piece extrusion | R250-080-120 or R250-080-160 | $52.97Backorder | Buy now |
| R580-100-000 | Flat | 1 piece extrusion | R250-100-160 or R250-100-200 | $53.42In stock | Buy now |
| R580-130-000 | Flat | 1 piece extrusion | R250-130-180 or R250-130-240 | $83.34In stock | Buy now |
| R586-080-000 | Flat | 2 piece extrusion | R251-080-120 or R251-080-160 | Quote | Quote |
| R586-100-000 | Flat | 2 piece extrusion | R251-100-160 or R251-100-200 | $41.64Backorder | Buy now |
| R586-130-000 | Flat | 2 piece extrusion | R251-130-180 or R251-130-240 | Quote | Quote |
| R581-080-000 | Collar | 1 piece extrusion | R250-080-120 or R250-080-160 | $88.73In stock | Buy now |
| R581-100-000 | Collar | 1 piece extrusion | R250-100-160 or R250-100-200 | $89.16In stock | Buy now |
| R581-130-000 | Collar | 1 piece extrusion | R250-130-180 or R250-130-240 | $94.63In stock | Buy now |
Variable Cover Plates & Gasket
| Part Number | Style | Used To Join Aluminum Extrusion Series | col4 | Price | Order |
|---|---|---|---|---|---|
| R588-080-080 | Variable | R250-080 or R251-080 TO R250-080 or R251-080 | $123.13In stock | Buy now | |
| R588-080-100 | Variable | R250-080 or R251-080 TO R250-100 or R251-100 | $119.66In stock | Buy now | |
| R588-080-130 | Variable | R250-080 or R251-080 TO R250-130 or R251-130 | $120.27In stock | Buy now | |
| R588-100-100 | Variable | R250-100 or R251-100 TO R250-100 or R251-100 | $119.66Backorder | Buy now | |
| R588-100-130 | Variable | R250-100 or R251-100 TO R250-130 or R251-130 | $120.27In stock | Buy now | |
| R588-130-130 | Variable | R250-130 or R251-130 TO R250-130 or R251-130 | $120.92In stock | Buy now |
Shoulder Straps & Protective Caps
| Part Number | Use With Aluminum Extrusion Part Number | Price | Order |
|---|---|---|---|
| R583-080-000 | R250-080-120 or R251-080-120 or R250-080-160 or R251-080-160 | $74.37Backorder | Buy now |
| R583-100-000 | R250-100-160 or R251-100-160 or R250-100-200 or R251-100-200 | $74.66In stock | Buy now |
| R583-130-000 | R250-130-180 or R251-130-180 or R250-130-240 or R251-130-240 | $76.07In stock | Buy now |
Cable Gland & Battery Kits (Use With Collared End Caps)
| Part Number | Use With Aluminum Extrusion Part Number | Price | Order |
|---|---|---|---|
| R584-002-000 | Two Battery Holder (AA Size) | $14.51Backorder | Buy now |
| R584-004-000 | Four Battery Holder (AA Size) | $17.26Backorder | Buy now |
| R585-000-000 | Cable Gland Adaptor Kit | $41.18Backorder | Buy now |
Key Features:
- ■Modern and ergonomic design
- ■Designed to house P.C. boards (not included) or equipment for mobile use
- ■Sized for standard Eurocards
- ■P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- ■Internal height 1.06" (27mm)
- ■Rugged body constructed from extruded aluminum with diecast aluminum ends
- ■Extruded aluminum is powder paint coated in a silver metallic finish
- ■Diecast ends (see accessories below) are black (RAL9005) powder paint coated
- ■Choice of two versions - one piece closed or two piece "clam shell"
- ■One piece version is rated to IP 65 (with gasketed end plates below)
- ■Two piece version is rated to IP 54 (with gasketed end plates below)

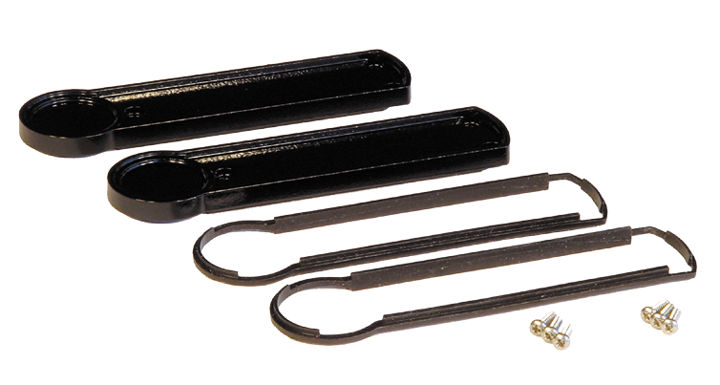

Cover Plates and Gaskets

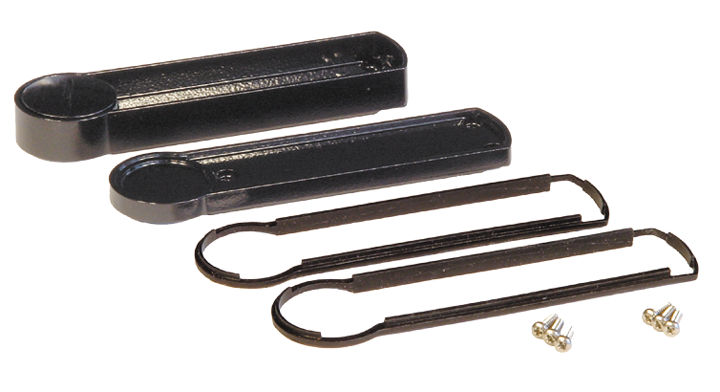

- ■Choose either Flat or Collar (used for accepting cables or batteries) style end plates
- ■Heavy duty diecast aluminum
- ■Painted with textured black powder paint (RAL 9005)
- ■Includes cover plates, thermoplastic black gaskets and mounting hardware
- ■Sold in Pairs
- ■Refer to tables below for compatibility

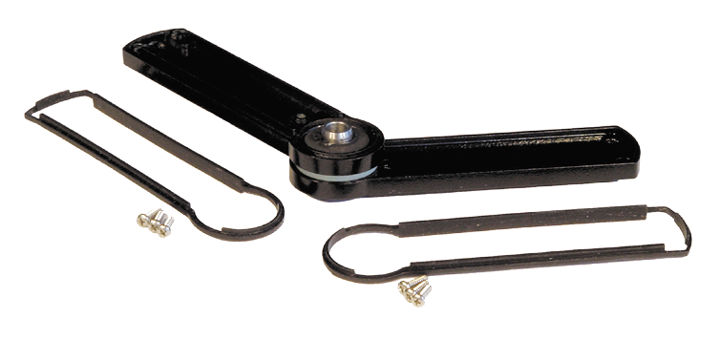

Variable Cover Plates & Gaskets
- ■Heavy duty diecast aluminum
- ■Painted with textured black powder paint (RAL 9005)
- ■Includes cover plates, thermoplastic black gaskets and mounting hardware

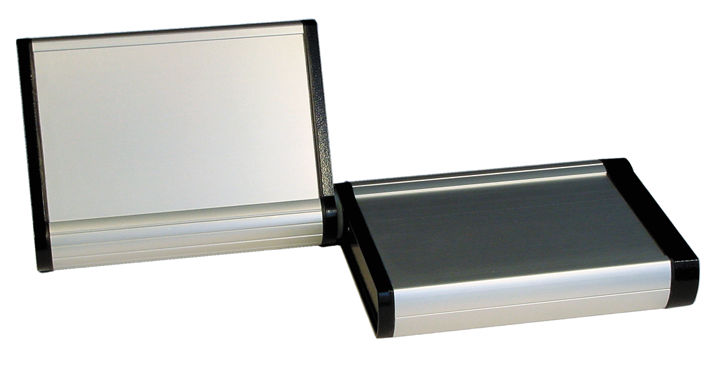

- ■Sold in set to connect two extrusions side by side

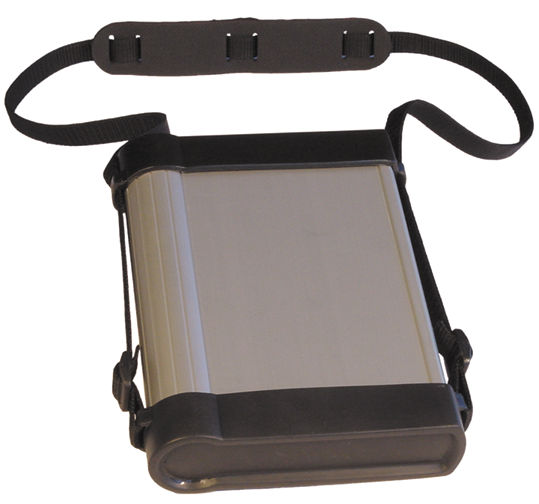

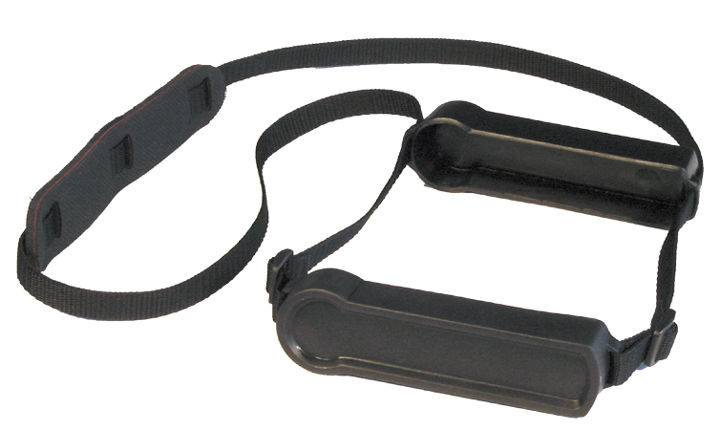

Shoulder Strap & Protective Caps
- ■Allows unit to be used in rough surroundings, indoors or out
- ■Nylon straps & TPE shoulder pad and end caps
- ■Enclosure not included
Documents
Additional information
Extrusion Body
| One Piece · Extrusion | Two Piece · Extrusion | Length · L | Width · W | Profile Width · P |
|---|---|---|---|---|
| R250-080-120 | R251-080-120 | 120 | 118 | 80 |
| R250-080-160 | R251-080-160 | 160 | 118 | 80 |
| R250-100-160 | R251-100-160 | 160 | 138 | 100 |
| R250-100-200 | R251-100-200 | 200 | 138 | 100 |
| R250-130-180 | R251-130-180 | 180 | 168 | 130 |
| R250-130-240 | R251-130-240 | 240 | 168 | 130 |
Flat & Collared Cover Plates & Gasket
| Part Number | Style | Use With Body Type (above) | Use With Aluminum Extrusion · Part Number |
|---|---|---|---|
| R580-080-000 | Flat | 1 piece extrusion | R250-080-120 or R250-080-160 |
| R580-100-000 | Flat | 1 piece extrusion | R250-100-160 or R250-100-200 |
| R580-130-000 | Flat | 1 piece extrusion | R250-130-180 or R250-130-240 |
| R586-080-000 | Flat | 2 piece extrusion | R251-080-120 or R251-080-160 |
| R586-100-000 | Flat | 2 piece extrusion | R251-100-160 or R251-100-200 |
| R586-130-000 | Flat | 2 piece extrusion | R251-130-180 or R251-130-240 |
| R581-080-000 | Collar | 1 piece extrusion | R250-080-120 or R250-080-160 |
| R581-100-000 | Collar | 1 piece extrusion | R250-100-160 or R250-100-200 |
| R581-130-000 | Collar | 1 piece extrusion | R250-130-180 or R250-130-240 |
Variable Cover Plates & Gasket
| Part Number | Style | Used To Join Aluminum Extrusion Series | col4 |
|---|---|---|---|
| R588-080-080 | Variable | R250-080 or R251-080 TO R250-080 or R251-080 | |
| R588-080-100 | Variable | R250-080 or R251-080 TO R250-100 or R251-100 | |
| R588-080-130 | Variable | R250-080 or R251-080 TO R250-130 or R251-130 | |
| R588-100-100 | Variable | R250-100 or R251-100 TO R250-100 or R251-100 | |
| R588-100-130 | Variable | R250-100 or R251-100 TO R250-130 or R251-130 | |
| R588-130-130 | Variable | R250-130 or R251-130 TO R250-130 or R251-130 |
Shoulder Straps & Protective Caps
| Part Number | Use With Aluminum Extrusion Part Number |
|---|---|
| R583-080-000 | R250-080-120 or R251-080-120 or R250-080-160 or R251-080-160 |
| R583-100-000 | R250-100-160 or R251-100-160 or R250-100-200 or R251-100-200 |
| R583-130-000 | R250-130-180 or R251-130-180 or R250-130-240 or R251-130-240 |
Cable Gland & Battery Kits (Use With Collared End Caps)
| Part Number | Use With Aluminum Extrusion Part Number |
|---|---|
| R584-002-000 | Two Battery Holder (AA Size) |
| R584-004-000 | Four Battery Holder (AA Size) |
| R585-000-000 | Cable Gland Adaptor Kit |
Any questions? Talk with an expert
Call us (224) 955-1644Related products
Extruded Aluminum Enclosures · 1455 Series
from $2.08
Shop parts
Watertight Extruded Aluminum Enclosures · 1457 Series
from $6.70
Shop parts
EMI/RFI Shielded Extruded Aluminum Enclosures · 1457-EMI Series
from $6.70
Shop parts
Extruded Aluminum Channel Mount Enclosure · 1455NC Series
from $14.85
Shop parts
Heat Dissipating Extruded Aluminum Enclosures · 1455HD Series
from $16.20
Shop parts
Extruded Aluminum "Sink Box" · SINK-BOX Series
from $21.04
Shop parts
Wallmount Extruded Aluminum Enclosures · 1455ZT Series
from $16.41
Shop parts
Extruded Aluminum Enclosures with Integrated Flanges · 1455F Series
from $11.83
Shop parts
