160 X 89 X 56MM Extruded Enc.
- Color Clear (Anodize)
- Anodized Color Clear
$16.41In stock
Buy now
Wallmount Extruded Aluminum Enclosures · 1455ZT Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Designed to house electronics when shelf or wall mounting is required.

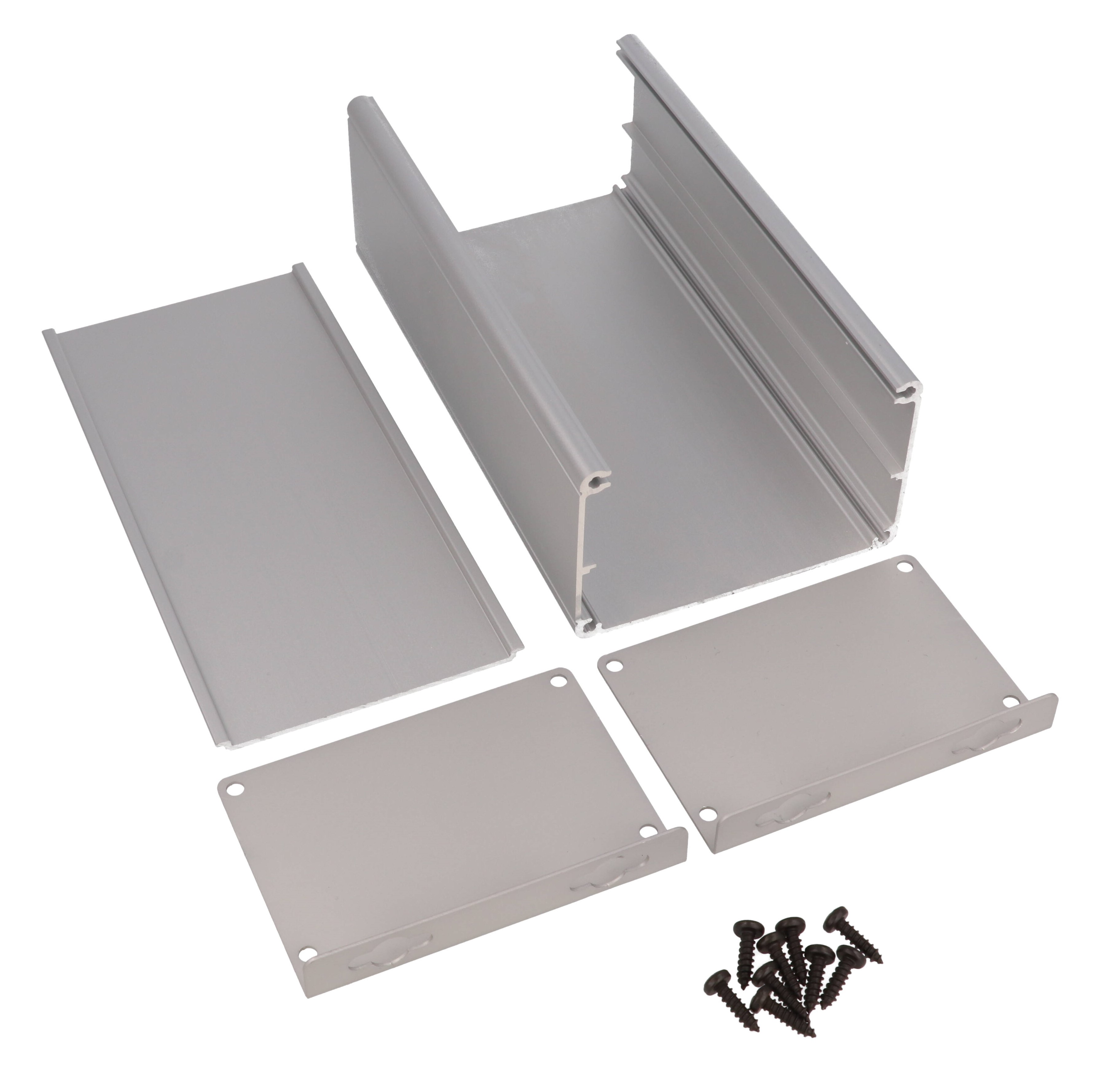

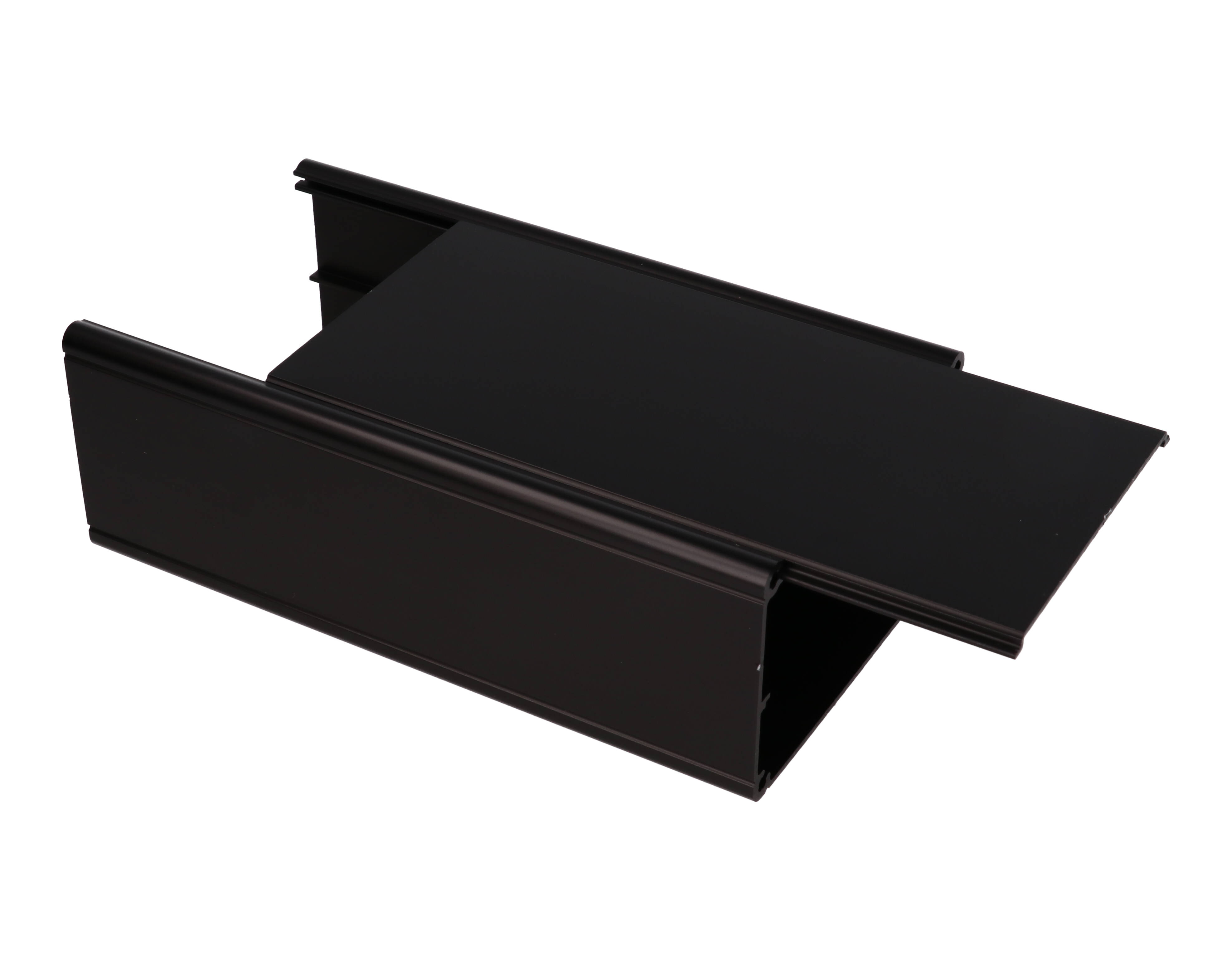

- ■Consists of an aluminum "U" shaped extrusion body and a flat, sliding aluminum bottom plate.
- ■Sliding plate is perfect for easy mounting of components.
- ■Aluminum mounting brackets are attached to each end. Mounting brackets are punched with 0.31" (7.9 mm) diameter keyholes for easy mounting of enclosures.
- ■Rugged body is constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).
- ■Available in either clear or black anodized finish with matching sliding plate and mounting flanges.
from $16.41
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1455ZT Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Dimension tables (inches / mm)
| Part Number | Anodized · Color | Length (mm) | Width (mm) | Height (mm) | Price | Order |
|---|---|---|---|---|---|---|
| 1455ZT1601 | Clear | 160.00 | 89.00 | 56.00 | $16.41In stock | Buy now |
| 1455ZT1601BK | Black | 160.00 | 89.00 | 56.00 | $18.45In stock | Buy now |
| 1455ZT2201 | Clear | 220.00 | 89.00 | 56.00 | $19.21In stock | Buy now |
| 1455ZT2201BK | Black | 220.00 | 89.00 | 56.00 | $20.94In stock | Buy now |
Key Features:
- ■Designed to house electronics when shelf or wall mounting is required.
- ■Consists of an aluminum "U" shaped extrusion body and a flat, sliding aluminum bottom plate.
- ■Sliding plate is perfect for easy mounting of components.
- ■Aluminum mounting brackets are attached to each end. Mounting brackets are punched with 0.31" (7.9 mm) diameter keyholes for easy mounting of enclosures.
- ■Rugged body is constructed from extruded aluminum with a minimum thickness of 0.06” (1.5 mm).
- ■Available in either clear or black anodized finish with matching sliding plate and mounting flanges.

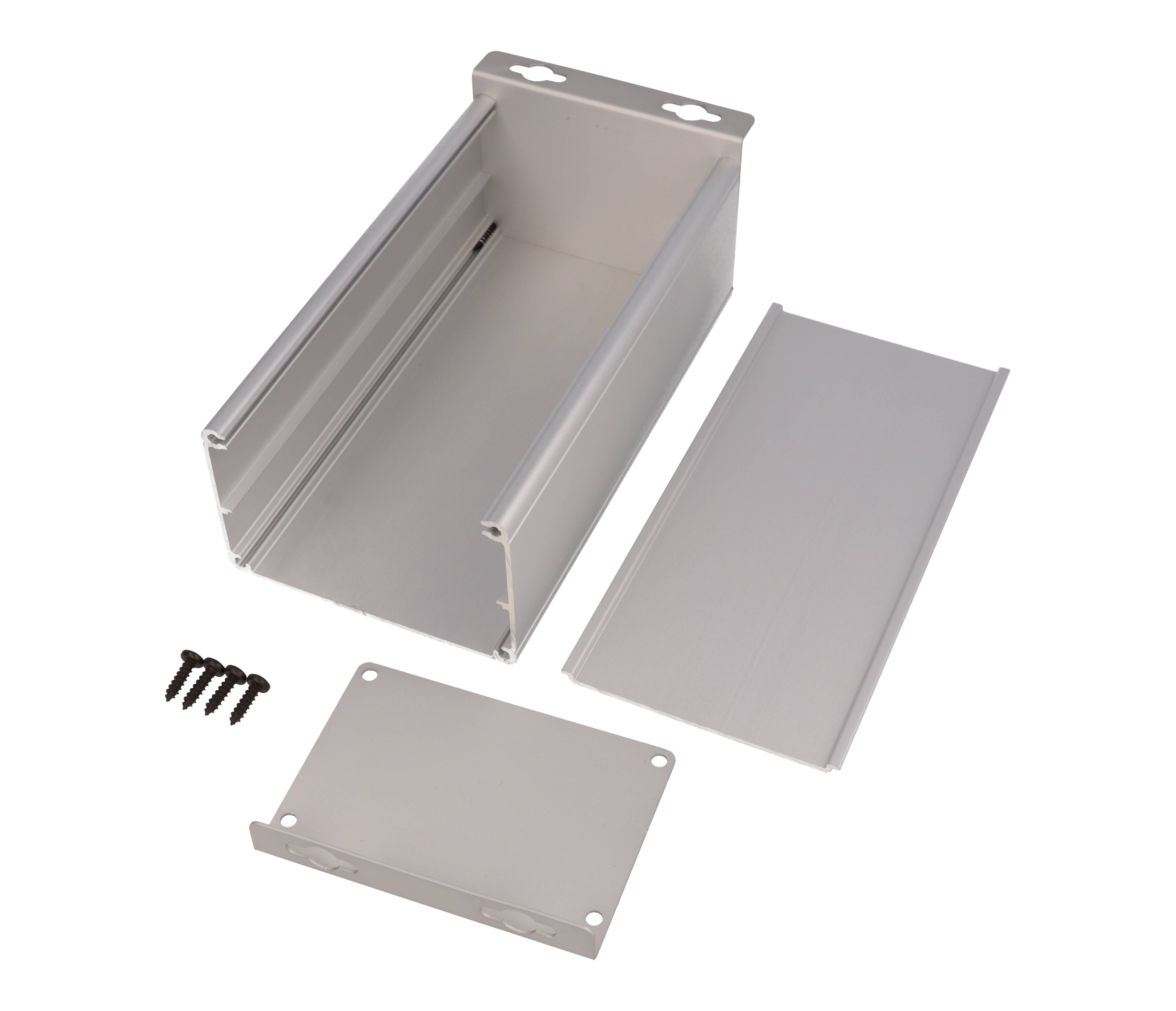

- ■Includes all assembly hardware. For replacement screws, order part number 1455MSFL100BK (pack of 100).
- ■NOTE: Recommended screw torque is 5 lbf/in
Documents
Additional information
Part Details
| Part Number | Anodized · Color | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| 1455ZT1601 | Clear | 160.00 | 89.00 | 56.00 |
| 1455ZT1601BK | Black | 160.00 | 89.00 | 56.00 |
| 1455ZT2201 | Clear | 220.00 | 89.00 | 56.00 |
| 1455ZT2201BK | Black | 220.00 | 89.00 | 56.00 |
