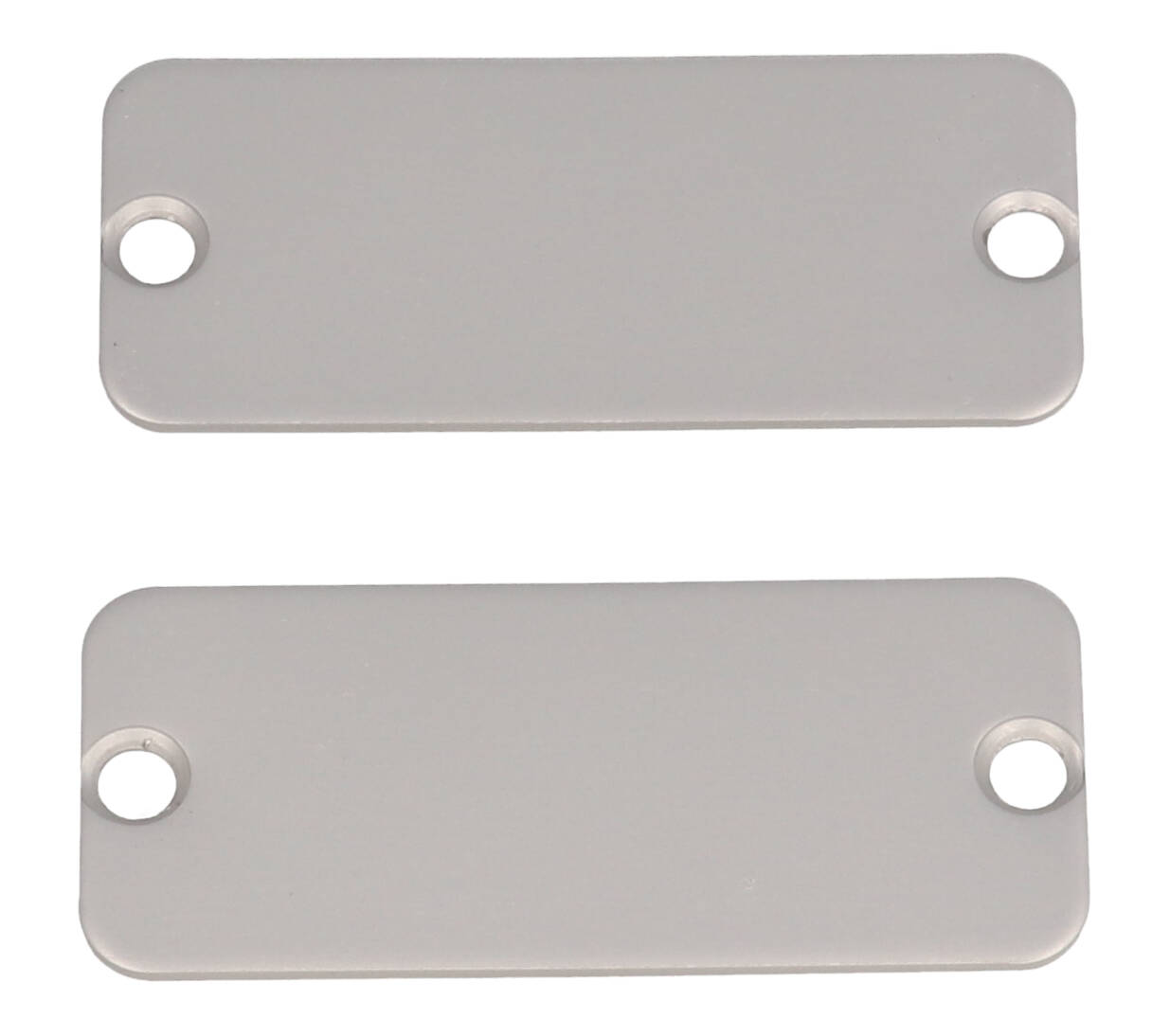

Hammond 1455CAL-10 Clear Aluminum End Panels for 1455C, 10-Pack

The 1455CAL-10 is a 10-pack of clear anodized aluminum end panels for 1455C extruded aluminum enclosures. It is intended for OEM engineers, prototype builders and maintenance teams who need spare or replacement end plates, or who want to machine custom panels for connectors, switches and indicators while keeping a matching original on hand.

These are the flat aluminum end panels used on 1455 enclosures with metal end plates. On those versions, the enclosure ships with two flat aluminum end panels colour matched to the housing together with two open black plastic bezels, so a 10-pack covers several enclosures' worth of spare panels. Each panel is aluminum in a clear anodize, and the panels are listed for part numbers starting with 1455C.

Hammond offers these end panel 10-packs in clear, black, blue and red anodize, and the series notes that accessory panels and bezels allow mixing and matching of colours. If you prefer a contrasting look, the same 1455C panel is available in black, blue or red. End panels fasten with #6 x 3/8 in thread-rolling steel screws with a #4 flat head Phillips drive at a recommended torque of 5 lbf-in; screws are sold separately as 1455MS100 (natural) or 1455MS100BK (black), quantity 100.

The pack ships in a bag with a shipping weight of 0.11 lbs (0.05 kg). The 1455CAL-10 is RoHS and REACH compliant.
