Hammond 1455JALBU-10 Blue Anodized Aluminum End Panels, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10-pack of blue anodized aluminum end panels for 1455J enclosures
- For use with metal end plate enclosures
- Also offered in clear, black, red
- Mix and match end colours with the housing
- Recommended end panel screw torque: 5 lbf-in
- RoHS and REACH compliant

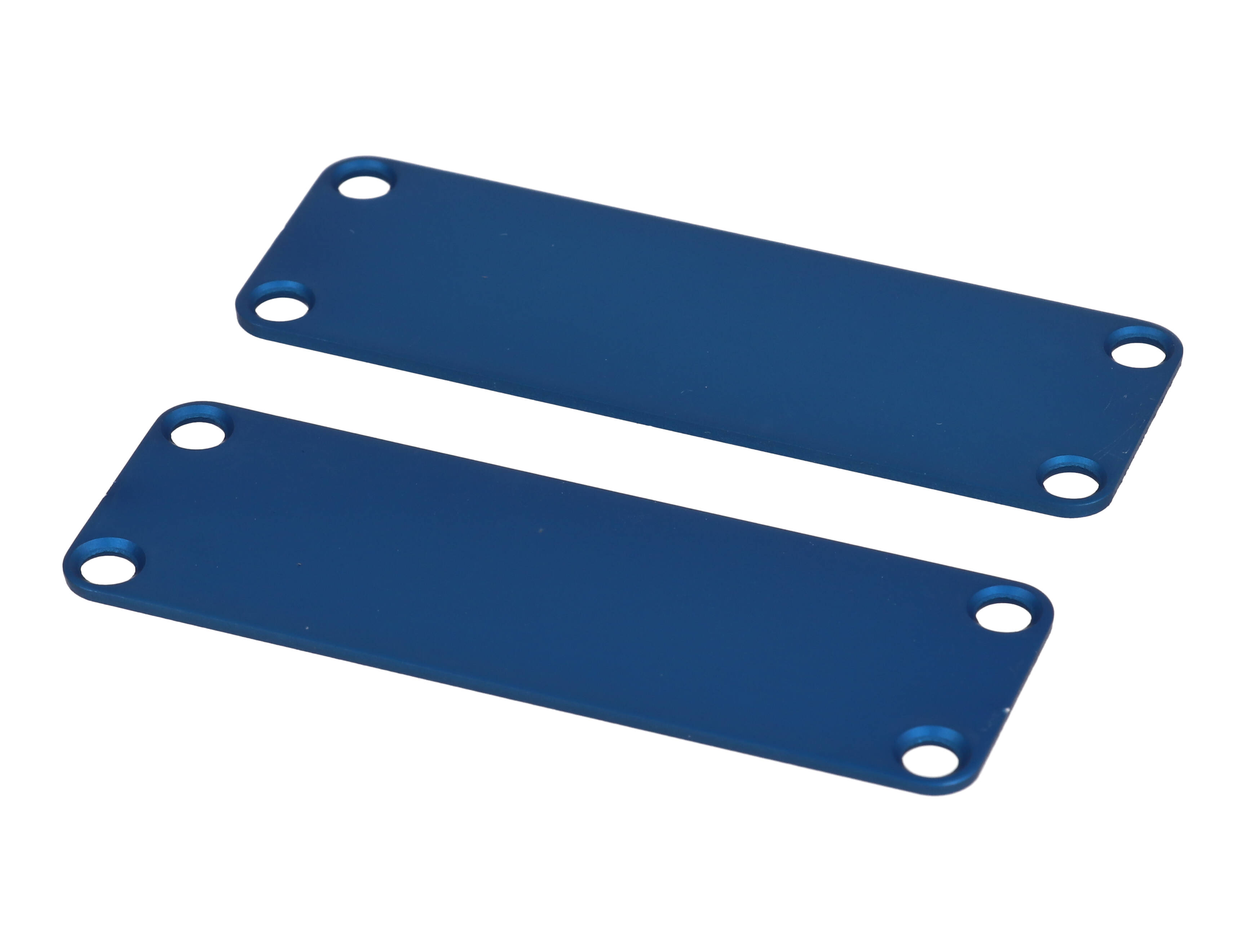

The 1455JALBU-10 is a 10-pack of blue anodized aluminum end panels for 1455J extruded aluminum enclosures. It is aimed at builders and maintenance teams who fit or service 1455J cases with metal end plates and want spare panels to machine, replace or swap colours.
Each panel is aluminum with a blue anodized finish. The 1455 series specification sheet explains that versions with metal end plates ship with two flat aluminum end panels colour matched to the housing, and that extra end panels are sold in 10-packs in clear, black, red or blue anodized finishes. The 1455JALBU-10 appears in the manufacturer's table of aluminum end panels for use with metal end plate enclosures, for part numbers starting with 1455J.
Because accessory panels and bezels allow mixing and matching of colours, the blue anodized panel can be paired with a different colour of housing. The other colours in the same table are clear (1455JAL-10), black (1455JALBK-10) and red (1455JALRD-10).
The end panels fasten with the series' #6 x 3/8" thread rolling steel end panel screws; Hammond recommends a screw torque of 5 lbf-in. Replacement screws are listed as 1455MS100 (natural, for clear anodized enclosures) and 1455MS100BK (black), 100 per pack.
The pack ships in a bag with a shipping weight of 0.19 lbs (0.09 kg), is RoHS and REACH compliant and carries UPC 623980101897.
Ideal For
- Replacement end panels for 1455J metal end plate enclosures
- Spare panels for machining connector or switch cut-outs
- Colour-changing the ends of 1455J cases
- Stocking spares for small-run electronics builds
Overview
| Type | End Panels |
| Description | blue aluminum end panels for 1455J enclosures- 10/pack |
| For Use With | Enclosures with part number starting 1455J (metal end plate enclosures) |
| Short Description | 1455J ENDPLATE, PK OF 10, BLUE |
| Available Colours (10-pack) | Clear 1455JAL-10; Black 1455JALBK-10; Blue 1455JALBU-10; Red 1455JALRD-10 |
Identifiers
| UPC | 623980101897 |
| UNSPSC | 39121301 |
| Part Number | 1455JALBU-10 |
Packaging & Shipping
| Pack Quantity | 10 |
| Packaging Type | bag |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Color | Blue |
| Material | Aluminum |
| Recommended Screw Torque | 5 lbf-in |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1455JALBU-10?▾
It is listed for 1455 series enclosures whose part number starts with 1455J that use metal end plates.
How many panels are included?▾
The pack contains 10 aluminum end panels.
What colours are available?▾
The 1455J aluminum end panel 10-packs come in clear (1455JAL-10), black (1455JALBK-10), blue (1455JALBU-10) and red (1455JALRD-10) anodize.
Are screws included?▾
The data does not list screws in this pack. Replacement end panel screws are sold as 1455MS100 (natural) and 1455MS100BK (black) in quantities of 100.
What torque should the end panel screws be tightened to?▾
The manufacturer recommends 5 lbf-in.
