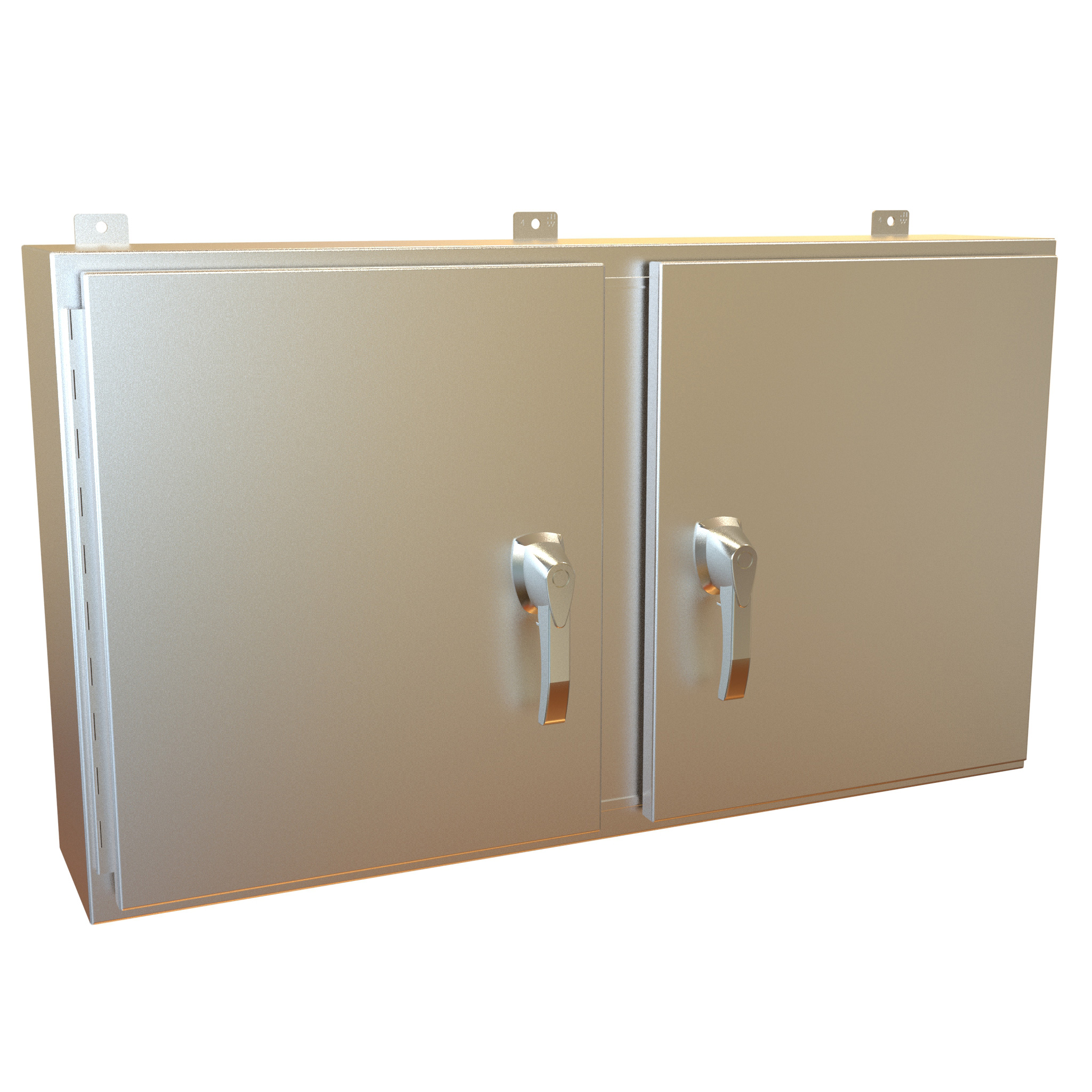

N4X Wallmt 24X42X8 S16
$3,545.37Backorder
Buy now

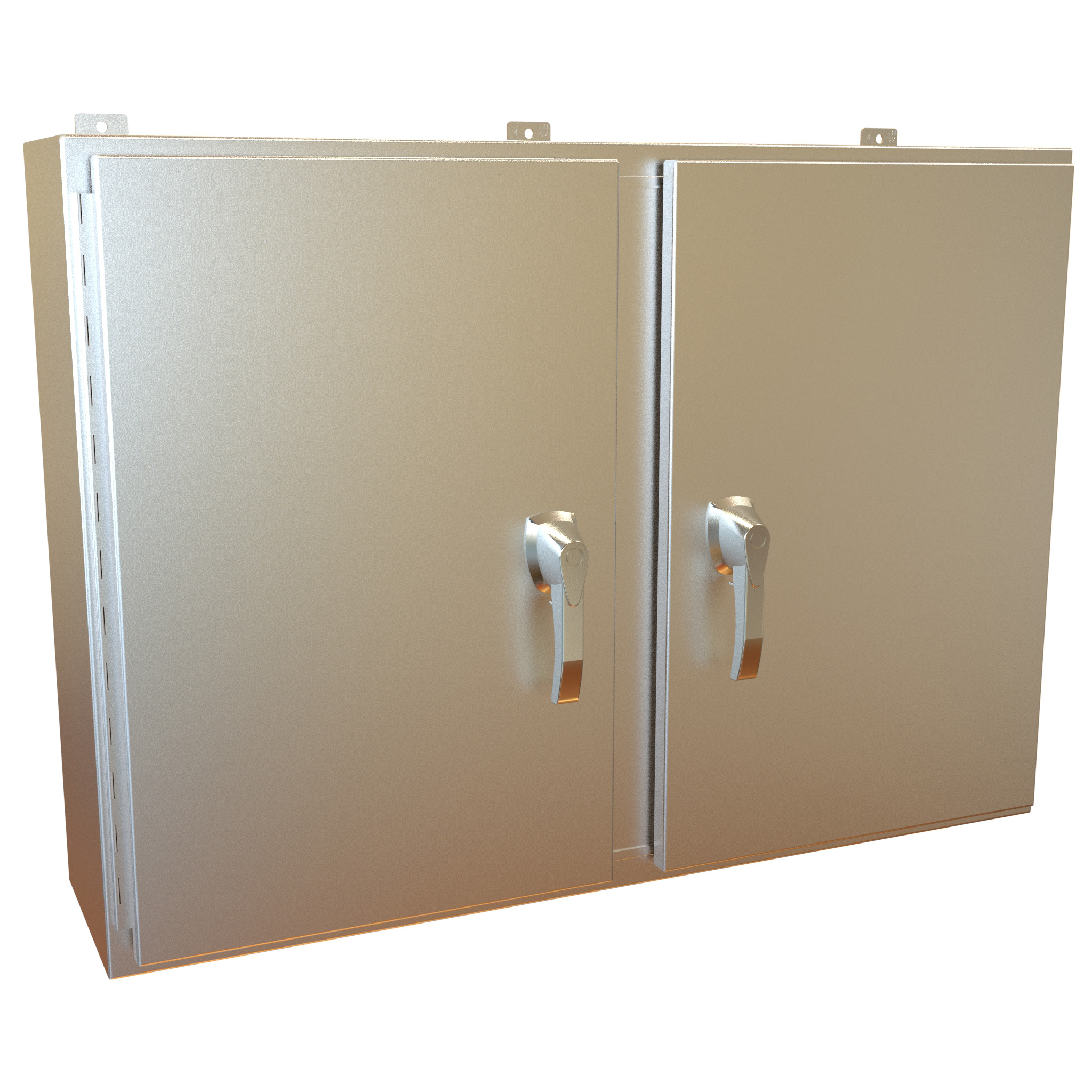

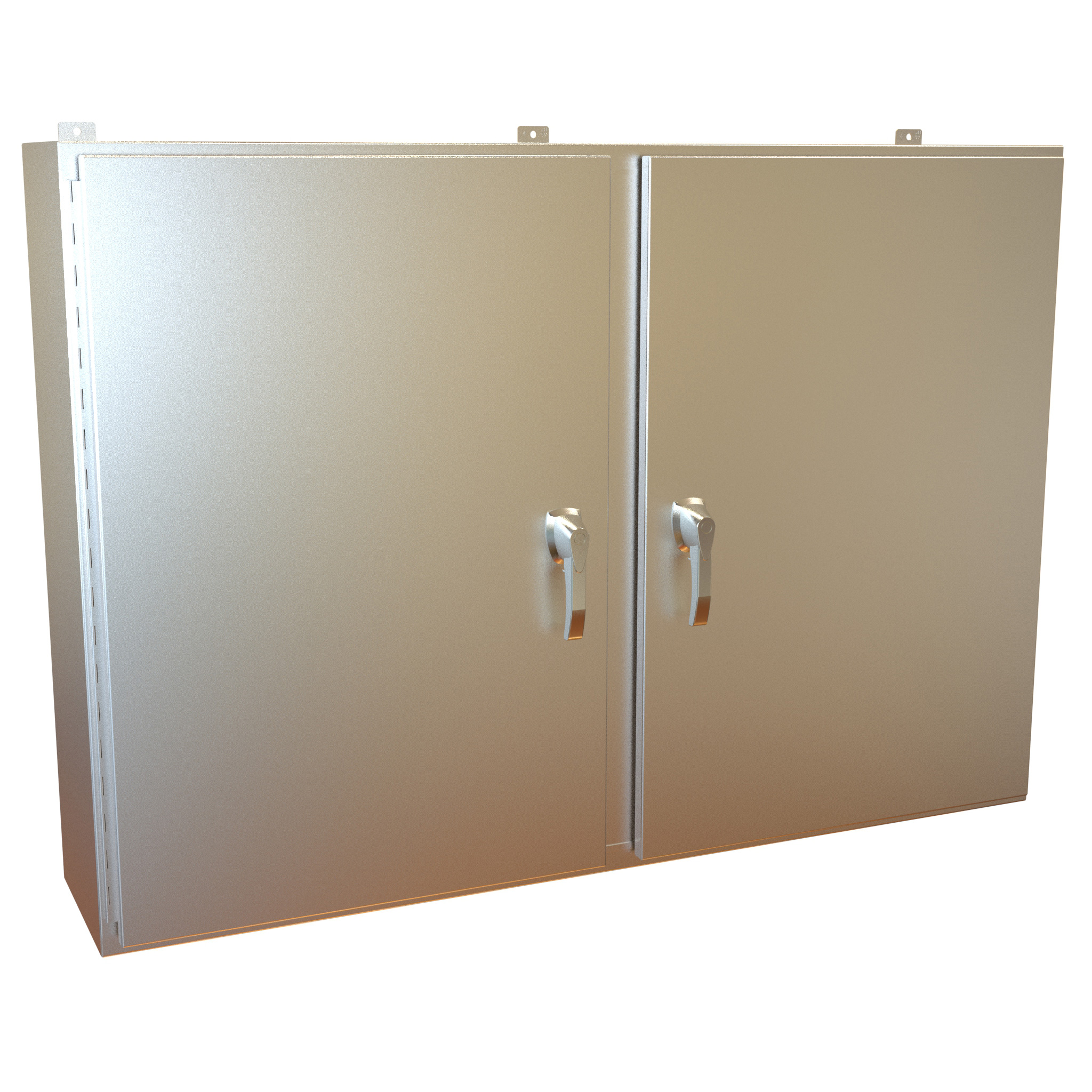

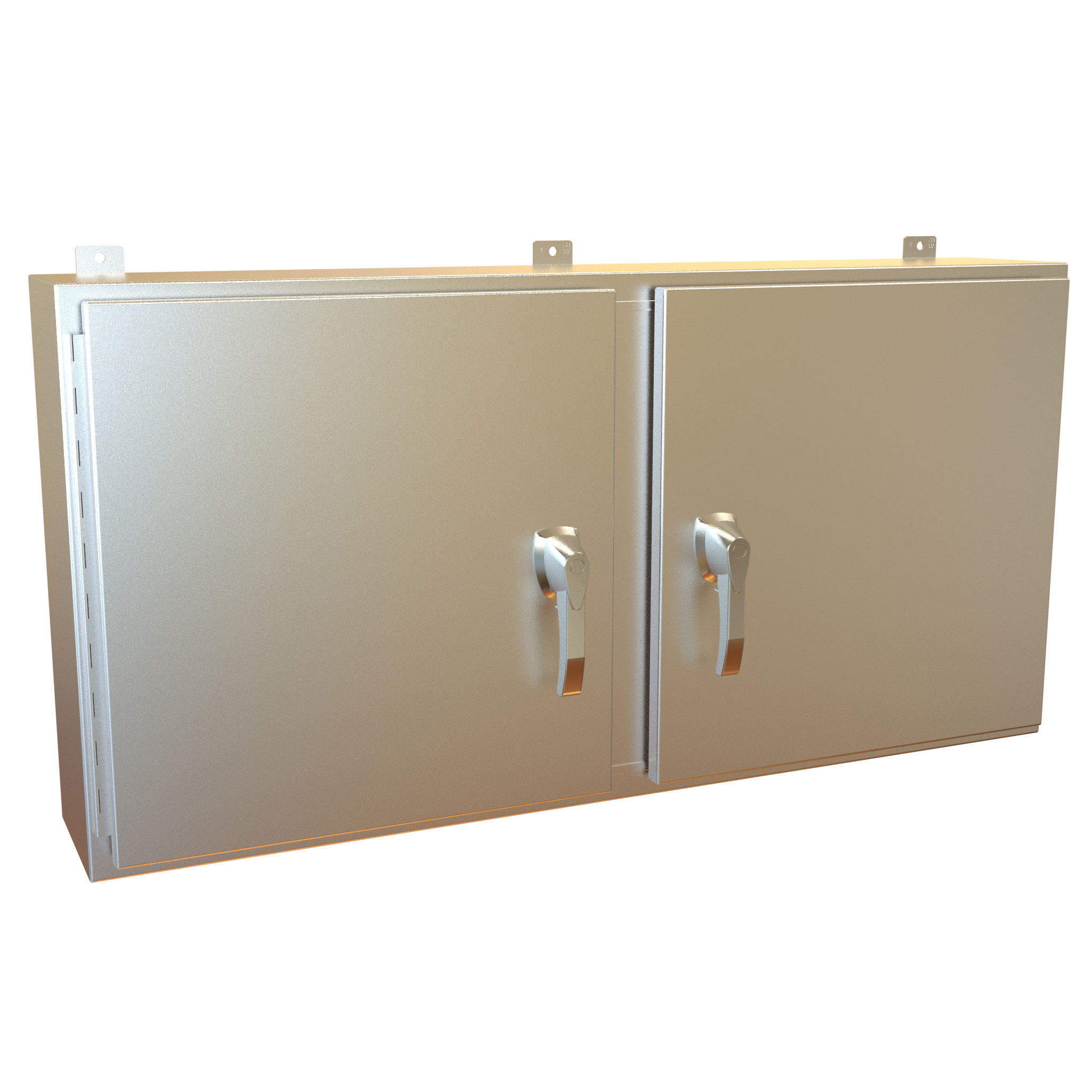

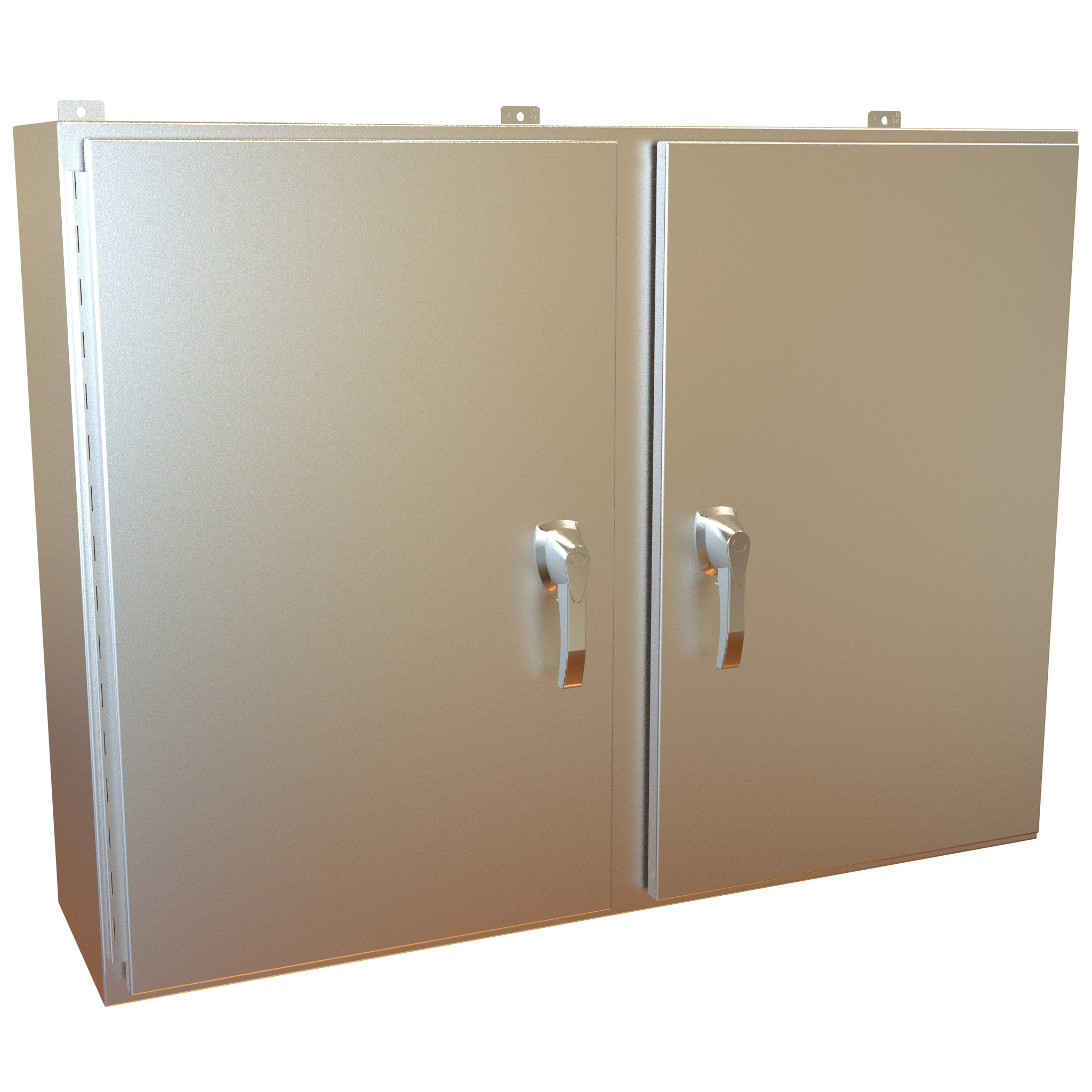

Type 4X Stainless Steel Two Door Wallmount Enclosure · HN4 WM SS Series
Brand: Hammond Manufacturing · 24 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■Formed 12 gauge 304 or 316 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Doors are supported with heavy gauge continuous hinges.
- ■3-pt padlocking door handle.
from $2,967.00
24 of 24 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HN4 WM SS Series part number
Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
24 of 24 part numbers · 24 priced online
N4X Wallmt 24X42X8 SS
$2,967.00Backorder
Buy now
N4X Wallmt 24X48X8 S16
$3,823.92Backorder
Buy now
HN4WMSS - Assembly
$3,201.39In stock
Buy now
N4X Wallmt 30X42X10 S16
$4,164.12Backorder
Buy now
N4X Wallmt 30X42X10 SS
$3,479.32Backorder
Buy now
N4X Wallmt 30X48X10 S16
$4,487.00Backorder
Buy now

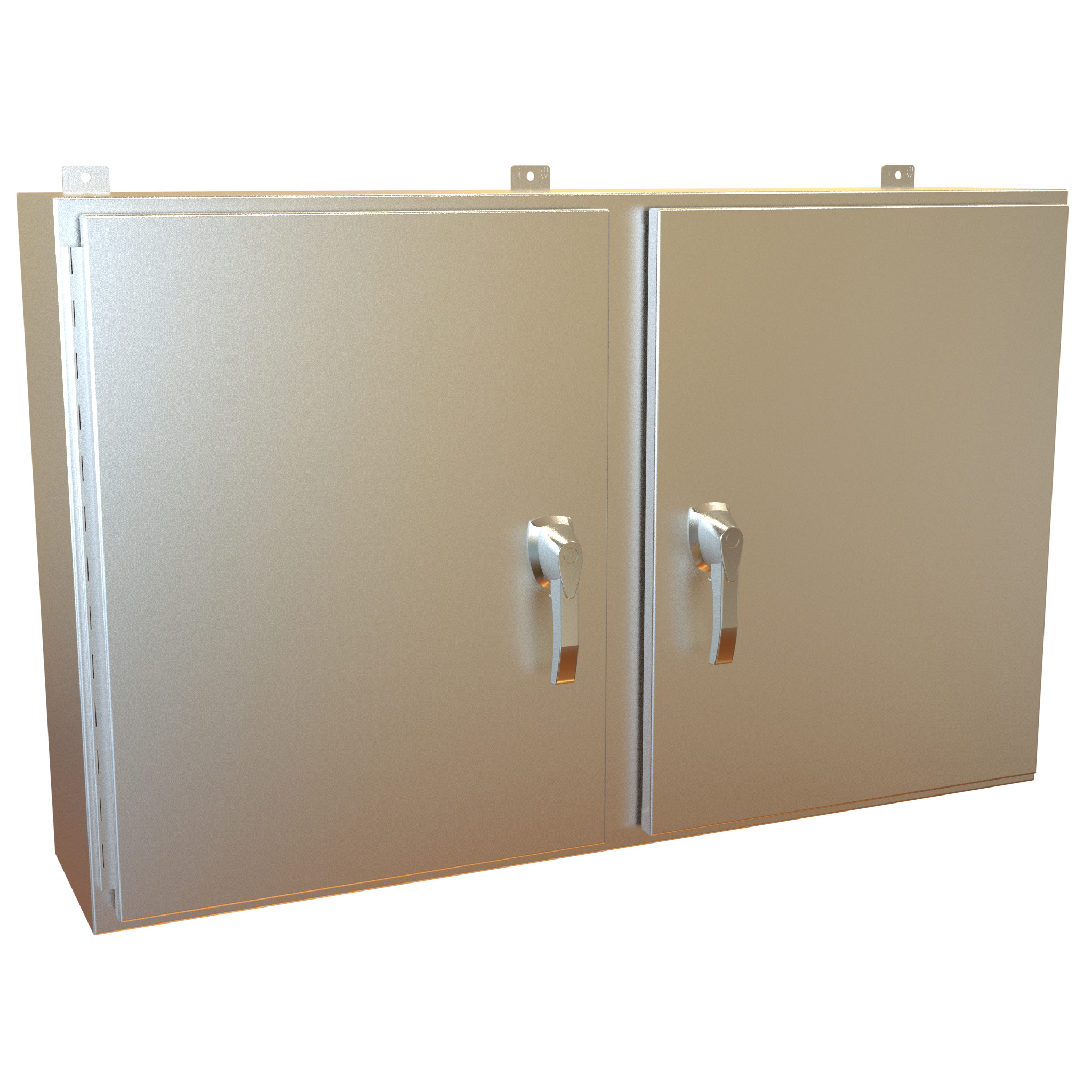

N4X Wallmt 30X48X10 SS
$3,748.66Backorder
Buy now

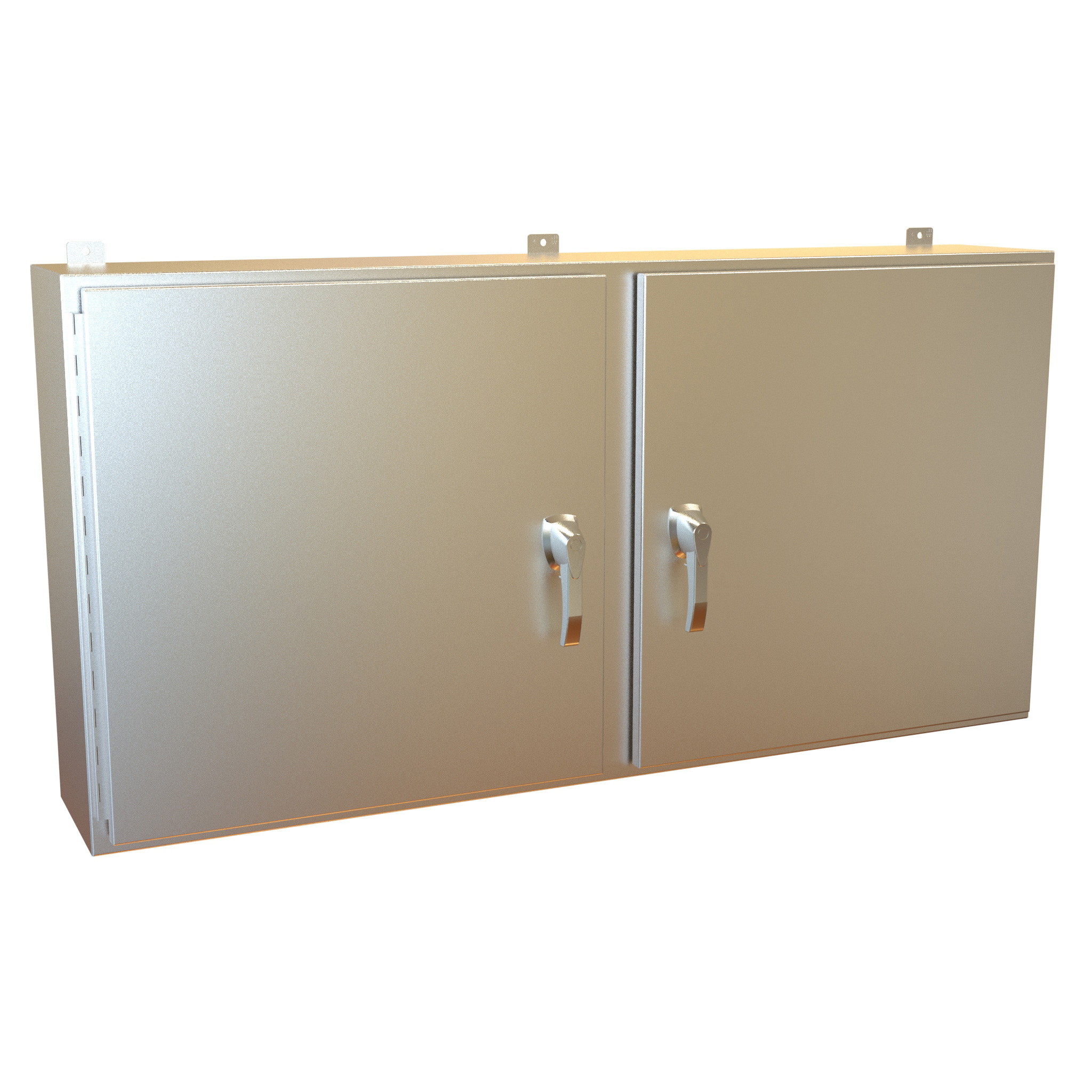

N4X Wallmt 30X60X10 S16
$5,119.50Backorder
Buy now
N4X Wallmt 30X60X10 SS
$4,273.90Backorder
Buy now

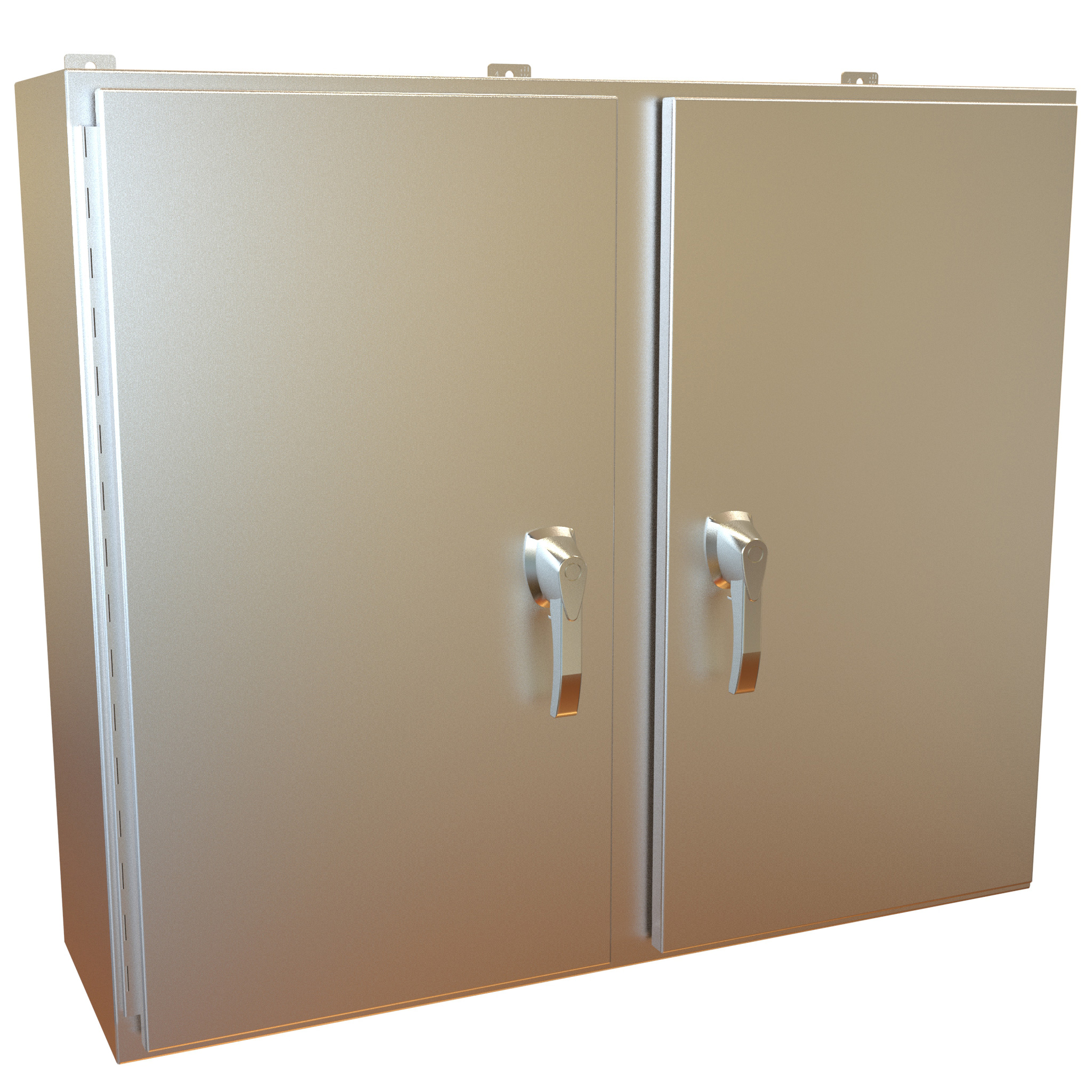

N4X Wallmt 36X42X12 S16
$4,825.14In stock
Buy now
N4X Wallmt 36X42X12 SS
$4,030.90Backorder
Buy now
N4X Wallmt 36X48X12 S16
$5,243.50In stock
Buy now
N4X Wallmt 36X48X12 SS
$4,378.73Backorder
Buy now

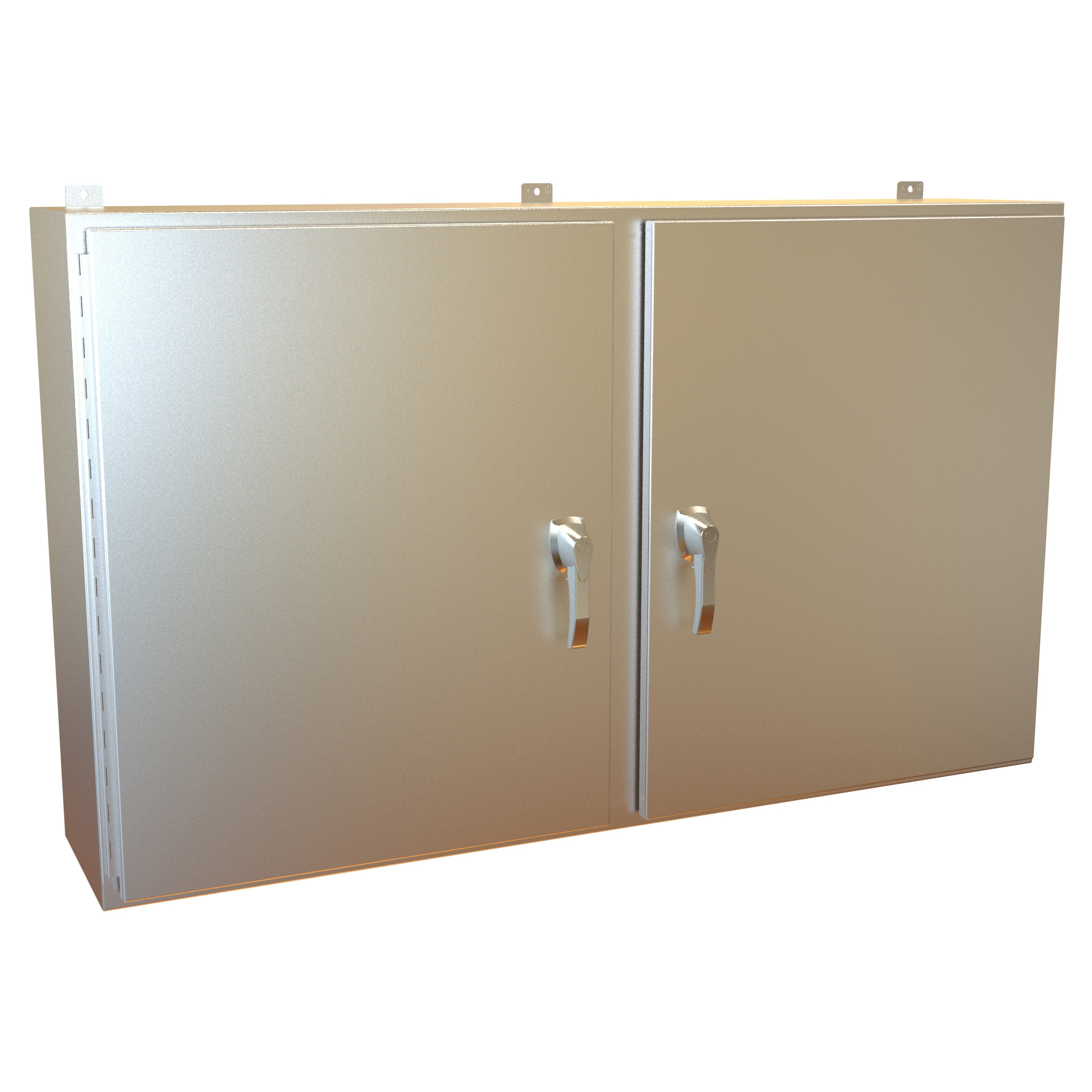

N4X Wallmt 36X60X12 S16
$6,004.79Backorder
Buy now
N4X Wallmt 36X60X12 SS
$5,013.09In stock
Buy now
N4X Wallmt 42X42X12 S16
$5,313.90Backorder
Buy now

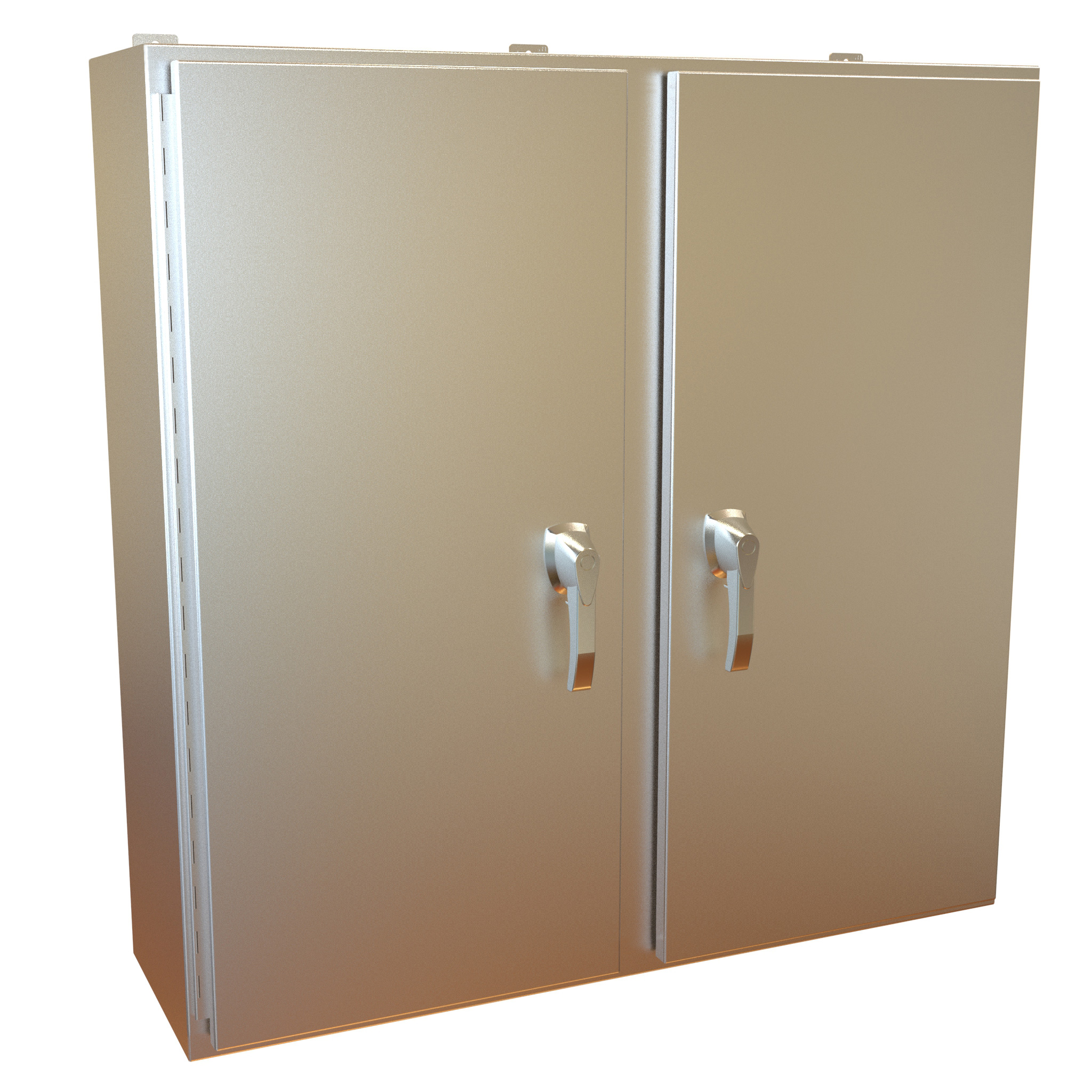

N4X Wallmt 42X42X12 SS
$4,437.85Backorder
Buy now

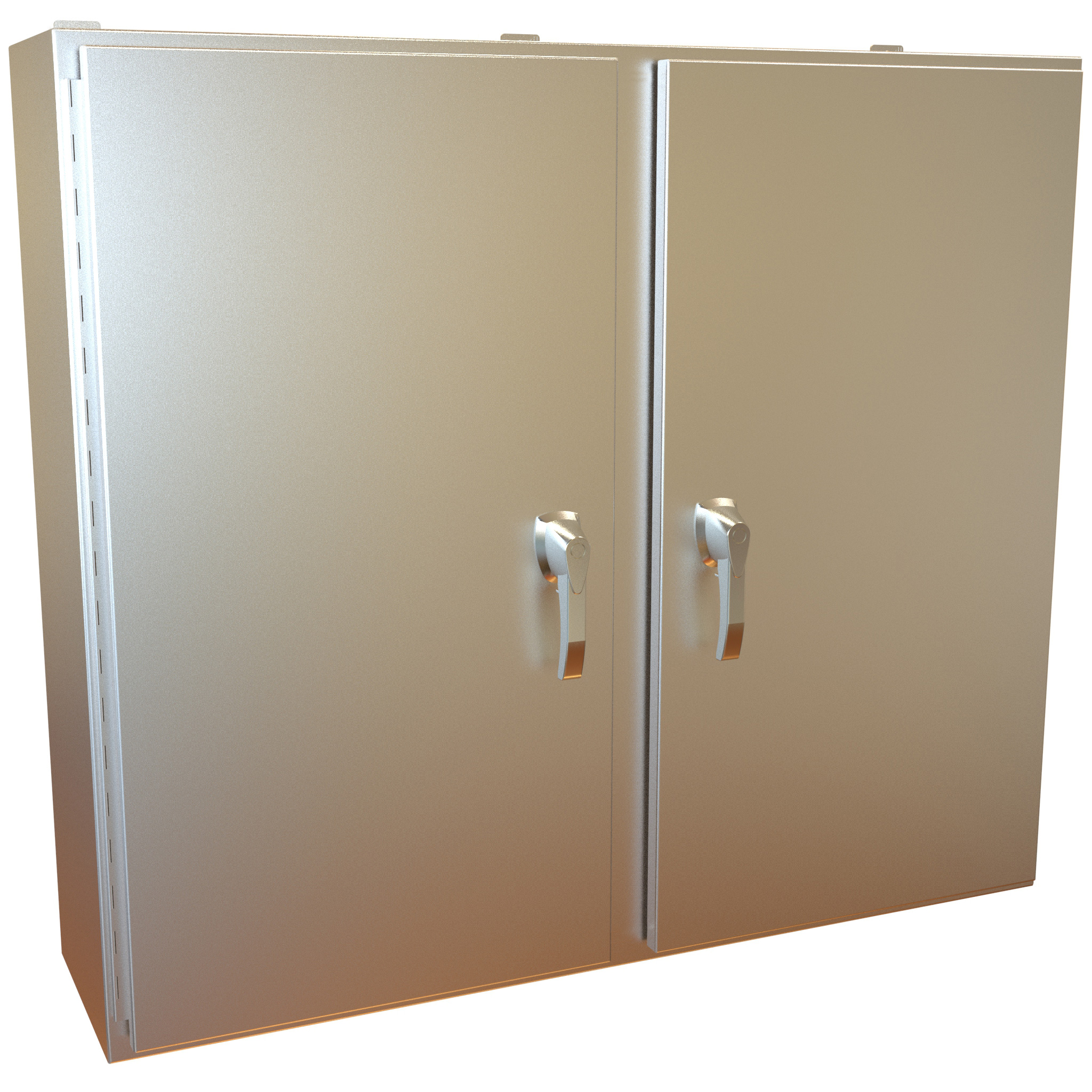

N4X Wallmt 42X48X12 S16
$5,751.56Backorder
Buy now
N4X Wallmt 42X48X12 SS
$4,802.89Backorder
Buy now
N4X Wallmt 42X60X12 S16
$6,599.93In stock
Buy now
N4X Wallmt 42X60X12 SS
$5,513.59In stock
Buy now

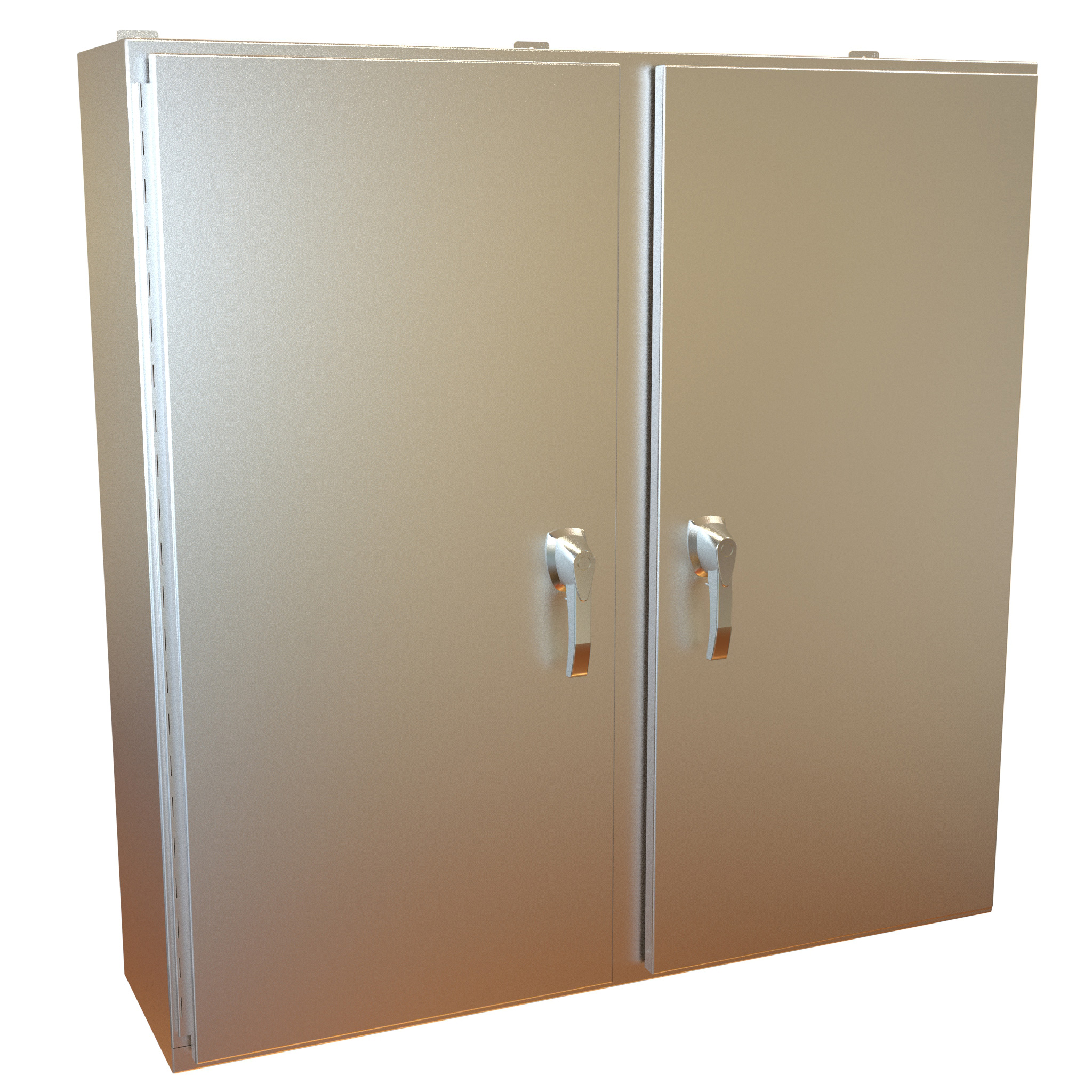

N4X Wallmt 48X48X12 S16
$6,286.04Backorder
Buy now
N4X Wallmt 48X48X12 SS
$5,248.55Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · Part Number | 316 S.S. · Part Number | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| HN4WM24428SS | HN4WM24428S16 | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 | $2,967.00BackorderHN4WM24428SS | Buy now |
| HN4WM24488SS | HN4WM24488S16 | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 | $3,201.39In stockHN4WM24488SS | Buy now |
| HN4WM304210SS | HN4WM304210S16 | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 | $3,479.32BackorderHN4WM304210SS | Buy now |
| HN4WM304810SS | HN4WM304810S16 | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 | $3,748.66BackorderHN4WM304810SS | Buy now |
| HN4WM306010SS | HN4WM306010S16 | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 | $4,273.90BackorderHN4WM306010SS | Buy now |
| HN4WM364212SS | HN4WM364212S16 | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 | $4,030.90BackorderHN4WM364212SS | Buy now |
| HN4WM364812SS | HN4WM364812S16 | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 | $4,378.73BackorderHN4WM364812SS | Buy now |
| HN4WM366012SS | HN4WM366012S16 | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 | $5,013.09In stockHN4WM366012SS | Buy now |
| HN4WM424212SS | HN4WM424212S16 | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 | $4,437.85BackorderHN4WM424212SS | Buy now |
| HN4WM424812SS | HN4WM424812S16 | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 | $4,802.89BackorderHN4WM424812SS | Buy now |
| HN4WM426012SS | HN4WM426012S16 | 42.00 | 60.00 | 12.00 | 38.00 | 56.00 | $5,513.59In stockHN4WM426012SS | Buy now |
| HN4WM484812SS | HN4WM484812S16 | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 | $5,248.55BackorderHN4WM484812SS | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Construction
- ■Formed 12 gauge 304 or 316 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Doors are supported with heavy gauge continuous hinges.
- ■3-pt padlocking door handle.
- ■Seamless poured-in place gasket.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
- ■Center post is removable for easy installation of the inner panel.
Standards
- ■UL 508A Type 3R, 4X, and 12
- ■CSA Type 3R, 4X, and 12
- ■Complies with NEMA Type 3R, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4X, 12 and 13
- ■IEC 60529, IP66
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| 304 S.S. · Part Number | 316 S.S. · Part Number | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|---|
| HN4WM24428SS | HN4WM24428S16 | 24.00 | 42.00 | 8.00 | 21.00 | 39.00 |
| HN4WM24488SS | HN4WM24488S16 | 24.00 | 48.00 | 8.00 | 21.00 | 45.00 |
| HN4WM304210SS | HN4WM304210S16 | 30.00 | 42.00 | 10.00 | 27.00 | 39.00 |
| HN4WM304810SS | HN4WM304810S16 | 30.00 | 48.00 | 10.00 | 27.00 | 45.00 |
| HN4WM306010SS | HN4WM306010S16 | 30.00 | 60.00 | 10.00 | 27.00 | 57.00 |
| HN4WM364212SS | HN4WM364212S16 | 36.00 | 42.00 | 12.00 | 33.00 | 39.00 |
| HN4WM364812SS | HN4WM364812S16 | 36.00 | 48.00 | 12.00 | 33.00 | 45.00 |
| HN4WM366012SS | HN4WM366012S16 | 36.00 | 60.00 | 12.00 | 33.00 | 57.00 |
| HN4WM424212SS | HN4WM424212S16 | 42.00 | 42.00 | 12.00 | 39.00 | 39.00 |
| HN4WM424812SS | HN4WM424812S16 | 42.00 | 48.00 | 12.00 | 39.00 | 45.00 |
| HN4WM426012SS | HN4WM426012S16 | 42.00 | 60.00 | 12.00 | 38.00 | 56.00 |
| HN4WM484812SS | HN4WM484812S16 | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 |
