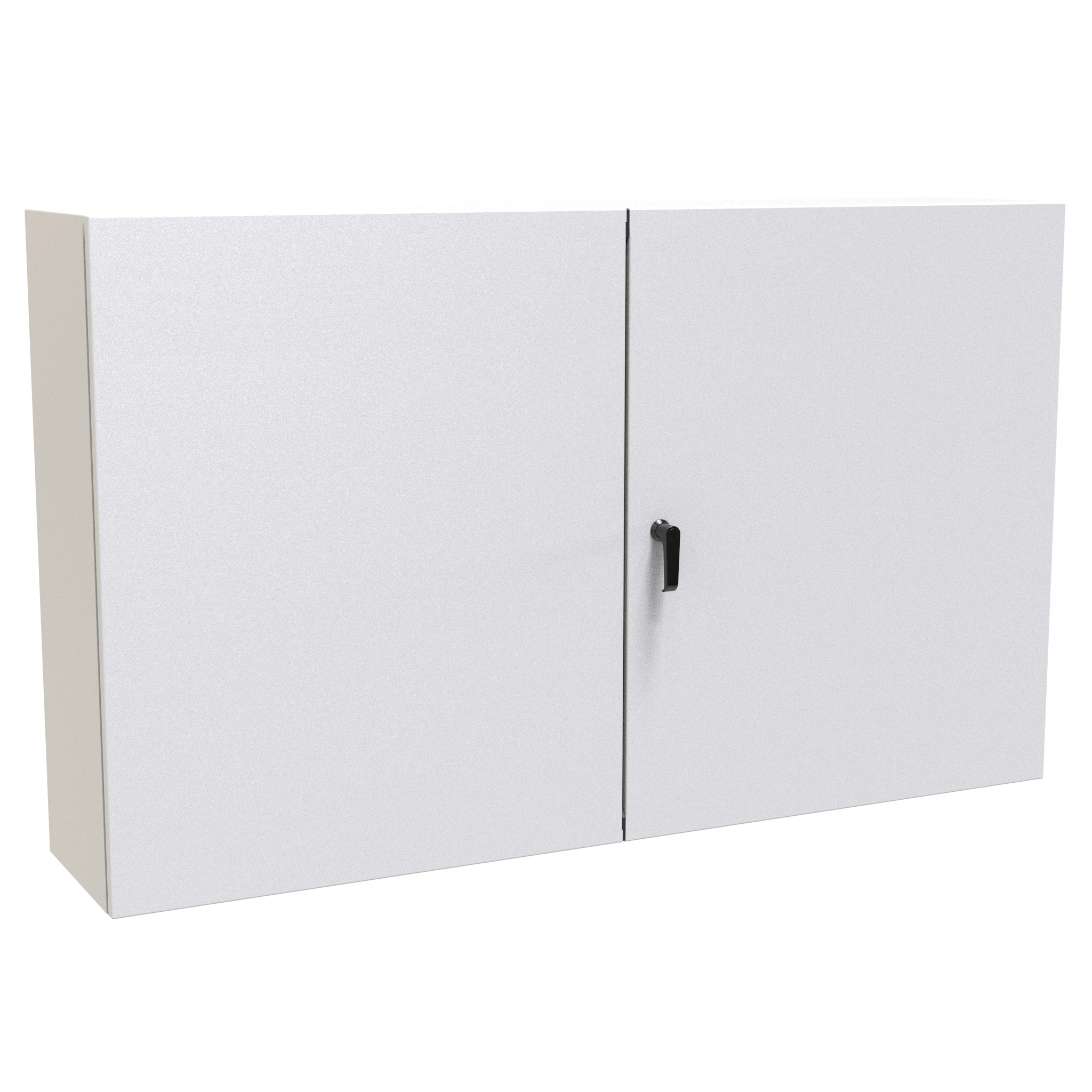

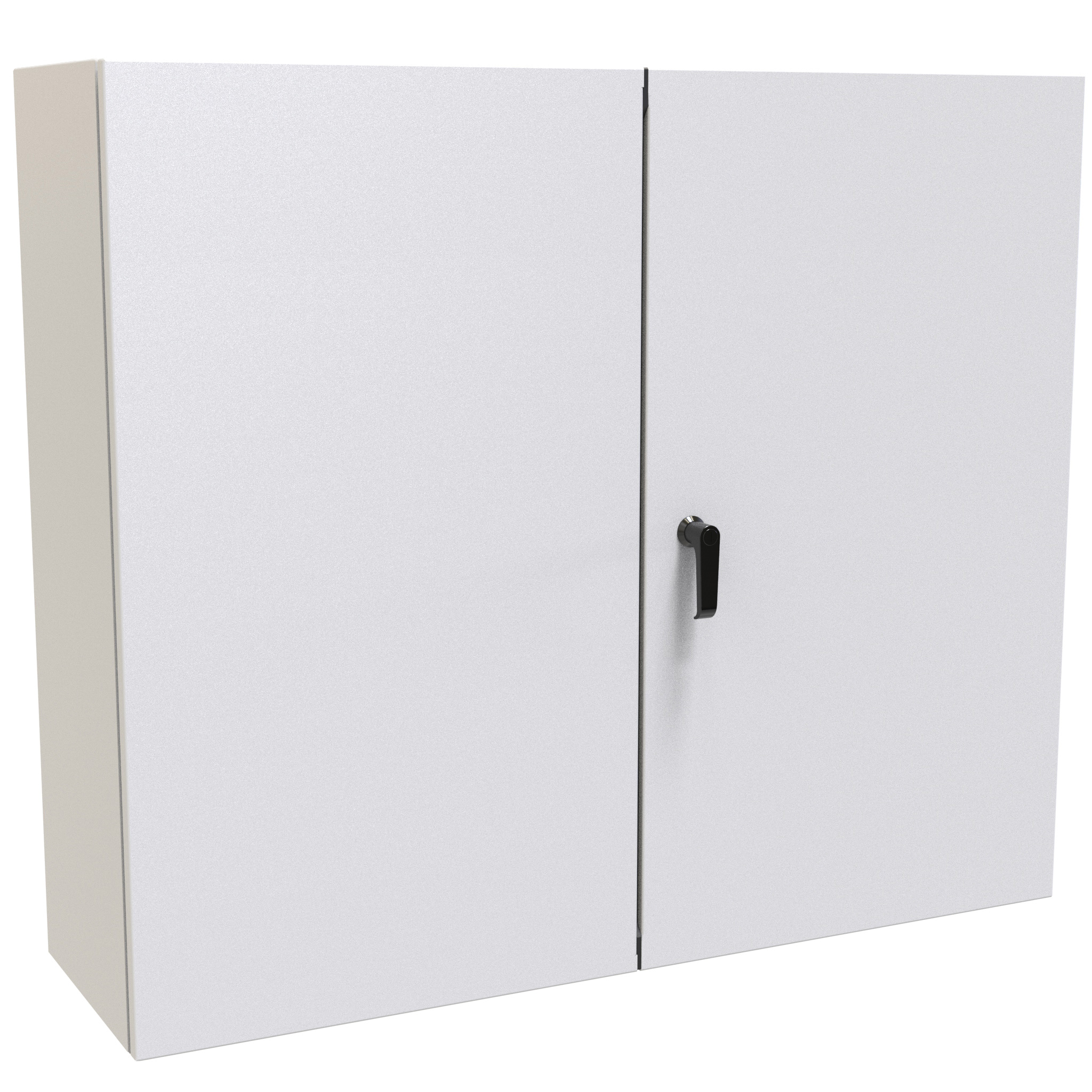

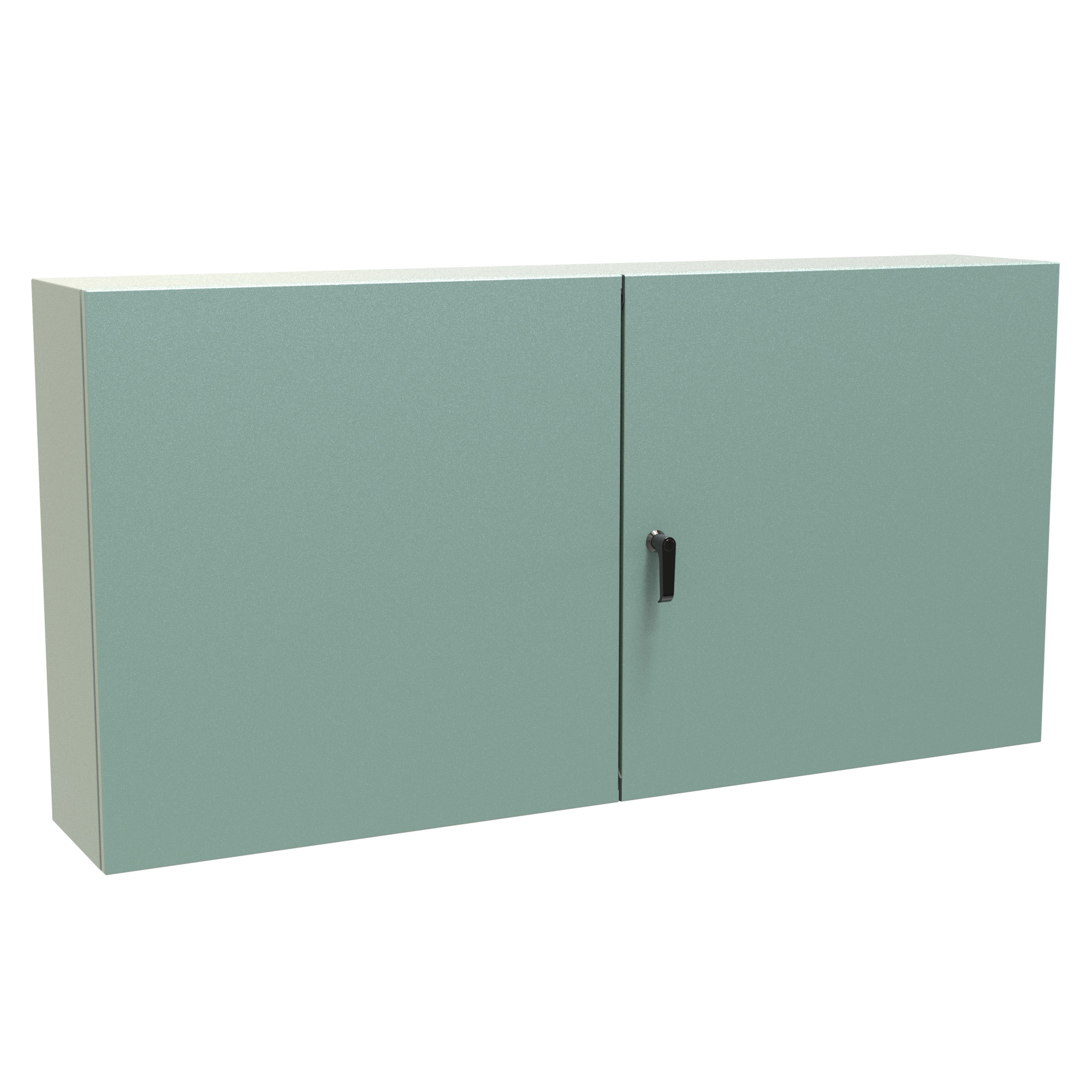

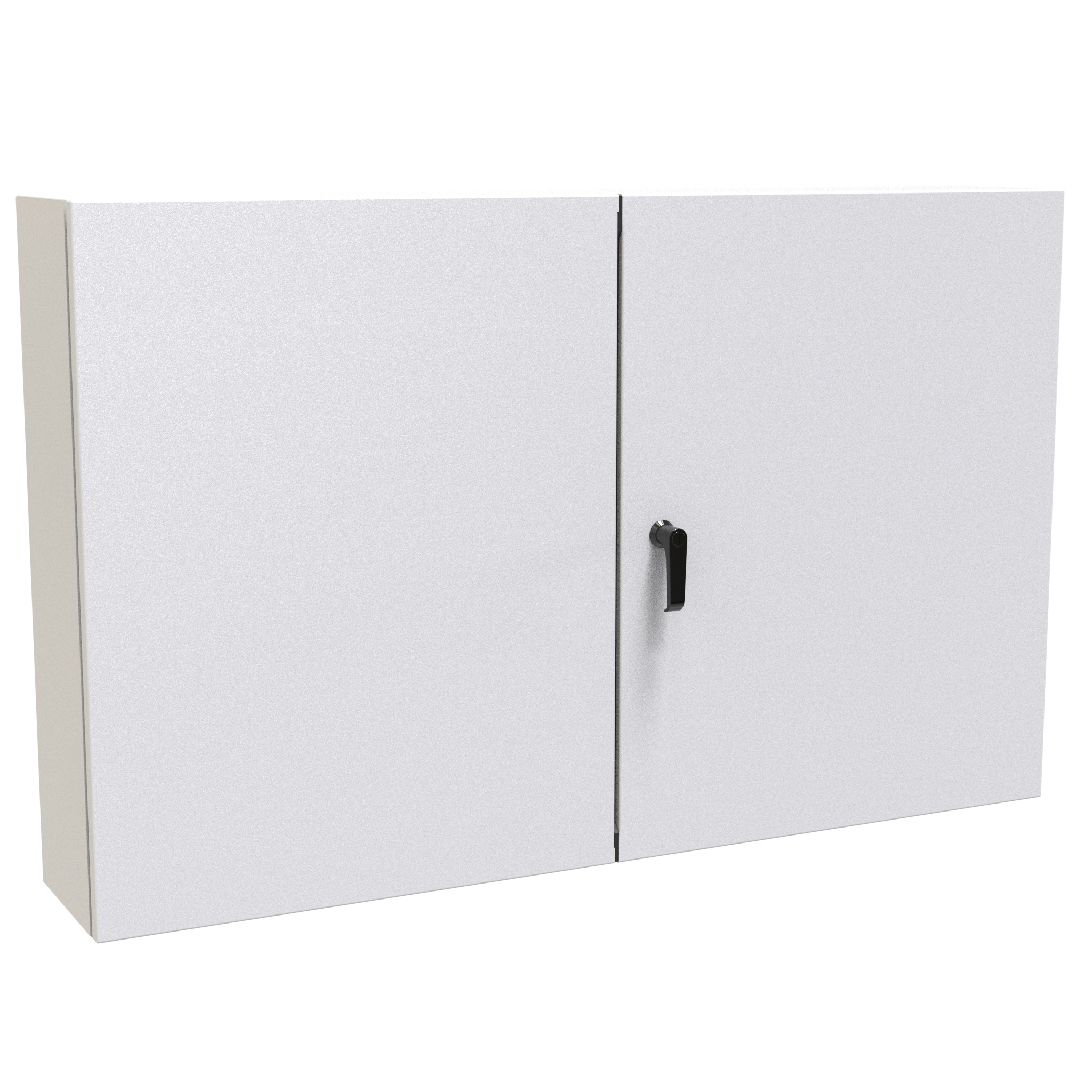

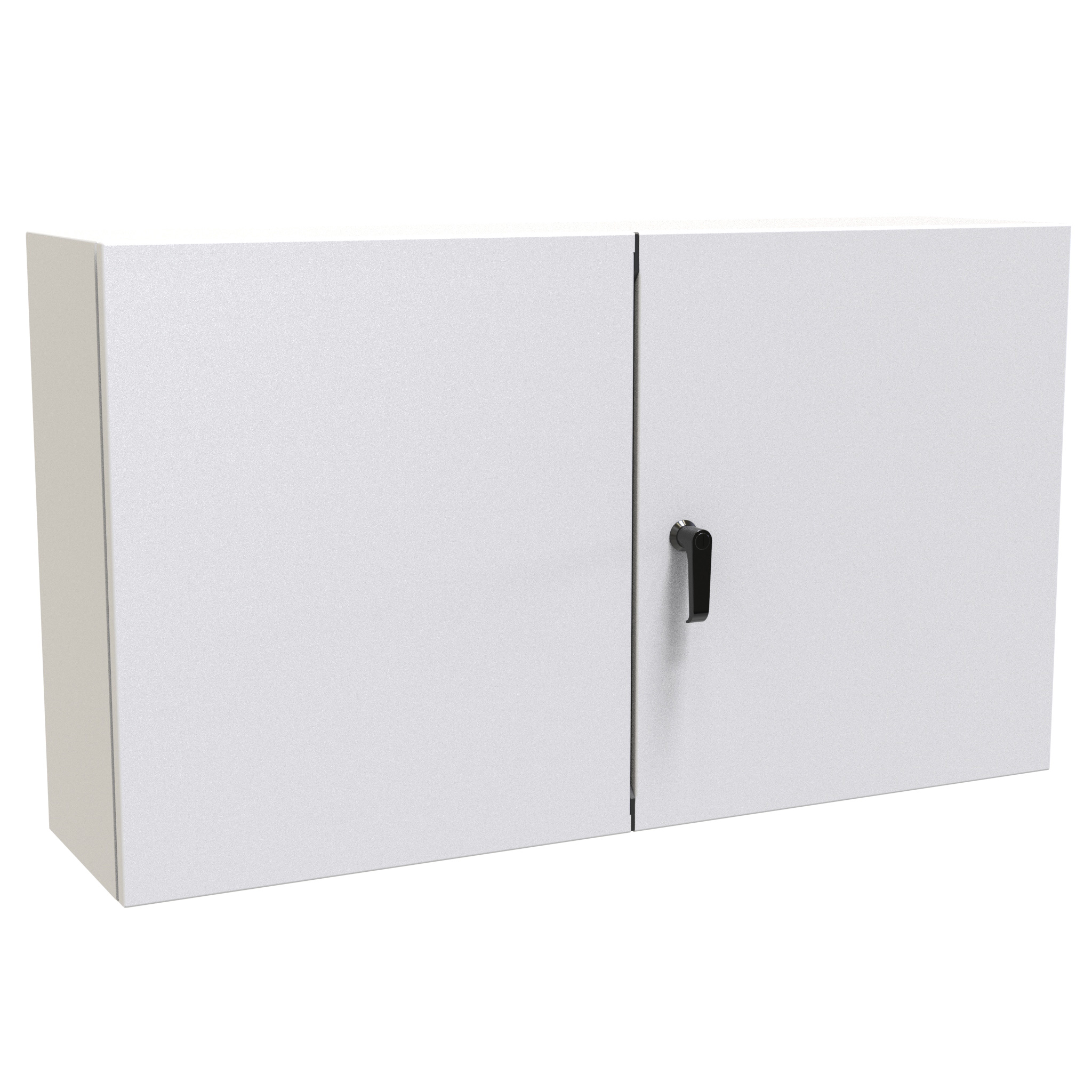

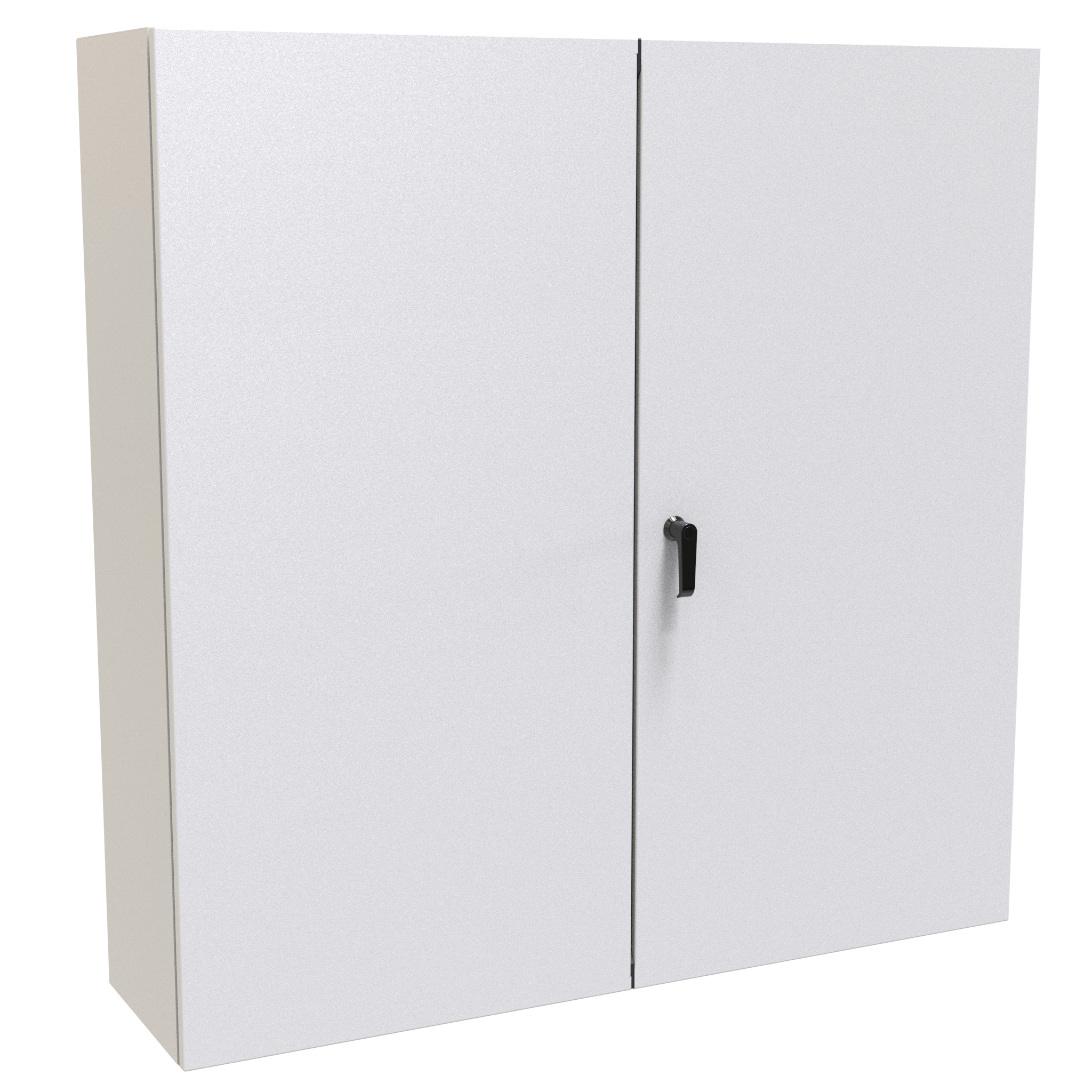

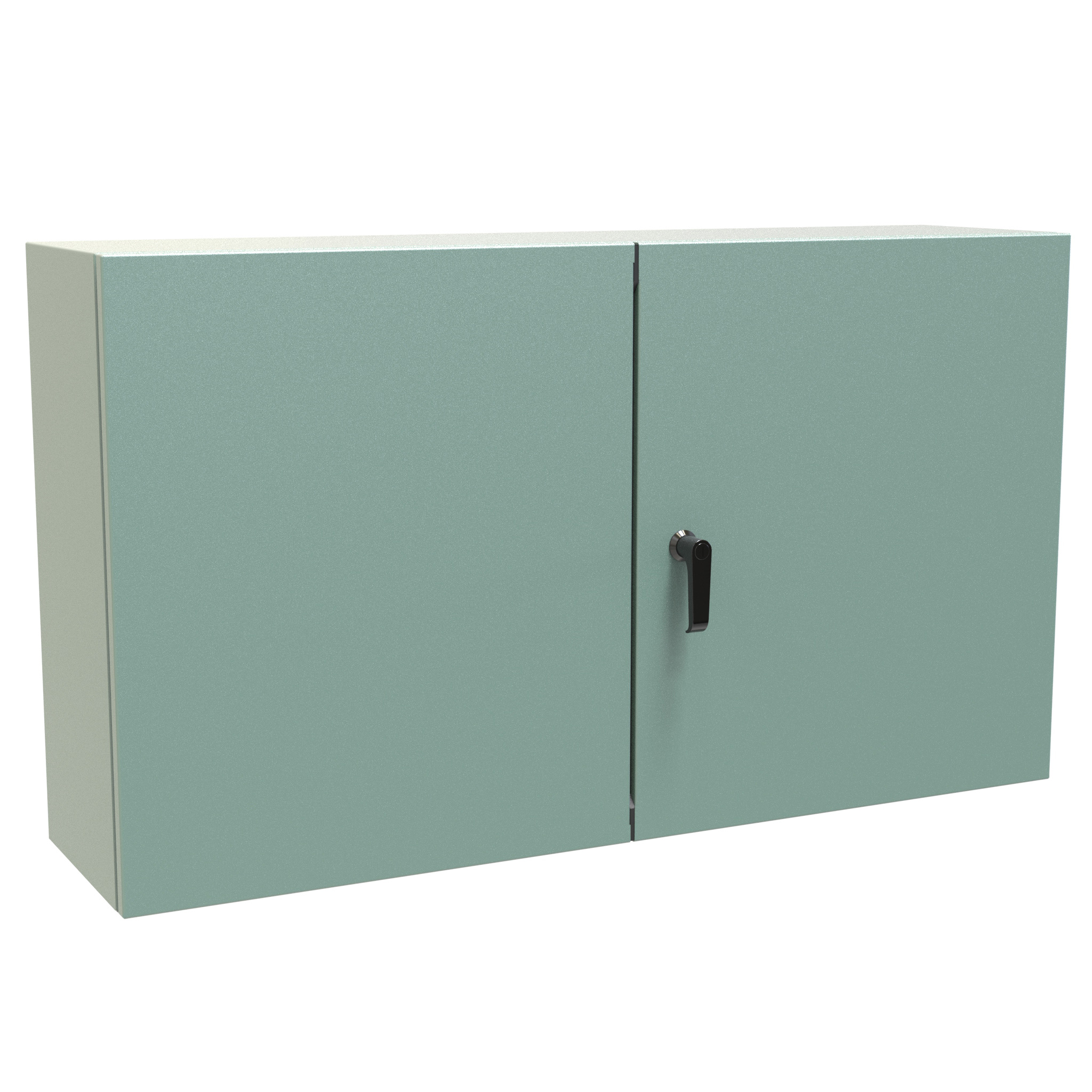

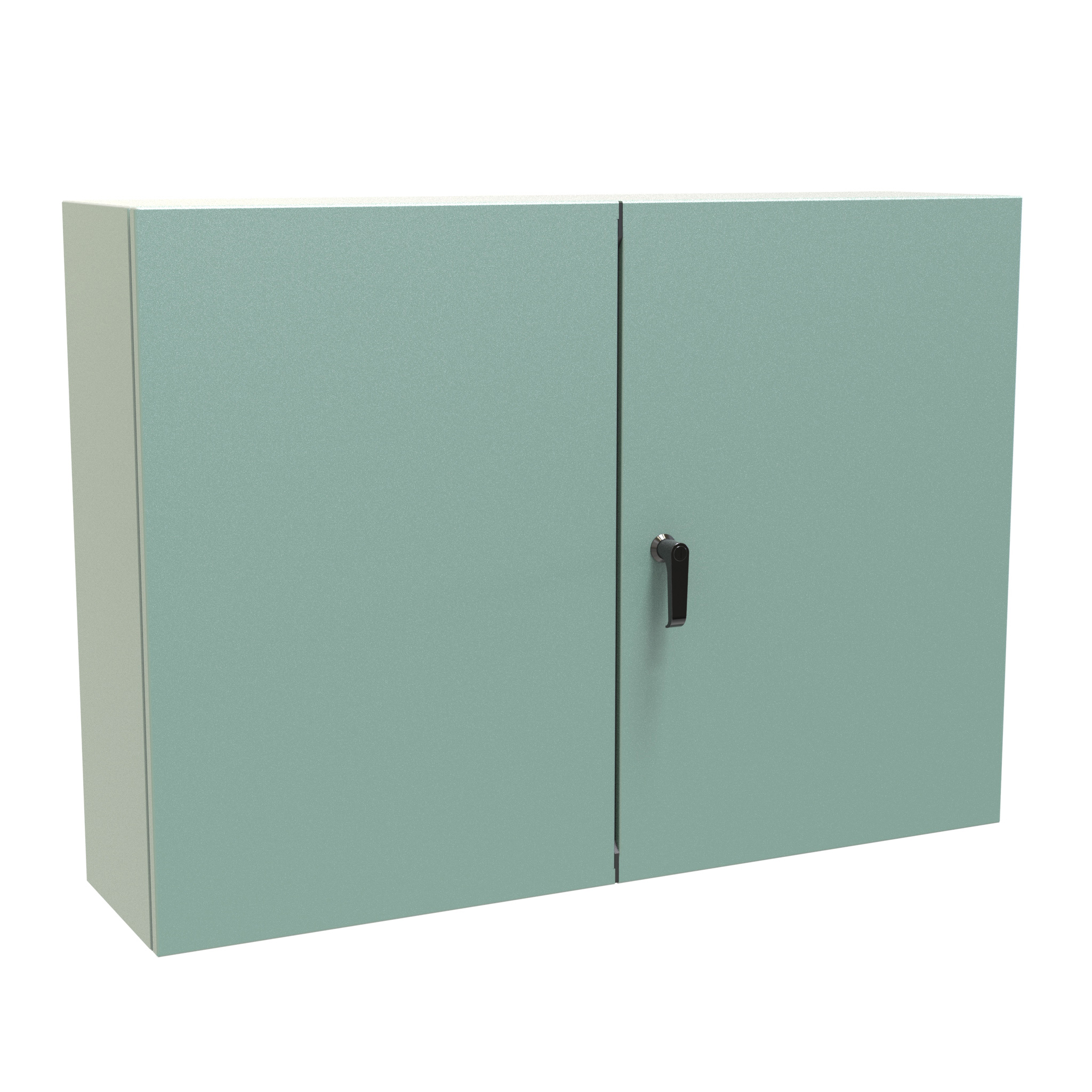

Type 12 Mild Steel Two Door Wallmount Enclosure Eclipse Series

Type 12 Mild Steel Two Door Wallmount Enclosure · Eclipse Series

Brand: Hammond Manufacturing · 33 part numbers

Hinge Door with Handle

  • ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.
  • ■UL 508A Type 12, 3R
  • ■CSA Type 12, 3R Mounting foot kit required to maintain UL/CSA external mounting requirements. Require inner panel to maintain UL/CSA.
  • ■Mounting foot kit required to maintain UL/CSA external mounting requirements.

from $129.06

33 of 33 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your Eclipse Series part number

Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

24 of 24 part numbers · 24 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

ANSI 61 Gray · Part No.RAL7035 Light Gray · Part No.Overall Dimensions · HOverall Dimensions · WOverall Dimensions · DOptional Inner. Panel · Part No.Optional Inner. Panel · HOptional Inner. Panel · WPriceOrder

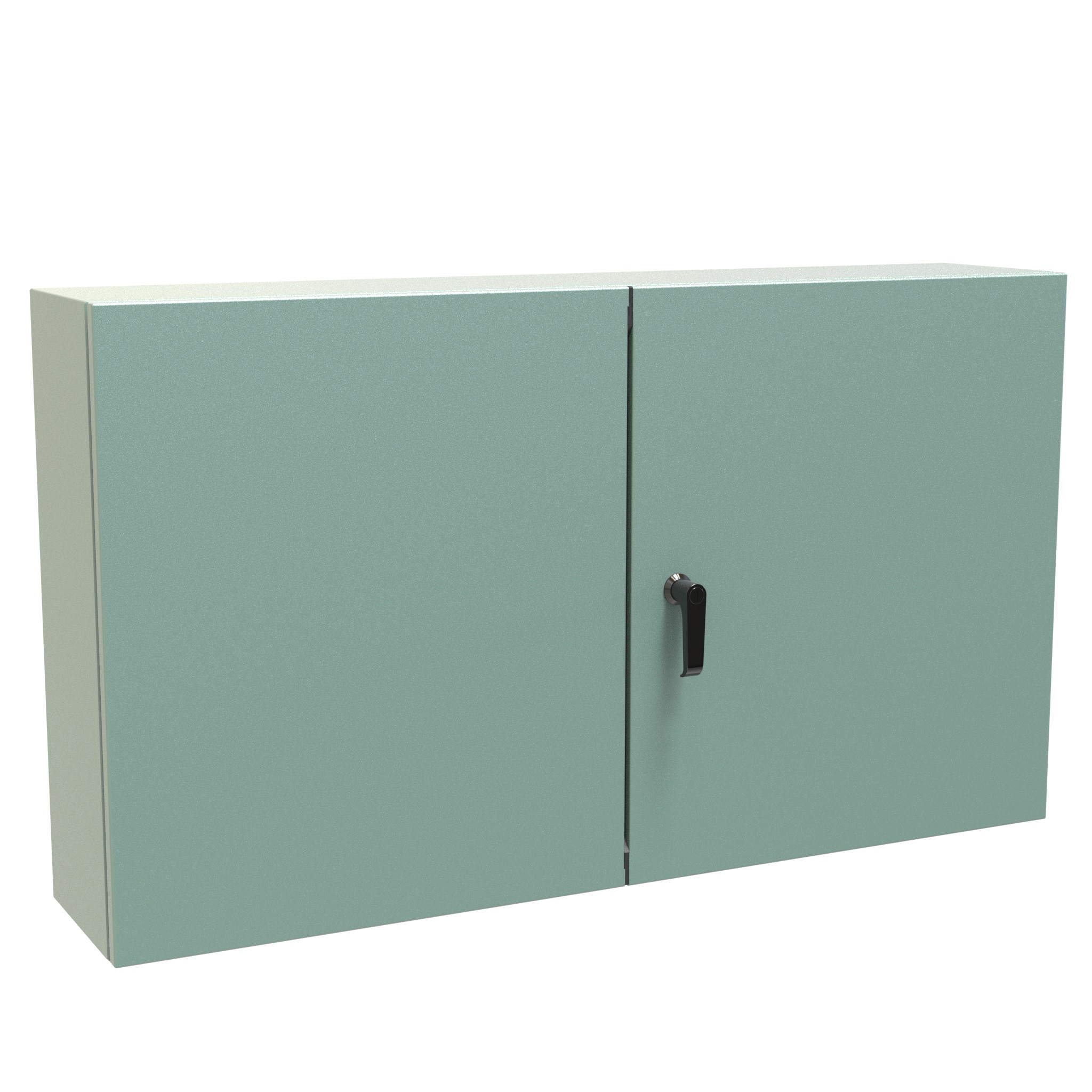

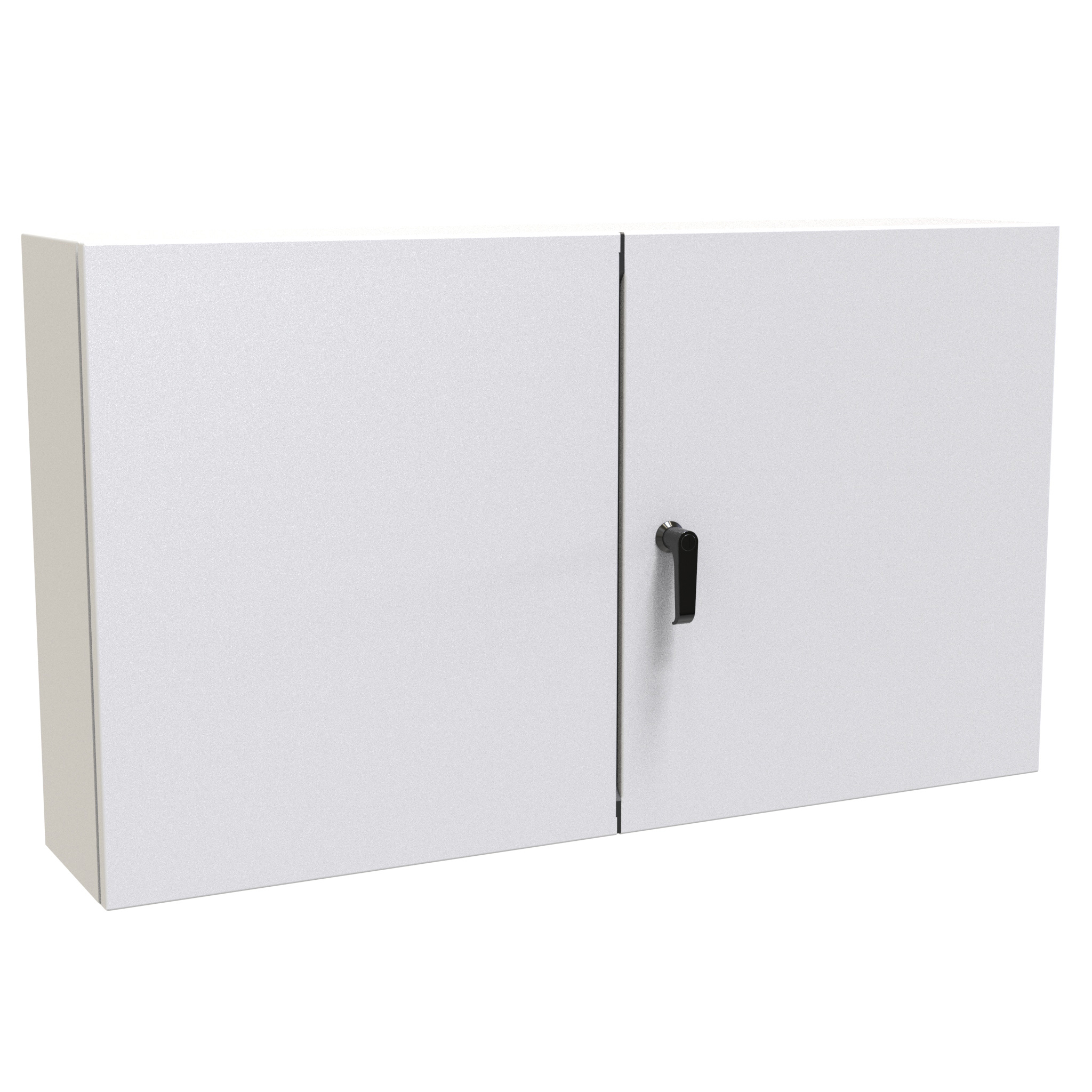

EN4TD24428GYEN4TD24428LG24.0042.008.00EP244222.2040.20$673.40In stockEN4TD24428GYBuy now

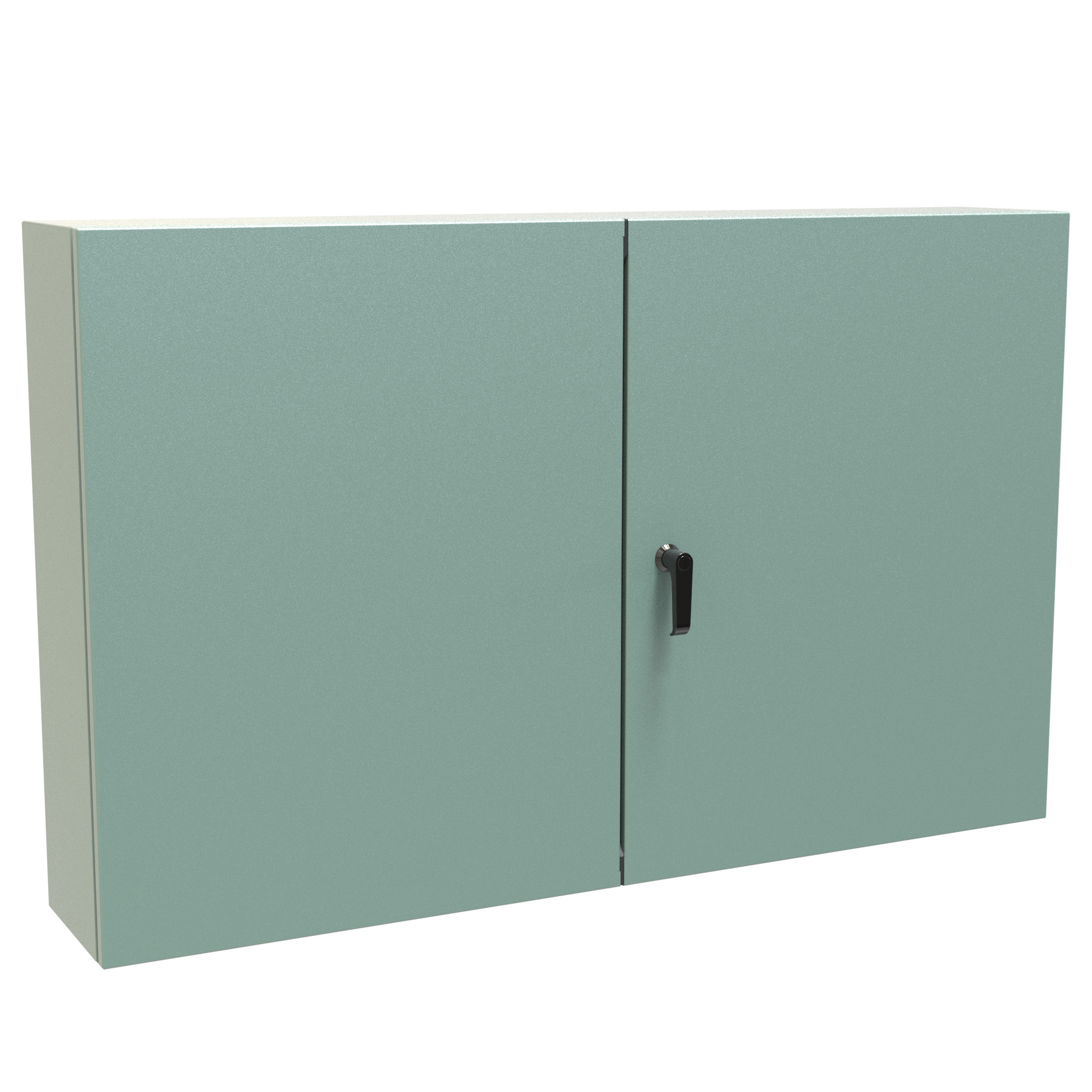

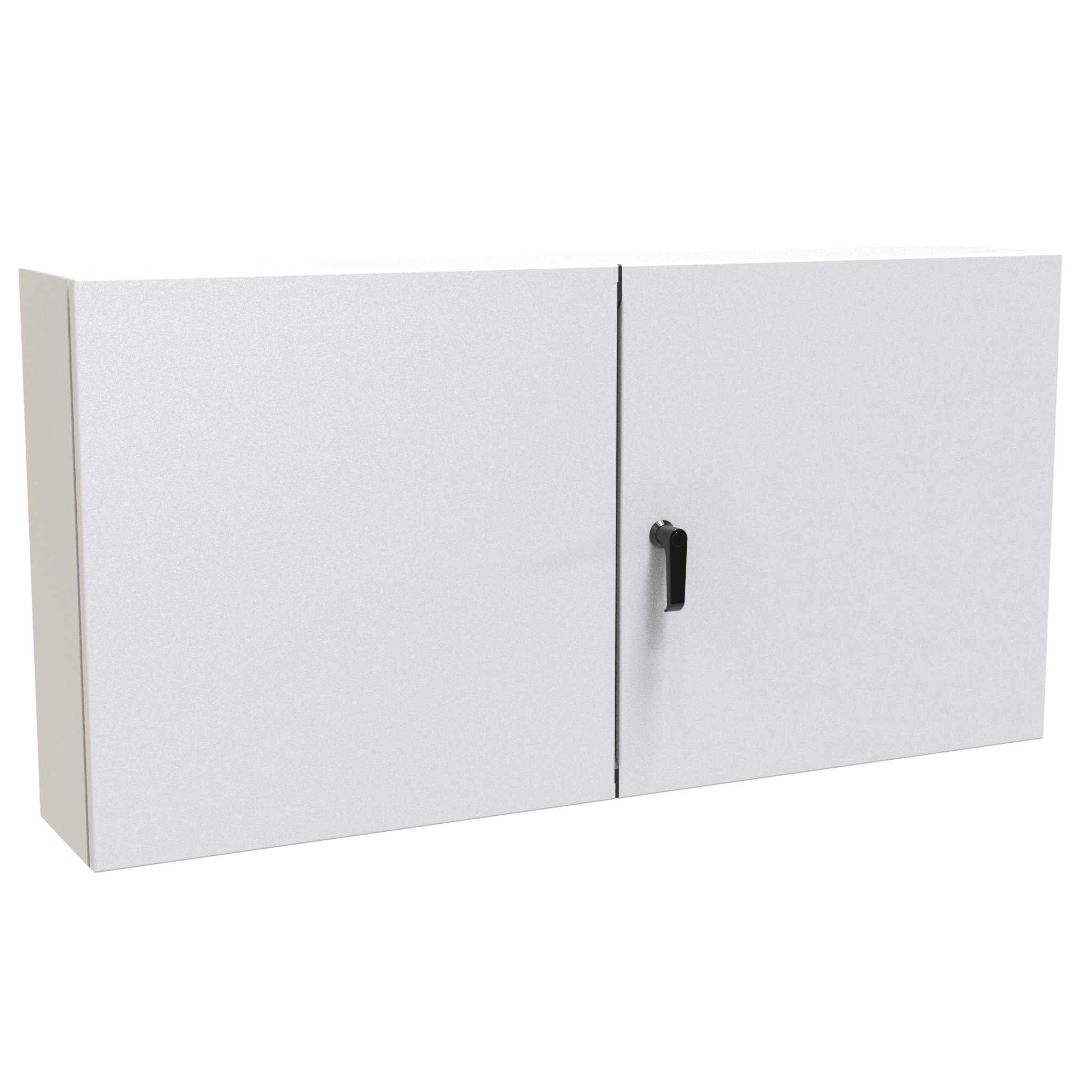

EN4TD24488GYEN4TD24488LG24.0048.008.00EP244822.2046.20$729.56In stockEN4TD24488GYBuy now

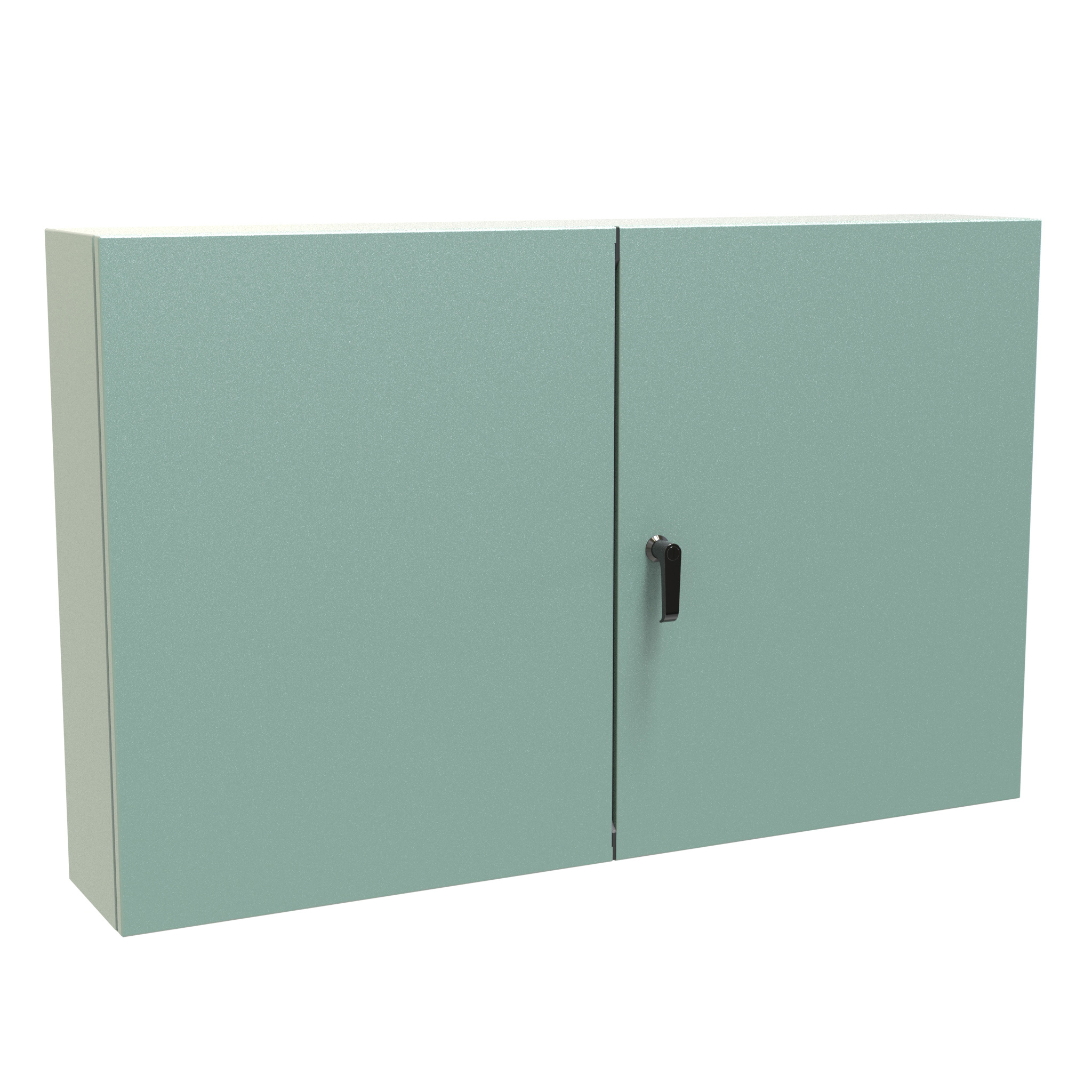

EN4TD30488GYEN4TD30488LG30.0048.008.00EP304828.2046.20$826.53In stockEN4TD30488GYBuy now
EN4TD244210GYEN4TD244210LG24.0042.0010.00EP244222.2040.20$706.17In stockEN4TD244210GYBuy now

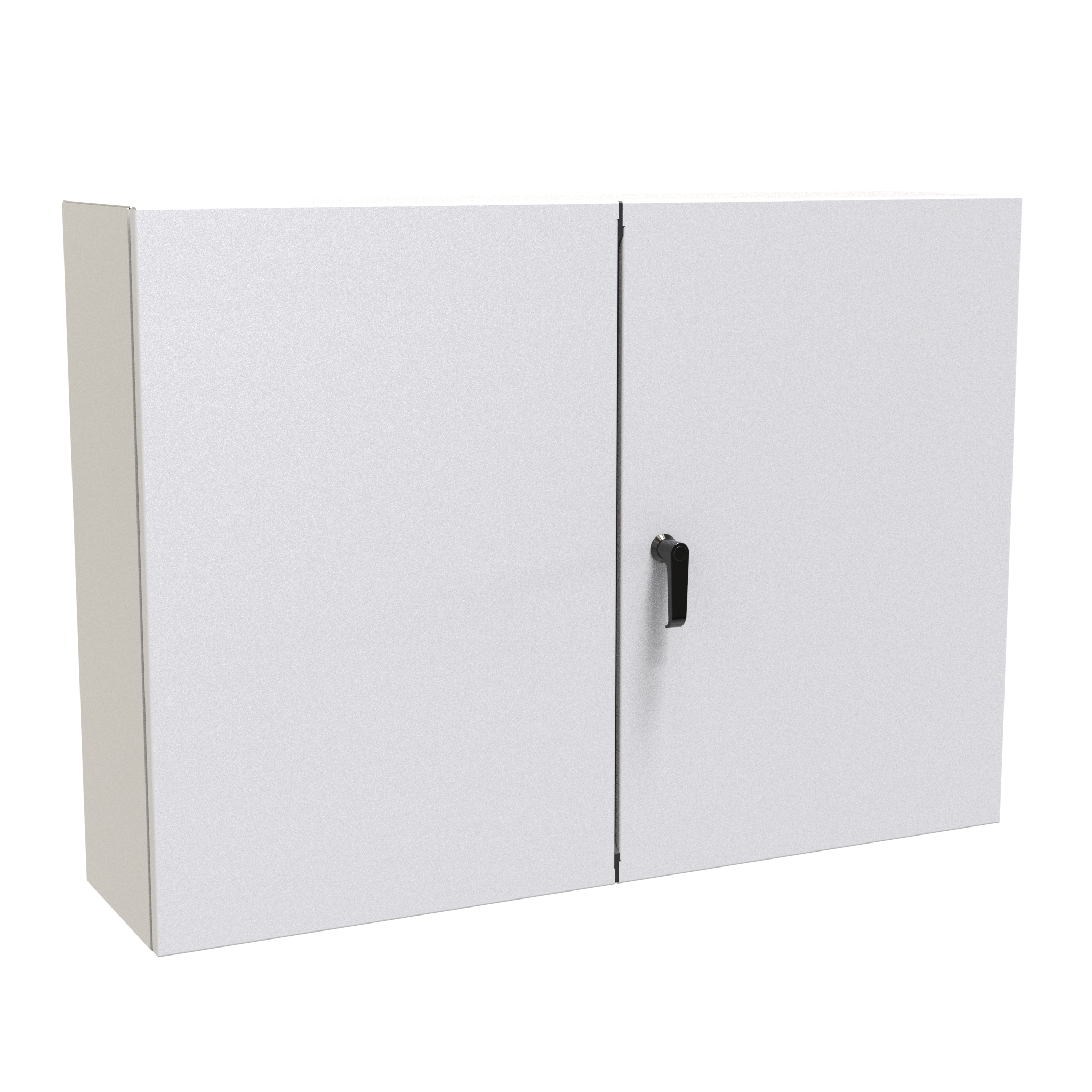

EN4TD304210GYEN4TD304210LG30.0042.0010.00EP304228.2040.20$799.12In stockEN4TD304210GYBuy now

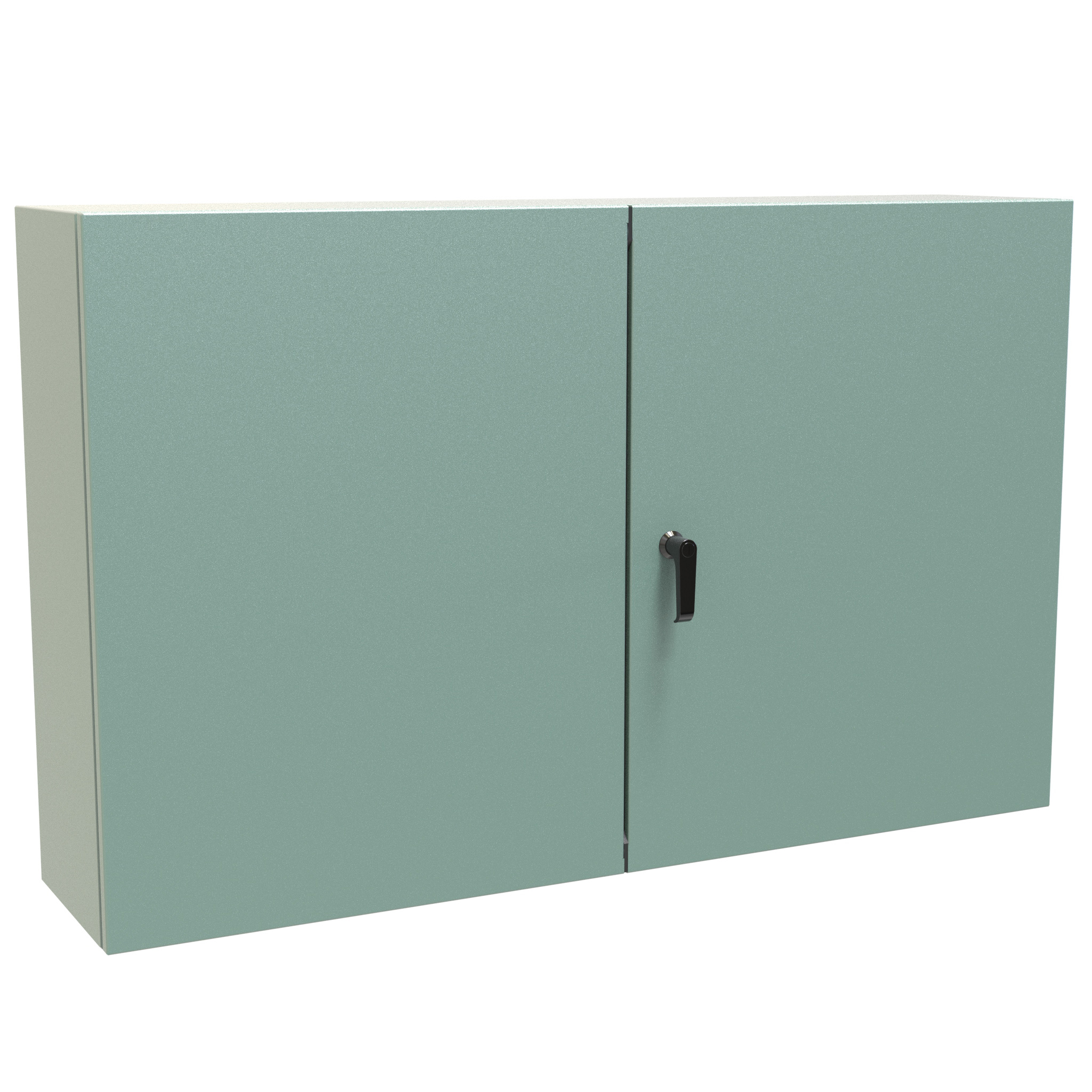

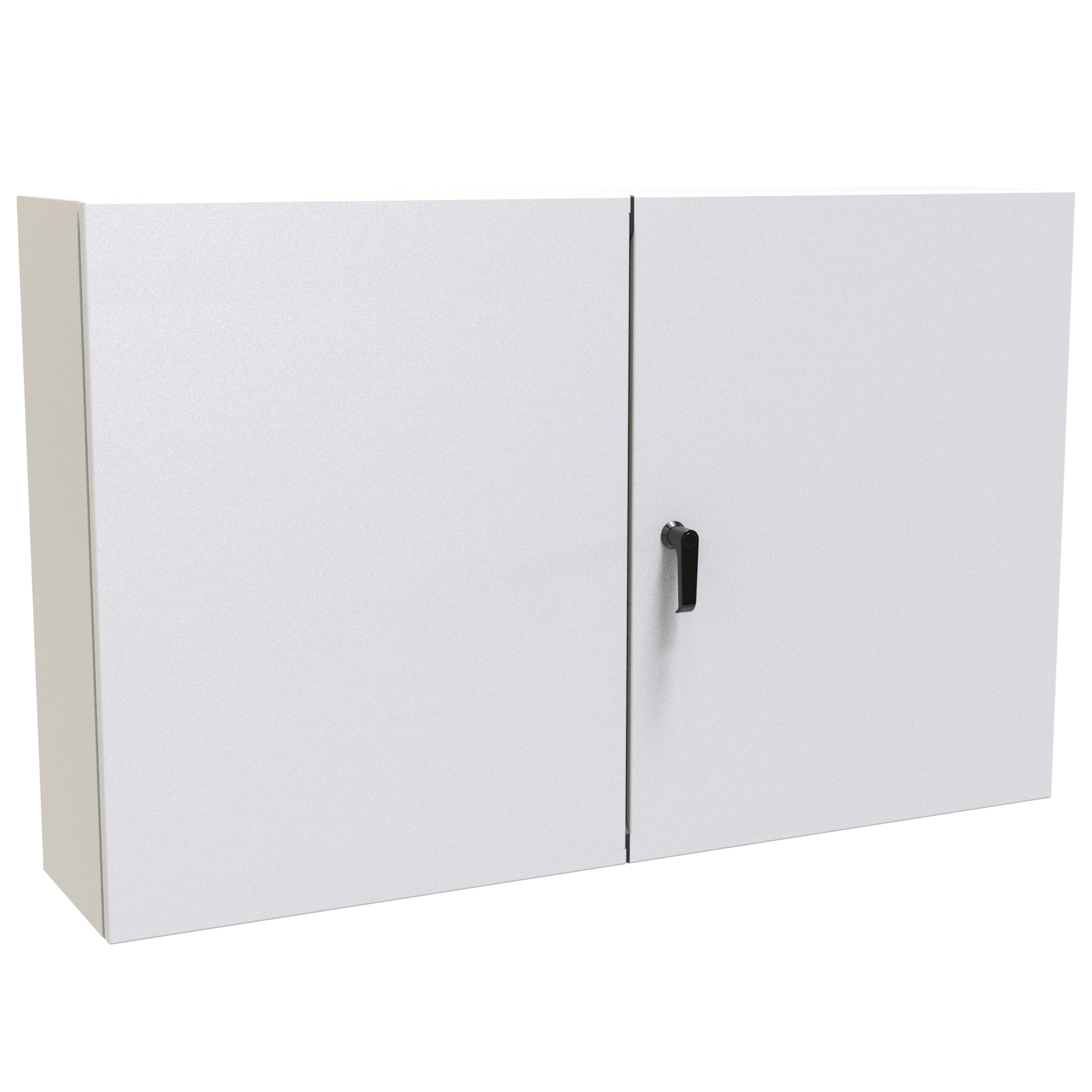

EN4TD304810GYEN4TD304810LG30.0048.0010.00EP304828.2046.20$833.89In stockEN4TD304810GYBuy now

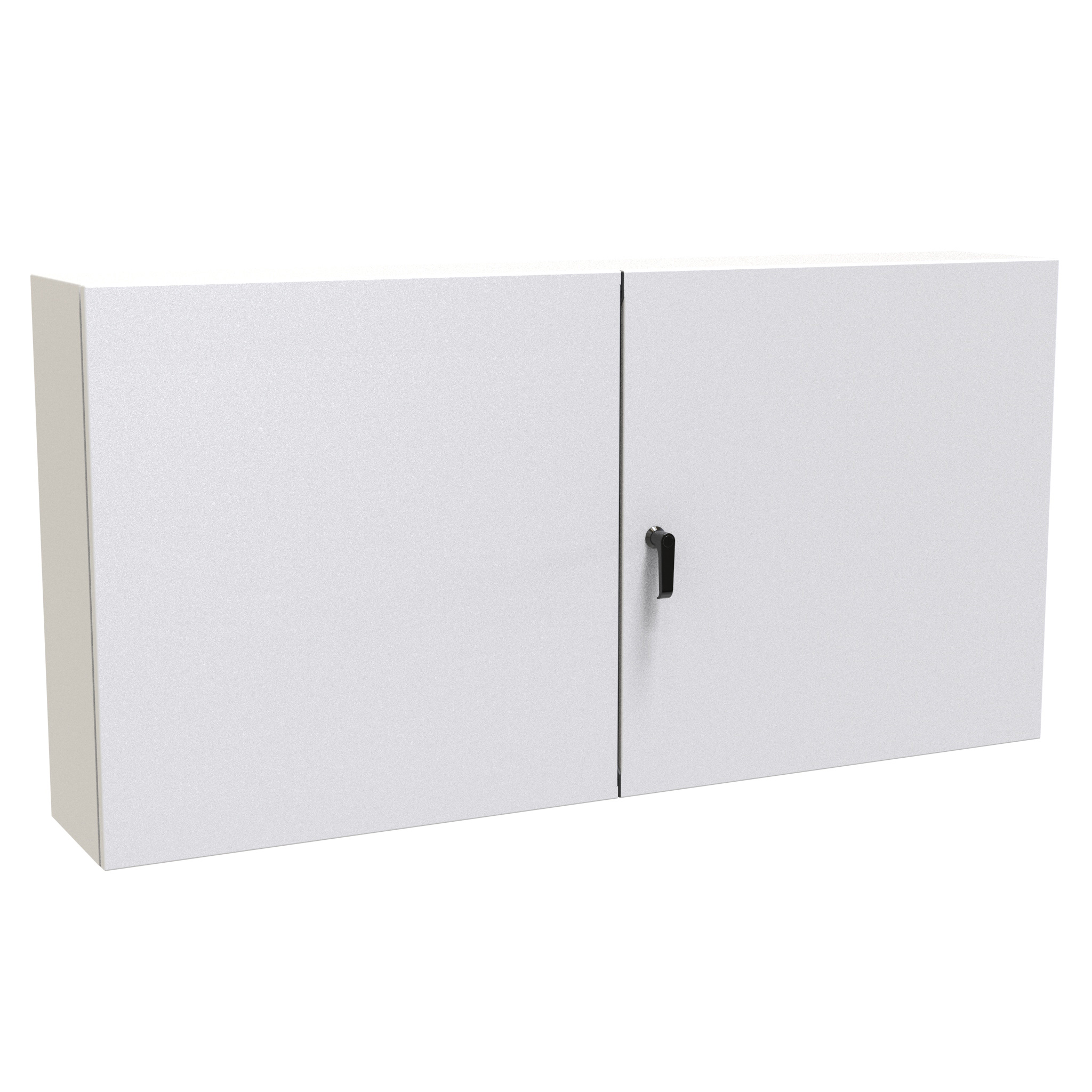

EN4TD306010GYEN4TD306010LG30.0060.0010.00EP306028.2058.20$993.72BackorderEN4TD306010GYBuy now

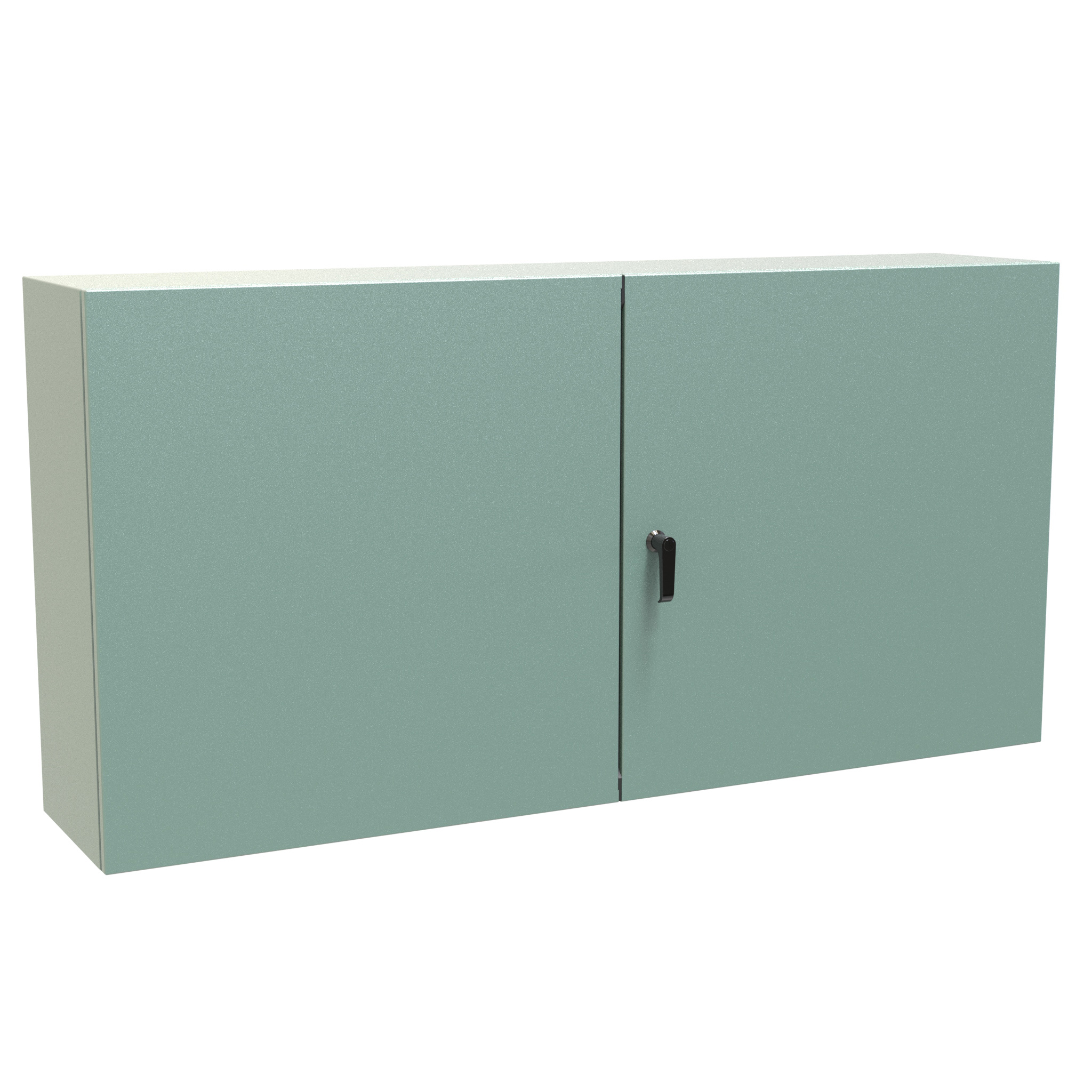

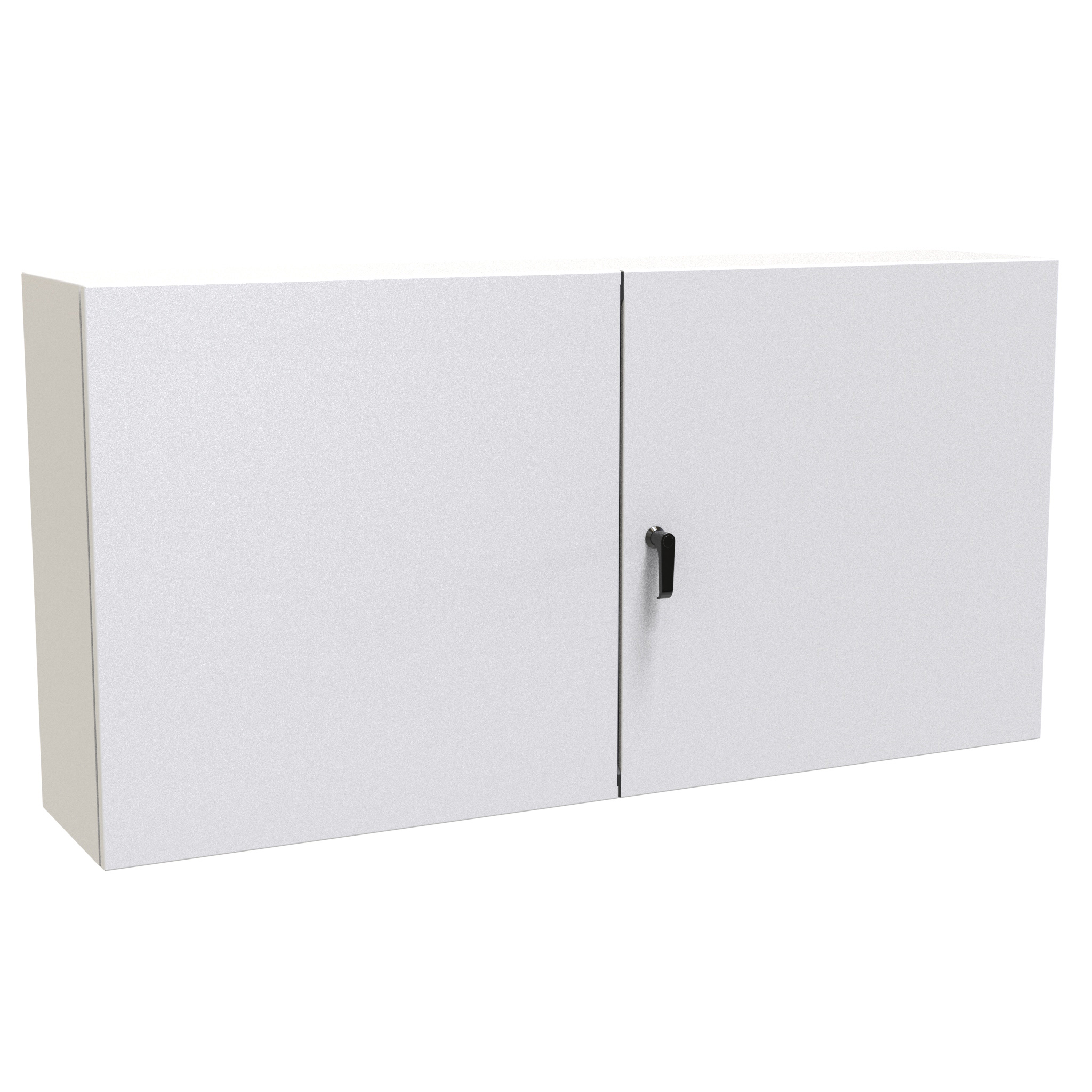

EN4TD306012GYEN4TD306012LG30.0060.0012.00EP306028.2058.20$1,065.26BackorderEN4TD306012GYBuy now

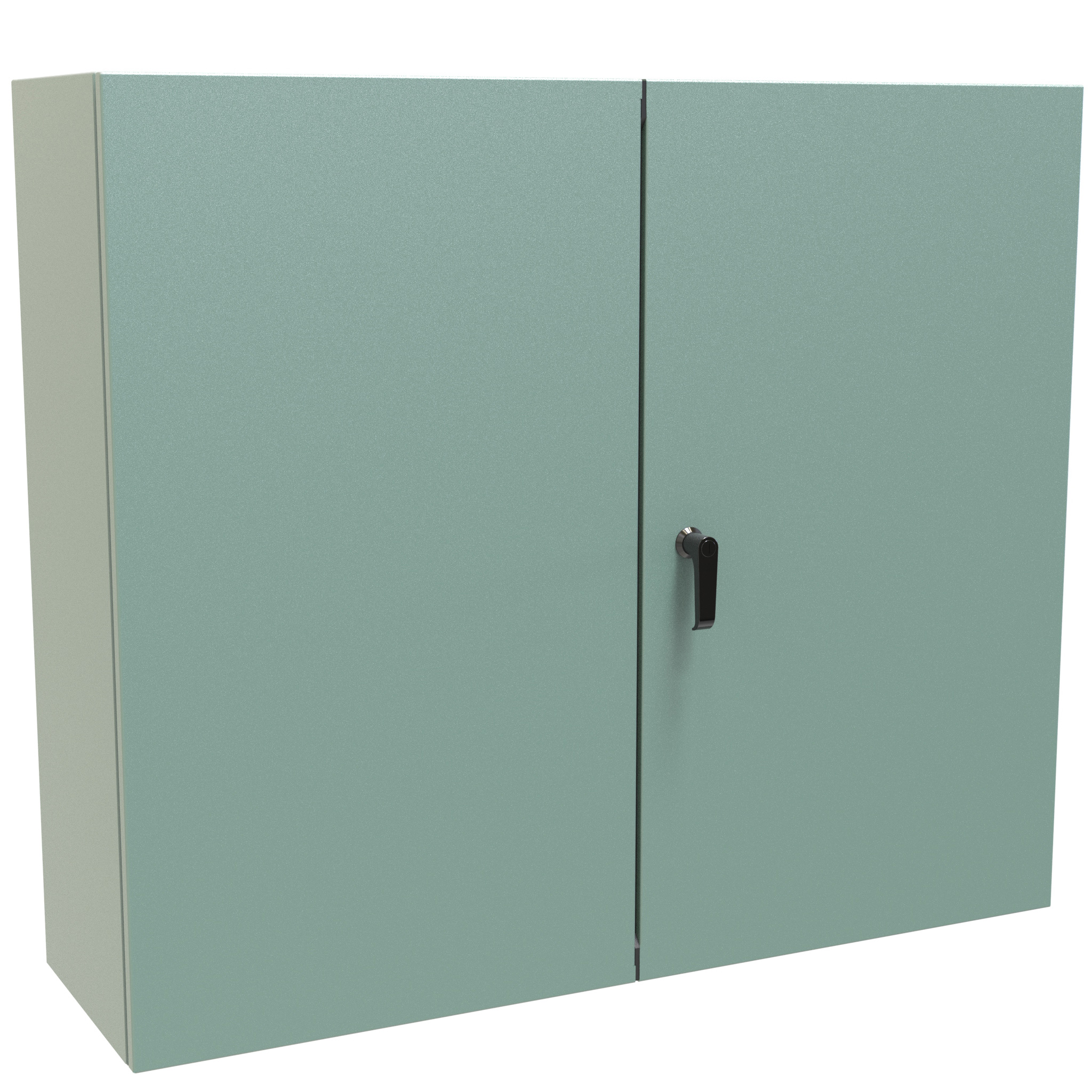

EN4TD364212GYEN4TD364212LG36.0042.0012.00EP364234.2042.20$952.25BackorderEN4TD364212GYBuy now

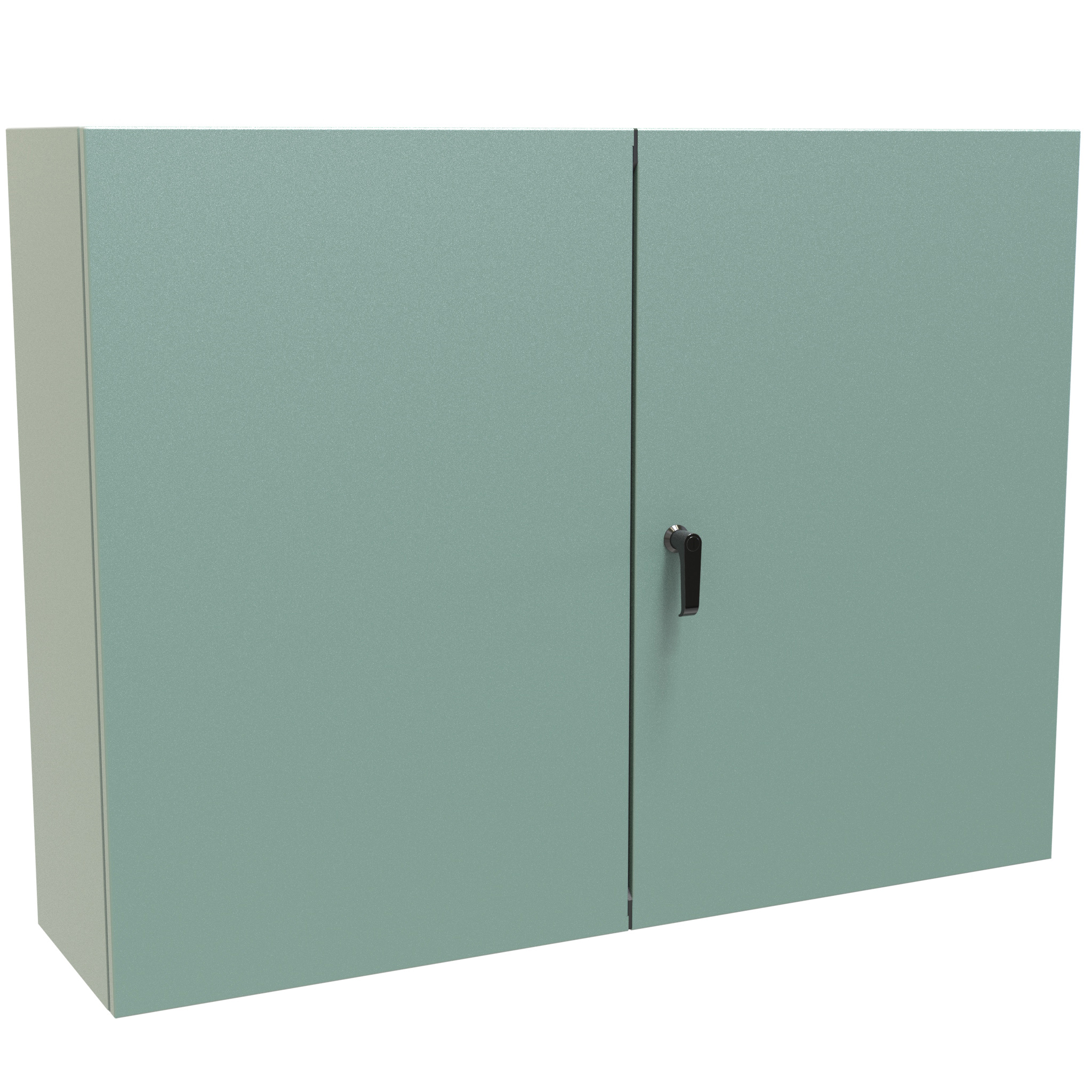

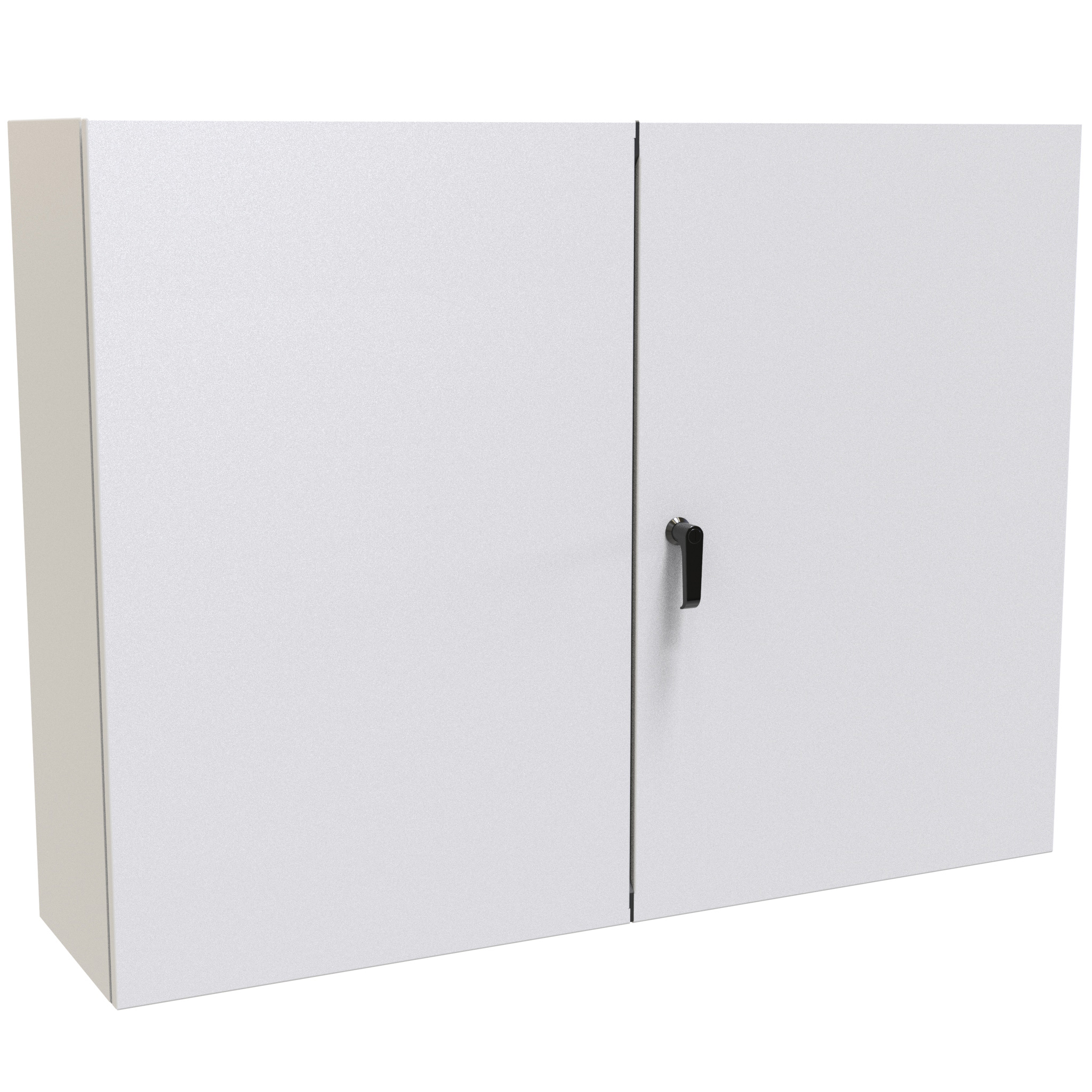

EN4TD364812GYEN4TD364812LG36.0048.0012.00EP364834.2046.20$1,021.13BackorderEN4TD364812GYBuy now

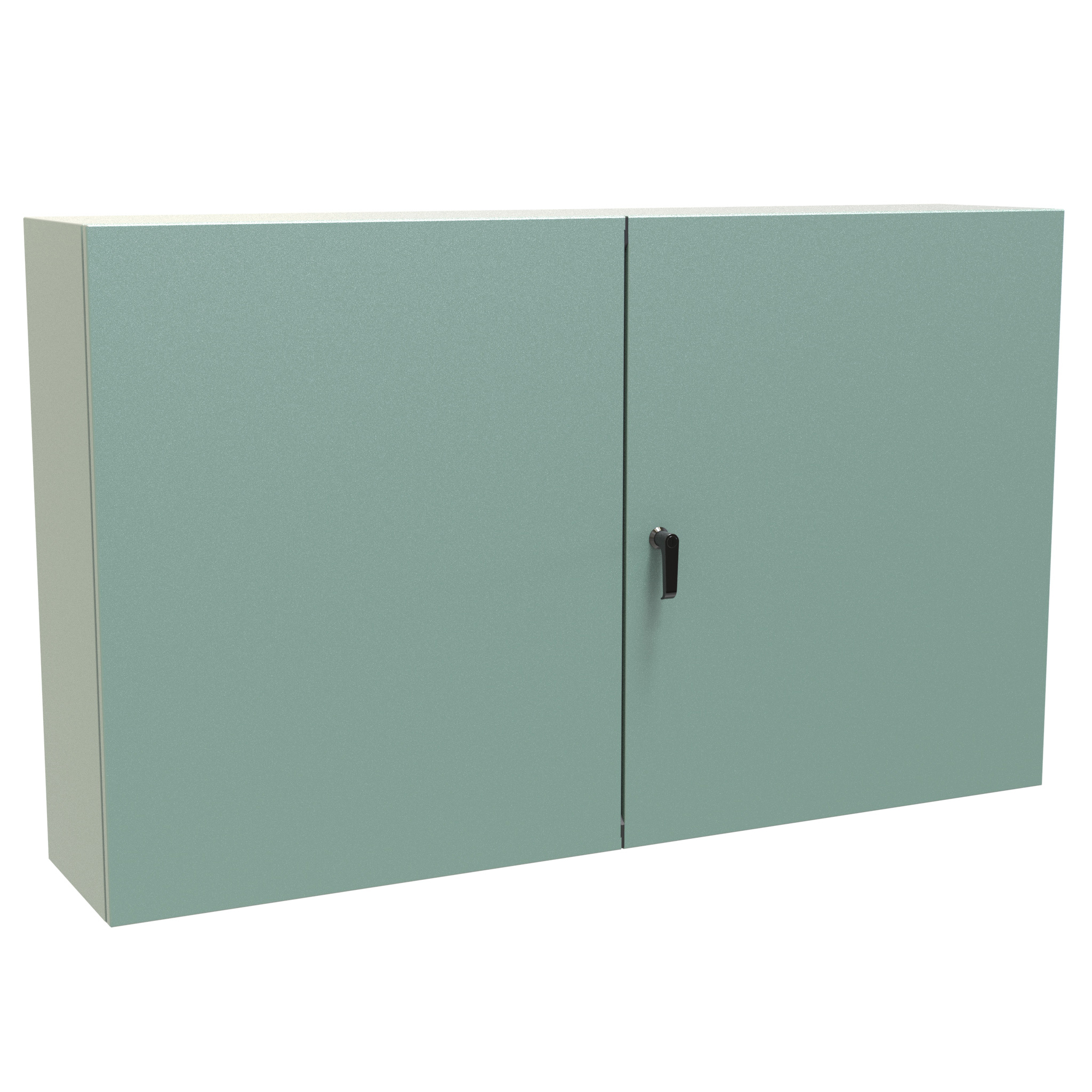

EN4TD366012GYEN4TD366012LG36.0060.0012.00EP366034.2058.20$1,190.98BackorderEN4TD366012GYBuy now

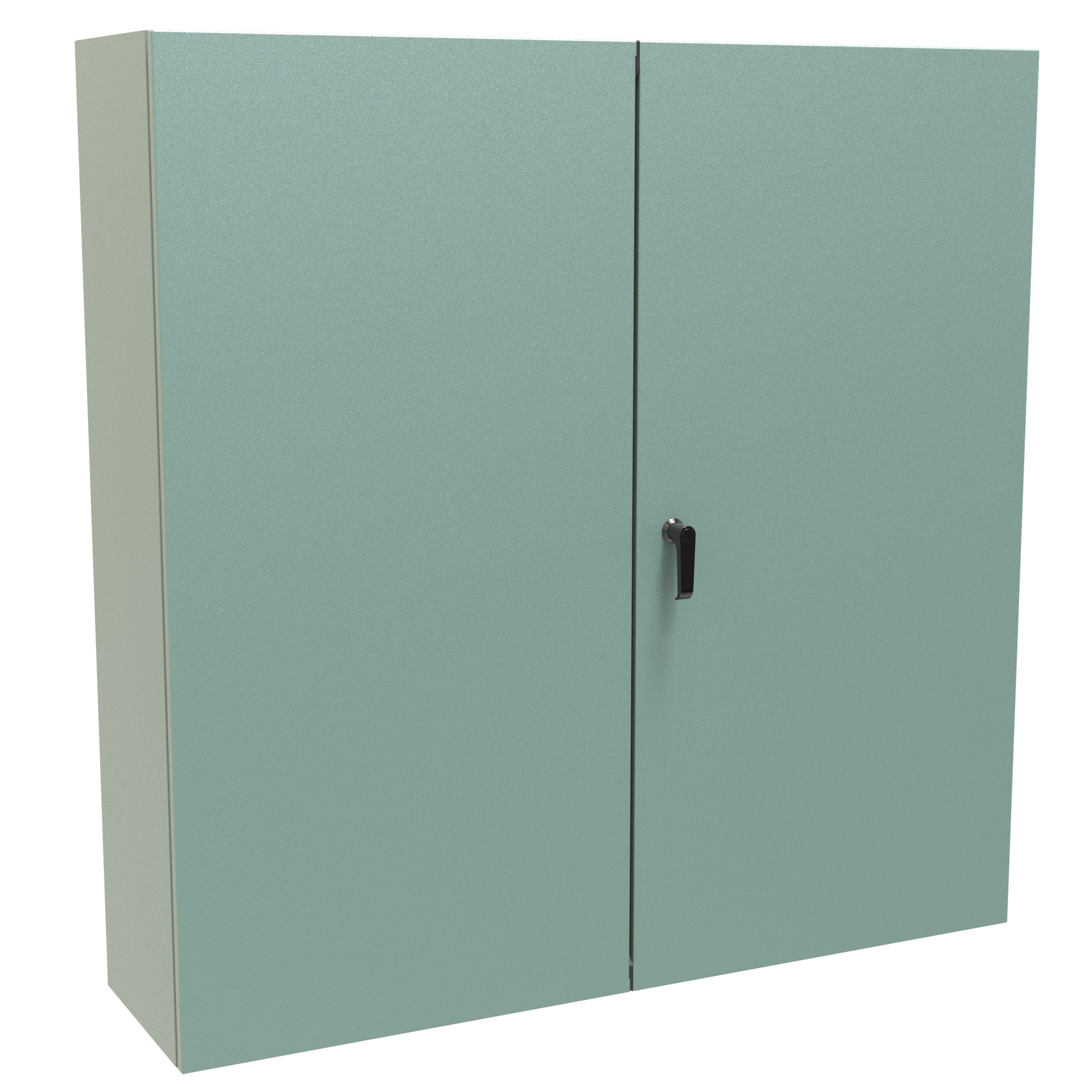

EN4TD484812GYEN4TD484812LG48.0048.0012.00EP484846.2046.20$1,285.27In stockEN4TD484812GYBuy now

Application

  • ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • ■Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • ■A wide range of sizes and practical accessories make this product line a complete package.

Standards

  • ■UL 508A Type 12, 3R
  • ■CSA Type 12, 3R Mounting foot kit required to maintain UL/CSA external mounting requirements. Require inner panel to maintain UL/CSA.
  • ■Mounting foot kit required to maintain UL/CSA external mounting requirements.
  • ■Require inner panel to maintain UL/CSA.
  • ■Complies with NEMA 12, 3R IEC 60529, IP54
  • ■NEMA 12, 3R
  • ■IEC 60529, IP54

Construction

  • ■Formed 14 gauge steel.
  • ■Smooth, continuously welded seams ground smooth.
  • ■Door stiffeners are provided for increased strength and rigidity also designed to permit additional mounting options.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■Doors may be easily removed for modifications and are interchangeable.
  • ■Oil resistant gaskets are permanently secured.
  • ■Collar studs provided for mounting inner panel.
  • ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • ■Bonding stud provided on door and grounding stud installed in enclosure.
  • ■Doors are secured with a three point key lockable handle.
  • ■Hinges are constructed from 304 stainless steel.
  • ■Key lockable handle is zinc diecast with black epoxy finish.
  • ■Hinge pins are stainless steel.
  • ■Door alignment guides provided on all doors.

Finish

  • ■Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).

Documents

Specification SheetCE Declaration

Additional information

Part Details

ANSI 61 Gray · Part No.RAL7035 Light Gray · Part No.Overall Dimensions · HOverall Dimensions · WOverall Dimensions · DOptional Inner. Panel · Part No.Optional Inner. Panel · HOptional Inner. Panel · W
EN4TD24428GYEN4TD24428LG24.0042.008.00EP244222.2040.20
EN4TD24488GYEN4TD24488LG24.0048.008.00EP244822.2046.20
EN4TD30488GYEN4TD30488LG30.0048.008.00EP304828.2046.20
EN4TD244210GYEN4TD244210LG24.0042.0010.00EP244222.2040.20
EN4TD304210GYEN4TD304210LG30.0042.0010.00EP304228.2040.20
EN4TD304810GYEN4TD304810LG30.0048.0010.00EP304828.2046.20
EN4TD306010GYEN4TD306010LG30.0060.0010.00EP306028.2058.20
EN4TD306012GYEN4TD306012LG30.0060.0012.00EP306028.2058.20
EN4TD364212GYEN4TD364212LG36.0042.0012.00EP364234.2042.20
EN4TD364812GYEN4TD364812LG36.0048.0012.00EP364834.2046.20
EN4TD366012GYEN4TD366012LG36.0060.0012.00EP366034.2058.20
EN4TD484812GYEN4TD484812LG48.0048.0012.00EP484846.2046.20
