N12 Mult Dr Enclosure 86.1X112X14
$9,257.60Backorder
Buy now
Type 12 Mild Steel Multi-Door Freestanding Enclosure · 1422 MD Series
Brand: Hammond Manufacturing · 4 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
from $9,257.60
4 of 4 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your 1422 MD Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 | Price | Order |
|---|---|---|---|---|---|---|---|---|

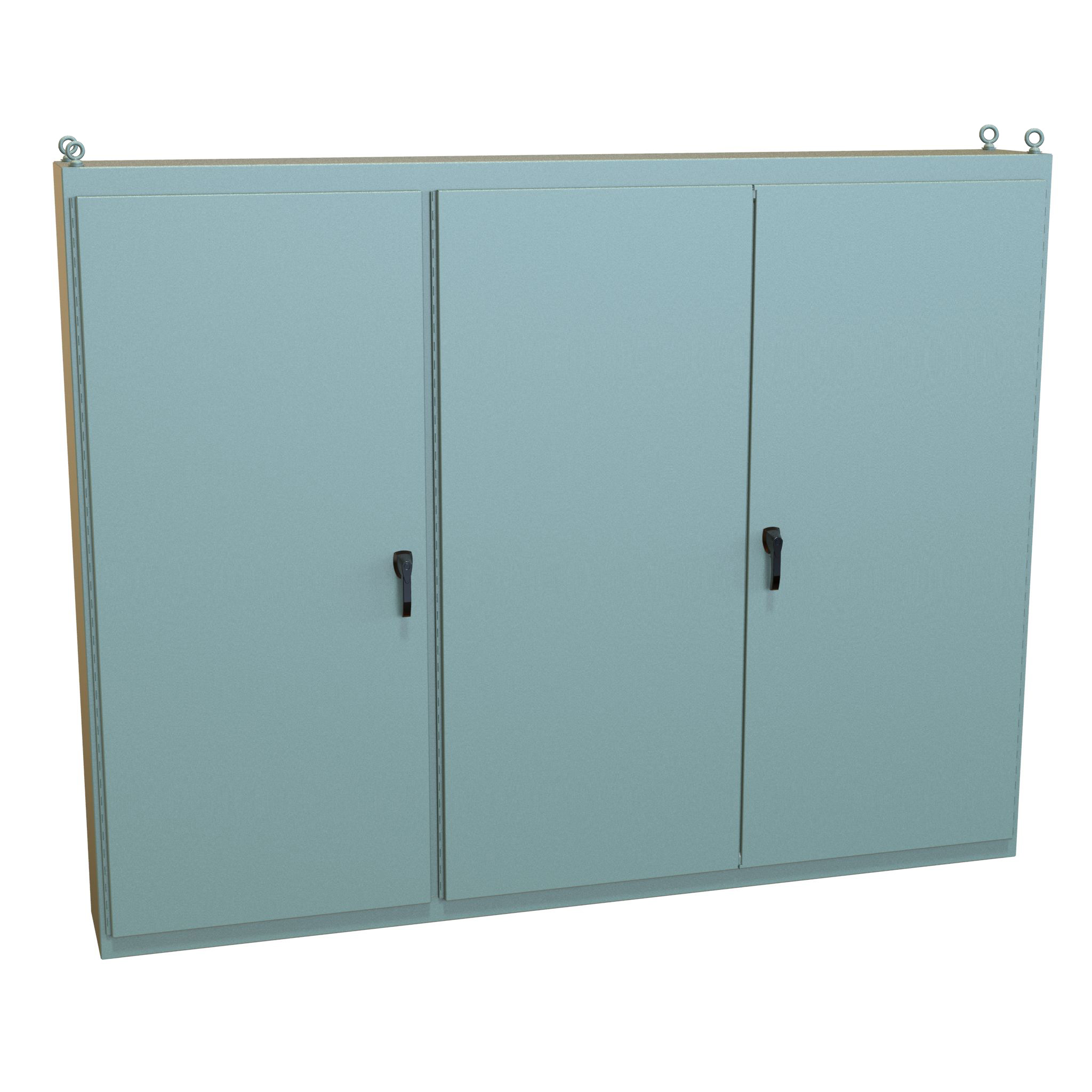

| 1422MD3 | 86.12 | 112.00 | 14.12 | 78.00 | 70.00 | 34.00 | $9,257.60Backorder | Buy now |

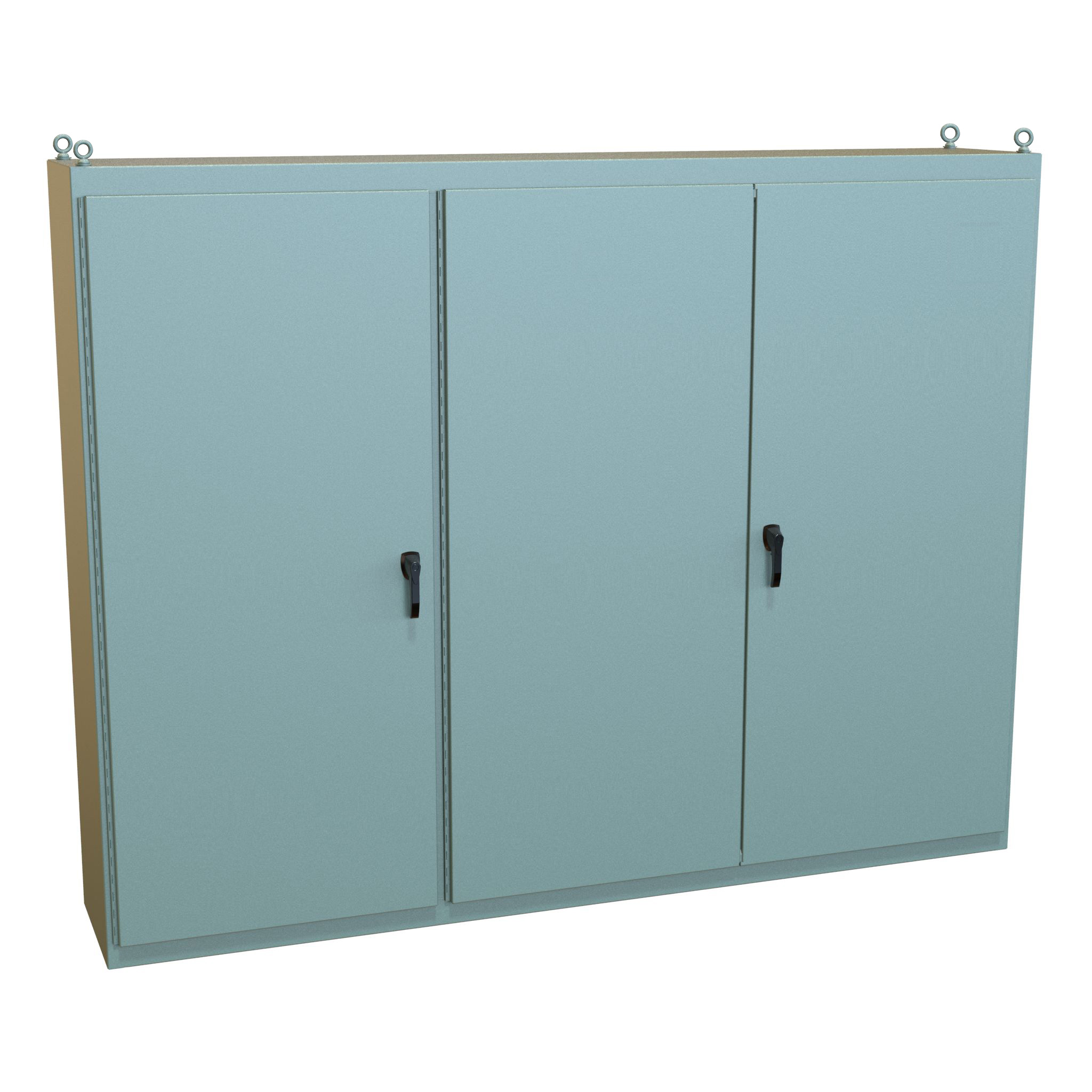

| 1422MD320 | 86.12 | 112.00 | 20.12 | 78.00 | 70.00 | 34.00 | $9,552.71Backorder | Buy now |

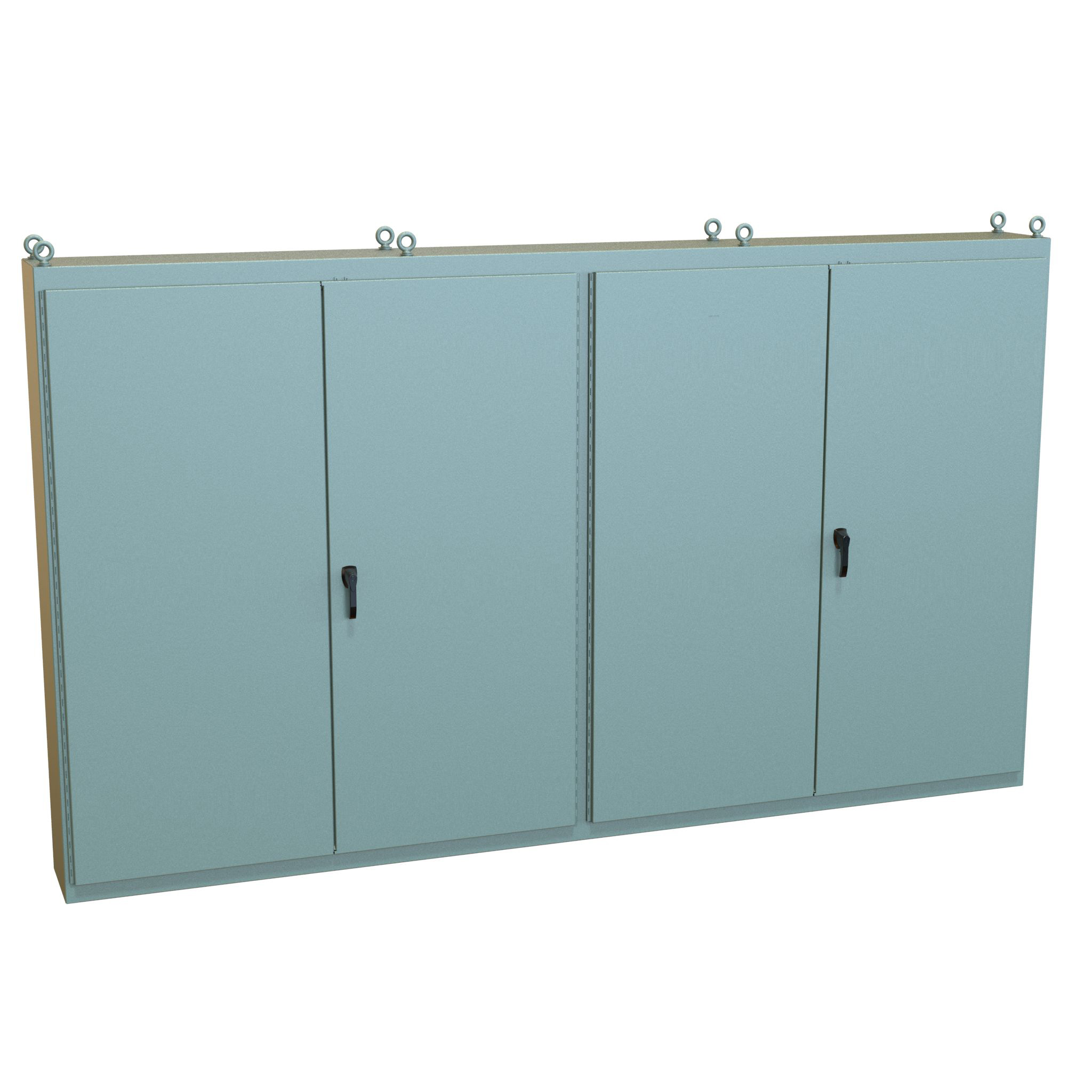

| 1422MD4 | 86.12 | 149.12 | 14.12 | 78.00 | 70.00 | 70.00 | $11,625.55Backorder | Buy now |

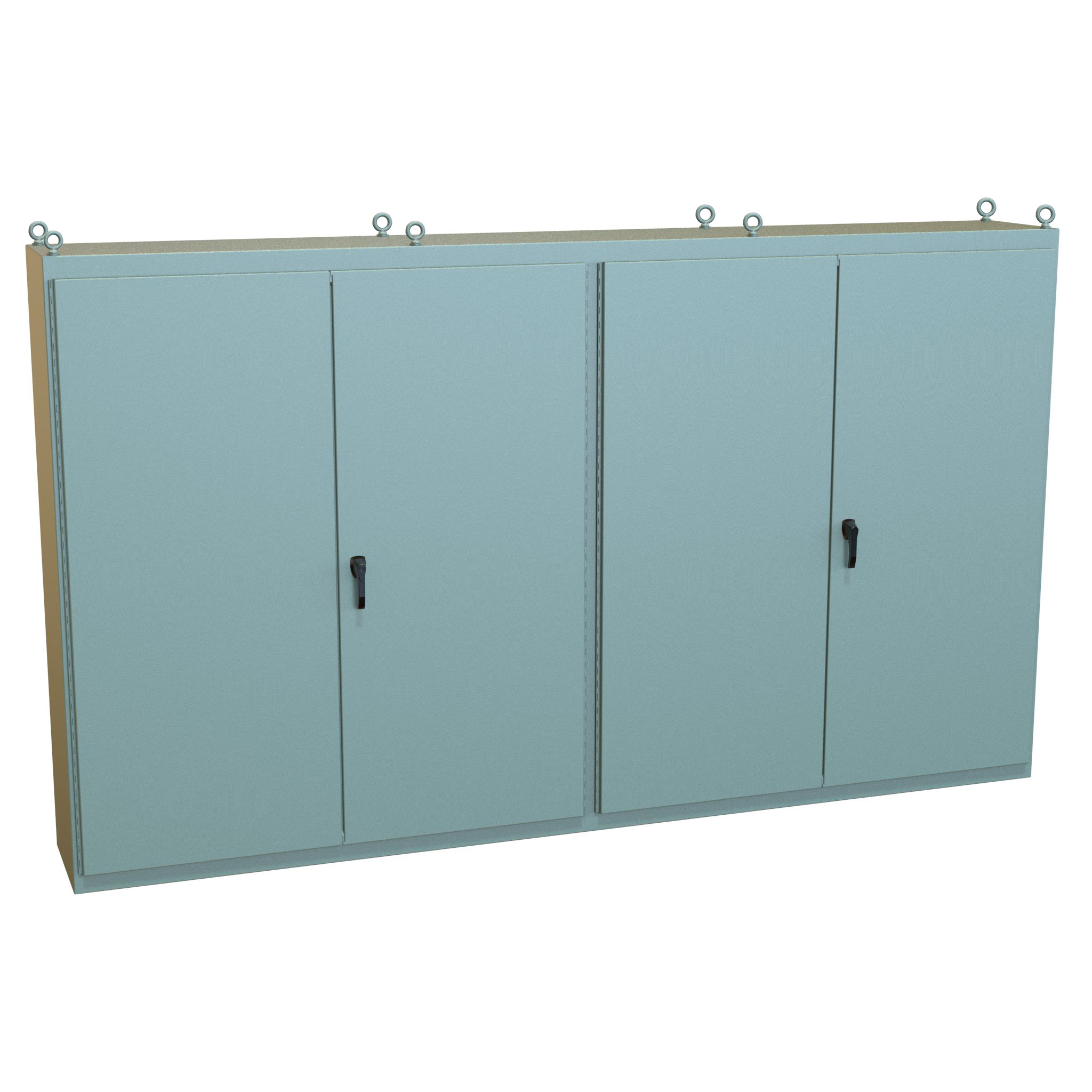

| 1422MD420 | 86.12 | 149.12 | 20.12 | 78.00 | 70.00 | 70.00 | $12,013.46Backorder | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
Construction
- ■Formed 10 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Heavy duty body stiffeners are provided for extra rigidity.
- ■Reinforced eyebolts are provided for easy enclosure lifting.
- ■Double door openings have gasketed overlapping doors, eliminating the need for a center post.
- ■Continuously hinged doors may be removed by pulling the hinge pin.
- ■Doors are secured with a three point padlocking handle.
- ■Latch rods are equipped with rollers for easier door closing.
- ■Oil resistant gaskets are permanently secured.
- ■Removable 10 gauge inner panels are included in the enclosures.
- ■3 door units have 2 panels (34" x 78" and 70" x 78").
- ■4 door units have 2 panels (70" x 78" each).
- ■Secondary doors have mechanical interlock and cannot be opened unless the main door is open.
- ■Panel supports are provided in enclosures for easy panel installation.
- ■Collar studs are provided for mounting inner panels.
- ■A grounding stud is provided in the enclosure for each door and a bonding stud is provided on the door.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Removable inner panels are finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panels · H | Inner Panels · W1 | Inner Panels · W2 |
|---|---|---|---|---|---|---|
| 1422MD3 | 86.12 | 112.00 | 14.12 | 78.00 | 70.00 | 34.00 |
| 1422MD320 | 86.12 | 112.00 | 20.12 | 78.00 | 70.00 | 34.00 |
| 1422MD4 | 86.12 | 149.12 | 14.12 | 78.00 | 70.00 | 70.00 |
| 1422MD420 | 86.12 | 149.12 | 20.12 | 78.00 | 70.00 | 70.00 |
