Dble Door Free Standing Enclosure
$2,571.03Backorder
Buy now
Type 12 Mild Steel Two Door Freestanding Enclosure · 1418 TD FS Series
Brand: Hammond Manufacturing · 23 part numbers
Continuous Hinge Door with Handle
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■Available with front access only or both front and rear access.
- ■A variety of inner panels, rack mounting angles and swing frames are available to provide flexibility in equipment mounting.
- ■UL 508A Type 12
- ■CSA Type 12
from $683.01
23 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418 TD FS Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online
Dble Door Free Standing Enc
$3,216.75Backorder
Buy now
Dble Door Free Standing Enc
$4,053.68In stock
Buy now
Dble Door Free Standing Enc
$4,261.51In stock
Buy now
Dble Door Free Standing Enclosure
$5,021.48In stock
Buy now
Dble Door Free Standing Enc
$4,741.45In stock
Buy now
Dble Door Free Standing Enc
$2,751.10Backorder
Buy now
Dbl Dr Freestanding Enclosure
$3,068.42Backorder
Buy now
Dbl Dr Free Standing Enclosure
$3,317.50In stock
Buy now
Dble Door Free Standing Enclosure
$3,095.39Backorder
Buy now
Dbl Dr Freestanding Enclosure
$3,442.85In stock
Buy now
Dble Door Free Standing Enc
$3,960.07Backorder
Buy now
Dbl Dr Freestanding Enclosure
$3,723.67In stock
Buy now
Dble Door Free Standing Enc
$4,283.72Backorder
Buy now
Dble Door Free Standing Enc
$3,436.50In stock
Buy now
Dbl Dr Freestanding Encl.
$3,710.97Backorder
Buy now
Dbl Dr Freestanding Enclosure
$4,129.83Backorder
Buy nowDimension tables (inches / mm)
Single Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|

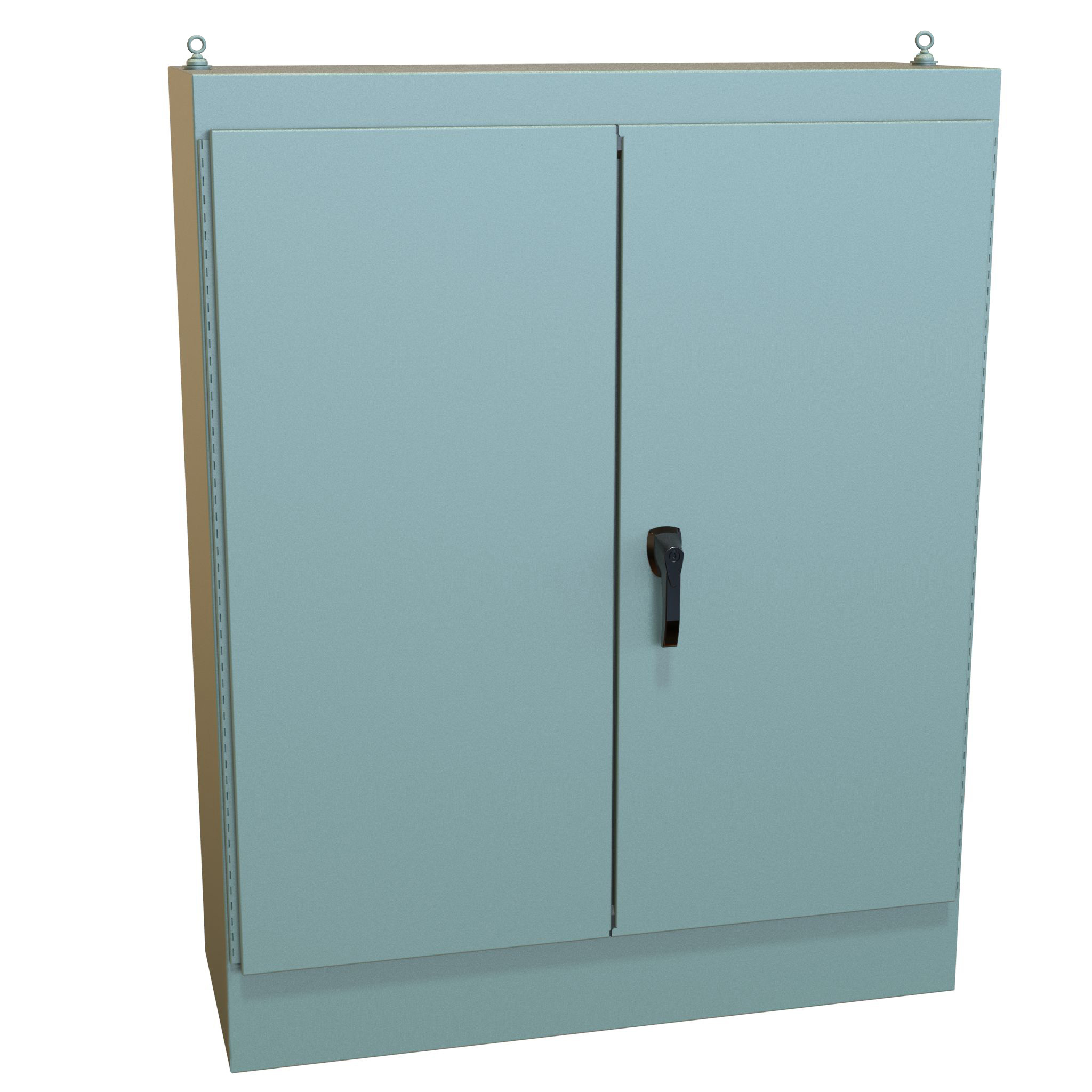

| 1418AW18 | 60.06 | 48.06 | 18.06 | 60AWFW | $2,571.03Backorder1418AW18 | Buy now |

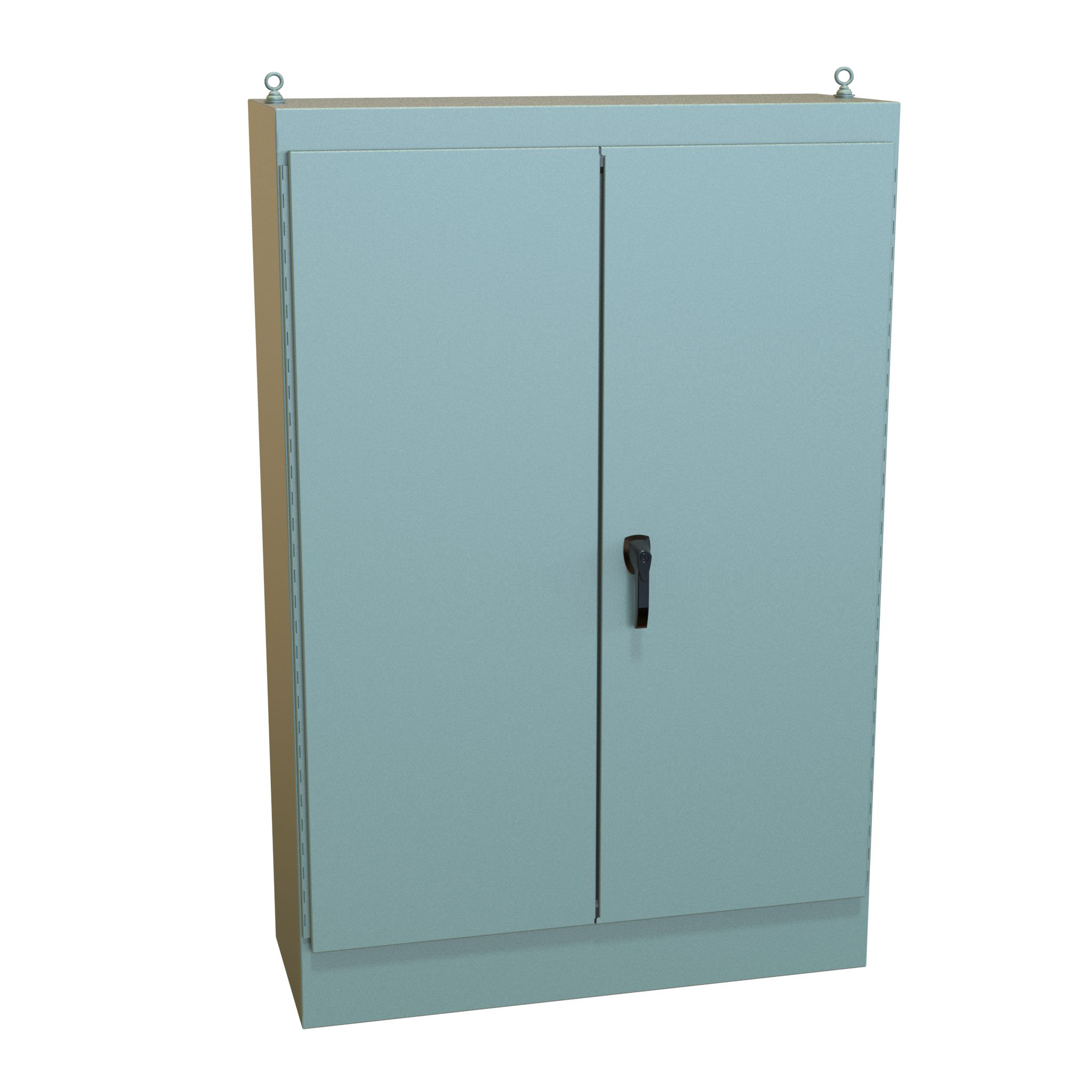

| 1418ZW18 | 72.06 | 48.06 | 18.06 | 72ZWFW | $2,751.10Backorder1418ZW18 | Buy now |

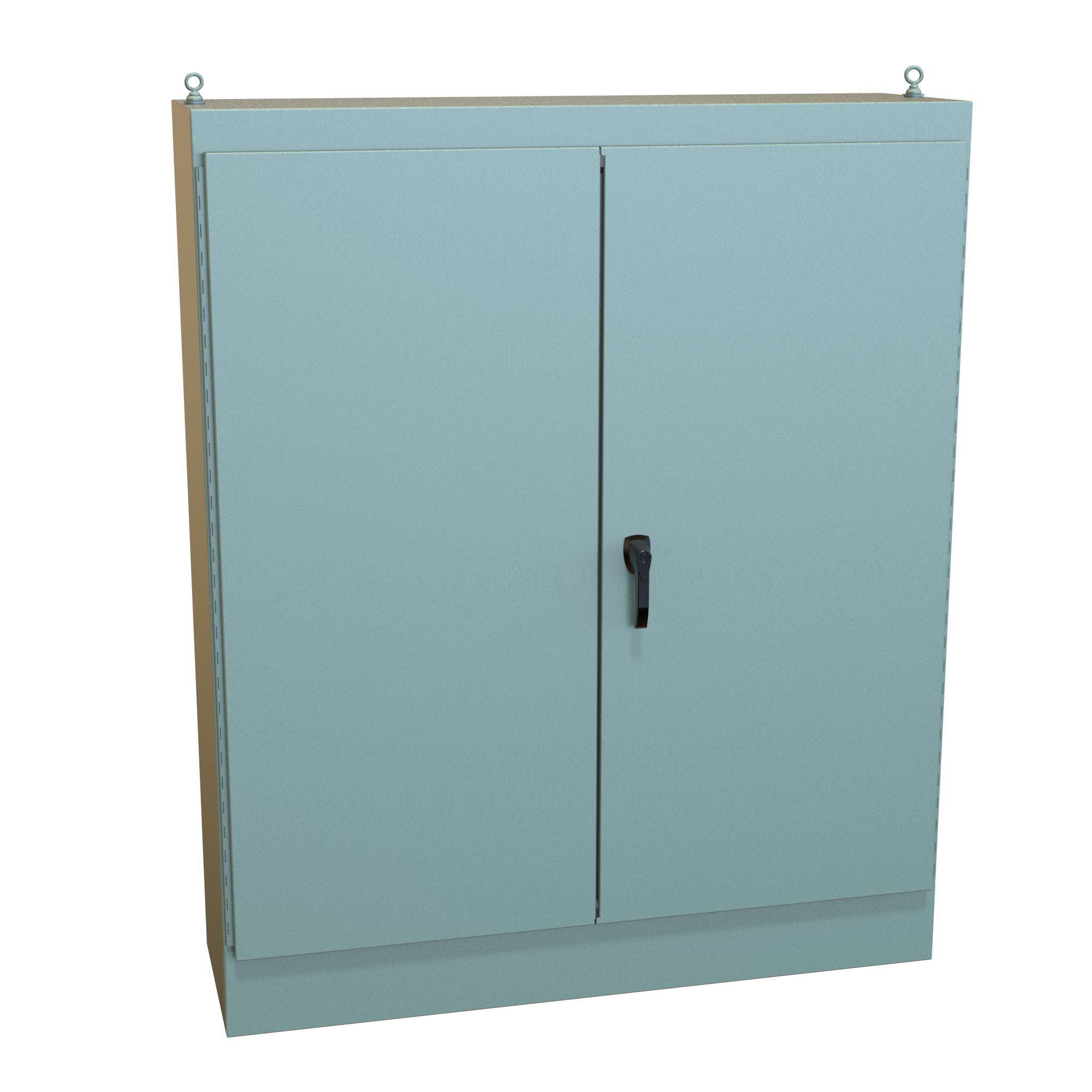

| 1418ZX18 | 72.06 | 60.06 | 18.06 | 72ZXFW | $3,095.39Backorder1418ZX18 | Buy now |

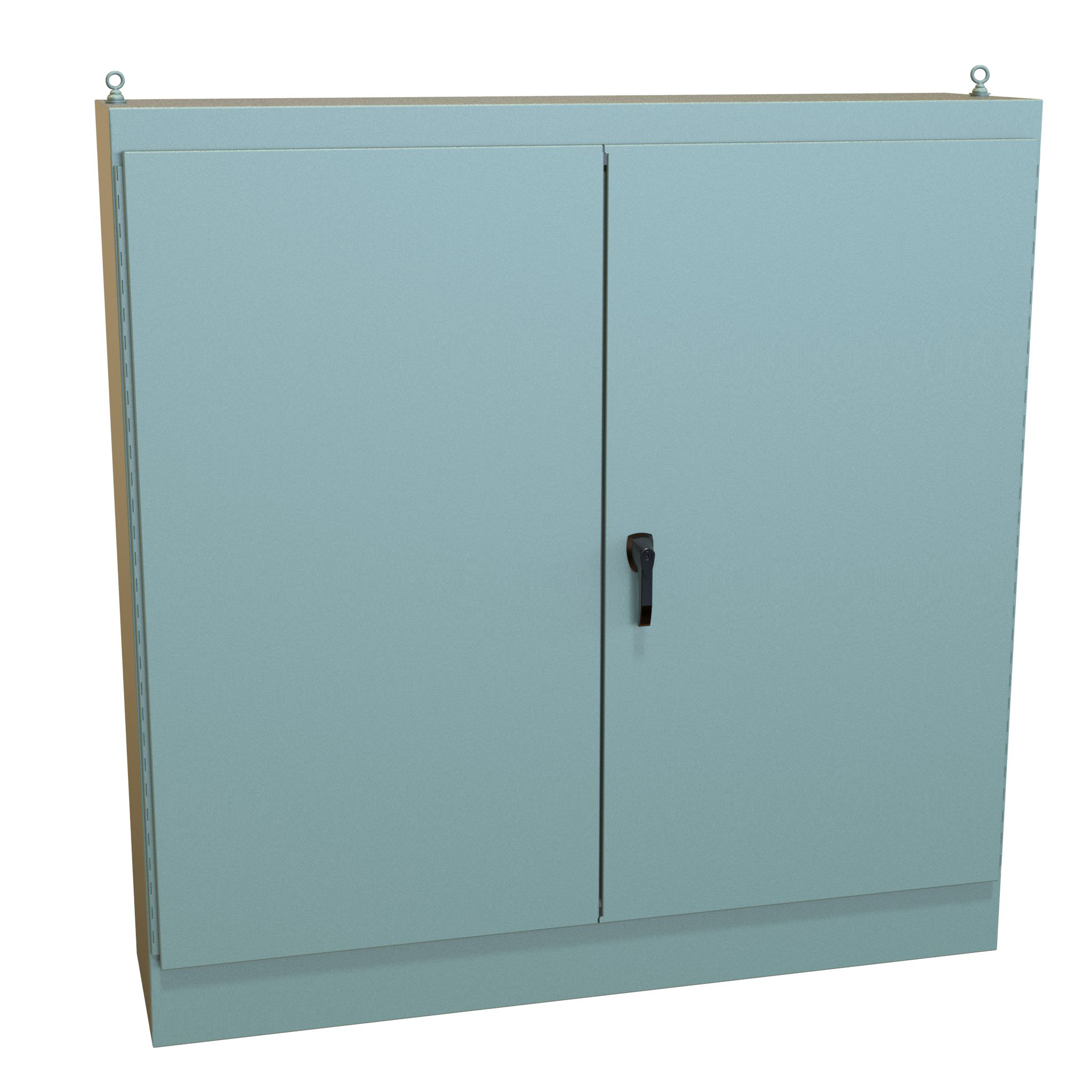

| 1418ZY18 | 72.06 | 72.06 | 18.06 | 72ZYFW | $3,436.50In stock1418ZY18 | Buy now |

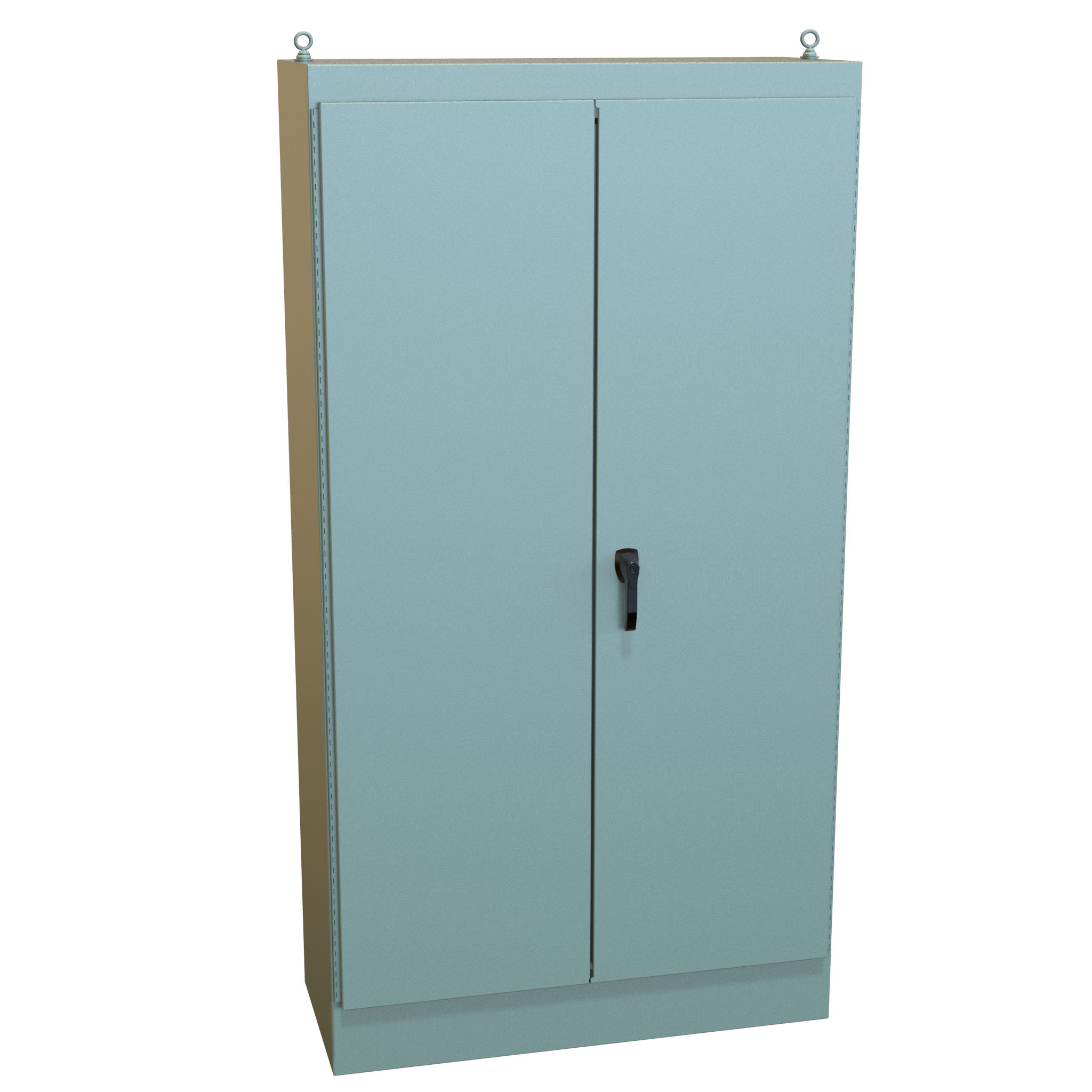

| 1418BW20 | 90.06 | 48.06 | 20.06 | 90BWFW | $3,216.75Backorder1418BW20 | Buy now |
| 1418BY20 | 90.06 | 72.06 | 20.06 | 90BYFW | $4,053.68In stock1418BY20 | Buy now |

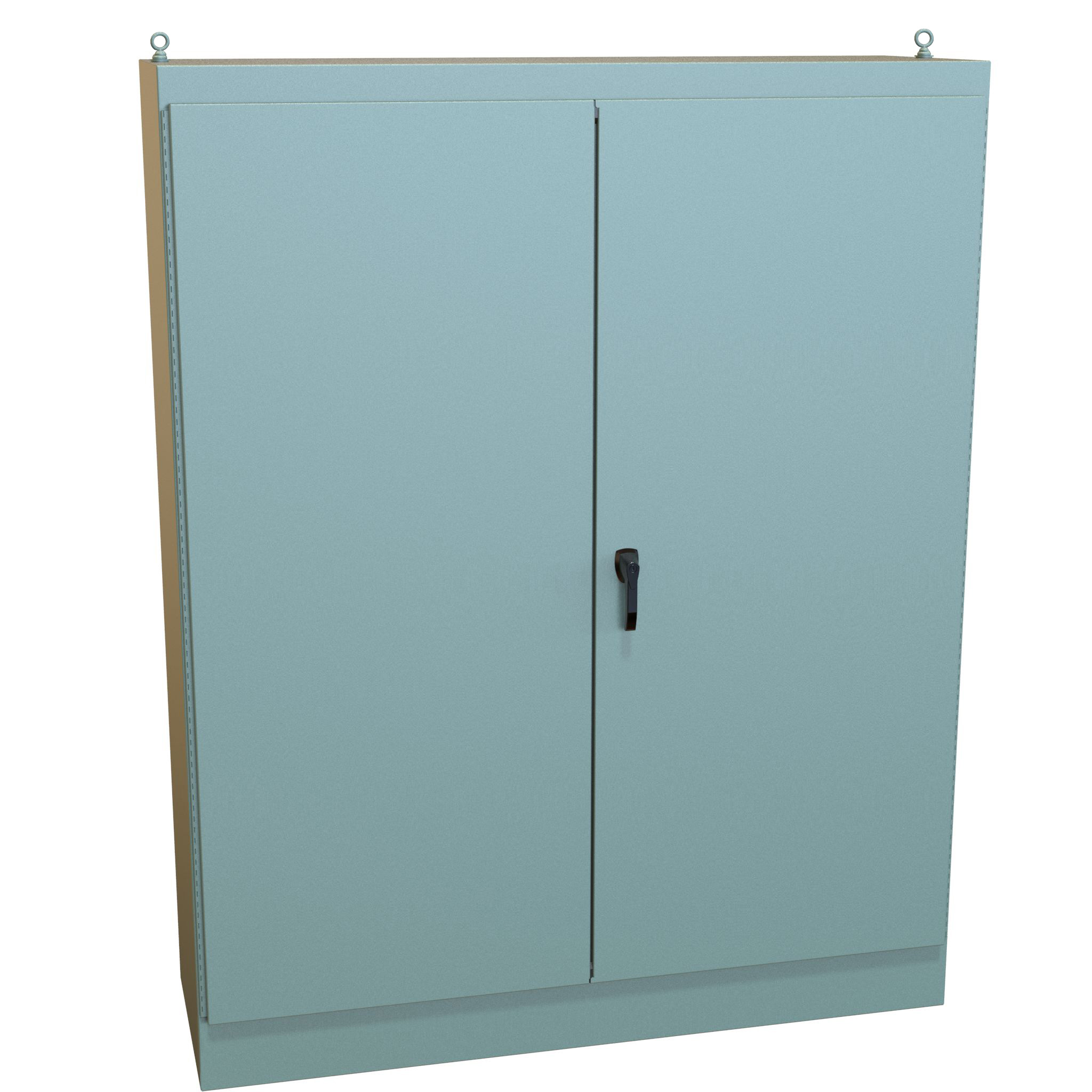

| 1418BY24 | 90.06 | 72.06 | 24.06 | 90BYFW | $4,261.51In stock1418BY24 | Buy now |

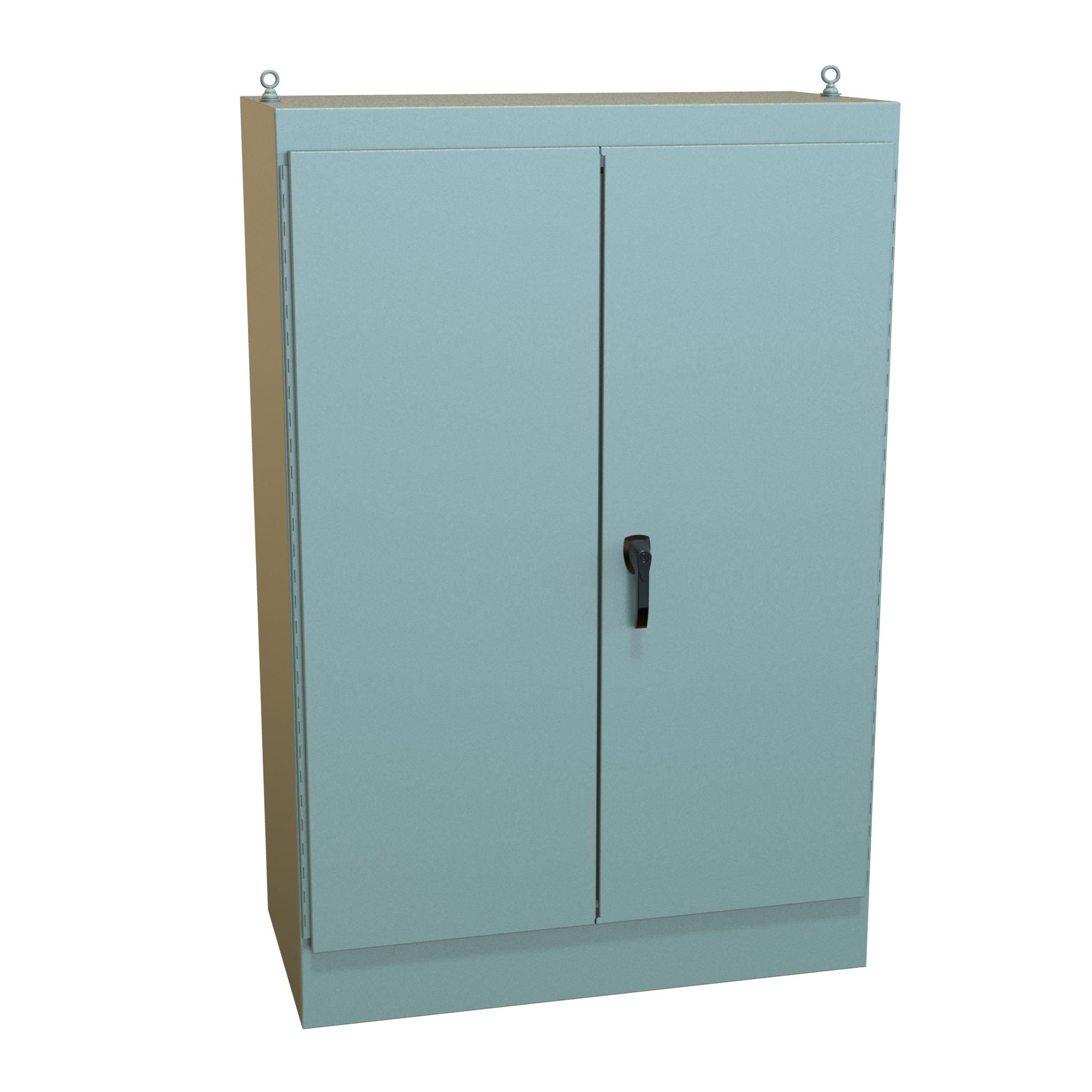

| 1418ZW24 | 72.06 | 48.06 | 24.06 | 72ZWFW | $3,068.42Backorder1418ZW24 | Buy now |

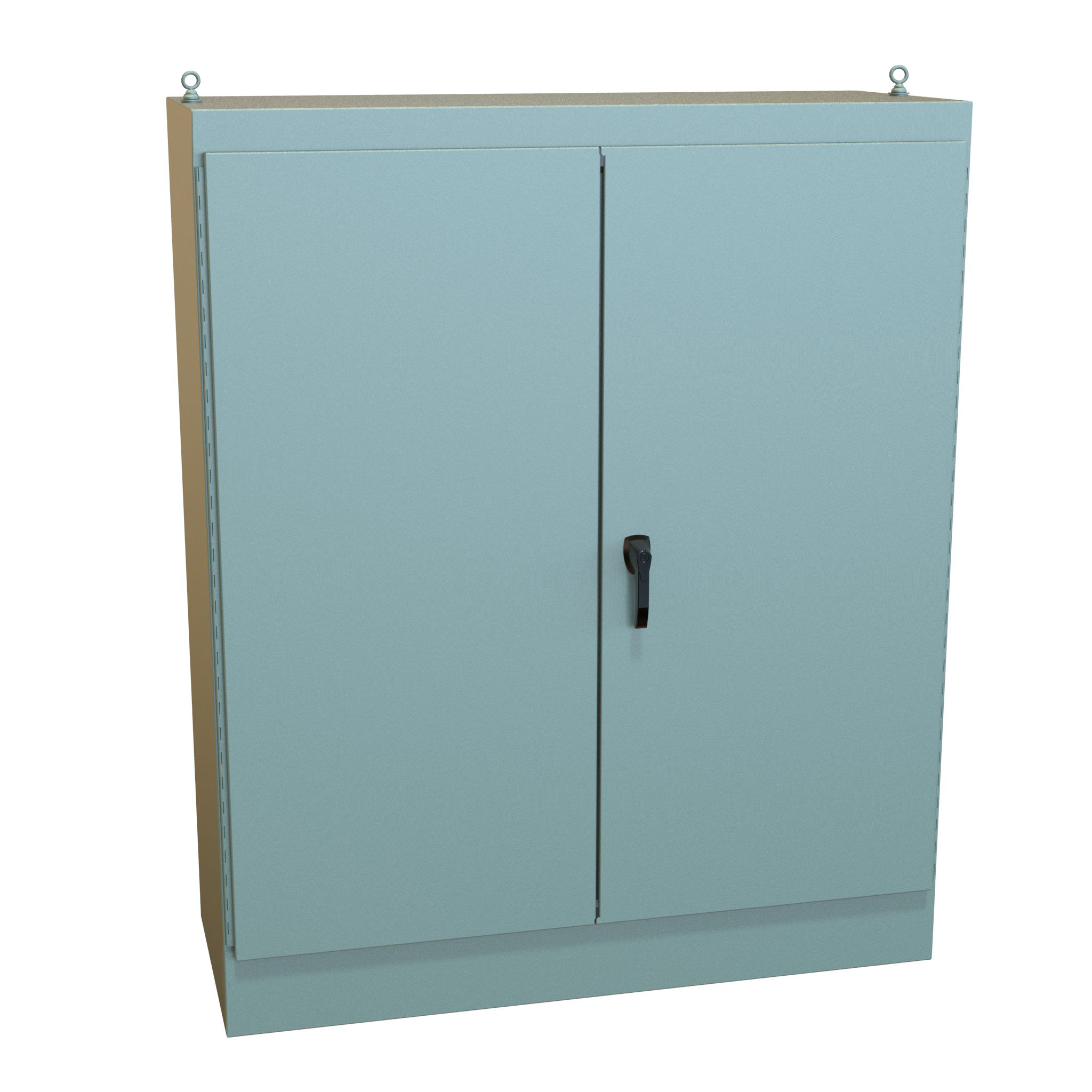

| 1418ZX24 | 72.06 | 60.06 | 24.06 | 72ZXFW | $3,442.85In stock1418ZX24 | Buy now |
| 1418ZY24 | 72.06 | 72.06 | 24.06 | 72ZYFW | $3,710.97Backorder1418ZY24 | Buy now |

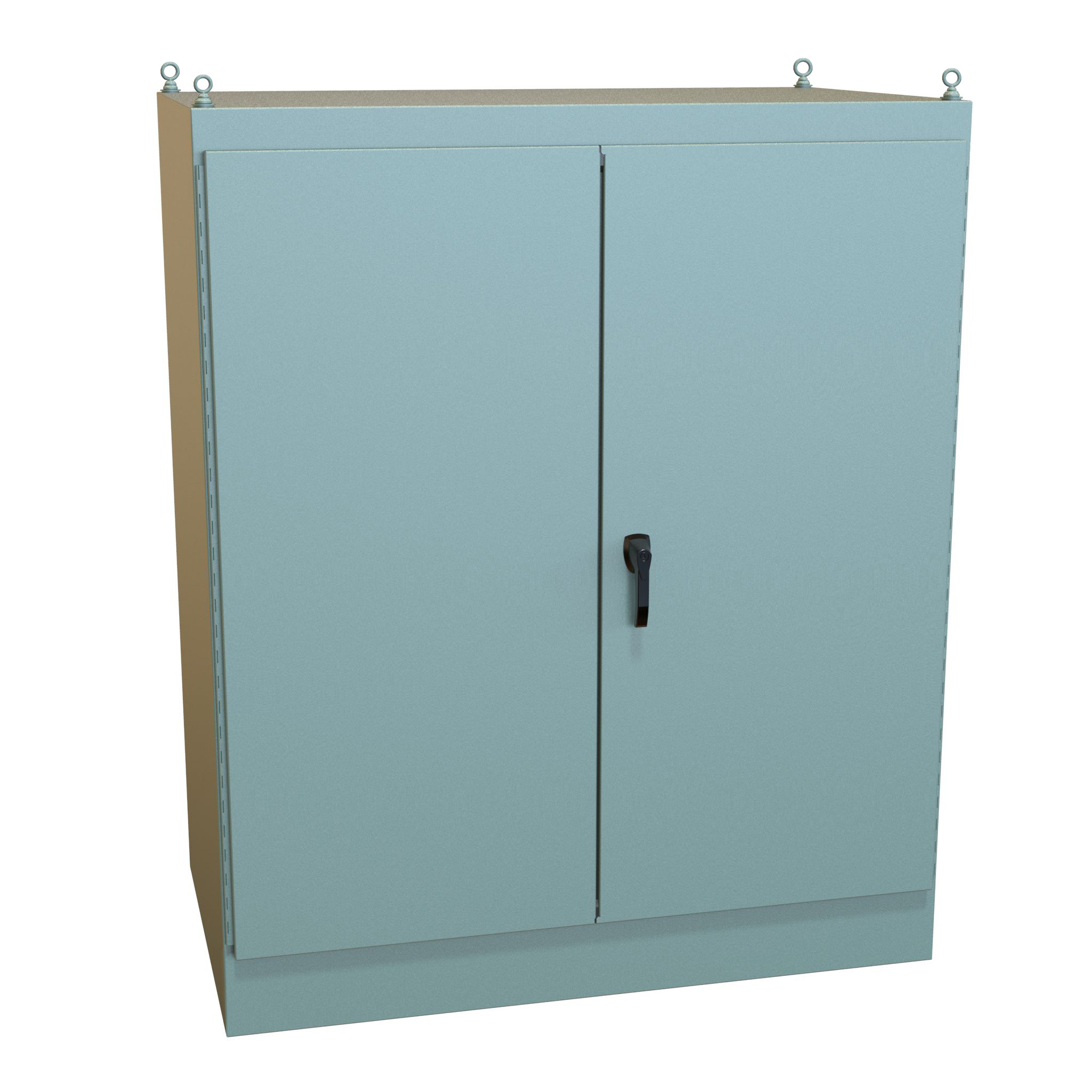

| 1418ZX36 | 72.06 | 60.06 | 36.06 | 72ZXFW | $3,960.07Backorder1418ZX36 | Buy now |

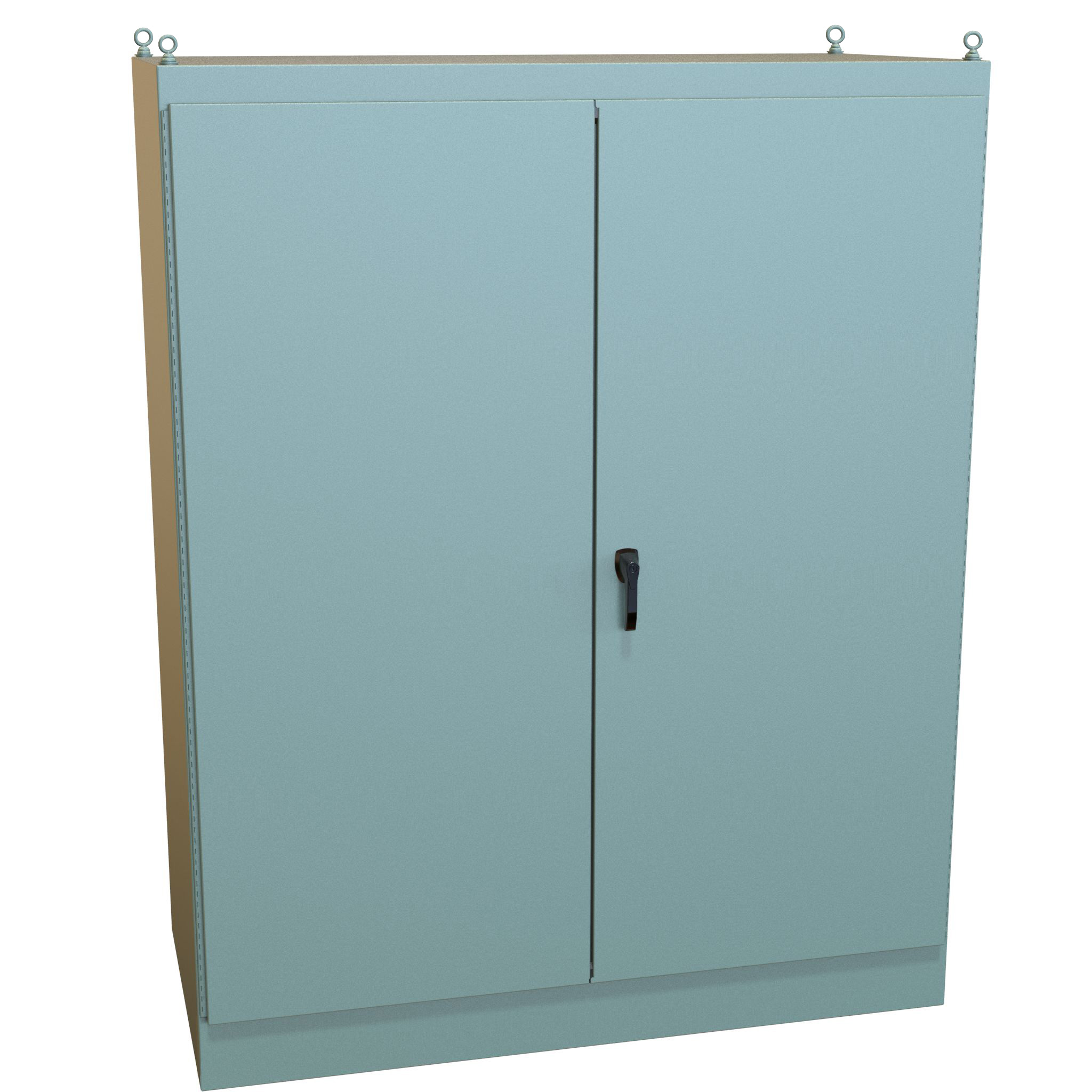

| 1418BY36 | 90.06 | 72.06 | 36.06 | 90BYFW | $5,021.48In stock1418BY36 | Buy now |
Dual Access
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ (Part No.) | Price | Order |
|---|---|---|---|---|---|---|

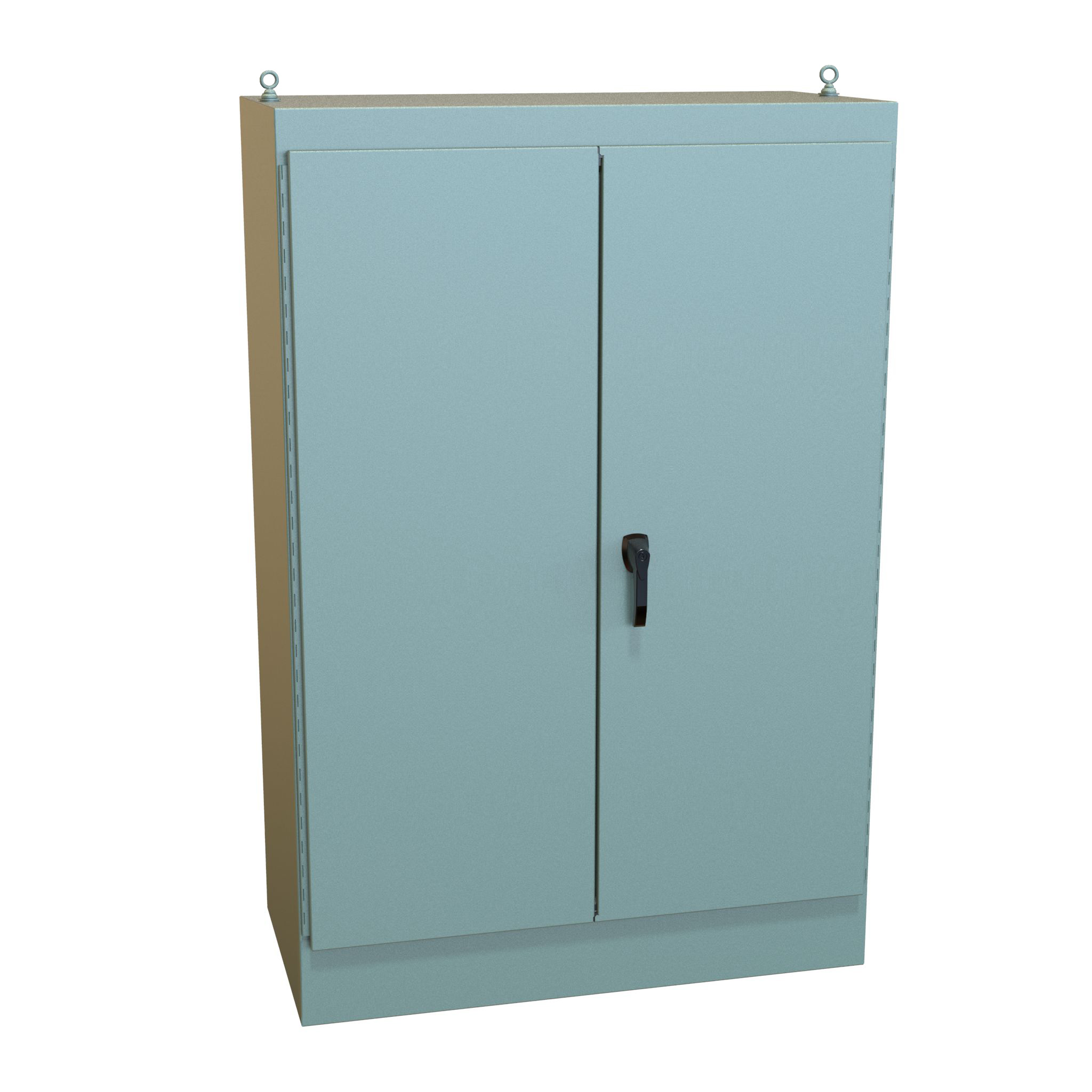

| 1418ZWD24 | 72.06 | 48.06 | 24.06 | 72ZWFW | $3,317.50In stock1418ZWD24 | Buy now |
| 1418ZXD24 | 72.06 | 60.06 | 24.06 | 72ZXFW | $3,723.67In stock1418ZXD24 | Buy now |

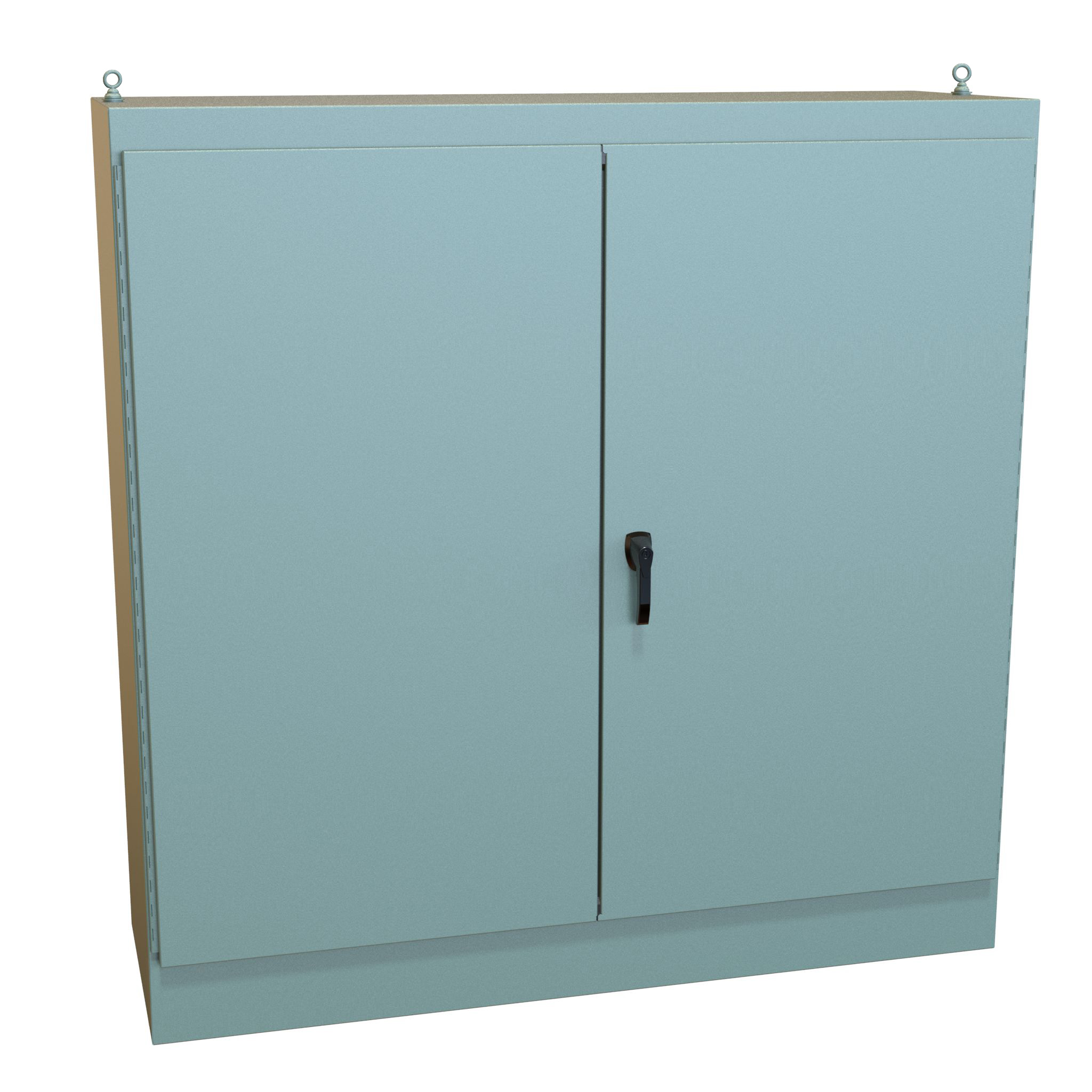

| 1418ZYD24 | 72.06 | 72.06 | 24.06 | 72ZYFW | $4,129.83Backorder1418ZYD24 | Buy now |

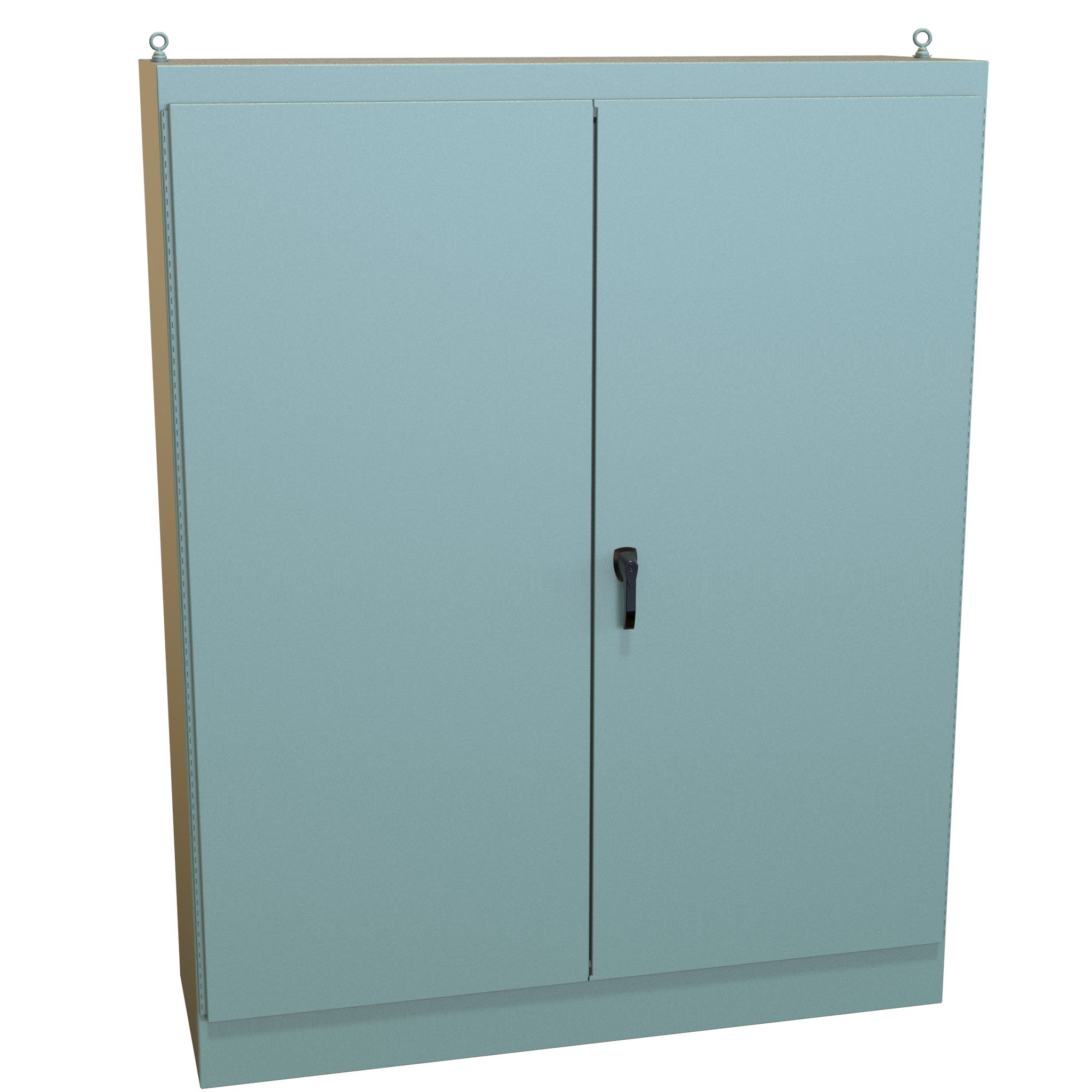

| 1418BYD24 | 90.06 | 72.06 | 24.06 | 90BYFW | $4,741.45In stock1418BYD24 | Buy now |
| 1418ZXD36 | 72.06 | 60.06 | 36.06 | 72ZXFW | $4,283.72Backorder1418ZXD36 | Buy now |
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
- ■Provides a degree of protection from falling dirt, dust, oil and water.
- ■Available with front access only or both front and rear access.
- ■A variety of inner panels, rack mounting angles and swing frames are available to provide flexibility in equipment mounting.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
Construction
- ■Formed 12 gauge steel (10 gauge on back of single access enclosures).
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Stiffeners on the rear of the enclosure provide rigidity. (Single access)
- ■Lifting eyes provide for easy enclosure handling.
- ■Doors are supported with heavy gauge continuous hinges.
- ■Doors are secured with a three point latch and operated with a key locking automotive type handle.
- ■Latch rods are equipped with rollers for easier door closing.
- ■Oil resistant gaskets are permanently secured.
- ■Provision for light kit mounting.
- ■Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units).
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Optional inner panels, rails, frames and supports are available in white powder coating.
Documents
Additional information
Single Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| 1418AW18 | 60.06 | 48.06 | 18.06 | 60AWFW |
| 1418ZW18 | 72.06 | 48.06 | 18.06 | 72ZWFW |
| 1418ZX18 | 72.06 | 60.06 | 18.06 | 72ZXFW |
| 1418ZY18 | 72.06 | 72.06 | 18.06 | 72ZYFW |
| 1418BW20 | 90.06 | 48.06 | 20.06 | 90BWFW |
| 1418BY20 | 90.06 | 72.06 | 20.06 | 90BYFW |
| 1418BY24 | 90.06 | 72.06 | 24.06 | 90BYFW |
| 1418ZW24 | 72.06 | 48.06 | 24.06 | 72ZWFW |
| 1418ZX24 | 72.06 | 60.06 | 24.06 | 72ZXFW |
| 1418ZY24 | 72.06 | 72.06 | 24.06 | 72ZYFW |
| 1418ZX36 | 72.06 | 60.06 | 36.06 | 72ZXFW |
| 1418BY36 | 90.06 | 72.06 | 36.06 | 90BYFW |
Dual Access
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Full Panel¹ |
|---|---|---|---|---|
| 1418ZWD24 | 72.06 | 48.06 | 24.06 | 72ZWFW |
| 1418ZXD24 | 72.06 | 60.06 | 24.06 | 72ZXFW |
| 1418ZYD24 | 72.06 | 72.06 | 24.06 | 72ZYFW |
| 1418BYD24 | 90.06 | 72.06 | 24.06 | 90BYFW |
| 1418ZXD36 | 72.06 | 60.06 | 36.06 | 72ZXFW |
