1418N4 Freest 72X25X18
$2,269.59Backorder
Buy now
Type 4 Mild Steel Freestanding Enclosure · 1418 N4 FS Series
Brand: Hammond Manufacturing · 6 part numbers
Continuous Hinge Door with Clamps
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
from $371.26
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418 N4 FS Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
Standards
- ■UL 508A Type 3R, 4 and 12
- ■CSA Type 3R, 4 and 12
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 12 gauge steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Lifting eyes provide for easy enclosure handling.
- ■Doors are supported with heavy gauge continuous hinges.
- ■Doors are secured with heavy duty stainless steel clamps.
- ■Seamless poured-in place gasket.
- ■Provision for light kit mounting.
- ■Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
- ■A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
- ■Optional inner panels are available in white powder coating, or unpainted galvanized steel.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional · Full Panel¹ |
|---|---|---|---|---|

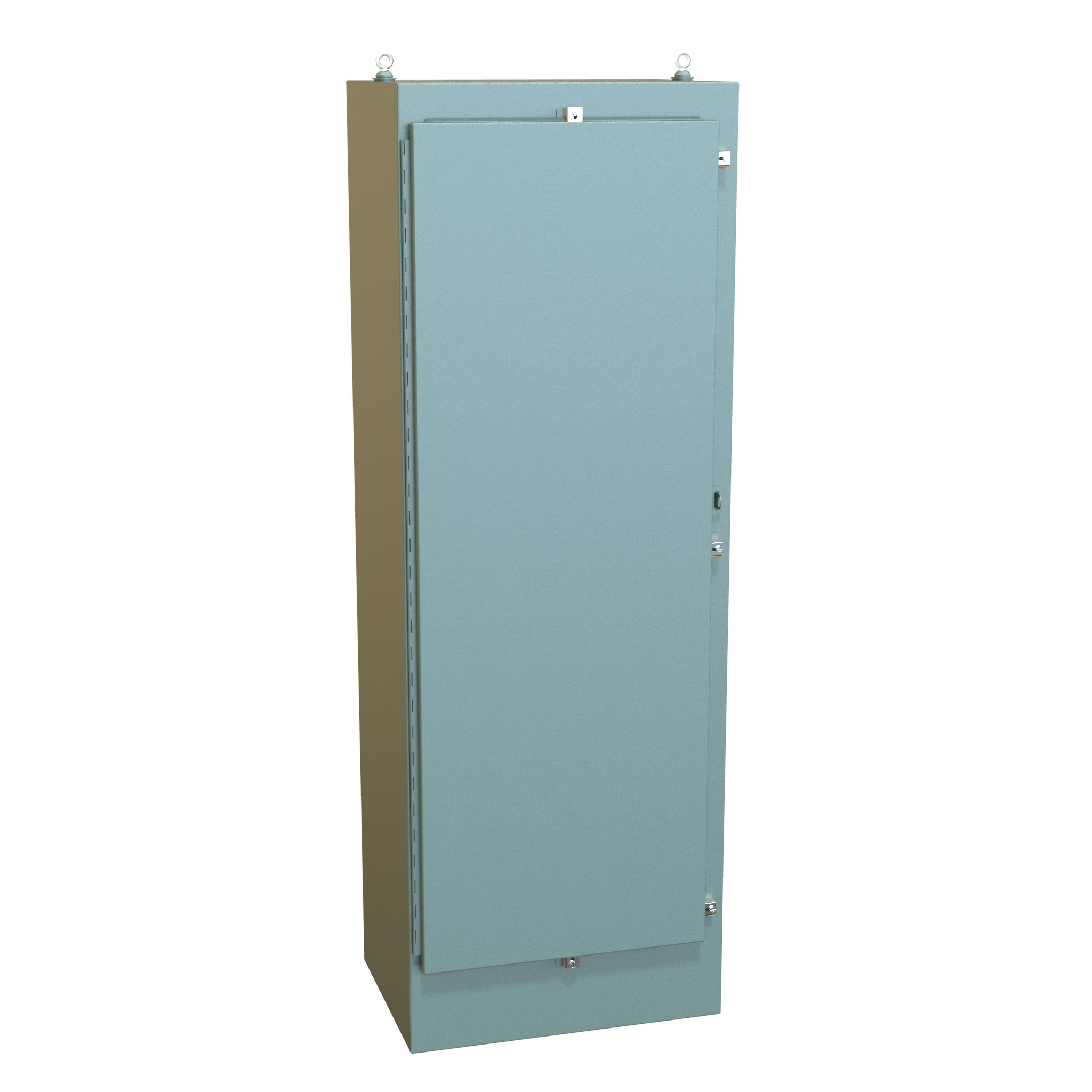

| 1418N4W18 | 72.06 | 25.06 | 18.06 | 72WFW |

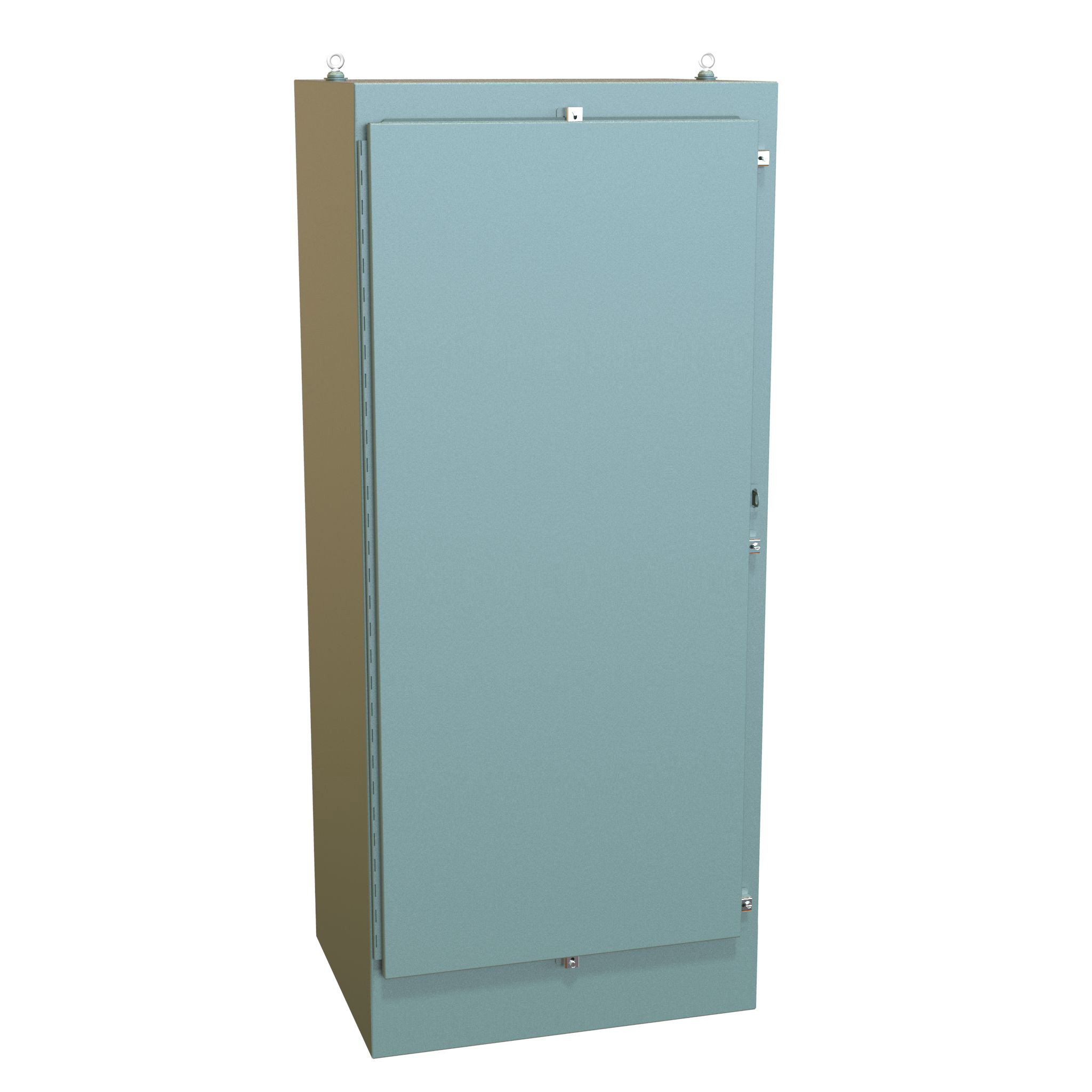

| 1418N4X24 | 72.06 | 31.06 | 24.06 | 72XFW |

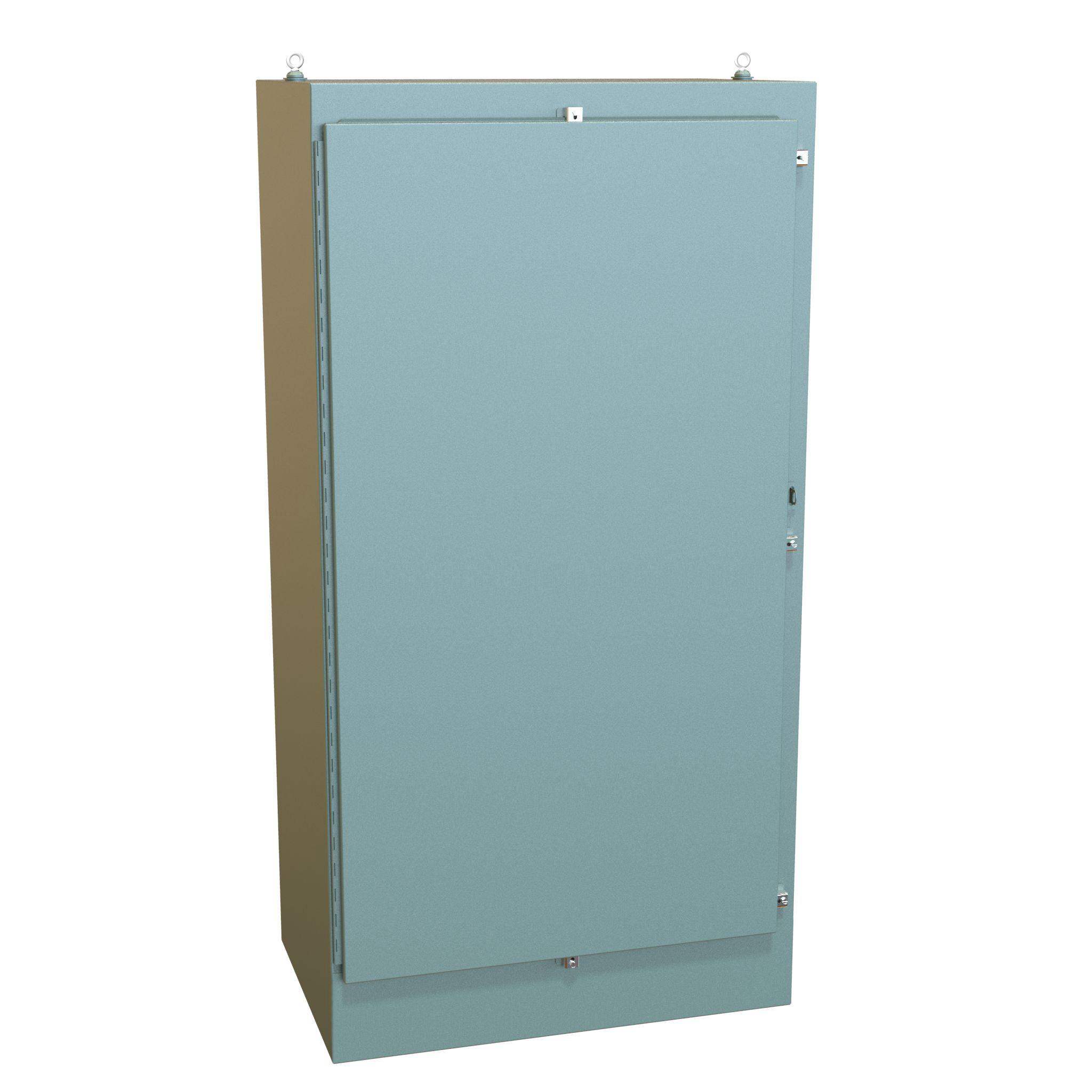

| 1418N4Y24 | 72.06 | 37.06 | 24.06 | 72YFW |
