Type 3R Current Transformer Cabinet · HCT Series

Brand: Hammond Manufacturing · 16 part numbers

Single and Double Door Enclosures

■Designed for use as Current Transformer Box to house and protect instrument current transformers in outdoor applications.
■Can also be used as a general purpose enclosure for various junction, meter, transformer and relay applications..
■Provides protection against rain, sleet, snow and dripping water.
■UL 508A Type 3R
■Complies with NEMA Type 3R IEC 60529, IP24
■NEMA Type 3R

from $90.95

16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your HCT Series part number

Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

8 of 8 part numbers · 8 priced online

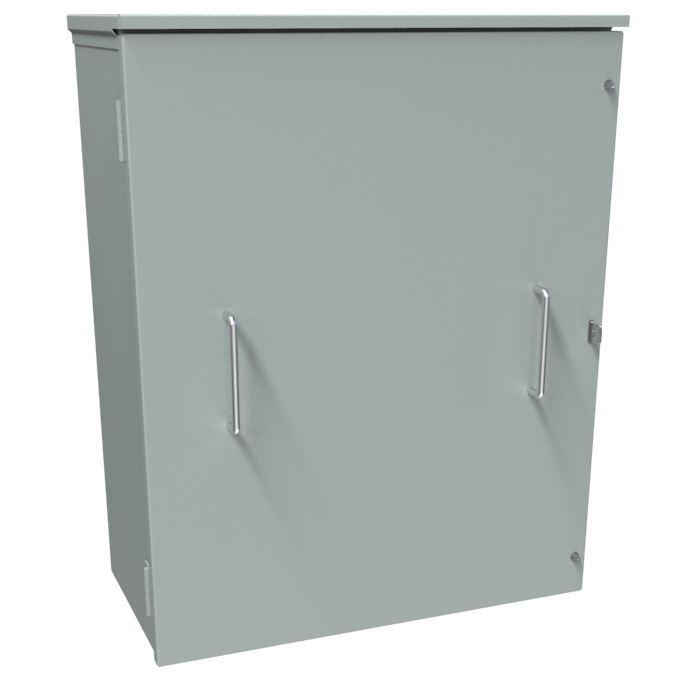

HCT302411H

3R CT Cabinet 30X24X11

Type of Door Single

$367.18In stock

Buy now

HCT362011H

3R CT Cabinet 36X20X11

Type of Door Single

$384.68In stock

Buy now

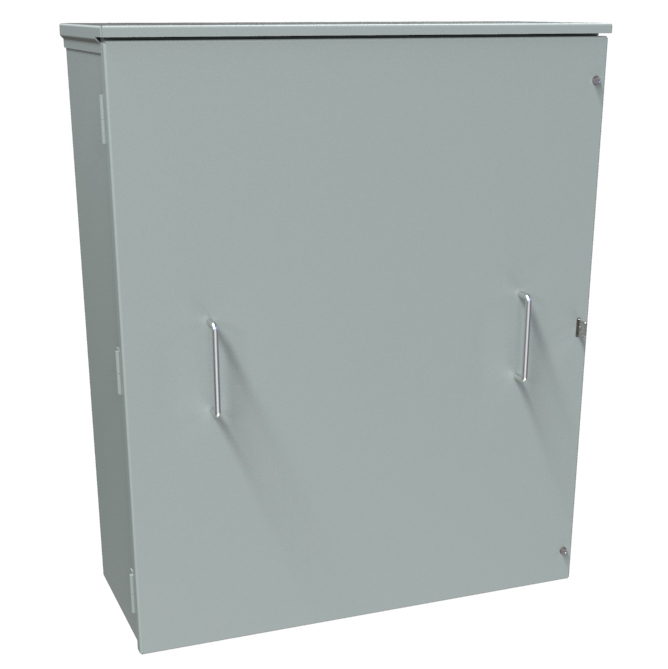

HCT363011H

3R CT Cabinet 36X30X11

Type of Door Single

$437.21Backorder

Buy now

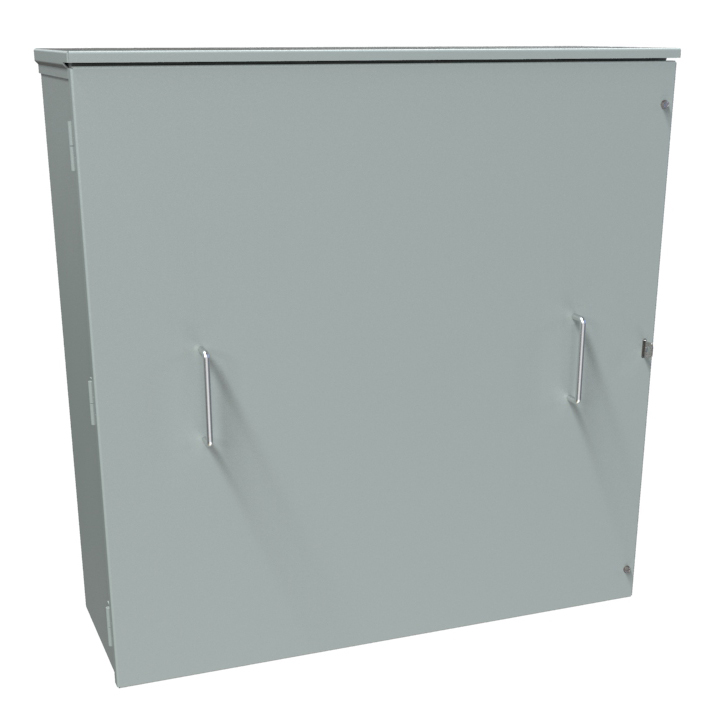

HCT363611H

3R CT Cabinet 36X36X11

Type of Door Single

$524.52In stock

Buy now

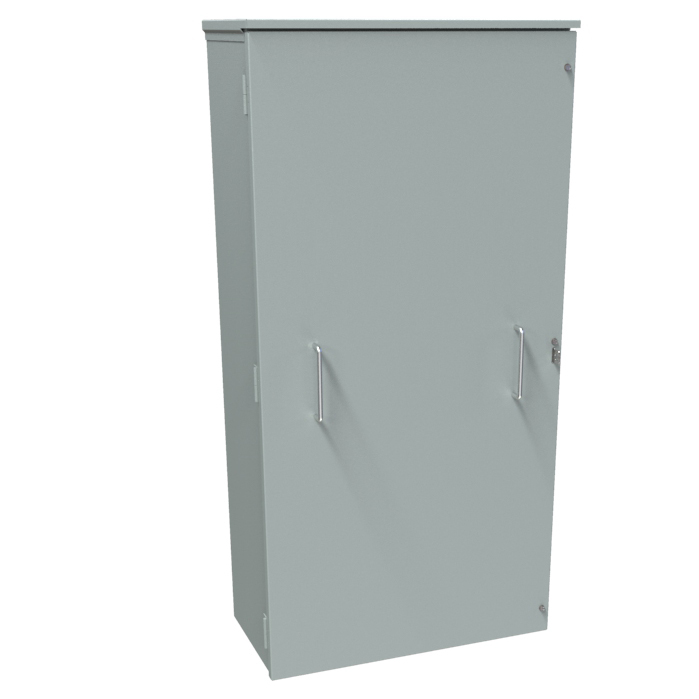

HCT482411H

3R CT Cabinet 48X24X11

Type of Door Single

$585.74In stock

Buy now

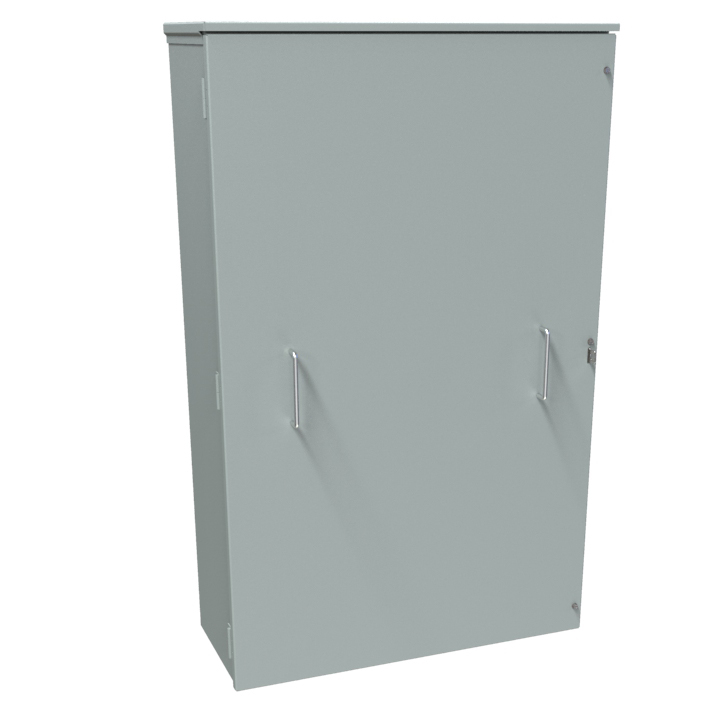

HCT483011H

3R CT Cabinet 48X30X11

Type of Door Single

$598.04In stock

Buy now

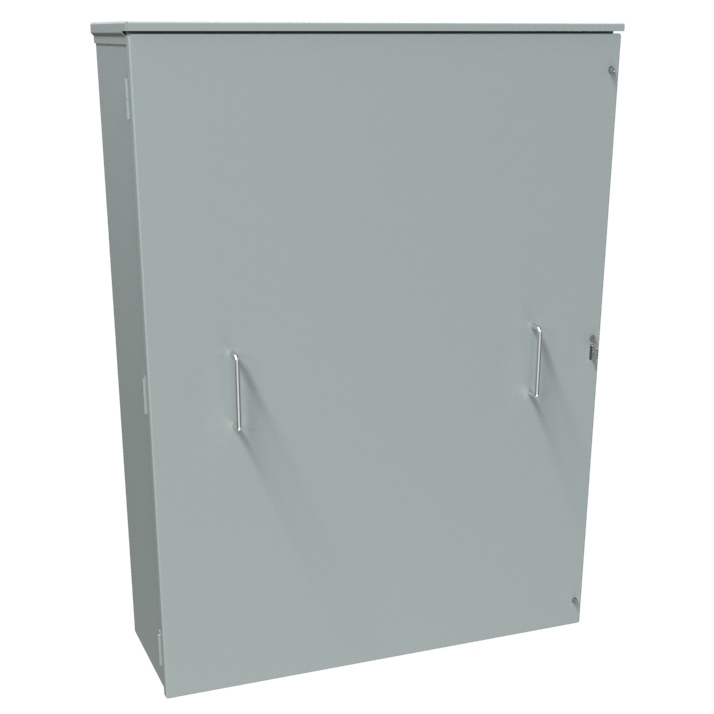

HCT483611H

3R CT Cabinet 48X36X11

Type of Door Single

$634.74In stock

Buy now

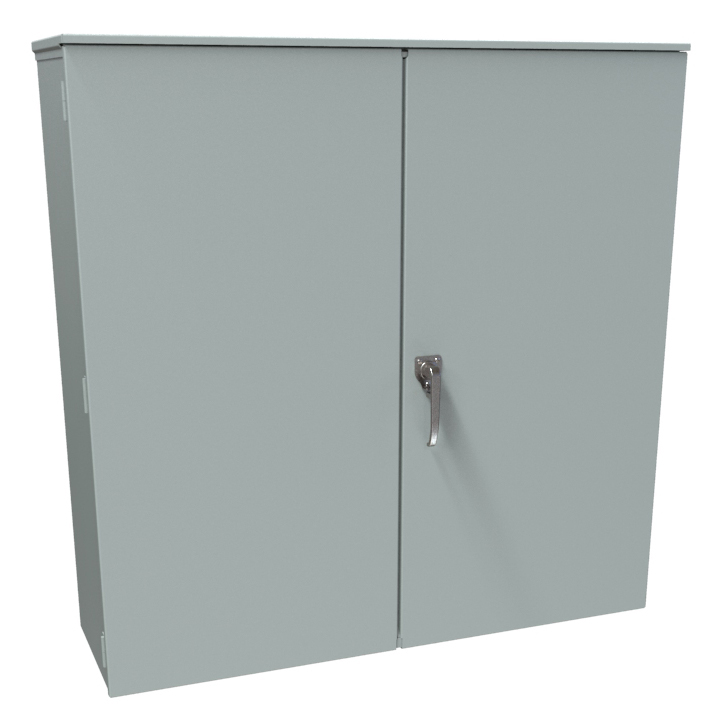

HCT484814H

3R CT Cabinet 48X48X14

Type of Door Double

$664.54Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Type of · Door	Enclosure · H	Enclosure · W	Enclosure · D	Optional Panel · Part No.	Price	Order
HCT302411H	Single	30.00	24.00	11.00	18P2721	$367.18In stockHCT302411H	Buy now
HCT362011H	Single	36.00	20.00	11.00	18P3317	$384.68In stockHCT362011H	Buy now
HCT363011H	Single	36.00	30.00	11.00	18P3327	$437.21BackorderHCT363011H	Buy now
HCT363611H	Single	36.00	36.00	11.00	18P3333	$524.52In stockHCT363611H	Buy now
HCT482411H	Single	48.00	24.00	11.00	18P4521	$585.74In stockHCT482411H	Buy now
HCT483011H	Single	48.00	30.00	11.00	18P4527	$598.04In stockHCT483011H	Buy now
HCT483611H	Single	48.00	36.00	11.00	18P4533	$634.74In stockHCT483611H	Buy now
HCT484814H	Double	48.00	48.00	14.00	18P4545	$664.54BackorderHCT484814H	Buy now

Application

■Designed for use as Current Transformer Box to house and protect instrument current transformers in outdoor applications.
■Can also be used as a general purpose enclosure for various junction, meter, transformer and relay applications..
■Provides protection against rain, sleet, snow and dripping water.

Standards

■UL 508A Type 3R
■Complies with NEMA Type 3R IEC 60529, IP24
■NEMA Type 3R
■IEC 60529, IP24

Construction

■Body and covers formed from 14 gauge galvanized steel (12 gauge for units 30" and wider)
■Mounting studs for optional inner panels
■Integral drip shield top and seam free sides
■Mounting holes provided through back of enclosure
■Permanently installed lift off hinges
■Removable doors
■Single door design with hasp/screw closure. Double door design with handle.
■Padlocking provisions provided
■ANSI 61 Gray Polyester Powder finish inside and outside

Finish

■Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth Gray powder inside and out.

Documents

Specification Sheet

Additional information

Part Details

Part No.	Type of · Door	Enclosure · H	Enclosure · W	Enclosure · D	Optional Panel · Part No.
HCT302411H	Single	30.00	24.00	11.00	18P2721
HCT362011H	Single	36.00	20.00	11.00	18P3317
HCT363011H	Single	36.00	30.00	11.00	18P3327
HCT363611H	Single	36.00	36.00	11.00	18P3333
HCT482411H	Single	48.00	24.00	11.00	18P4521
HCT483011H	Single	48.00	30.00	11.00	18P4527
HCT483611H	Single	48.00	36.00	11.00	18P4533
HCT484814H	Double	48.00	48.00	14.00	18P4545
