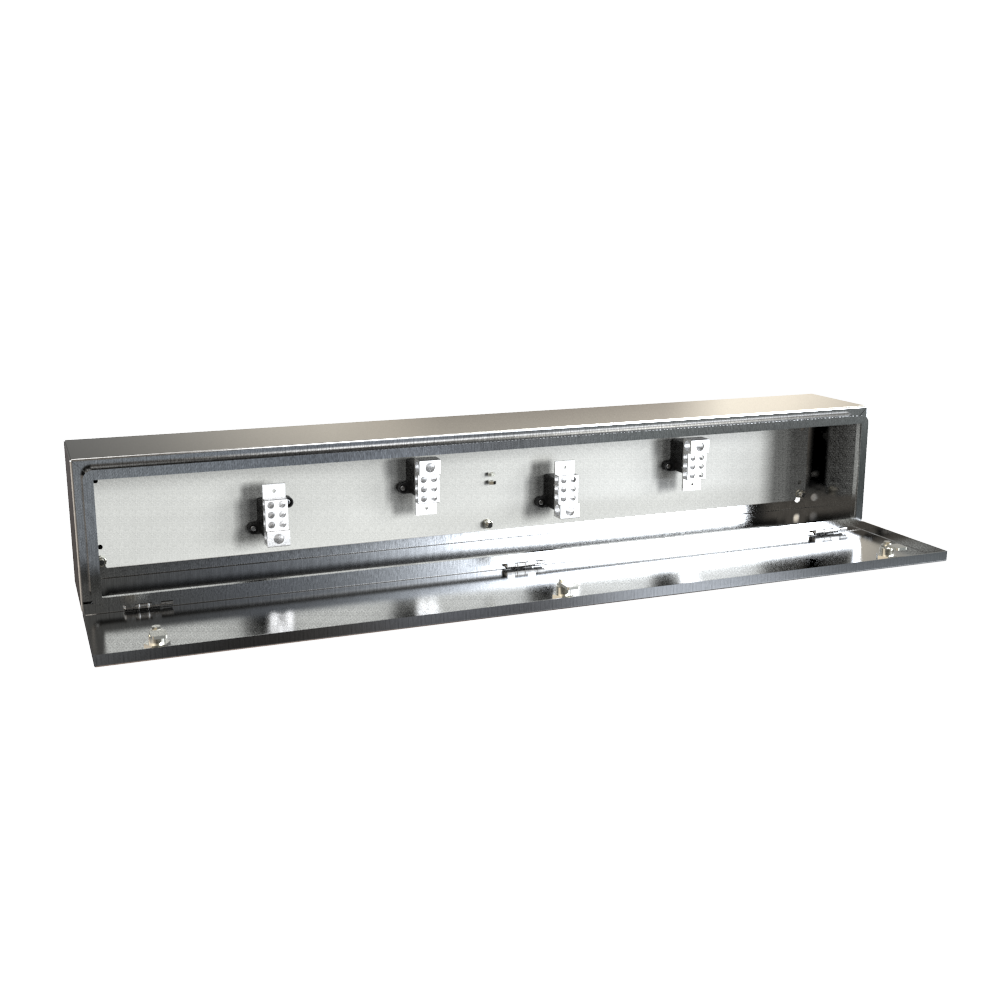

Type 4X Stainless Steel Splitter Trough CN4STSS Series

Type 4X Stainless Steel Splitter Trough · CN4STSS Series

Brand: Hammond Manufacturing · 43 part numbers

Hinged Door with Quarter Turn

  • ■The splitter troughs are designed for distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.
  • ■Stainless steel construction provides corrosion resistance in outdoor or more hostile environments.
  • ■CSA Certified Type 3R, 12, 4X
  • ■Complies with IEC 60529, IP66
  • ■IEC 60529, IP66
  • ■Formed and spot welded from 16 gauge 304 stainless steel. When width is 8" or more, 14 gauge.

from $18.70

43 of 43 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your CN4STSS Series part number

Filter 36 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

36 of 36 part numbers · 36 priced online

CN4ST2103SS

N4XSS Spltr 24X6X5

  • CU/AL Amps 125/120
$1,001.18Backorder
Buy now
CN4ST2104SS

N4XSS Spltr 24X6X5

  • CU/AL Amps 125/120
$1,108.43Backorder
Buy now
CN4ST2203SS

N4XSS Spltr 24X8X5

  • CU/AL Amps 225/225
$1,234.87Backorder
Buy now
CN4ST273SS

N4XSS Spltr 24X6X5

  • CU/AL Amps 70/70
$966.23In stock
Buy now
CN4ST274SS

N4XSS Spltr 24X6X5

  • CU/AL Amps 70/70
$1,053.58Backorder
Buy now
CN4ST3103SS

N4XSS Spltr 36X6X5

  • CU/AL Amps 125/120
$1,230.32Backorder
Buy now
CN4ST3104SS

N4XSS Spltr 36X6X5

  • CU/AL Amps 125/120
$1,333.39In stock
Buy now
CN4ST3203SS

N4XSS Spltr 36X8X6

  • CU/AL Amps 225/225
$1,458.79In stock
Buy now
CN4ST3204SS

N4XSS Spltr 36X8X6

  • CU/AL Amps 225/225
$1,588.75In stock
Buy now
CN4ST3403SS

N4XSS Spltr 36X10X6

  • CU/AL Amps 400/400
$1,920.96In stock
Buy now
CN4ST373SS

N4XSS Spltr 36X6X5

  • CU/AL Amps 70/70
$1,192.25Backorder
Buy now
CN4ST374SS

N4XSS Spltr 36X6X5

  • CU/AL Amps 70/70
$1,274.34Backorder
Buy now
CN4ST4103SS

N4XSS Spltr 48X6X5

  • CU/AL Amps 125/120
$1,431.91Backorder
Buy now
CN4ST4104SS

N4XSS Spltr 48X6X5

  • CU/AL Amps 125/120
$1,530.41Backorder
Buy now
CN4ST4203SS

N4XSS Spltr 48X8X6

  • CU/AL Amps 225/225
$1,708.58In stock
Buy now
CN4ST4204SS

N4XSS Spltr 48X8X6

  • CU/AL Amps 225/225
$1,840.62Backorder
Buy now
CN4ST4403SS

N4XSS Spltr 48X10X6

  • CU/AL Amps 400/400
$2,172.83Backorder
Buy now
CN4ST4603SS

N4XSS Spltr 48X10X6

  • CU/AL Amps 600/600
$2,775.42Backorder
Buy now
CN4ST4604SS

N4XSS Spltr 48X10X6

  • CU/AL Amps 600/600
$3,100.28Backorder
Buy now
CN4ST473SS

N4XSS Spltr 48X6X5

  • CU/AL Amps 70/70
$1,406.38Backorder
Buy now
CN4ST474SS

N4XSS Spltr 48X6X5

  • CU/AL Amps 70/70
$1,509.45Backorder
Buy now
CN4ST5203SS

N4XSS Spltr 60X8X6

  • CU/AL Amps 225/225
$1,960.43In stock
Buy now
CN4ST5204SS

N4XSS Spltr 60X8X6

  • CU/AL Amps 225/225
$2,099.10Backorder
Buy now
CN4ST5403SS

N4XSS Spltr 60X10X6

  • CU/AL Amps 400/400
$2,378.21Backorder
Buy now
CN4ST5603SS

N4XSS Spltr 60X10X6

  • CU/AL Amps 600/600
$2,957.76Backorder
Buy now
CN4ST5604SS

N4XSS Spltr 60X10X6

  • CU/AL Amps 600/600
$3,293.47Backorder
Buy now
CN4ST6103SS

N4XSS Spltr 72X8X6

  • CU/AL Amps 125/120
$1,794.84Backorder
Buy now
CN4ST6104SS

N4XSS Spltr 72X8X6

  • CU/AL Amps 125/120
$1,880.79Backorder
Buy now
CN4ST6203SS

N4XSS Spltr 72X8X6

  • CU/AL Amps 225/225
$2,141.37In stock
Buy now
CN4ST6204SS

N4XSS Spltr 72X8X6

  • CU/AL Amps 225/225
$2,269.22Backorder
Buy now
CN4ST6403SS

N4XSS Spltr 72X10X6

  • CU/AL Amps 400/400
$2,598.65Backorder
Buy now
CN4ST6603SS

N4XSS Spltr 72X10X6

  • CU/AL Amps 600/600
$3,200.90Backorder
Buy now
CN4ST6604SS

N4XSS Spltr 72X10X6

  • CU/AL Amps 600/600
$3,539.04Backorder
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

3 Wire · Part No.4 Wire · Part No.CU/AL · AmpsEnclosure · HEnclosure · WEnclosure · DOptional · Grounding Kit (Part No.)Splitter · Block Reference (Part No.)PriceOrder
CN4ST273SSCN4ST274SS70/7024.006.005.00CGK225CSBL125T$966.23In stockCN4ST273SSBuy now
CN4ST373SSCN4ST374SS70/7036.006.005.00CGK225CSBL125T$1,192.25BackorderCN4ST373SSBuy now
CN4ST473SSCN4ST474SS70/7048.006.005.00CGK225CSBL125T$1,406.38BackorderCN4ST473SSBuy now
CN4ST2103SSCN4ST2104SS125/12024.006.005.00CGK225CSBL125T$1,001.18BackorderCN4ST2103SSBuy now
CN4ST3103SSCN4ST3104SS125/12036.006.005.00CGK225CSBL125T$1,230.32BackorderCN4ST3103SSBuy now
CN4ST4103SSCN4ST4104SS125/12048.006.005.00CGK225CSBL125T$1,431.91BackorderCN4ST4103SSBuy now
CN4ST6103SSCN4ST6104SS125/12072.008.006.00CGK225CSBL125T$1,794.84BackorderCN4ST6103SSBuy now
CN4ST2203SS-225/22524.008.005.00CGK225CSBL225$1,234.87BackorderCN4ST2203SSBuy now
CN4ST3203SSCN4ST3204SS225/22536.008.006.00CGK225CSBL225$1,458.79In stockCN4ST3203SSBuy now
CN4ST4203SSCN4ST4204SS225/22548.008.006.00CGK225CSBL225$1,708.58In stockCN4ST4203SSBuy now
CN4ST5203SSCN4ST5204SS225/22560.008.006.00CGK225CSBL225$1,960.43In stockCN4ST5203SSBuy now
CN4ST6203SSCN4ST6204SS225/22572.008.006.00CGK225CSBL225$2,141.37In stockCN4ST6203SSBuy now
CN4ST3403SS-400/40036.0010.006.00CGK400CSBL400$1,920.96In stockCN4ST3403SSBuy now
CN4ST4403SSCN4ST4404SS400/40048.0010.006.00CGK400CSBL400$2,172.83BackorderCN4ST4403SSBuy now
CN4ST5403SSCN4ST5404SS400/40060.0010.006.00CGK400CSBL400$2,378.21BackorderCN4ST5403SSBuy now
CN4ST6403SSCN4ST6404SS400/40072.0010.006.00CGK400CSBL400$2,598.65BackorderCN4ST6403SSBuy now
CN4ST4603SSCN4ST4604SS600/60048.0010.006.00CGK600CSBL600$2,775.42BackorderCN4ST4603SSBuy now
CN4ST5603SSCN4ST5604SS600/60060.0010.006.00CGK600CSBL600$2,957.76BackorderCN4ST5603SSBuy now
CN4ST6603SSCN4ST6604SS600/60072.0010.006.00CGK600CSBL600$3,200.90BackorderCN4ST6603SSBuy now

Application

  • ■The splitter troughs are designed for distribution of up to 600 A (max) service (600V max) using either 3 or 4 wires. 75° C conductor ampacity permitted.
  • ■Stainless steel construction provides corrosion resistance in outdoor or more hostile environments.

Standards

  • ■CSA Certified Type 3R, 12, 4X
  • ■Complies with IEC 60529, IP66
  • ■IEC 60529, IP66

Construction

  • ■Formed and spot welded from 16 gauge 304 stainless steel. When width is 8" or more, 14 gauge.
  • ■Factory installed splitter blocks.
  • ■Smooth, continuously welded seams ground smooth.
  • ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • ■Doors may be easily removed for modifications and are interchangeable.
  • ■Seamless poured-in place gasket.
  • ■Collar studs provided for mounting inner panel.
  • ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • ■Hinges are constructed from 304 stainless steel.
  • ■Hinge pins are stainless steel.
  • ■Inner panel is included.

Finish

  • ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • ■Inner panel is finished in white powder coating.

Documents

Specification Sheet

Additional information

Part Details

3 Wire · Part No.4 Wire · Part No.CU/AL · AmpsEnclosure · HEnclosure · WEnclosure · DOptional · Grounding KitSplitter · Block Reference
CN4ST273SSCN4ST274SS70/7024.006.005.00CGK225CSBL125T
CN4ST373SSCN4ST374SS70/7036.006.005.00CGK225CSBL125T
CN4ST473SSCN4ST474SS70/7048.006.005.00CGK225CSBL125T
CN4ST2103SSCN4ST2104SS125/12024.006.005.00CGK225CSBL125T
CN4ST3103SSCN4ST3104SS125/12036.006.005.00CGK225CSBL125T
CN4ST4103SSCN4ST4104SS125/12048.006.005.00CGK225CSBL125T
CN4ST6103SSCN4ST6104SS125/12072.008.006.00CGK225CSBL125T
CN4ST2203SS-225/22524.008.005.00CGK225CSBL225
CN4ST3203SSCN4ST3204SS225/22536.008.006.00CGK225CSBL225
CN4ST4203SSCN4ST4204SS225/22548.008.006.00CGK225CSBL225
CN4ST5203SSCN4ST5204SS225/22560.008.006.00CGK225CSBL225
CN4ST6203SSCN4ST6204SS225/22572.008.006.00CGK225CSBL225
CN4ST3403SS-400/40036.0010.006.00CGK400CSBL400
CN4ST4403SSCN4ST4404SS400/40048.0010.006.00CGK400CSBL400
CN4ST5403SSCN4ST5404SS400/40060.0010.006.00CGK400CSBL400
CN4ST6403SSCN4ST6404SS400/40072.0010.006.00CGK400CSBL400
CN4ST4603SSCN4ST4604SS600/60048.0010.006.00CGK600CSBL600
CN4ST5603SSCN4ST5604SS600/60060.0010.006.00CGK600CSBL600
CN4ST6603SSCN4ST6604SS600/60072.0010.006.00CGK600CSBL600
