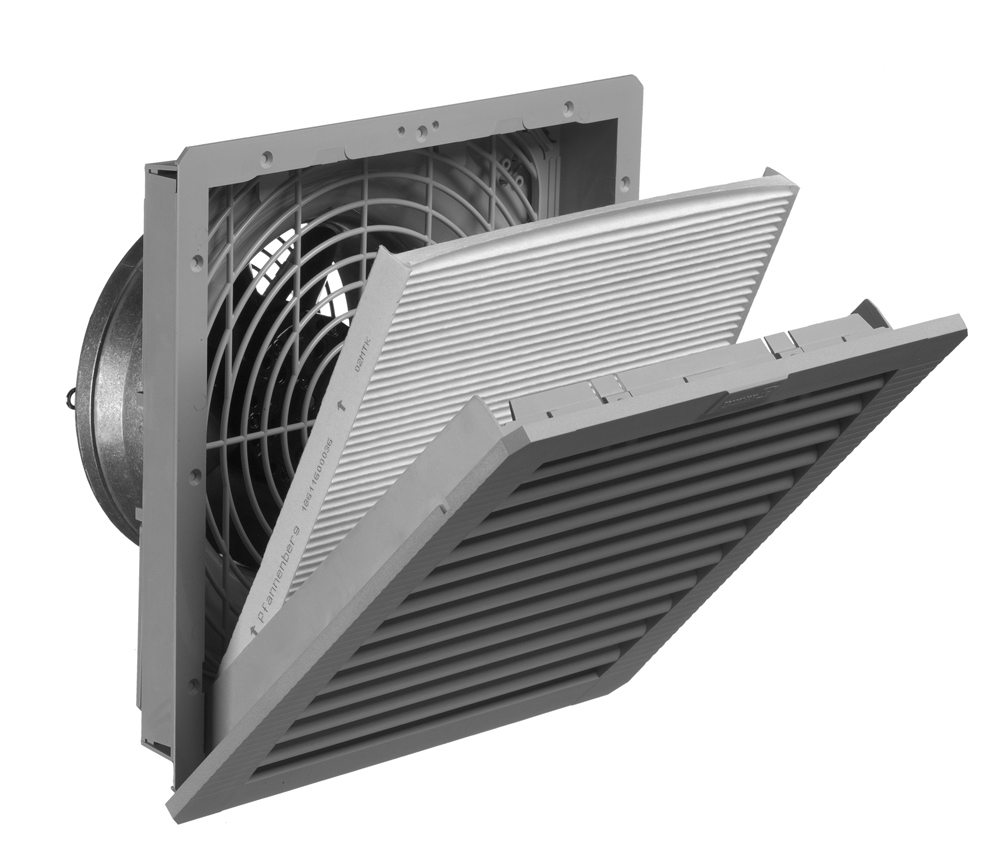

94-169 CFM Filterfans PF GEN4 Series

94-169 CFM Filterfans · PF GEN4 Series

Brand: Hammond Manufacturing · 10 part numbers

Type 12

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Plastic made from strong, heat resistant ABS-FR, UL 94 V0 fire approved material
  • ■Fan Motor is CSA Approved

from $67.72

7 of 10 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your PF GEN4 Series part number

Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

13 of 13 part numbers · 6 priced online

PF43000T12BK

169 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 40W
$290.49In stock
Buy now
PFA40000BK

10" Exhaust Filter T12

  • Voltage 24V DC
  • Power 12W
$67.72In stock
Buy now
PF42500T12BK230

94 Cfm Filter Fan T12

QuoteRequest a quote
Dimension tables (inches / mm)
RAL7035 · Light GrayPart No · RAL9011 · BlackVoltagePowerExhaust Filter · RAL7035 · Light Gray (Part No.)Exhaust Filter · RAL9011 · Black (Part No.)PriceOrder
PF42500T12LG230230V AC18WPFA40000LGPFA40000BK$233.12In stockPF42500T12LG230Buy now
PF42500T12BK2424V DC5WPFA40000LGPFA40000BK$67.72In stockPFA40000LGBuy now
PF43000T12LGPF43000T12BK115V AC40WPFA40000LGPFA40000BK$290.49In stockPF43000T12BKBuy now
PF43000T12LG230PF43000T12BK230230V AC39WPFA40000LGPFA40000BK$317.34In stockPF43000T12LG230Buy now
PF43000T12LG24PF43000T12BK2424V DC12WPFA40000LGPFA40000BK$374.09In stockPF43000T12BK24Buy now
Airflow dataPF 42500PF 43000PFA 40000PriceOrder
Filter materialNEMA Type 12 FiltermatNEMA Type 12 FiltermatNEMA Type 12 FiltermatQuoteQuote
Unimpeded airflow94 CFM169 CFM-QuoteQuote
Capacity free-flow53 W/KI88 W/K-QuoteQuote
Airflow in combination67 CFM142 CFM-QuoteQuote
(Filterfan + Exhaust Filter)(PF 42500 + PFA 40000)(PF 43000 + PFA 40000)-QuoteQuote
Capacity in combination38 W/K69 W/K-QuoteQuote
(Filterfan + Exhaust Filter)(PF 43000 + PFA 40000)(PF 43000 + PFA 40000)-QuoteQuote
Max. static pressure (Airflow = 0 m3/h)49 Pa112 Pa-QuoteQuote
Filtration efficiency0.910.910.91QuoteQuote
Filter material gradeG 4 (DIN EN 779)G 4 (DIN EN 779)G 4 (DIN EN 779)QuoteQuote
Duty cycle11-QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Technical dataPF 42500 · AC/DCPF 43000 · AC/DCPFA 40000PriceOrder
Outside dimensions in mm252 x 252 x 97252 x 252 x 113252 x 252 x 38QuoteQuote
(height x width x installation depth)QuoteQuote
Bearing type / Lagerartball bearingsball bearings-QuoteQuote
Fitting position / Einbaulageany, horizontal airflow preferredany, horizontal airflow preferredanyQuoteQuote
Constructionhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOQuoteQuote
Weight1.18 kg1.67 kg0.46 kgQuoteQuote
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001QuoteQuote
Color LGRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyQuoteQuote
Color BKRAL9011 BlackRAL9011 BlackRAL9011 BlackQuoteQuote
Connections / Anschlussartcage clampcage clamp-QuoteQuote
Noise Level (EN ISO 3741)43 dB (A)46 dB (A)QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Supplementary dataPF 42500PF 43000PFA 40000PriceOrder
Operating temperature– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)QuoteQuote
Storage temperature– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)QuoteQuote
Max. relative humidity0.90.90.9QuoteQuote
System of protectionNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedQuoteQuote
Basic Accessoriesparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatparts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostatQuoteQuote
ApprovalsUL RecognizedUL RecognizedUL RecognizedQuoteQuote
* Tolerance installation cutout223 + 1/-0 thickness of material to 2 mm223 + 1/-0 thickness of material to 2 mm223 + 1/-0 thickness of material to 2 mmQuoteQuote
224 + 1/-0 thickness of material > 2 mm < 3 mm224 + 1/-0 thickness of material > 2 mm < 3 mm224 + 1/-0 thickness of material > 2 mm < 3 mmQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Plastic made from strong, heat resistant ABS-FR, UL 94 V0 fire approved material
  • ■Fan Motor is CSA Approved

Documents

Specification SheetReversing Filter Fan AirflowPF Manual
